Wireless RF Remote Control Light Switch 10A Relay Output Radio DC 9V 12V 24V 1 CH Channel 1CH Receiver Module +Transmitter
Planet Gates
€15.50 EUR
Description
Specifications:
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.
1.Transmitter
Channel: 2 CH
Remote Control Distance:0-50m
Encode: EV1527
Frequency:315 or 433 MHz
Size: 55mm x 30mm x 13mm
Power Supply: 2 X CR2016 3V Lithium Battery (NOT included)
2.Receiver

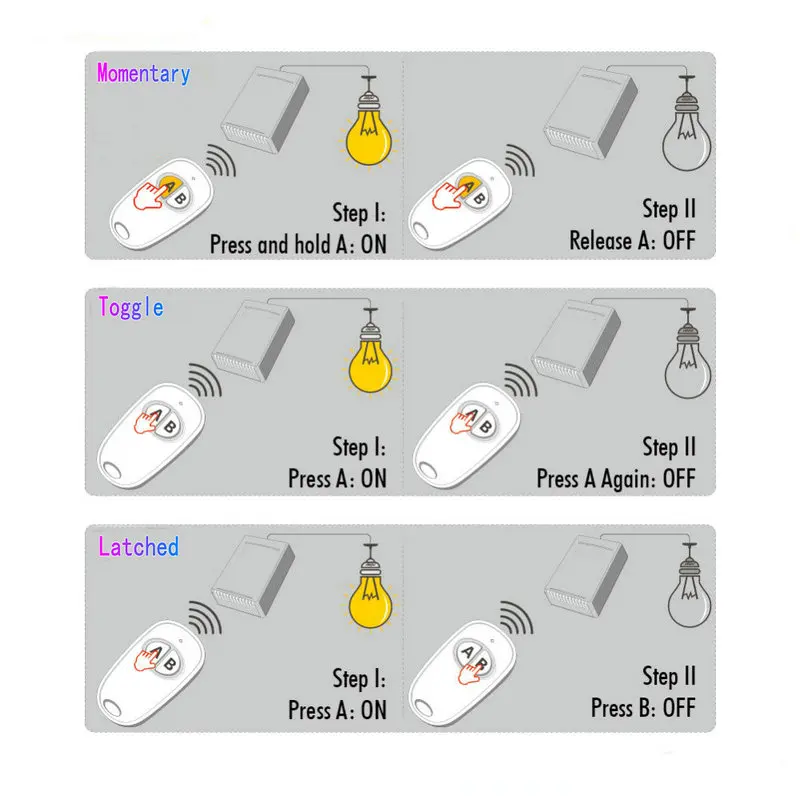

1)Toggle/Self-Lock: Press->On; Press again->Off
press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/Inter-Lock: Press->On; Press other button->Off
press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )

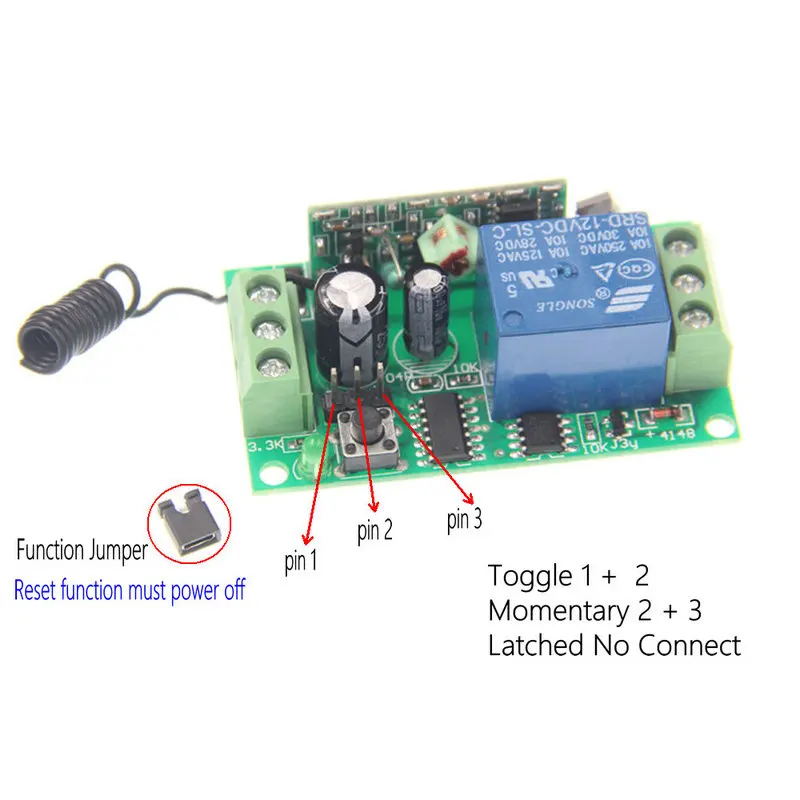

(Original Setting is Latched,Change it by yourself.)
Decode: Fixed code, soldering

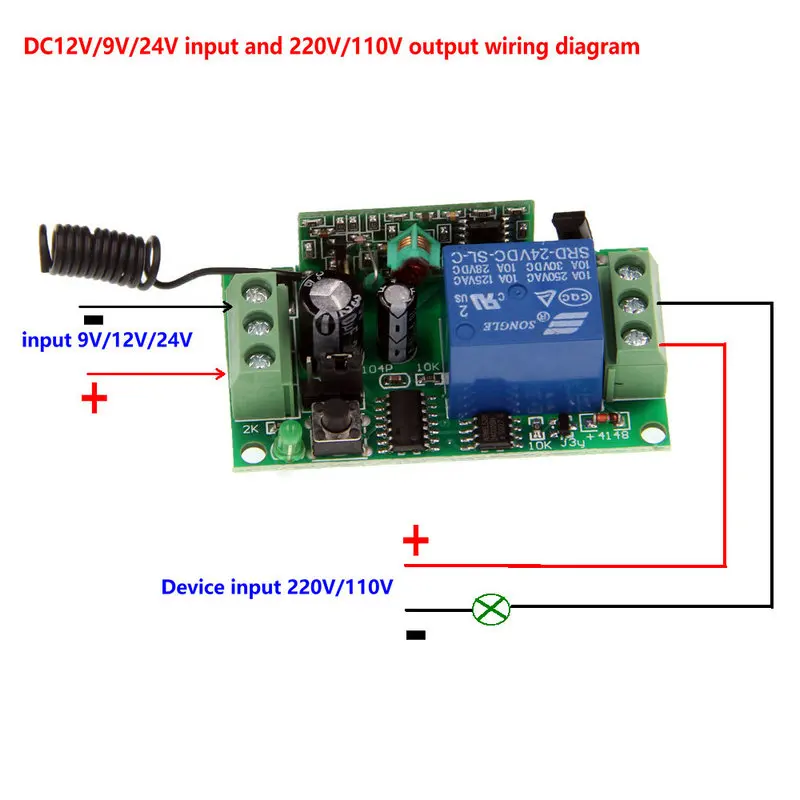

Power Supply (Operating Voltage): DC 12V / 24V / 9V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Work Voltage Range of Relay: AC 110-240V or DC 0-28V
Operating Temperature:-40‘C - 80’C
3.Package Included
0/1 x Receiver (with cover)
1/2/4 x Transmitter (without Battery)
4.Learn code and Remove Code
Learn: input DC 9V/12V/24V to the receiver,the green indicator turns ON and last 3 seconds then turns OFF.Then press the learning button ,the green indicator turns ON,then press the transmitter key,the green indicator turns OFF. it means learning successfully.
Remove:keep pressing the learning button on the receiver until the green indicator turns ON >OFF>ON,it means the code is cleared successfully.
