Specifications:

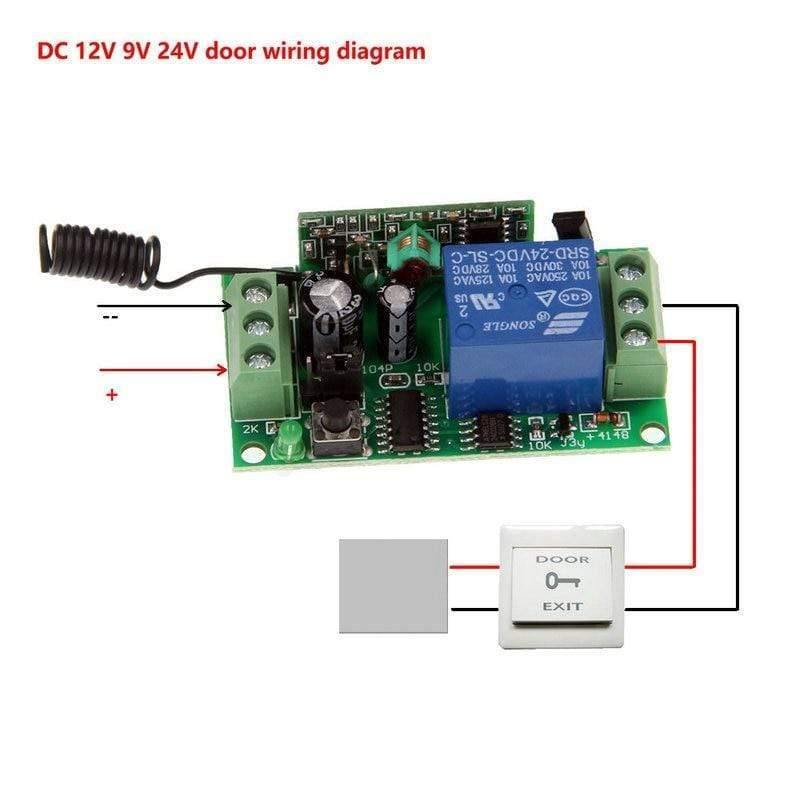

Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

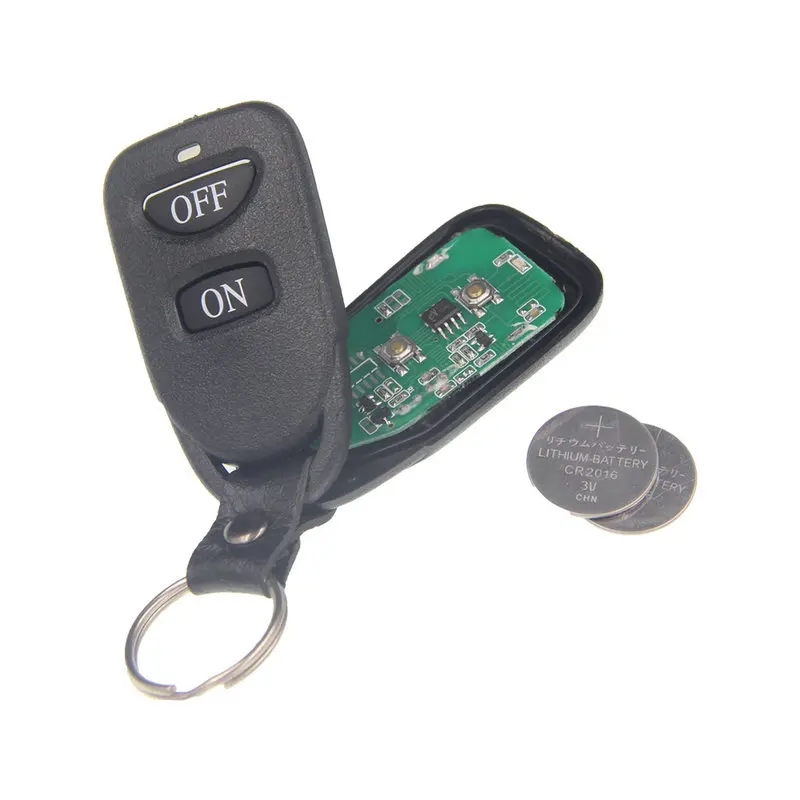

1.Transmitter

Channel: 2 CH

Remote Control Distance:0-50m

Encode: EV1527

Frequency:315 or 433 MHz

Size: 55mm x 30mm x 13mm

Power Supply: 2 X CR2016 3V Lithium Battery (NOT included)

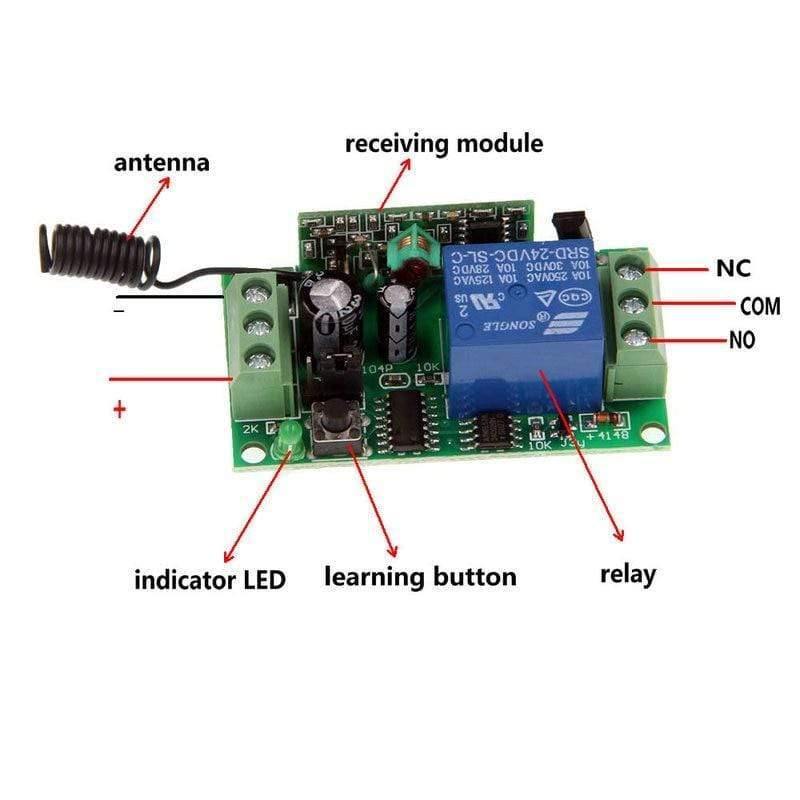

2.Receiver

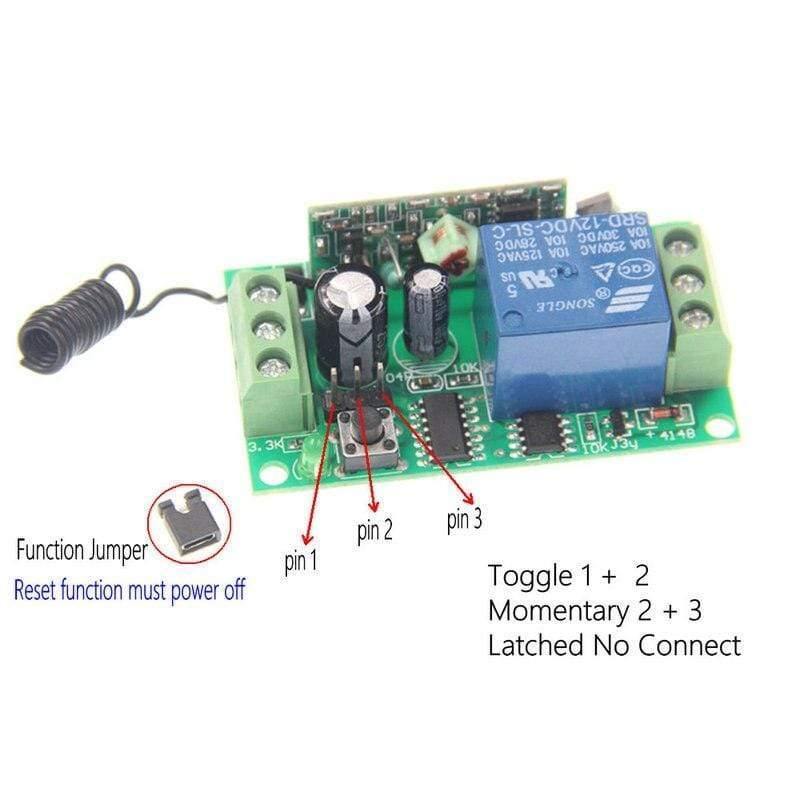

1)Toggle/Self-Lock: Press->On; Press again->Off

press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).

2)Latched/Inter-Lock: Press->On; Press other button->Off

press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).

3)Momentary/Jog: Press and hold->On; Release->Off

Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )

(Original Setting is Latched,Change it by yourself.)

Decode: Fixed code, soldering

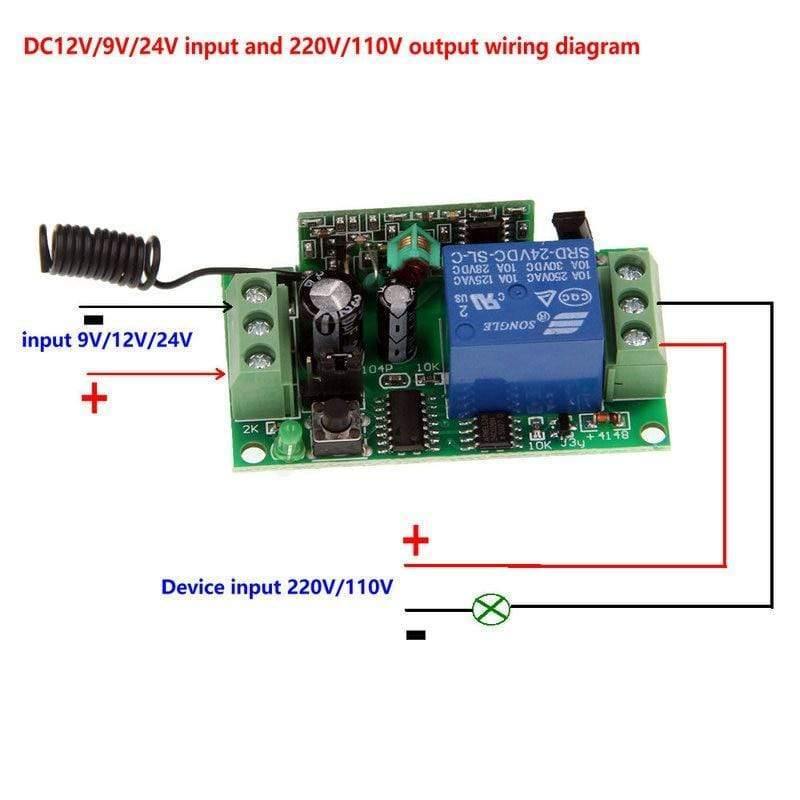

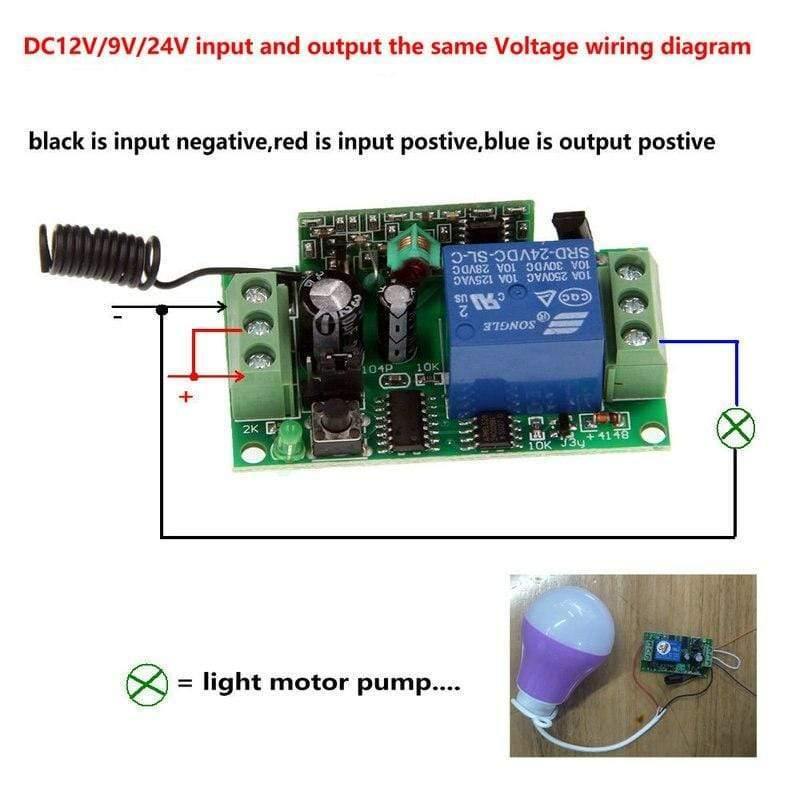

Power Supply (Operating Voltage): DC 12V / 24V / 9V

Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC

Work Voltage Range of Relay: AC 110-240V or DC 0-28V

Operating Temperature:-40‘C - 80’C

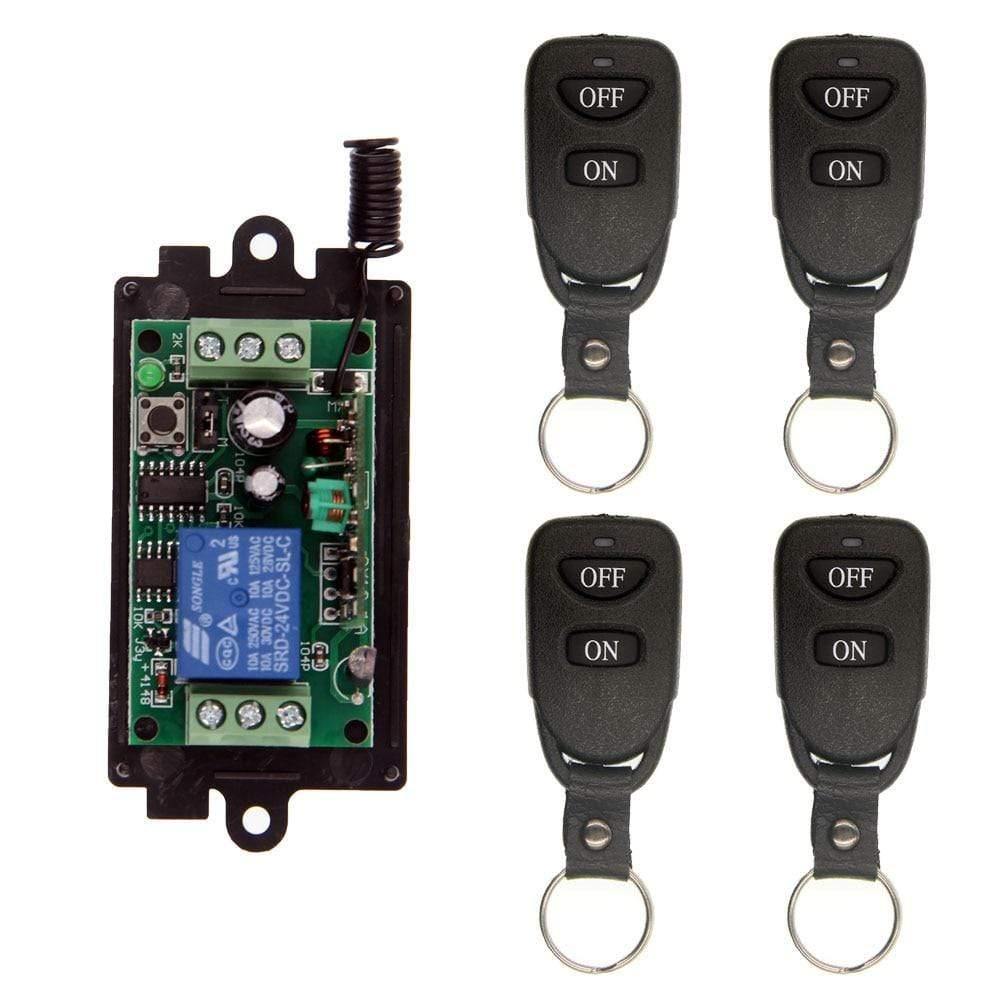

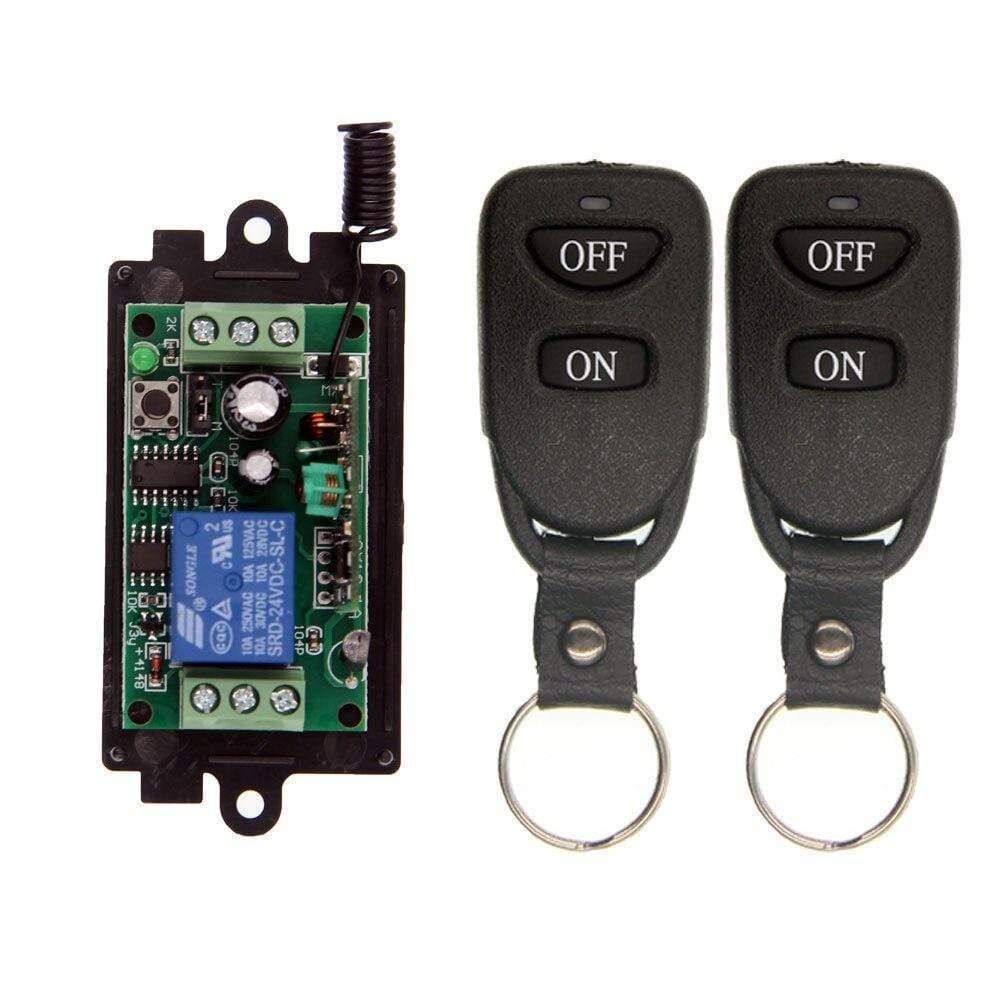

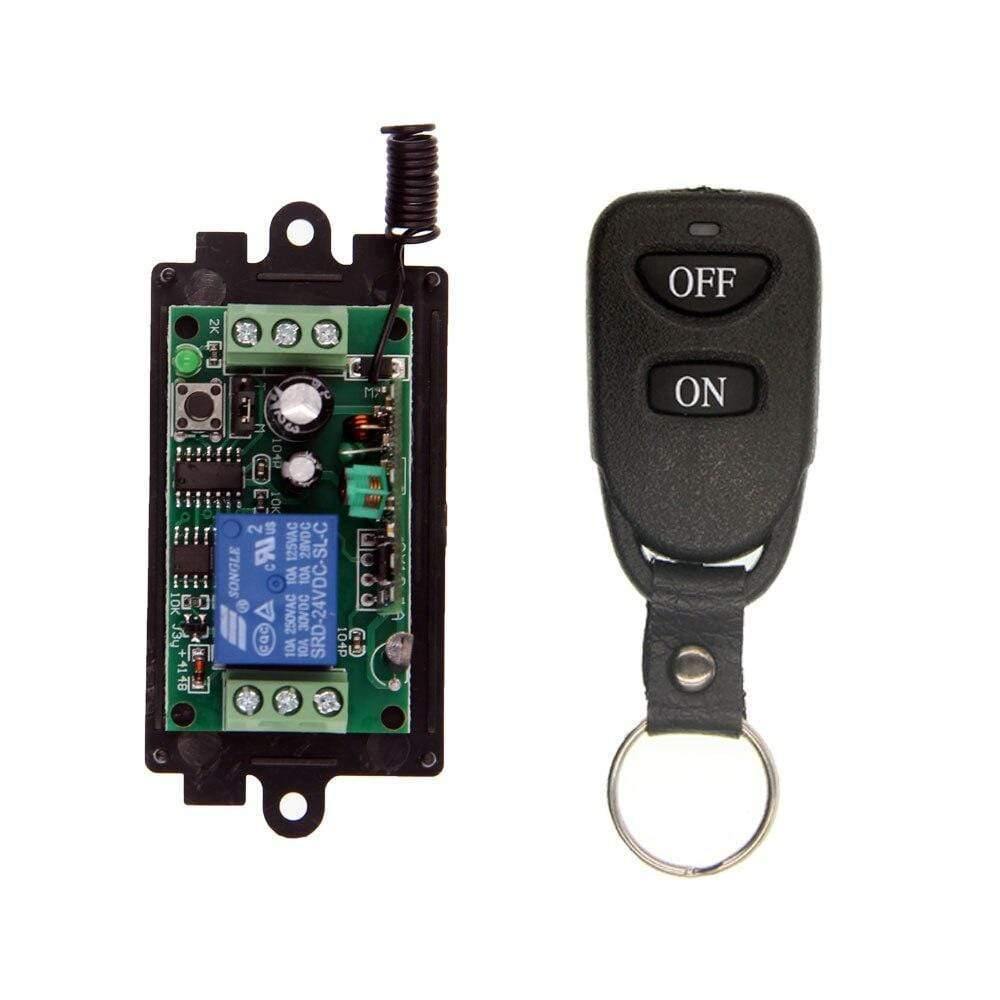

3.Package Included

0/1 x Receiver (with cover)

1/2/4 x Transmitter (without Battery)

4.Learn code and Remove Code

Learn: input DC 9V/12V/24V to the receiver,the green indicator turns ON and last 3 seconds then turns OFF.Then press the learning button ,the green indicator turns ON,then press the transmitter key,the green indicator turns OFF. it means learning successfully.

Remove:keep pressing the learning button on the receiver until the green indicator turns ON >OFF>ON,it means the code is cleared successfully.
