Description
SPECIFICATIONS
Brand Name: UNI-T
Hign-concerned Chemical: None
Origin: Mainland China
Display Size: 2.0 - 3.9 Inches
Certification: CE
Style: Handheld
Color: Red
Image mode: Thermal imaging, fusion, picture-in-picture, visible light
Model: UTI260B
Display: Real Time Transimission
Pixel: 49152
Connection: Type C USB

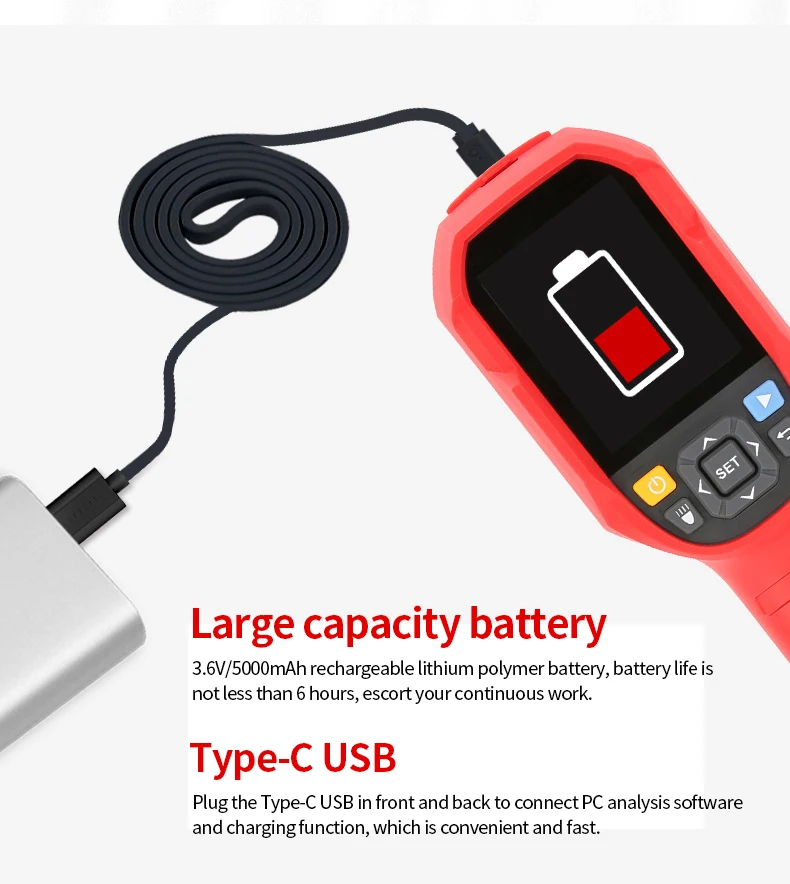

Power: Rechargable lithium battery

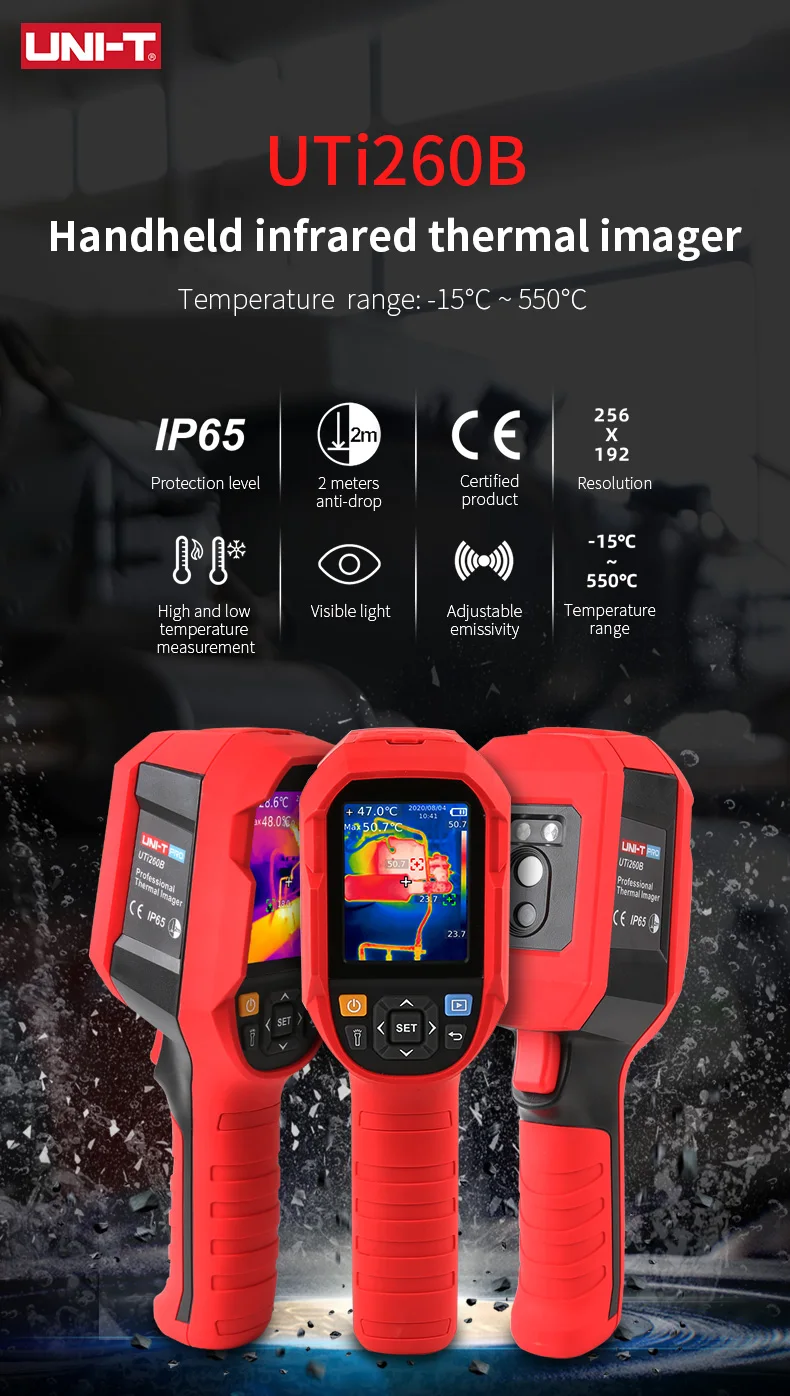

UTi260B Heavy Duty Thermal Camera
UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.

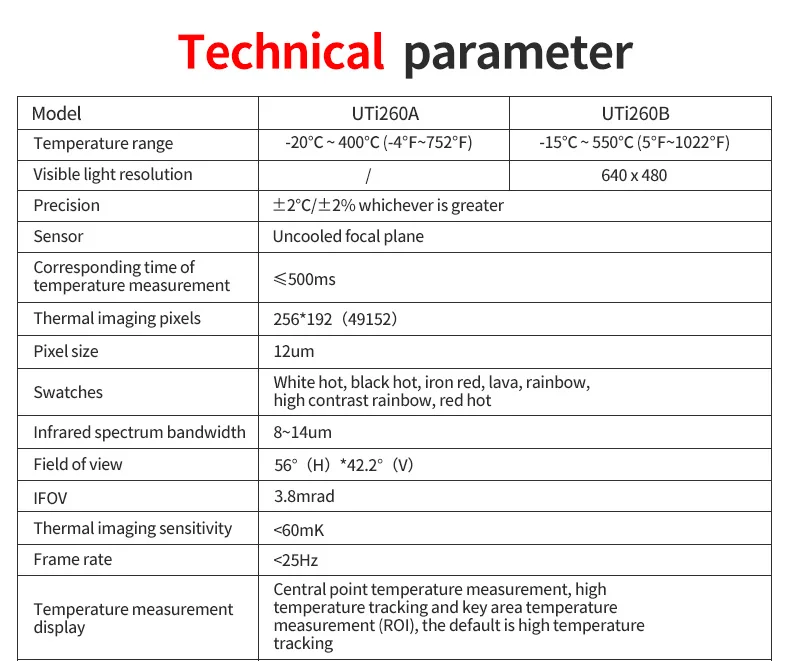

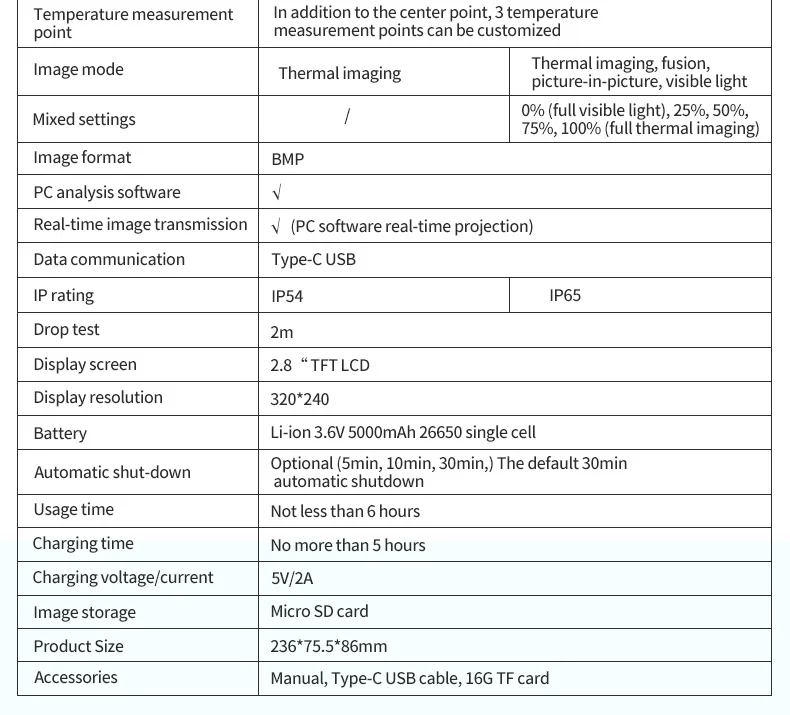

Technical Parameter
1.Temperature measurement range: -15℃ ~ 550℃/(5℉~1022℉)
2.Temperature measurement accuracy; ±2℃/±2% whichever is greater

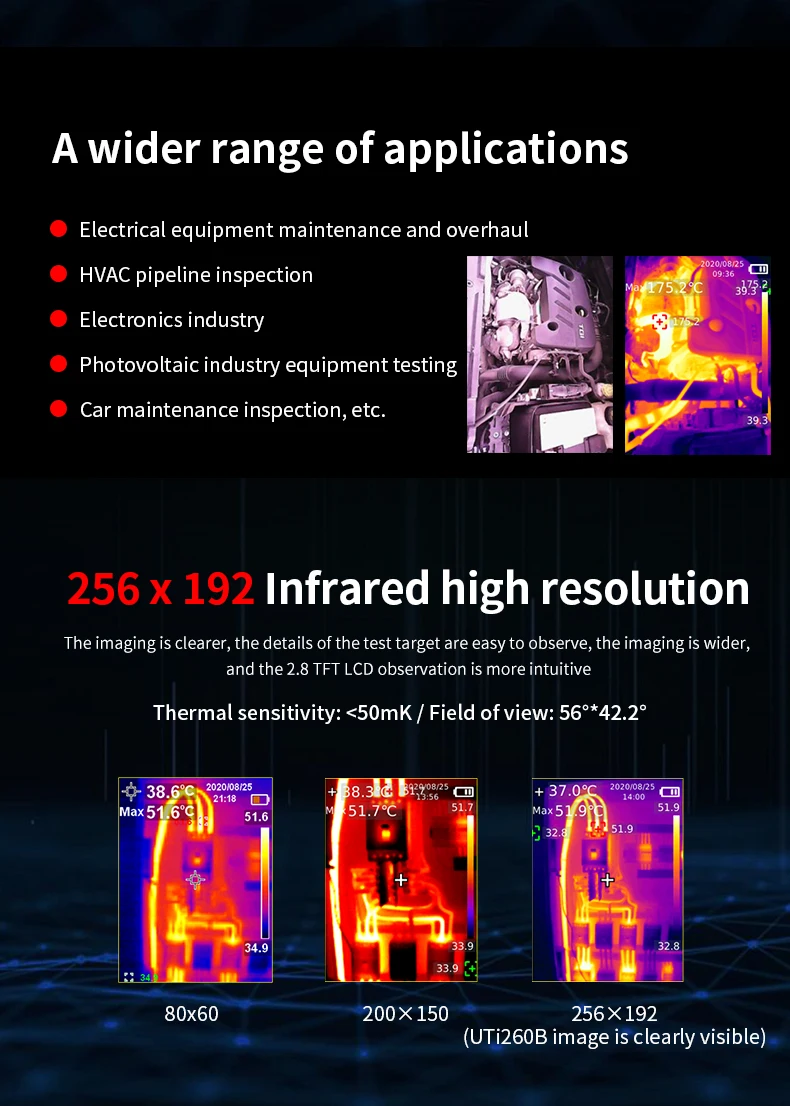

3.Thermal imaging pixels: 256 x 192 (49152)
4.Visible light lens: 640 x 480(Only UTI260B)

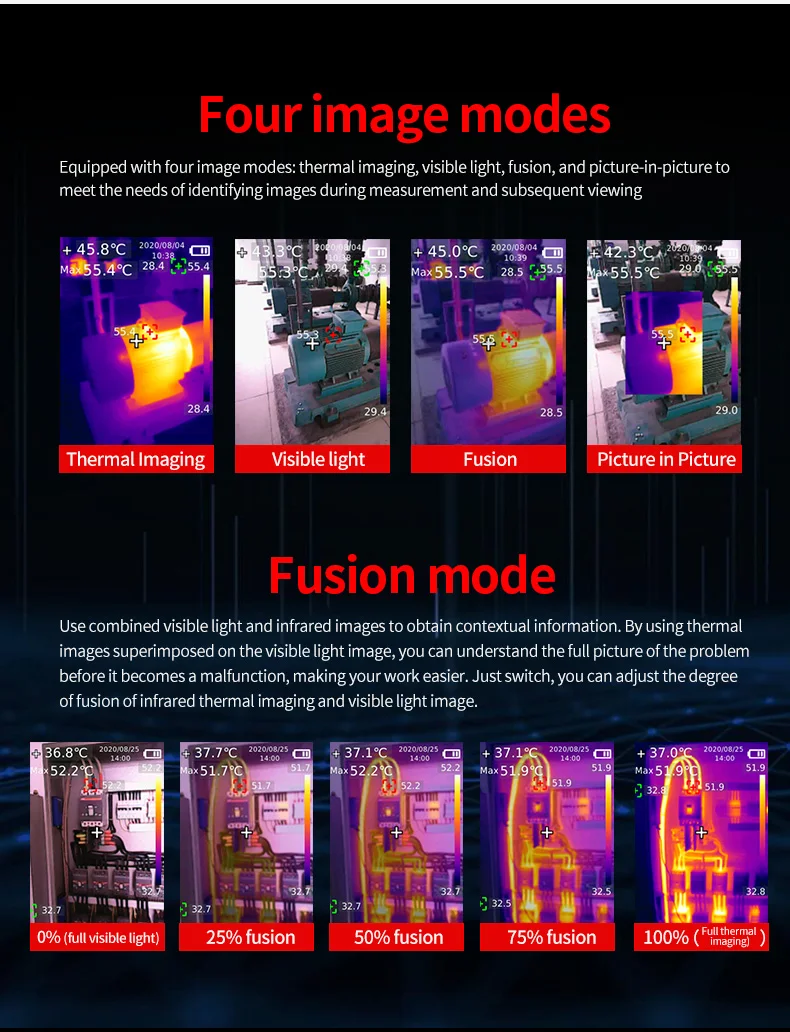

5.Image mode: thermal imaging, thermal fusion, picture-in-picture, visible light

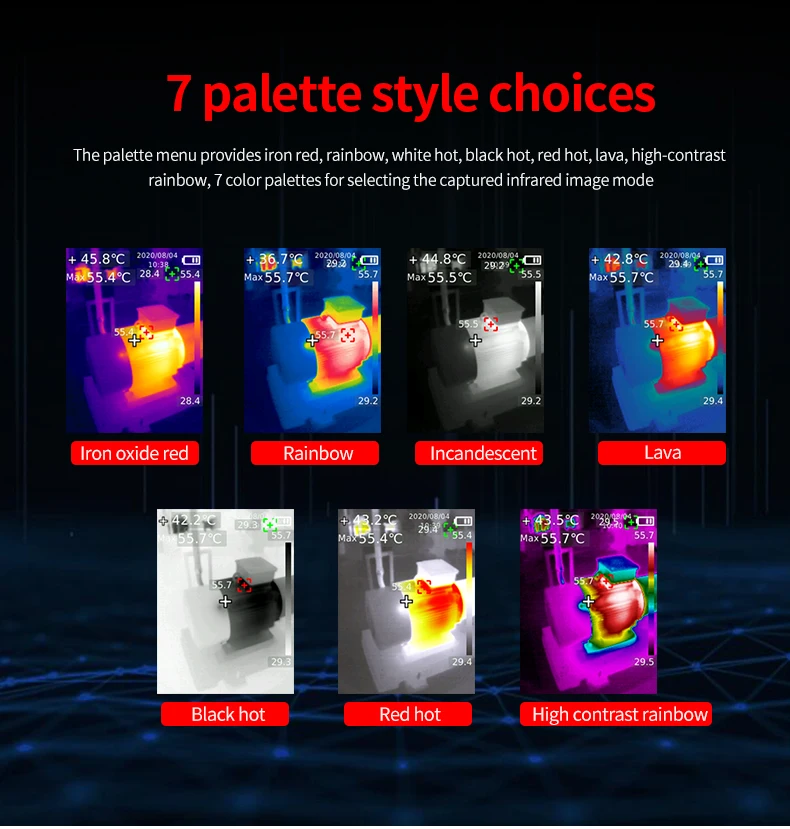

6.Seven color palettes: white hot, black hot, iron red, lava, rainbow, high contrast rainbow, red hot

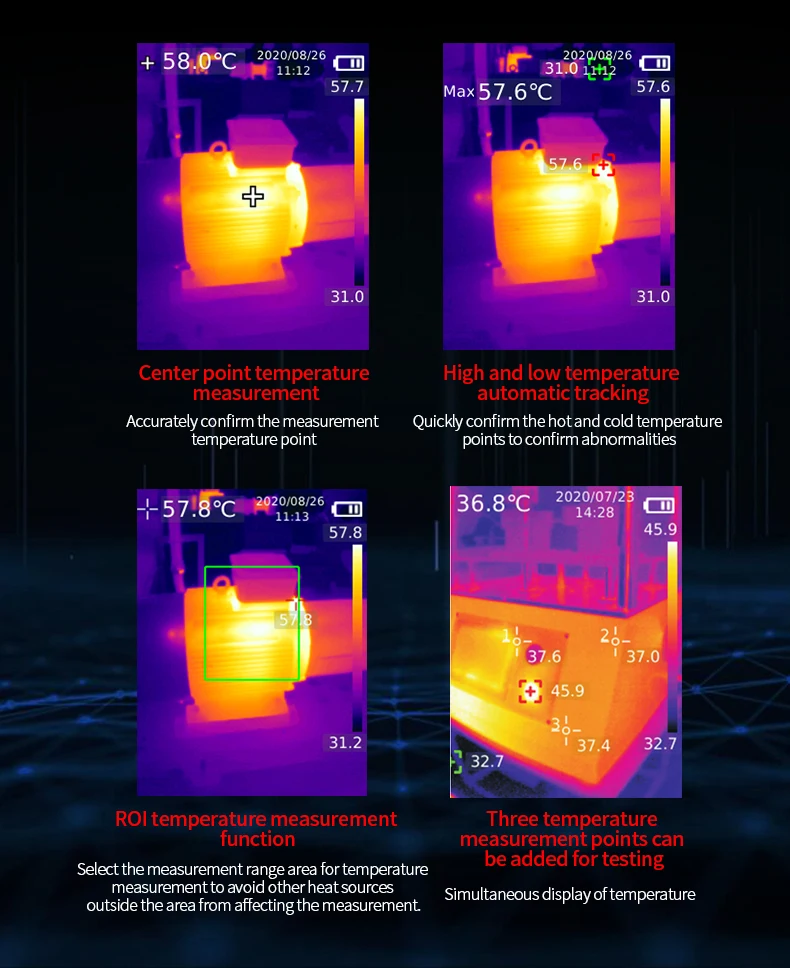

7.In addition to the center point, 3 temperature measurement points can be customized, including center point temperature measurement, high and low temperature tracking and key area temperature measurement (ROI)

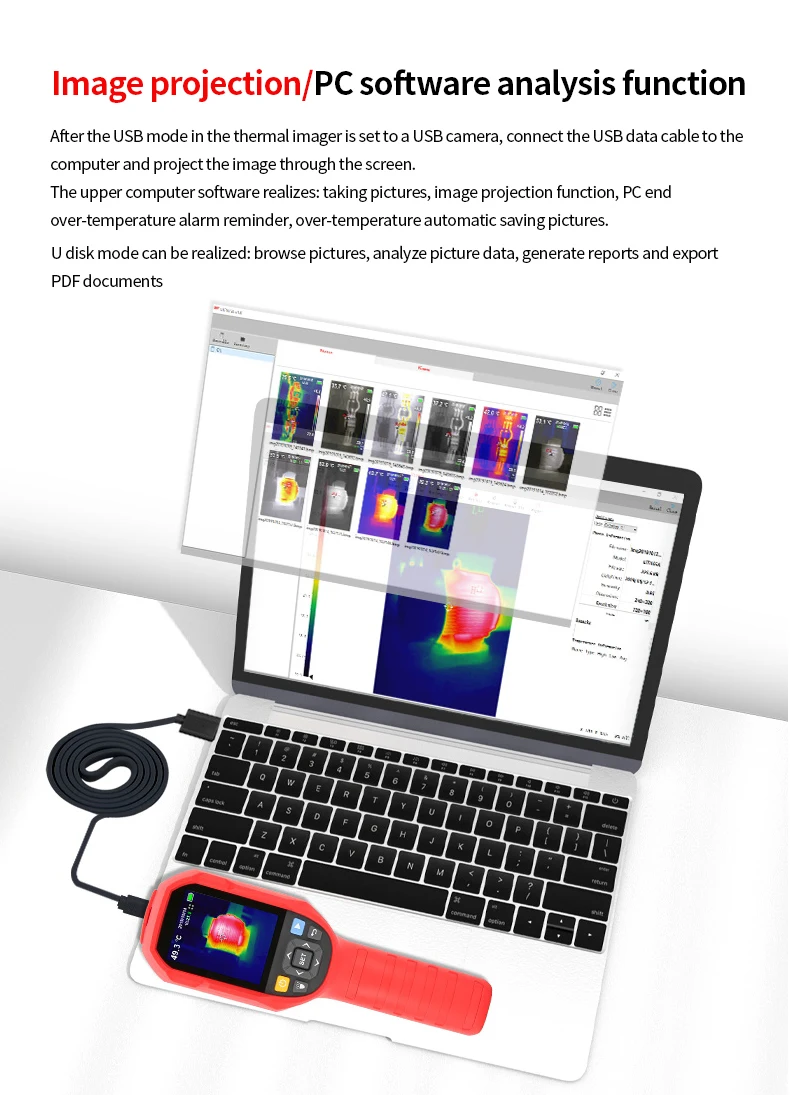

8.PC analysis software, real-time image transmission
9.LED fill light, LED alarm
10.IP65 protection level, 2-meter drop test
