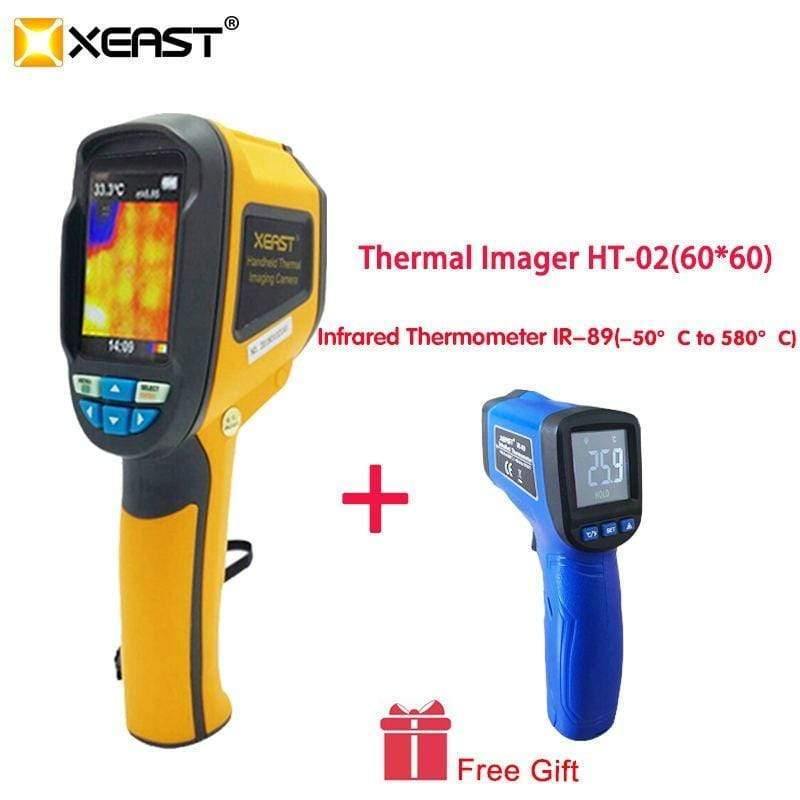

2019 Hot Sales Handheld Thermal Imaging Camera HT-02 Portable IR Thermal Imager Infrared Imaging Device

HT-02 is a thermal Imaging Camera which combines the functions of surface temperature measurement and real-time thermal imaging the traditional thermal imaging Camera shall measure each component one by one but this instrument does not need to.Therefore,it helps to save our customers'time.Even the potential problems can be clearly displayed on the color screen which helps customers quickly locate the central point to measure cursor and temperature.

FAQ:

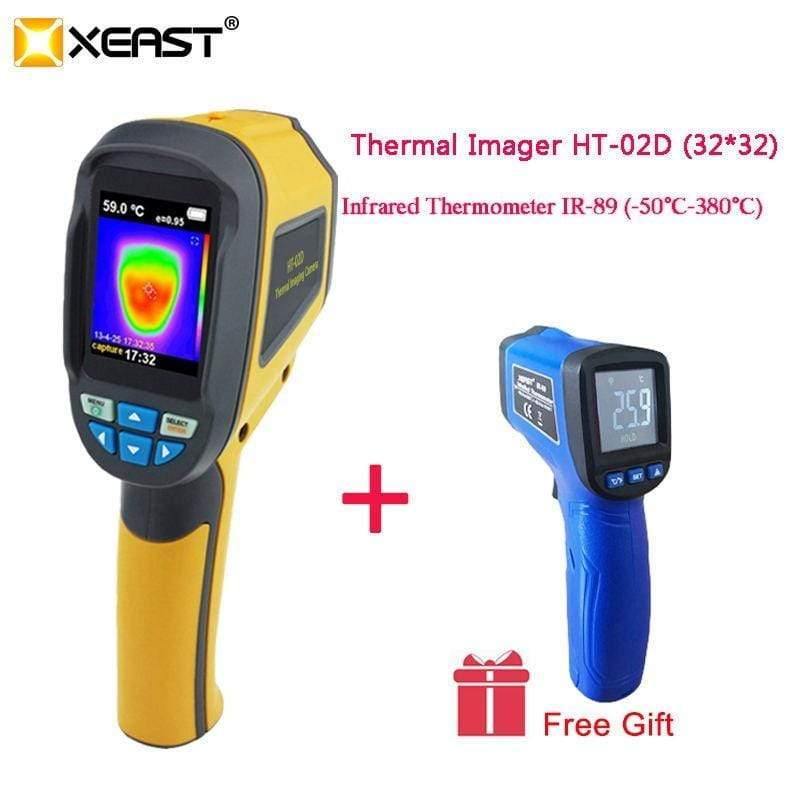

1. Q:What's the difference between HT-02 and HT-02D?

A: They just enjoy different resolution,HT-02 comes with 60*60,but HT-02D just comes with 32*32,other functions are the same.as well as the model,thanks.

2. Q: There was a problem with the device. I insert 4re charged batteries, but when turned on the device writes a low level of charge and turns off. I tried both batteries and batteries. batteries recharged, but still writes "low charge" and turns off.

A:Make sure you use alkaline but not rechargeable battery(or carbon-zinc battery). as you know the usual alkaline AA is 1.5 V, 4 pcs can reach 6v, the boot is not a problem, but if you use a rechargeable battery, each piece just has 1.2V, 4 pieces just reach 4.8V which will not enough to turn on the device,thanks.

Features:
1. Infrared thermal imager that can blend the visible and infrared images.
2. Resolution of infrared image/visible image: 3600 pixels/0.3 mega pixels.
3. This infrared imaging device is professional, precision and efficient.
4. For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.
5. Our infrared thermal imager can turn thermal image into visional image, quickly find out the problem area.

Specification:

Display	2.4 inch full viewing angle high-resolution color screen
Resolution:	60 * 60
Total Pixel	3600 pixels
Resolution of visible image:	0.3 mega pixels.
Temperature range	-20℃ to 300℃(-4℉ to 572℉)
Measuring Accuracy	plusmn2% or plusmn2℃(plusmn4℉)
FOV/Shortest Focal Length	20times 20/0.5m
Thermal Sensitivity:	0.15℃
Wavelength Range:	8-14mum
Emissivity	0.1-1.0 Adjustable
Image Frequency	6HZ
Focus Mode	Fixed
Palette	Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)
Vision Option	5 kinds of full infrared to the full visual, mixing visible and infrared.
Image Storage	SD card(4G)
File Format	bmp
Set Control:	Unit Adjustment/Language/Date Time Format/automatic shut down
Battery Type	4 * 1.5V AA battery (Not Included)
Battery Life	6 Hours
Auto Power-off Time	12 Minutes
Authentication	CE, RoHS
Operating Temperature	-5℃ to 40℃ (23℉ to 104℉)
Storage Temperature	-20℃ to 50℃ (-4℉ to 122℉)
Relative Humidity	10%RH to 80%RH
Item Size	21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in
Item Weight	231.2g / 8.2oz
Package Size	27 * 19 * 11cm / 10.6 * 7.5 * 4.3in
Package Weight	927g / 32.7oz
Package Lists	1 * Thermal Infrared Imager 1 * SD Card(4G) 1 * User Manual 1 * Drop Resistance Rope 1 * Protection bag

View More ‎ 111

02-1 产品细节图

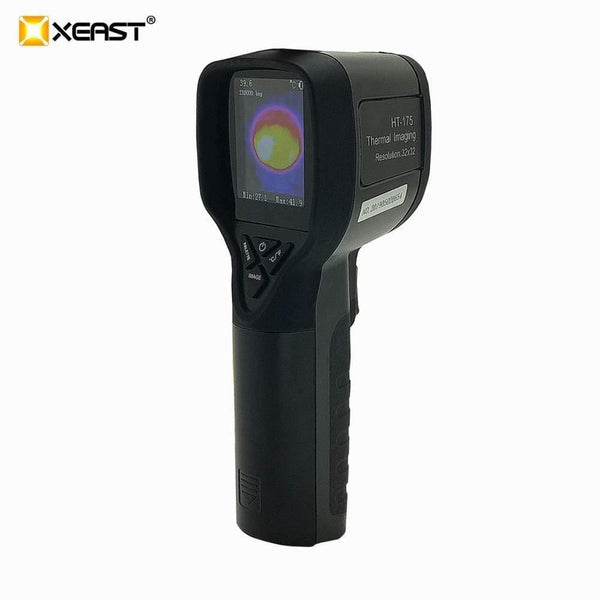

2019 best-selling HD sensitive fast handheld infrared thermal imager HT-175 color screen digital infrared thermal imager

Specification:

Plug type: EU Plug, US Plug (optional)
Display: 2.0 color screen
Measuring range: -20 °C ~ 300 °C
Measurement accuracy: ±2%/±2°C
Field of view: 33°x33°
Focusing mode: Fixed
Frame rate: 5Hz ~ 6Hz
Wavelength range: 8-14um
Infrared image resolution: 32 x 32
Photo resolution: 176x220
Photo format: bmp
Storage space: 16MB
Palette: Iron red, white hot
Battery model: 18500 (not included)
Working voltage: 3.4 ~ 4.2V
Working temperature: 0 °C ~ 50 °C
Storage temperature: -10 °C ~ 50 °C
Humidity: <85% RH
Size: approx. 165*69*60cm/64.96*27.17*23.62in
Weight: approx. 540g

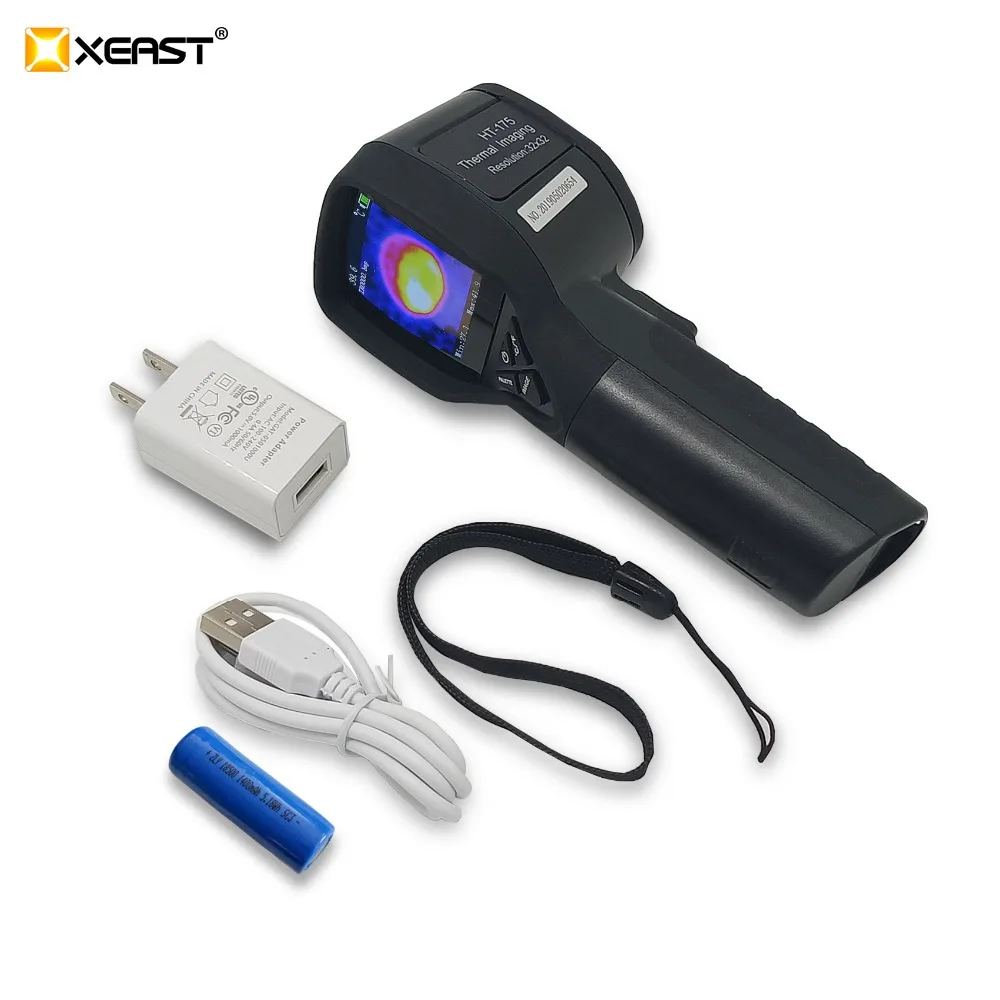

Package list:
1 * Thermal Imaging Camera (batteries are NOT included)
1 * Adapter
1 * UBS Cable
1 * User Manual

HT-175素材

HT-175左面包装-4

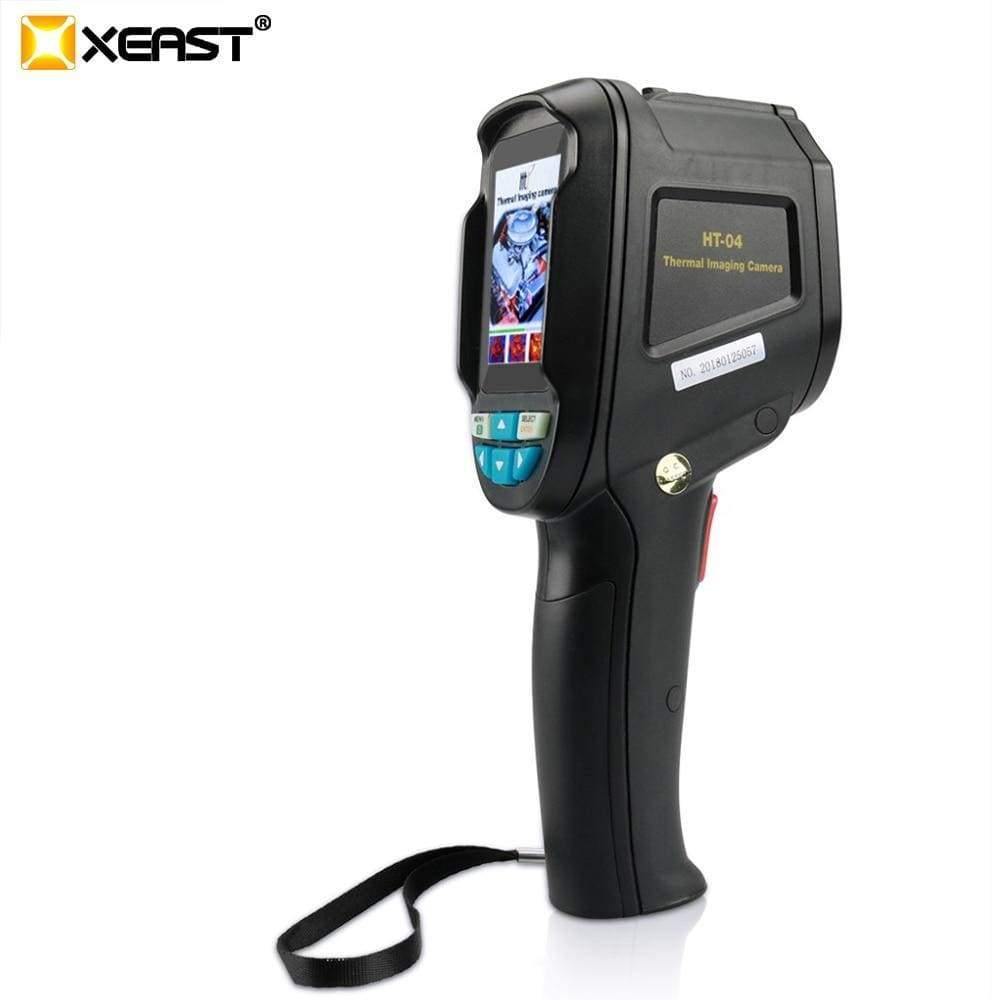

Hot sale 2019 new ultra clear high sensitivity infrared thermometer handheld infrared camera HT-04 portable infrared camera HT04 220×160

Specification:

Display screen: 2.4'' full-color screen
Infrared image resolution: 220×160
Total pixel: 35200
Thermal sensitivity: 0.07°
Temperature measurement range: -20~300°(-4°~572°)
Measurement precision: ±2.5° or ±2.5%
Wavelength coverage: 8-14um
Field angle/shortest focus length: 27°×35°/0.5m
Emissivity: Adjustable from 0.1 to 1.0
Focus mode: Fixed
Color palette: Rainbow, iron oxide red, cold color, black & white, white & black
Image storage: SD Card (4G)
Image format: JPG
Setting control: Unit adjustment of localization/ language/ date time version/automatic power off
Battery type: No.5 AA battery ×4(not included)
Battery service life: 2 hours
Power-off time: 5 mintues/20 minutes/ not power off automatically
Vibration resistance: 2G, IEC, 60068-2-6
Anti-dropping: 2M
Size: 212×95×62mm
Weight: 320g
Work temperature: 0° to 50°
Storage temperature: -40° to 80°
Humidity: <85RH

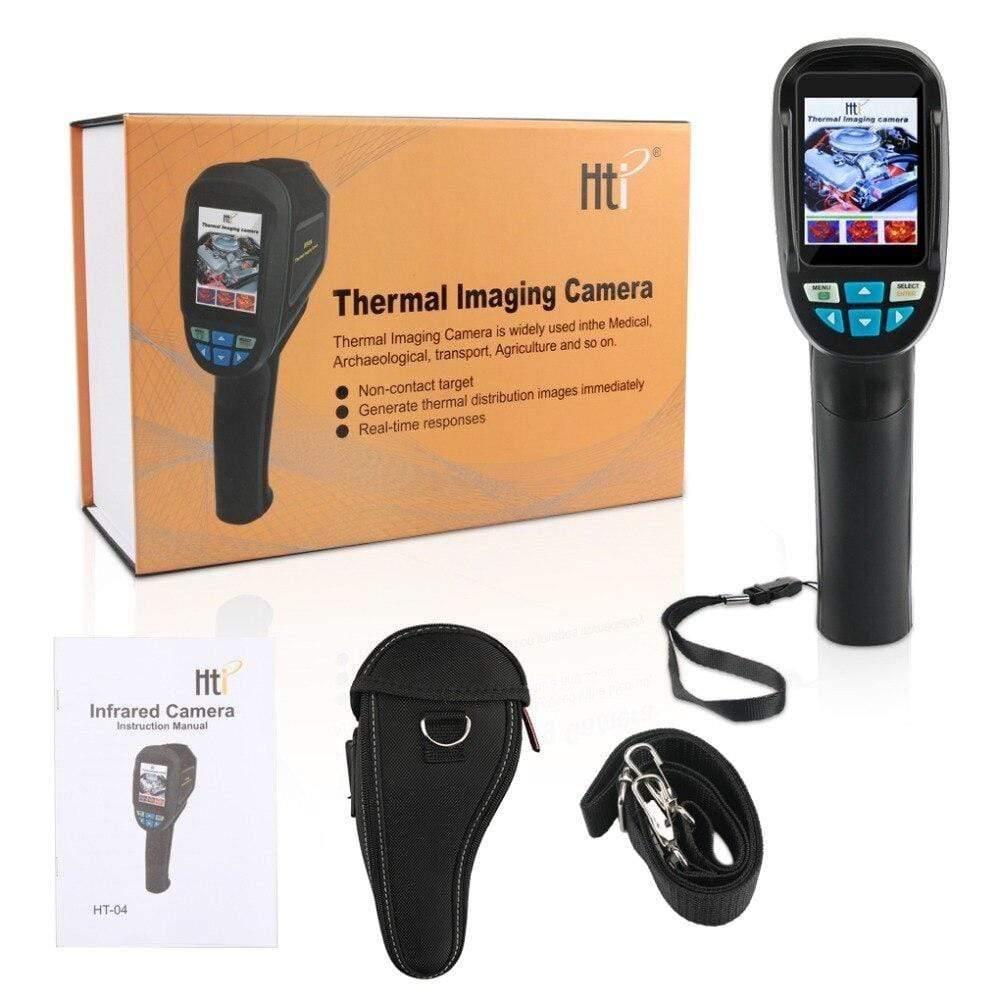

Package Includes:
1 x infrared temperature detector
1 x cable
1 x user manual
1 x carry pouch
1 x carry pouch strap
1 x cardboard package box
2018 New Arrival HT-04 2.4'' TFT Infrared Temperature Heat IR Digital Thermal Imager Detector Camera 4G SD Card -20~300 Degree 2

Specification:

18-1 18-2

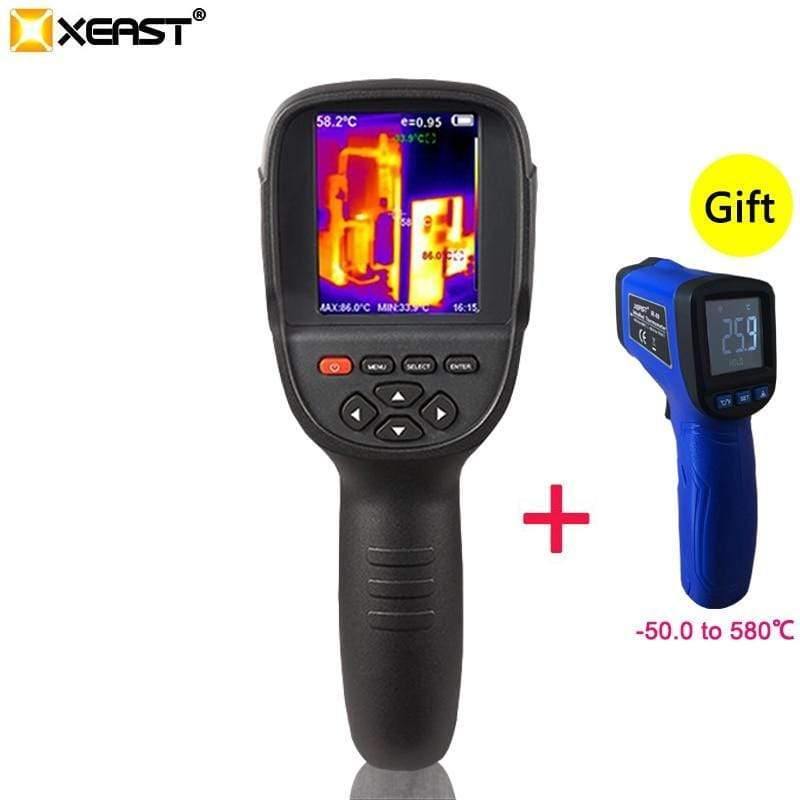

**XEAST New HT-19 320*240 Handheld Infrared Temperature Heat IR Digital Thermal Imager**

Specification:

Model	HT-19
Display:	3.2'' full-color screen
Infrared image Resolution:	320*240
Total Pixel:	76,800 pixels
Visible image resolution:	0.3 mega pixels.
Thermal sensitivity:	0.07deg
Temperature range:	-20℃ to 300℃(-4℉ to 572℉)
Measuring Accuracy:	plusmn2% or plusmn2℃(plusmn4℉)
FOV/Shortest Focal Length:	27degtimes35deg/0.5m
Thermal Sensitivity:	0.5℃
Wavelength Range:	8-14mum
Emissivity:	0.1-10.0 Adjustable
Image Frequency:	8HZ
Focus Mode:	Fixed
Vision Option:	full infrared and full vision Visible image with 25% step length
Image Storage:	SD card(4G)
File Format:	JPG
Battery Supply:	built-in chargeable 18650
USB:	Micro USB2.0
Auto Power-off Time:	5 mintues/20 minutes/ not power off automatically
Authentication:	CE, RoHS
Operating Temperature:	-5℃ to 40℃ (23℉ to 104℉)
Storage Temperature:	-20℃ to 50℃ (-4℉ to 122℉)
Relative Humidity:	10%RH to 80%RH
Item Size:	223times105times90mm
Item Weight:	289g

Package includes:

1 x Infrared Temperature detector

1 x cable

1 x user manual

1 x carry pouch

1 x cardboard package box

O1CN01aLqskF1ntN2IAbyg7_!!3588295147 ht-19-4

size	chest(in.)	waist(in.)	hips(in.)
XS	34-36	27-29	34.5-36.5
S	36-38	29-31	36.5-38.5
M	38-40	31-33	38.5-40.5
L	40-42	33-36	40.5-43.5
XL	42-45	36-40	43.5-47.5
XXL	45-48	40-44	47.5-51.5

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

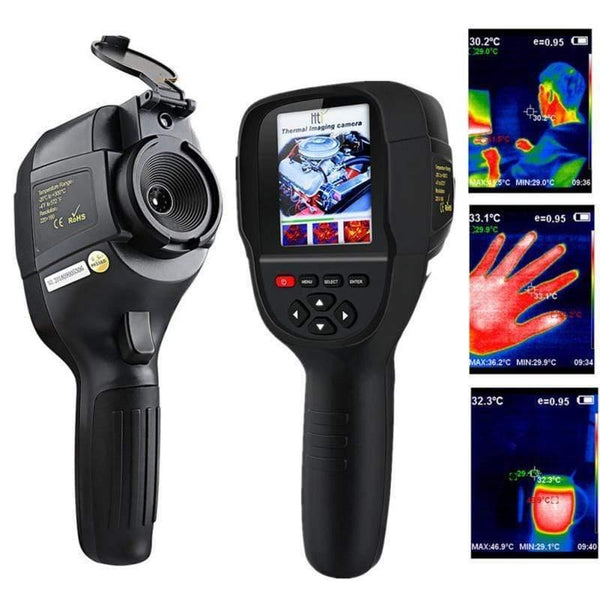

Ultra Clear, Handheld Infrared Camera HT02 / HT-02D / HT175 / HT-04 / HT-18 / HT-19 Series
