Description
SPECIFICATIONS
Brand Name: Samger
Origin: Mainland China
Item Length: 42
Special Features: Bicycle Gas Engine Kit
Item Width: 41
Model Name: 50/80/100cc Bicycle Gasonline Engine Kit
Item Height: 20
Item Type: Kickstarters & Parts
Item Weight: 11.58
No. of Cylinders: 1 Cylinder
Displacement (ml): 3L / 100km
Material Type: Aluminum And Iron
External Testing Certification: ce
Color:: Silver / Black Bicycle Engine Kit
Tank Capacity:: 2L 2-stroke Gasonline Engine
Dear Buyer:
Pls Note we have US/EU/UK/RU Local Warehouse,we will sent you the fast shipping,let you enjoy shopping!
Feature:

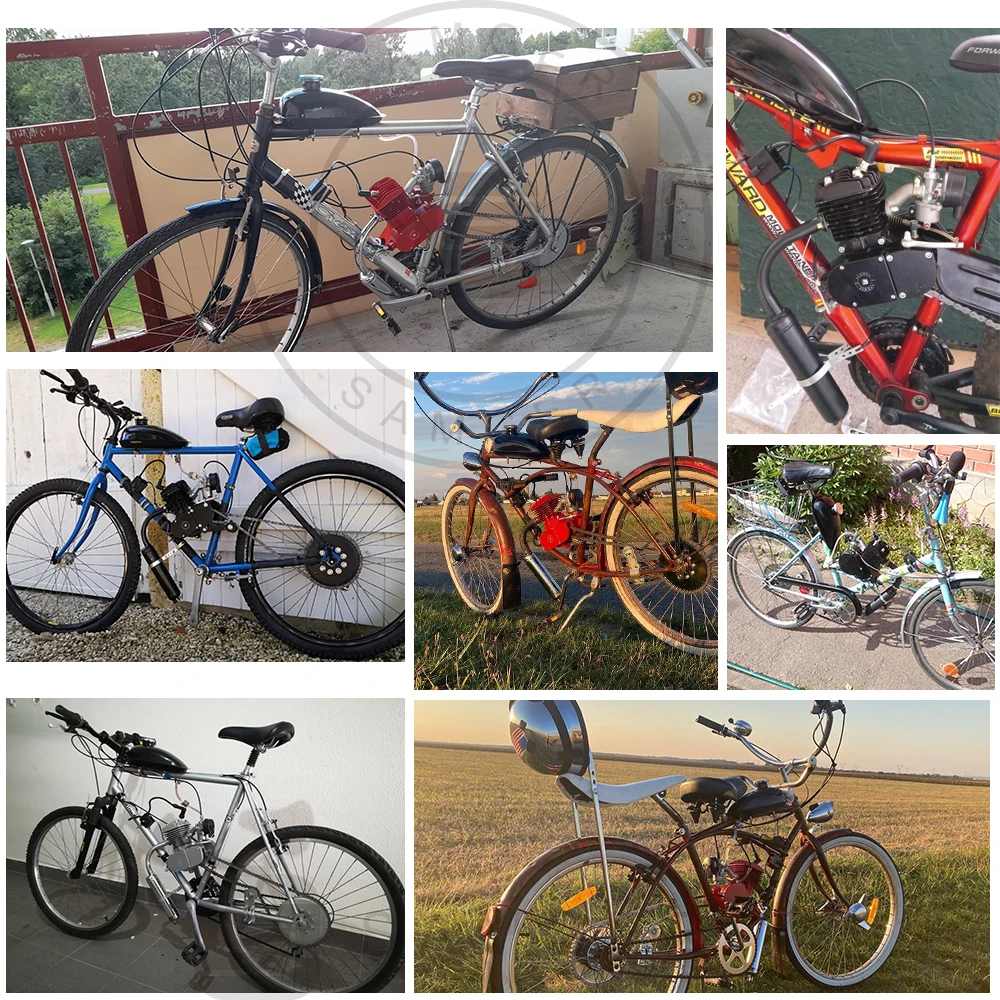

A complete engine kit to convert your bike;
Rugged metal body for durability;
Super efficient fuel, Fast and smooth;
Comes with all the necessary hardware for easy installation;

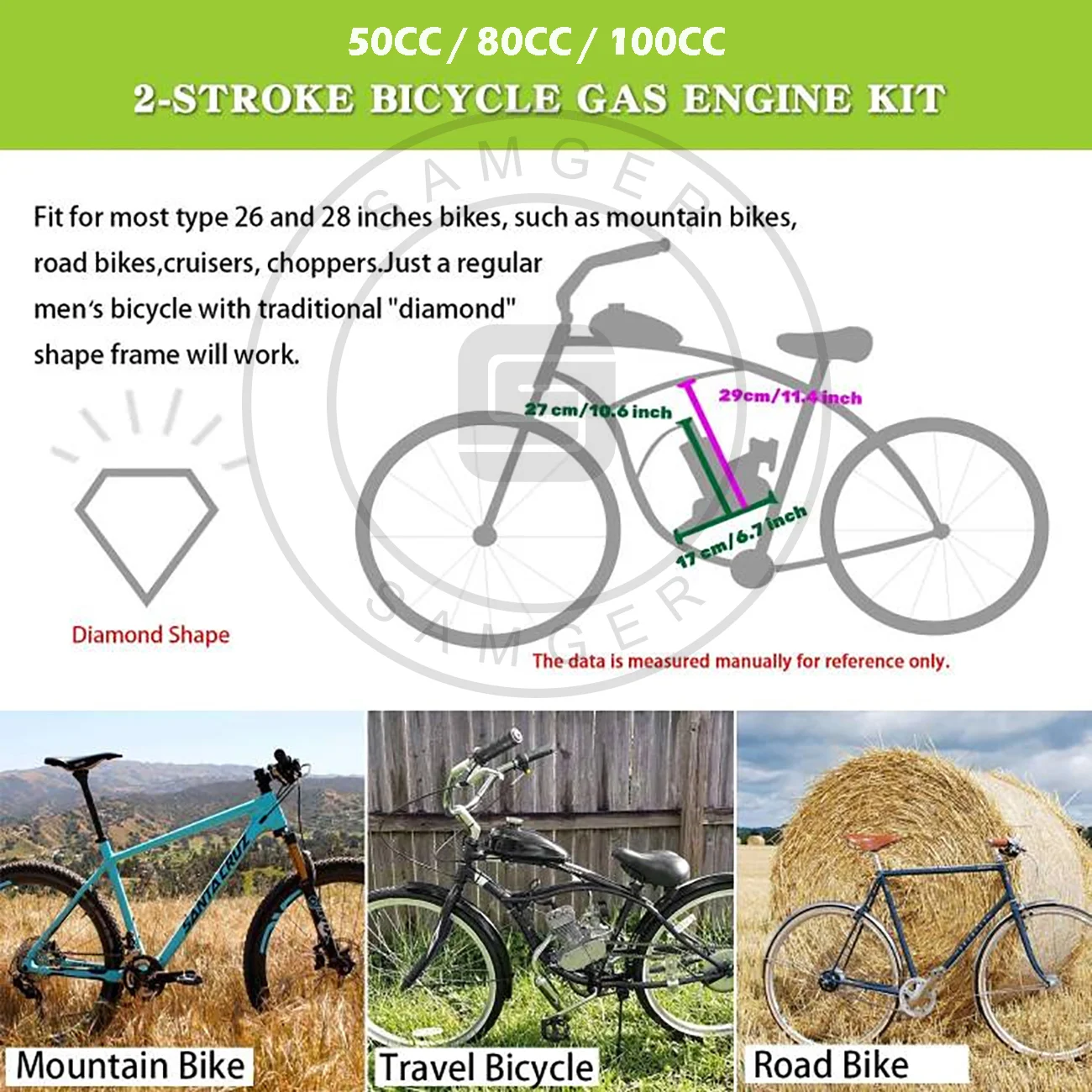

Suitable for most 26 "and 28" regular bicycles, such as mountain bikes, road bikes, cruises, helicopters.
Specification:
Color:Silver / Black / Red
Engine mode: Single cylinder, air cooling, 2 stroke
Power Mode: CDI
Chain Model: 415
Chain Length: 110 links
Compression ratio: 6: 01
Driving Ratio: 18: 01
Tank Capacity: 2L
Type of ignition plug: Z4C 14MM
Clutch Type: friction / dry plate
Cooling mode: Natural air cooling
Start method: Electric/Kick
Cooling Mode:Natural air cooling
[50CC]
Speed limitation: 30km / hour
Oil volume Consumption:1.5L/100km
Bore and stroke:40mm & 38mm
Rated power:1.15KW/5000r/min
Maximum power:1.6KW/6000r/min
[80CC]
Speed limitation: 38km / hour
Oil volume Consumption:2.5L/100km
Bore and stroke:47mm & 40mm
Rated power:2.5KW / 5000r / min (3 horsepower / 5000r / min)
Maximum power:3.5KW / 6000r / min (5-6 horsepower / 6000r / min)
[100CC]
Speed limitation: 50km / hour
Oil volume Consumption:3L/100km
Bore and stroke:49mm & 40.2mm
Rated power:3KW / 5000r / min (4 horsepower / 5000r / min)
Maximum power:3.8KW / 6000r / min (5.5-6.5 horsepower / 6000r / min)
Inlet Manifold Inner Diameter of Central Hole: 14.7 mm / 0.58 inches
Inlet Manifold Overall Length: 57.65 mm / 2.27 inches
Inlet Manifold Overall Width: 54.8 mm / 2.16 inches
Inlet Manifold Outer Diameter: 19 mm / 0.75 inches
Exhaust Outlet Inner Diameter: 21 mm / 0.83 inches
[110CC]
Package included:
1x 50cc/80cc/100cc/110cc 2-stroke engine(Color& Type Depending on your choice)
1x Pinion clamp with hardware
1x Exhaust Muffler
1x button clutch
1x heavy chain
1x bearing / brake chain tensioner
1x Carburetor
1x CD ignition coil
1x Lock switch (on the throttle)
1x Chain Protector
1x Spark Plug
1x Black fuel tank with mounting brackets
1x Exhaust Pipe Clamp
1x plug removal tool
1x Manual
(notes: The kit includes all the parts and instructions necessary to convert your bike.)
Questions:
1.About fuel and oil:
-- The gasoline engine needs to use the mixed mix of gasoline and oil.The oil is used as a lubricant. Without it, the performance and longevity of the motor will be reduced.
-- Fuel Type: No.90
-- Mixing Ratio of Fuel and engine Oil:10:1(Mixing ratio of fuel and engine oil: 16: 1 for new assemblies, 20: 1 after running 500 km)
-- Lubrication Oil: 2-stroke gasoline engine oil (or oil for 10W / 40,10W / 30)
2.About the engine line connection:
-- The white line don't need to connect,it only need to connect blue to blue ,black to black.(White line's function as same as the blue one,but pls note the white line can not connected for the lighting.)
3.Please refer to the manual for further information.If you have any questions,please contact us for the technical solutions.
