Description

SPECIFICATIONS

Brand Name: QIYIDA

QIYIDA Model: x99

Chipset: Intel X99

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 128 GB

Processor compatibility: Intel Xeon

Processor compatibility: Intel 0thers

Processor compatibility: Intel Xeon E Series

With CPU: No

Support Memory Type: DDR4

Number of PCI: 2

Storage Interface Type: SATA 2

Storage Interface Type: SATA 3

Storage Interface Type: M.2 (NVMe)

Package: Yes

RAID Supported: no

Application: Desktop

Chipset Manufacturer: Intel

Back I/O Ports: 1x RJ45

PCI - E standards: PCI - E 3.0

Socket Type: LGA 2011-3

Hign-concerned Chemical: None

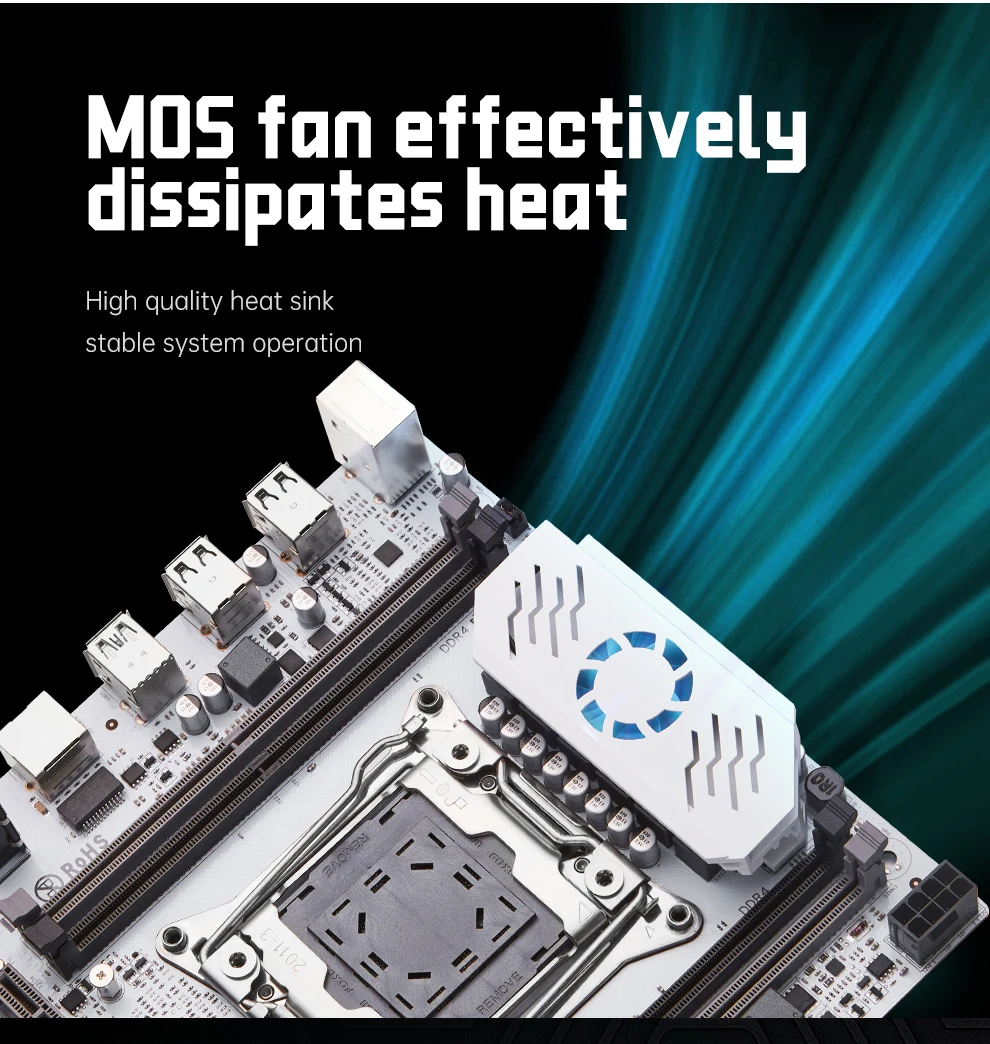

Special Function: Cooling Armor

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Household

Usage Scenario: Office

Usage Scenario: DESIGN

Usage Scenario: Video Production

Usage Scenario: Industrial Computer

Usage Scenario: Workstation

Usage Scenario: Server

Usage Scenario: Scientific Computing

Usage Scenario: 3-D Modeling

Usage Scenario: Video Rendering

Usage Scenario: MaxCompute

Usage Scenario: others

Usage Scenario: HPC

Origin: Mainland China

Number Of Memory Slots: 4

Form Factor: CeB

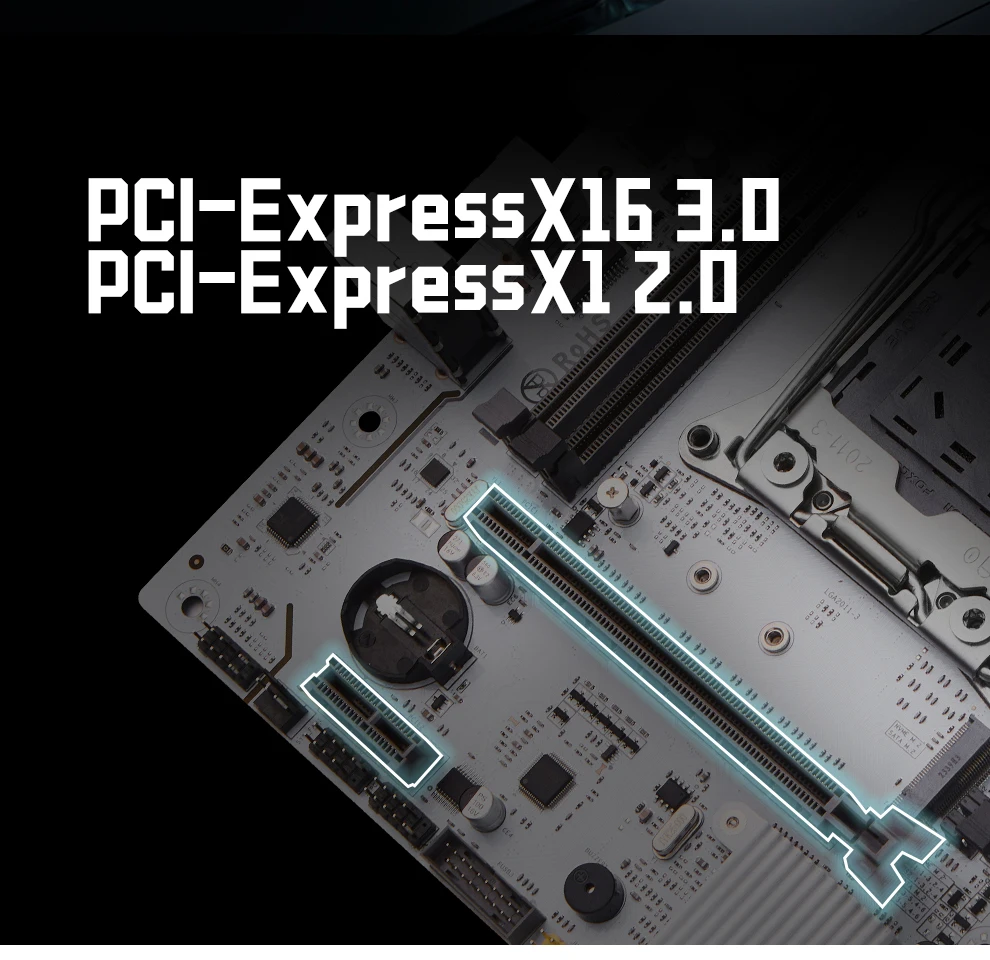

Number of PCIe x 16: 1

Memory channel: Double

Number of PCIe x 1: 1

Form Factor: Micro-ATX

Number of M.2: 1

Choice: yes

Notice：

ALL RAM needs to install in slot (grey slot)priority

The front USB needs to be correctly inserted into the designated USB pin position (yellow pin).

Attention: A 2032 battery needs to be installed to start the computer, otherwise it cannot be started

If inserted in the wrong location, it can cause the computer to not start.

What in the package?

motherboard+cooler adapter+SATA cable

Feature:

100% brand new and high quality!

Support REG ECC server memory/desktop memory Note that server memory and desktop memory. The two types of memory cannot be mixed together.

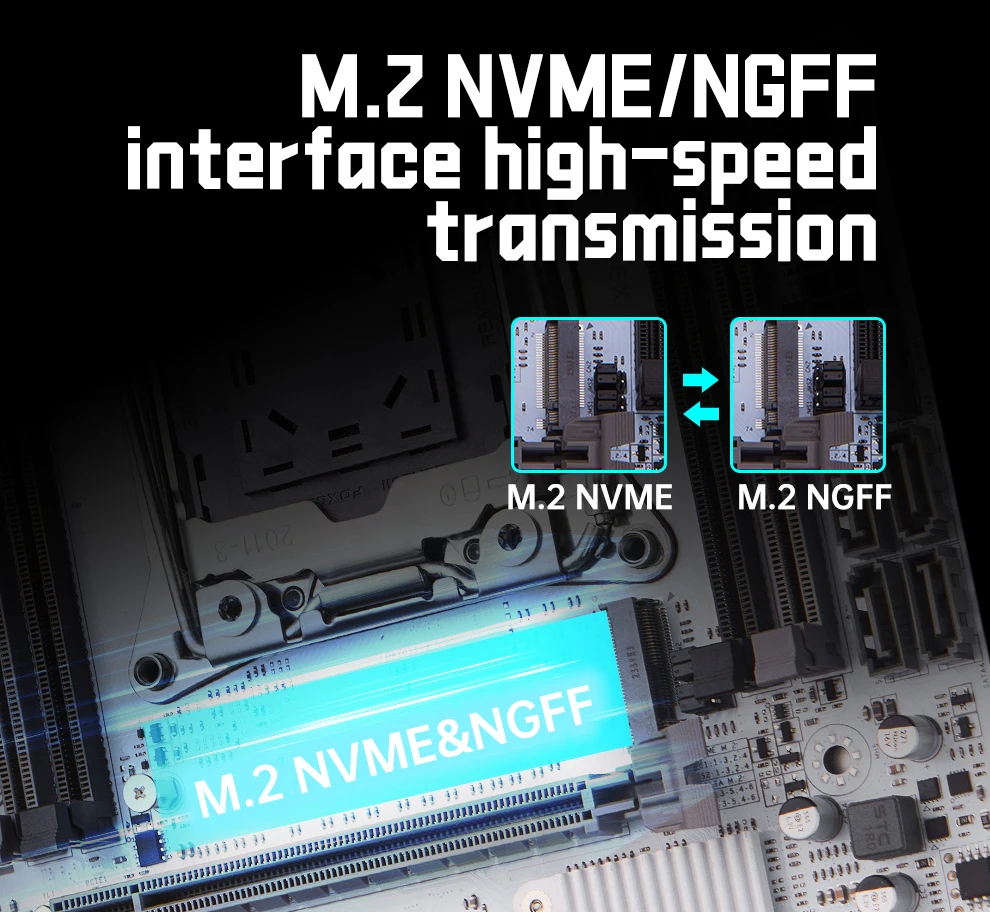

Support M.2 NVME/NGFF SSD.

High compatibility for a higher experience.

All solid capacitors, fine workmanship, professional stability.

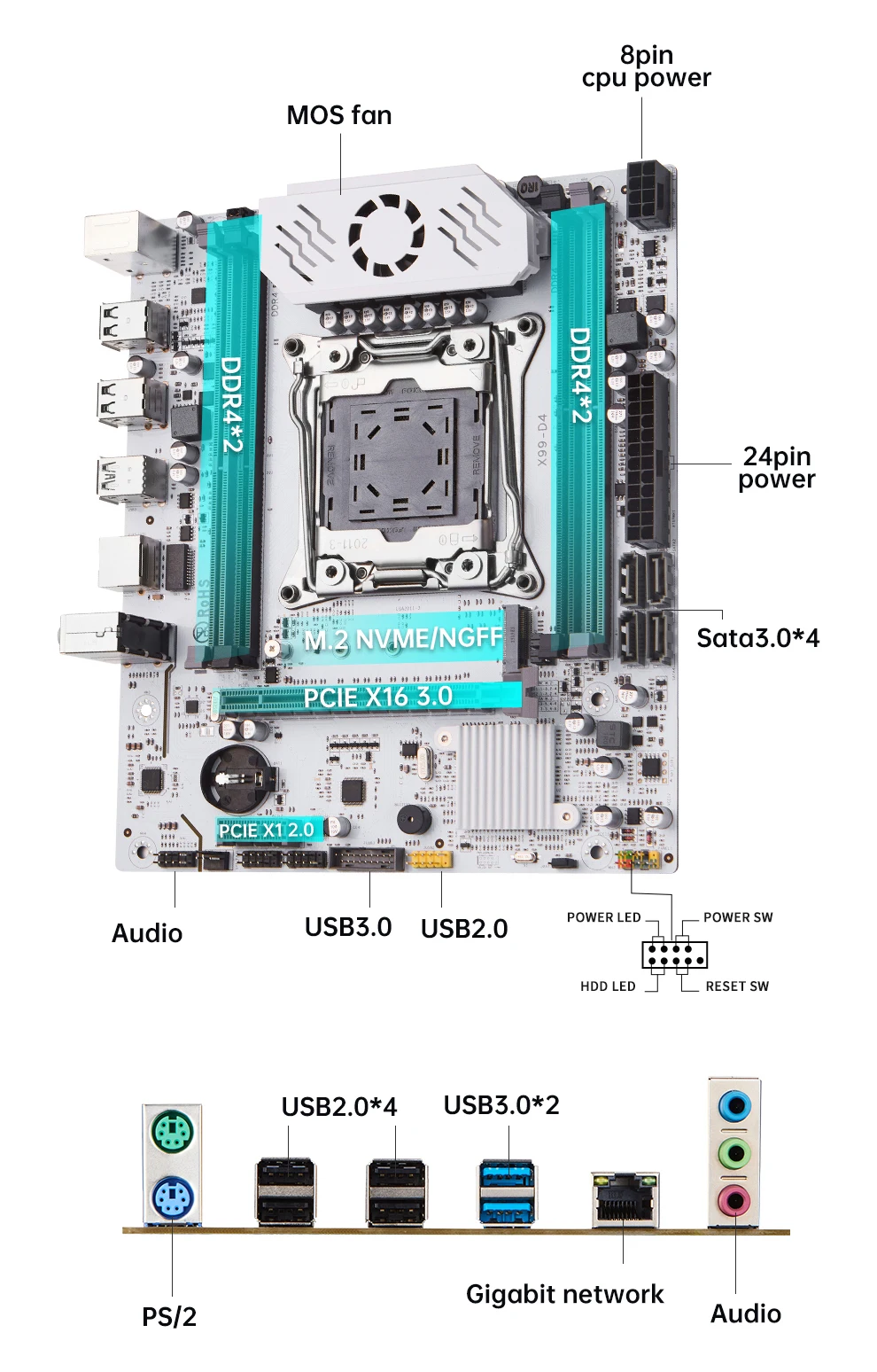

The power socket has an 8-pin, 24-pin power connector.

Motherboard dimension: 215mm*190mm.

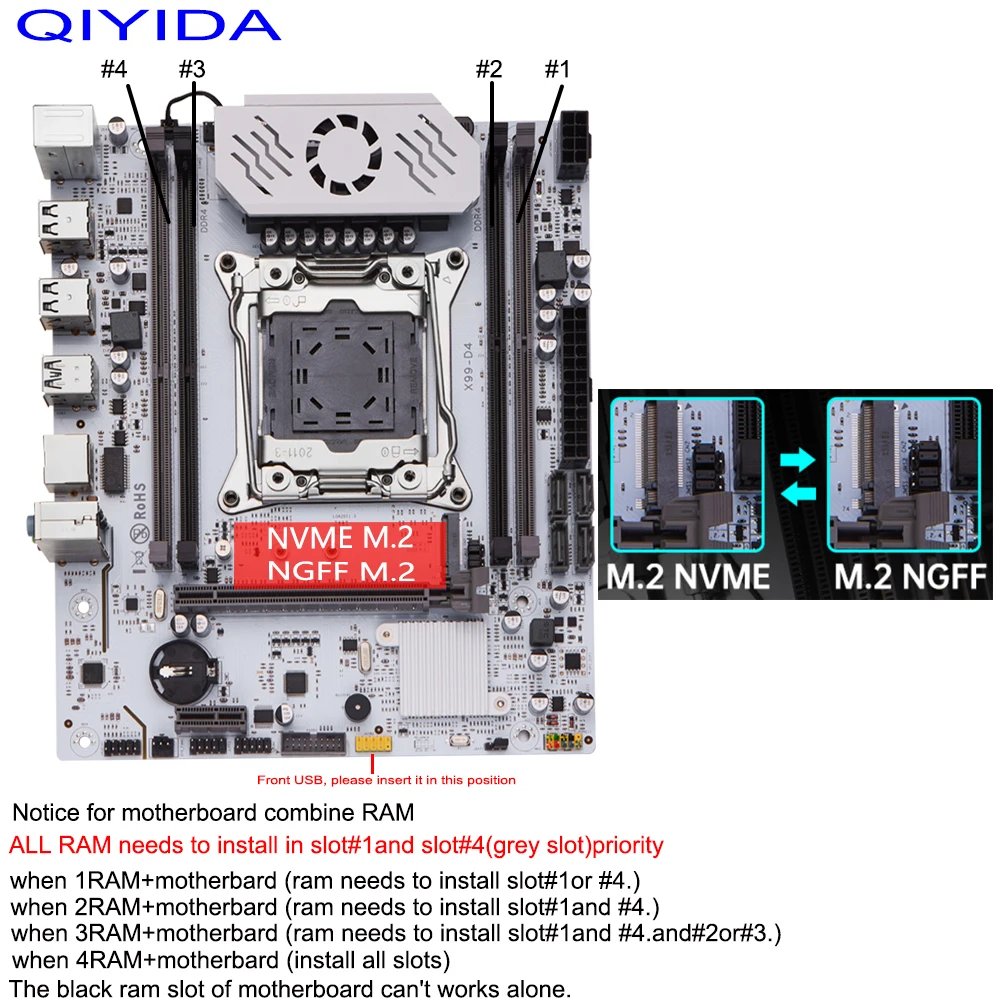

Notice for motherboard combine RAM

ALL RAM needs to install in slot#1and slot#4(grey slot)priority



when 1RAM+motherbard (ram needs to install slot#1or #4.)

when 2RAM+motherbard (ram needs to install slot#1and #4.)

when 3RAM+motherbard (ram needs to install slot#1and #4.and#2or#3.)

when 4RAM+motherbard (install all slots)



The black ram slot of motherboard can't works alone.

Specification:

Main chipset: C612/Q87/H81/B85etc., random delivery. thank you. If you can't accept it, please don't buy it. Buying means that you agree to the terms.

Model : QIYIDA

Condition: Full new

CPU socket: LGA 2011-3

CPU supported:for Intel series with LGA 2011-3 socket

(E5  V3,V4 series )

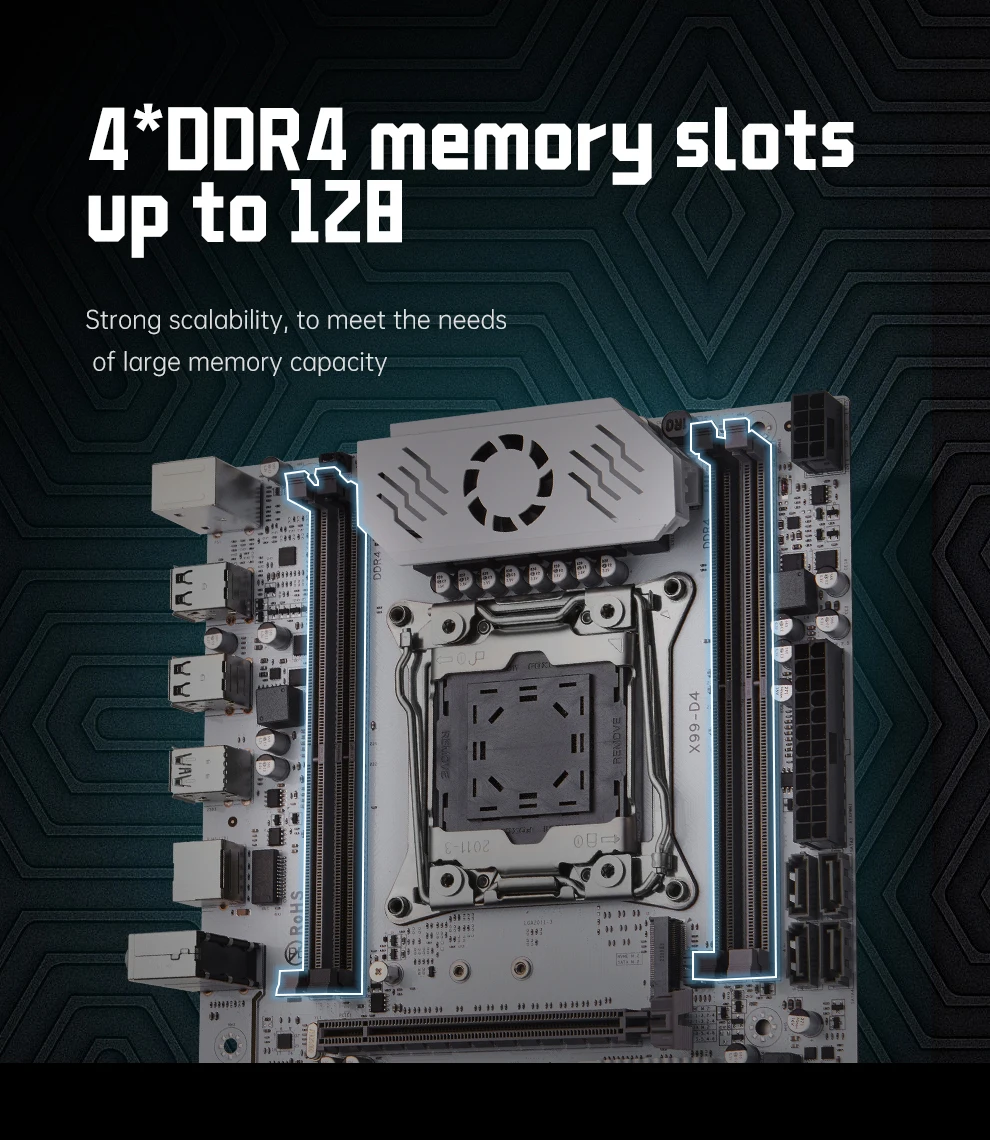

Memory socket: 4* DDR4

Memory Standard ：Support channels DDR4 3200/2666/2400/2133/1866 MHz

Max memory supported: 4*32G  DDR4

Memory type supported: non-ecc/reg ecc/ecc(The server ram can't work with the desktop ram, it has the compability problem.)

Integrated video card: No

Motherboard dimension: 215*190mm

Motherboard weight(including package): 0.9kg or so

Note:

1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .

2:Please allow 1-3mm differs due to manual measurement.

3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

5:We show photos of motherboard, pictures are for reference only, subject to our available products.

6.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！

Note：

Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!

X99 Desktop motherboard LGA 2011-3 with M.2 slot Support Four-channel DDR4 Memory SATA3.0 USB3.0
