Description
SPECIFICATIONS
Working voltage: DC 3.6V~24V
Maximum load: 2A
Static current: 3.6 mA ~ 7mA
Appliance: LED lamp string, Christmas tree light string, light control switch
Controller Type: Learning Code 1527
Working Distance: 20 Meters above in open space. 3V 5V 12V 24V remote control switch
Working mode: Momentary, Toggle, Latching Mode
Working temperature: -20 degrees 80 degrees
Brand Name: QIACHIP
Model Number: 3V 5V 12V 24V Remote Control Switch Light Controller
Wireless Communication: RF
Package: Yes
Use: Universal
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Channel: 1
Frequency: 433 MHz
Origin: Mainland China
Support APP: No
Certification: CE
Choice: yes
semi_Choice: yes
Application environment:
Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Specifications Of The Receiver:
Model Number:QA-R-011 (QA-R-012)

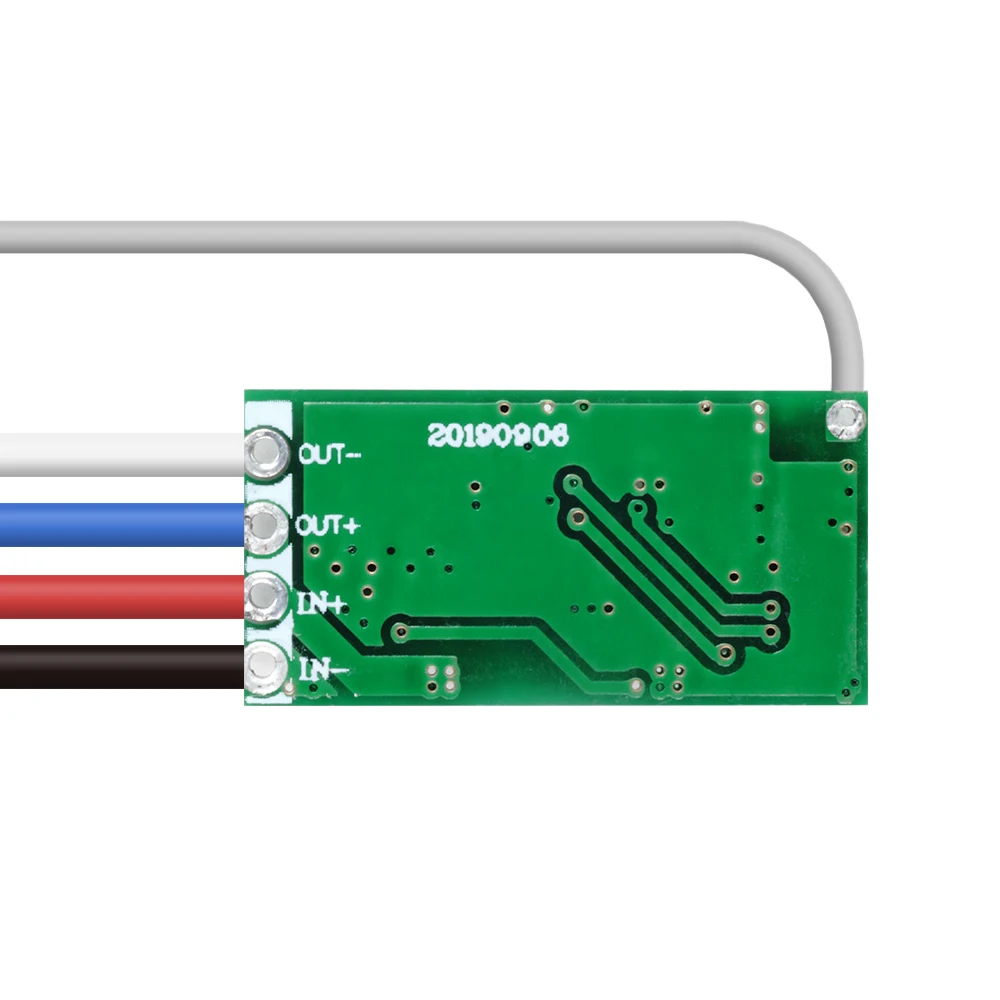

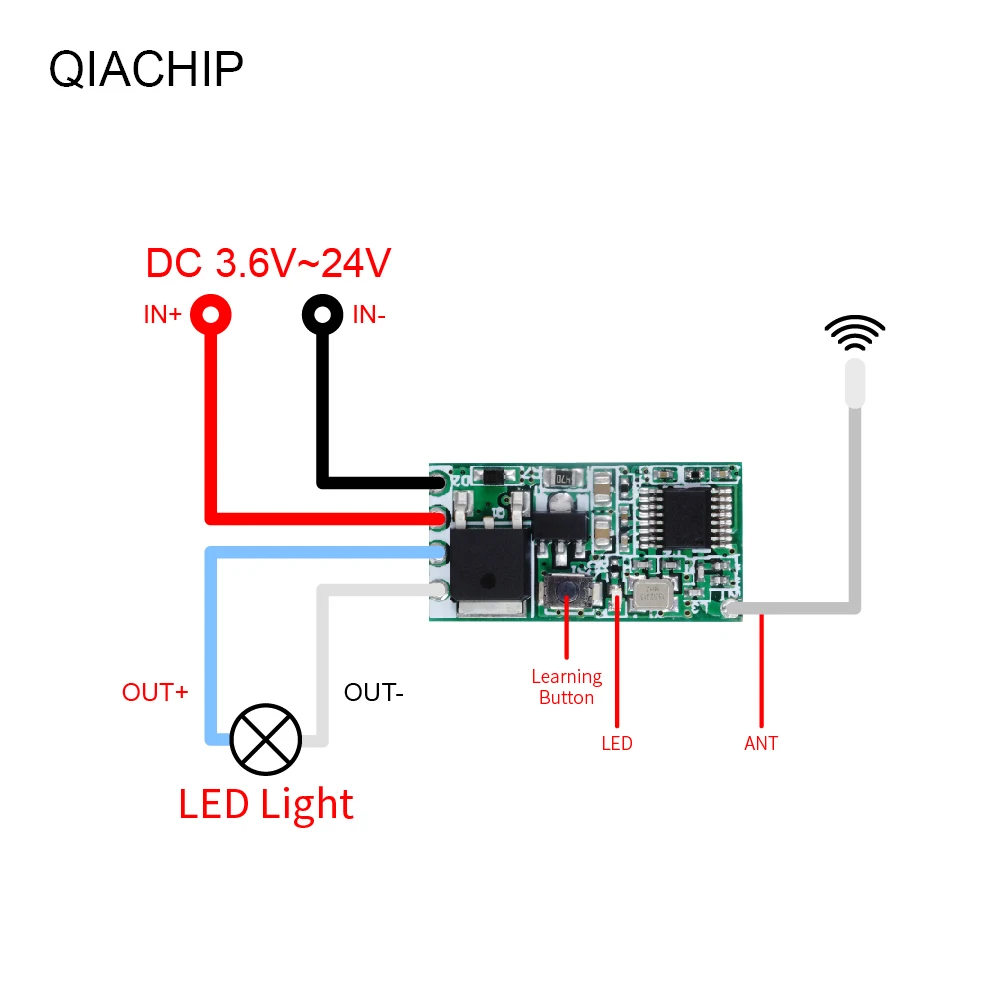

Working Voltage: DC 3.6V~24V.
Maximum Load: 2A.
Static Current: 3.6mA-7mA
Working Frequency: 433MHz.
Reception Sensitivity: ≥ -107dBm.
Modulation Mode:ASK (superheterodyne).
Number Of Stored Remote Controls: ≤ 10.
Working Mode: Momentary, Toggle, Latching Mode.

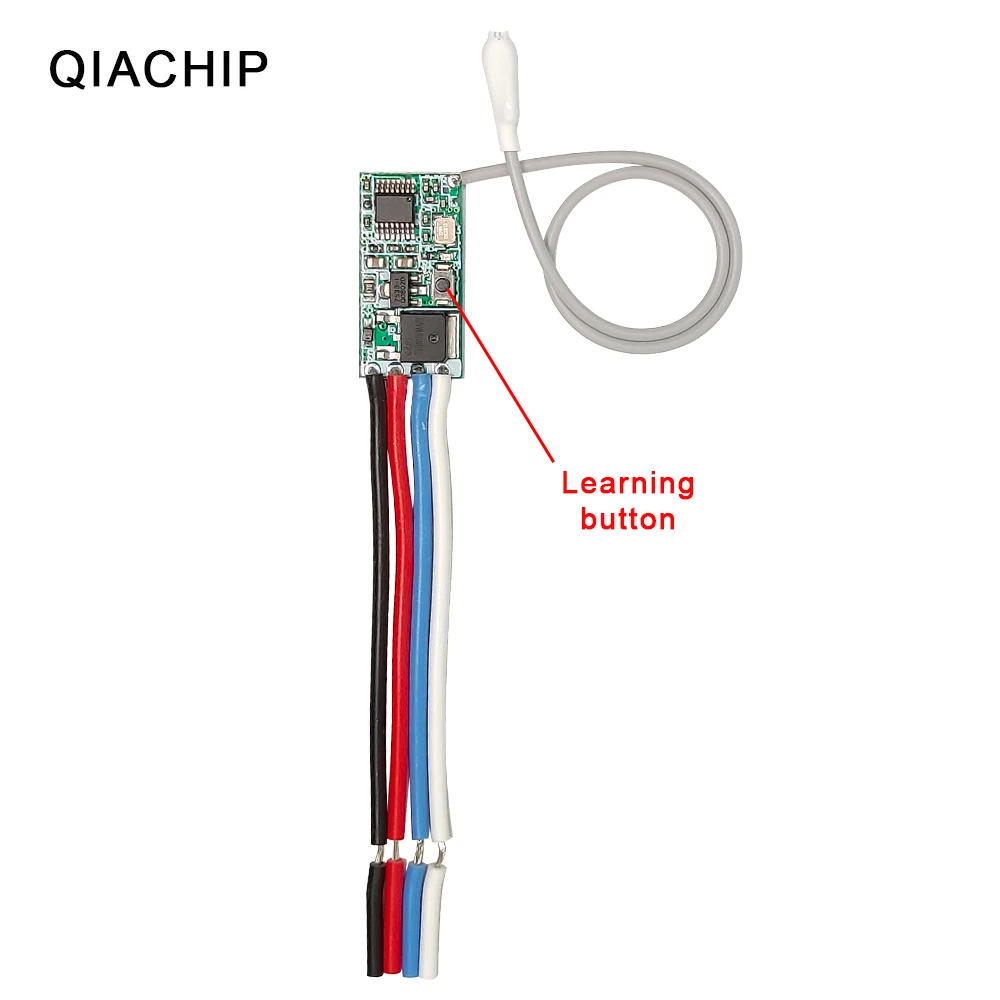

Learning Style: Learning Button.
Working Temperature: -20 degrees 80 degrees.

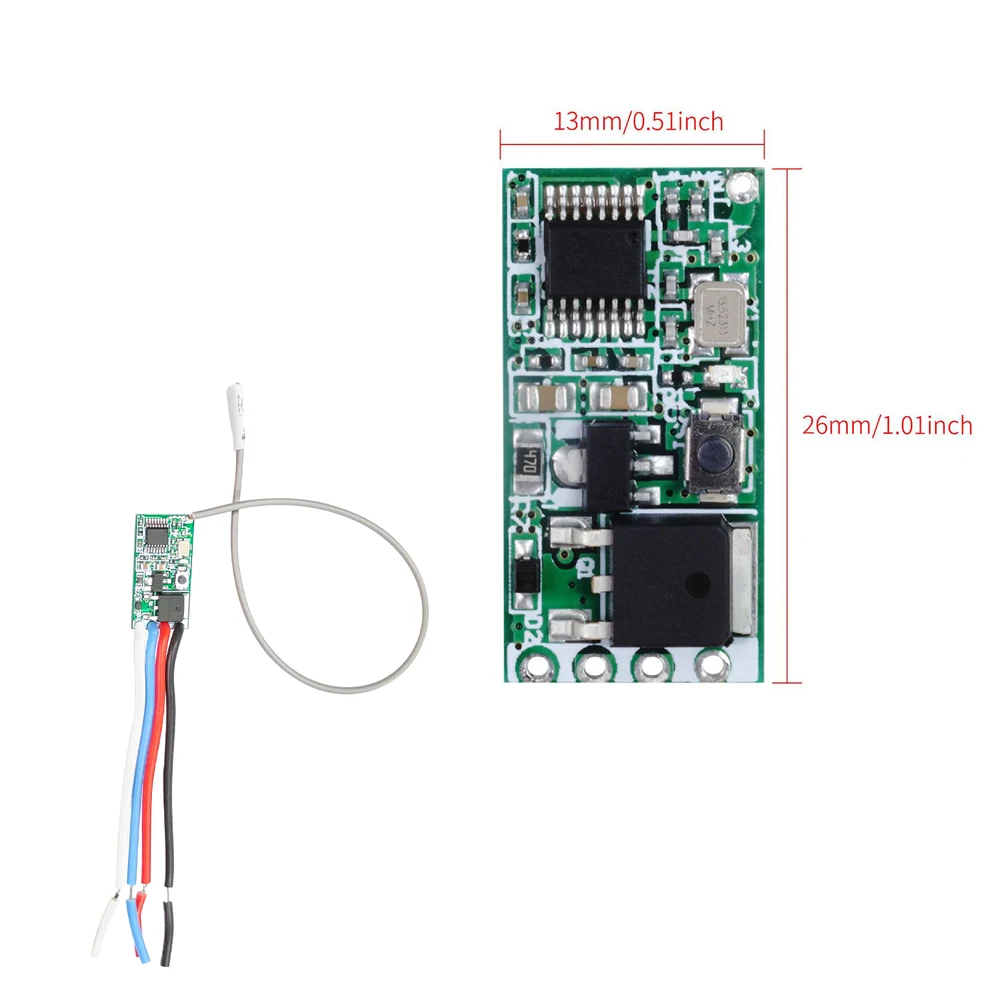

Appearance Size: 26mmx 13mm x 1mm (length × width × high).
Clear Code:
Press the learning button on the module 8 times continuously, and the light flashes seven times and then goes out.
About Working mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Press the remote button A. LED flash for 5 times.
Press the remote button B. LED flash for 5 times
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF.
