SPECIFICATIONS

Brand Name: WULILLS

Origin: Mainland China

Model Number: 48V 100Ah LiFePO4 Pack

Certification: CE

Certification: RoHS

Size: 455*480*160mm

Application: Solar

Weight: 28kg-95kg

Nominal Capacity: 50AH,100Ah,120AH,200AH

Type: Li-Ion

Voltage: 51.2V

Cycle Time: >6000 times

Warranty: 10 Years

Cells: New Grade A 50Ah 100Ah 200Ah

Support to Dropshipping: Yes

16S 100A Built-in BMS: Support max 32 parallel connection

Warehouse: Poland,Germany,Canada,Japan,US

Features 1: 48V Lifepo4 Batteries for RV Solar

Features 2: 48V 100Ah Lithium Iron Phosphate Battery

Features 3: 48V 100Ah Lifepo4 battery pack

Features 4: 48V 100Ah LiFePO4 Battery Pack

Features 5: 48V 50Ah 100Ah 120AH 200AH PACK

Features 6: 48V 200Ah Pack with 16S200A Built-in BMS

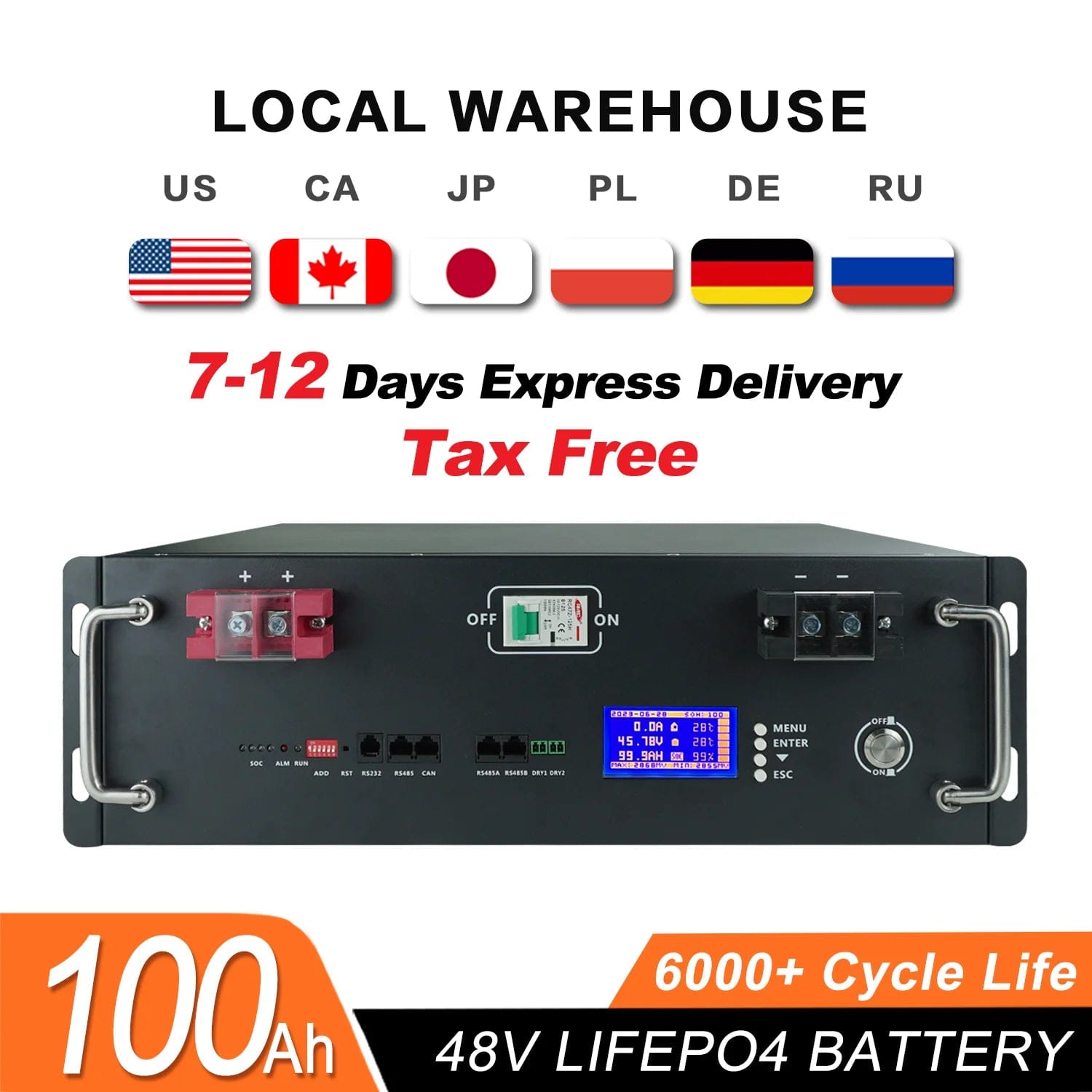

Local warehouse in USA / Canada / Poland / Japan and Russia

Local warehouse
Fast transport
Customs import TAX free

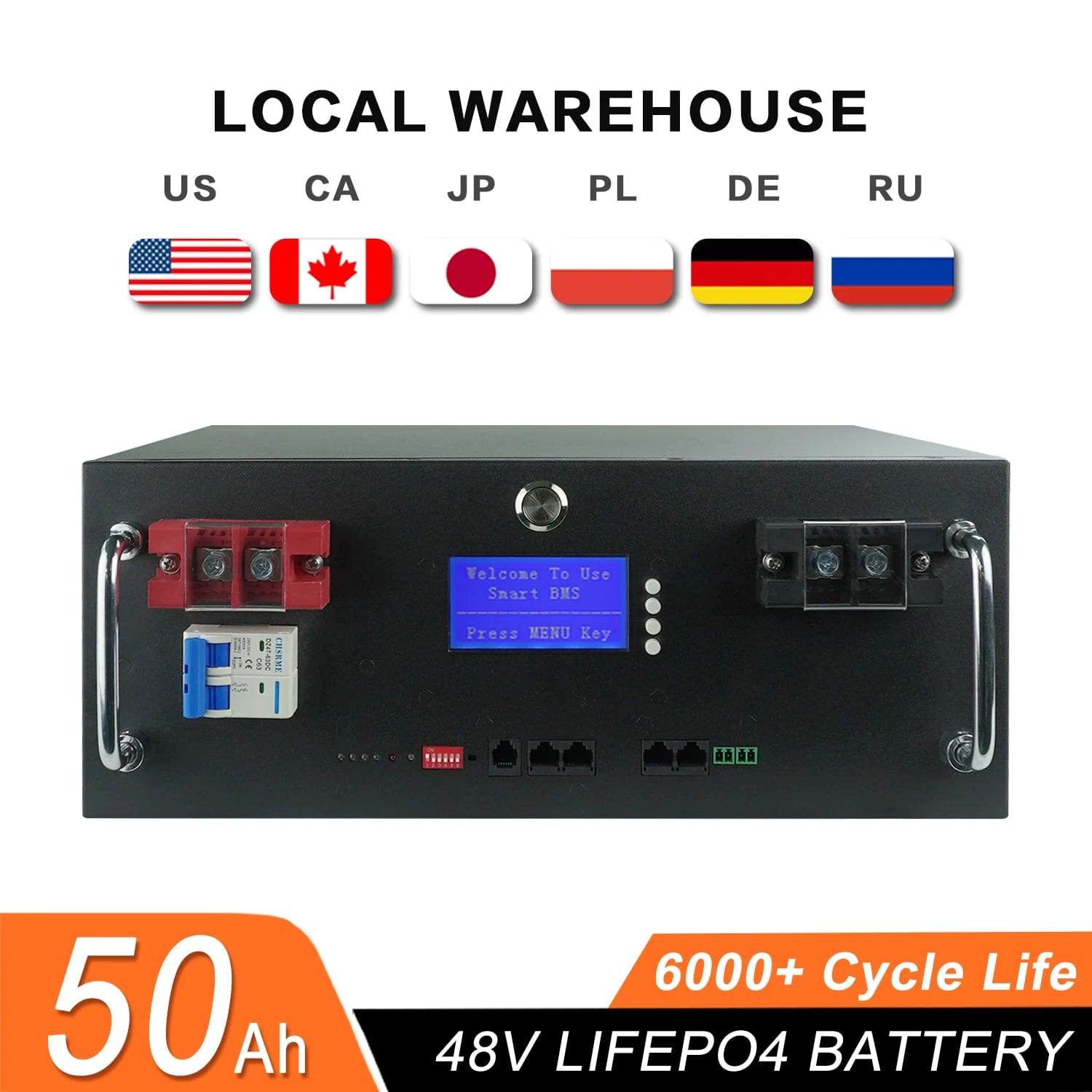

48V 50Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 50Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 2560Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 50A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 390*350*150mm /
Weight: Approx. 30kg
Terminal Type: Dual M6

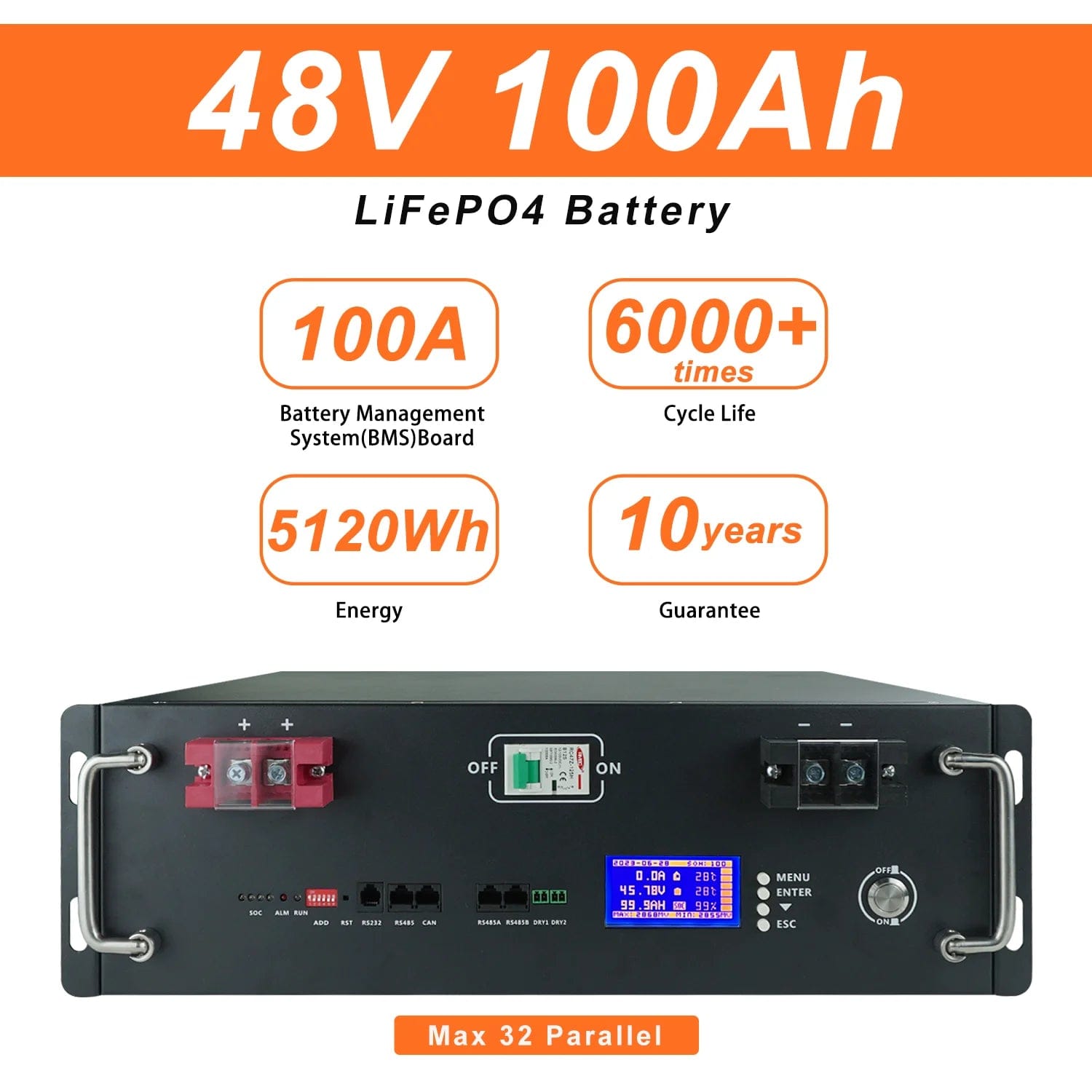

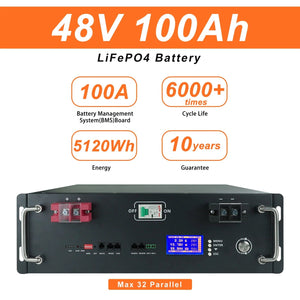

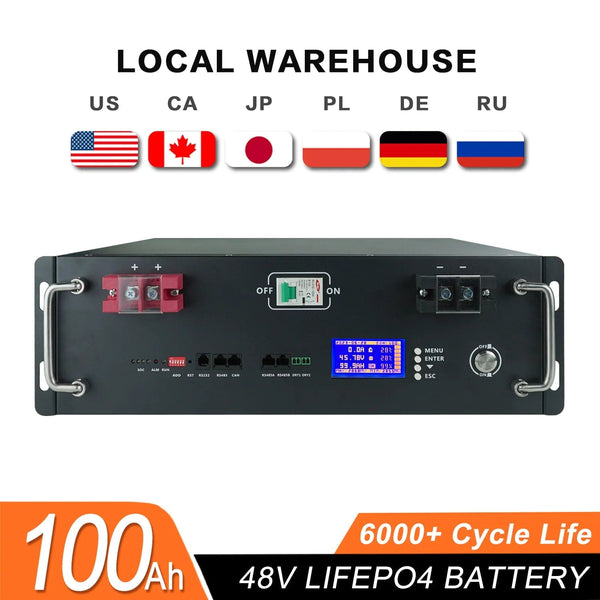

48V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 5120Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 42kg
Terminal Type: Dual M6

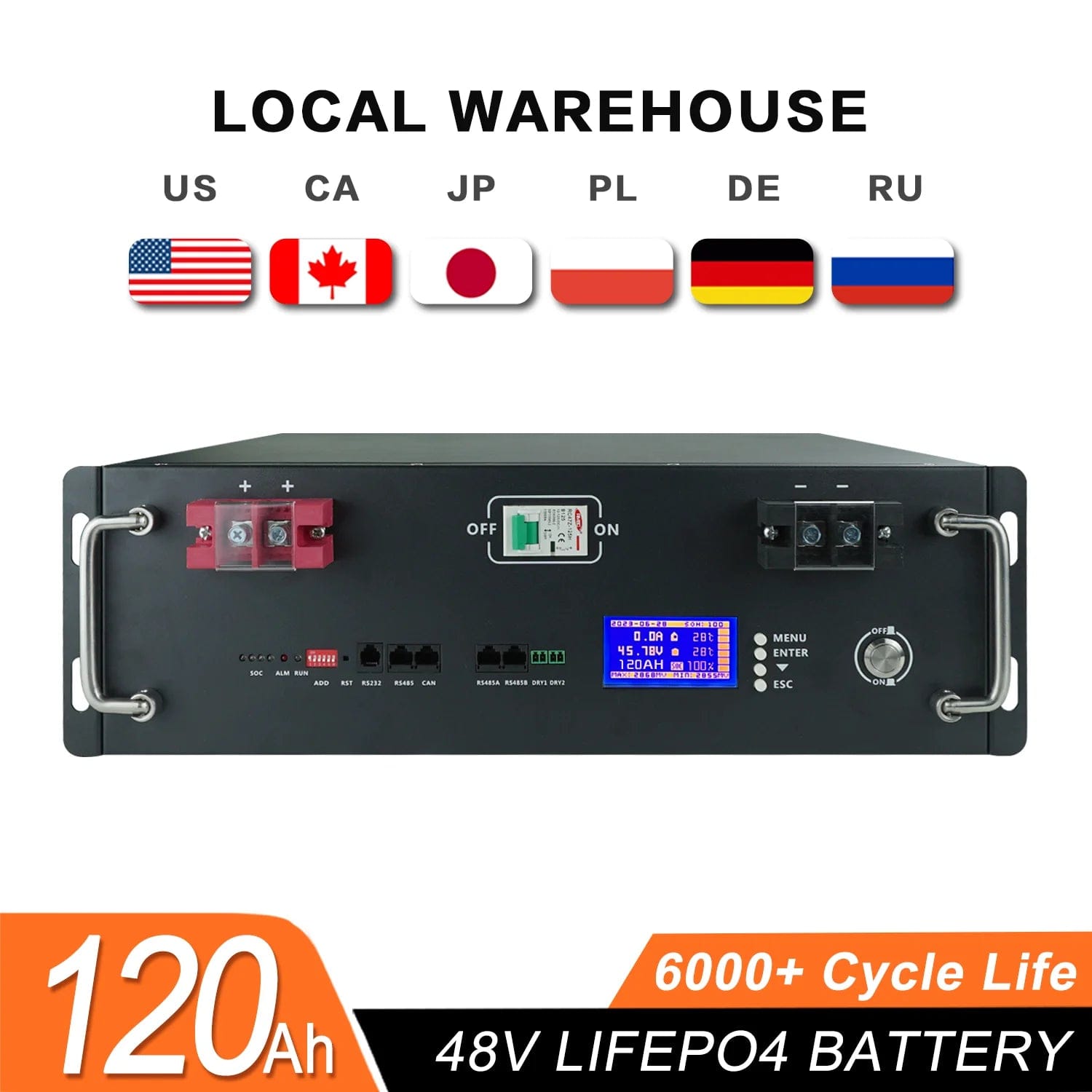

48V 120Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 120Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 6144Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 44kg
Terminal Type: Dual M6

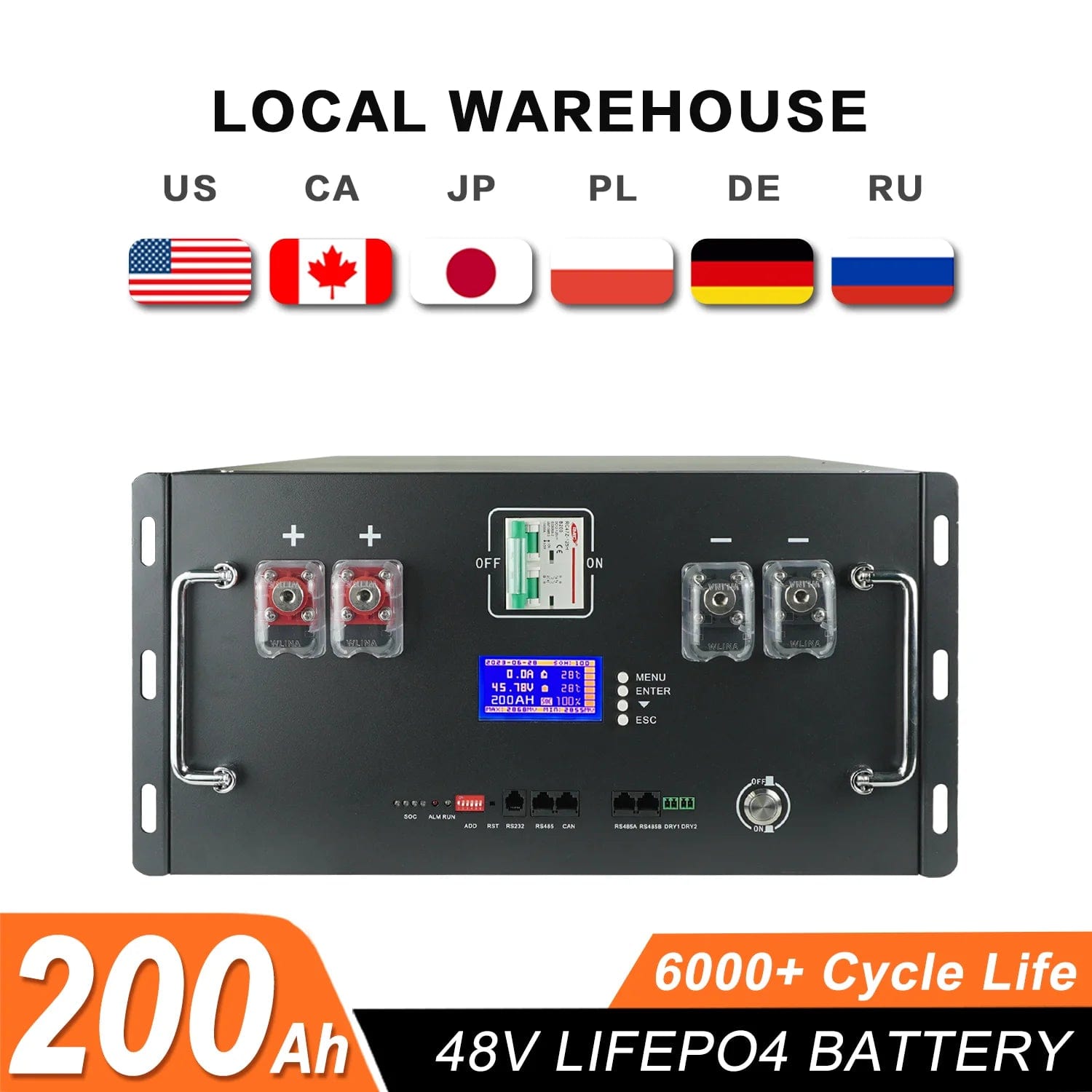

48V 200Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 200A Max 32 Parallel
Energy: 10240Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 200A
Max Discharging Current: 200A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 440*580*240mm /
Weight: Approx. 90kg
Terminal Type: Dual M6

Package Included

1.protective corner*2
2.RJ45 Cable for RS485/CAN
3.Battery in Parallel Cables
4.RJ45 TO USB Monitor Cable

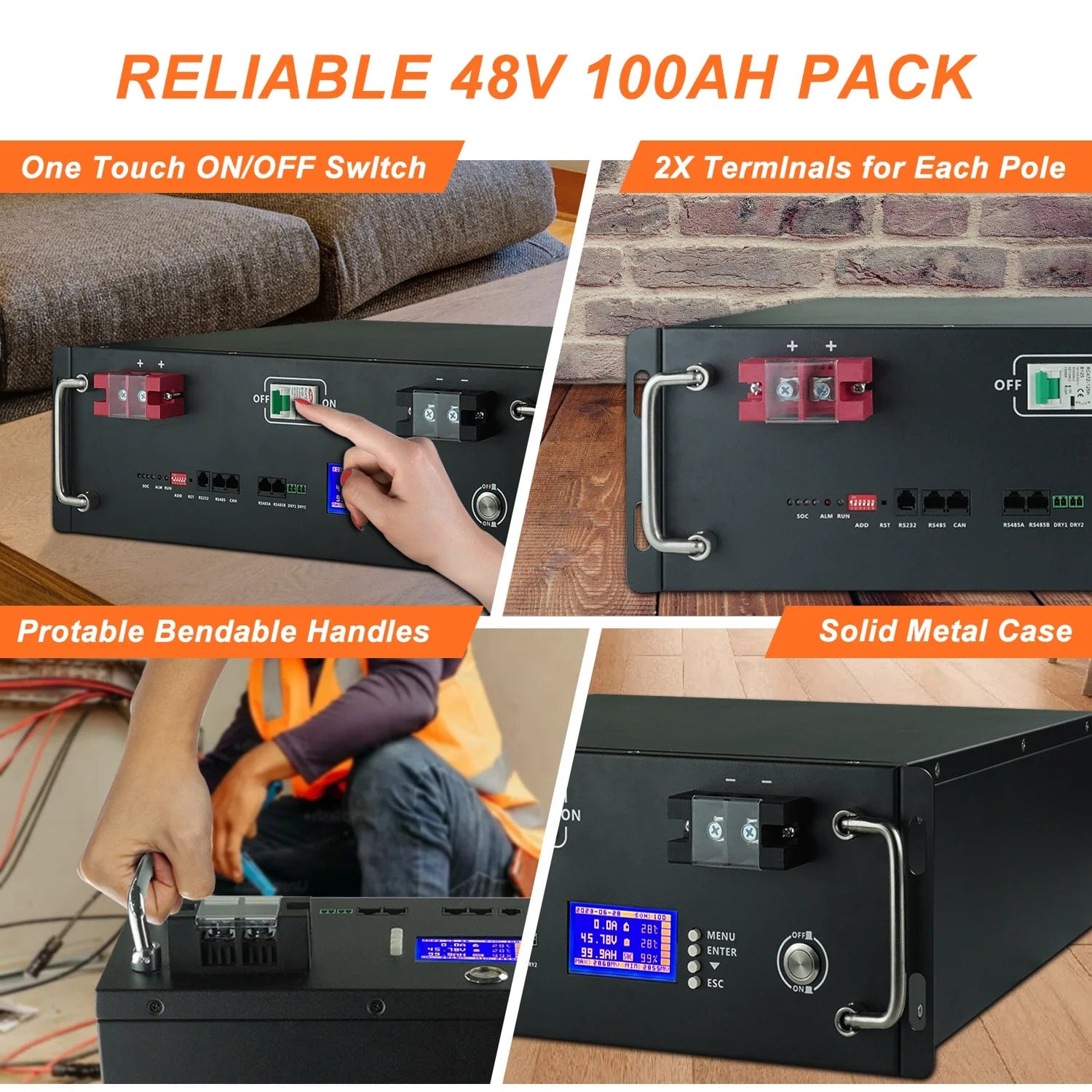

RELIABLE 48V 100AH PACK

1.One Touch ON/OFF Switch
2. 2X Terminals for Each Pole
3. Protable Bendable Handles
4.Solid Metal Case

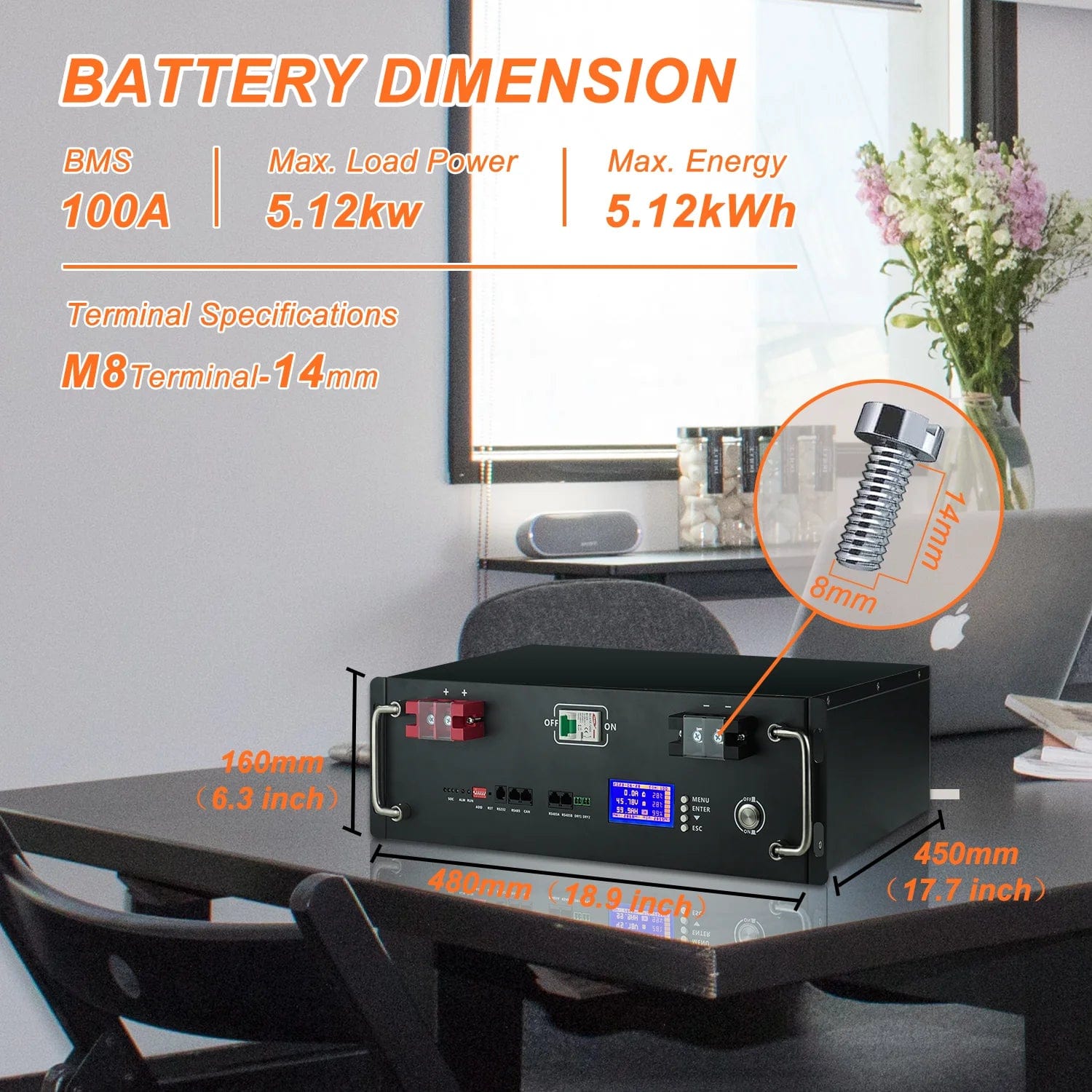

BATTERY DIMENSION

1. 16S100A Built-in BMS
2. Max Load Power 5.12kw
3. Max Energy 5.12kWh
4. 480mm*450mm*160mm

48V 100Ah Pack

With Smart 16S100A Built-in BMS
More 6000+ cycle times
5120Wh engergy
10 Years quality warranty

Made Of New Grade A Cells

With Smart 16S100A Built-in BMS
More 6000+ cycle times
5120Wh engergy
10 Years quality warranty

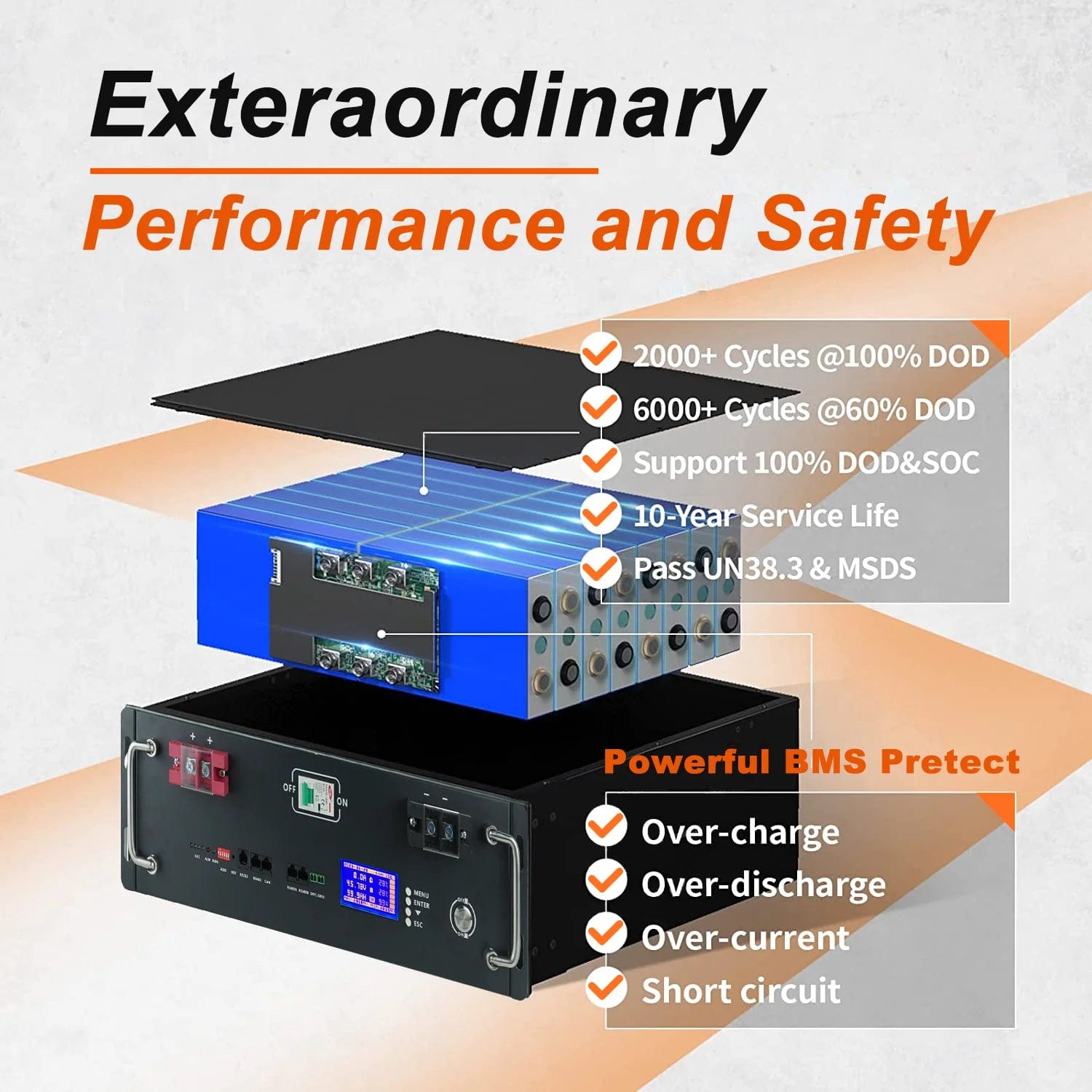

Compact & Safety

Powerful BMS Protect
overcharge protection
overdischarge protection
over-current
short circuit

Match Most Brand Hybrid Inverters

Match Most Brand Hybrid Inverters.
If you need communication with your inverter,you can contact our customer service before purchasing

Products Button Definition

1.Soc-The number of lamps indicates the percentage of energy
2..ALM-Alarm Indicator
3.LCD-LCD screen displays battery status in real time
4.Menu Buttons-Set parameters
5.RUN-Normal operation indicaton
6.Power Key-Turn on or off the batten
7.Battery Anode-Anode terminal
8.ADD-Communication dial number
9.RESET-Activate/Hibemate BMS
10.Rs232-Communication interface
11.CAN-Communication interface
12.RS485A/B-Communication interface
13.Dry Contact-Dry Contact
14.Battery Cathode-Cathode terminal
15. Switch_One touch ON/OFF Switch

RJ45/USB PC Monitor

Support conntact with PC monitor

5120WH High Output Power

5120W High output power,support more loads can be connected at the same time

3 WAYS OF RECHARGEING

Solar Panel(≥1100w)-Within 1 day
48V 20A LiFePO4 Battery Charger-About 5hrs
Generator(Add a 20A DC-DC charger)-About 5hrs

10 Years Quality Warranty

We provide 10-Years Quality Warranty
