SPECIFICATIONS

Brand Name: liemium

Type: Lifepo4

Set Type: Batteries Only

Model Number: LiFePO4 Battery Pack

Origin: Mainland China

Nominal Capacity: 100Ah-400Ah

Certification: CE

Certification: RoHS

Size: 450*295* 140MM

Battery Number: 1

Cycle Time: >4000 times

local overseas warehouse: DE PL RU CA US JP

Warranty: 5 Years

Support to OEM: Yes

Features 1: 12V 200Ah 400Ah Lifepo4 battery

Features 2: 12V 24V 48V LIFePO4 Battery With Built-in BMS

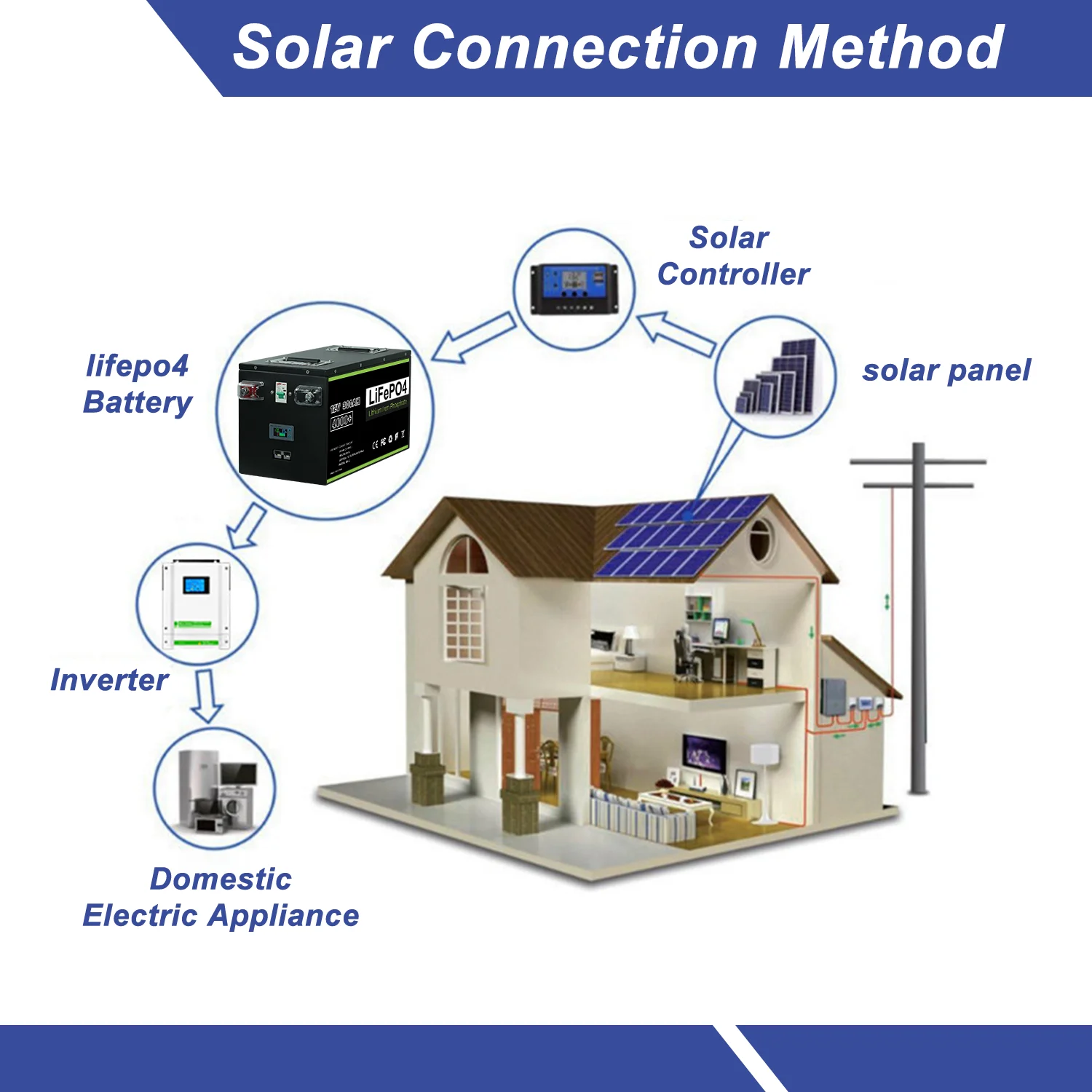

Features 3: Lifepo4 Batteries for RV Solar

Features 4: 12V 400Ah Lithium Iron Phosphate Battery

Features 5: 48V 50Ah Lifepo4 battery pack

Features 6: 24V 100Ah LiFePO4 Battery Pack

Features 7: 48V 100Ah LiFePO4 Battery Pack Support 32 Max parallel

The difference between Blancetime and batteries on the market

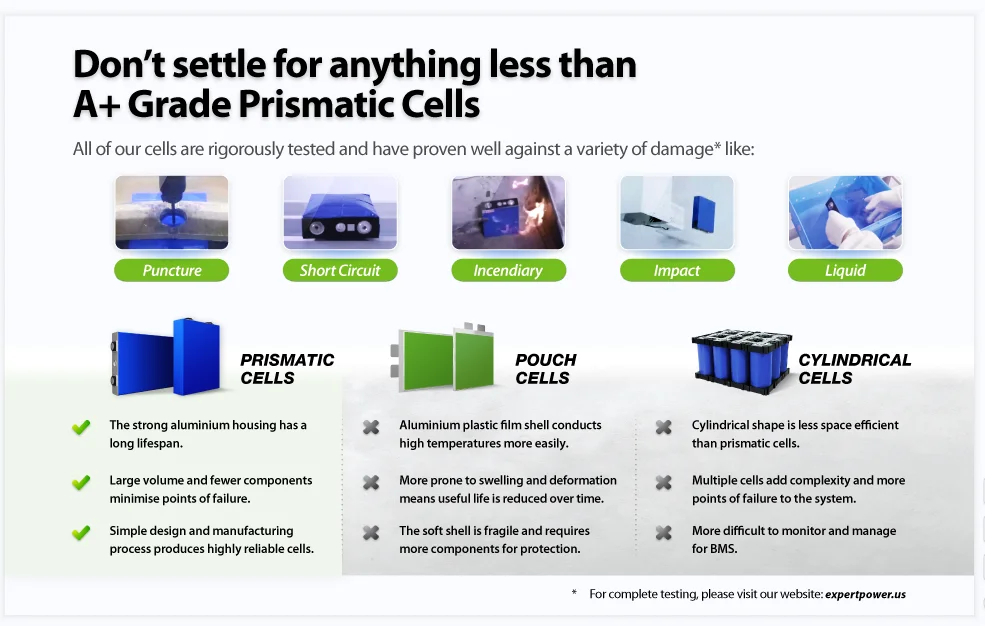

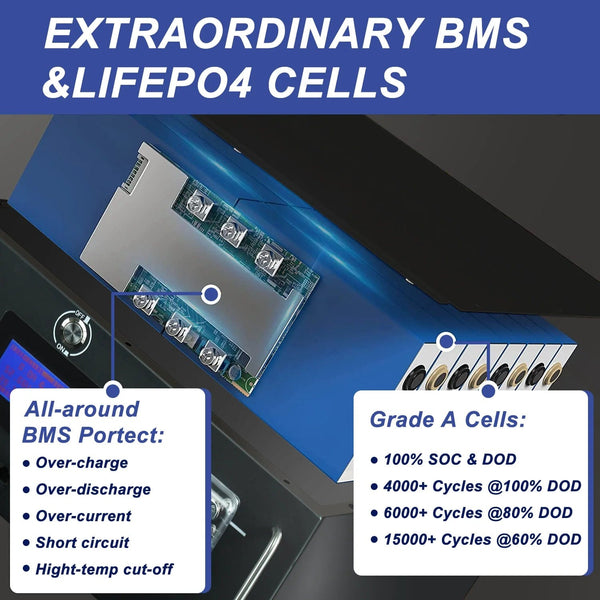

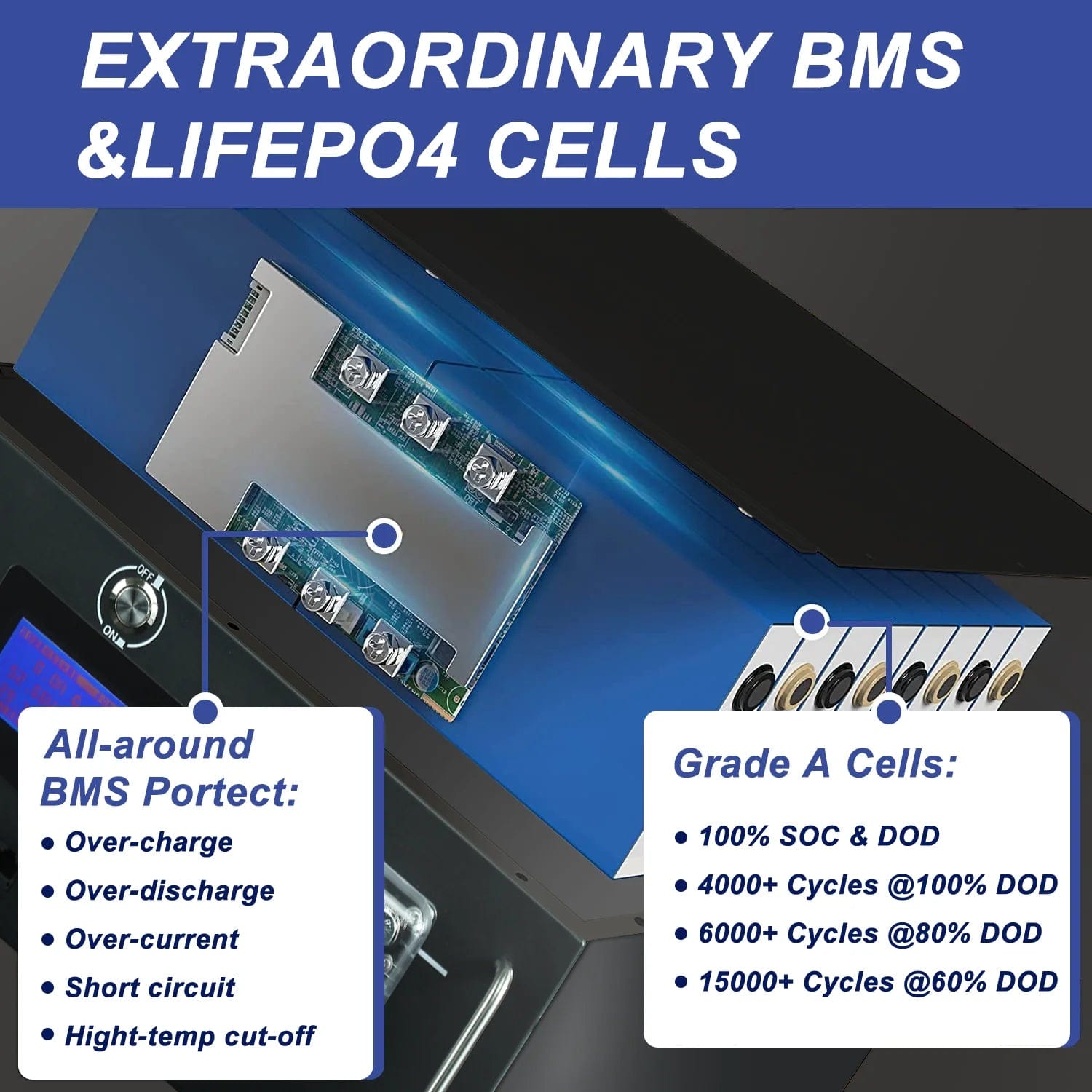

The appearance of Balance-Time battery has been completely upgraded, and all cells use Prismatic Cells.
All products are assembled with Grade A batteries.

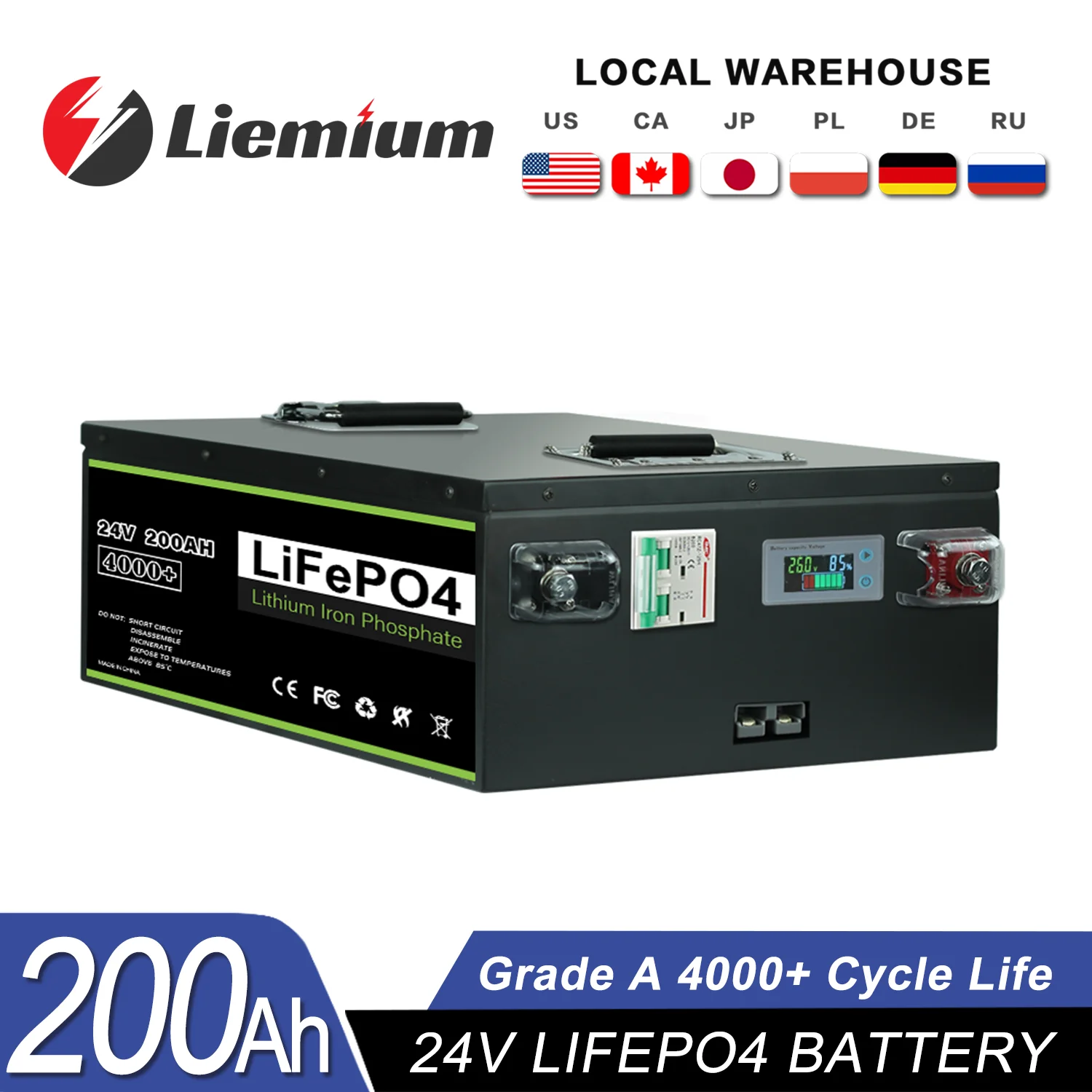

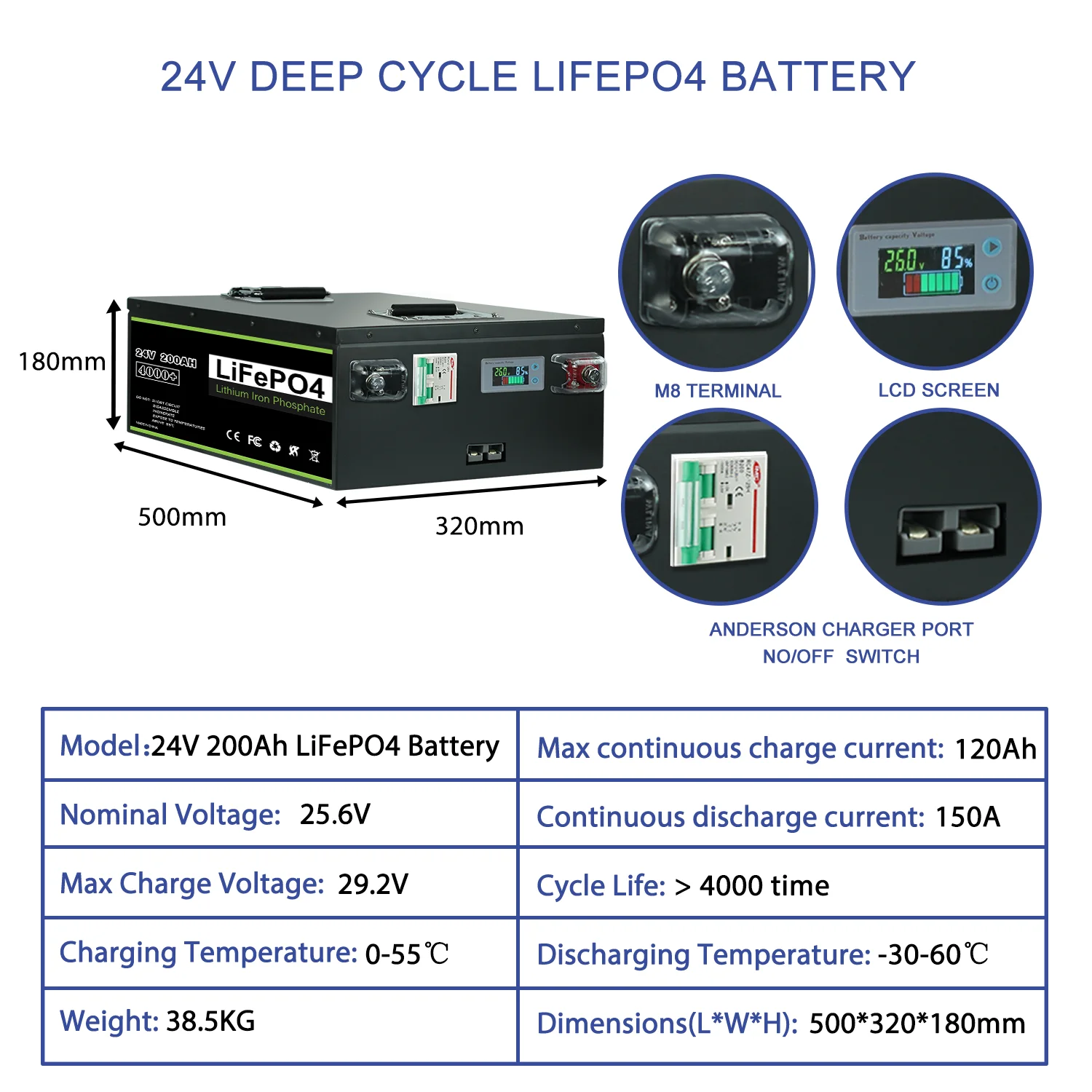

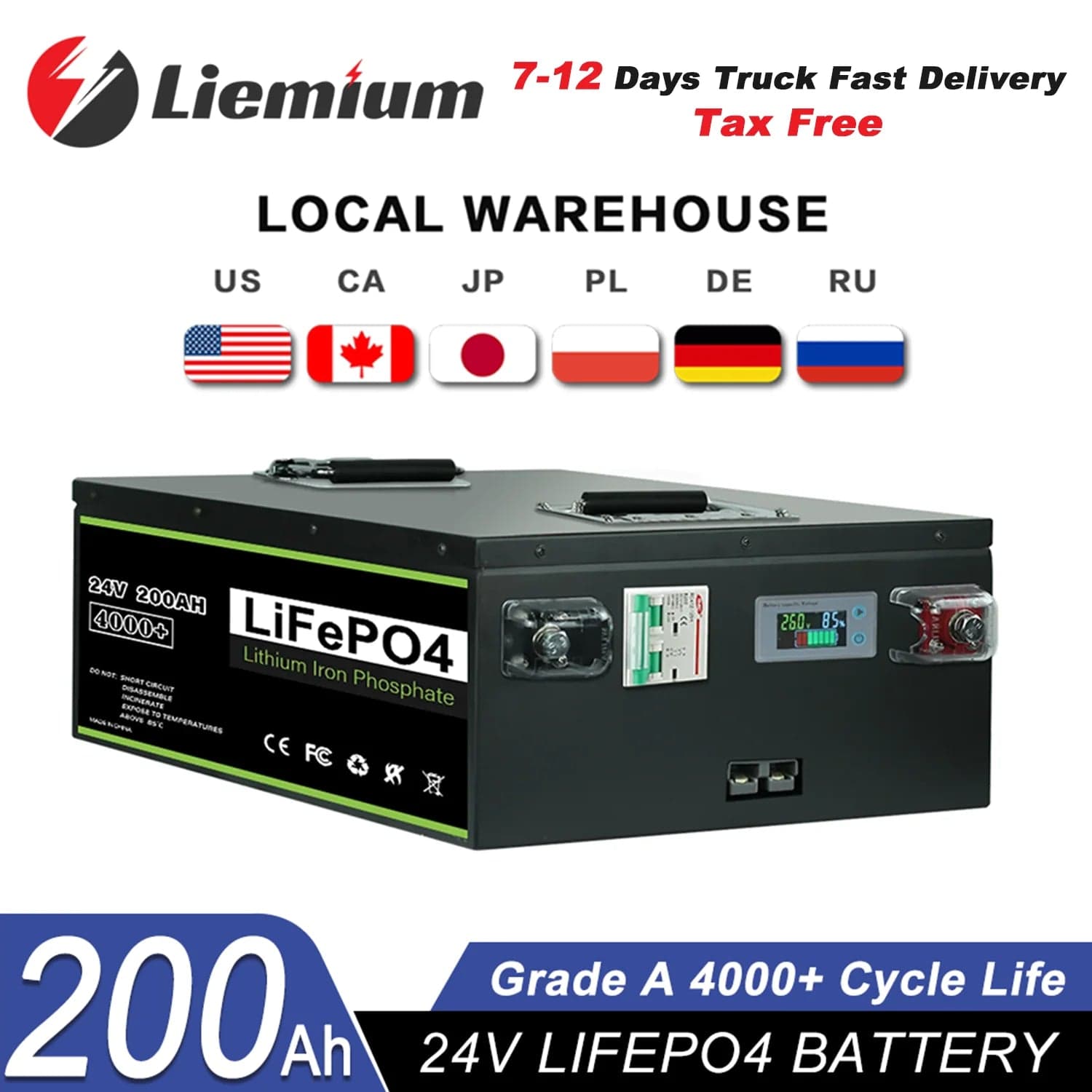

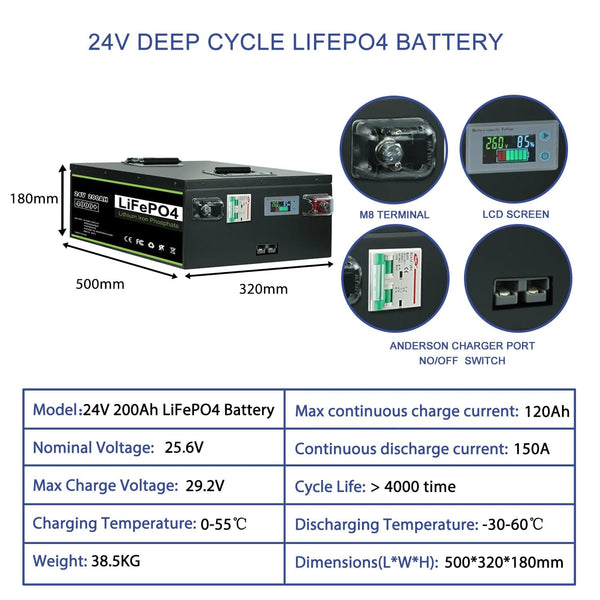

24V 200Ah LiFePO4 Battery

Specifications
Rated Capacity (0.2C): 200Ah / 5120Wh
Cycle life: 4000+ cycles at 80% discharge depth
Charge voltage: 28.4V - 29.2V
Depth of Discharge (DoD): 100%
Suggest Charge Current: : 50A
Max continuous charge current: 100A
Max continuous discharge current: 150A
Peak discharge current: 600A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 500*320*180mm
Weight: Approx. 38kg
Terminal Type: M8

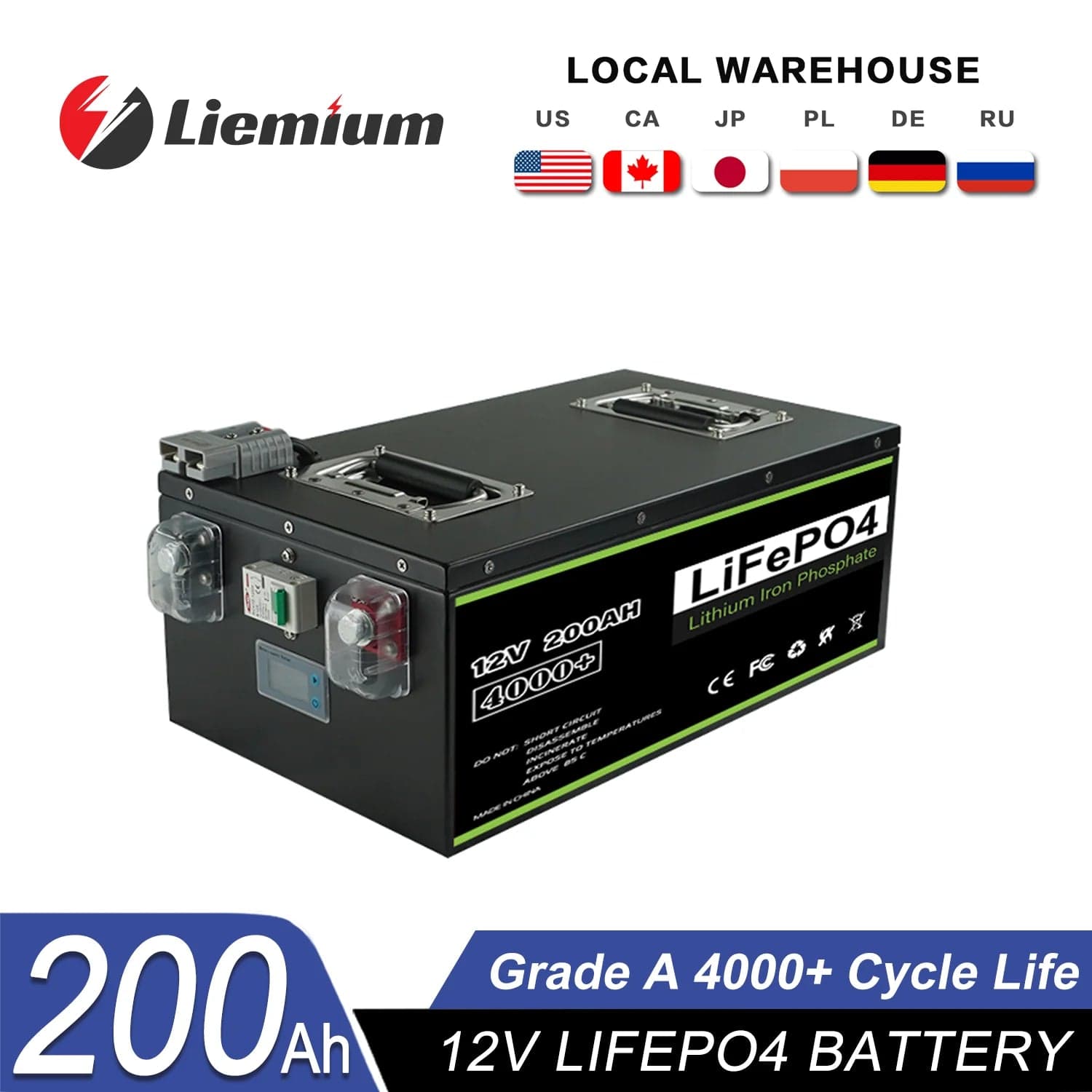

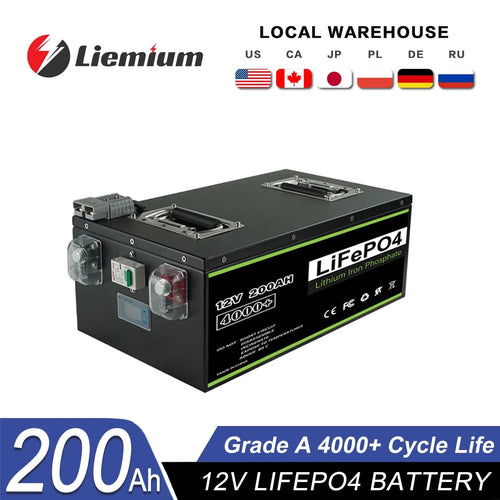

12V 200Ah LiFePO4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah 0.2C
Energy: 2560Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Suggest Charge Current: 40A
Max. Charge Current: 75A
Max. Continuous Current: 150A
Max. Pulse Current: 300A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Matel
Dimension (L/W/H): 380*230*160mm
Weight: Approx. 20.5kg
Terminal Type: M8

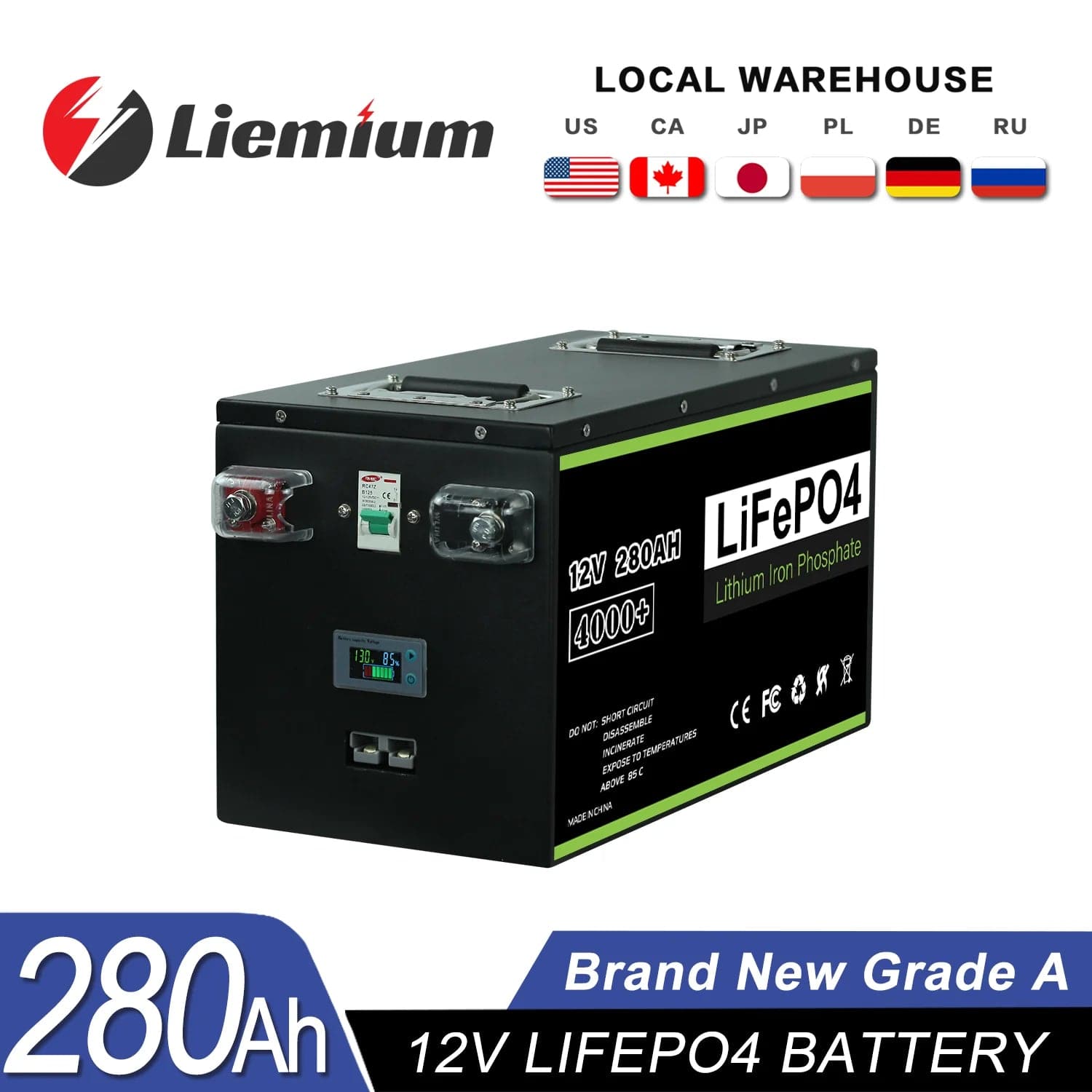

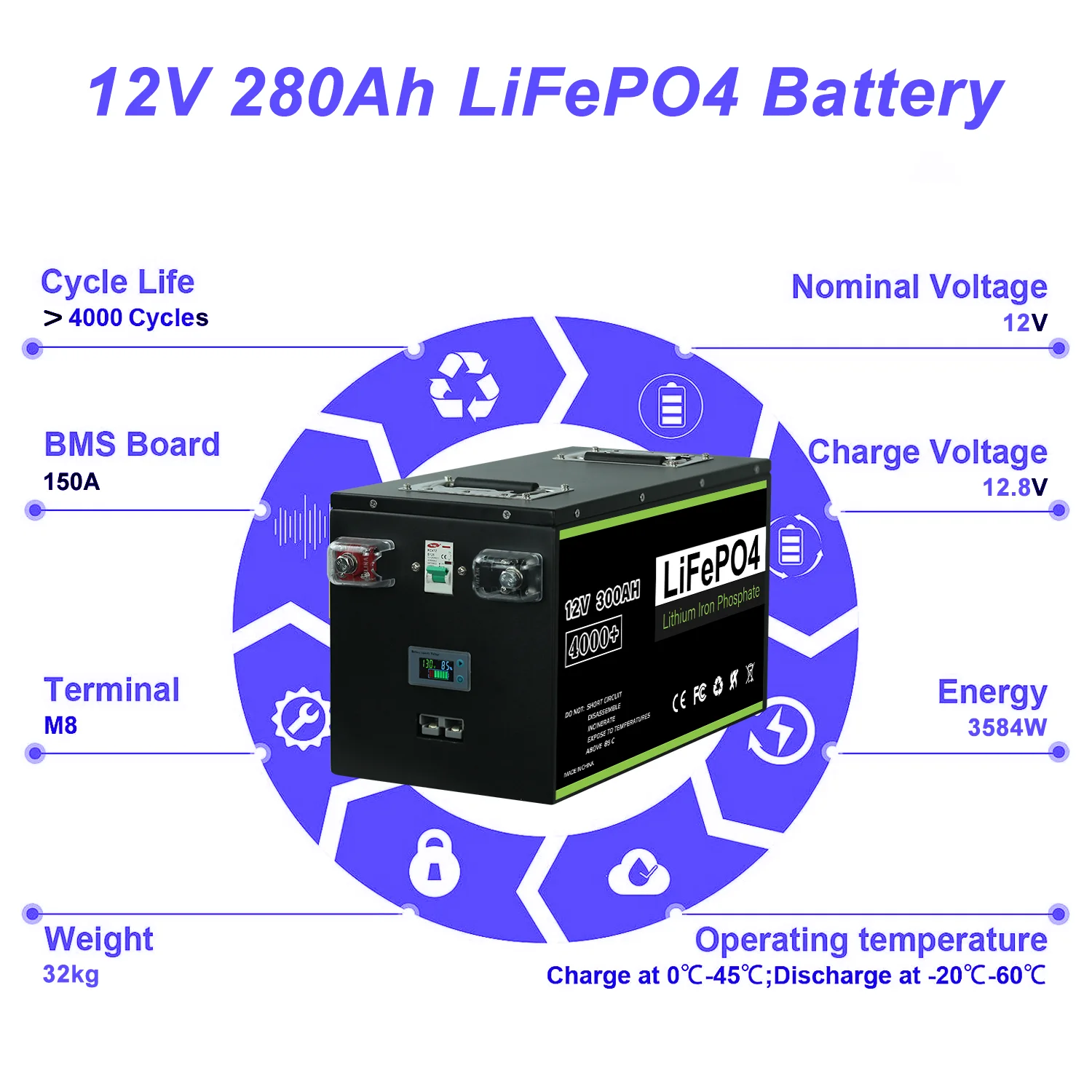

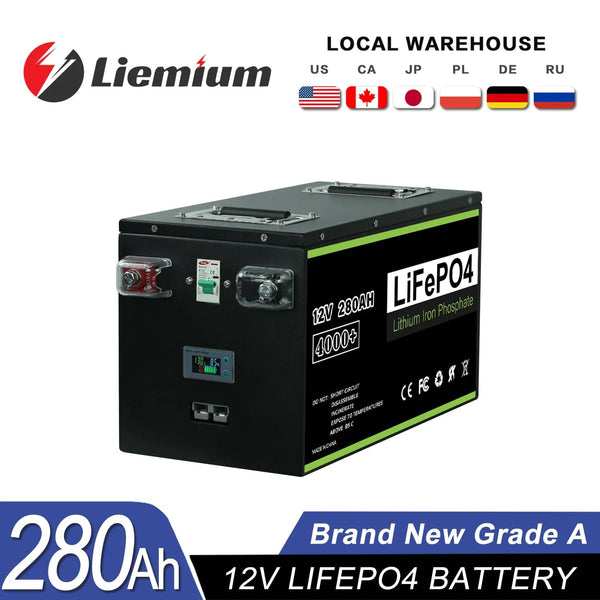

12V 280Ah LiFePO4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 280Ah 0.2C
Energy: 3840Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 60A
Max. Charge Current: 120A
Continuous discharge Current: 150A
Max. Pulse Current: 500A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: iron
Dimension (L/W/H): 438*220*250 mm /
Weight: Approx. 32kg
Terminal Type: M8

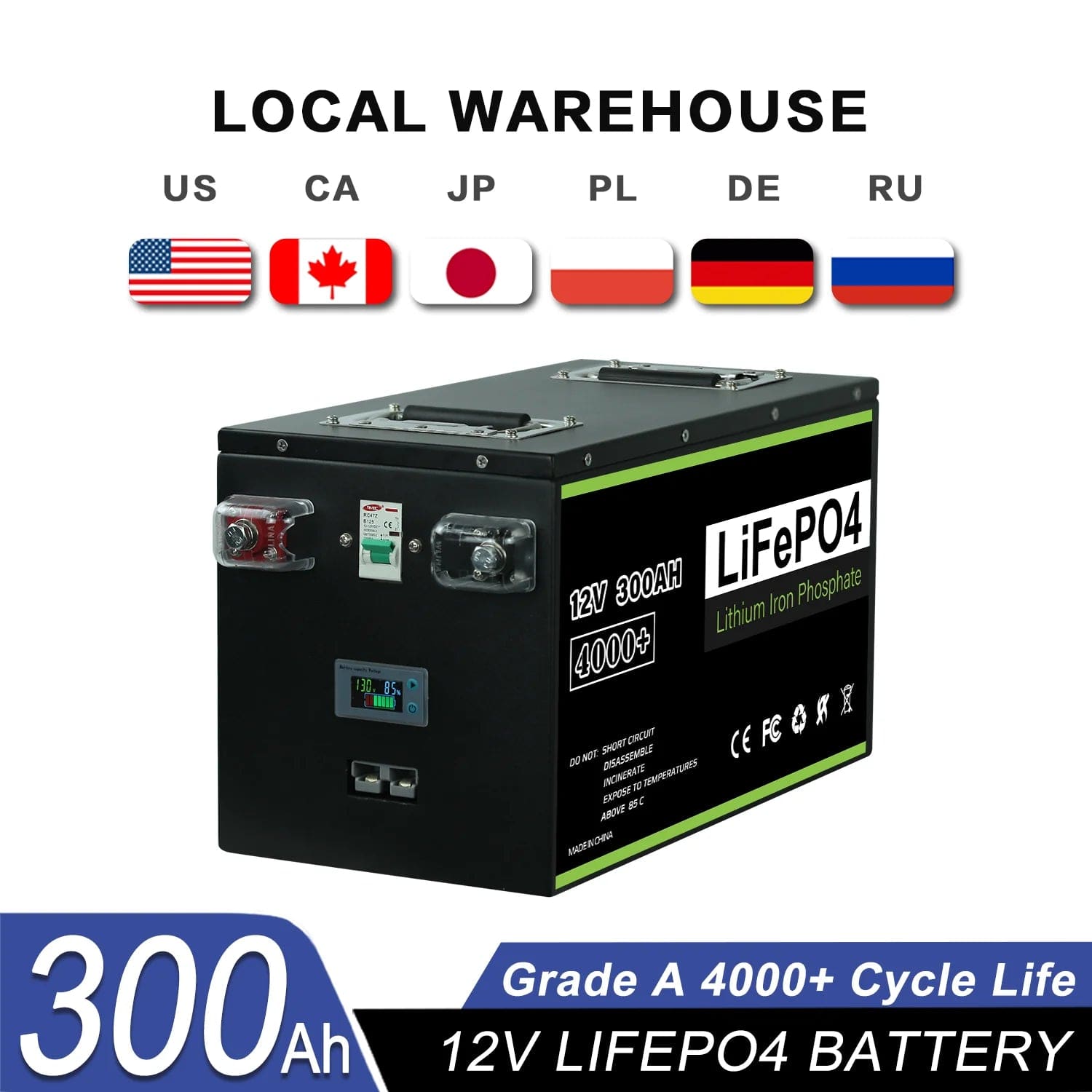

12V 300Ah LiFePO4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 300Ah 0.2C
Energy: 3840Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 60A
Max. Charge Current: 120A
Continuous discharge Current: 150A
Max. Pulse Current: 500A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: iron
Dimension (L/W/H): 438*220*250 mm /
Weight: Approx. 32kg
Terminal Type: M8

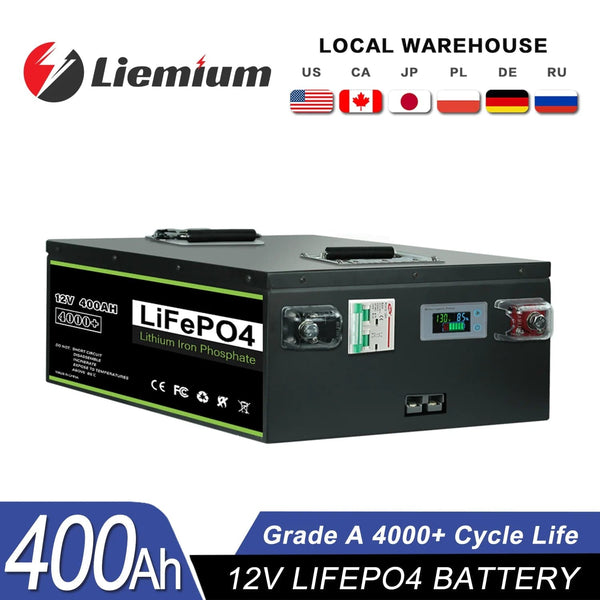

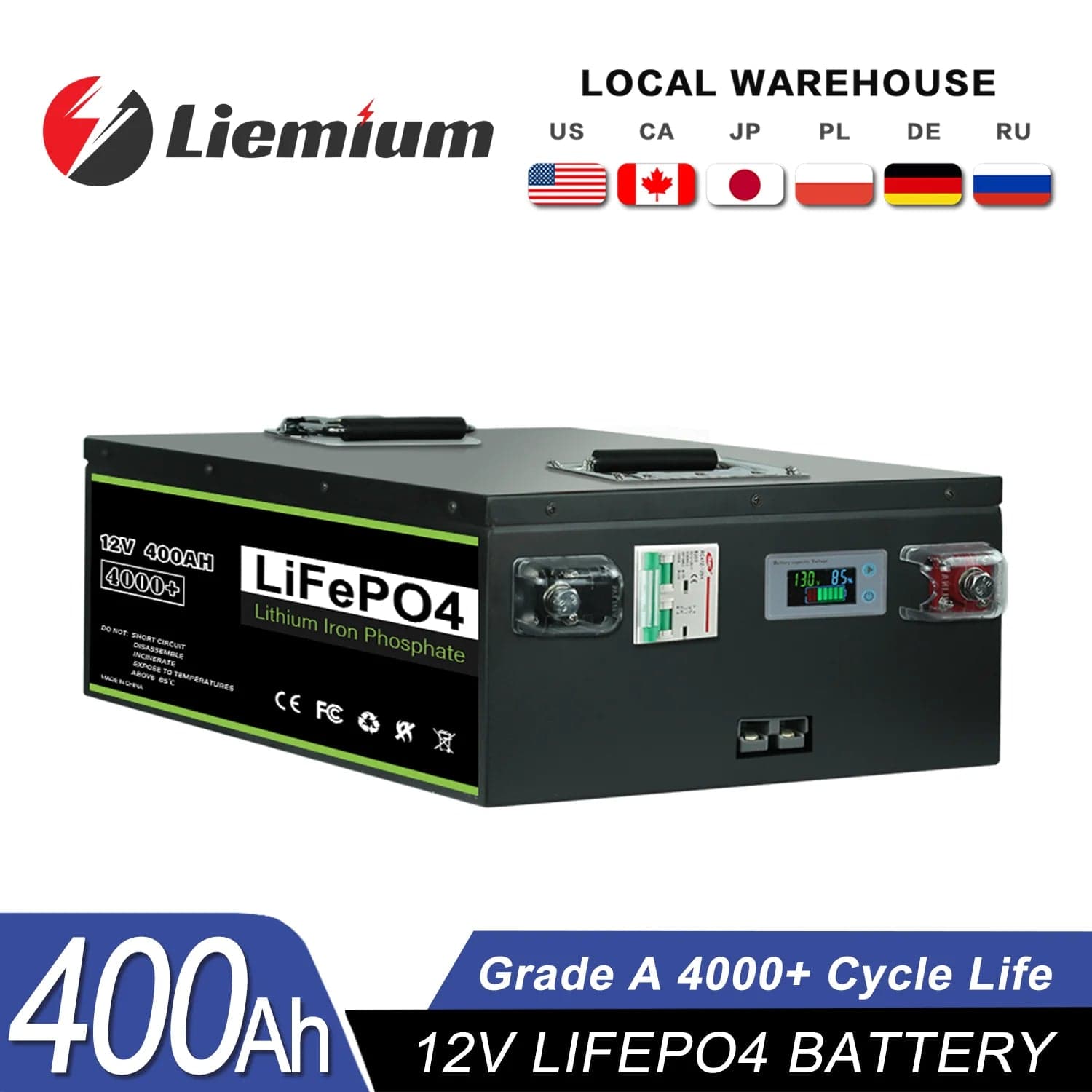

12V 400Ah LiFePO4 Battery

Specifications
Rated Capacity (0.2C): 400Ah / 5120Wh
Cycle life: 4000+ cycles at 80% discharge depth
Rated voltage: 12.8V
Charge voltage: 14.2V - 14.6V
Depth of Discharge (DoD): 100%
Suggest Charge Current: : 50A
Max charge current: 100A
Max Continuous discharge current: 150A
Peak discharge current: 750A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 500*320*180mm
Weight: Approx. 38kg
Terminal Type: M8

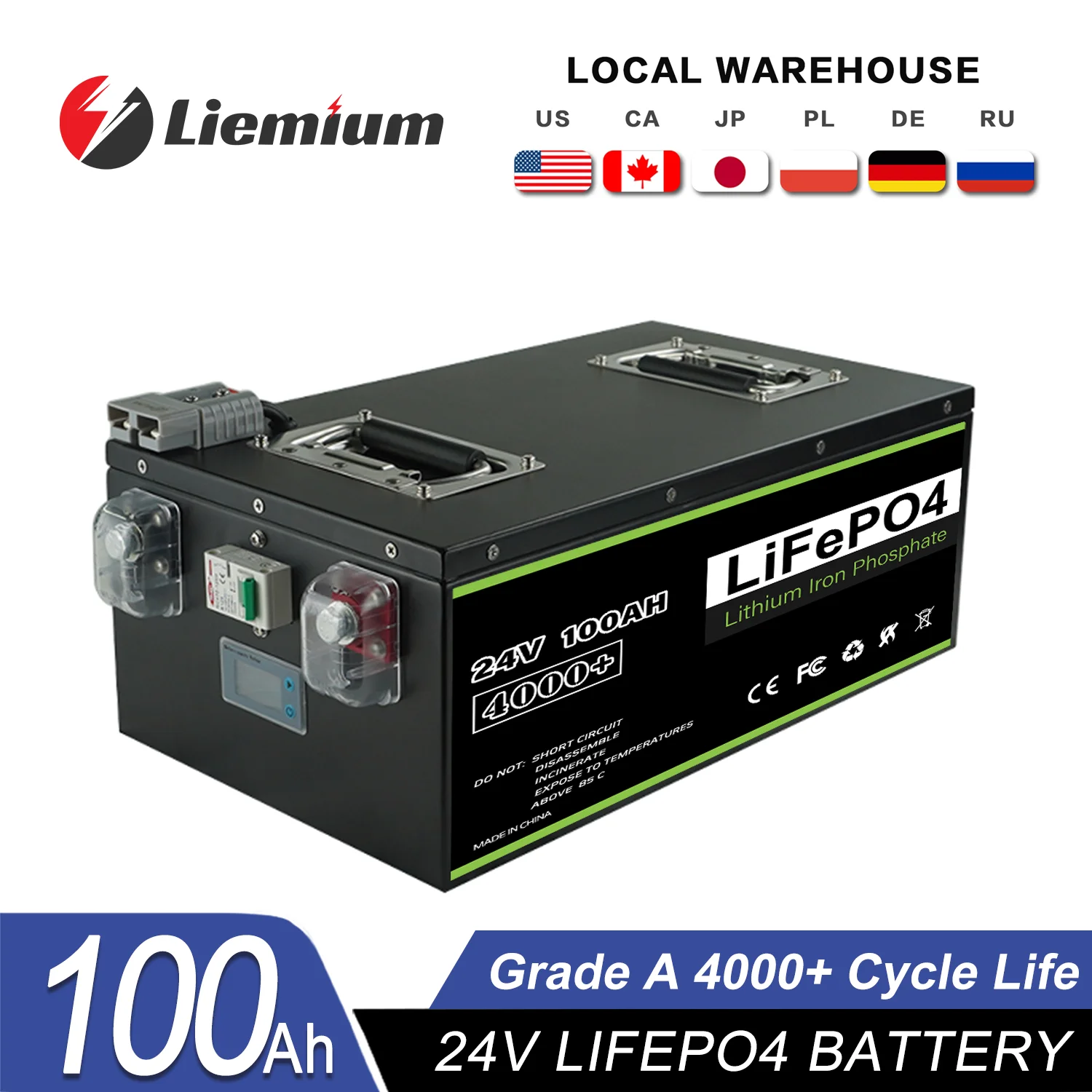

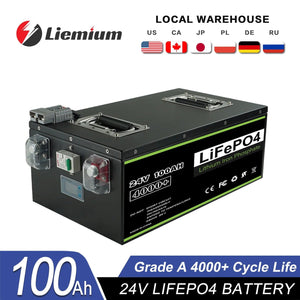

24V 100Ah LiFePO4 Battery

Specifications
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah 0.2C
Energy: 2560Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 29.2±0.2V
Charger Current: 20A
Max. Charge Current: 60A
Max. Continuous Current: 120A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 20.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 380*230*160mm
Weight: Approx. 23kg
Terminal Type: M8

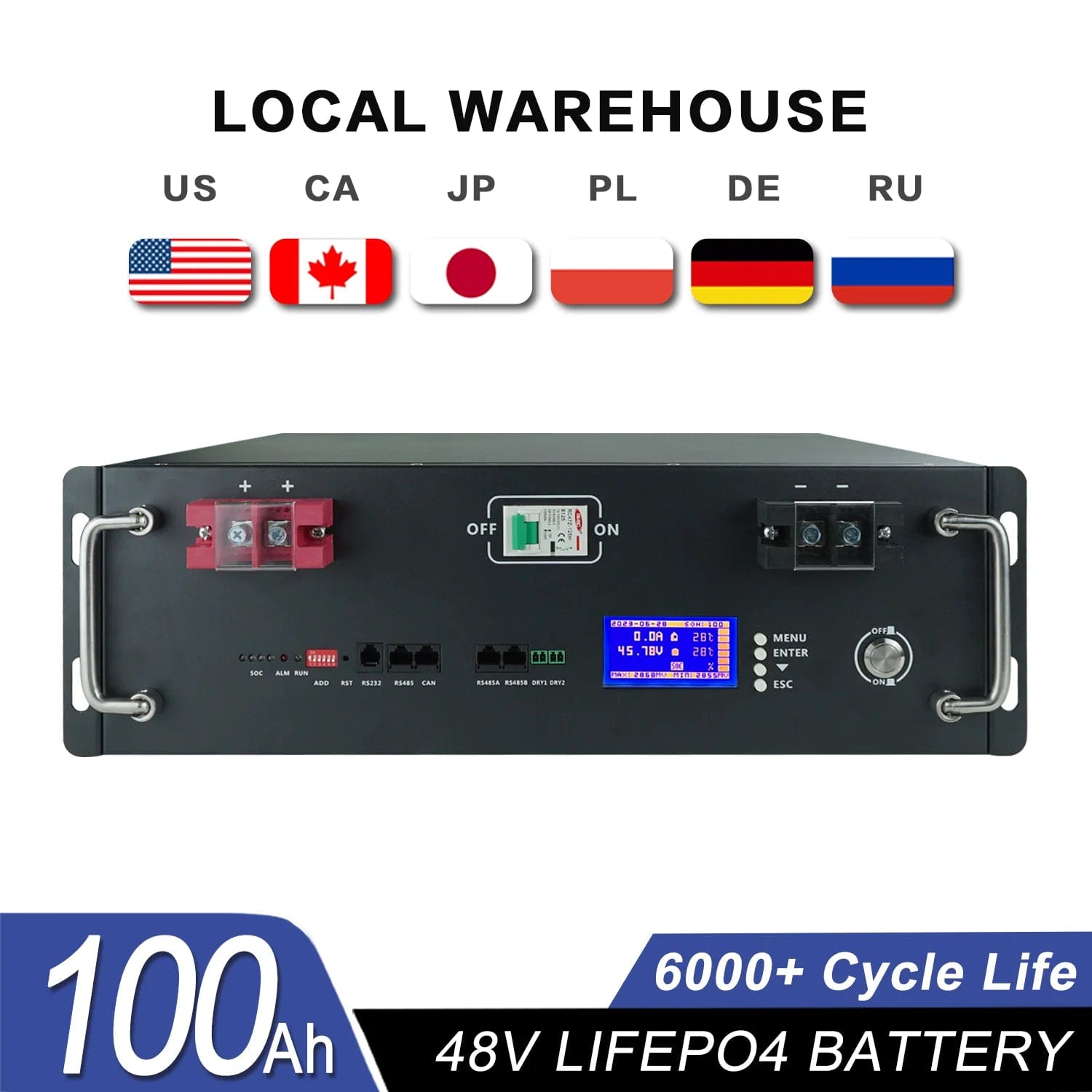

48V 100Ah LiFePO4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 5120Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm
Weight: Approx. 42kg
Terminal Type: Dual M6

Advantages of BALANCETIME

1.Mature Supply Chain and Product Quality Supervision
2. Professional Pre-sales and After-sales Service
3. Fast Delivery & NO TAX

We Provide 5-Year Quality Warranty

New 12V 24V 48V 100Ah 200Ah 280Ah 300Ah 400Ah LiFePO4 Battery Built-in BMS Rechargeable Battery for Inverter Solar RV No Tax
