Description
SPECIFICATIONS
Brand Name: WULILLS
Origin: Mainland China
Model Number: LF12V200AH-MY
Certification: CE
Certification: FCC
Size: 380*260*235mm
Application: Scooter, Street Bike,Solar
Weight: 21kg
Nominal Capacity: 200Ah
Type: Li-Ion
Voltage: 12.8V
Features 1: 12V 200Ah LiFePO4 Battery: Warranty: 5 Years
Features 2: With 150A Bulit-in BMS: Features 3:Lithium Iron Phosphate Battery
Features 4 :Home Solar Energy Storage: Features 5 :Energy 2560Wh
Features 6: Charge Voltage 14.6±0.2V: Features 7:for Replacing Most of Backup Power
Features 8: tax free: Features 9 : fast shipping
Features 10: UPS: Features 10: bank system
Features 11: drop shipping: Features 12: 4000+cycles

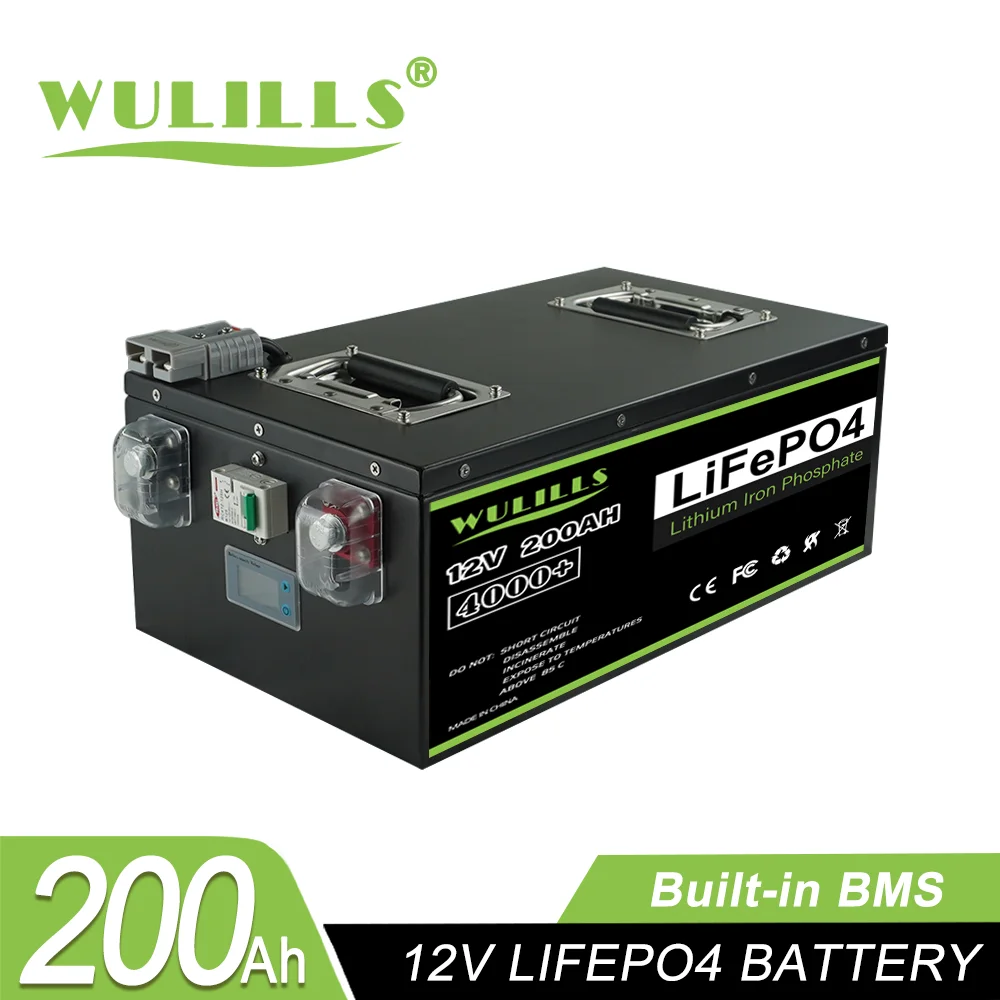

12v 200AH Lifepo4 Battery
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah 0.2C
Energy: 2560Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 40A
Max. Charge Current: 100A
Max. Continuous Current: 150A
Max. Pulse Current: 300A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Matel
Dimension (L/W/H): 380*230*160mm /
Weight: Approx. 21kg
Terminal Type: M8

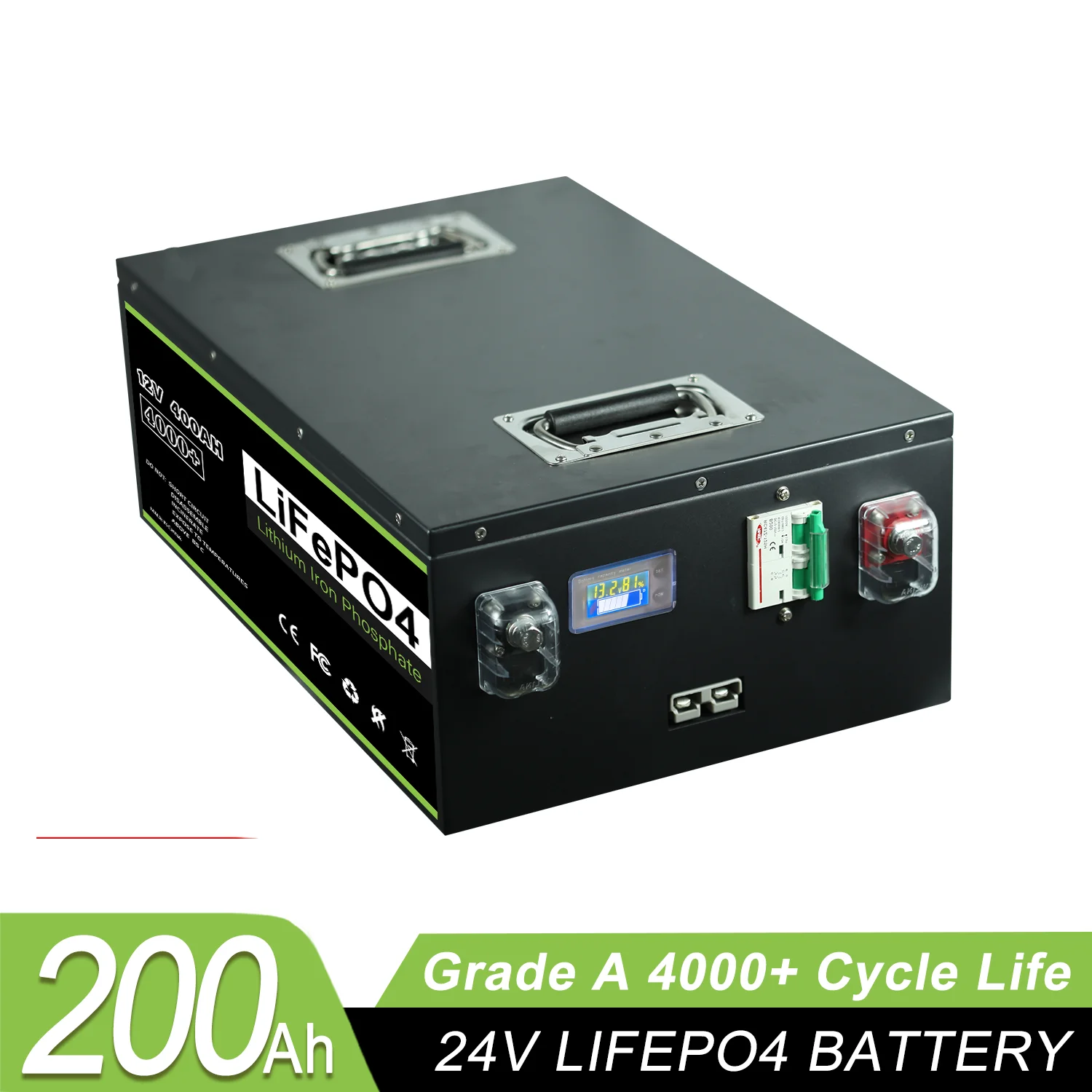

24v 200AH lifepo4 battery
Specifications
Size：450*295*140MM
Rated Capacity (0.2C): 200Ah / 5120Wh
Cycle life: 4000+ cycles at 80% discharge depth
Charge voltage: 28.4V - 29.2V
Depth of Discharge (DoD): 100%
Standard charge current: 50A
Max continuous charge current: 100A
Max continuous discharge current: 120A
Peak discharge current: 600A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 450*295*140
Weight: Approx. 36kg
Terminal Type: M8
why choose lifepo4 battery make pack ?
48v 100ah lifepo4 battery
Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 5120Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm
Weight: Approx. 44kg
Terminal Type: Dual M6

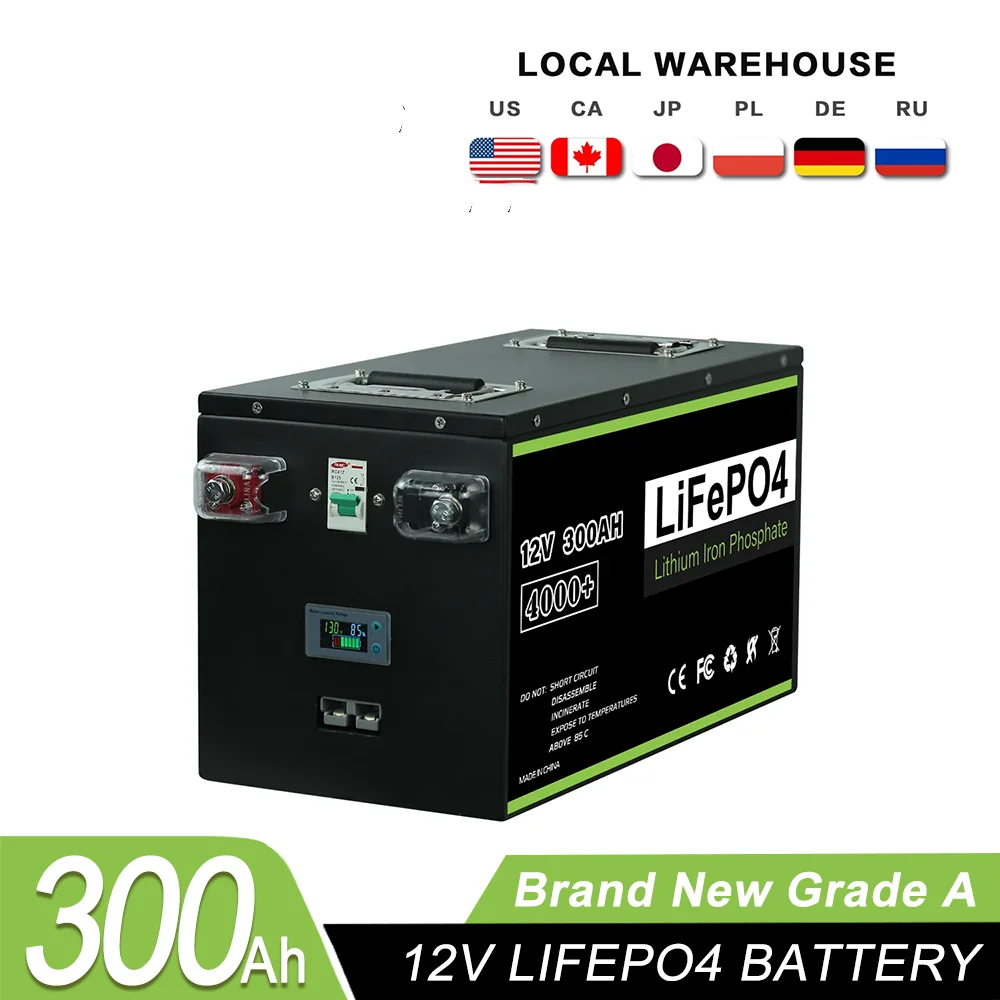

12v 300AH lifepo4 battery
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 300Ah 0.2C
Energy: 3840Wh
Built-in BMS:4S 150A
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 60A
Max. Charge Current: 120A
Max. Continuous Discharge Current: 150A
Max. Pulse Current: 500A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 438*220*250 mm
Weight: Approx. 32kg
Terminal Type: M8

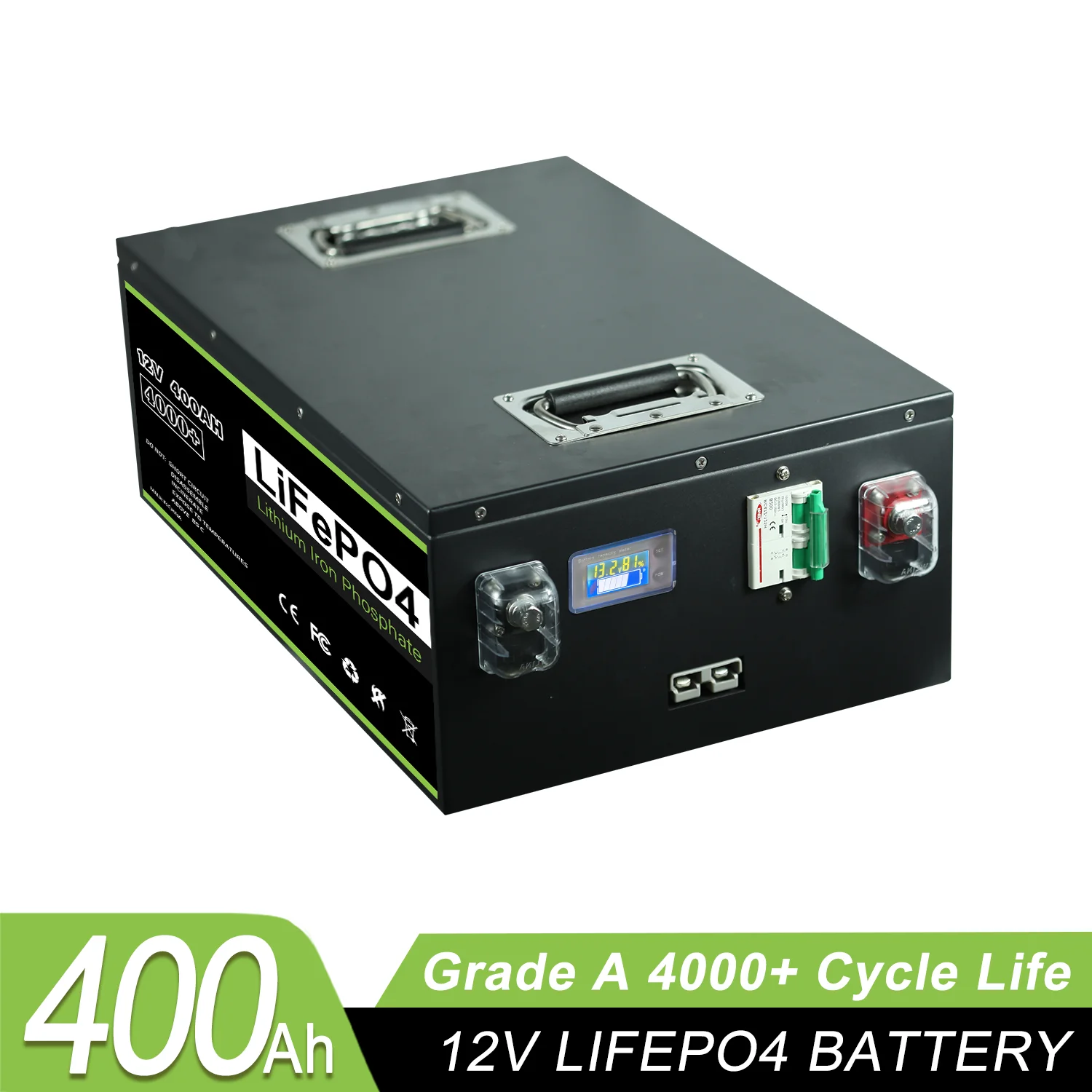

12v 400AH lifepo4 battery
pecifications
Nominal Voltage:12.8V
Nominal Capacity: 400Ah 0.2C
Energy: 5120Wh
Built-in BMS:4S 150A
Cycle life: 4000+ cycles at 80% discharge depth
Charge Voltage: 14.6±0.2V
Depth of Discharge (DoD): 100%
Suggest Charge Current: : 50A
Max charge current: 75A
Max Continuous discharge current: 150A
Peak discharge current: 750A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 500*320*180mm
Weight: Approx. 34kg
Terminal Type: M8

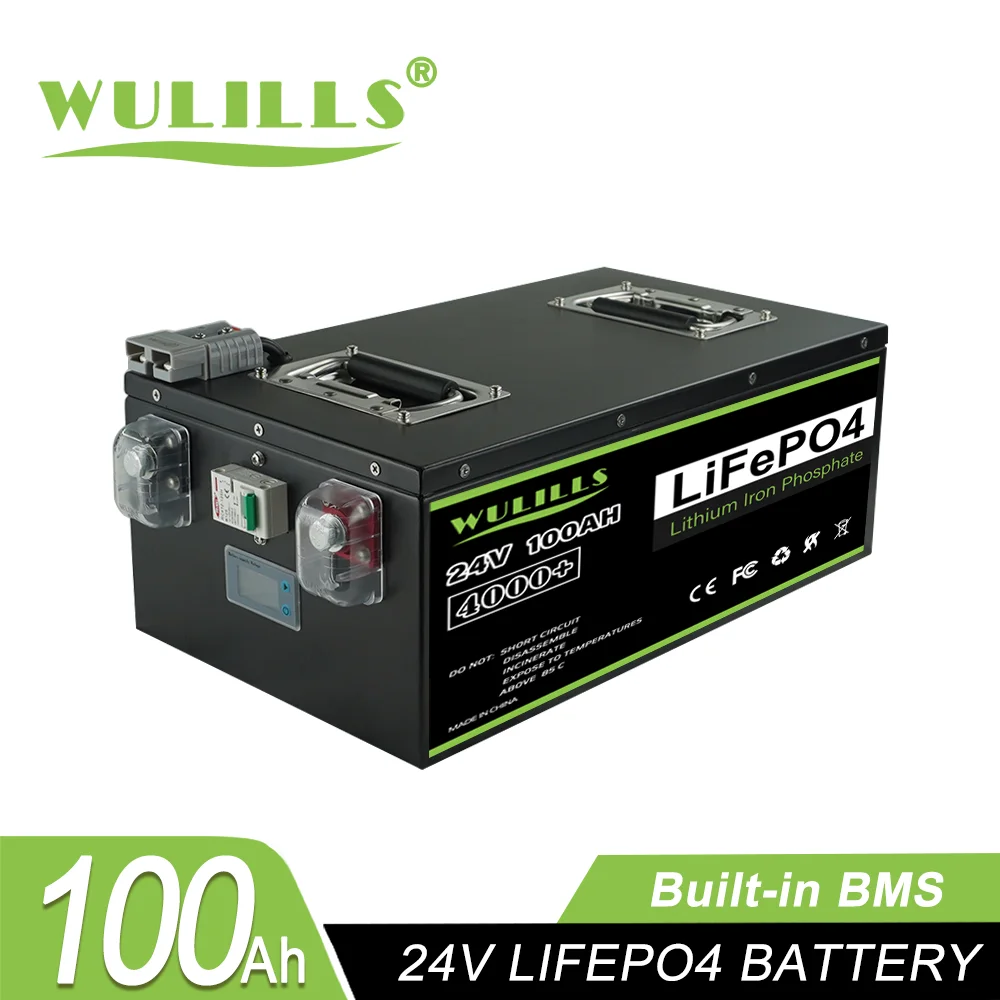

24v 100AH lifepo4 battery
Specifications
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah 0.2C
Energy: 2560Wh
Built-in BMS:4S 100A
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 29.2±0.2V
Charger Current: 20A
Max. Charge Current: 50A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 20.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 380*230*160mm
Weight: Approx. 22kg
Terminal Type: M8
