Description

SPECIFICATIONS

Brand Name: MACHINIST

MACHINIST Model: X99 MR9A PRO MAX

Chipset: Q87

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 128 GB

Processor compatibility: Intel Xeon Scalable

Processor compatibility: Intel Core

With CPU: No

Support Memory Type: DDR4

Number of PCI: 0

Storage Interface Type: SATA

Storage Interface Type: SATA 2

Storage Interface Type: M.2 (NVMe)

Package: Yes

RAID Supported: no

Application: Desktop

Chipset Manufacturer: Intel

Back I/O Ports: 1x RJ45

Back I/O Ports: 3 x Audio Jacks

PCI - E standards: PCI - E 3.0

Socket Type: LGA 2011-3

Hign-concerned Chemical: None

Special Function: none

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Household

Usage Scenario: Office

Usage Scenario: DESIGN

Usage Scenario: Video Production

Origin: Mainland China

Number of PCIe x 8: 0

Number Of Memory Slots: 4

Ports: USB 3.0

Form Factor: CeB

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Number of PCIe x 4: 1

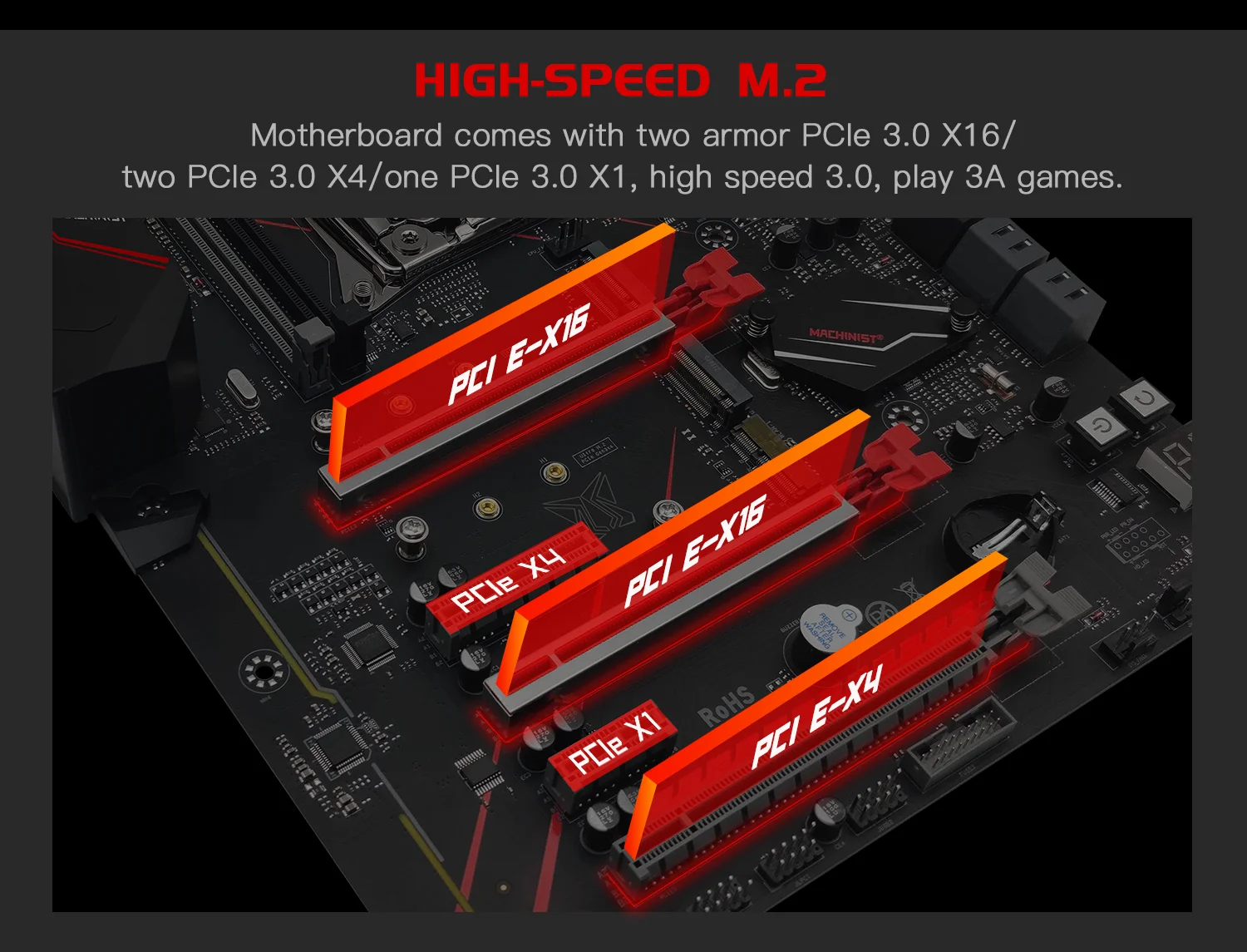

Number of PCIe x 16: 4

Onboard Connectors & Header: CPU Fan Connector(s)

Onboard Connectors & Header: AAFP Connector

Onboard Connectors & Header: PWR_FAN Connector

Onboard Connectors & Header: 4-pin +12V Power Connector

Memory channel: Four

Number of SATA Ports: 6

Audio Channels: 5.1

SATA RAID: 0

Quality Certification: ce

Quality Certification: ROHS

Number of PCIe x 1: 1

Certification: RoHS

Certification: CE

Form Factor: ATX

Supports M.2 SSD: 2280

Number of M.2: 3

Choice: yes

>>Package includes:

Motherboard: MACHINIST X99 MR9A PRO MAX *1PCS.

Gift accessories: I/O shield *1SATA cable *1, heat sink *1.

(##All are packed after manual testing before sending. Please understand if there are any gifts missing!)

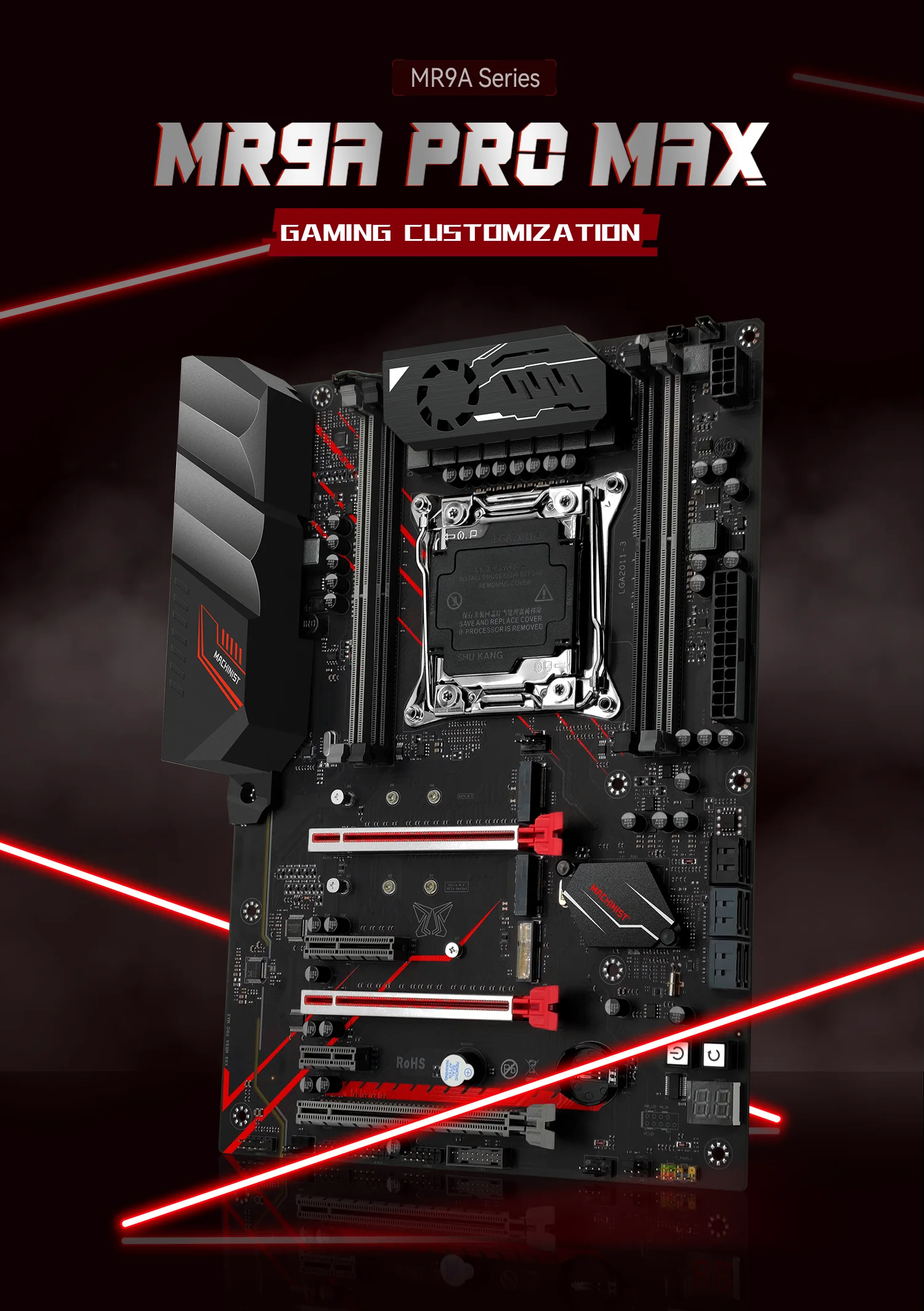

> >Motherboard information:

Brand: MACHINIST.

Motherboard model: X99 MR9A PRO MAX.

Processor: Support Intel LGA2011-3 pin series processor.

Chipset: B85/C226/Q87 Chipset.

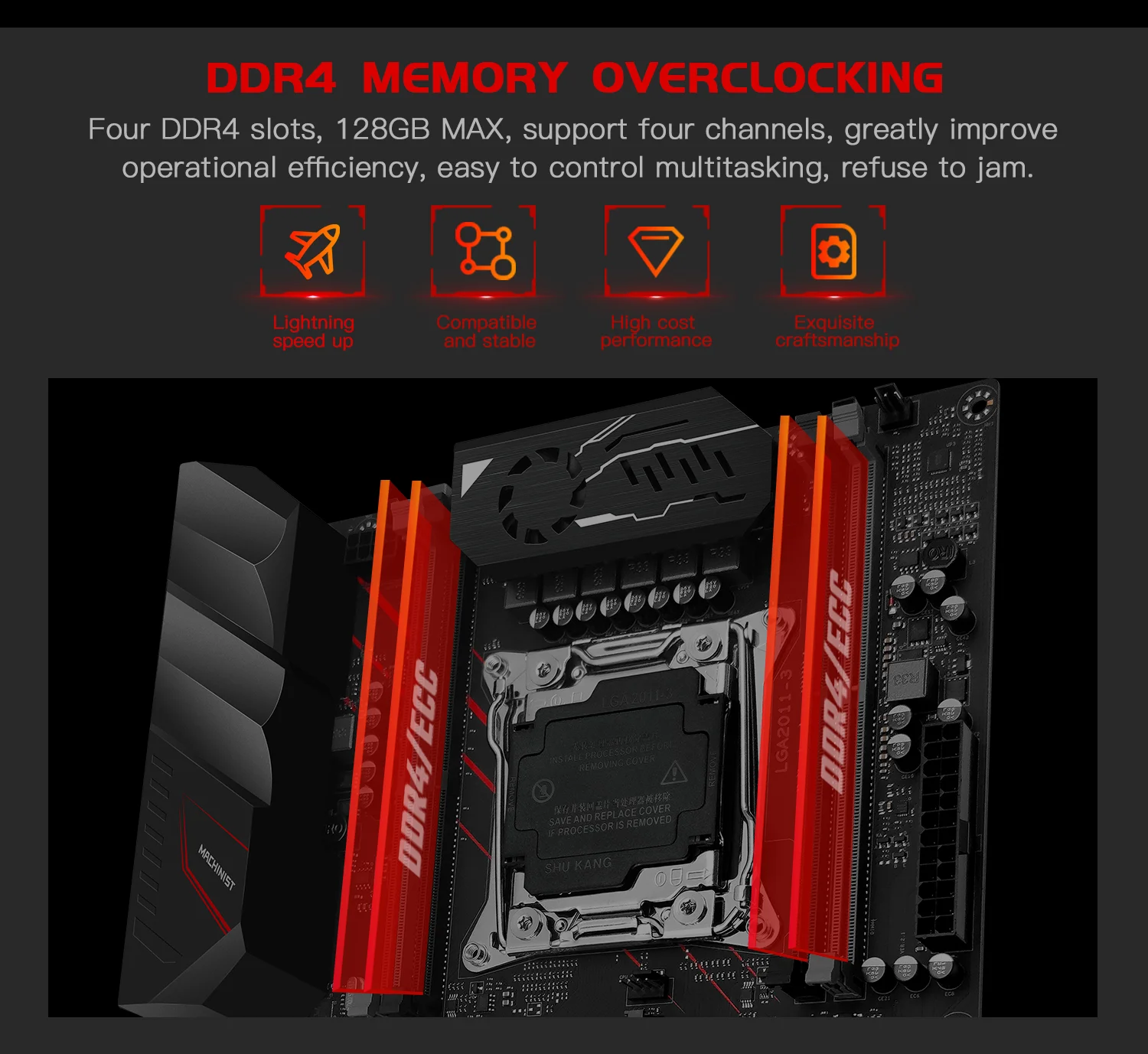

> >Memory

Technology: Quad-channel DDR4. Support 2133/2400/2666/3200MHZ.

Maximum capacity: 128GB (32G x 4).

Memory slot: 4 * 288 PIN DDR4.

Memory type: Support DDR4 desktop and server memory.

(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may be incompatible.)

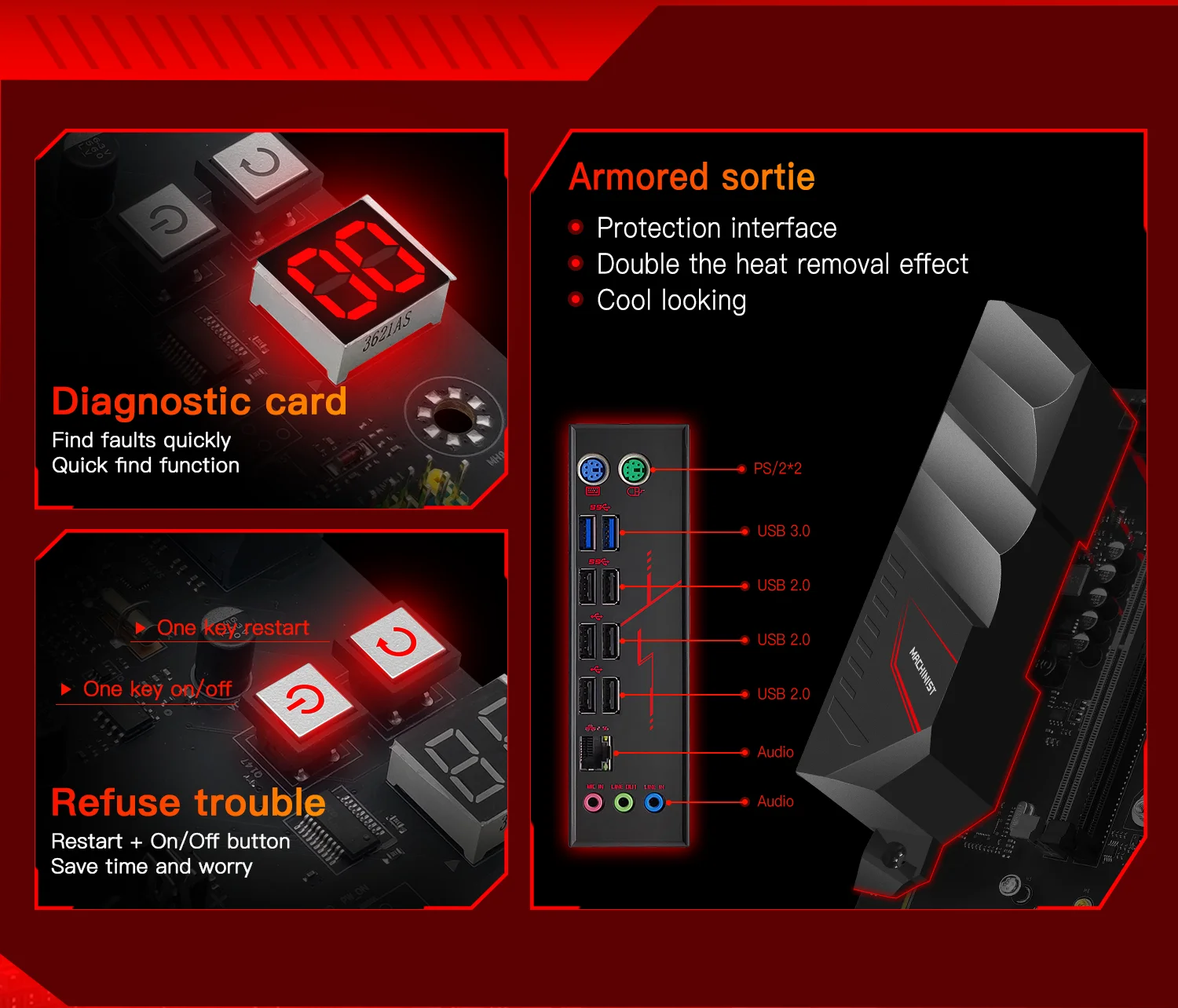

>> Post I/O

PS/2: 1 KB interface + 1 MS interface.

USB interface: 6 USB2.0, 2 USB3.0.

Ethernet: 1 Gigabit network card.

Diagnostic card: 1.

Audio: 1 (Mic-in, Line-out, Line-in).

Dimensions: 300mm * 215mm.

Motherboard weight (including packaging): about 1.3 kg



>> Regarding tariff issues, please make sure you can solve the customs clearance issues by yourself. If you can't solve them, we do not recommend that you buy goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>>Note:

(1) The color of the bottom plate may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1-3mm.

(3) Due to different displays and different light, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a strong power supply. Please make sure your power supply is sufficient to support this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included and will be removed before shipment because the logistics requirements prohibit the use of the battery.
