Description
SPECIFICATIONS
Brand Name: MACHINIST
Chipset: Intel B85
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 128 GB
Processor compatibility: Intel Xeon Scalable
Processor compatibility: Intel Core
With CPU: No
Support Memory Type: DDR4
Number of PCI: 0
Storage Interface Type: SATA
Storage Interface Type: M.2 (NVMe)
Package: Yes
RAID Supported: no
Application: Desktop
Chipset Manufacturer: Intel
Back I/O Ports: 1x RJ45
PCI - E standards: PCI - E 3.0
Socket Type: LGA 2011-3
Hign-concerned Chemical: None
Special Function: none
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Office
Usage Scenario: Video Production
Usage Scenario: others
Origin: Mainland China
Number Of Memory Slots: 4
Form Factor: CeB
Number of PCIe x 4: 0
Number of PCIe x 16: 1
Onboard Connectors & Header: 24-pin Main Power Connector
Onboard Connectors & Header: CPU Fan Connector(s)
Onboard Connectors & Header: AAFP Connector
Memory channel: Double
Number of SATA Ports: 4
Audio Channels: 2.1
SATA RAID: 0
Quality Certification: ce
Quality Certification: ROHS
Number of PCIe x 1: 1
Certification: RoHS
Certification: CE
Form Factor: Micro-ATX
Supports M.2 SSD: 2280
Number of M.2: 2
What's in the package：

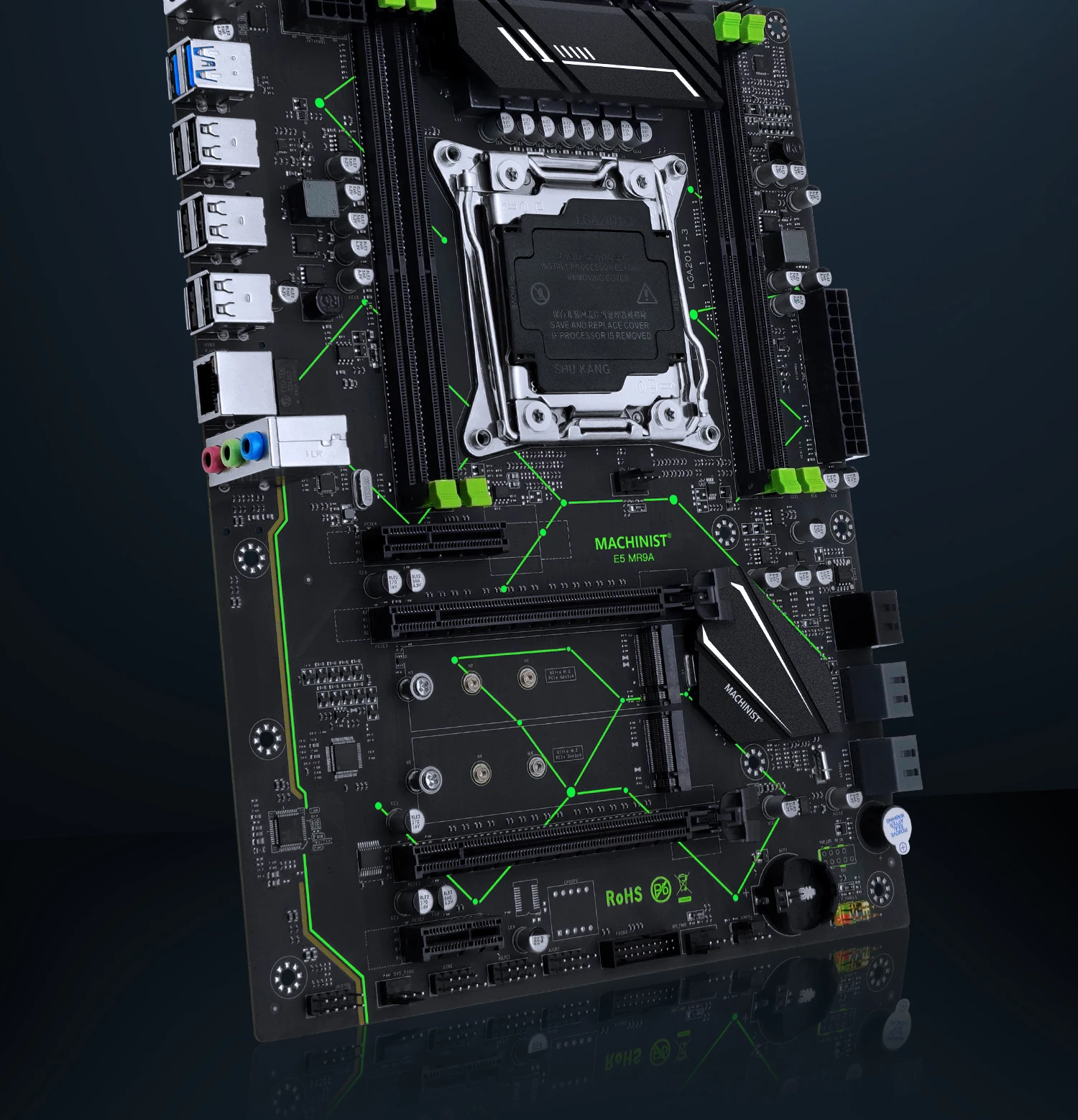

Main products: Machinist E5 MR9A V1.0 motherboard *1PCS;
Gift accessories :i/o shield, CPU cooling bracket, sata cable (all manual test packaging, there may be missing, please forgive me!)
Specifications:
Brand: MACHINIST.
CPU socket: LGA 2011-3.
Motherboard model: E5 MR9A V1.0.
Structure: ATX.
Chipset:Intel B85(C226).

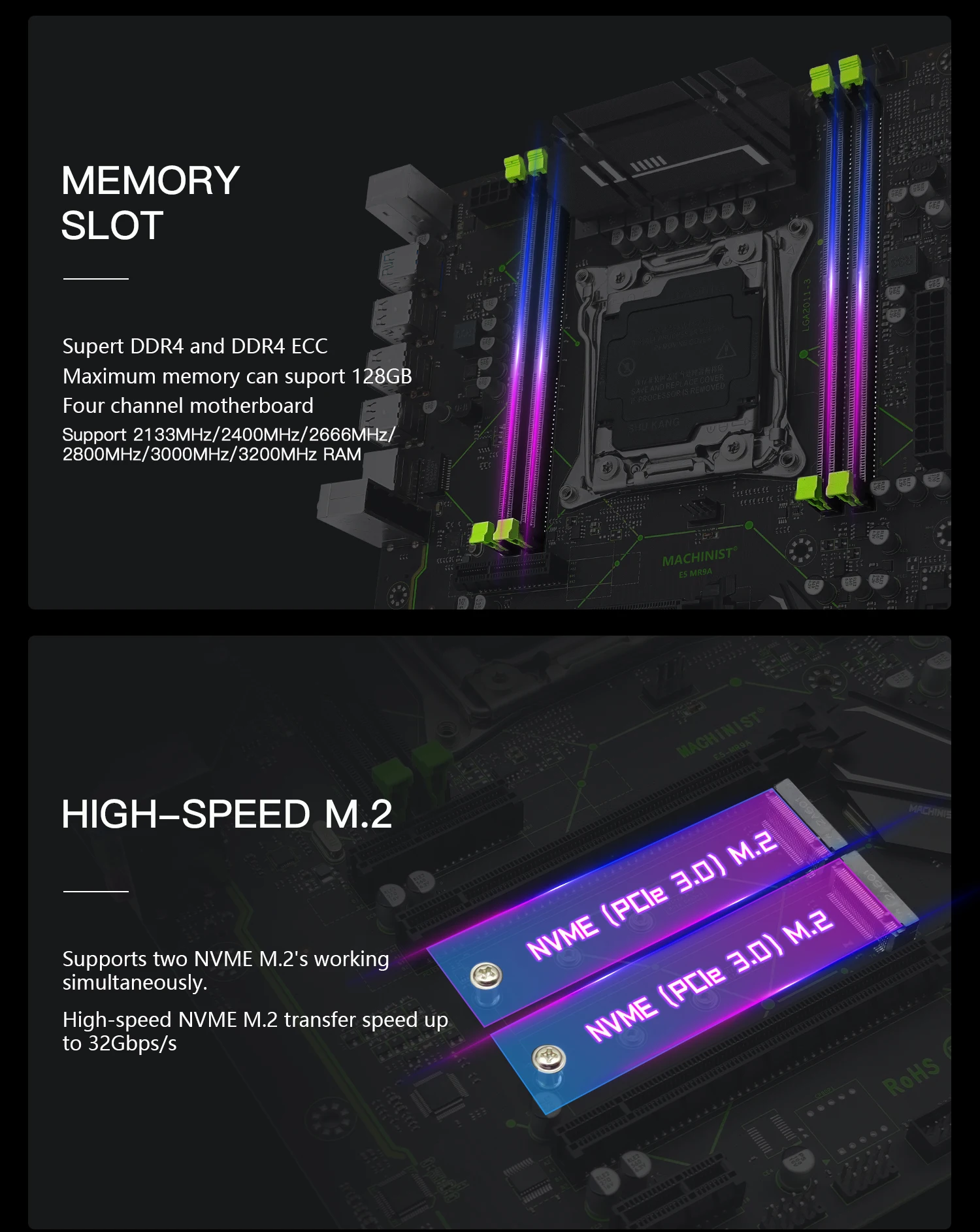

Memory slot: 4*DDR4 (four memory channels)
Maximum memory supported: 4*32GB DDR4
Supported memory types: The memory types support DDR4 desktop and server memory. (Please use Samsung, Kingston, SanDisk, Micron, Hynix and other international brands, other brands are incompatible)
LAN port: 10/100/1000Mbps/s
Video output port: requires graphics card .
support Interface: 1*RJ45/1*PS2/4*SATA2.0/2 *SATA3.0/6*USB2.0/2*USB3.0/2*PCI-E x16/1*PCI-E x1/1*PCI-E x4/1*NVME M.2 interface *2.
Motherboard size: 216MM*283MM
Motherboard weight (including packaging): about 1.3kg.
Note:
Regarding the tariff issue, please make sure that you can solve the customs clearance problem yourself, if you can't solve it, we do not recommend that you buy products in our store. We are not responsible for tariffs. Thank you for your understanding.
Please note: Some processors only support memory up to DDR4 1866Mhz or 2133MHz. This means that when 3200Mhz or 2666Mhz is installed, it will only display 1866Mhz and 2133MHz. If you don't mind, please don't place an order. 3200mhz and 2133MHz can be read on CPU-Z.
(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
