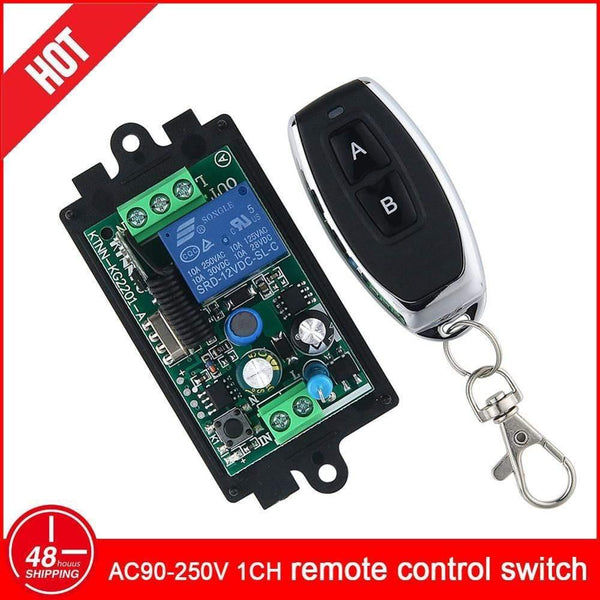

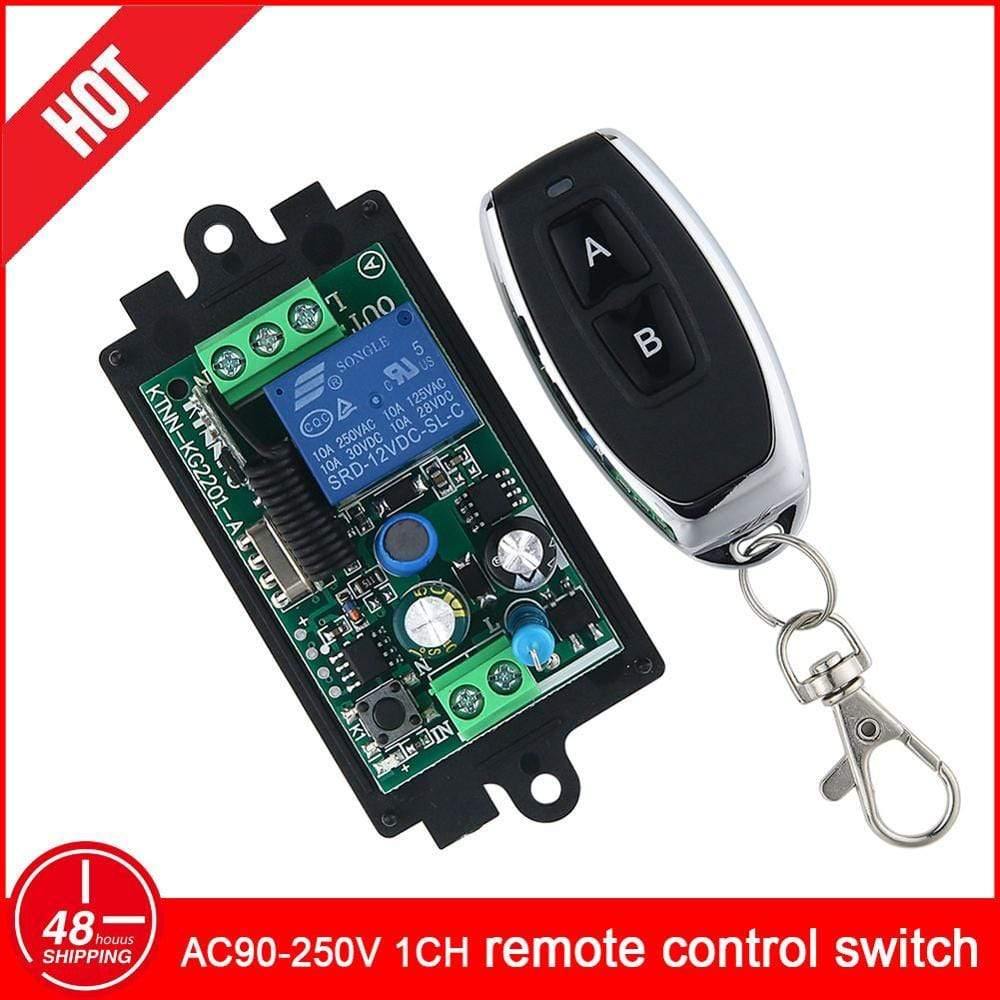

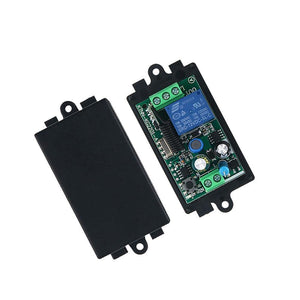

KTNNKG 433MHz 220V Lamp Wireless Remote Control Switch ON/OFF AC110V Remote Control Receiver Transmitter For Led Lights Bulb DIY

Receiver Description:

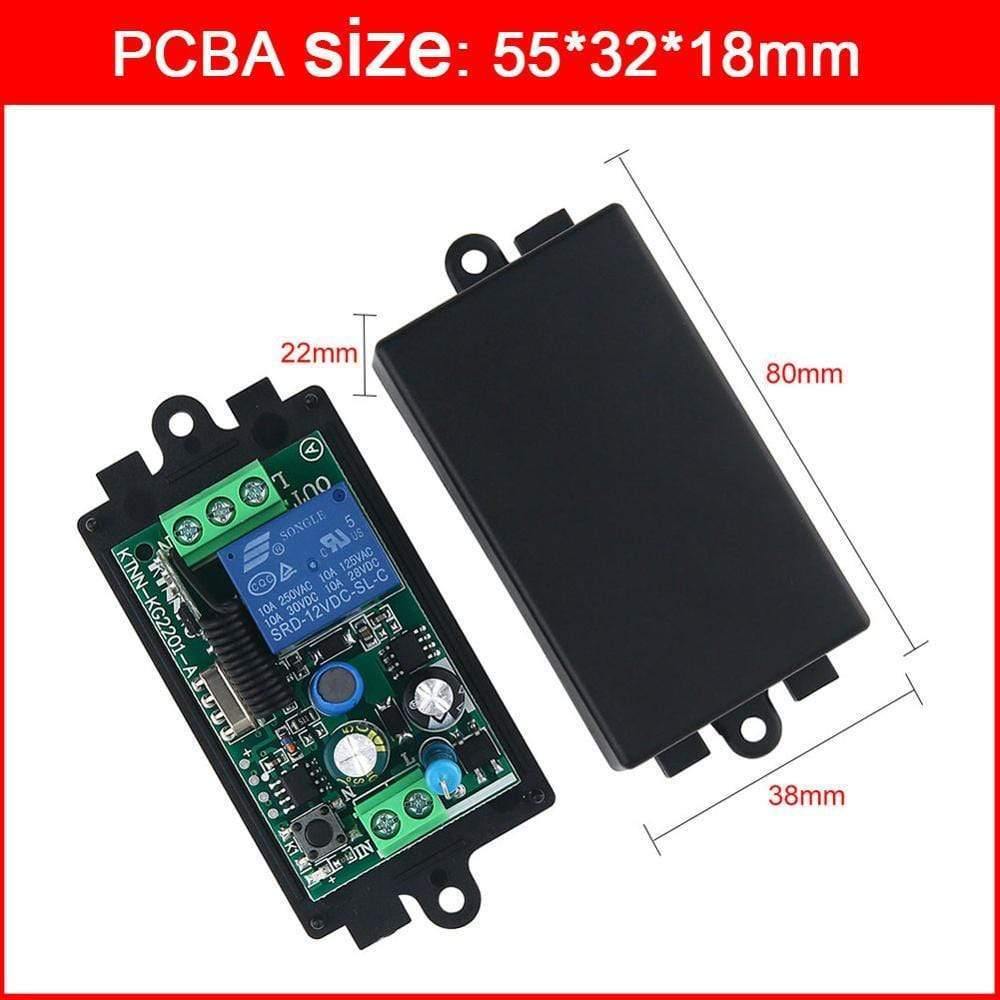

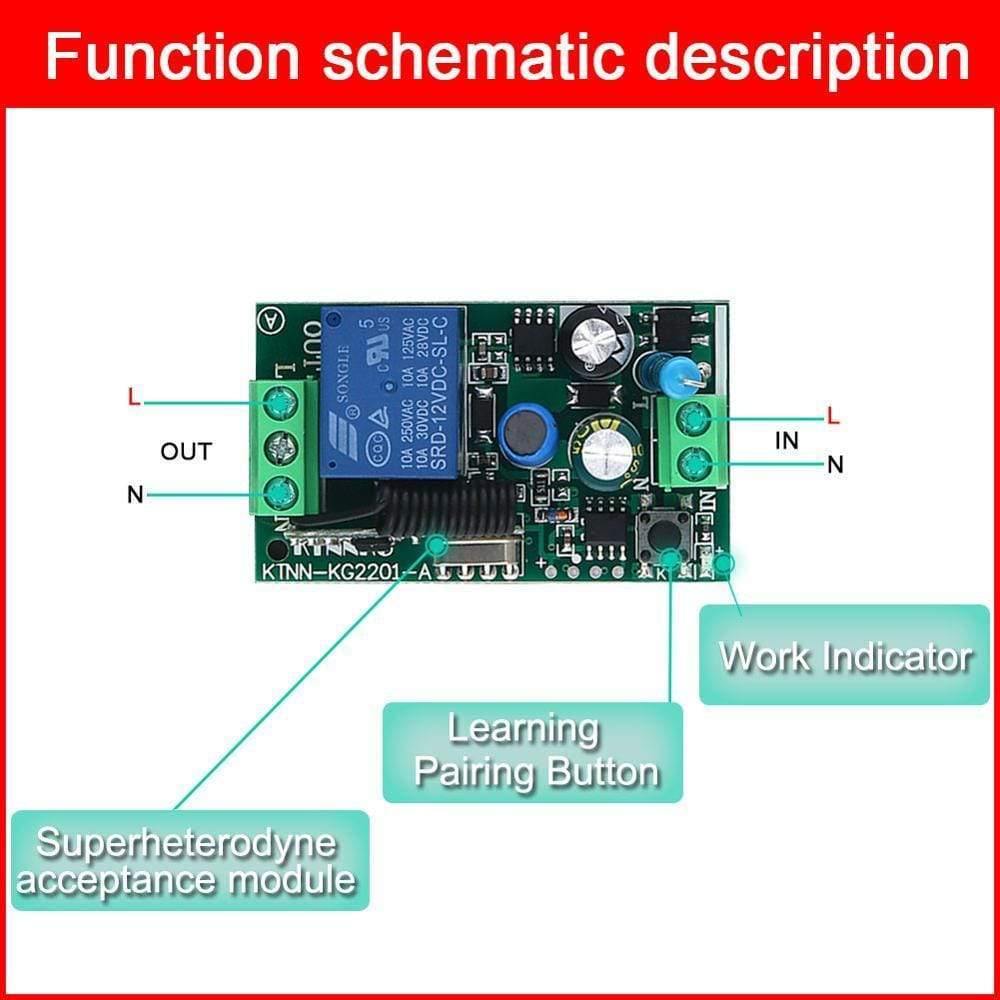

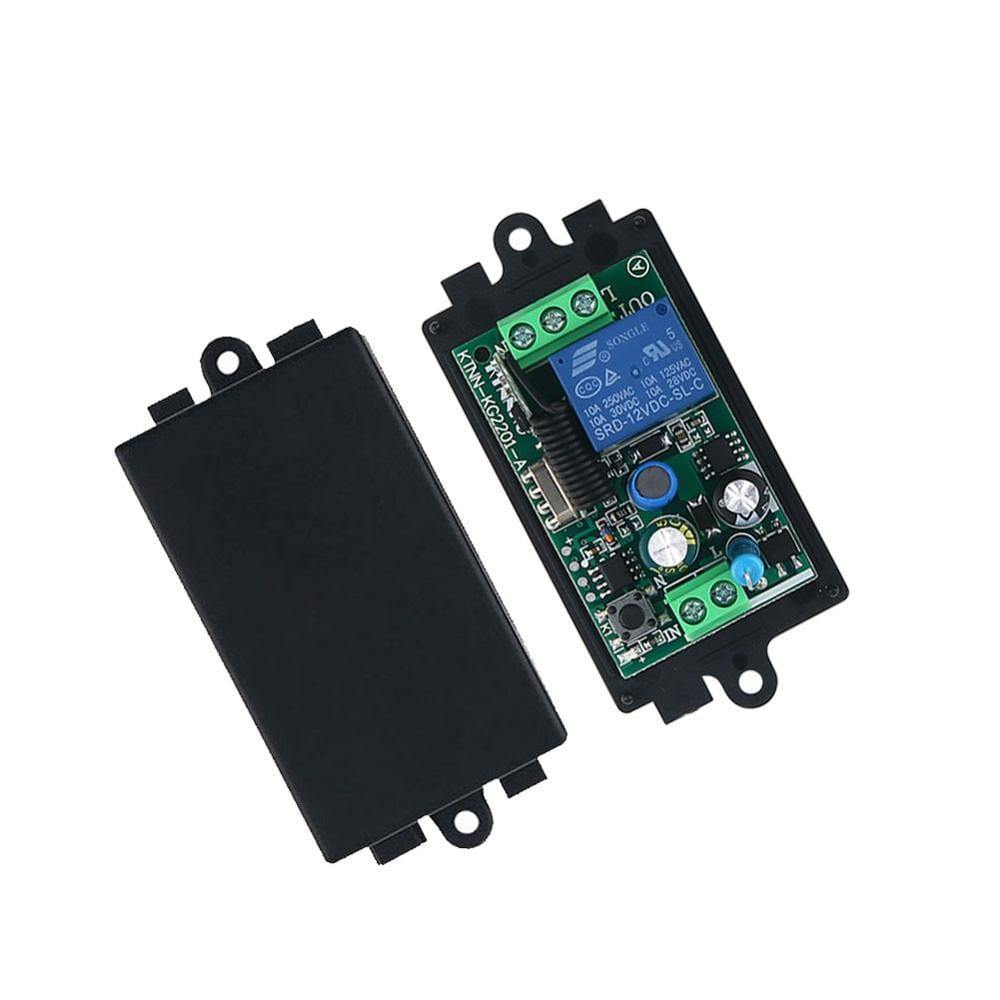

1, the working voltage: AC90V- 250V 2, quiescent current: 8mA 3, operating frequency: 433MHz 4, charging power: 10A 5, receiving sensitivity: -105dbm 6, frequency deviation: ± 0.2MHz 7, coding method: learning type 8, working mode: jogging, self-locking, locking 9, modulation method: ask 10, remote control distance: 100M (wild) 11, PCBA size: 65.2mm * 35.5mm * 18mm 12, shell size: 85mm * 40mm * 25mm

Erase data:

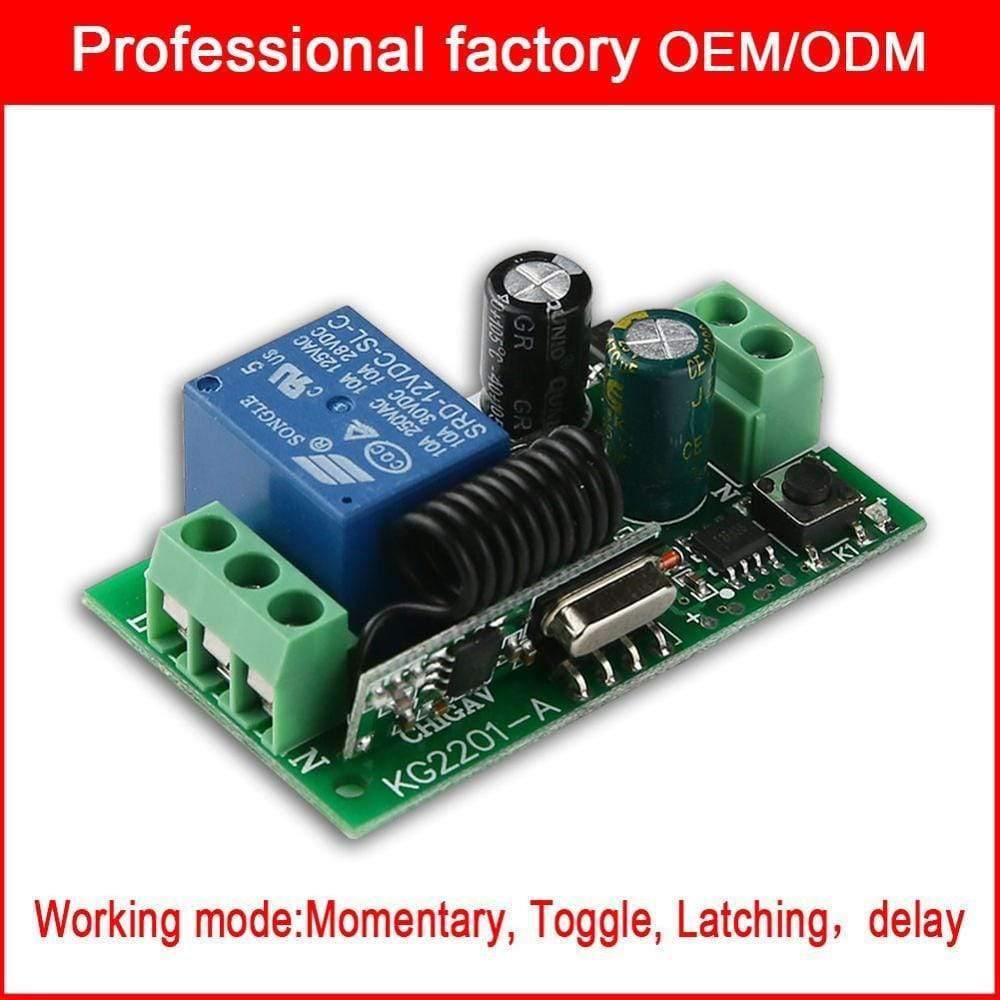

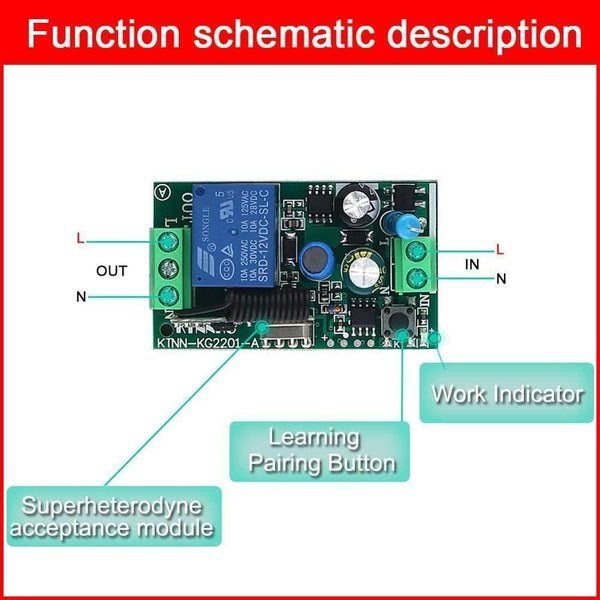

Press the pairing learning button 8 times until the LED indicator flashes 5 times continuously. This means that the data is cleared successfully and all the learned remote controls are cleared. Explain the output method: 1. Self-locking / toggle: press the same remote control button, press, relay open, press again, relay off. 2. Locking / locking: press the "A" key on the remote control, the relay opens, press the "B" key on the remote control, the relay is off. 3, jog / momentary: press "A" button on the remote control, the relay will open, release the "A" button on the remote control, the relay off. If you keep pressing the "A" button on the remote, the relay will stay on. When you release the remote, the relay turns off.

Matters requiring special attention:

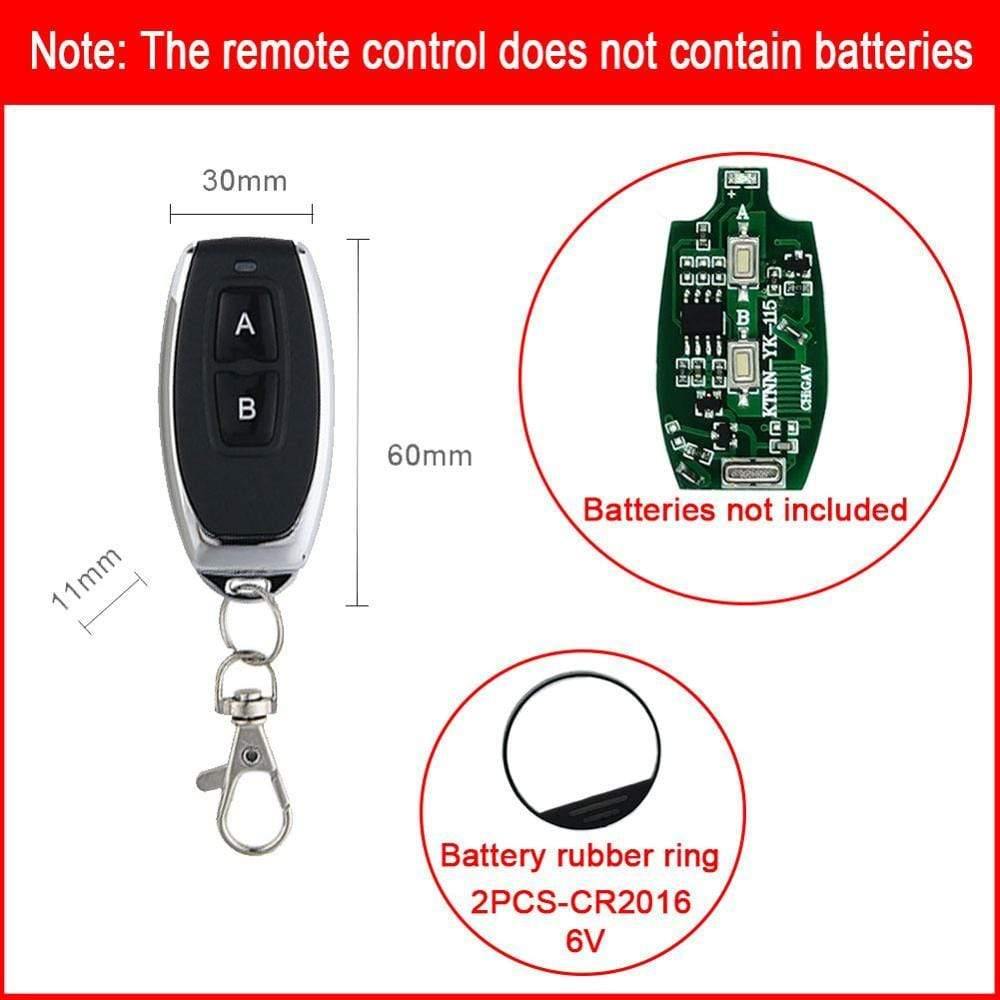

1. Do not run on electricity. Turn off the power and turn it on. Check the power supply after use. 2. When the remote control voltage is insufficient, please change the battery in time (when the remote control battery voltage is insufficient, the general remote control distance becomes close). 3. When using wireless electronic products, metal masks, large electronic devices, electromagnetic fields, etc., which have a strong source of interference should be avoided, to prevent the remote control and the remote control. receiving distance are short or unable to function properly. 4. Do not use this electronic product abnormally. Unusual use will reduce the performance and longevity of the product. In severe cases, damage to the product will also bring hidden dangers to your safety.
