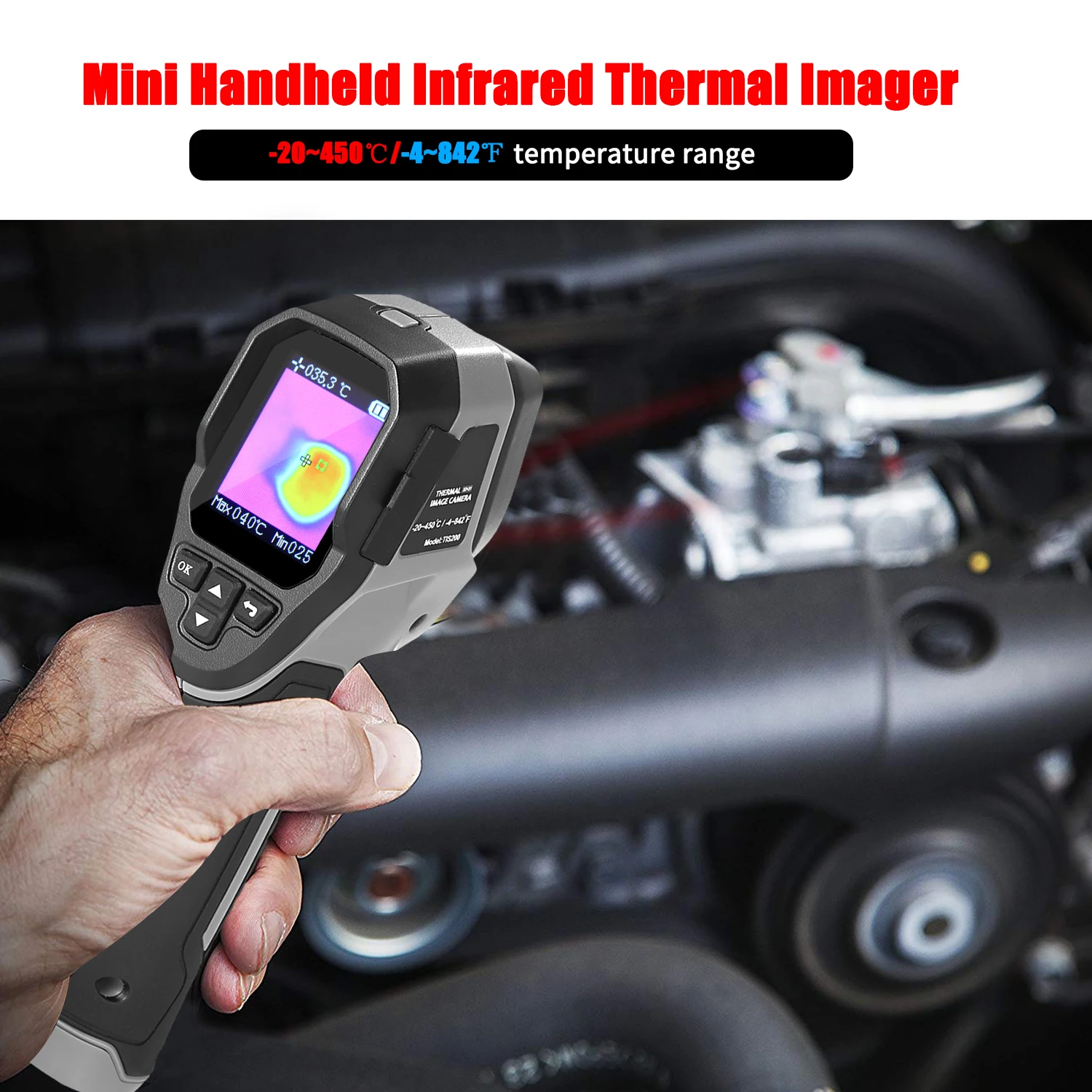

Infrared Thermal Imager IR Infrared Imaging Devices Mini Handheld Thermal Imaging Camera -20~450℃/-4~842℉ Thermal Image Device



Type 1

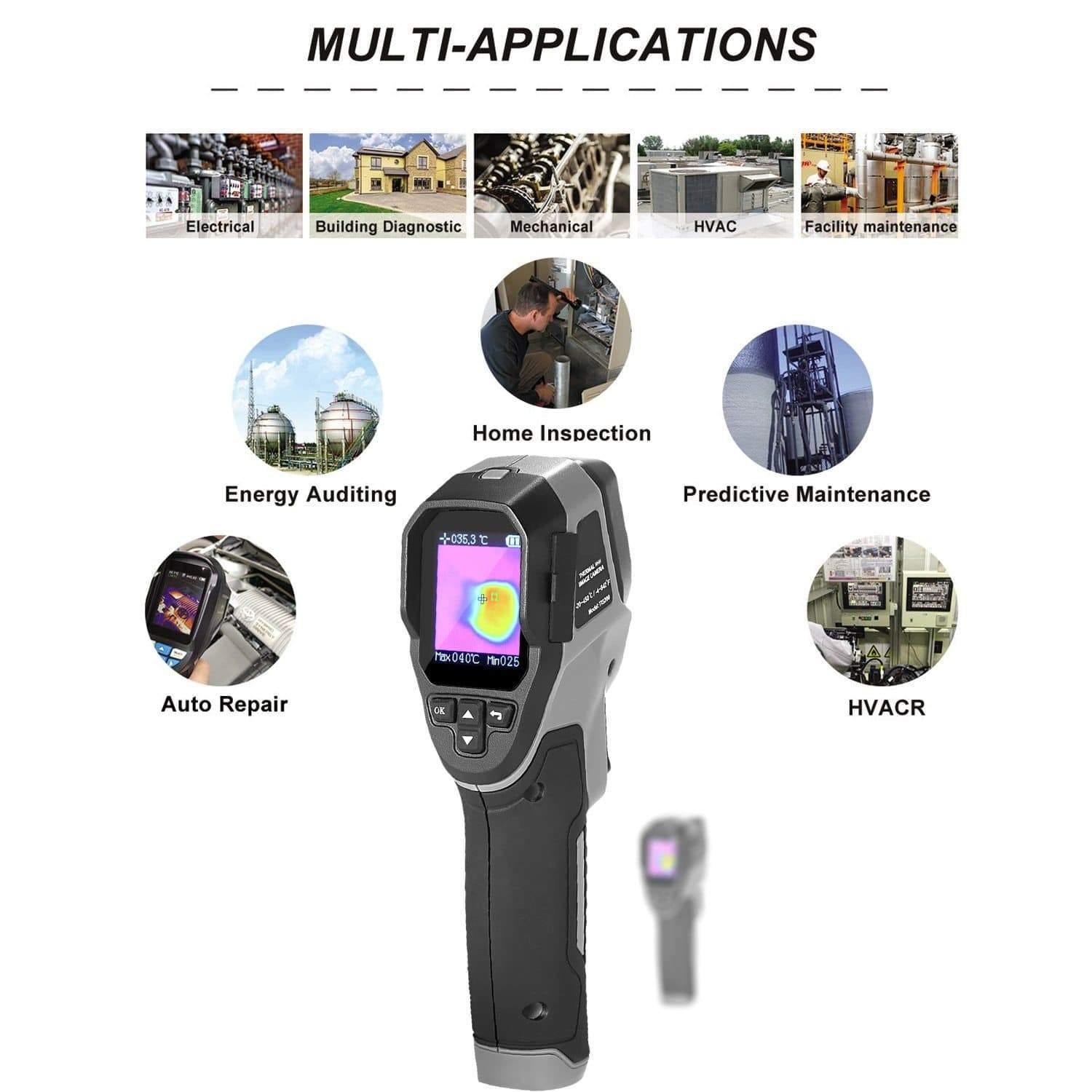

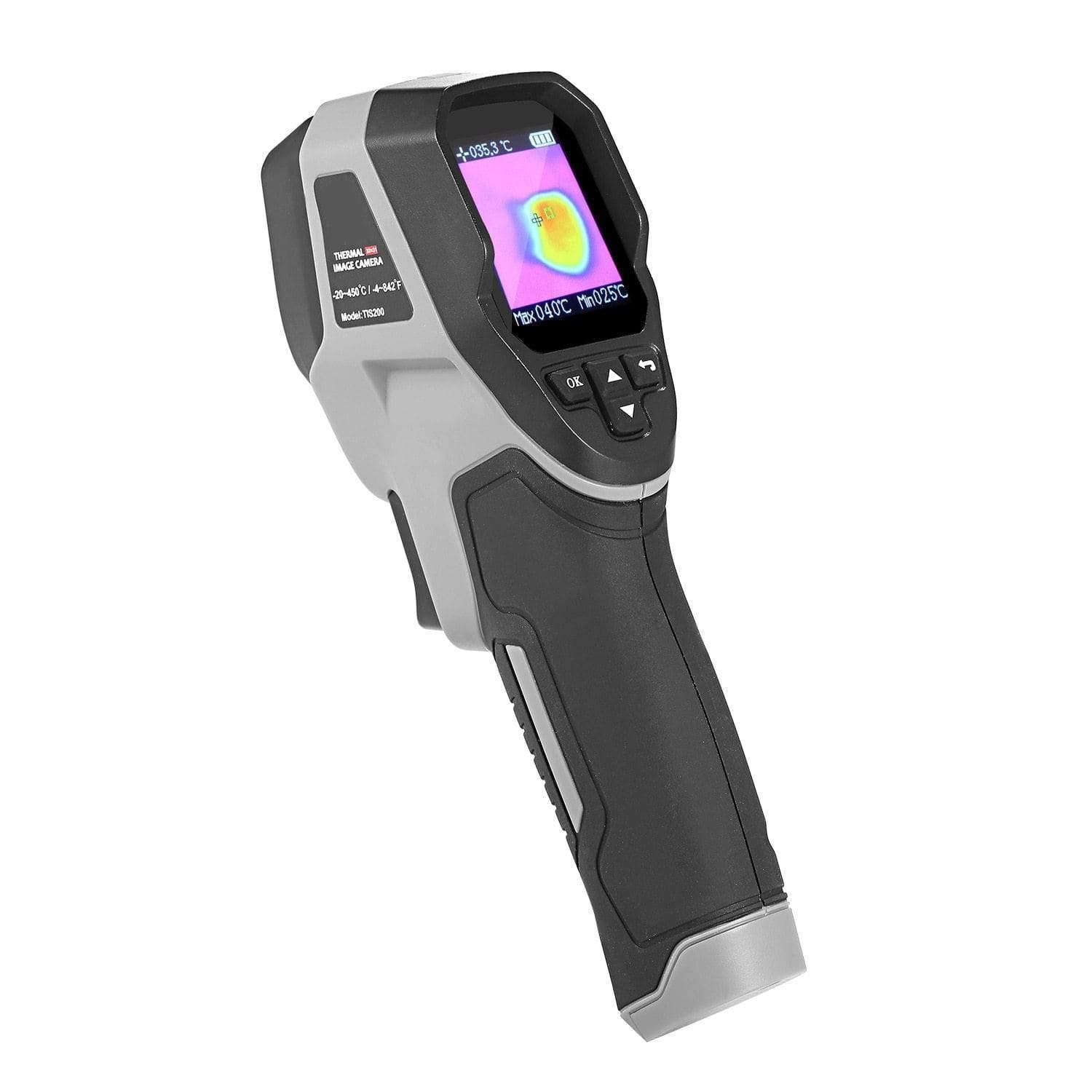

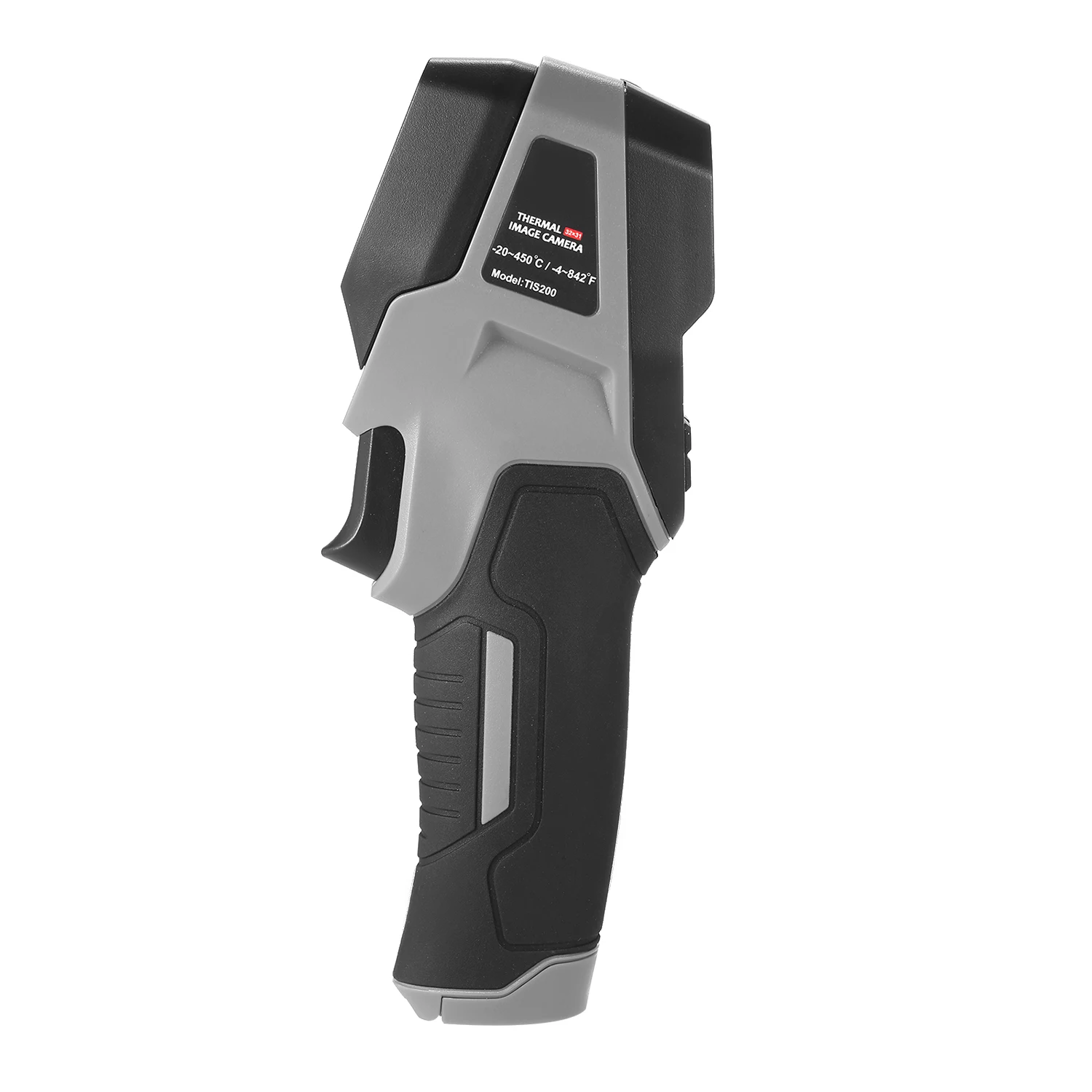

The thermal imaging camera is a handy tool to visually detect high and low temperature with both heat-mapped color palettes and actual temperature reading. This easy-to-use thermal camera displays and saves images that can be reviewed later from a memory card(NOT included). With a wide temperature range of -20~450℃(-4~842℉), this versatile tool can be used for a wide variety of automotive, industrial, electrical and home applications.

Features:

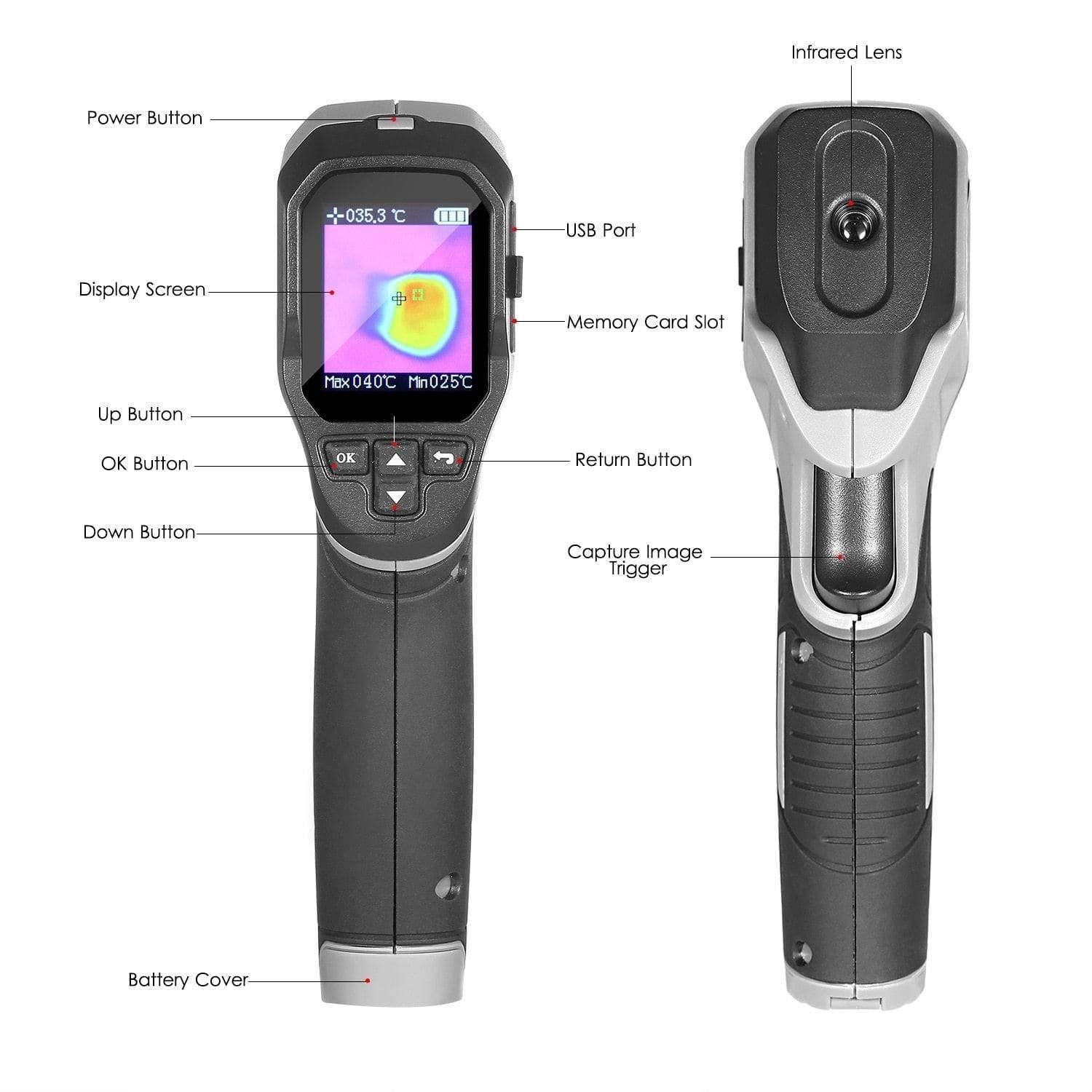

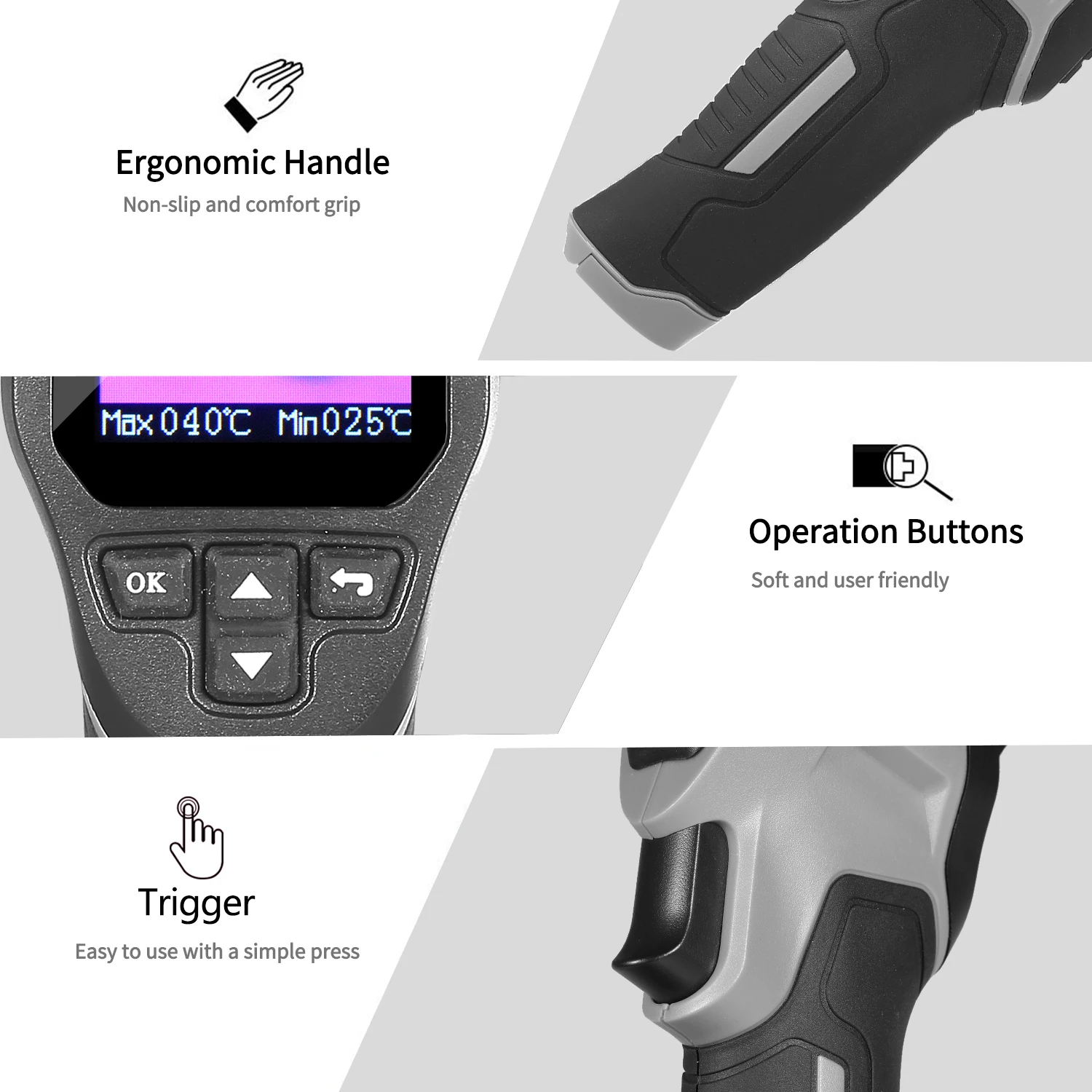

Easy Operation: to use the thermal imager, simply point at the object you want to check and view the LCD screen.
Power Saving Auto-off: it designed with auto shut down to save the energy, you can choose from OFF, 1min, 2min, 5min, and 10min. Battery indicator in the upper right corner.

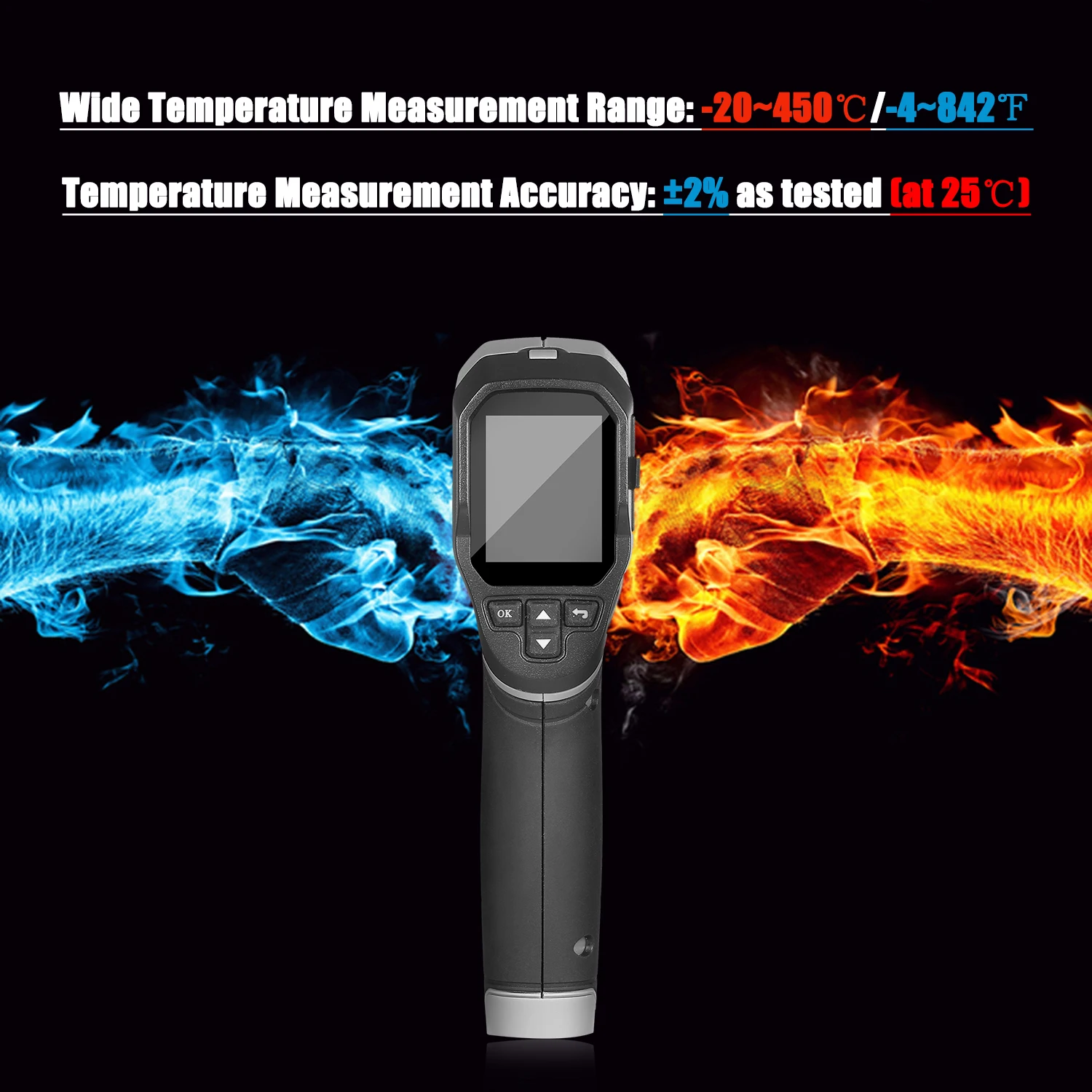

Wide Temperature Range: the temperature measurement range is from -20℃ to 450℃(-4℉ to 842℉), and the temperature units is in ℃/℉ switchable, ±2% temperature measurement accuracy.

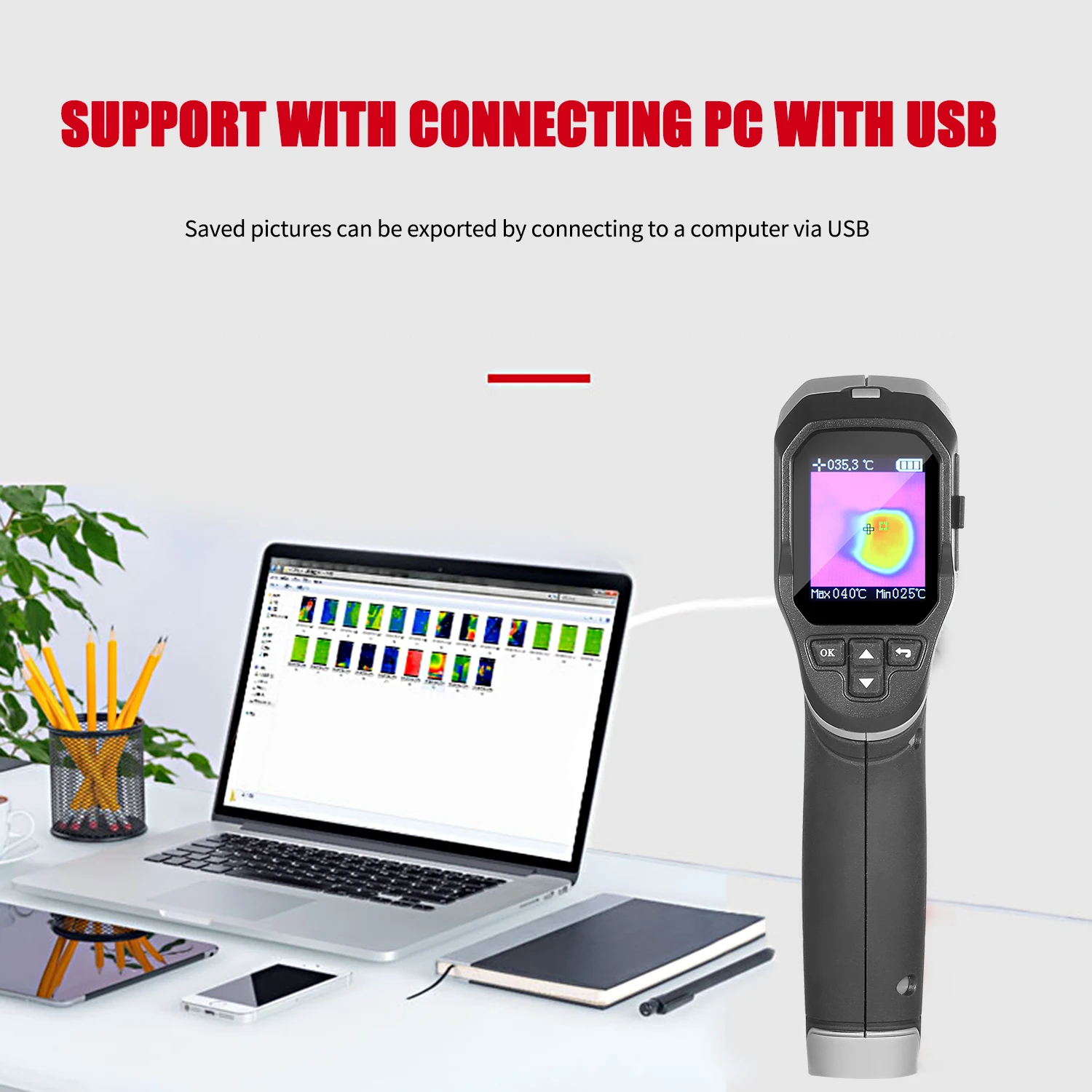

Support Memory Card: it supported with external memory card, the captured images can be stored and reviewed later by accessing the memory card menu.
Storage Pouch: store the thermal imager in the included bag to ensure its longevity and accuracy.

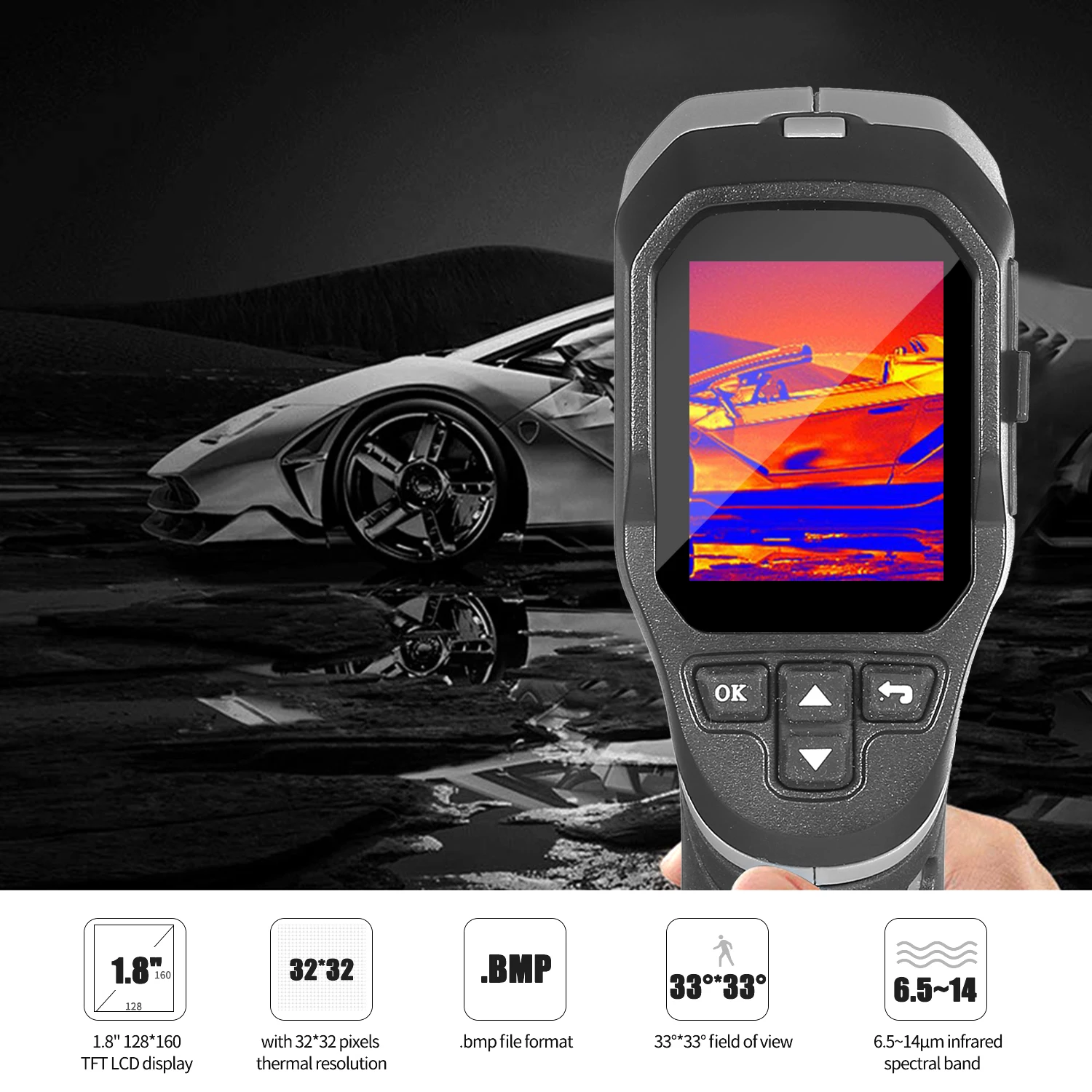

Other Features: 1.8" 128*160 TFT LCD display, with 32*32 pixels thermal resolution, .bmp file format, 33°*33° field of view, 6.5~14μm infrared spectral band, etc.

Specifications:
Material: ABS+TPR
Color: Black & Grey
LCD Display: 1.8" 128*160 TFT
Thermal Resolution: 32*32 pixels
Image Capture Frequency: 9Hz
Thermal Sensitivity(NETD): ≤150mK
Hot and Cold Spot Tracking: Yes
Date/Time Setup Controls: Yes
USB Interface: Yes
Temperature Measurement Range: -20~450℃/-4~842℉
Temperature Measurement Accuracy: ±2% as tested (at 25℃)
On-screen Emissivity Correction: Yes
On-screen Reflected Background: Yes
Temperature Compensation: Yes
Detector Type: Infrared thermopile array sensor
Infrared Spectral Band: 6.5~14μm
Field of View: 33°*33°
Focus Mechanism: Fixed focus
Selectable Palettes: 3
Level and Span: Auto
Image Capture: Captured thermal image
Storage Medium: Memory Card(NOT included)
File Format: .bmp
Memory Review: Scroll through all saved images and view on-screen

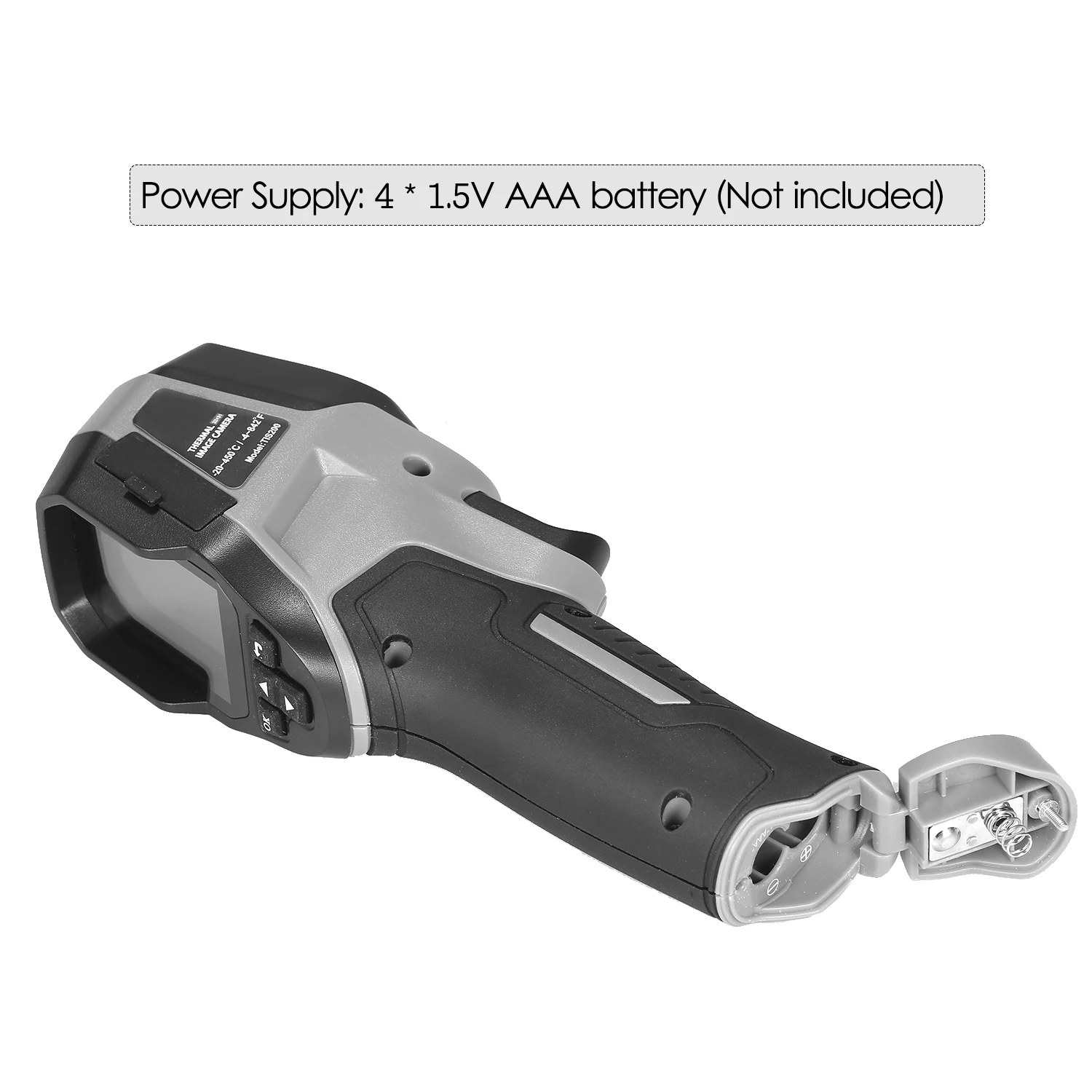

Power Supply: 4 * 1.5V AAA battery (Not included)

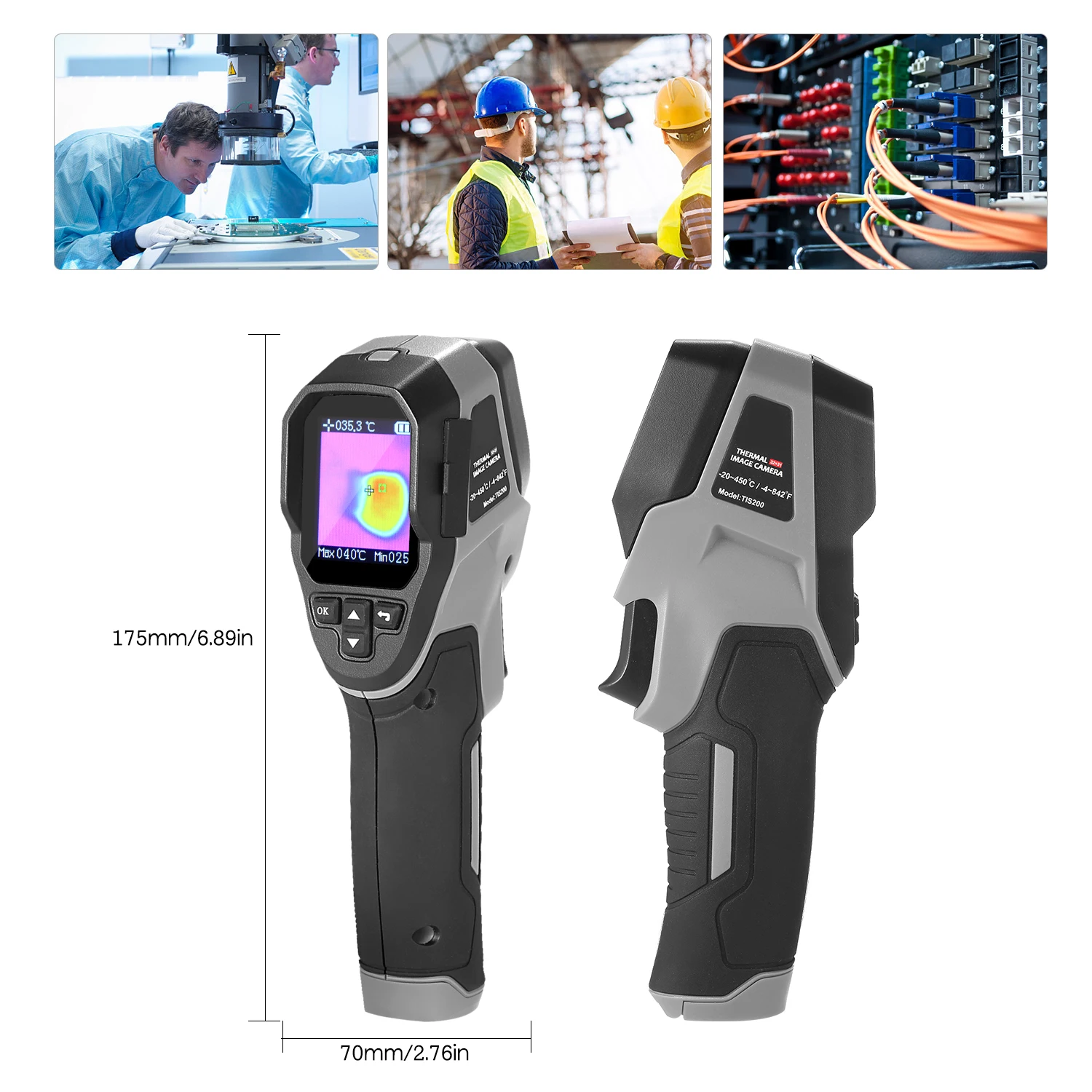

Item Size: 175 * 45 * 70mm / 6.89 * 1.77 * 2.76in
Item Weight: 126g / 4.44oz
Package Weight: 335g / 11.81oz
Package Size: 33 * 25 * 24.5cm / 12.99 * 9.84 * 9.64in

Package List:
1 * Thermal Imager
1 * USB Cable
1 * Pouch
1 * Manual (English)

---------

Type 2

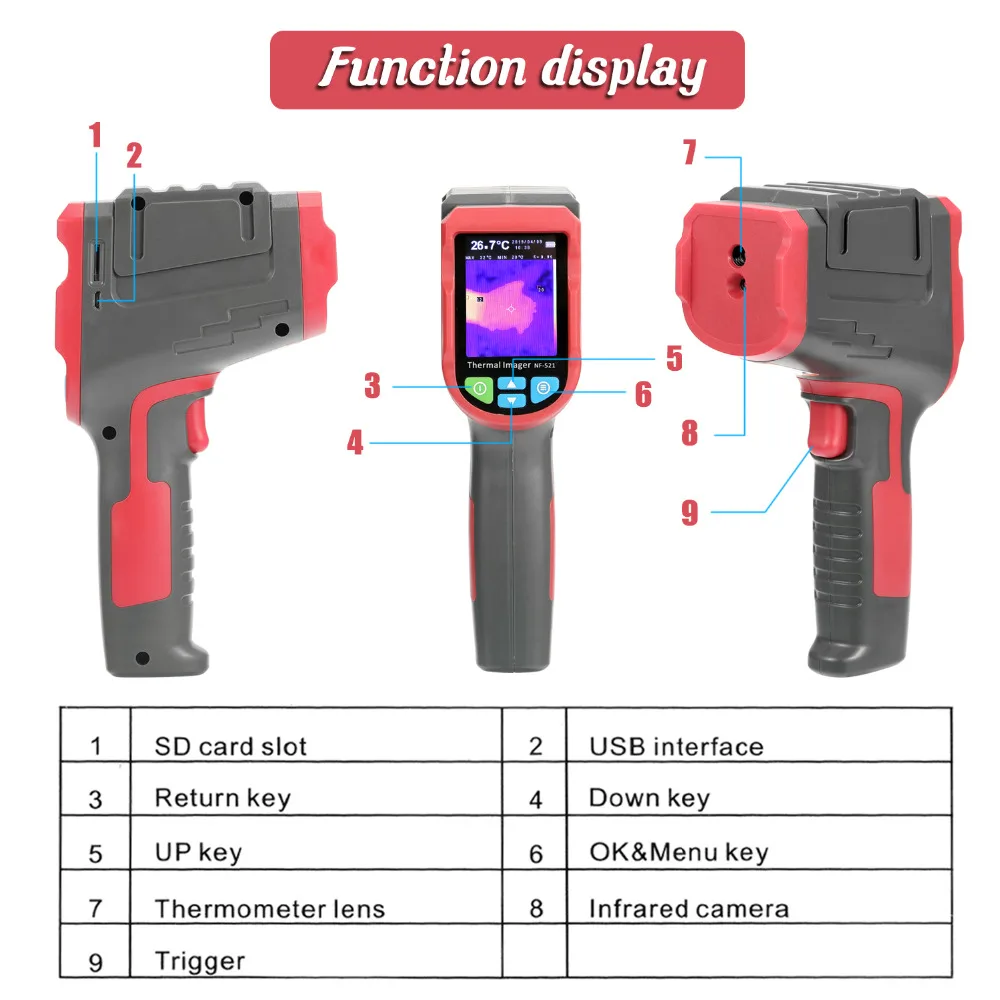

The NF-521 is a thermal imaging camera that combines surface temperature measurement and real time thermal imaging. The  thermal imager is effective in converting thermal radiation images into visible light images. It is mainly used for building diagnostics, industrial leak detection, and electromechanical testing and so on.

Features:
This product is combine the functions of surface temperature measurement and real-time thermal imaging.

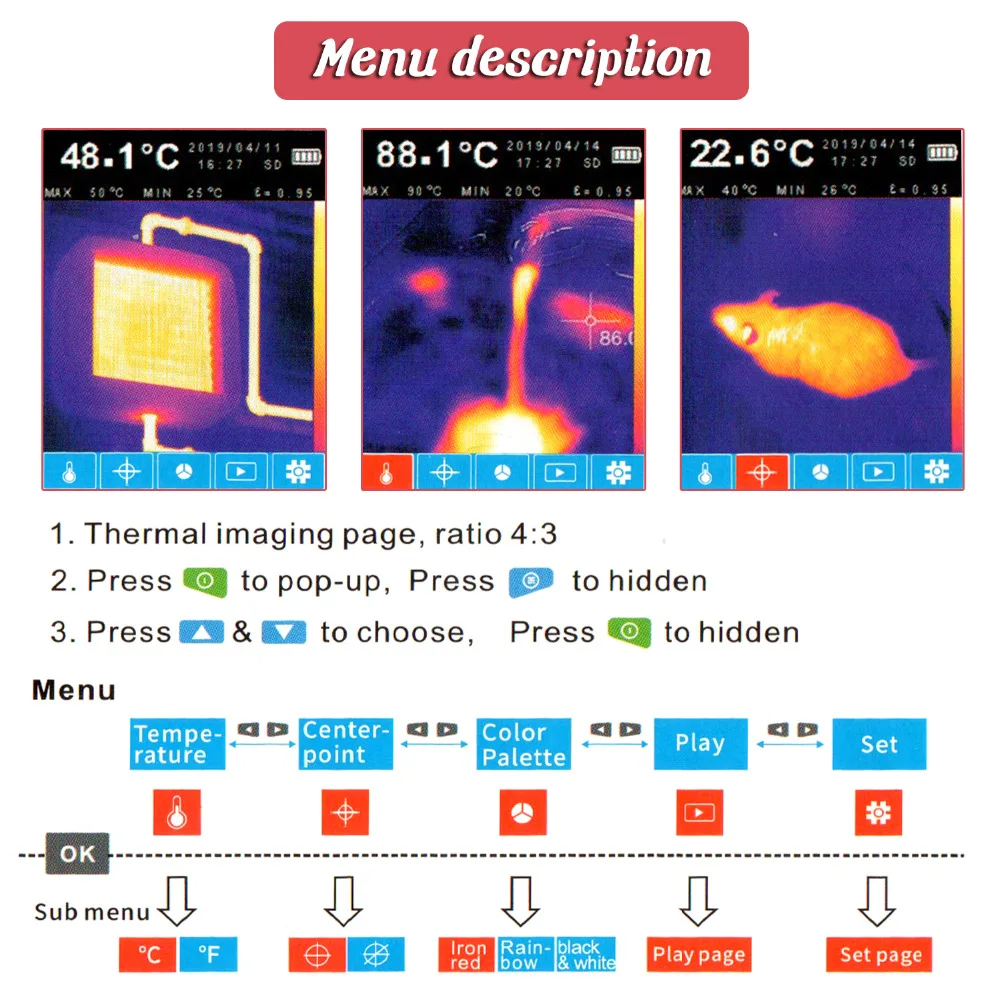

3 kinds of palettes for you to adjust: iron colon, rainbow, black and white.
4 kinds of visiondisplay: pure thermal imaging display, contour and thermal imaging fusion, visible light and thermal imagefusion, pure visible light.
The measure cursor in the screen area will track the MIN&MAX temperature according to the movement of the measurement range.
USB cable to connected to the instrument and computer for reading and charging.
The emissivity is adjustable, which is ranges from 0.1 to 0.99.

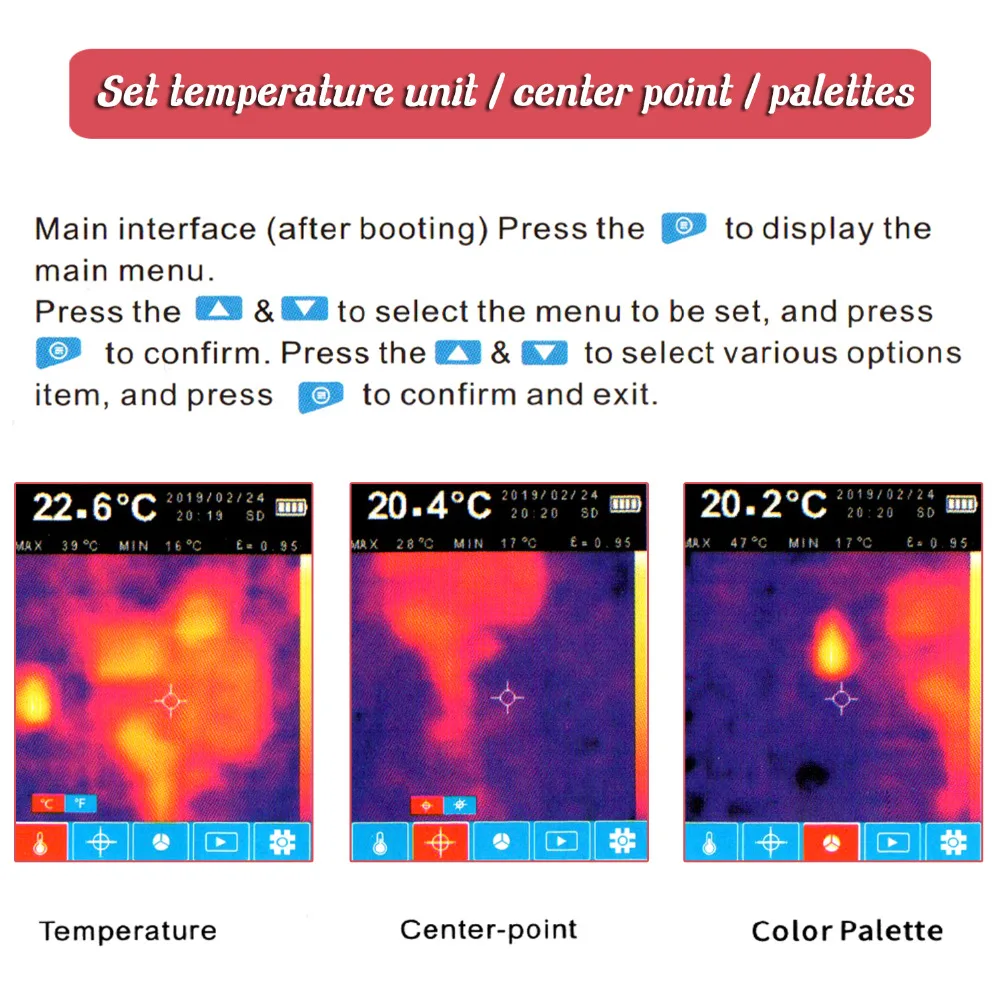

2.4" TFT LCD screen, 320*240 resolution, 4:3 ratio, support setting temperature unit, center point and palattes.
Support setting language, emissivity, time, data, filter.
Support format S D card which can be formatted and exited.
You can take photoes and the picture will be stored in the TF card.
The PC will display a removable storage disk when connected into the divice USB port by one android cable, open the removeable disk to read the picture in the TF card, and you can edit the pictures on the device and saved.
When the battery is exhausted, it will automaticly shut down, and you can use 5V USB cable to charge it.

Application:

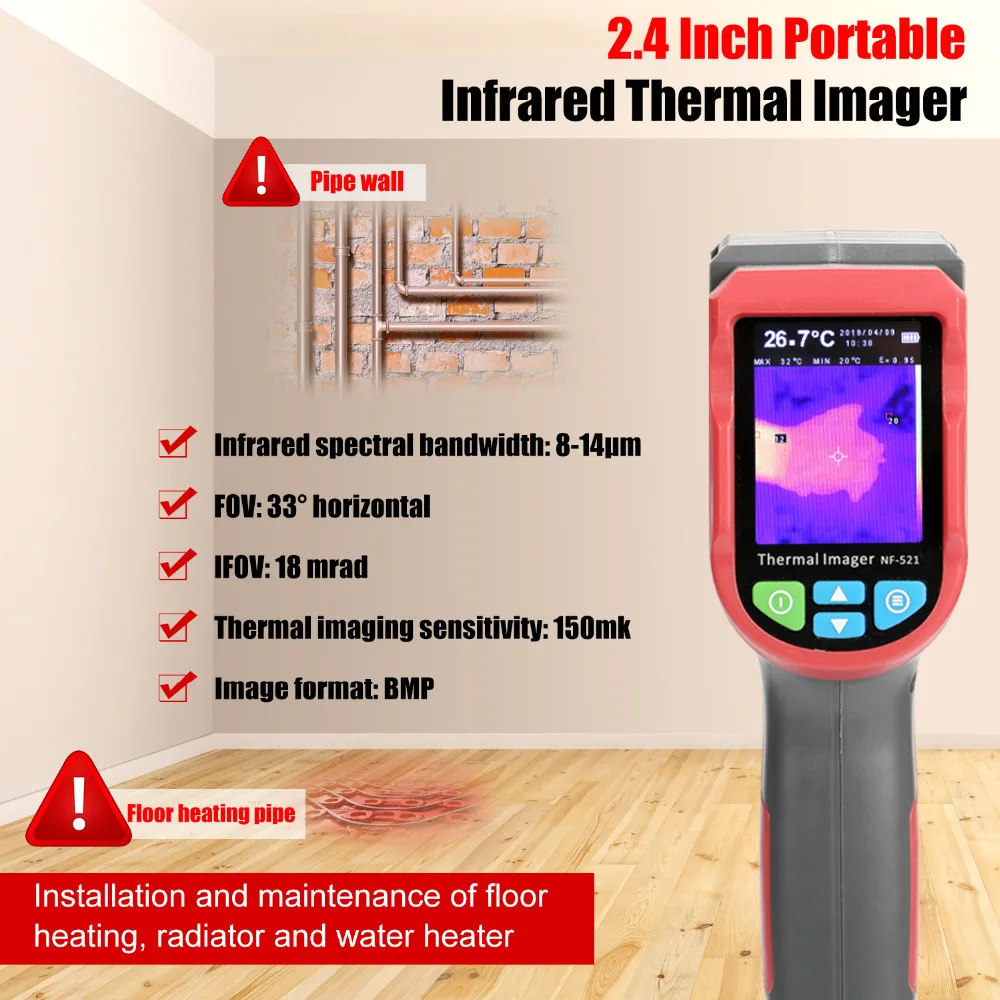

Installation and maintenance of floor heating, radiator and water heater.
Wireless probe, it accurately locates h-idden blockage, clogging inside the p-ipe and remains you with a buzzing sound.
Property maintenance such as air leakage and leakage.
Residential office and production electricity maintenance.
Small animal searching and investigation in buildings (including termite control).
Car repairs and maintenance inspection.
Fire and resuce situation investigation.
Inspection and maintenance of old building.

Specifications:
Name: Thermal Imager
Model: NF-521
Material: ABS
Thermal imaging technique:
Thermal imaging resolution: 32*32 (1024 pixels)
Electronic shutter: no
Visible light camera: 2 megapixels
Display resolution: thermal imaging, thermal mixing, digital camera
Color palettes: Iron red, rainbow, black and white
Infrared spectral bandwidth: 8-14μm
FOV: 33° horizontal
IFOV: 18 mrad
Thermal imaging sensitivity: 150mk
Frame rate: ≤9Hz
Image format: BMP

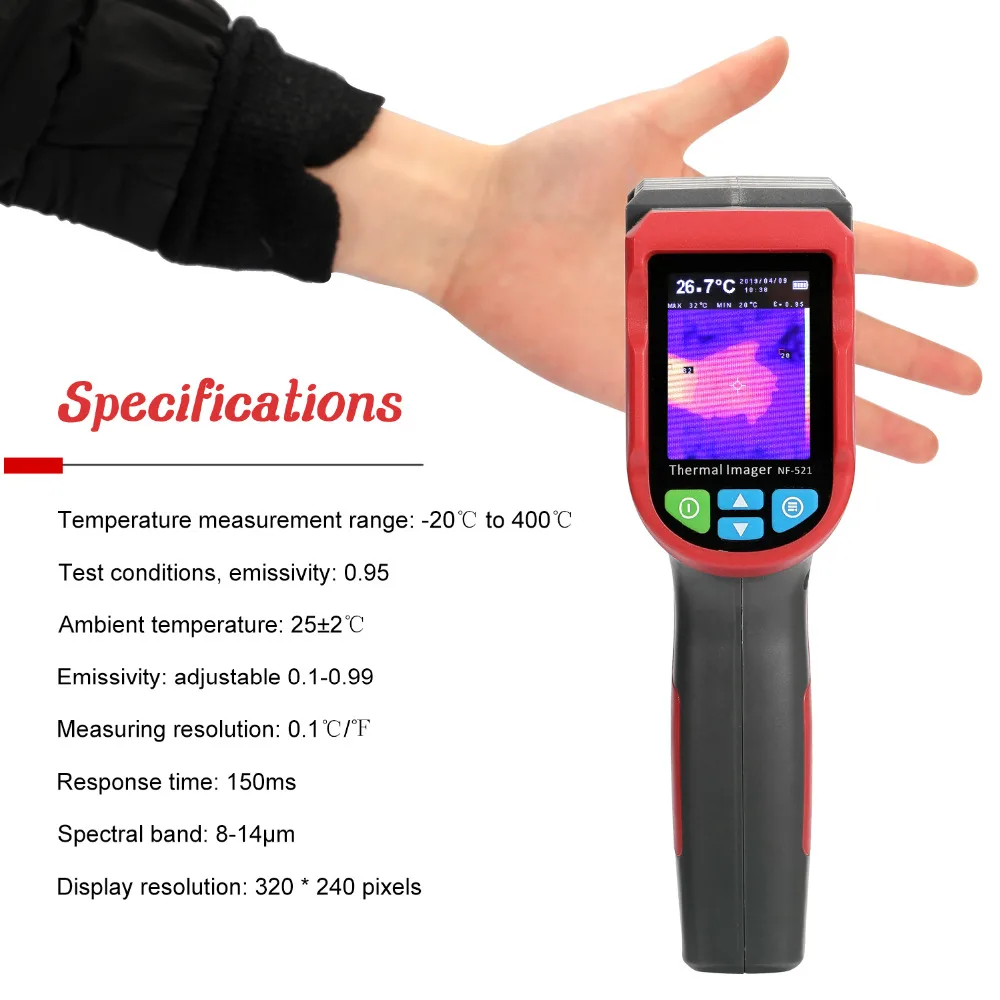

Infrared temperature measurement:
Temperature measurement range: -20℃ to 400℃
Basic accuracy: ±1.8% or ±1.8 ℃ (0℃-400℃); ±3℃(-20℃ to 0.9℃); test conditions, emissivity: 0.95, ambient temperature: 25±2℃
Emissivity: adjustable 0.1-0.99
Measuring resolution: 0.1℃/℉
Response time: 150ms
Spectral band: 8-14μm
General parameters:
Monitor: 2.4” TFT LCD
Display resolution: 320 * 240 pixels
Battery: 3.7V, 2600mA (included)
Automatic shutdown function: yes
Working temperature: -10℃ to 45 ℃, 14℉ to 113℉
Drop proof: 1m (3.28inch)

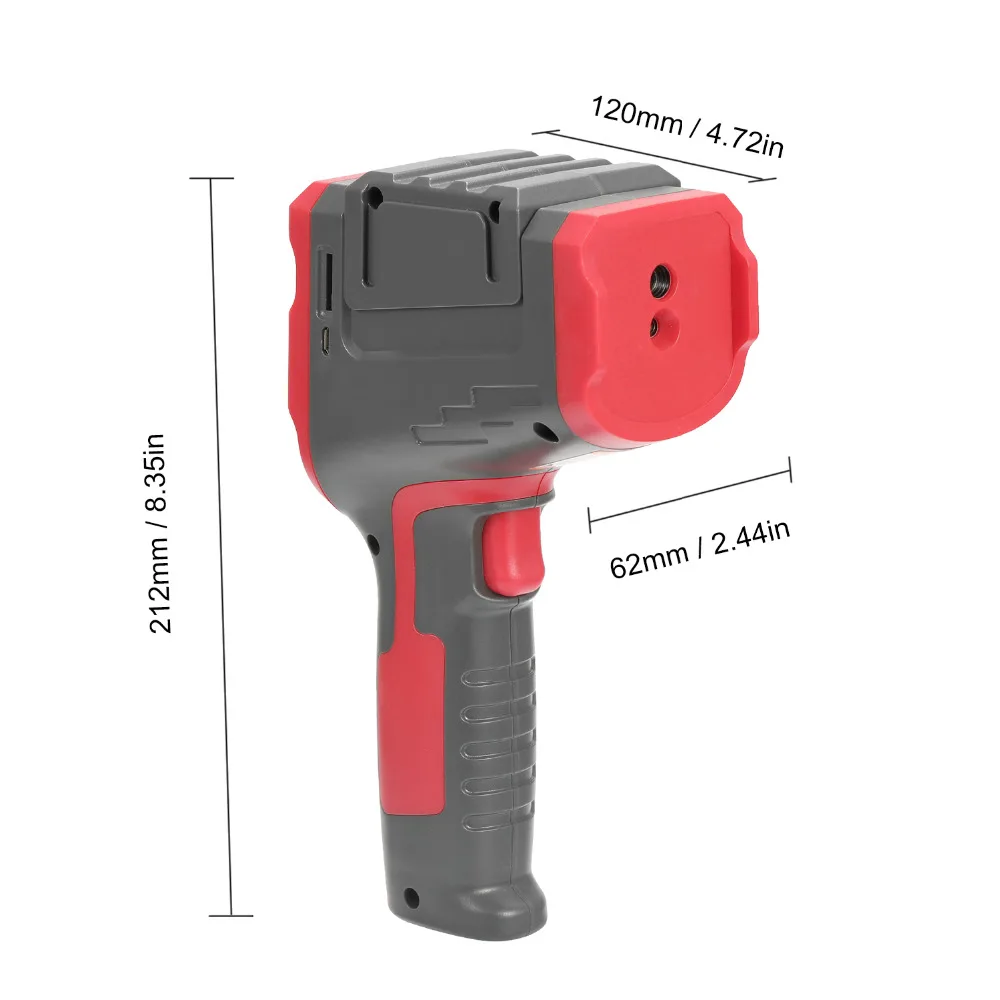

Item size: 62 * 120 * 212mm / 2.44 * 4.72 * 8.35in
Item weight: 359g / 12.66ounce (include carrying bag)
Package size: 233 * 140 * 80mm / 9.17 * 5.51 * 3.15in
Package weight: 481g / 1.06lb

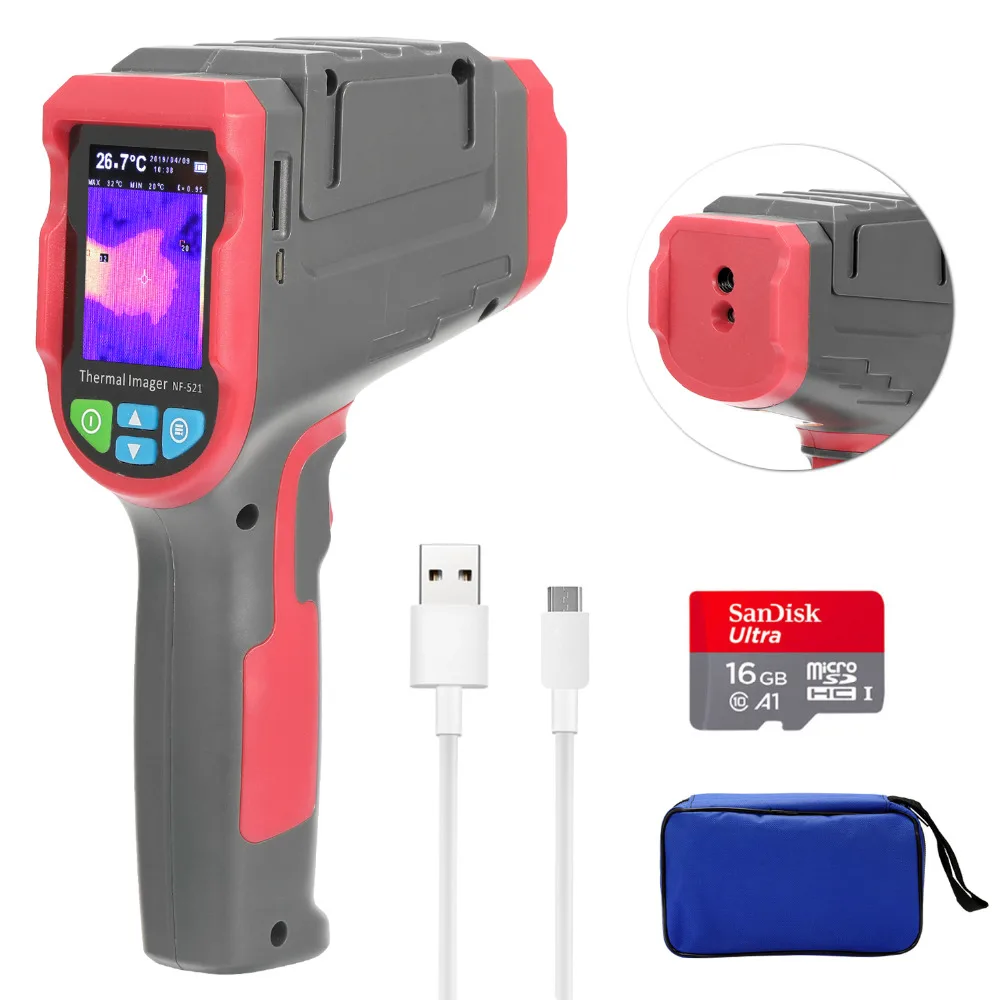

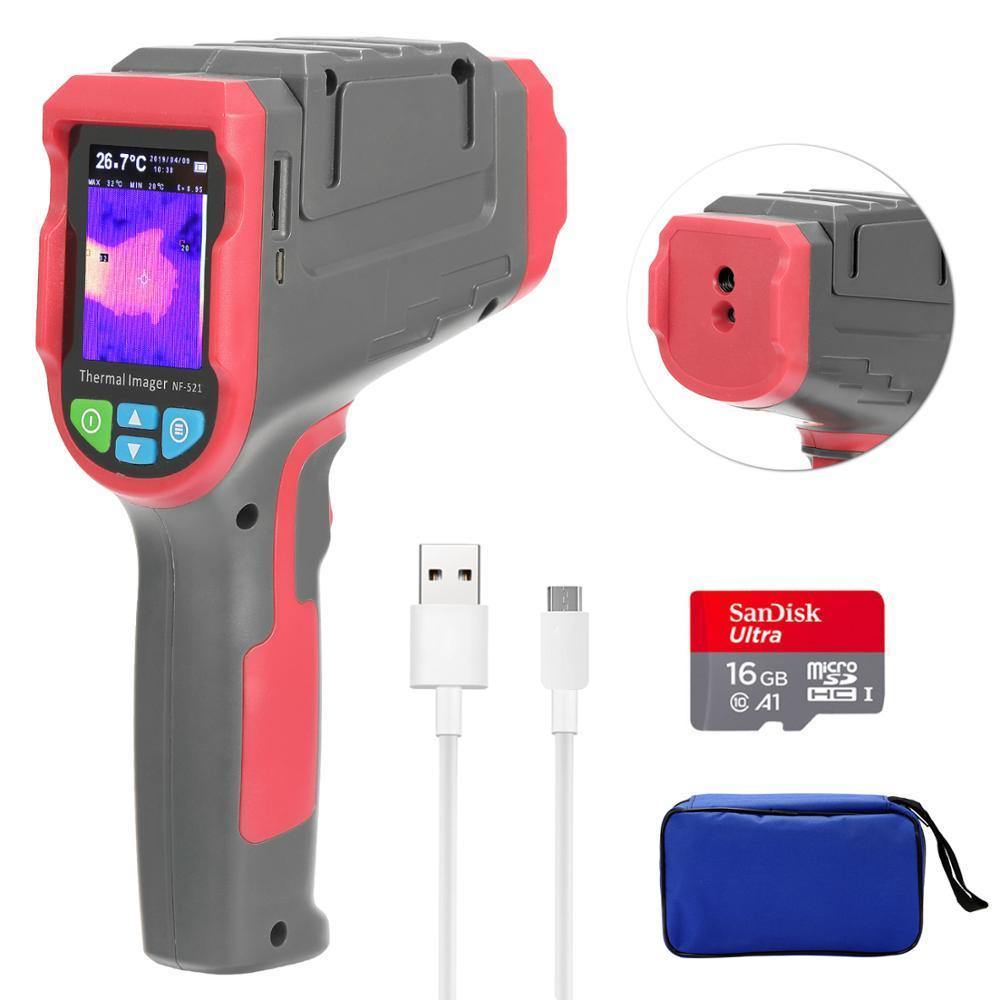

Packing List:
1 * Thermal Imager (included a 16GB TF card and lithium battery)
1 * USB cable
1 * Carrying Bag
1 * Manual







Type 2：-20℃ to 400℃

































Type 1：-20℃ to 450℃

The thermal imaging camera is a handy tool to visually detect high and low temperature with both heat-mapped color palettes and actual temperature reading. This easy-to-use thermal camera displays and saves images that can be reviewed later from a memory card(NOT included). With a wide temperature range of -20~450℃(-4~842℉), this versatile tool can be used for a wide variety of automotive, industrial, electrical and home applications.

Features:
Easy Operation: to use the thermal imager, simply point at the object you want to check and view the LCD screen.
Power Saving Auto-off: it designed with auto shut down to save the energy, you can choose from OFF, 1min, 2min, 5min, and 10min. Battery indicator in the upper right corner.
Wide Temperature Range: the temperature measurement range is from -20℃ to 450℃(-4℉ to 842℉), and the temperature units is in ℃/℉ switchable, ±2% temperature measurement accuracy.
Support Memory Card: it supported with external memory card, the captured images can be stored and reviewed later by accessing the memory card menu.
Storage Pouch: store the thermal imager in the included bag to ensure its longevity and accuracy.
Other Features: 1.8" 128*160 TFT LCD display, with 32*32 pixels thermal resolution, .bmp file format, 33°*33° field of view, 6.5~14μm infrared spectral band, etc.

Specifications:
Material: ABS+TPR
Color: Black & Grey
LCD Display: 1.8" 128*160 TFT
Thermal Resolution: 32*32 pixels
Image Capture Frequency: 9Hz
Thermal Sensitivity(NETD): ≤150mK
Hot and Cold Spot Tracking: Yes
Date/Time Setup Controls: Yes
USB Interface: Yes
Temperature Measurement Range: -20~450℃/-4~842℉
Temperature Measurement Accuracy: ±2% as tested (at 25℃)
On-screen Emissivity Correction: Yes
On-screen Reflected Background: Yes
Temperature Compensation: Yes
Detector Type: Infrared thermopile array sensor
Infrared Spectral Band: 6.5~14μm
Field of View: 33°*33°
Focus Mechanism: Fixed focus
Selectable Palettes: 3
Level and Span: Auto
Image Capture: Captured thermal image
Storage Medium: Memory Card(NOT included)
File Format: .bmp
Memory Review: Scroll through all saved images and view on-screen
Power Supply: 4 * 1.5V AAA battery (Not included)
Item Size: 175 * 45 * 70mm / 6.89 * 1.77 * 2.76in
Item Weight: 126g / 4.44oz
Package Weight: 335g / 11.81oz
Package Size: 33 * 25 * 24.5cm / 12.99 * 9.84 * 9.64in

Package List:
1 * Thermal Imager
1 * USB Cable
1 * Pouch
1 * Manual (English)
