Quick Shipment IN STOCK HT-02 Handheld  Thermal Imaging Camera 60x60  Resolution 3600 Pixel Digital Display Thermal Imager



Note:We have enough stock for it recenlty not only in China but also in Russia warehouse,so pls don't worry aobut the delivery time,we are able to arrange the shipment wihtin 24 hours once get your confirmaion of payment,thanks.



Примечание: У нас есть достаточно запасов для этого recenlty не только в Китае, но и на складе в России, поэтому PLS не беспокоиться о времени доставки, мы можем организовать доставку wihtin через 24 часа после получения подтверждения об оплате.



Nota: temos estoque suficiente para que recenlty não só na China, mas também no armazém da Rússia, então pls não se preocupe aobut o tempo de entrega, somos capazes de organizar o envio wihtin 24 horas uma vez obter sua confirmação de pagamento, obrigado.



HT-02 is a thermal Imaging Camera which combines the functions of surface temperature measurement and real-time thermal imaging the traditional thermal imaging Camera shall measure each component one by one but this instrument does not need to.Therefore,it helps to save our customers'time.Even the potential problems can be clearly displayed on the color screen which helps customers quickly locate the central point to measure cursor and temperature.



FAQ:

1.

Q:What's the difference between HT-02 and HT-02D?

A: They just enjoy different resolution,HT-02 comes with 60*60,but HT-02D just comes with 32*32,other functions are the same.as well as the model,thanks.

2.
Q: There was a problem with the device. I insert 4re charged batteries, but when turned on the device writes a low level of charge and turns off. I tried both batteries and batteries. batteries recharged, but still writes "low charge" and turns off.

A:Make sure you use alkaline but not rechargeable battery(or carbon-zinc battery). as you know the usual alkaline AA is 1.5 V, 4 pcs can reach 6v, the boot is not a problem, but if you use a rechargeable battery, each piece just has 1.2V, 4 pieces just reach 4.8V which will not enough to turn on the device,thanks.



Features:
1. Infrared thermal imager that can blend the visible and infrared images.
2. Resolution of infrared image/visible image: 3600 pixels/0.3 mega pixels.
3. This infrared imaging device is professional, precision and efficient.
4. For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.
5. Our infrared thermal imager can turn thermal image into visional image, quickly find out the problem area.

Specifications:

Display

 2.4 inch full viewing angle high-resolution color screen

Resolution:

60 * 60

Total Pixel

3600 pixels

Resolution of visible image:

0.3 mega pixels.

Temperature range

 -20℃ to 300℃(-4℉ to 572℉)

Measuring Accuracy

±2% or ±2℃(±4℉)

FOV/Shortest Focal Length

 20× 20/0.5m

Thermal Sensitivity:

0.5℃

Wavelength Range:

8-14μm

Emissivity

0.1-1.0 Adjustable

Image Frequency

6HZ

Focus Mode

Fixed

Palette

Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)

Vision Option

5 kinds of full infrared to the full visual, mixing visible and infrared.

Image Storage

SD card(4G)

File Format

bmp

Set Control:

Unit Adjustment/Language/Date Time Format/automatic shut down

Battery Type

4 * 1.5V AA battery (Not Included)

Battery Life

6 Hours

Auto Power-off Time

12 Minutes

Authentication

CE, RoHS

Operating Temperature

-5℃ to 40℃ (23℉ to 104℉)

Storage Temperature

-20℃ to 50℃ (-4℉ to 122℉)

Relative Humidity

10%RH to 80%RH

Item Size

21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in

Item Weight

231.2g / 8.2oz

Package Size

27 * 19 * 11cm / 10.6 * 7.5 * 4.3in

Package Weight

927g / 32.7oz

Package Lists

1 * Thermal Infrared Imager
1 * SD Card(4G)
1 * User Manual
1 * Drop Resistance Rope
1 * Protection bag

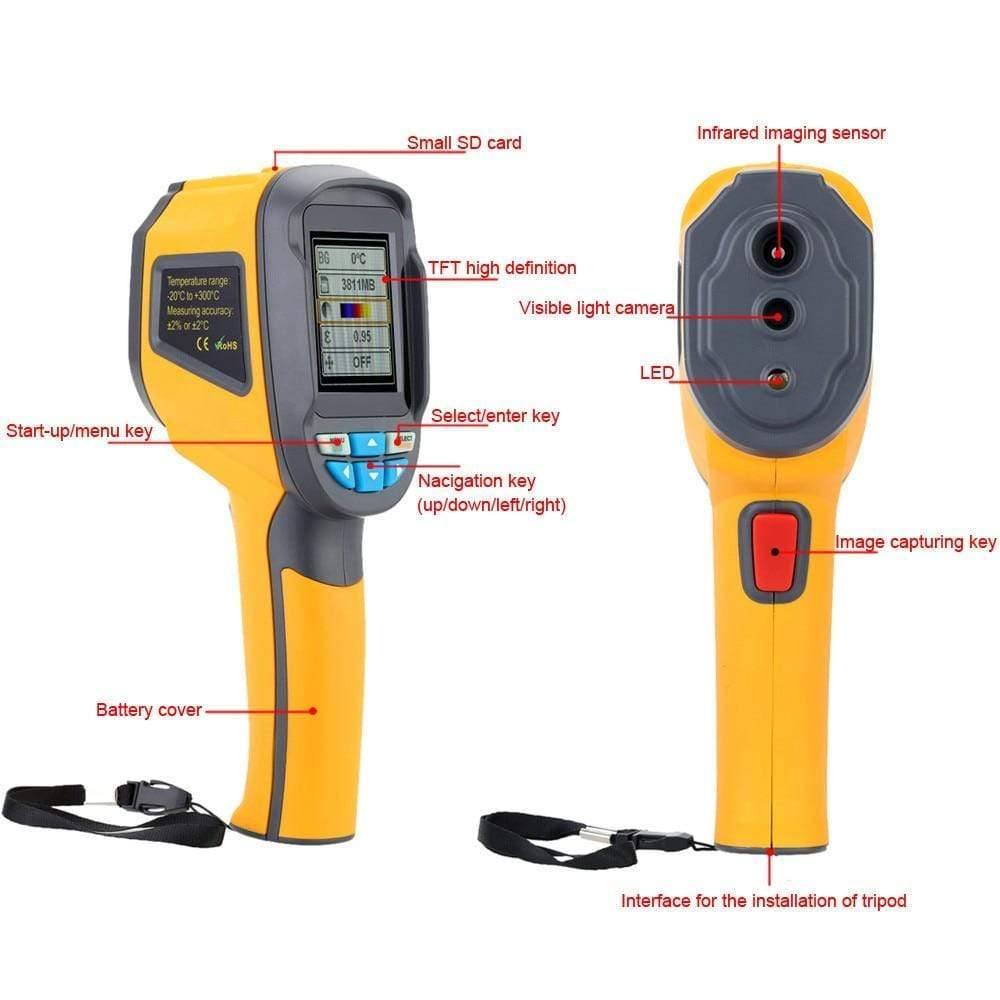

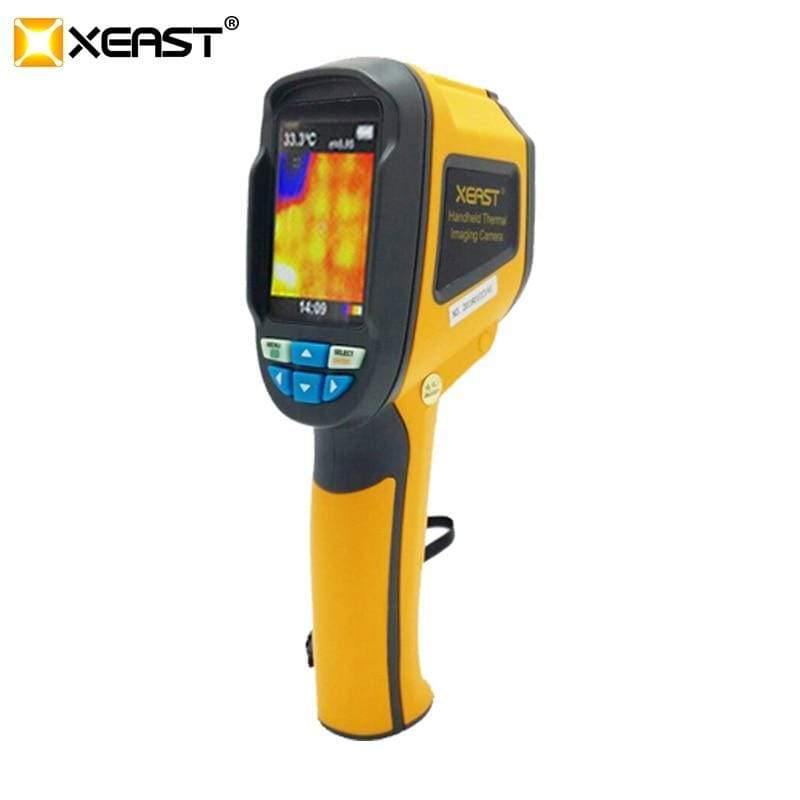

Real Product photo



XE02-1  XE02-3
HT-02-3 HT-02-4 HT-02-1 HT-02-2

2. Fast Delivery 2019 New Color Screen Handheld Thermal Imager Infrared Thermal Imaging CameraXE-26D  XE-28(60*60) and XE-31(160*120)

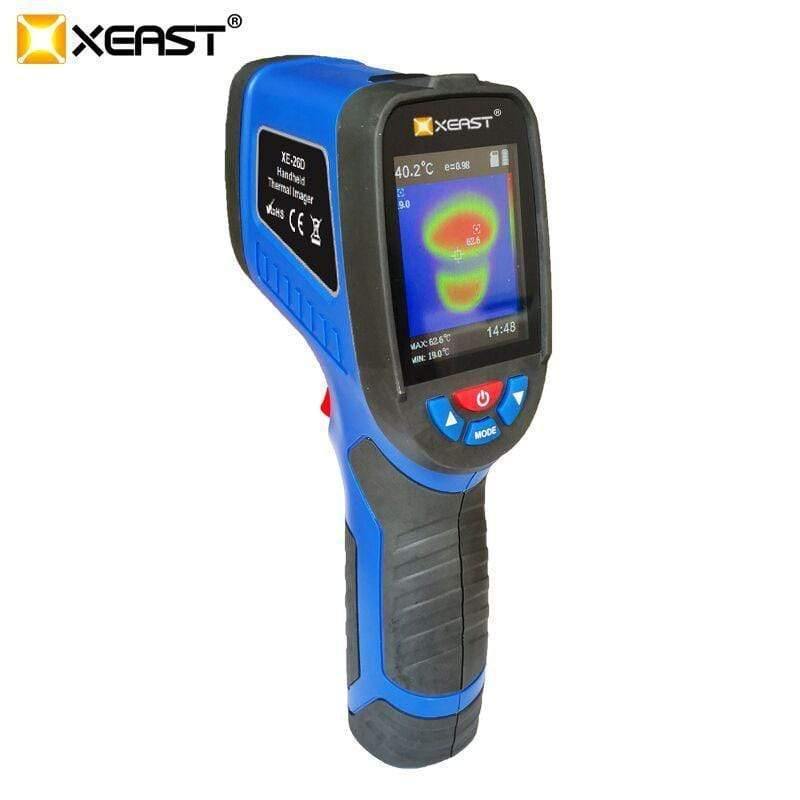

XE-26D



XE26-6

Specification Comparison Table to XE-28/XE-31

Model

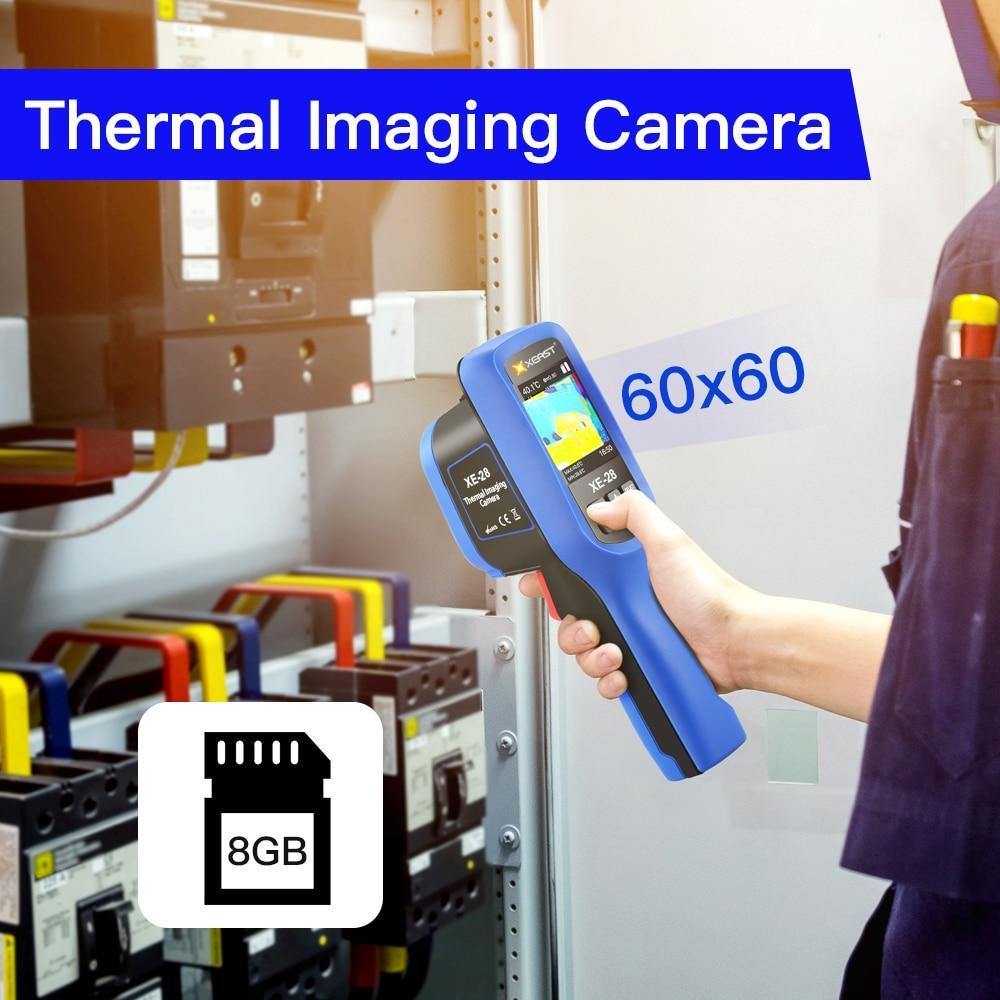

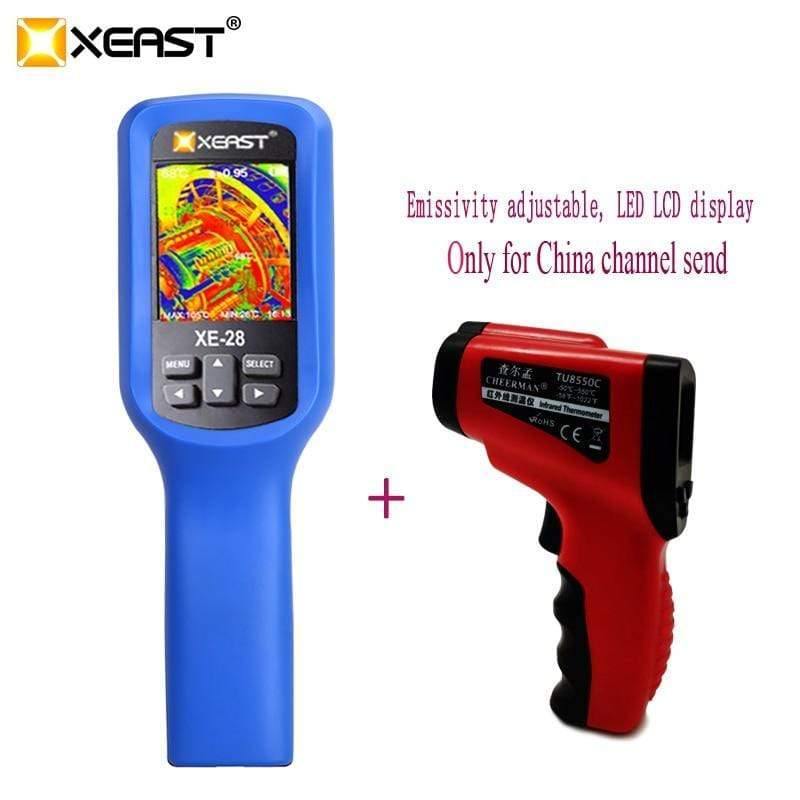

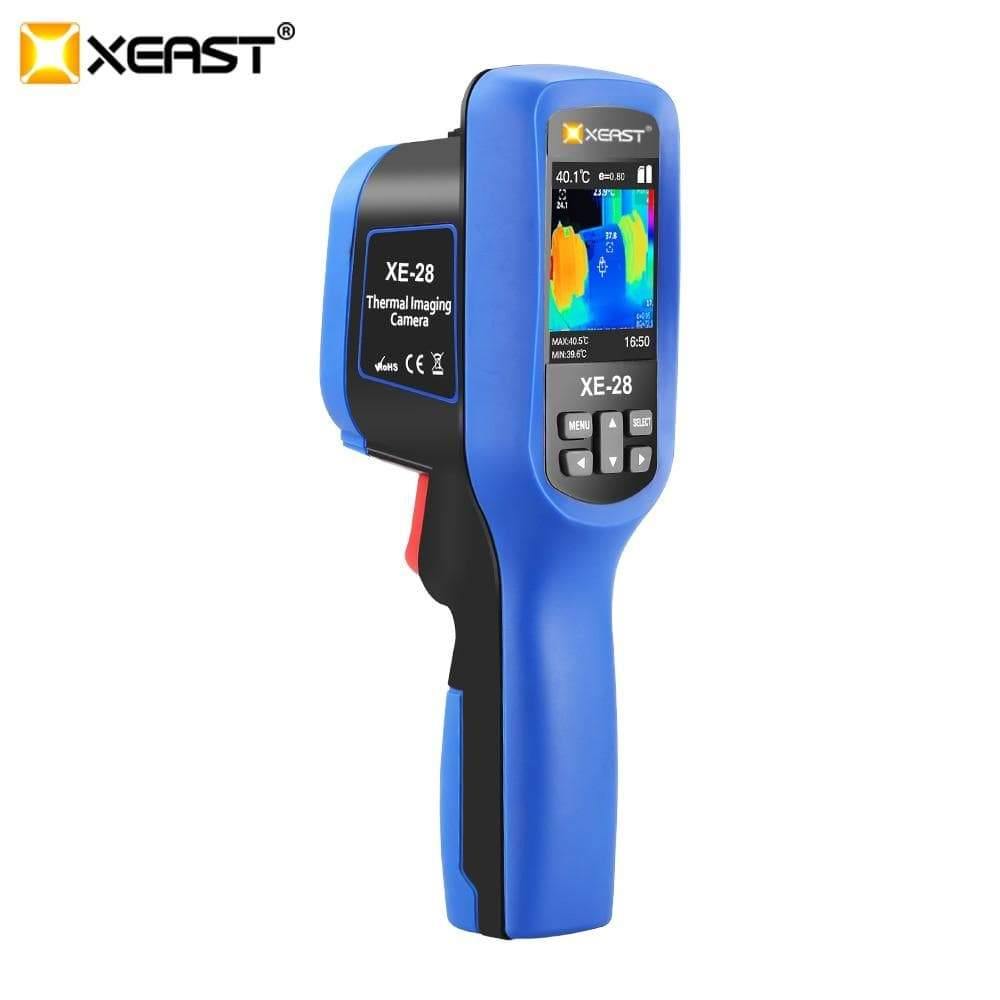

XE-28

XE-31

IR Resolution

60*60

160*120

Temperature Range

-20℃~380℃/-4℉~716℉

-20℃~380℃/-4℉~716℉

Accuracy

±2% or ±2℃(±4℉)

±2℃ (±3.6℉) or ±2% of reading

Display

2.5" TFT 320x240 Pixels color

3.5" TFT 320x240 Pixels color

Visible Camera

300,000 pixels

300,000 pixels

Field of View(FOV)

20°x20°

20°x20°

Best Focus Distance

0.5m

0.5m

Thermal Sensitivity

0.5℃

0.15℃

Emissivity

0.1-1.0 Adjustable

0.10~1.0 adjustable

Wavelength Range

8-14μm

8-14um

Color Palettes

Iron color,rainbow and gray

Iron red,Rainbow, Gray(white hot) scale(black hot)

Image Capture Frequency

9HZ

9Hz

Focus Mode

Fixed

Fixed

Image Storage

SD Card(TF Micor) 8GB

SD Card(TF Micor) 8GB

File Format:

bmp

bmp

Power Type

4 * 1.5V AA battery and USB

4*1.5V“AA”size battery and USB

Battery Life

6 hours

6 hours

Working Conditions

-5℃ to 40℃ (23℉ to 104℉)

-5℃ to 40℃/23℉ to 104℉;10%RH to 80%RH

Storage Conditions

-20℃ to 50℃ (-4℉ to 122℉)

-20℃ to 50℃/-4℉ to 122℉;10%RH to 80RH

Item Size

260*200*102mm

260*200*112mm

Item Weight

0.3kg

0.35kg

Package Includes

1 * Infrared Thermal Imager

1 * Mini USB Data Cable

1 * 8GB Mobile U Disk

1*  Card Reader

1 * User Manual

1 * Gift Box

1 * Infrared Thermal Imager

1 * Mini USB Data Cable

1 * 8GB Mobile U Disk

1*  Card Reader

1 * User Manual

1 * Gift Box

IR-890(1)

5



6



XE-31
