Description

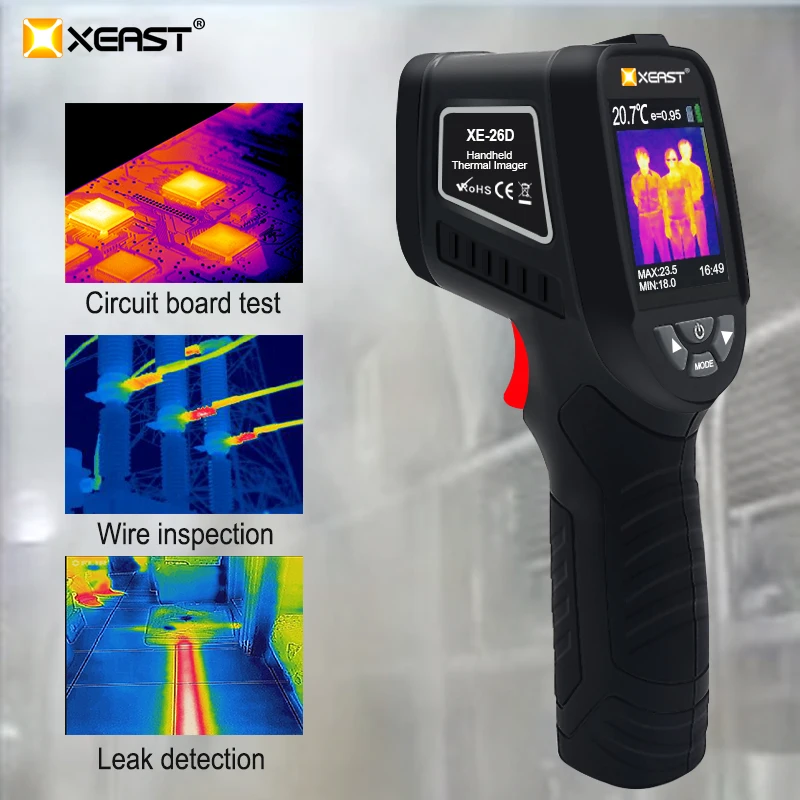

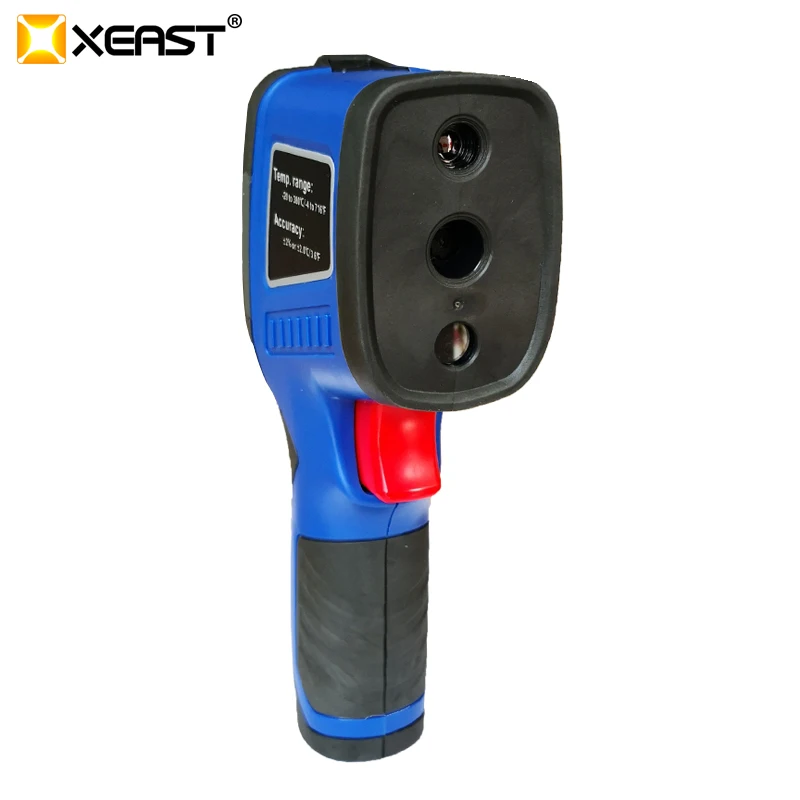

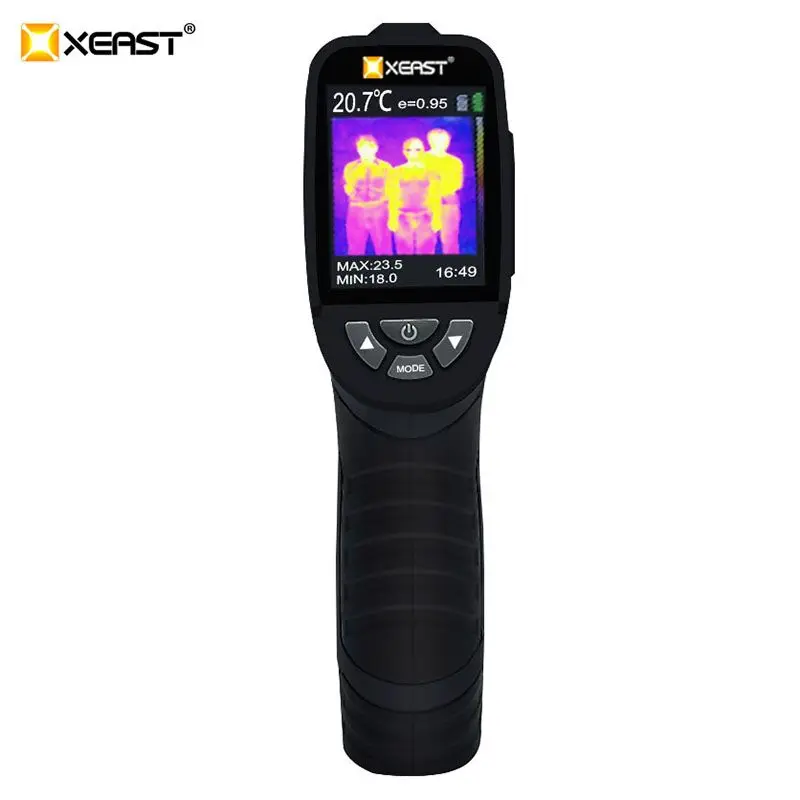

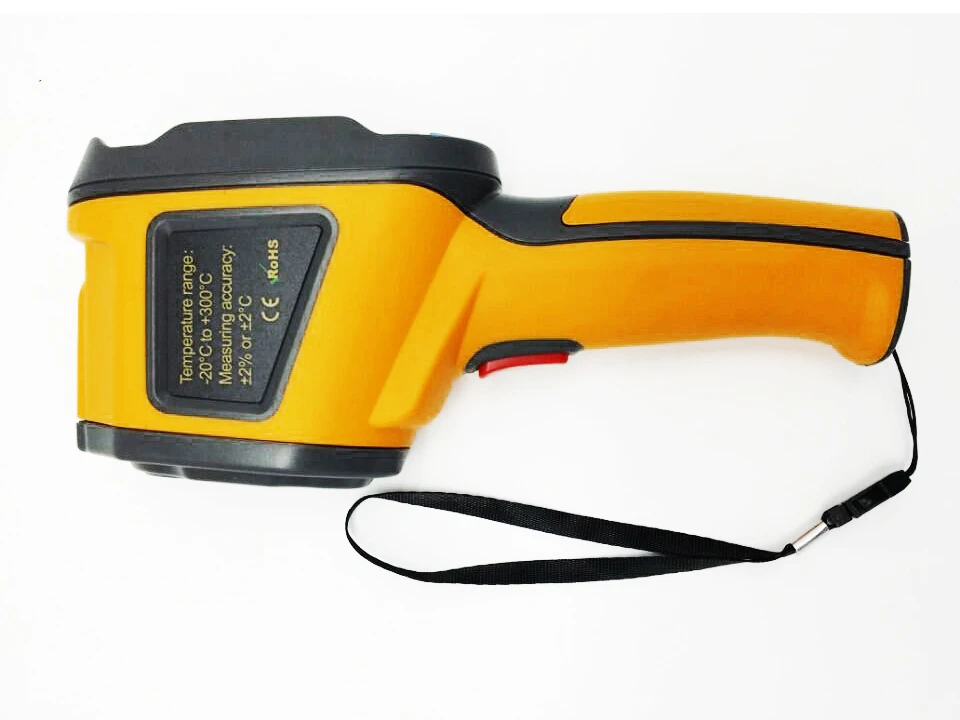

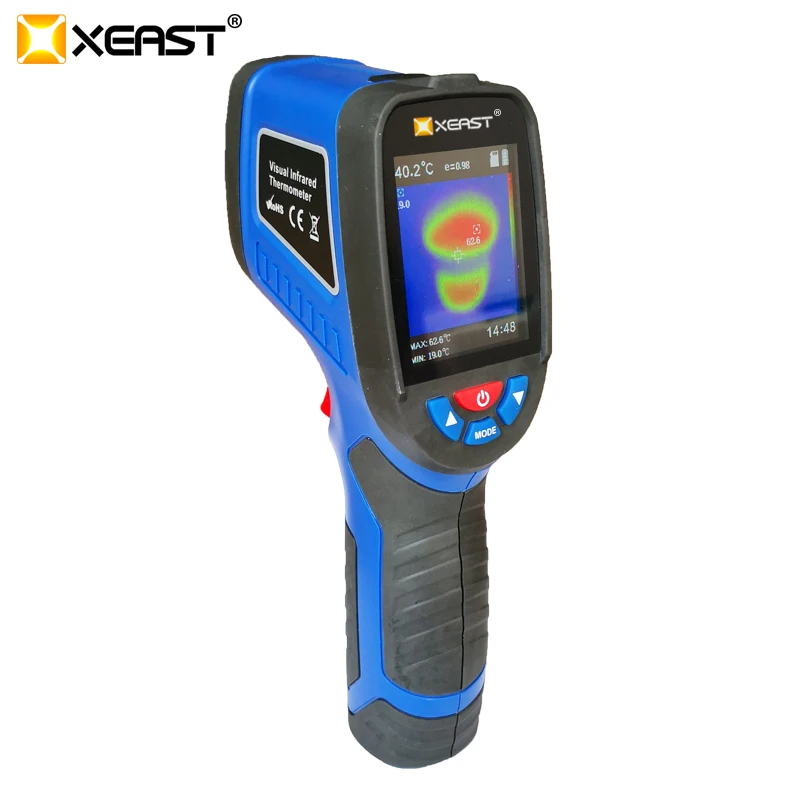

Moscow warehouse HT-02 handheld thermal imaging camera XE-26D and ultra clear HT-18 XE-31 lightning delivery, high infrared resolu
Collections:1,2, Thermal Imaging Camera HT-02(60*60)
Specifications:
|
Display |
2.4 inch full viewing angle high-resolution color screen |
|
Resolution: |
60 * 60 |
|
Total Pixel |
3600 pixels |
|
Resolution of visible image: |
0.3 mega pixels. |
|
Temperature range |
-20℃ to 300℃(-4℉ to 572℉) |
|
Measuring Accuracy |
±2% or ±2℃(±4℉) |
|
FOV/Shortest Focal Length |
20× 20/0.5m |
|
Thermal Sensitivity: |
0.5℃ |
|
Wavelength Range: |
8-14μm |
|
Emissivity |
0.1-1.0 Adjustable |
|
Image Frequency |
6HZ |
|
Focus Mode |
Fixed |
|
Palette |
Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow) |
|
Vision Option |
5 kinds of full infrared to the full visual, mixing visible and infrared. |
|
Image Storage |
SD card(4G) |
|
File Format |
bmp |
|
Set Control: |
Unit Adjustment/Language/Date Time Format/automatic shut down |
|
Battery Type |
4 * 1.5V AA battery (Not Included) |
|
Battery Life |
6 Hours |
|
Auto Power-off Time |
12 Minutes |
|
Authentication |
CE, RoHS |
|
Operating Temperature |
-5℃ to 40℃ (23℉ to 104℉) |
|
Storage Temperature |
-20℃ to 50℃ (-4℉ to 122℉) |
|
Relative Humidity |
10%RH to 80%RH |
|
Item Size |
21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in |
|
Item Weight |
231.2g / 8.2oz |
|
Package Size |
27 * 19 * 11cm / 10.6 * 7.5 * 4.3in |
|
Package Weight |
927g / 32.7oz |
|
Package Lists |
1 * Thermal Infrared Imager |
FEATURES
●Hot and cold spot temperature markers that guide the user to the hottest and coldest regions in the infrared heat map
●Visual and heat map image alignment edge detection line
●Adjustable emissivity from 0.1 to 1.0
●Visual/heat map image alignment
●Image capture and save it in SD card
●USB edge PC read pictures Selectable color palettes
—3.2'' full color screen, allows for detailed showing of infrared generated images;
—220x160 resolution and 0.3 million pixel visible image resolution, high definition of images;
—-20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;
—5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
—Automatic setting: 5 mintues/20 minutes/ not power off automatically;
—Built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;
—Wide application at medical, fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;
—Seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
—Mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
—Ergonomic handle, which can be used and held comfortably.
Specification:
|
Display |
3.2'' full-color screen |
|
Infrared image Resolution |
220*160 |
|
Total Pixel |
35,200 pixels |
|
Visible image resolution |
0.3 mega pixels. |
|
Thermal sensitivity |
0.07° |
|
Temperature range |
-20℃ to 300℃(-4℉ to 572℉) |
|
Measuring Accuracy |
±2% or ±2℃(±4℉) |
|
FOV/Shortest Focal Length |
27°×35°/0.5m |
|
Thermal Sensitivity: |
0.5℃ |
|
Wavelength Range: |
8-14μm |
|
Emissivity |
0.1-10.0 Adjustable |
|
Image Frequency |
8HZ |
|
Focus Mode |
Fixed |
|
Vision Option |
full infrared and full vision Visible image with 25% step length |
|
Image Storage |
SD card(4G) |
|
File Format |
JPG |
|
Battery Supply |
built-in chargeable 18650 |
|
USB |
Micro USB2.0 |
|
Auto Power-off Time |
5 mintues/20 minutes/ not power off automatically |
|
Authentication |
CE, RoHS |
|
Operating Temperature |
-5℃ to 40℃ (23℉ to 104℉) |
|
Storage Temperature |
-20℃ to 50℃ (-4℉ to 122℉) |
|
Relative Humidity |
10%RH to 80%RH |
|
Item Size |
223×105×90mm |
|
Item Weight |
289g |
|
Package Includes |
1 x infrared temperature detector |
Specification Comparison Table to XE-28/XE-31
|
Model |
XE-28 |
XE-31 |
|
IR Resolution |
60*60 |
160*120 |
|
Temperature Range |
-20℃~380℃/-4℉~716℉ |
-20℃~380℃/-4℉~716℉ |
|
Accuracy |
±2% or ±2℃(±4℉) |
±2℃ (±3.6℉) or ±2% of reading |
|
Display |
2.5" TFT 320x240 Pixels color |
3.5" TFT 320x240 Pixels color |
|
Visible Camera |
300,000 pixels |
300,000 pixels |
|
Field of View(FOV) |
20°x20° |
20°x20° |
|
Best Focus Distance |
0.5m |
0.5m |
|
Thermal Sensitivity |
0.5℃ |
0.15℃ |
|
Emissivity |
0.1-1.0 Adjustable |
0.10~1.0 adjustable |
|
Wavelength Range |
8-14μm |
8-14um |
|
Color Palettes |
Iron color,rainbow and gray |
Iron red,Rainbow, Gray(white hot) scale(black hot) |
|
Image Capture Frequency |
9HZ |
9Hz |
|
Focus Mode |
Fixed |
Fixed |
|
Image Storage |
SD Card(TF Micor) 8GB |
SD Card(TF Micor) 8GB |
|
File Format: |
bmp |
bmp |
|
Power Type |
4 * 1.5V AA battery and USB |
18650 rechargeable battery and USB |
|
Battery Life |
6 hours |
6 hours |
|
Working Conditions |
-5℃ to 40℃ (23℉ to 104℉) |
-5℃ to 40℃/23℉ to 104℉;10%RH to 80%RH |
|
Storage Conditions |
-20℃ to 50℃ (-4℉ to 122℉) |
-20℃ to 50℃/-4℉ to 122℉;10%RH to 80RH |
|
Item Size |
260*200*102mm |
260*200*112mm |
|
Item Weight |
0.3kg |
0.35kg |
|
Package Includes |
1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box |
1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box |
