HT-02 Handheld Thermal Imaging Camera XE-26D And Ultra Clear HT-18 XE-31 Lightning Delivery, High Infrared Reso

Name: HT-02 Handheld Thermal Imaging Camera XE-26D And Ultra Clear HT-18 XE-31 Lightning Delivery, High Infrared Reso
Brand: Planet Gates
SKU: 11961-HT-02-IR-89
Price: 277.44 EUR
Availability: InStock

€277.44 EUR

Sale Sold out

Tax included. Shipping calculated at checkout.

Color:

97 in stock

Description

Moscow warehouse HT-02 handheld thermal imaging camera XE-26D and ultra clear HT-18 XE-31 lightning delivery, high infrared resolu

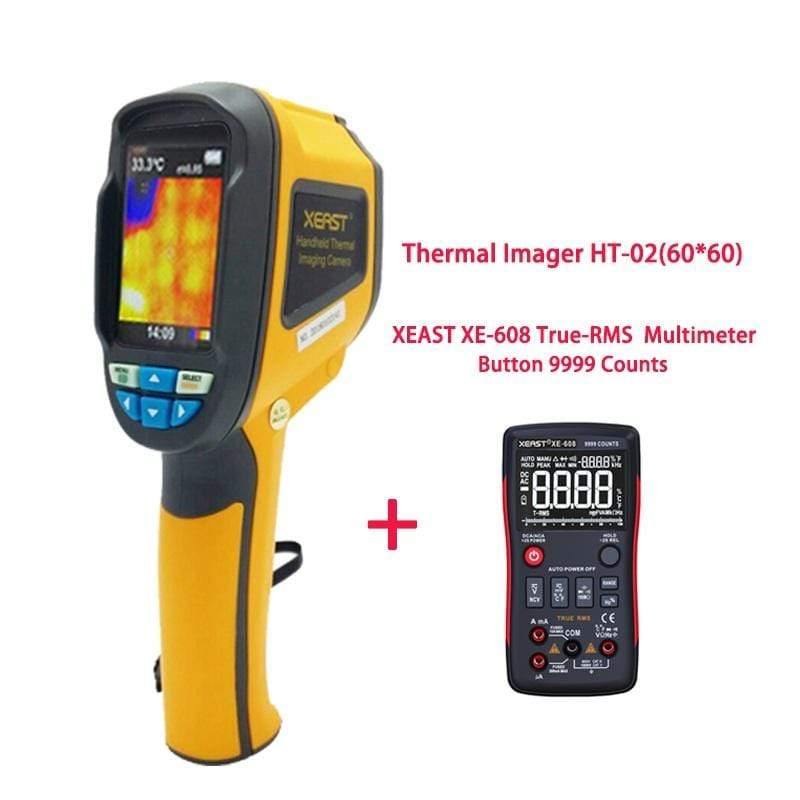

Collections:1,2, Thermal Imaging Camera HT-02(60*60)

Specifications:

Display	2.4 inch full viewing angle high-resolution color screen
Resolution:	60 * 60
Total Pixel	3600 pixels
Resolution of visible image:	0.3 mega pixels.
Temperature range	-20℃ to 300℃(-4℉ to 572℉)
Measuring Accuracy	±2% or ±2℃(±4℉)
FOV/Shortest Focal Length	20× 20/0.5m
Thermal Sensitivity:	0.5℃
Wavelength Range:	8-14μm
Emissivity	0.1-1.0 Adjustable
Image Frequency	6HZ
Focus Mode	Fixed
Palette	Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)
Vision Option	5 kinds of full infrared to the full visual, mixing visible and infrared.
Image Storage	SD card(4G)
File Format	bmp
Set Control:	Unit Adjustment/Language/Date Time Format/automatic shut down
Battery Type	4 * 1.5V AA battery (Not Included)
Battery Life	6 Hours
Auto Power-off Time	12 Minutes
Authentication	CE, RoHS
Operating Temperature	-5℃ to 40℃ (23℉ to 104℉)
Storage Temperature	-20℃ to 50℃ (-4℉ to 122℉)
Relative Humidity	10%RH to 80%RH
Item Size	21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in
Item Weight	231.2g / 8.2oz
Package Size	27 * 19 * 11cm / 10.6 * 7.5 * 4.3in
Package Weight	927g / 32.7oz
Package Lists	1 * Thermal Infrared Imager 1 * SD Card(4G) 1 * User Manual 1 * Drop Resistance Rope 1 * Protection bag

FEATURES

Mainly used in the power industry, industrial testing, fire safety,petrochemical, automotive testing, aerospace, building energy saving, transportation applications, scientific research and development, agricultural ecology.

●TFT color lcd display

●Adjustable emissivity and reflected background compensation improves measurement accuracy on semi-reflective surface
●Hot and cold spot temperature markers that guide the user to the hottest and coldest regions in the infrared heat map
●Visual and heat map image alignment edge detection line
●Adjustable emissivity from 0.1 to 1.0
●Visual/heat map image alignment
●Image capture and save it in SD card
●USB edge PC read pictures Selectable color palettes

●Higher temperature measurement accuracy, can distinguish smaller and highest temperature and lowest temperature

●Smaller operating current, no power consumption, more durable battery

●Can be powered by USB, most of the products on the market do not have a USB interface

●Can read the contents of the SD card through the USB interface.

●Image refresh rate is higher

View options:25% step length,full infrared vision to full visible light visual and infrared mixing.Edge detection line.

USB:is used to read SD card (after connectingPC,SD card exists in the form of mobile U disk)

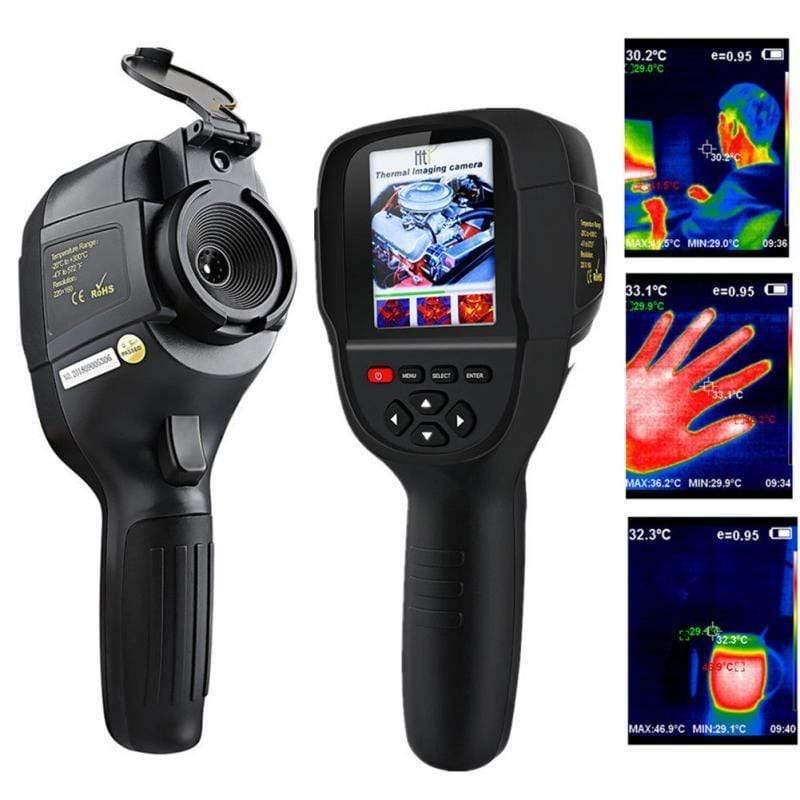

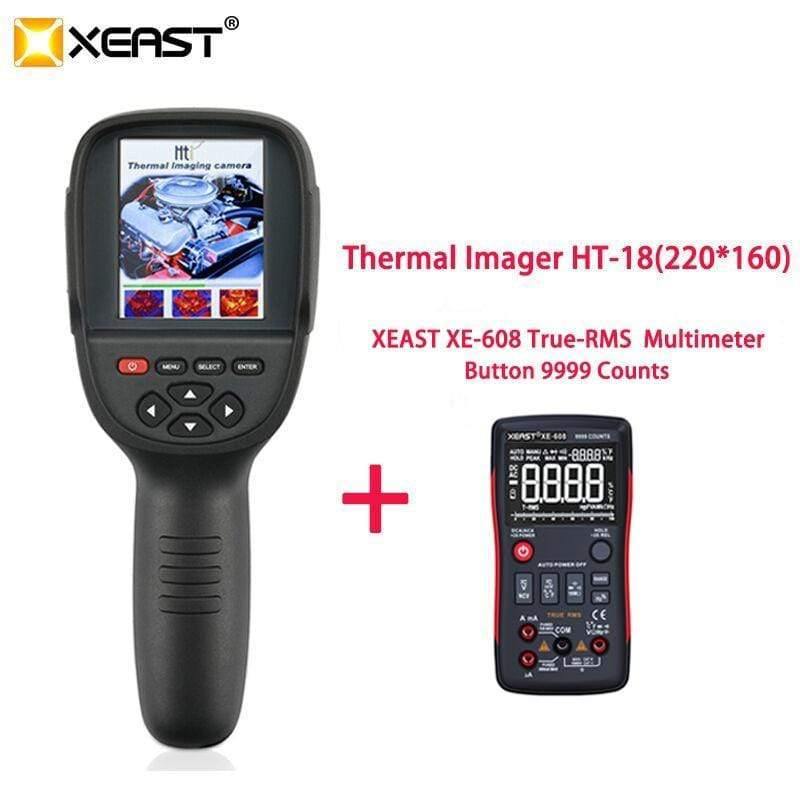

Collections 3: 2019 Hot Sales item Thermal Imager with High Resoluton HT-18(220*160)

Shining Points:

—3.2'' full color screen, allows for detailed showing of infrared generated images;
—220x160 resolution and 0.3 million pixel visible image resolution, high definition of images;
—-20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;
—5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
—Automatic setting: 5 mintues/20 minutes/ not power off automatically;

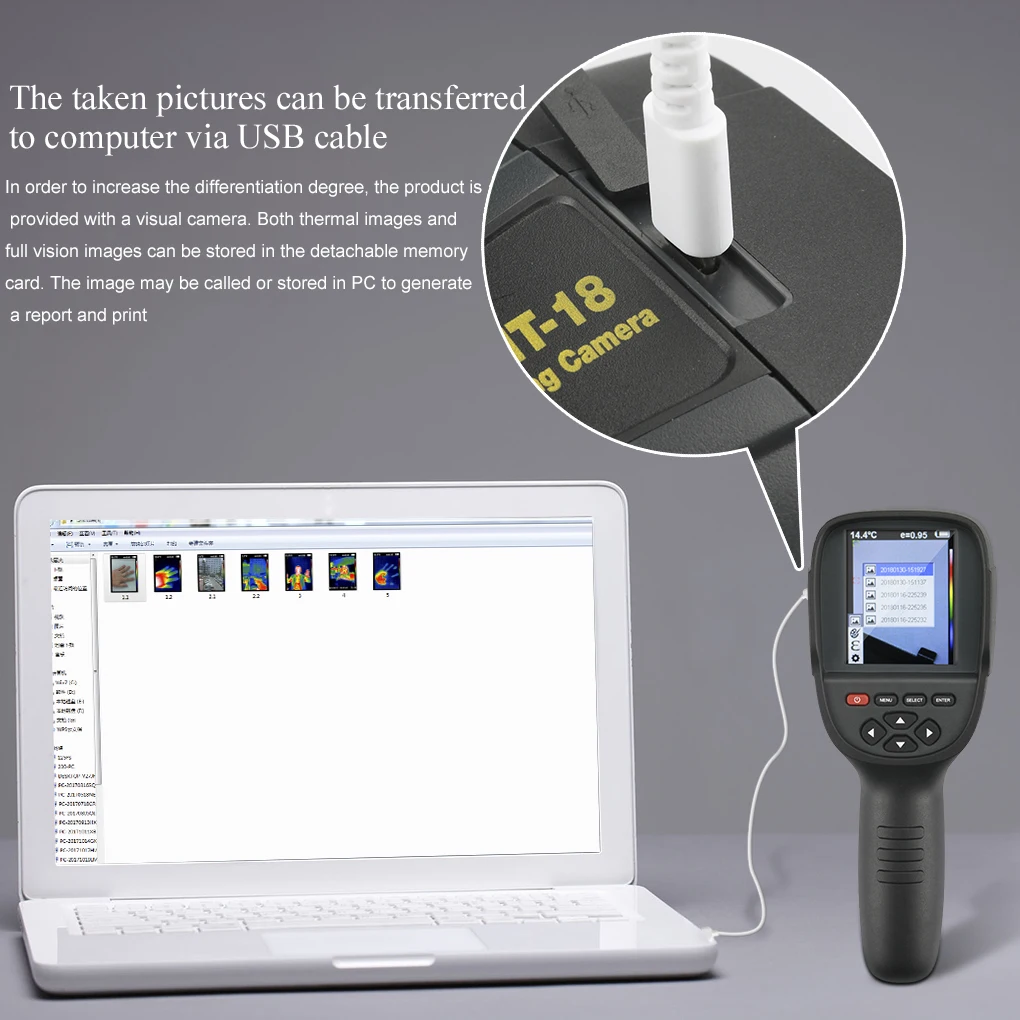

—Built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;
—Wide application at medical, fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;
—Seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
—Mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
—Ergonomic handle, which can be used and held comfortably.

Specification:

Display	3.2'' full-color screen
Infrared image Resolution	220*160
Total Pixel	35,200 pixels
Visible image resolution	0.3 mega pixels.
Thermal sensitivity	0.07°
Temperature range	-20℃ to 300℃(-4℉ to 572℉)
Measuring Accuracy	±2% or ±2℃(±4℉)
FOV/Shortest Focal Length	27°×35°/0.5m
Thermal Sensitivity:	0.5℃
Wavelength Range:	8-14μm
Emissivity	0.1-10.0 Adjustable
Image Frequency	8HZ
Focus Mode	Fixed
Vision Option	full infrared and full vision Visible image with 25% step length
Image Storage	SD card(4G)
File Format	JPG
Battery Supply	built-in chargeable 18650
USB	Micro USB2.0
Auto Power-off Time	5 mintues/20 minutes/ not power off automatically
Authentication	CE, RoHS
Operating Temperature	-5℃ to 40℃ (23℉ to 104℉)
Storage Temperature	-20℃ to 50℃ (-4℉ to 122℉)
Relative Humidity	10%RH to 80%RH
Item Size	223×105×90mm
Item Weight	289g
Package Includes	1 x infrared temperature detector 1 x cable 1 x user manual 1 x carry pouch 1 x carry pouch strap 1 x cardboard package box

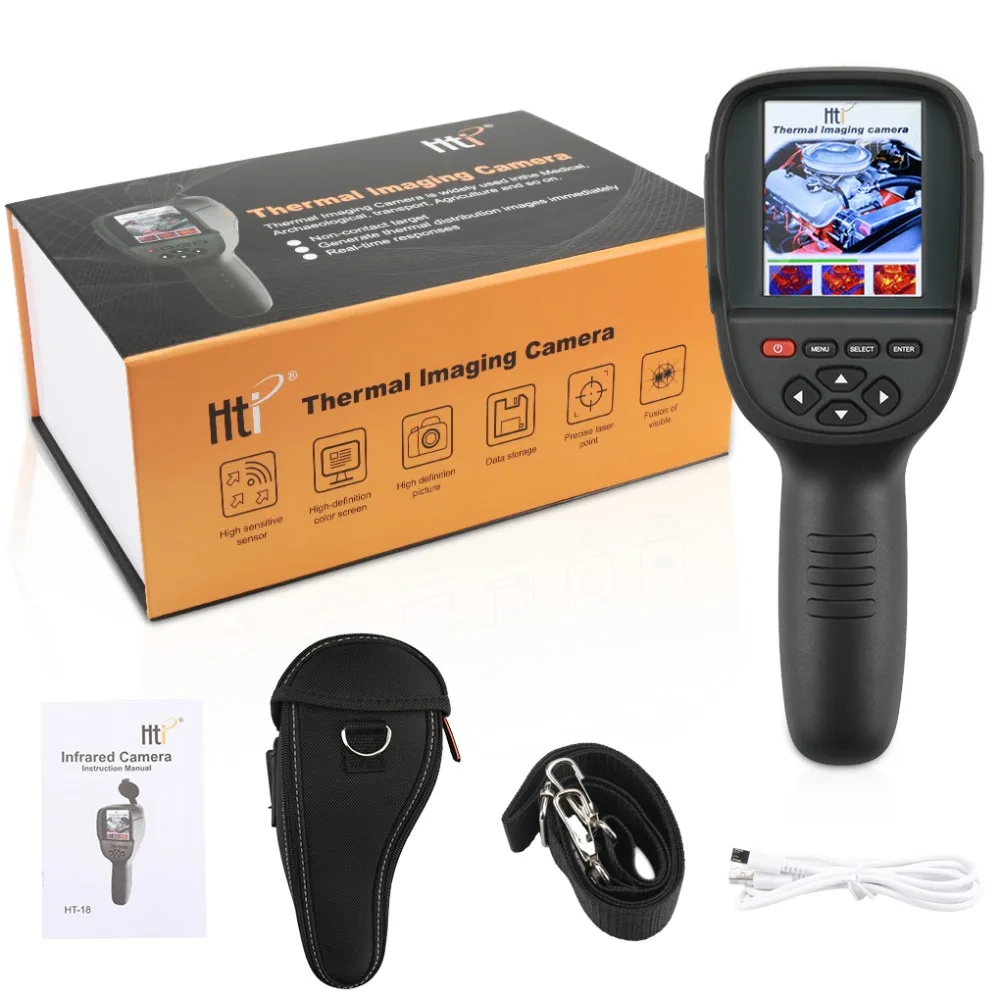

HT18-6

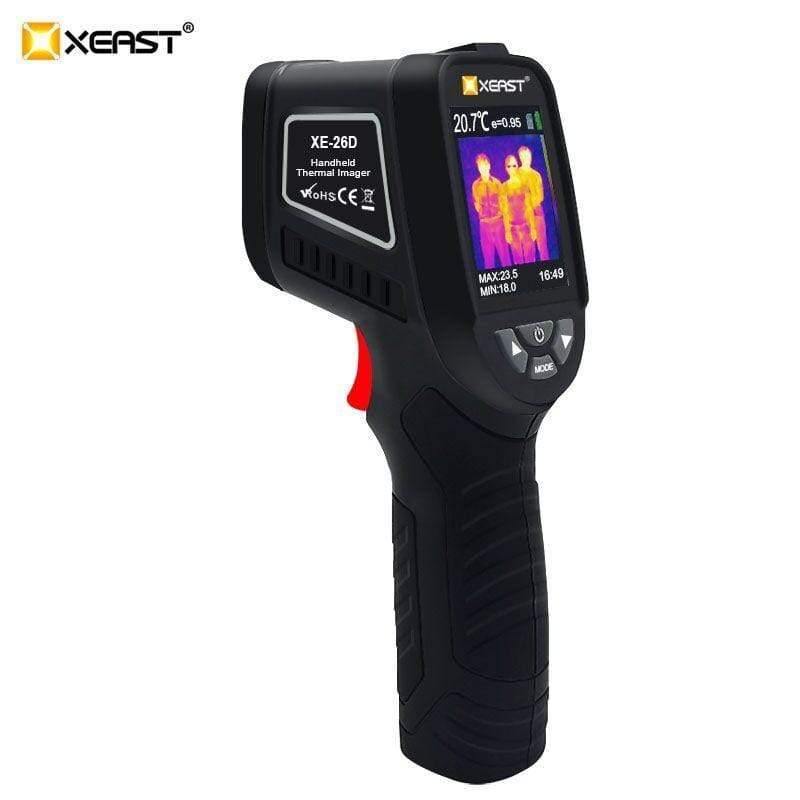

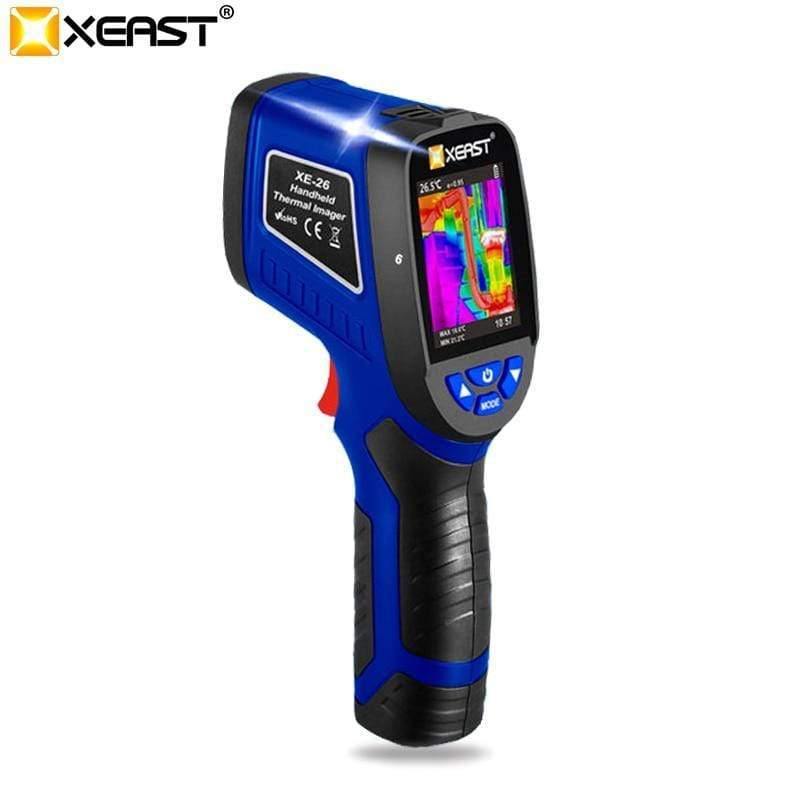

Collections 4: XEAST 2019 New Released Thermal Imager XE-26 with USB interface and 8GB SD

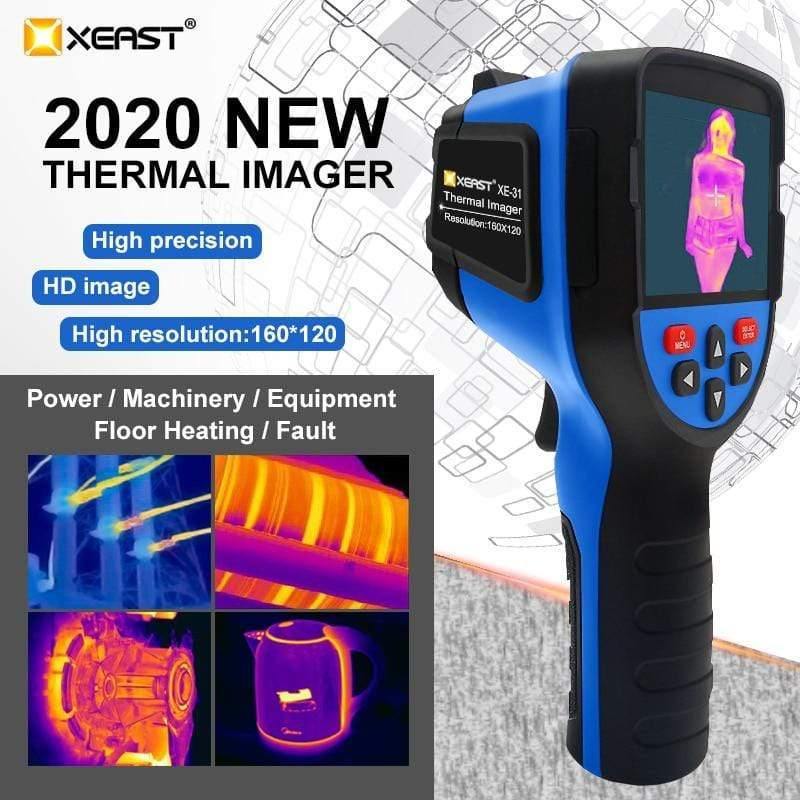

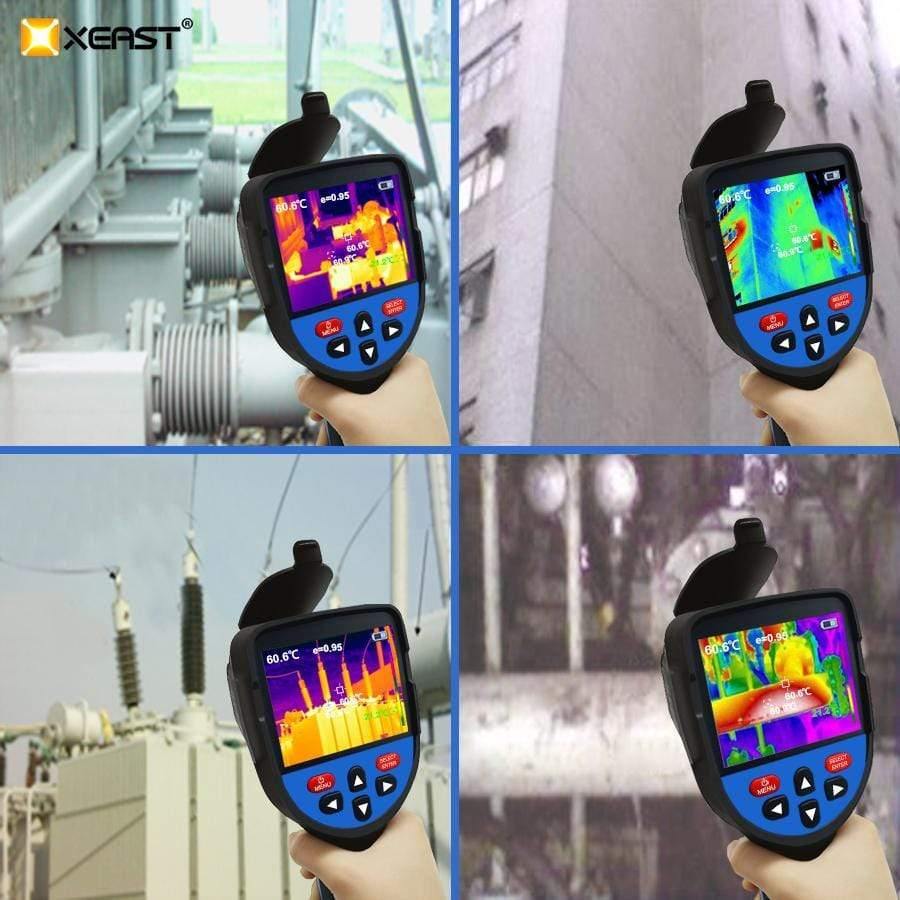

Collections 5,6: 2019 New Color Screen Handheld Thermal Imager Infrared Thermal Imaging Camera XE-28(60*60) and XE-31(160*120)

Specification Comparison Table to XE-28/XE-31

Model	XE-28	XE-31
IR Resolution	60*60	160*120
Temperature Range	-20℃~380℃/-4℉~716℉	-20℃~380℃/-4℉~716℉
Accuracy	±2% or ±2℃(±4℉)	±2℃ (±3.6℉) or ±2% of reading
Display	2.5" TFT 320x240 Pixels color	3.5" TFT 320x240 Pixels color
Visible Camera	300,000 pixels	300,000 pixels
Field of View(FOV)	20°x20°	20°x20°
Best Focus Distance	0.5m	0.5m
Thermal Sensitivity	0.5℃	0.15℃
Emissivity	0.1-1.0 Adjustable	0.10~1.0 adjustable
Wavelength Range	8-14μm	8-14um
Color Palettes	Iron color,rainbow and gray	Iron red,Rainbow, Gray(white hot) scale(black hot)
Image Capture Frequency	9HZ	9Hz
Focus Mode	Fixed	Fixed
Image Storage	SD Card(TF Micor) 8GB	SD Card(TF Micor) 8GB
File Format:	bmp	bmp
Power Type	4 * 1.5V AA battery and USB	18650 rechargeable battery and USB
Battery Life	6 hours	6 hours
Working Conditions	-5℃ to 40℃ (23℉ to 104℉)	-5℃ to 40℃/23℉ to 104℉;10%RH to 80%RH
Storage Conditions	-20℃ to 50℃ (-4℉ to 122℉)	-20℃ to 50℃/-4℉ to 122℉;10%RH to 80RH
Item Size	260200102mm	260200112mm
Item Weight	0.3kg	0.35kg

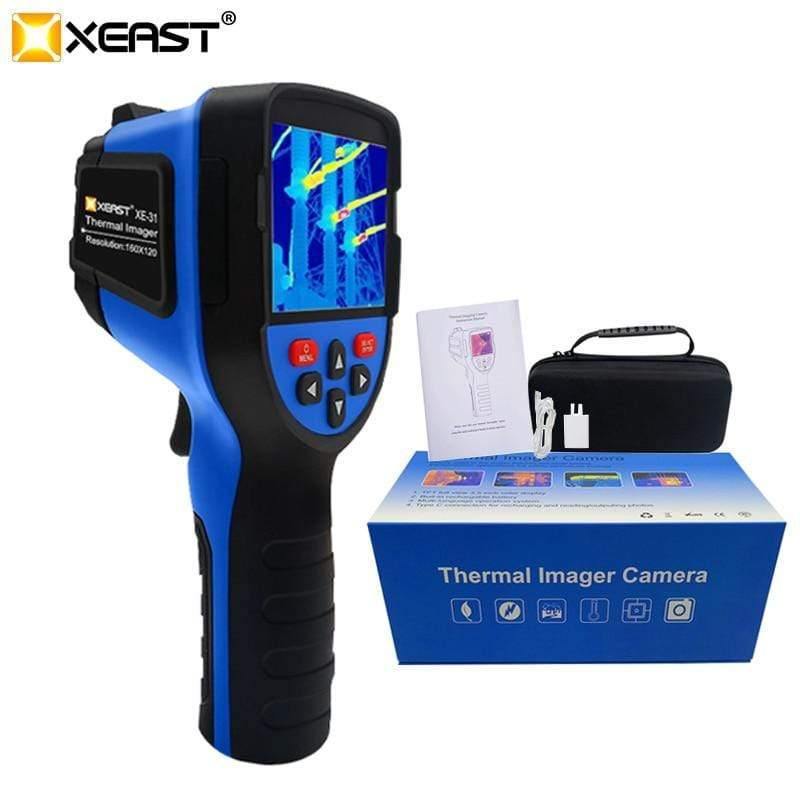

Package Includes	1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box	1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box

IR-890(1)

XE-31
