Description
SPECIFICATIONS
Brand Name: HITBOX
Origin: Mainland China
Hign-concerned Chemical: None
Is Smart Device: no
Plug Type: EU Plug
Certification: CE
Model Number: HBT250P AC/DC
Function 1: TIG AC/DC welding machine
Function 2: ARC MMA Stick welding machine
Function 3: TIG pulse welding
Rated Input Voltage (V): AC 220V±10%, 50/60Hz
Rated Input Power (KVA): 5.8
Rated Input Current (A): 26.3
TIG Output Current(A): 10-200A
MMA/ARC Output Current(A): 20-120A
TIG No-load voltage: 65V
Rated Duty Cycle(%): 60
Efficiency(%): 85
Protection Class: IP21S
Welding process: AC DC TIG/ARC
Specifications:
Brand name: HITBOX
Model: HBT250P ACDC
Rated Input Voltage(V) :AC220V:10%,50/60Hz
Rated Input Power(KVA)5.8
Rated Input Current(A):26.3
TIG Rated Output Current & Voltage:200/18V
MMA/ARC Rated Output Current & Voltage:180A/27.2V
TIG Output Current(A):10-200
MMA/ARC Output Current(A):20-180
MMA/ARC No-load voltage: 67V
TIG No-load voltage:65V
Rated Duty Cycle(%):60
Efficiency(%):85
Protection Class:IP21S
Insulation Class:F
Packing dimension: 480mm*270mm*365mm
Base material: carbon stainless, low-alloy steel,titanium,stainless steel ,aluminum
Welding process :AC DC TIG/ARC

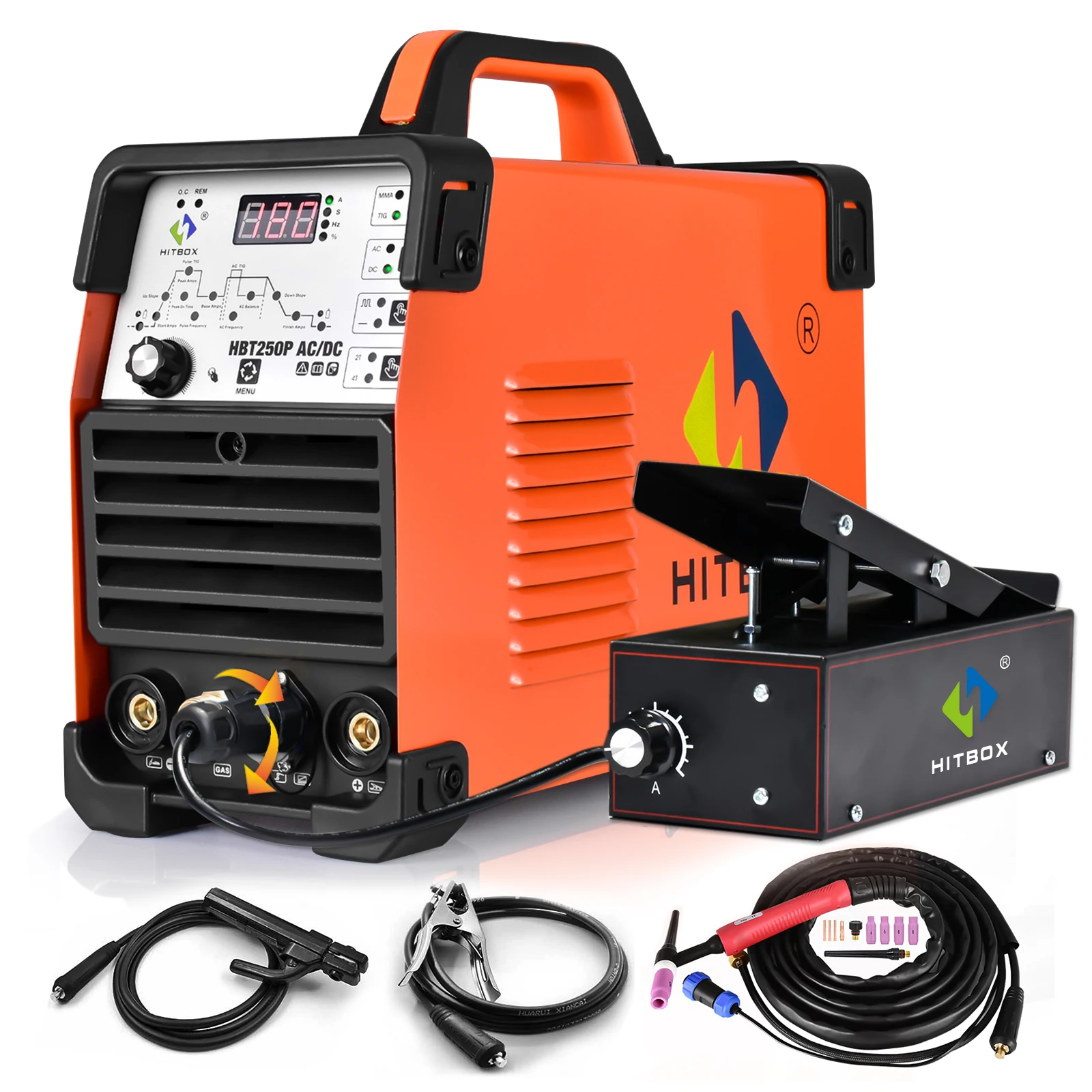

Option "with Foot Pedal": 1* Foot pedal;
Option "Foot Pedal Tungsten": 1* Foot pedal; 2* 10pcs 1.6mm Tungsten electrodes;
Option "Set1 no helmet": 1* Foot pedal; 1* Gloves; 1* 10pcs 1.6mm Tungsten electrodes;
Option "Set2 Black helmet": 1* Foot pedal; 1* Gloves; 1* 10pcs 1.6mm Tungsten electrodes; 1* Black Helmet;
Option "Set3 Golden helmet": 1* Foot pedal; 1* Gloves; 1* 10pcs 1.6mm Tungsten electrodes; 1* Golden Helmet;
Option "Set4 Orange helmet": 1* Foot pedal; 1* Gloves; 1* 10pcs 1.6mm Tungsten electrodes; 1* Orange Helmet;
