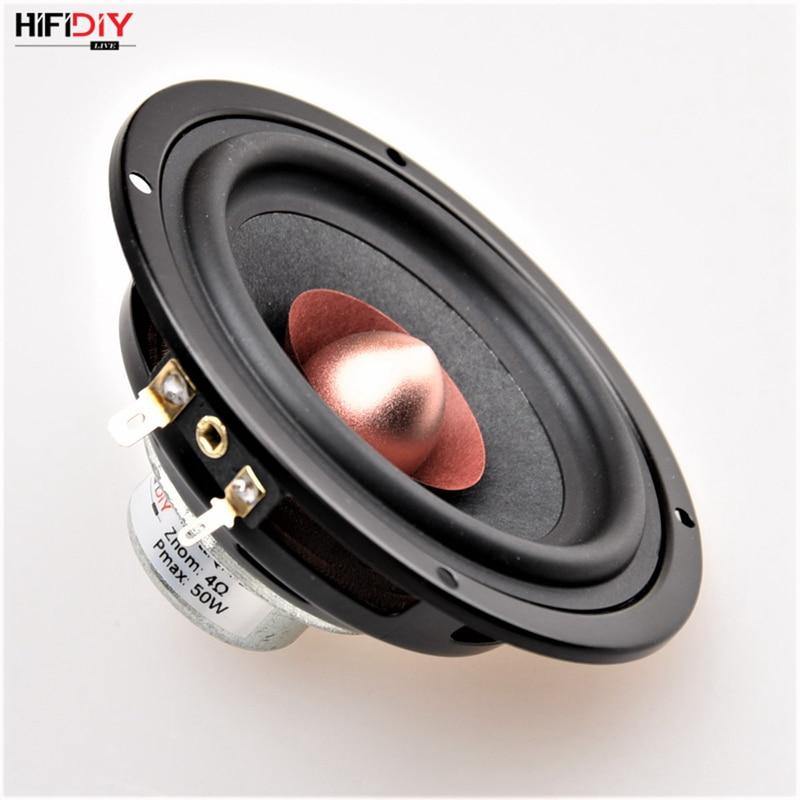

HIFIDIY LIVE Hi-Fi 4.5 INCH DIY Full Frequency Speaker Unit 4 8OHM 50W Neodymium Magnetic High Alto Bass Loudspeaker QF4-116NS
Planet Gates
€29.47 EUR
Bundle
1 piece
2 pieces
Color
4 ohm Impedance
8 ohm Impedance

Description



Feature:

full balance ， Neodymium magnetic Maintain strong kinetic energy.


Parameters:

Model Number QF4-116NS
Panel diameter 116mm
Diagonal screw hole spacing  108mm
Open Hole diameter 102mm
Speaker height 55mm
Magnet diameter 35mm
Magnet width 16mm
Voice coil diameter  15mm
Rated power 25W
Max Power 50W
Impedance 4 / 8Ω
Dc resistance 3.6Ω/ 6.*?
Sensitivity 89dB
Resonant frequency 88 Hz
Recommend Crossover -------
NET Weight 0.27kg/pcs
Frequency Range 240-20k Hz
Paper cone Material paper
Frame Material   Iron


QF4QF-116NS (1)QF-116NS (2)QF-116NS (3)QF-116NS (4)QF-116NS (5)QF-116NS (6)QF-116NS (7)QF-116NS (8)
