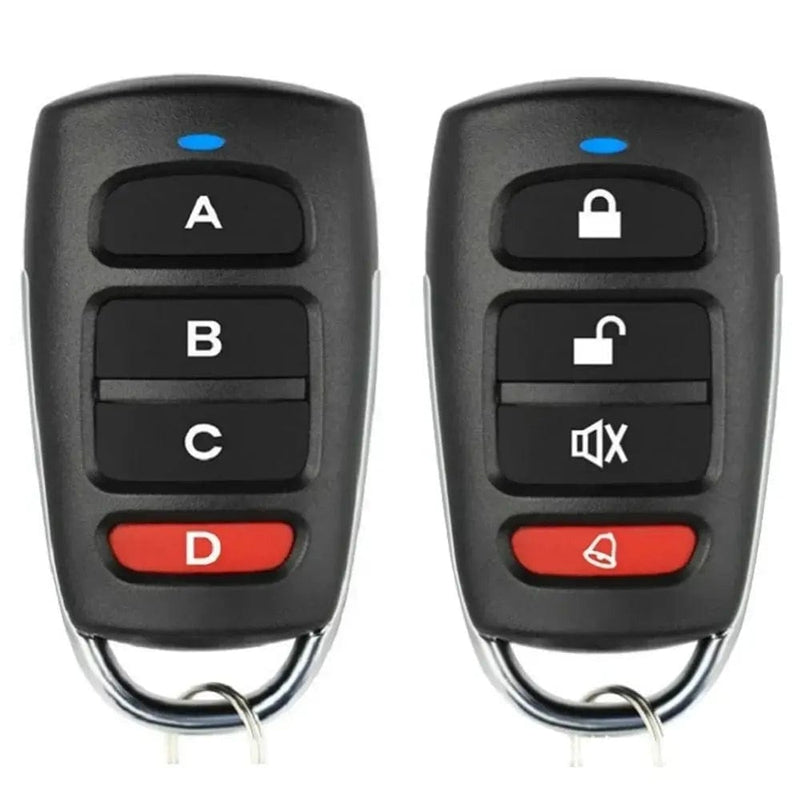

GERMA RF Remote Control Key 433mhz Transmitter Cloning Duplicated Copy Learning Fix Code for Electric Garage Door Car
Planet Gates
€5.50 EUR
Color
LOCK Type

Description

SPECIFICATIONS

Channel: 4

Brand Name: GERMA

Model Number: RCC-C

Frequency: 433 MHz

Package: No

Wireless Communication: RF

Use: SWITCH

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Support APP: No

Origin: Mainland China

Certification: CE

Certification: RoHS

Choice: yes


GERMA RF Remote Control Key 433mhz Transmitter Cloning Duplicated Copy learning fix code for Electric Garage Door Car

Please note below before you buy!

The remote control is not compatiable for clone all remote control!

Learning code and Fix code work, but rolling code maybe not work!

Please note that!

Copyable chip is as below:

2260 (all manufacturers), 2262 (all manufacturers), PT2264 (all manufacturers), 5326 (all manufacturers),

527 (all manufacturers), 1527 (all manufacturers), 2240 (all manufacturers)

HT6026, HT6012, HT6014, HT600, HT680, HT6010, HT6207, HT640, HT6P12E, HT6P20D, 12L-4SC

PT2292, 12L4SC, SC5262, PLC168, NF9420116, UM3750AM, SMC918, SMC908, 1416, 5211

Except listed Brand, Rolling code would Not work!

HCS101, HCS200, HCS201, HCS300, HCS301 not work, please not buy if your remote control chip is HCS, thanks!


The gadget is a wireless remote control key fob, which comes with ultra-strong Duplicating & Cloning function, Ultra-small error of copying data code and copy oscillation resistance. It support remotely and wirelessly control your roller shutter door, garage door and other telecommand equipments within 50m (free space). Bringing you brand new experience of remote control, bring you much convenience in your daily life. You can not miss it.

Features:
*Duplicate Your Existing Remote Controllers Such as, Vehicle Central Locking Systems, Garage Doors Access Control System, Electronic Gates, Electrical  Appliances control, Car  Sunroofs Control, Heating  Systems Control, Light Switch, etc.
*Encoding Type Supported: Support for CAME TOP Series Remote Control and the most of other remote controls.

Specification:
Model: KT16-CCCKB-4
Material: Metal and PVC
Product Type: Copy/Copy Remote Control Transmitter Keychain
RF frequency: 433MHz
Coding method: face-to-face copying (one-to-one copying)
Support channel: four channels
Encoding type: 1527, 2262 (learning code, fix code)
Buttons: 4 buttons (A, B, C, D)
Modulation system: ASK
Working current: <25mA
Transmit power: +13dbm
Frequency deviation: ±0.2MHz
Transmission distance: 50m (barrier-free space)
Colour: Black
Main item size: 5.4*2.9*0.9cm / 2.1*1.14*0.35oz
Main product weight: 28g/1.0oz
Package size: 5.5*3.0*1.0cm /2.16*1.18*0.39oz
Packing weight: 30g/1.05oz
Notes:
1. This item is suitable for home use. The scroll code can also be copied
2. We do not provide retail packaging, but we will pack it well before shipping.

Copy setting method:
1. Clear the code
Press and hold the A and B keys at the same time, the indicator light flashes once, release the B key, press the B key three times while holding down the A key, if the indicator light flashes quickly, it means the code clearing is successful.
2. Copy method
Press and hold the A button of the copied remote control, and press the button with the same function of the original remote control with the other hand. The two remote controls should be placed as close as possible (ideally, the two remote controls are placed side by side on the table, with zero distance) , if the indicator light of the copy remote control is on, it means that the copy is successful, and the operation methods of other keys are the same as above. Note: Interfering with the operation should be avoided, and if the copying is unsuccessful, the code should be cleared and then copied again.


Some remotes that use this frequency are listed below
4 channel RF wireless remote control duplicator for cars, garage doors, gates, alarm systems and more.
The battery used in the product is a button battery (CR2032). Please replace the battery if the remote control distance is insufficient.
Clone up to 4 remote signals from 4 different remotes.
This is a fixed frequency remote cloner (433mhz) for duplicating common fixed and rolling code remotes.

Reproducible chip model
2260 (all manufacturers), 2262 (all manufacturers), PT2264 (all manufacturers), 5326 (all manufacturers),
527 (all manufacturers), 1527 (all manufacturers), 2240 (all manufacturers)
HT6026, HT6012, HT6014, HT600, HT680, HT6010, HT6207, HT640, HT6P12E, HT6P20D, 12L-4SC
PT2292, 12L4SC, SC5262, PLC168, NF9420116, UM3750AM, SMC918, SMC908, 1416, 5211

Below Chip would not work!
HCS101, HCS200, HCS201, HCS300, HCS301
Tested to copy brands:
BENNCA/ALLMATIC, PUJOL2, KEY, FAACRC, BENINCA/ALLMATIC, APRIMATIC, Key_Automation_900TXB-42R, DITEC_GOL/APRIMATIC-TM4, (NICE)SMILO;(ATA) PTX4;(O&O), PUJOL/PUJOL2, FAAC-RC
Doorhan, Came TOP

NOTE:   With this remote duplicator, you can clone all 433.92MHz fixed code key fobs. Some remotes that use this frequency are listed above. If your copy fails under correct operation, you may want to check if your device has the above chip.

Package List:
1Pcs * 433MHz RF 4-Channel Remote Control  (Battery is Included)
