SPECIFICATIONS

Brand Name: ERYING

Chipset: Intel Others

Onboard LAN: 2x RJ45

Maximum Ram Capacity: 64 GB

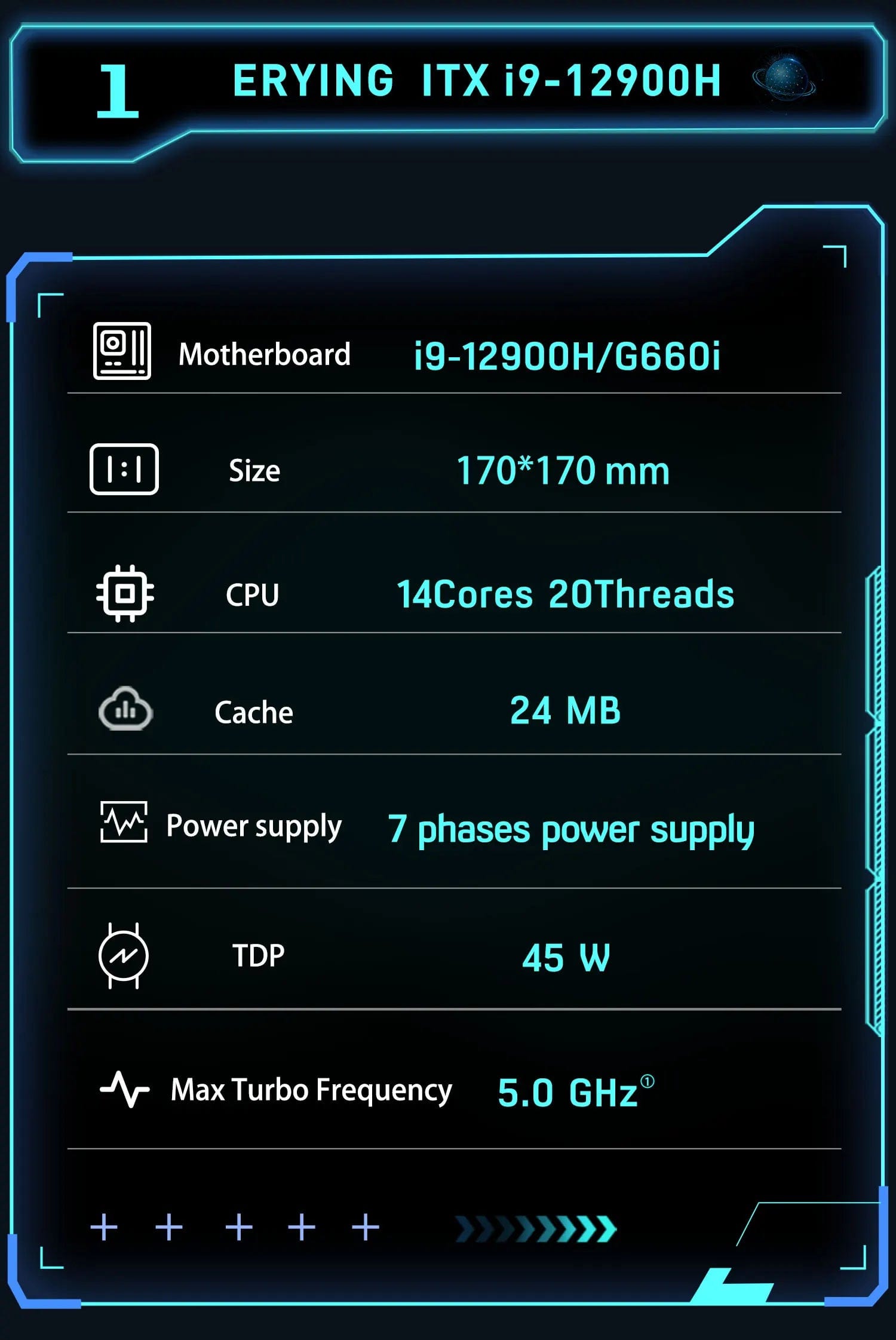

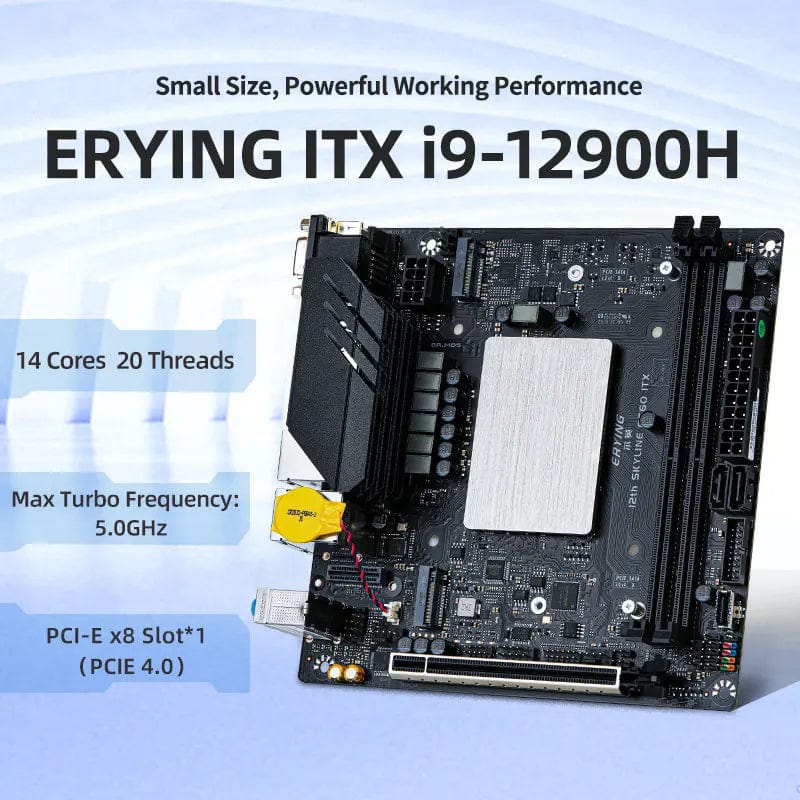

Processor compatibility: 12th Intel Core i9

With CPU: Yes

Support Memory Type: DDR4

Number of PCI: 0

Storage Interface Type: SATA 3

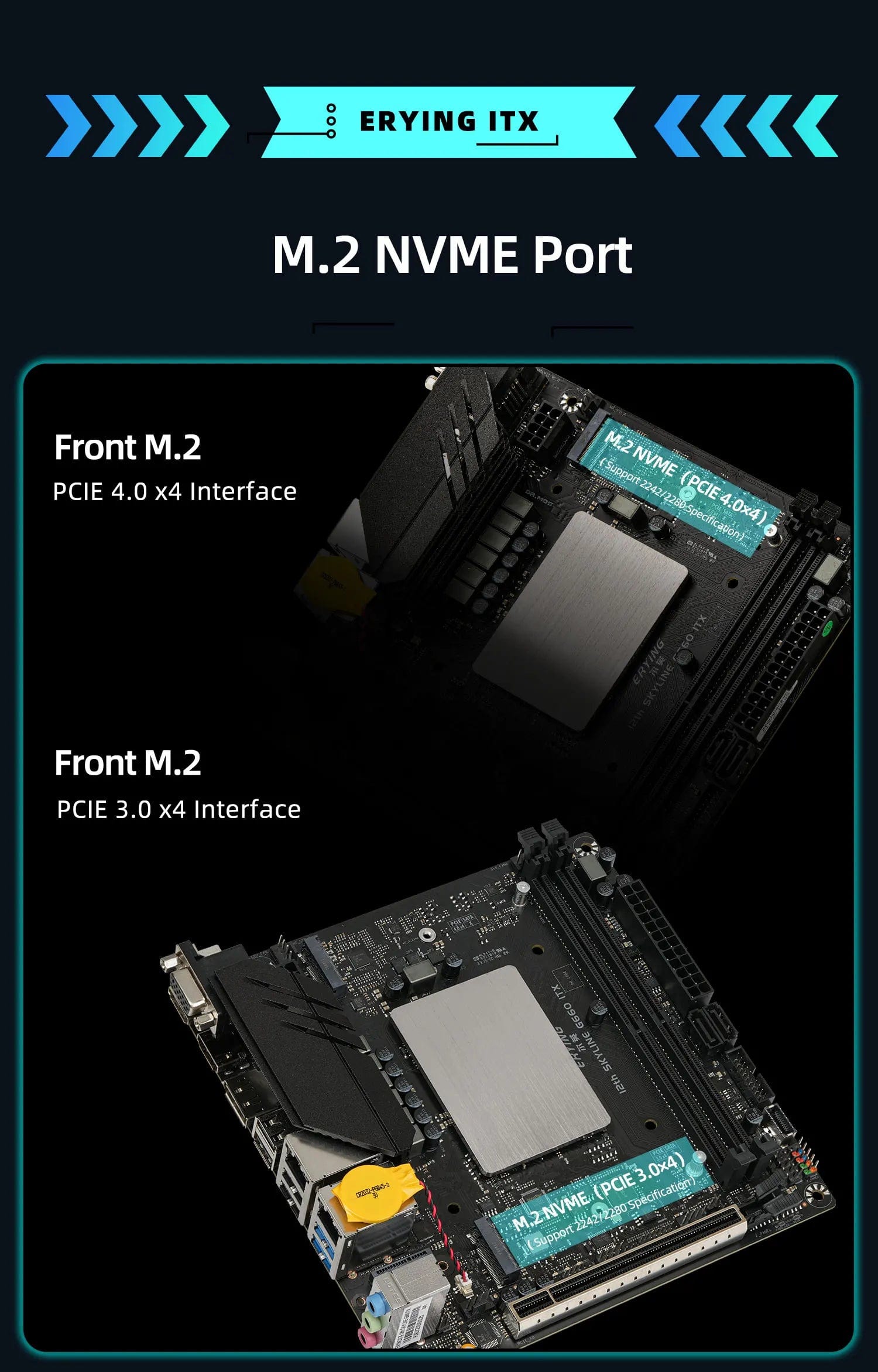

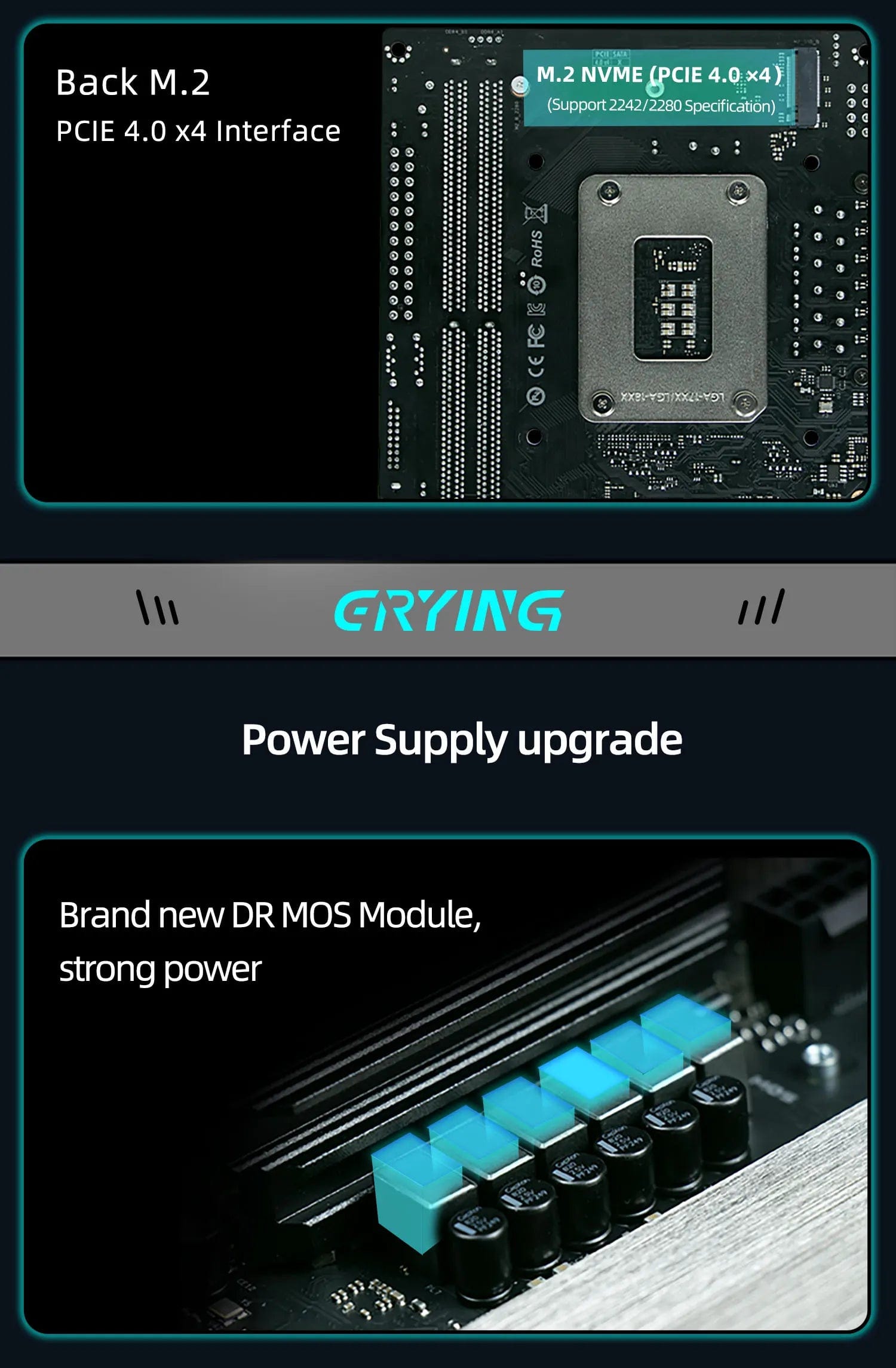

Storage Interface Type: M.2 (NVMe)

Package: Yes

RAID Supported: no

Application: Desktop

Chipset Manufacturer: Intel

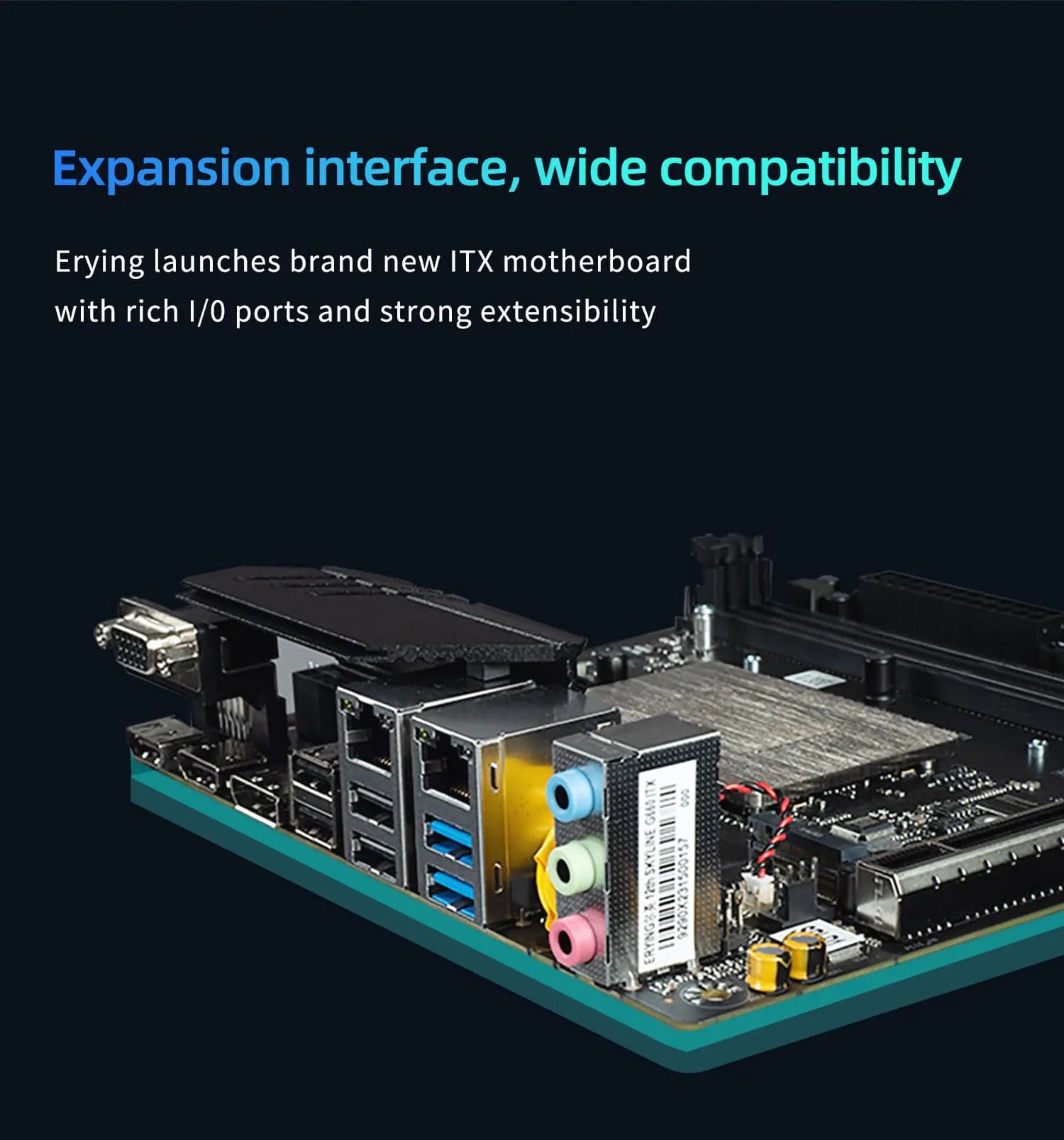

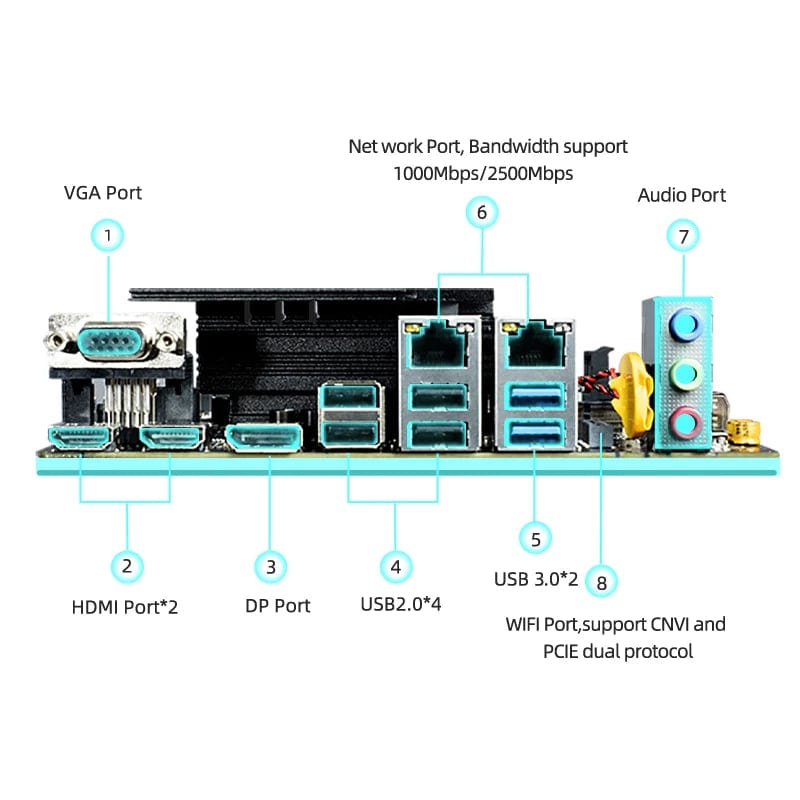

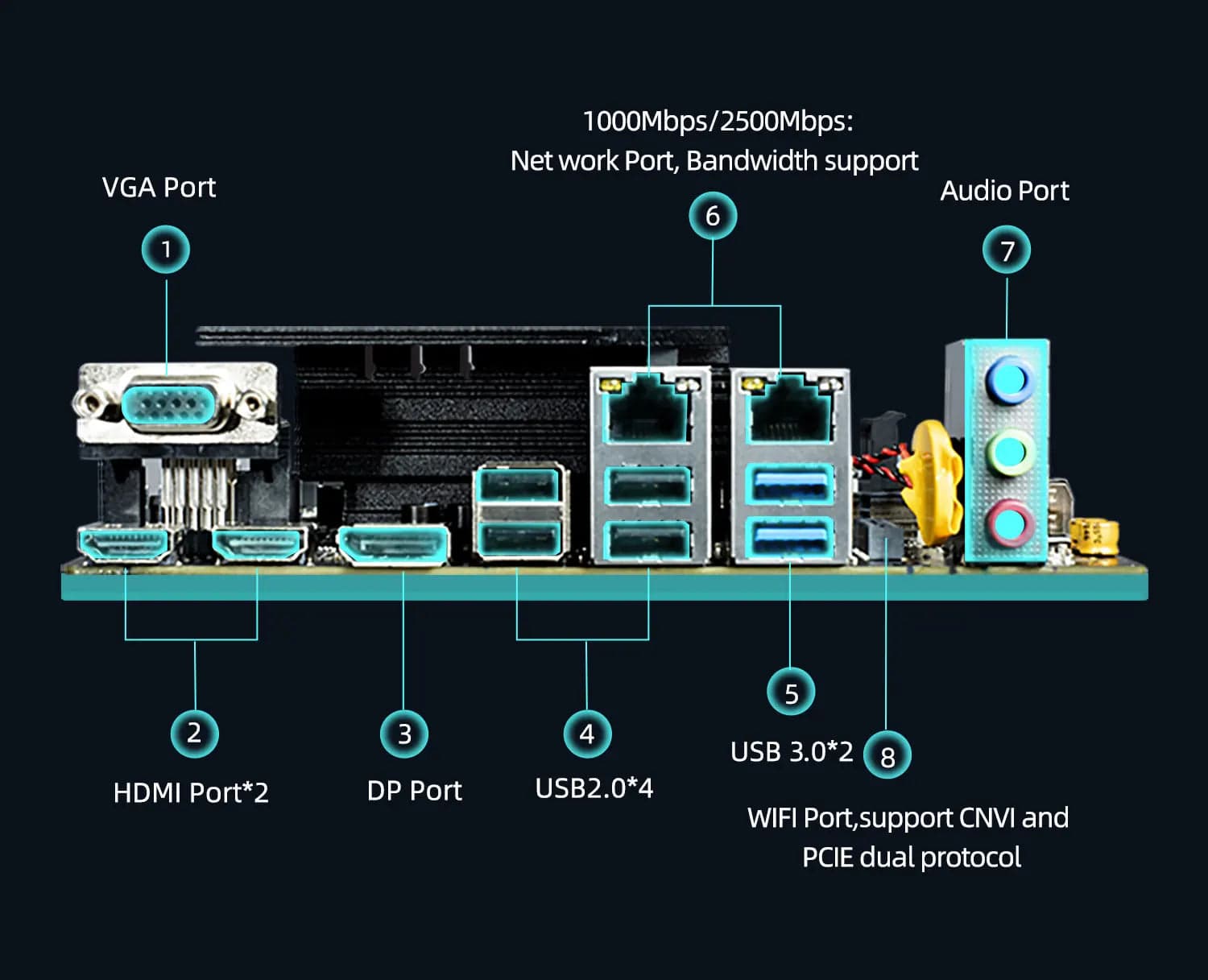

Back I/O Ports: 2x RJ45

Back I/O Ports: WIFI

Back I/O Ports: VGA(D-Sub)

Back I/O Ports: 3 x Audio Jacks

Back I/O Ports: 2x USB 3.2/3.1 Gen 1

Back I/O Ports: Displayport

Back I/O Ports: 4 x USB 2.0

Back I/O Ports: HDMI 2.0

PCI - E standards: PCI - E 4.0

Socket Type: Onboard CPU

Hign-concerned Chemical: None

Special Function: none

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Office

Usage Scenario: DESIGN

Usage Scenario: Video Production

Usage Scenario: HPC

Origin: Mainland China

Number of PCIe x 8: 1

Number Of Memory Slots: 2

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Support USB Type: USB 3.2 Gen1

Number of PCIe x 4: 1

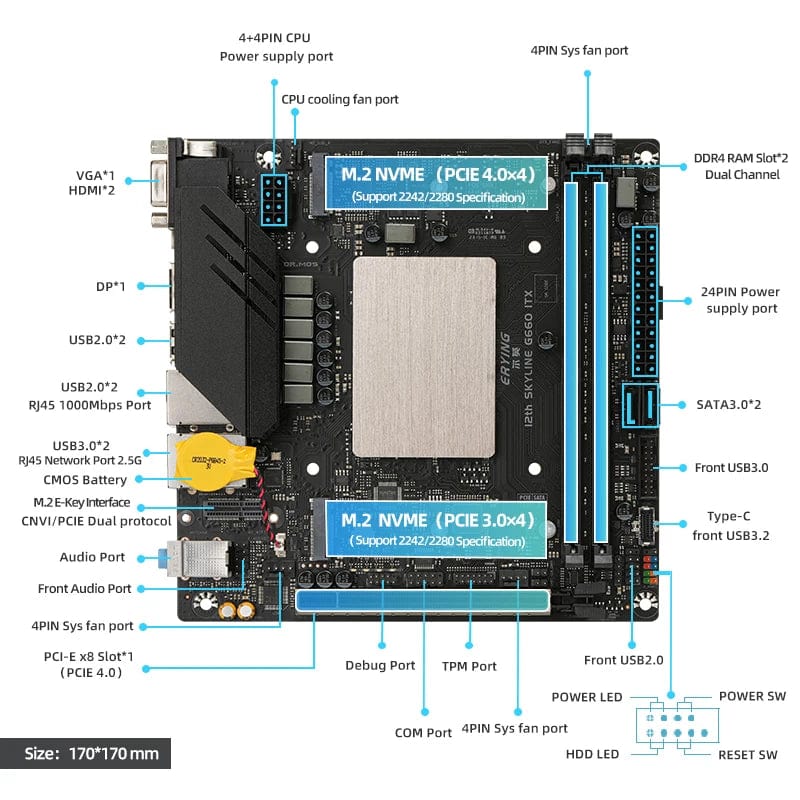

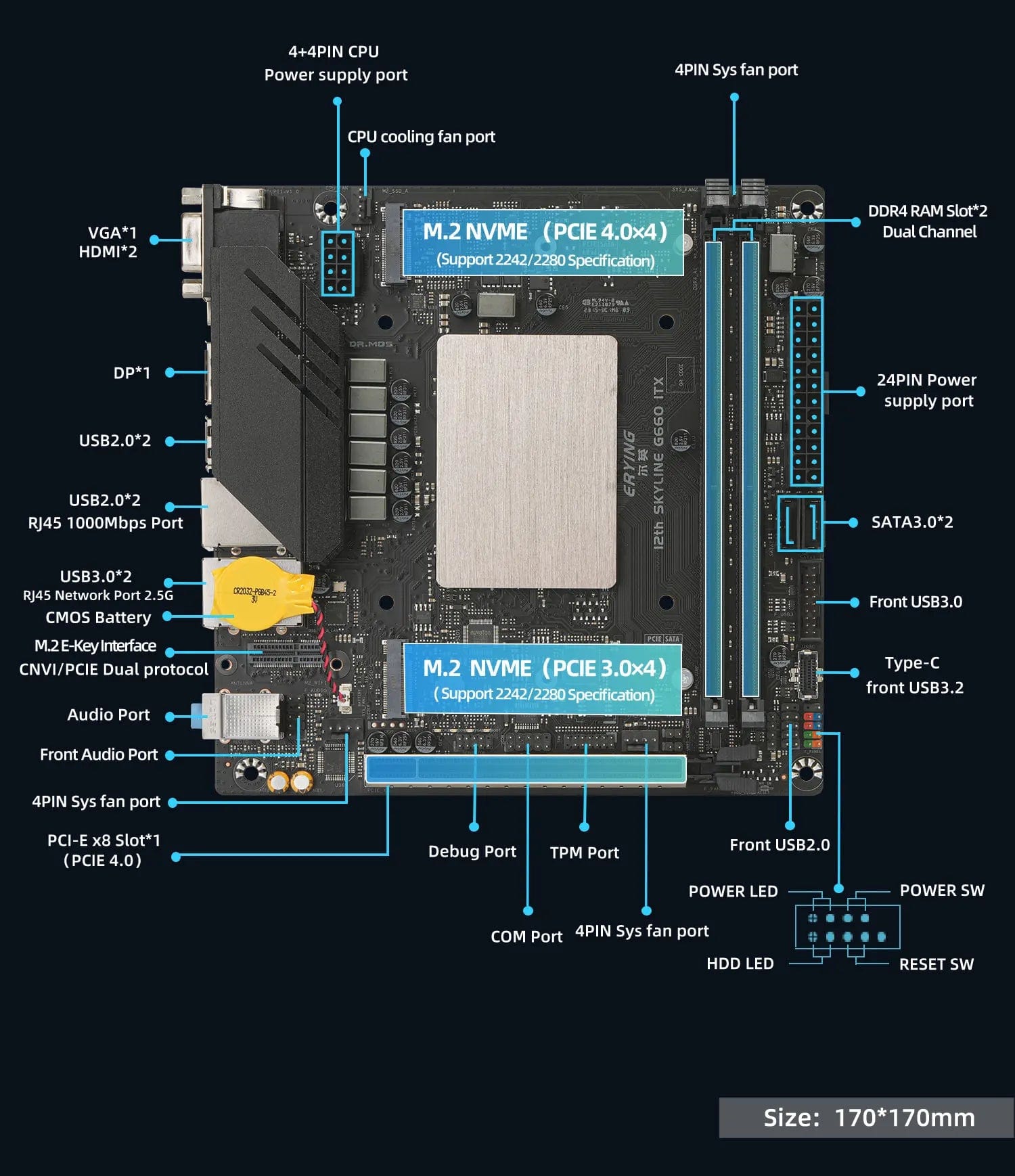

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard Connectors & Header: CPU Fan Connector(s)

Onboard Connectors & Header: AAFP Connector

Onboard Connectors & Header: SPI TPM Header

Onboard Connectors & Header: Chassis(SYS) Fan Connector(s)

Onboard Connectors & Header: USB 3.0 Connector

Onboard Connectors & Header: 8-pin +12V Power Connector

Onboard Connectors & Header: OthersConnectors & Header

Onboard Connectors & Header: USB 2.0 Connector

Onboard Connectors & Header: COM Port Header

Onboard Connectors & Header: System Panel(s) (Chassis intrusion header is inbuilt)

Memory channel: Double

Number of SATA Ports: 2

Audio Channels: 5.1

Max LAN Speed: 2500Mbps

Quality Certification: ce

Quality Certification: ROHS

Quality Certification: FCC

Number of PCIe x 1: 1

Certification: RoHS

Certification: FCC

Certification: CE

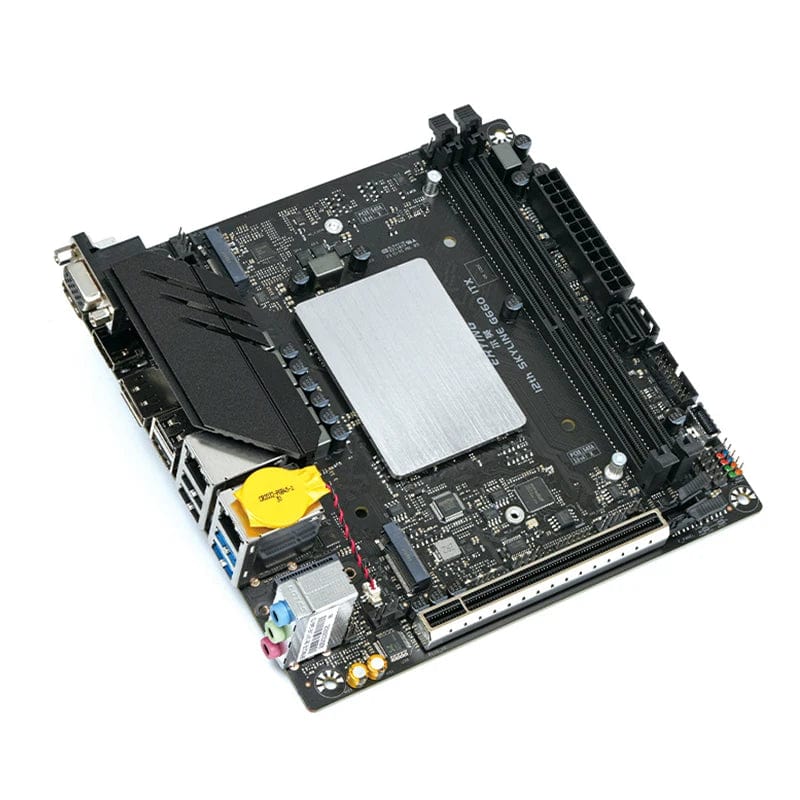

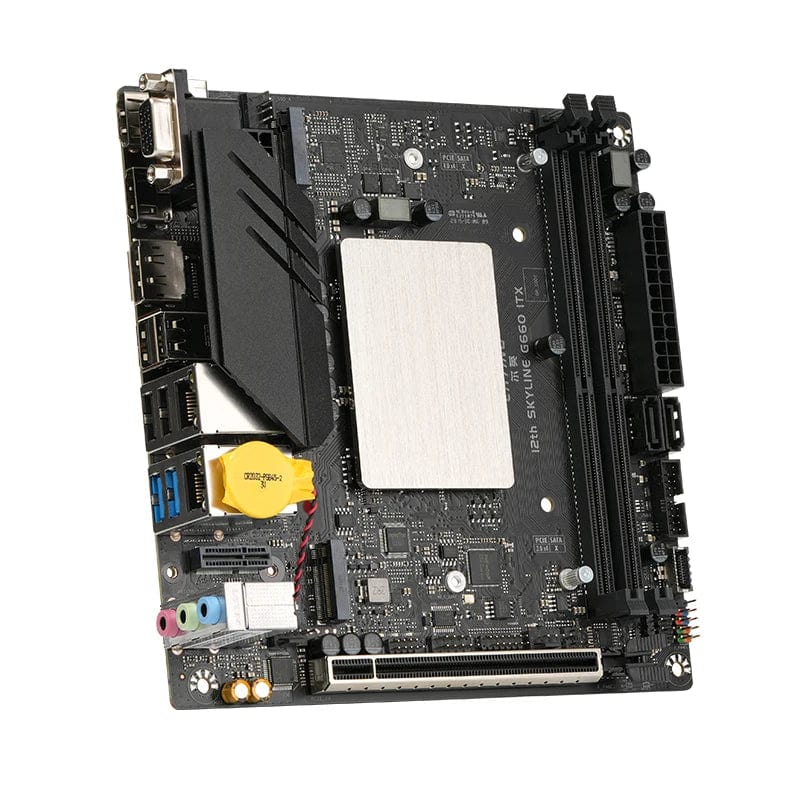

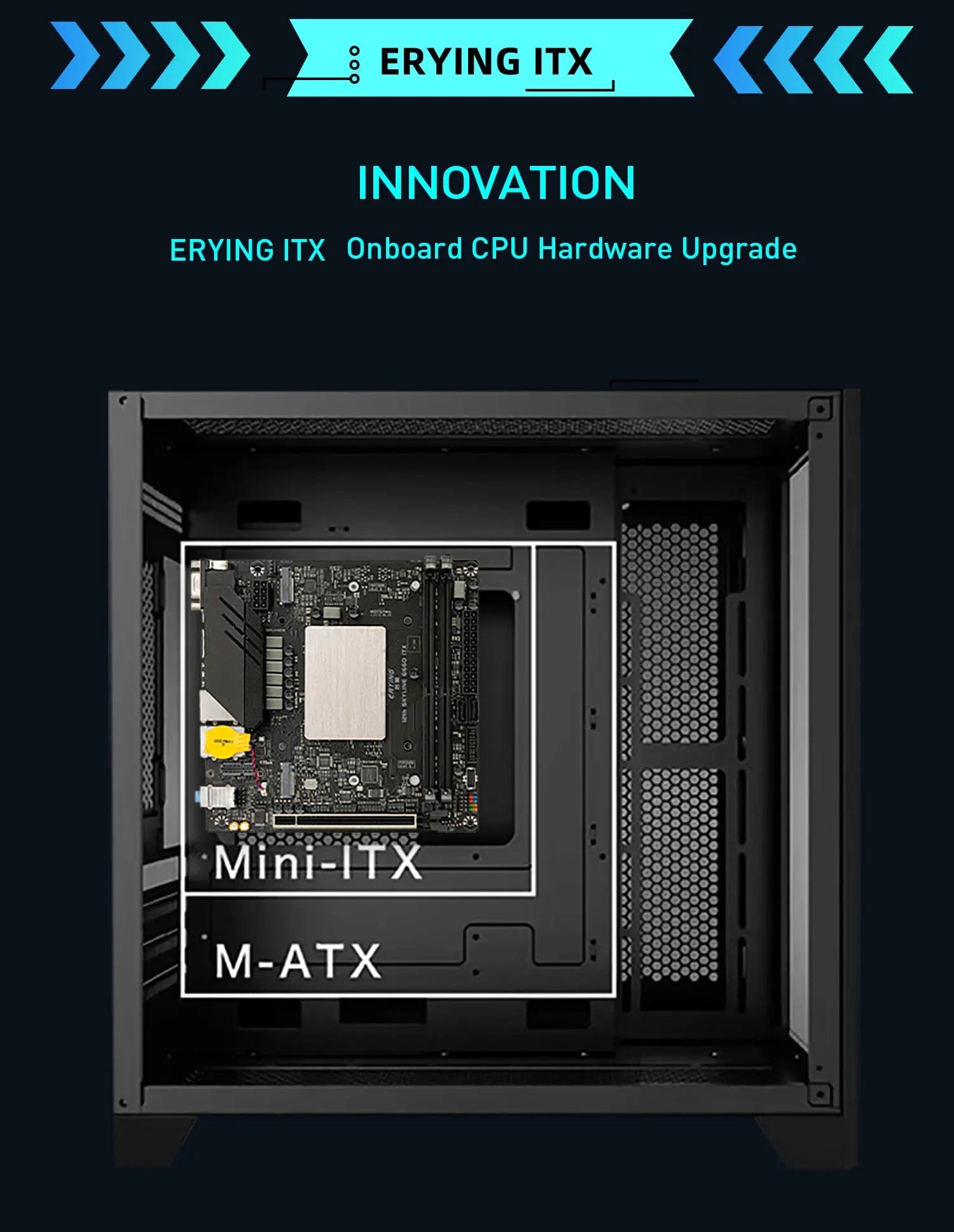

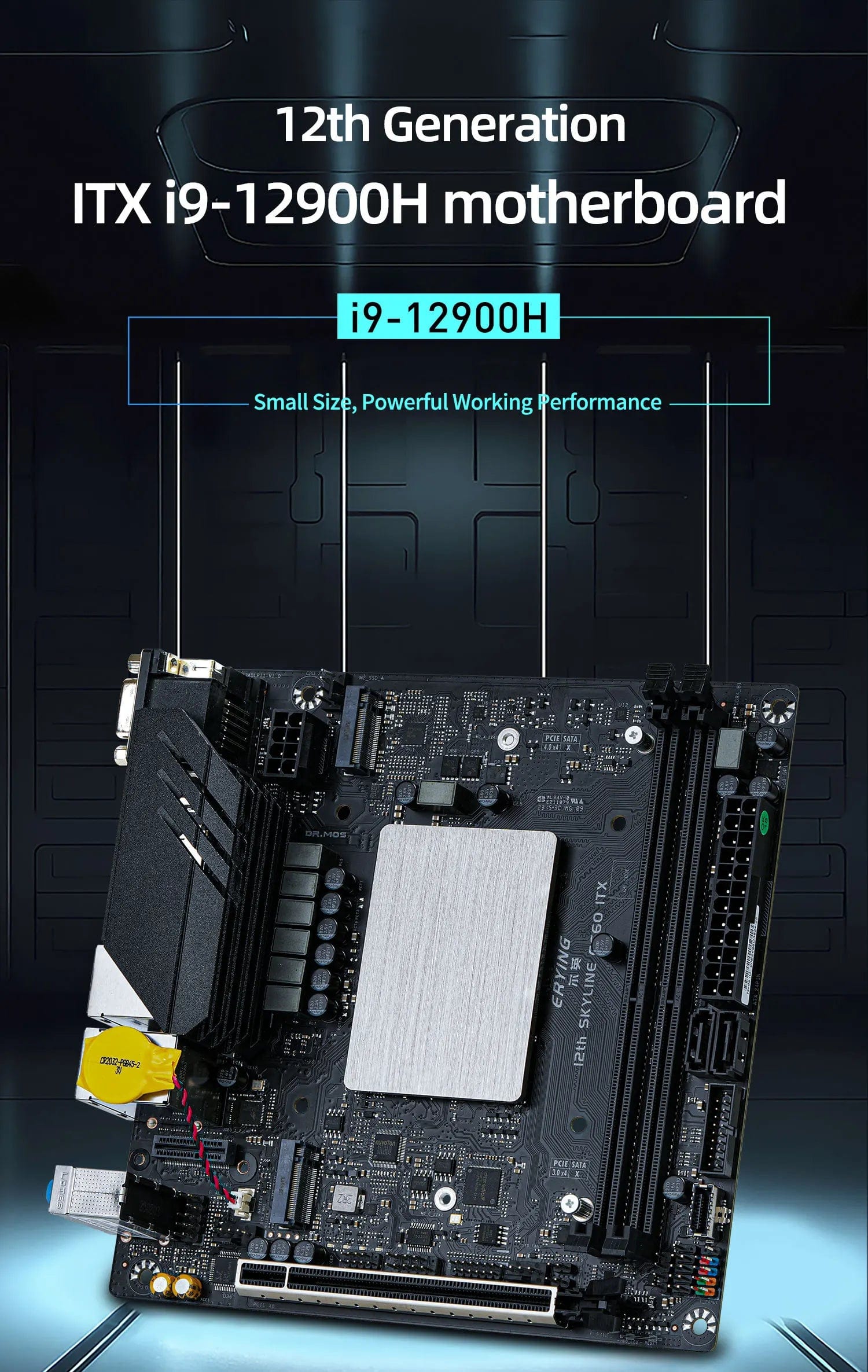

Form Factor: Mini-ITX

Supports M.2 SSD: 2242

Supports M.2 SSD: 2280

Number of M.2: 3

Motherboard Size: 170*170mm

RAM: DDR4 2133/2400/2666/3000/3200(OC)+MHz

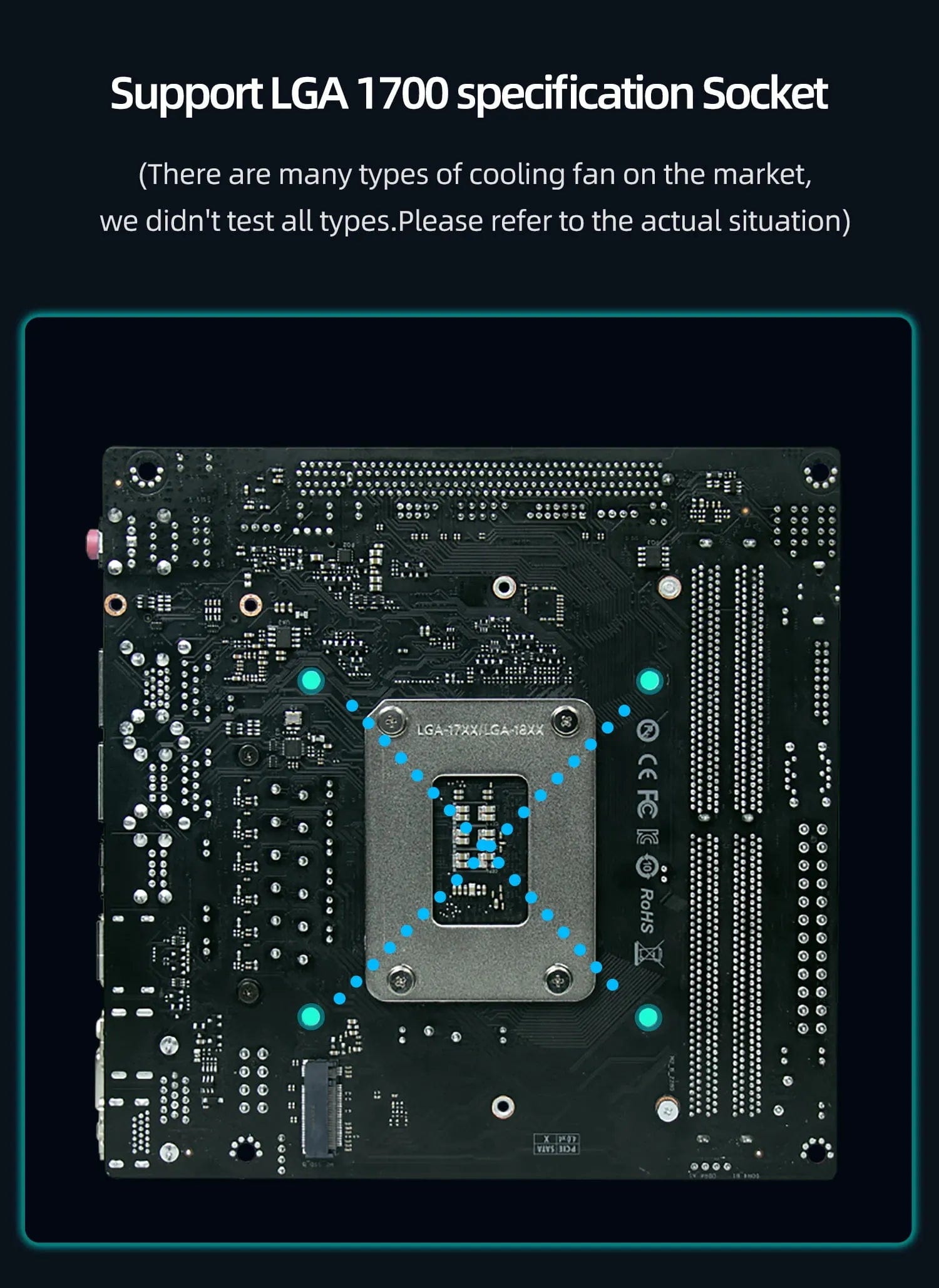

Cooling fan socket: LGA1700

Compatible WIFI Card: PCIE Protocol and part of CNVI Protocol
