Product description:

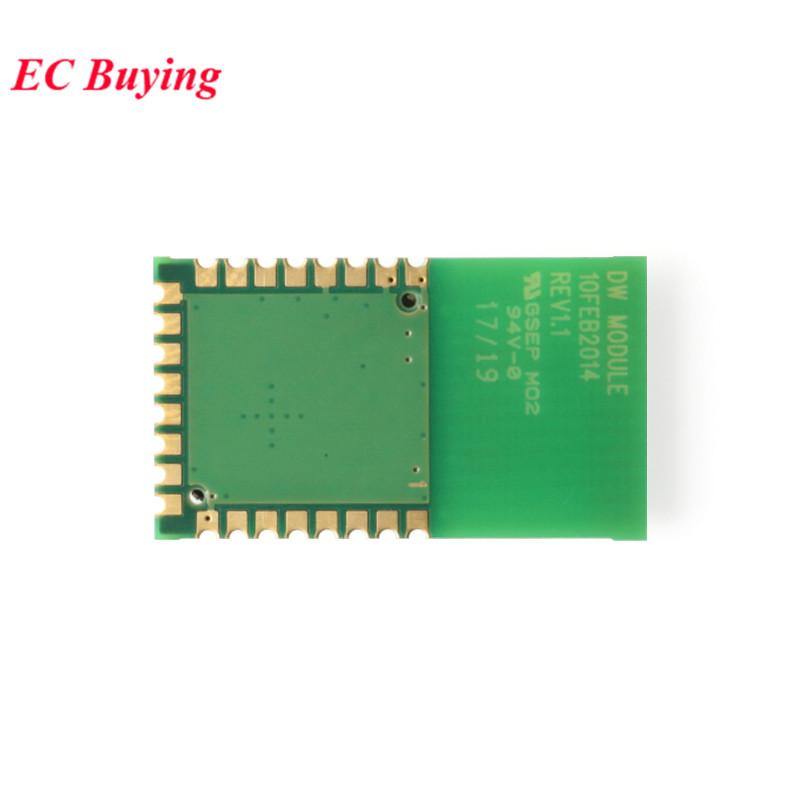

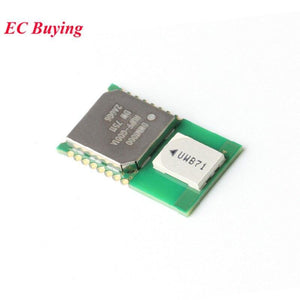

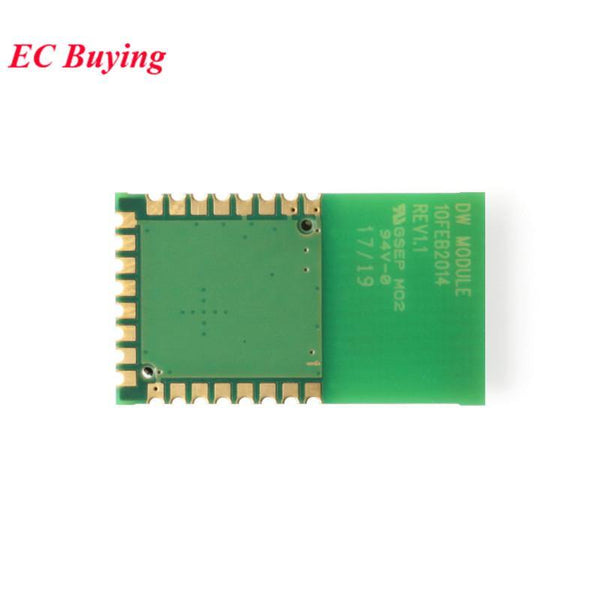

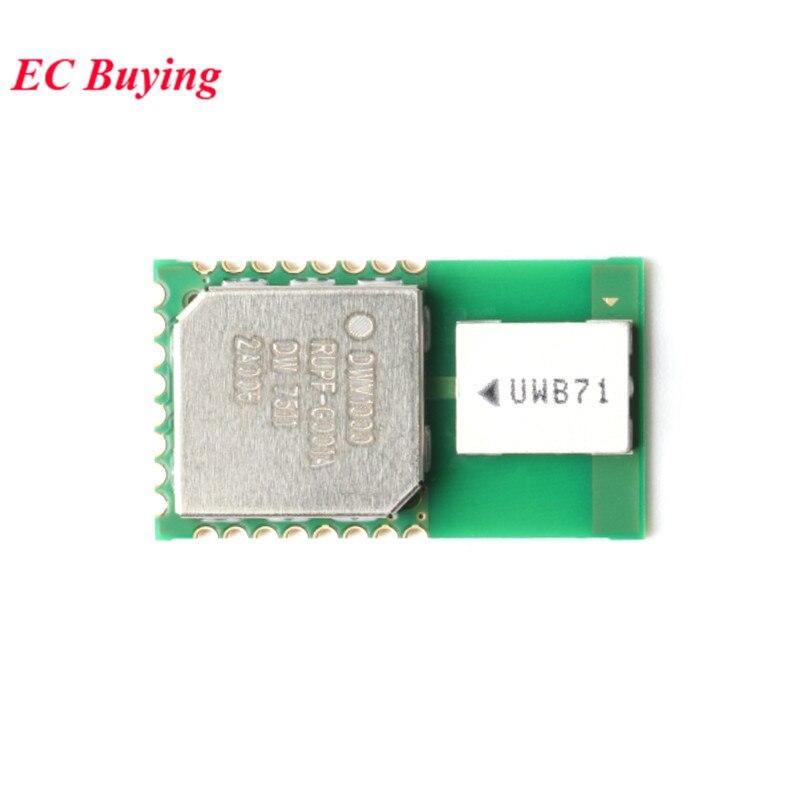

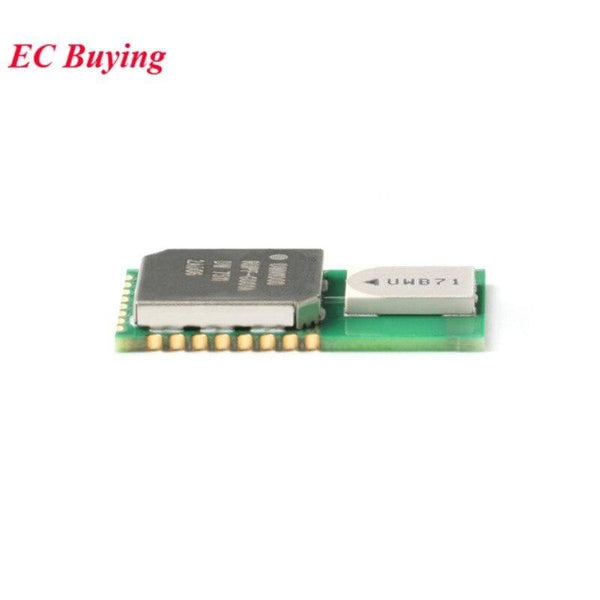

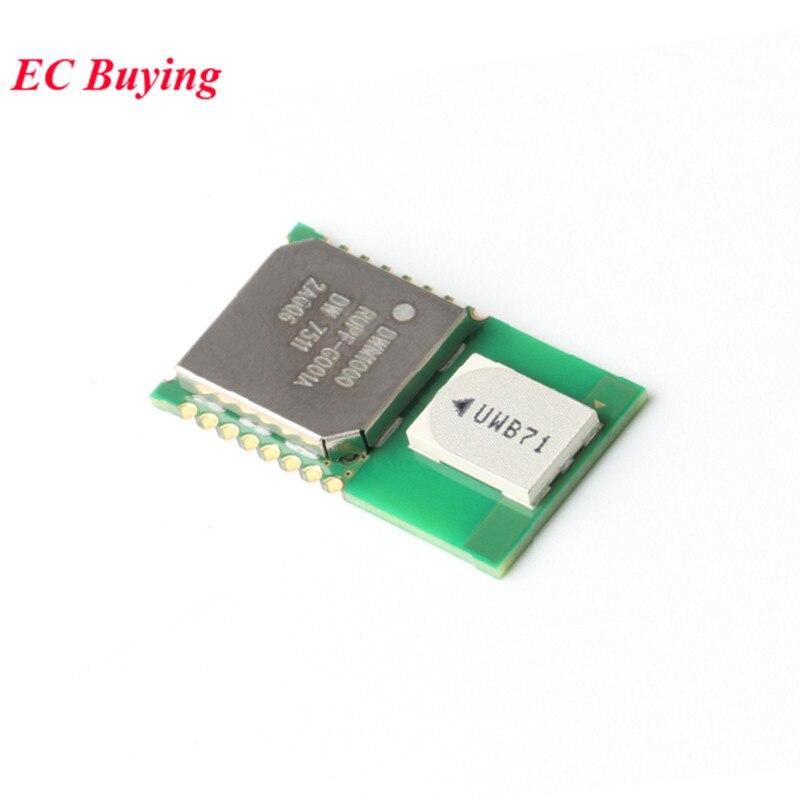

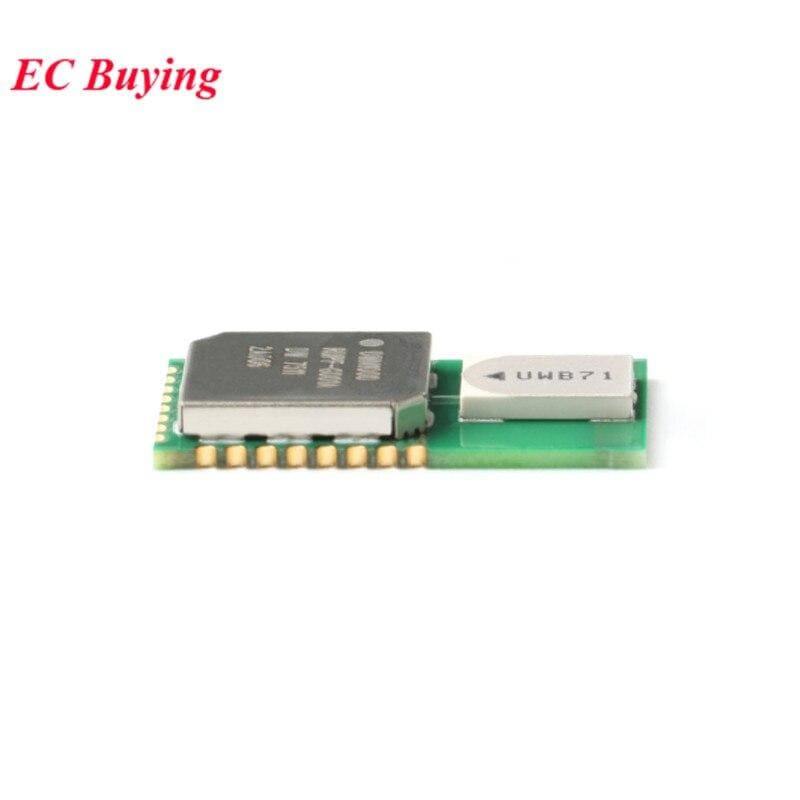

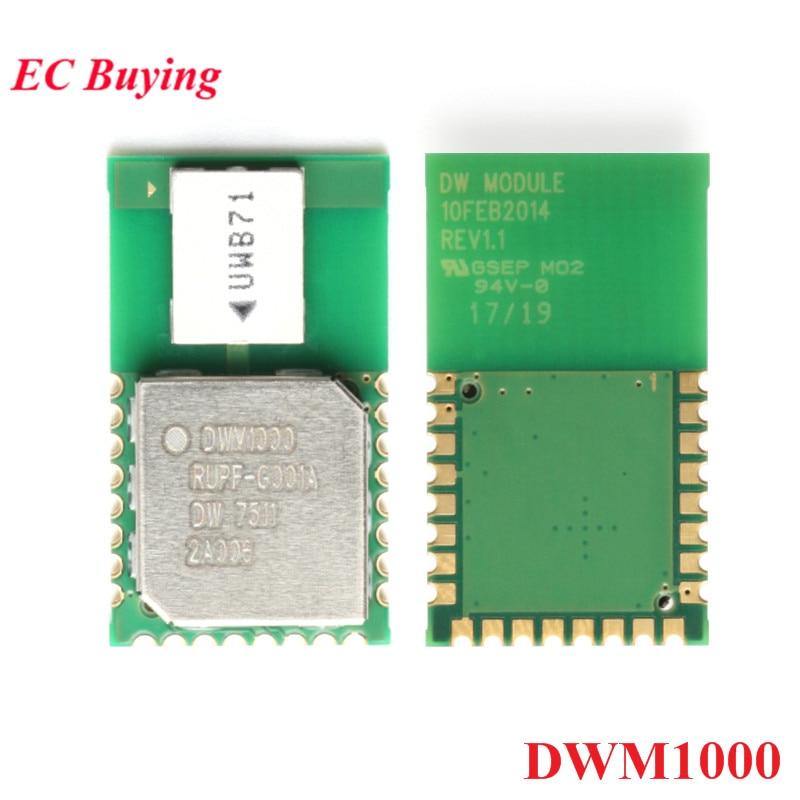

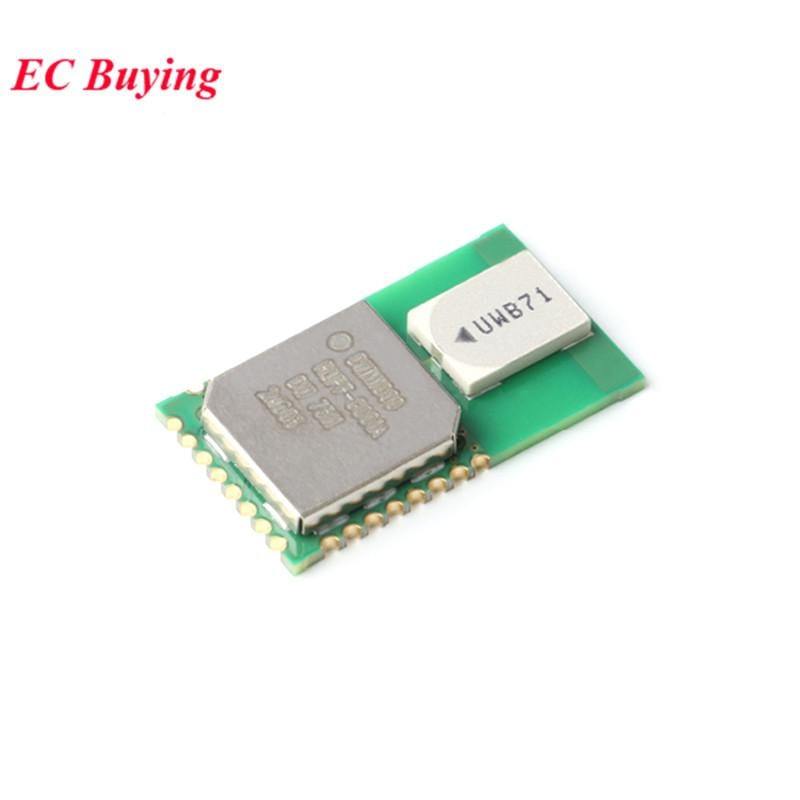

The DWM1000 module is based on Decaway's DW1000 chip designed ultra-wideband transceiver module which integrates the antenna, circuit, power management and clock circuit in one module of all RF. It can be used in two-way? Ranging or time difference positioning systems to position assets to 10 cm accuracy and support up to 6.8 Mbps

Main features:

Compliant with IEEE 802.15.4-2011 UWB

Supports 4 RF bands from 3.5 GHz to 6.5 GHz

Programmable transmitter output power

Fully coherent receiver, maximum range and accuracy

Designed to comply with FCC and ETSI UWB spectrum masking

Power supply voltage 2.8 V to 3.6 V

Low power consumption

110 Kbps, 850 Kbps, 6.8 Mbps data rate

For high data throughput applications, the maximum packet length is 1023 bytes

Integrated Mac support

Support two-way ranging and time difference

SPI interface with the host processor

23 mm x 13 mm x 2.9 mm 24-pin side slot package

Main advantages:

Simplify integration without RF design

Mark the precise location of objects to increase business efficiency

cut costs

Extended communication range minimizes the infrastructure required in RTL

High multipath fading immunity

Supports very high label density in RTL

Low cost for cost-effective solutions

Low power consumption reduces the need to replace batteries and reduces system life cost

Application field:

An accurate real-time positioning system (RTL) that uses a two-way ranging or time difference scheme in various markets.

Location-aware wireless sensor network (WSN)

DWM1000 module block diagram:

DWM1000 pin map:
