SPECIFICATIONS

Brand Name: diymore

Origin: Mainland China

Condition: New

Type: Module

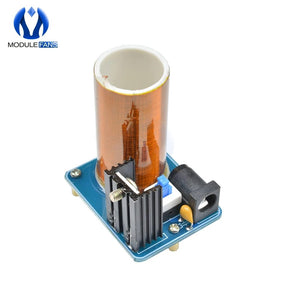

Model Number: BD243 Mini Tesla Coil

Supply Voltage: 12V

Dissipation Power: Mini Tesla Coil

is_customized: Yes

Operating Temperature: Mini Tesla Coil

Application: Computer

Package: SMD

Choice: yes

semi_Choice: yes

Input voltage: 9-12V, can be started with 9V battery, but if there is an arc, the working voltage needs 12V.

PCB board size: 4CM*3.1CM

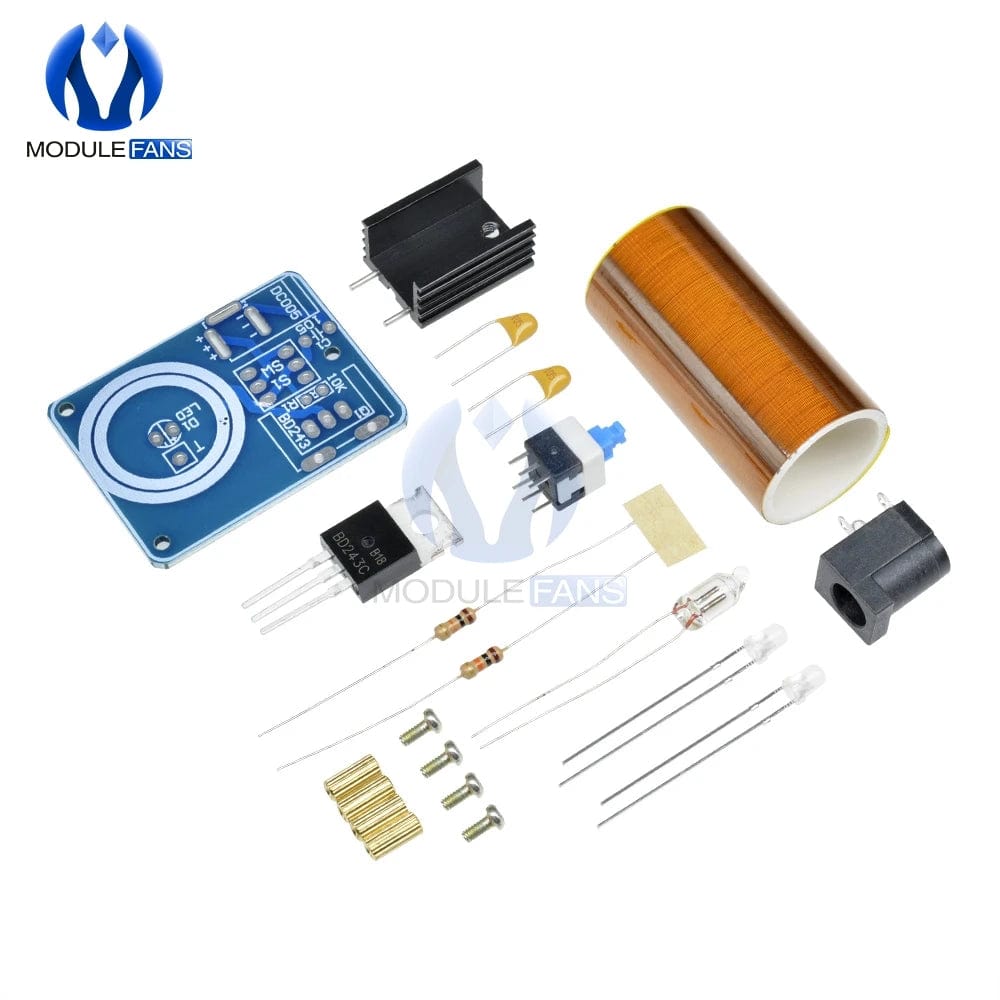

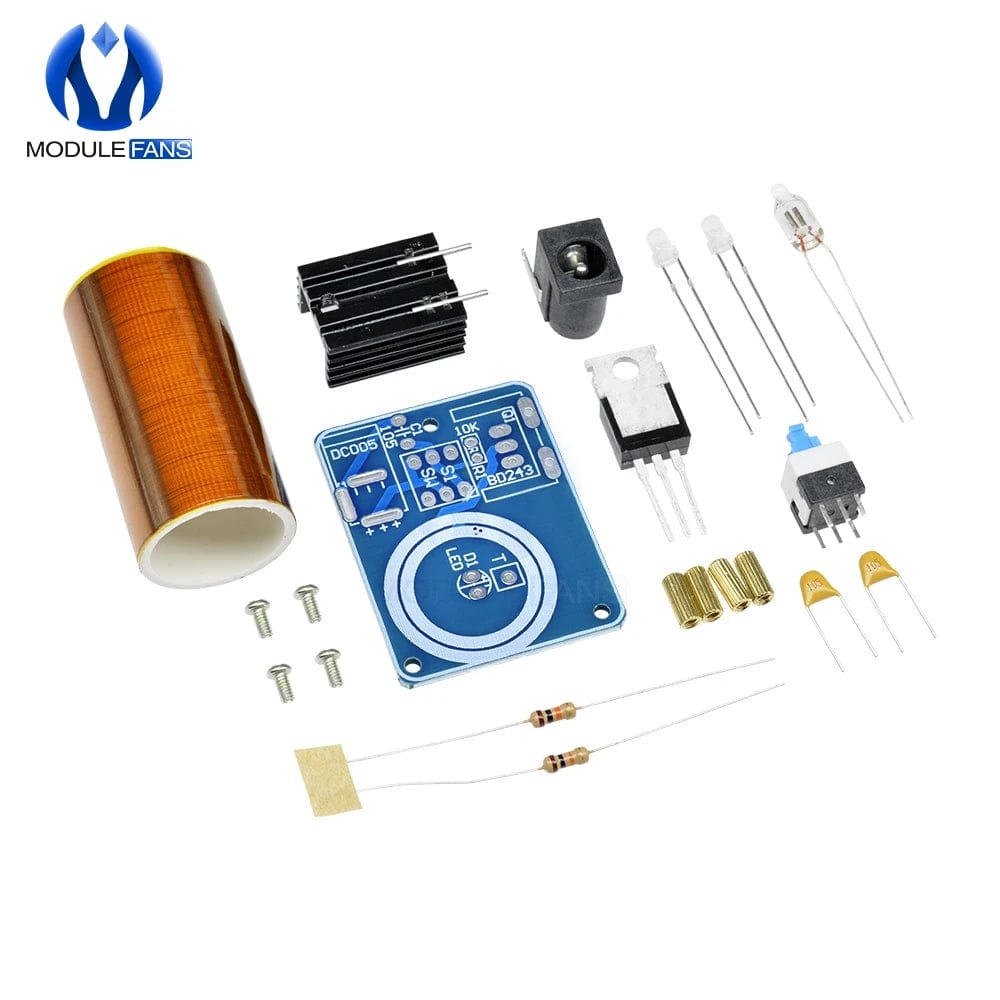

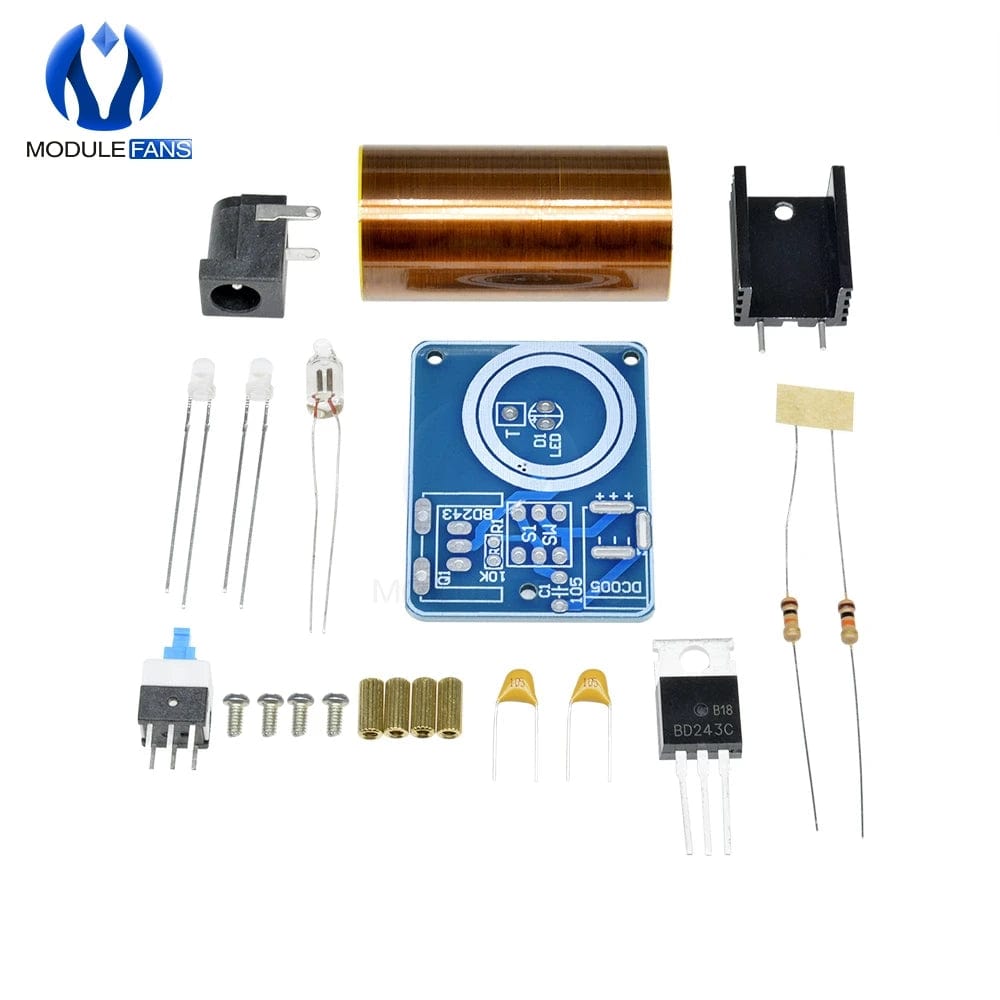

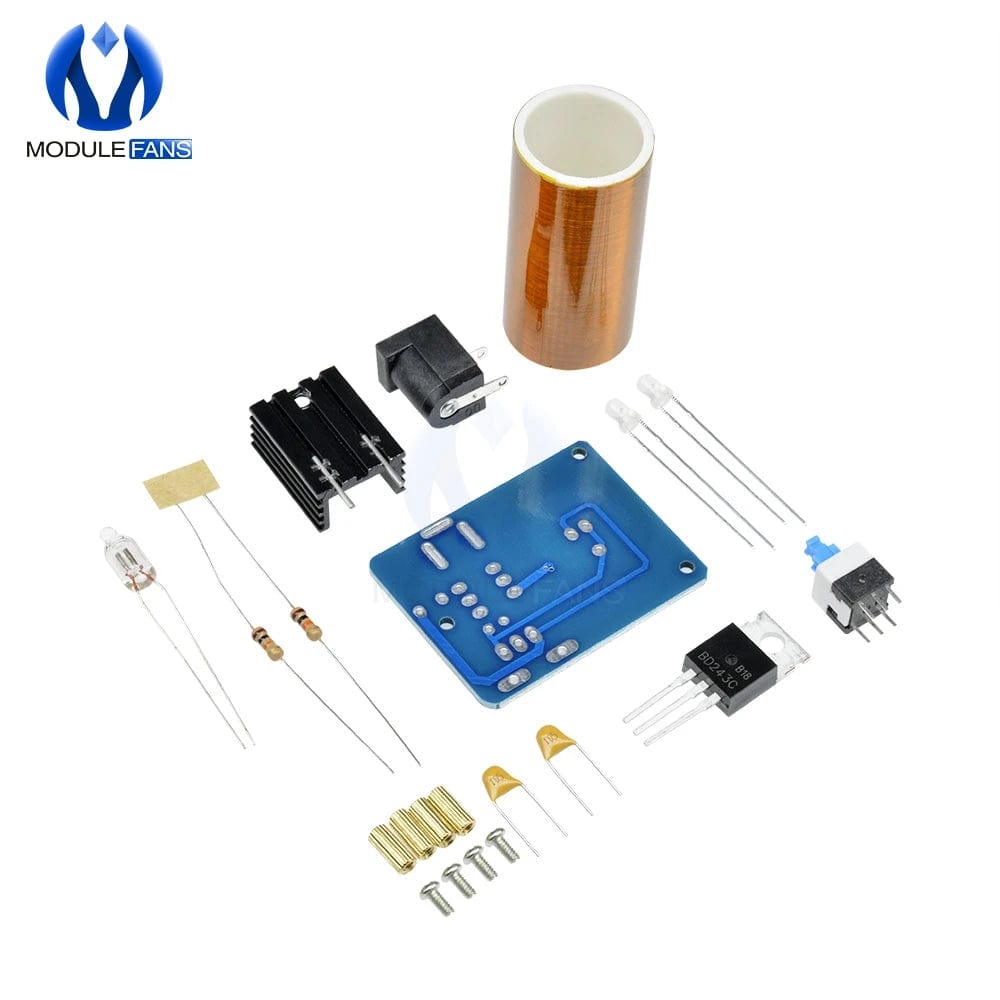

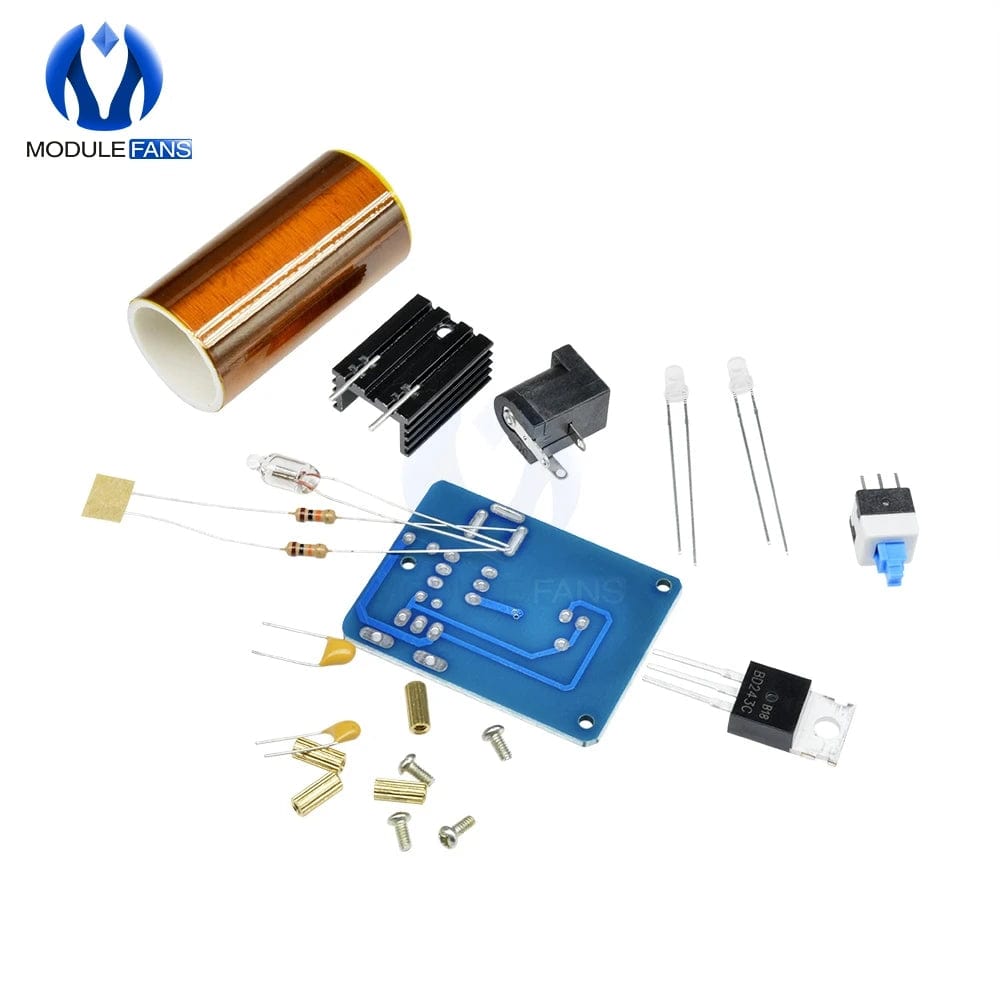

DIY Kits Included:



1 x PCB board

1 x Coil

2 x 3MM LED Blue

1 x DC005 seat

2 x 105 monolithic capacitor

1 x 8*8 self-locking switch

2 x 10K resistor

1 x 15*10*20 small heat sink

1 x 3*6 screw

1 x BD243

1 x Bubble

4 x M2*4 screw

4 x M2*7 double pass copper column

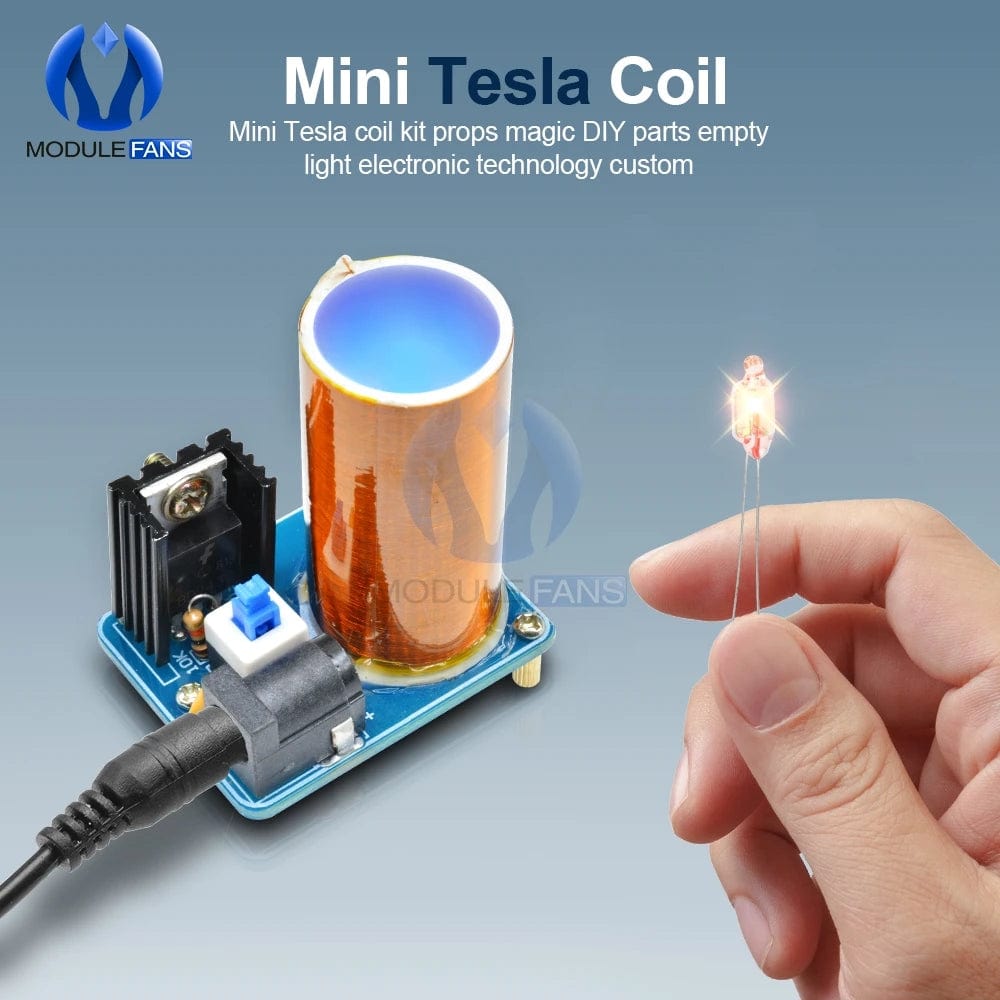

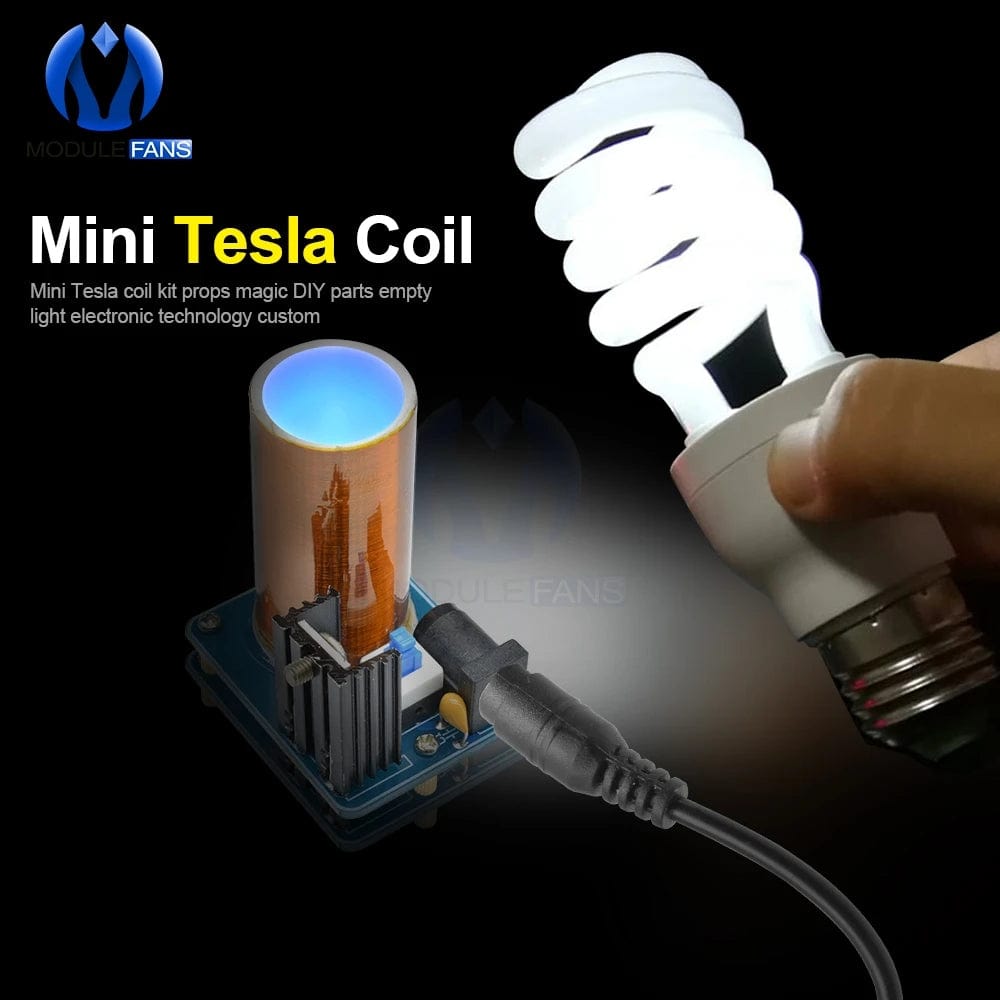

Tesla coils produce high-temperature and high-pressure plasmas, can ignite, wirelessly transmit electricity, illuminate fluorescent lamps, and have wonderful arcs. There are many fun and very interesting scientific experiments. Tesla Coil is a transformer that operates on the principle of resonance (resonance transformer)
