SPECIFICATIONS
Brand Name: XINHUANGDUO
Origin: Mainland China
Hign-concerned Chemical: None
Operating Speed: 5000-10000r/min
Certification: CE
Certification: RoHS
Application: Milling
Drive: Motor
Model Number: 200W
Maximum Torque: 300mN.m
Voltage(V): 12-24VDC
Output Power: 200W

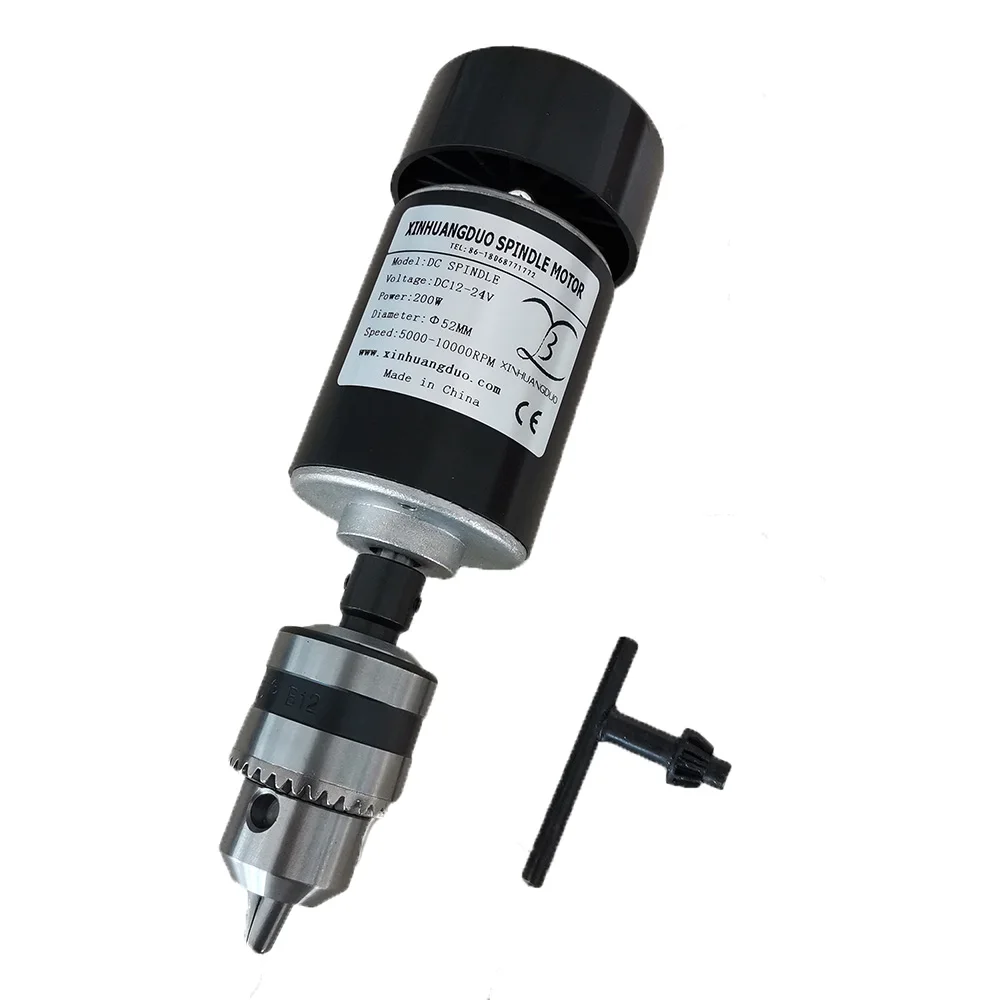

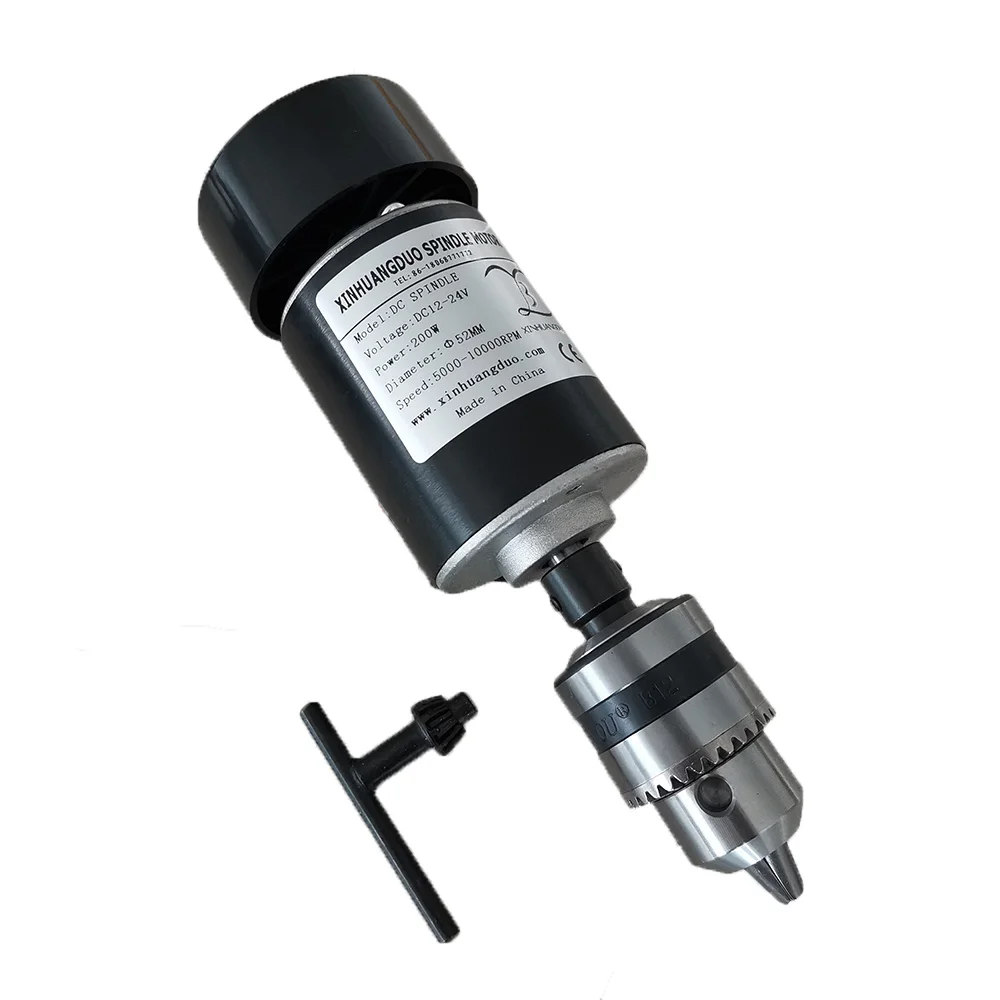

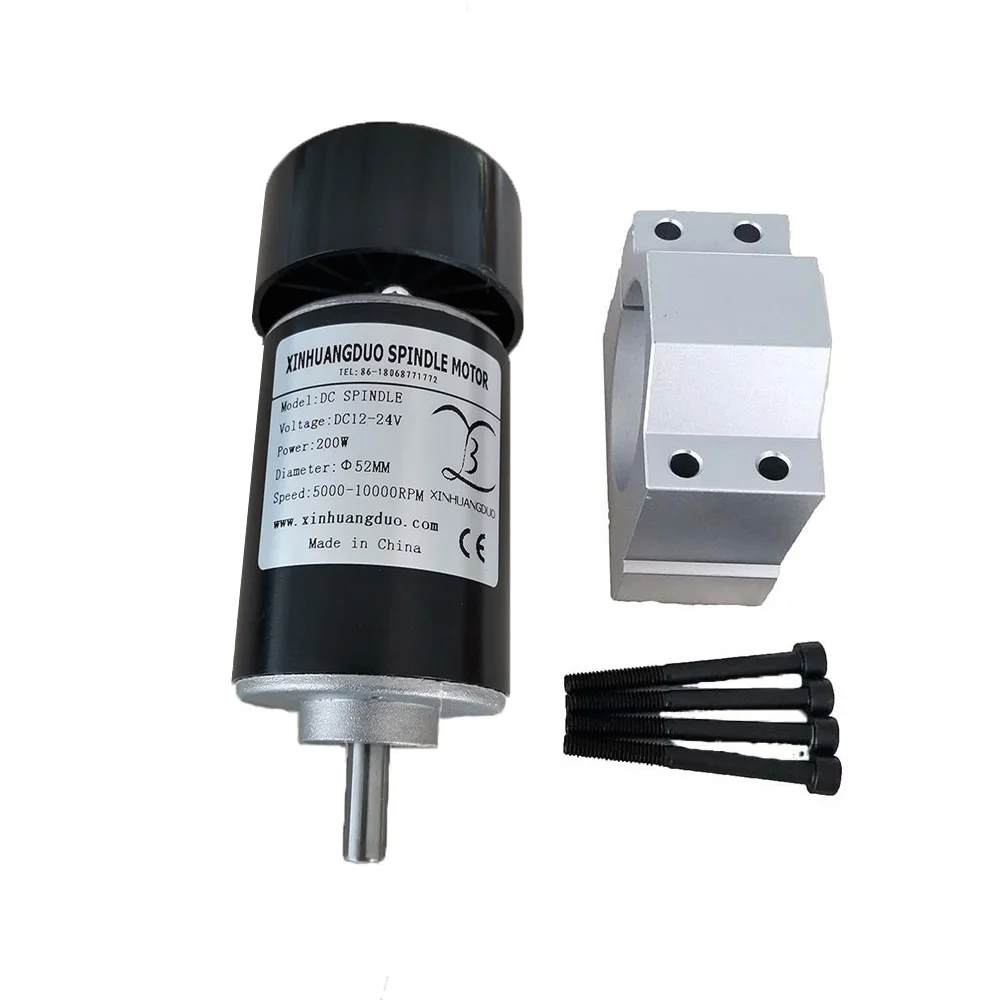

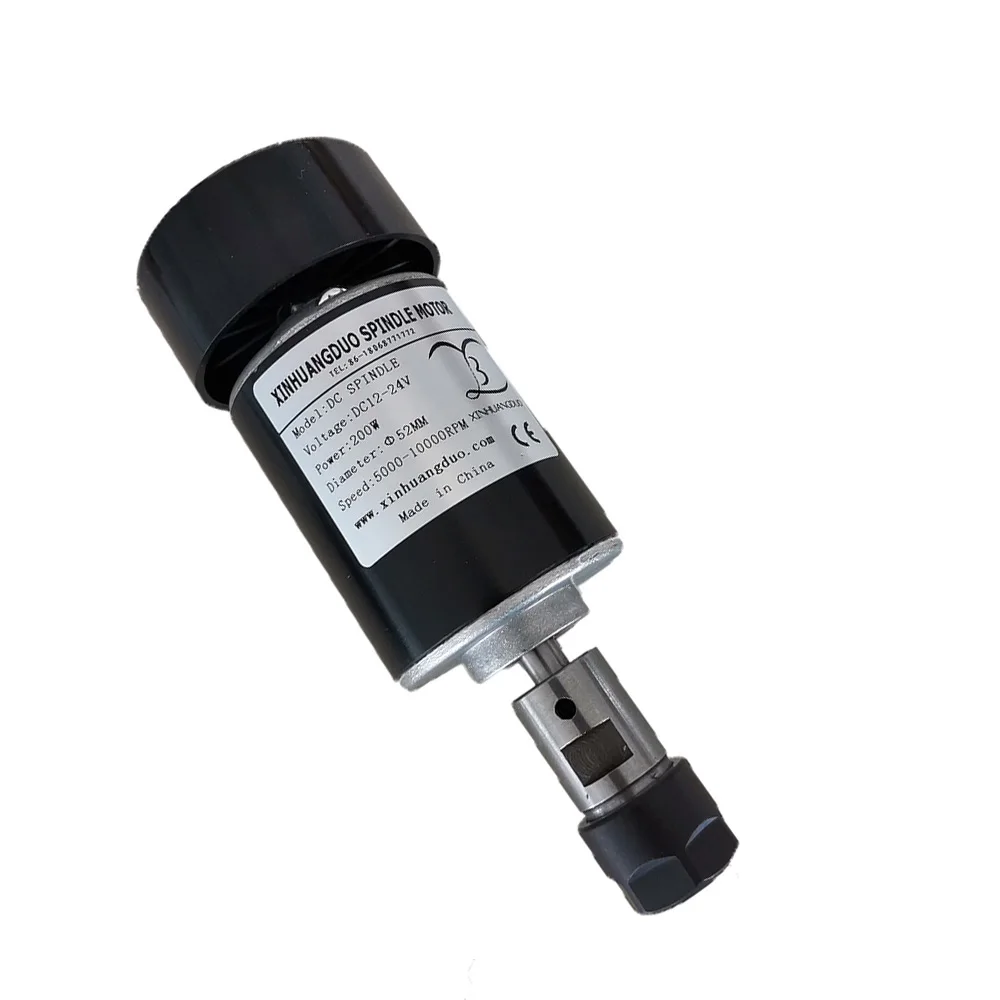

200w/ Spindle Engraving Machine Spindle Motor Air-cooling cnc Spindle DC Motor CNC Engraving Machine ER11 3.175mm
Feature:

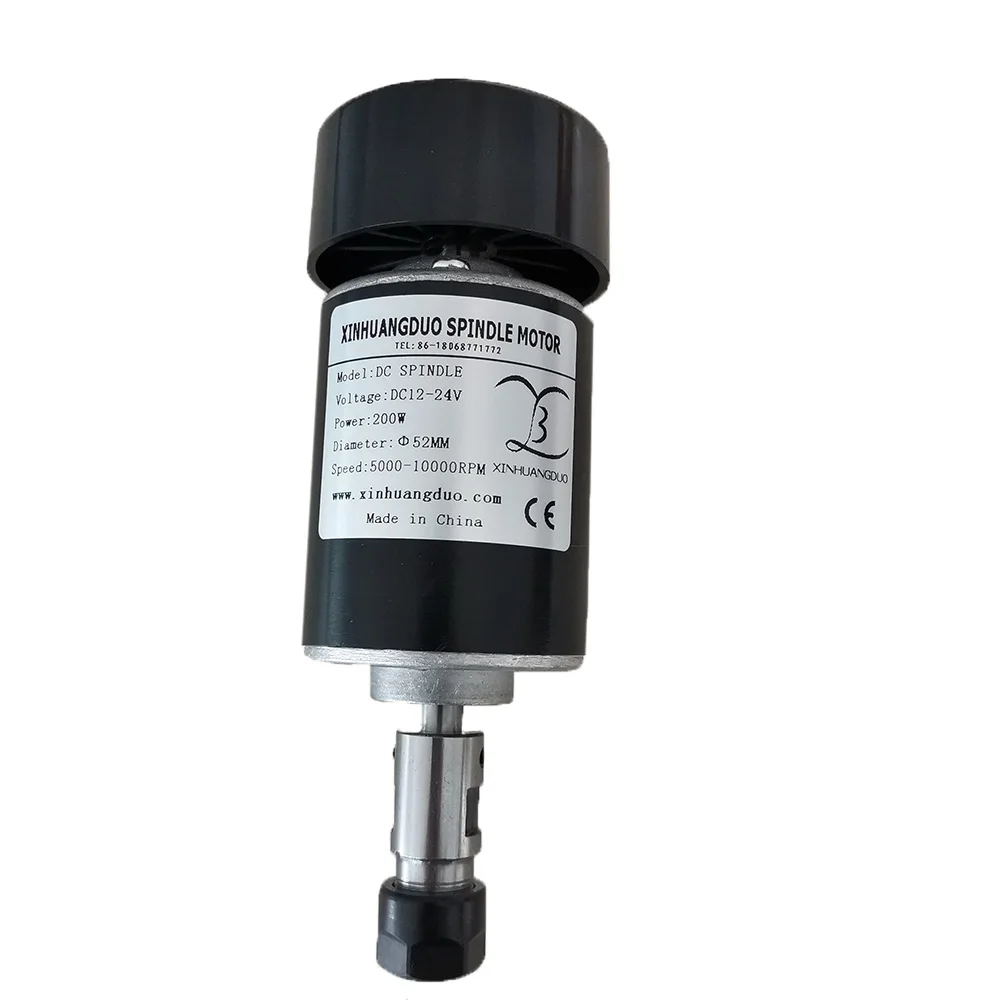

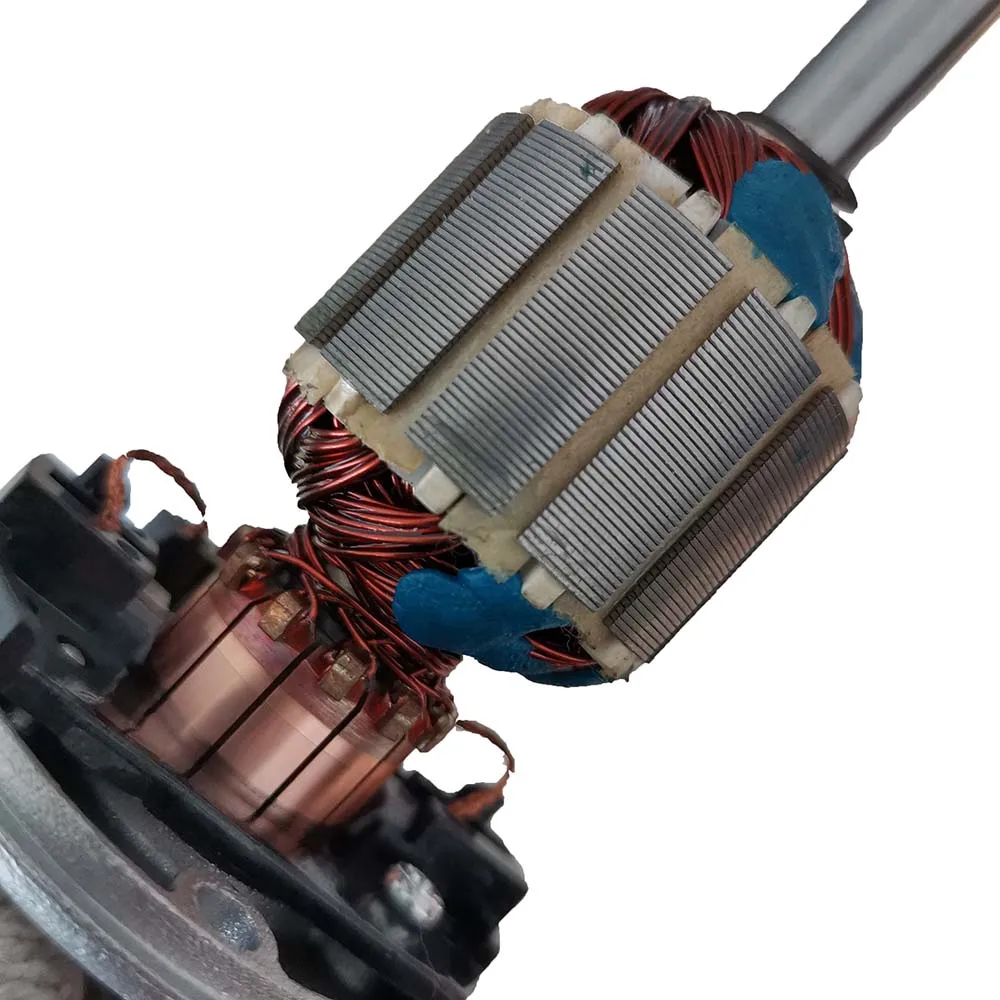

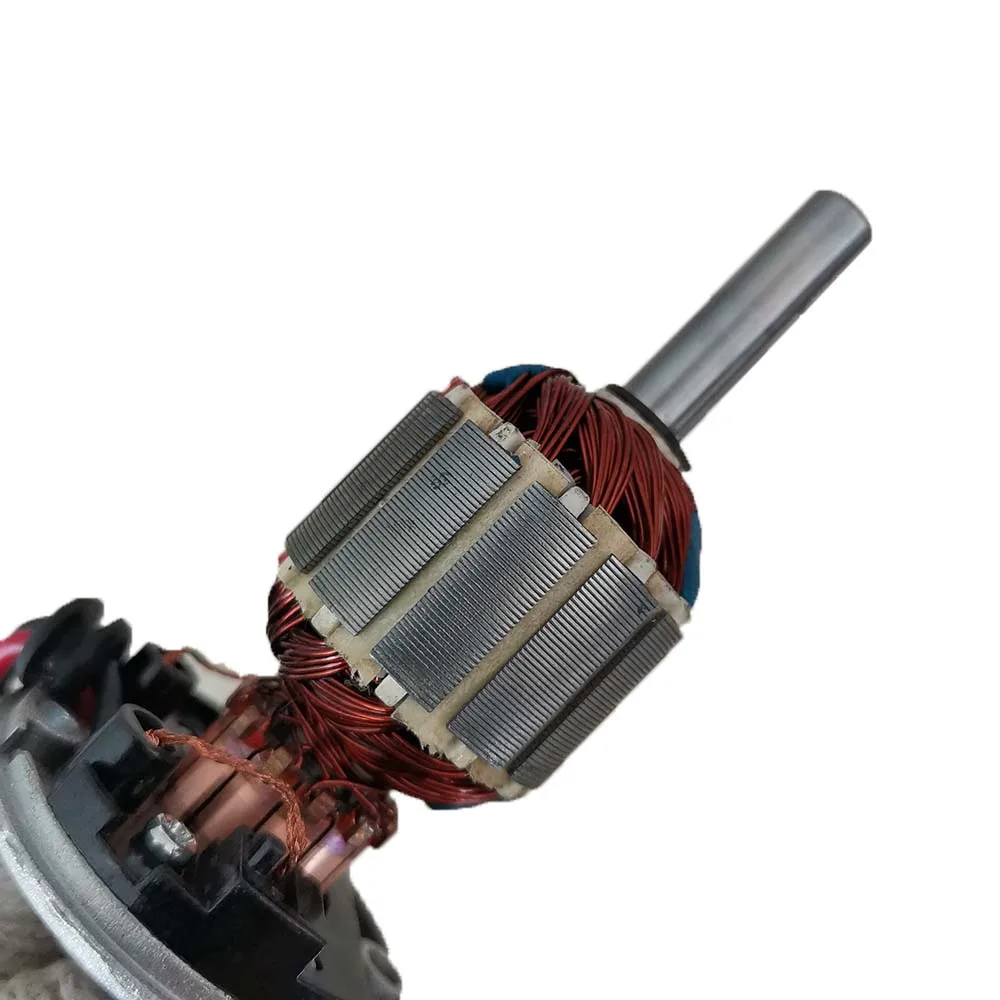

Spindle motor: new High Speed DC Motor Spindle 10000 RPM With Fan
Operating voltage: 12-24VDC
Power: 200W
Speed: 5000-10000r/min (12V-5000 rpm, 24V-10000 rpm, )
Torque:280mN.m
Insulation resistance: >2 Mohm
Insulation dielectric strength: 400V

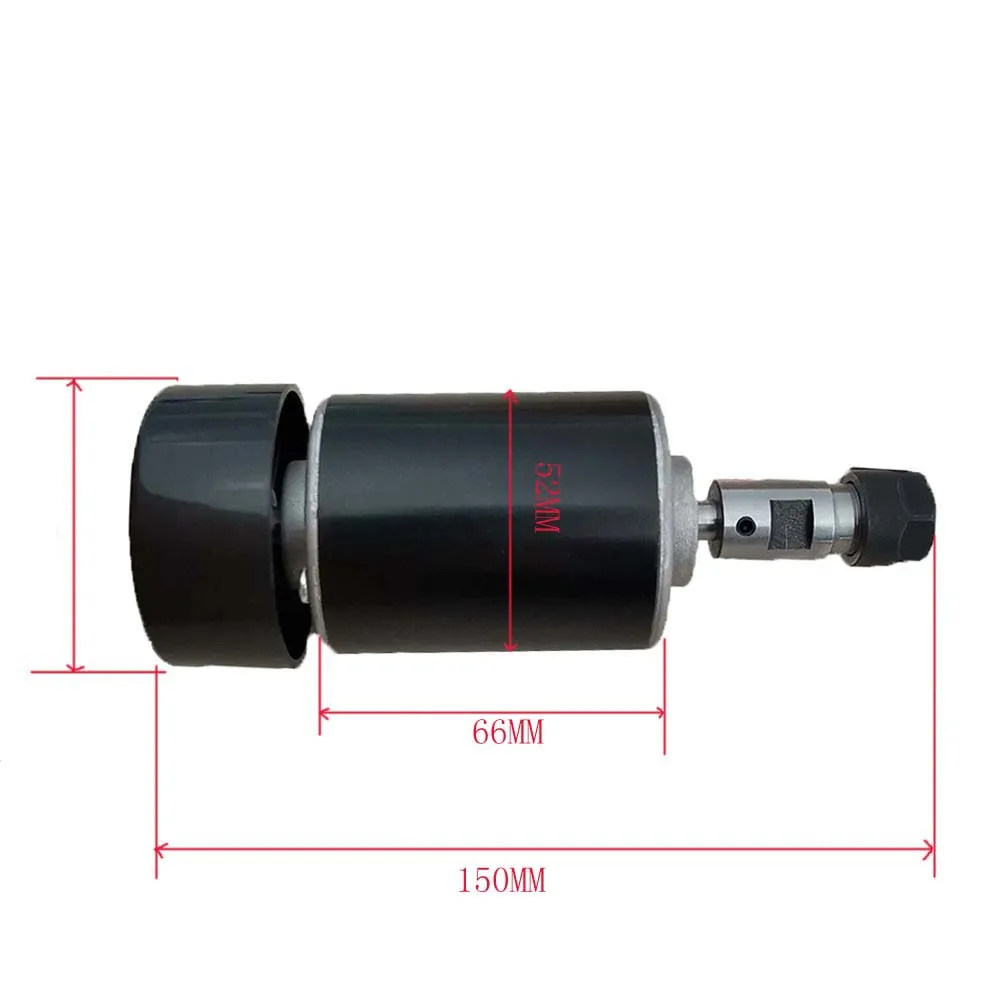

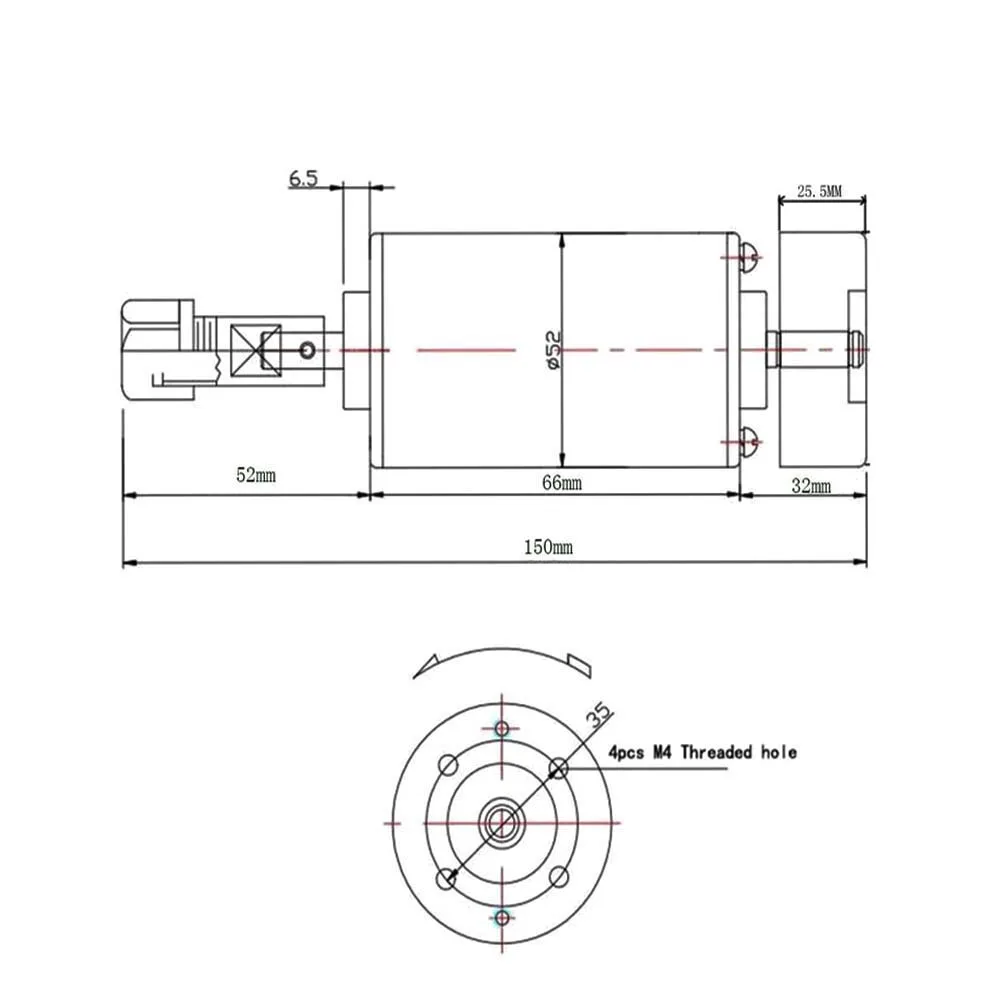

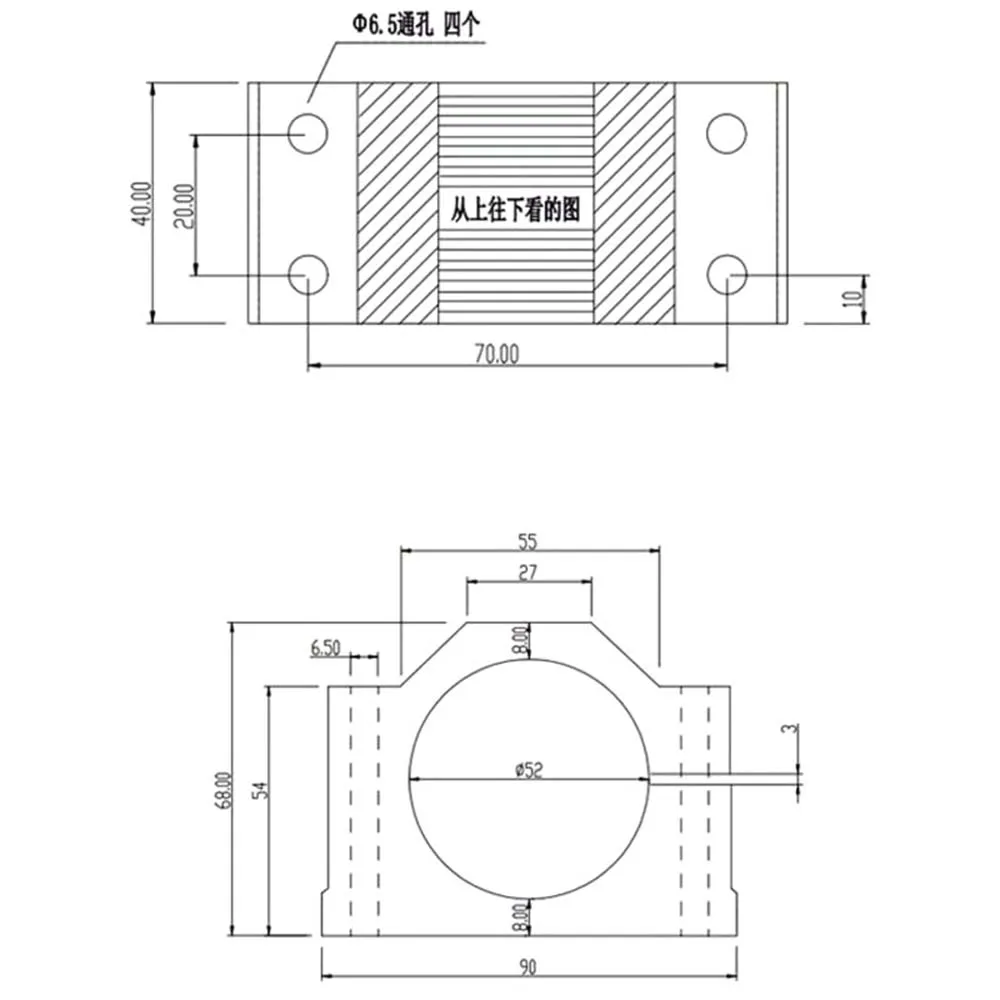

Cylinder outer diameter: 52MM

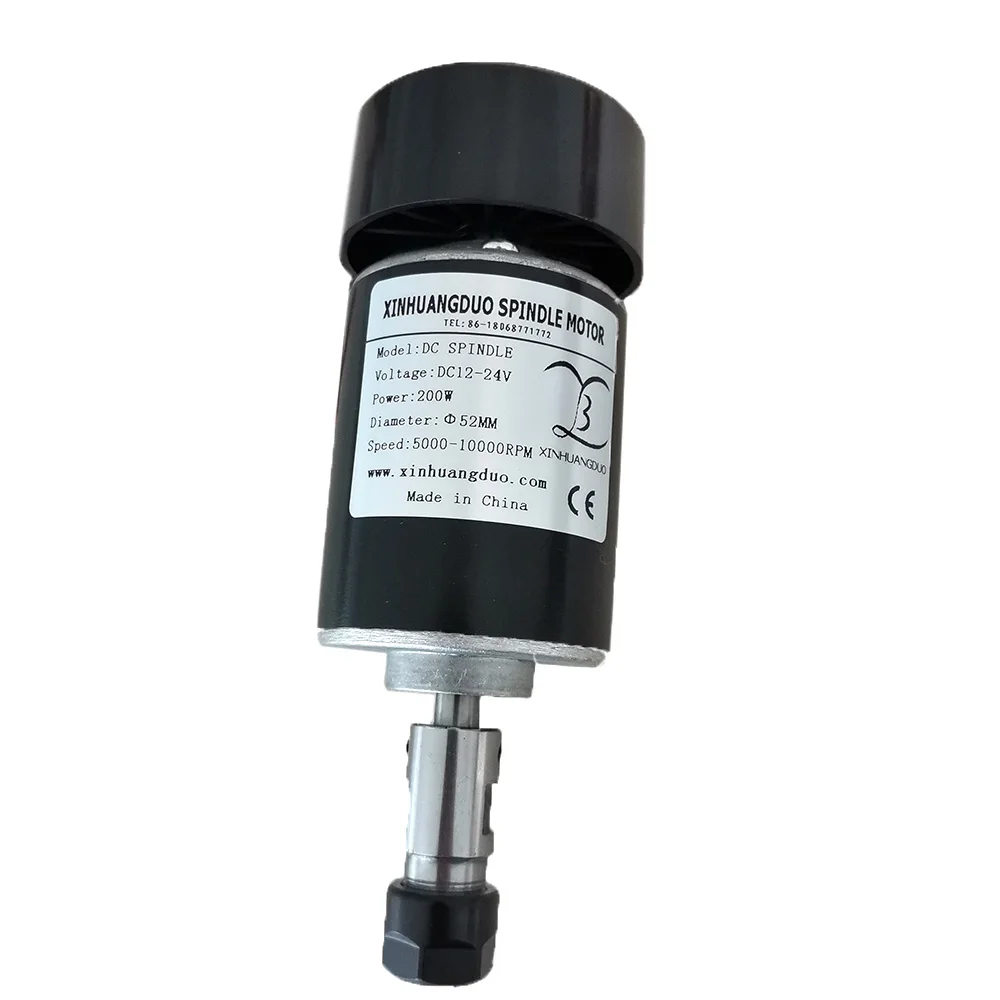

Standard chuck: ER11 3.175mm
Spindle radial runout: within 0.06mm
Maximum speed: 10000RPM
Chuck part length: Arbor part contains nut and sandwich 41MM
Total length of motor: 150mm (including clamping area and motor)
Spindle radial runout is about 0.01-0.03.
If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor
Package include:
1PCS 200w Spindle motor
Precautions

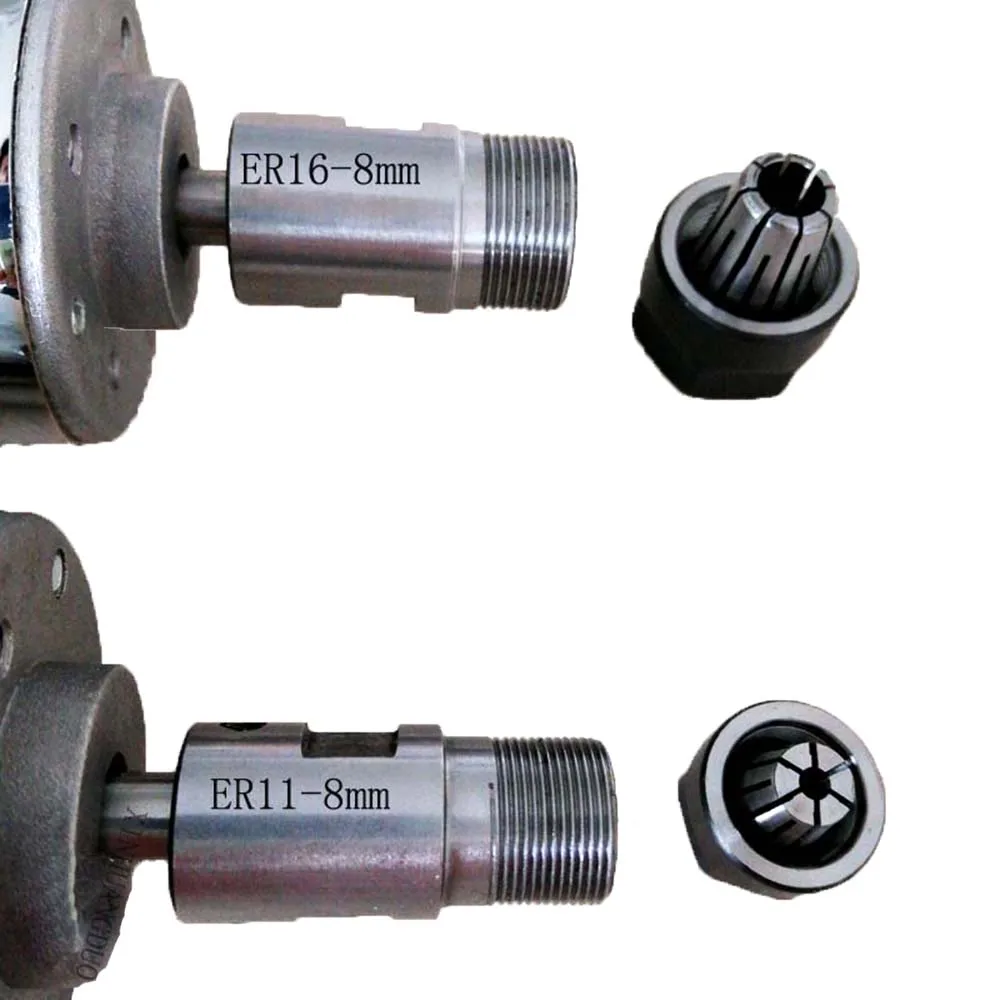

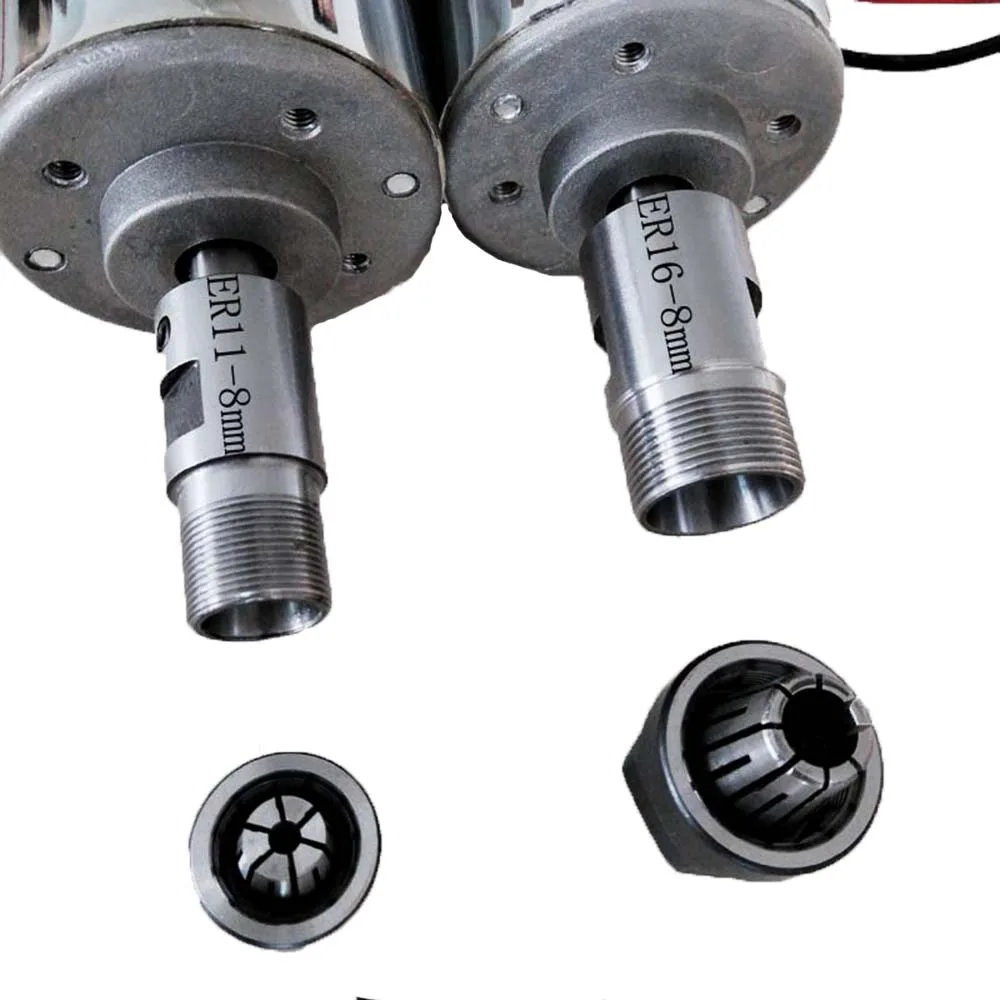

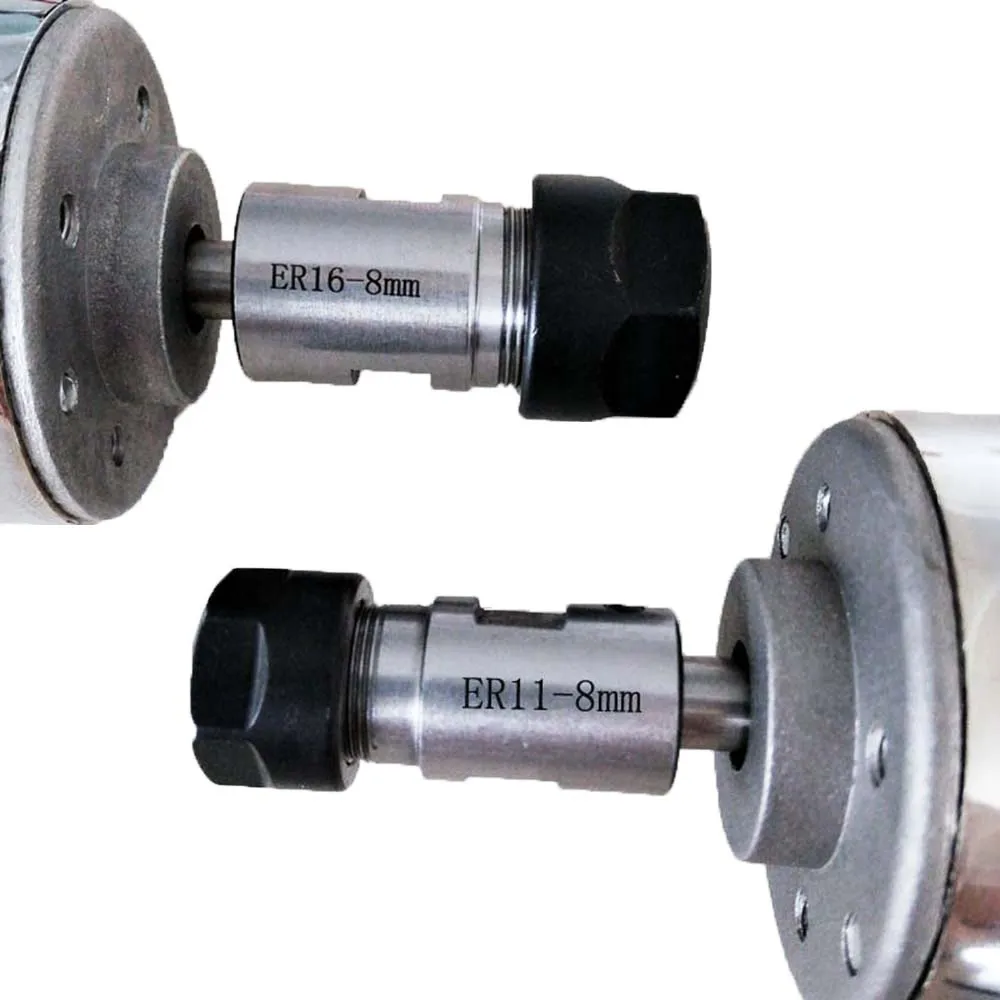

Spindle Arbor ER11 Arbor Clamp (1mm-7mm) Default Hair 3.175MM Chuck

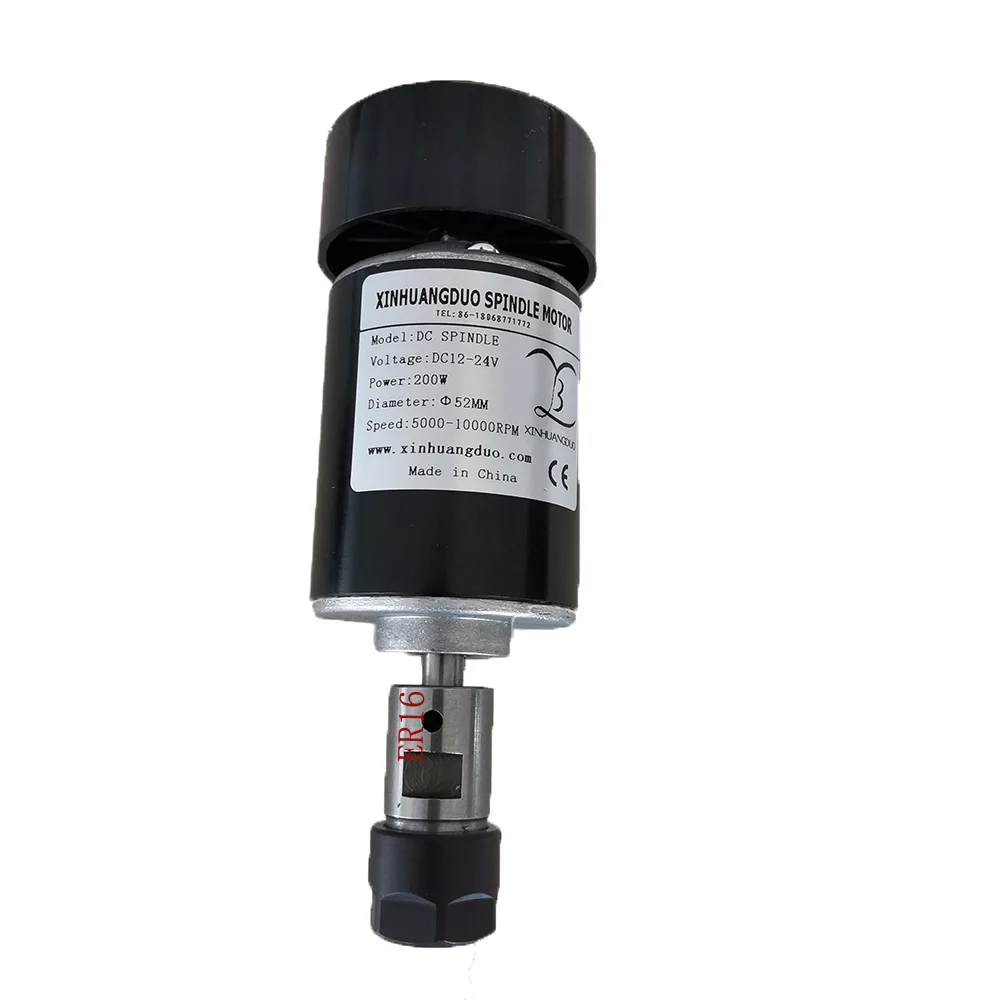

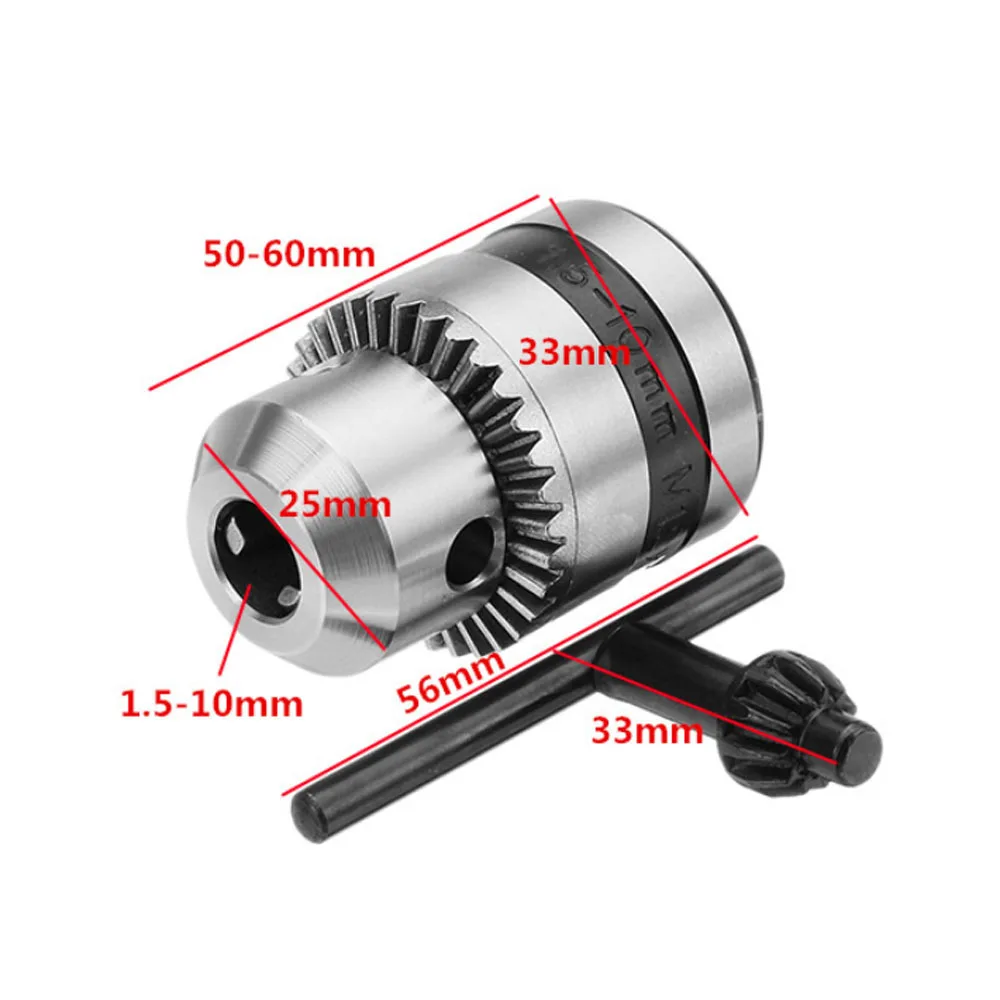

Spindle Arbor ER16 Arbor Clip (1mm-10mm) Default Hair 8 MM Chuck
Need other chucks to leave a message
