SPECIFICATIONS

Brand Name: XINHUANGDUO

Origin: Mainland China

Hign-concerned Chemical: None

Operating Speed: 5000-10000r/min

Certification: CE

Certification: RoHS

Application: Milling

Drive: Motor

Model Number: 200W

Maximum Torque: 300mN.m

Voltage(V): 12-24VDC

Output Power: 200W

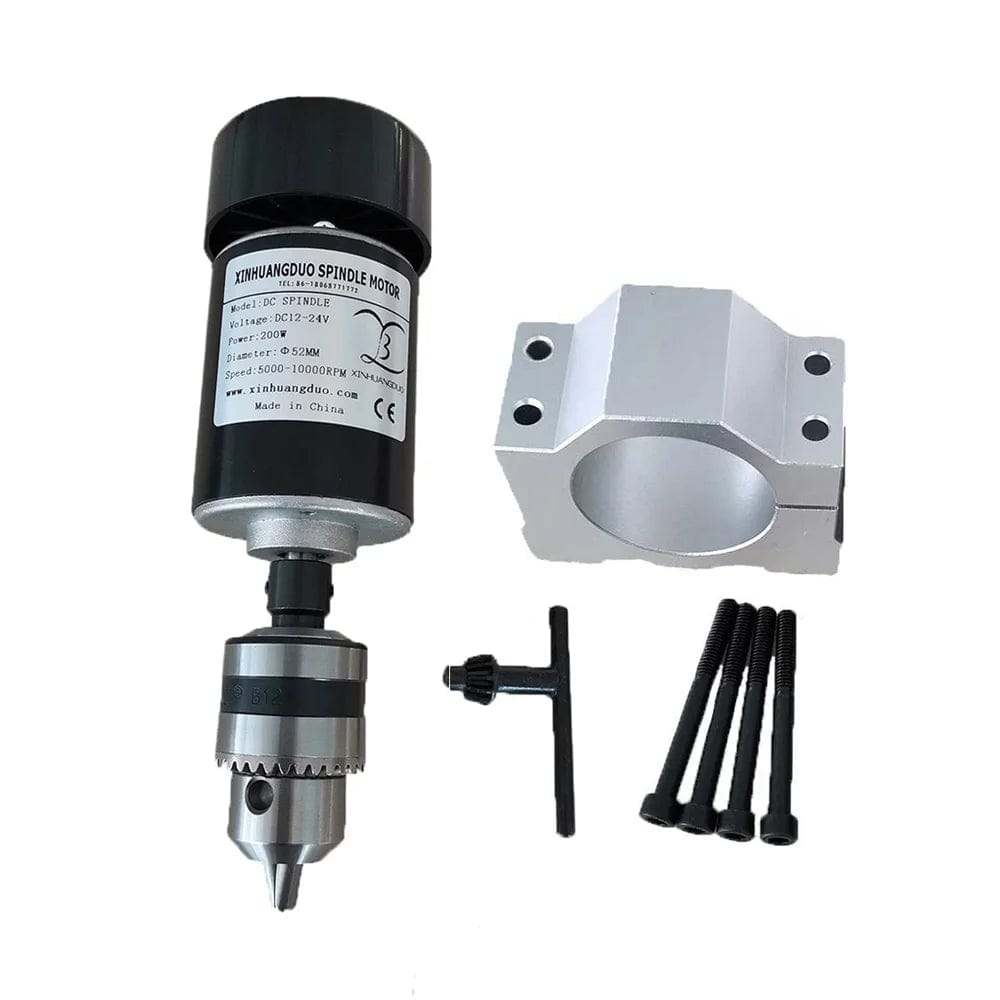

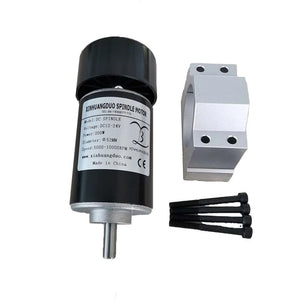

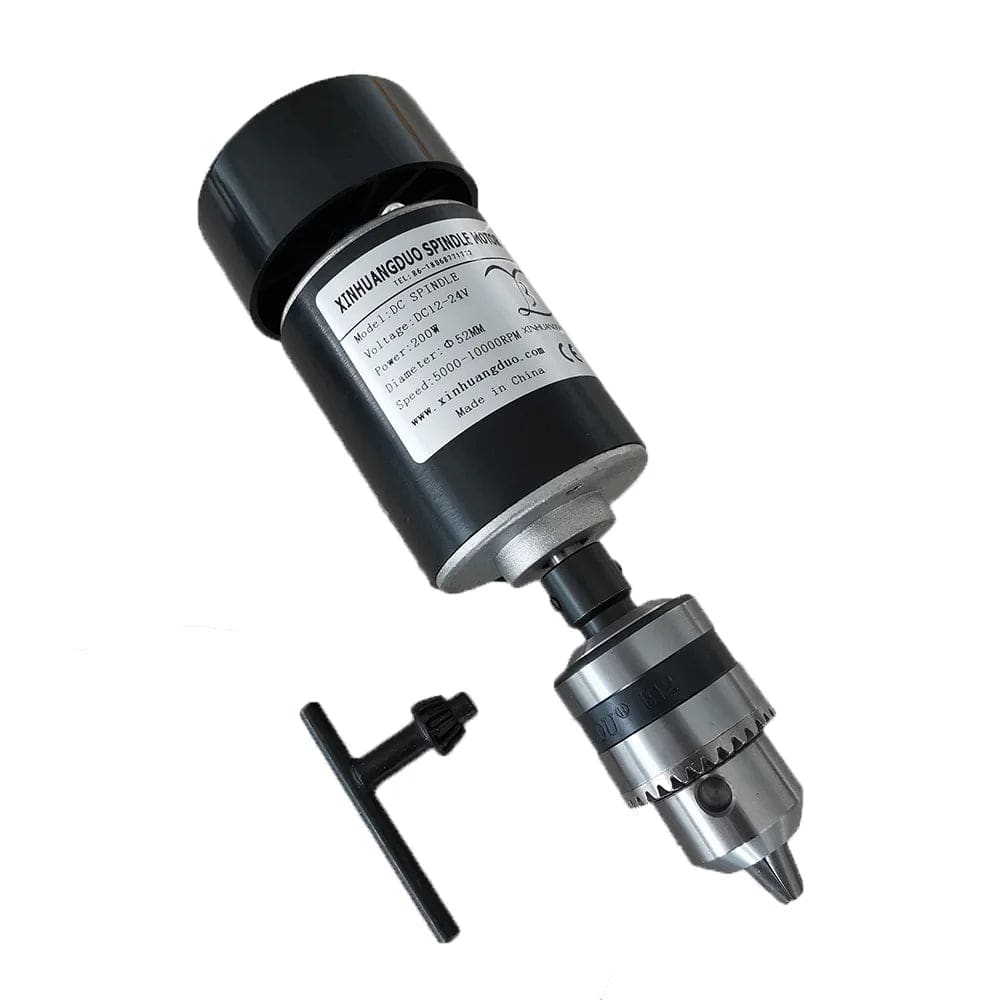

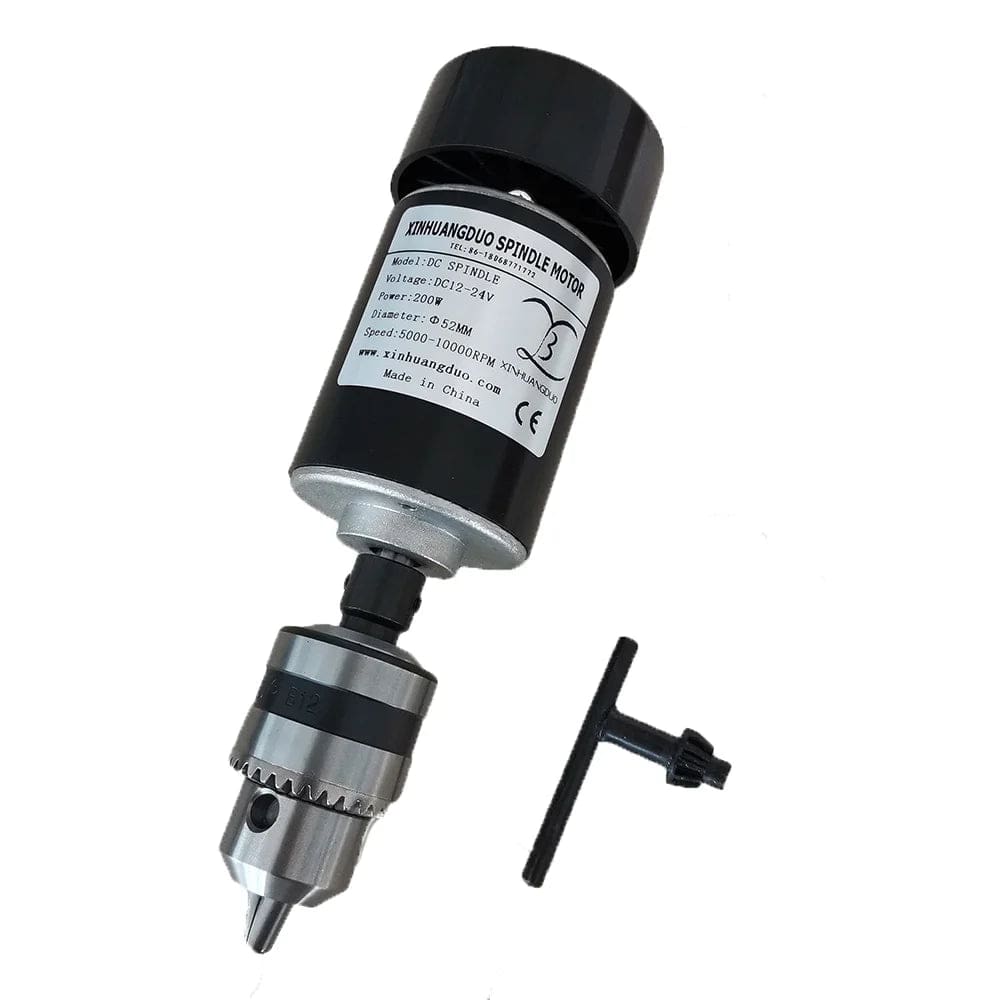

200w/ Spindle Engraving Machine Spindle Motor Air-cooling cnc Spindle DC Motor CNC Engraving Machine ER11 3.175mm

Feature:

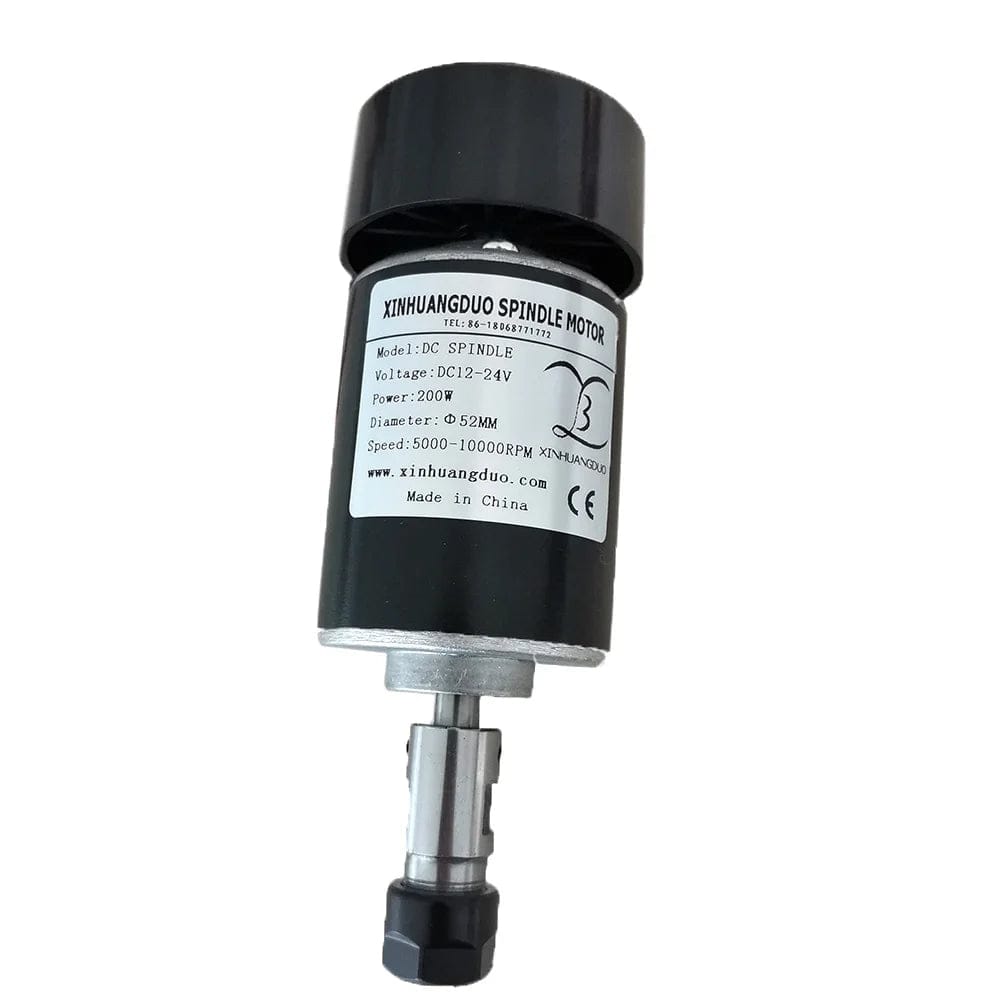

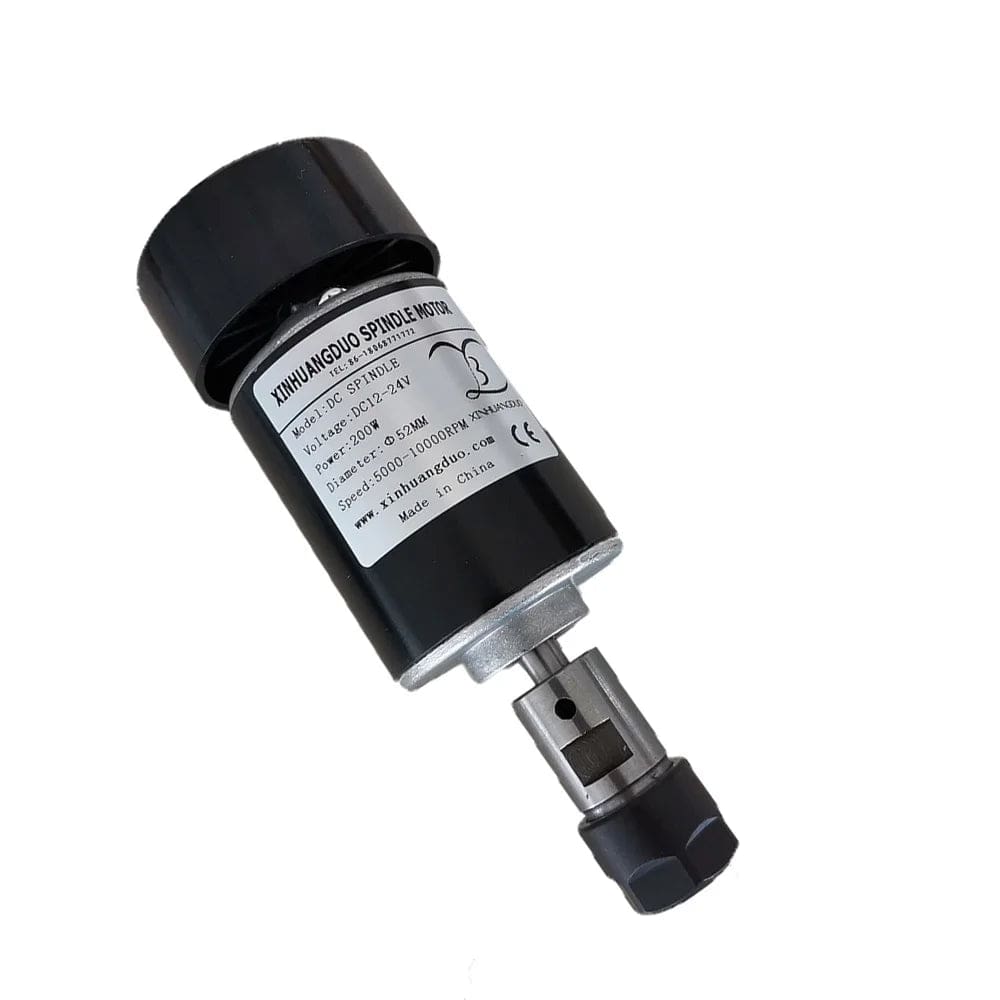

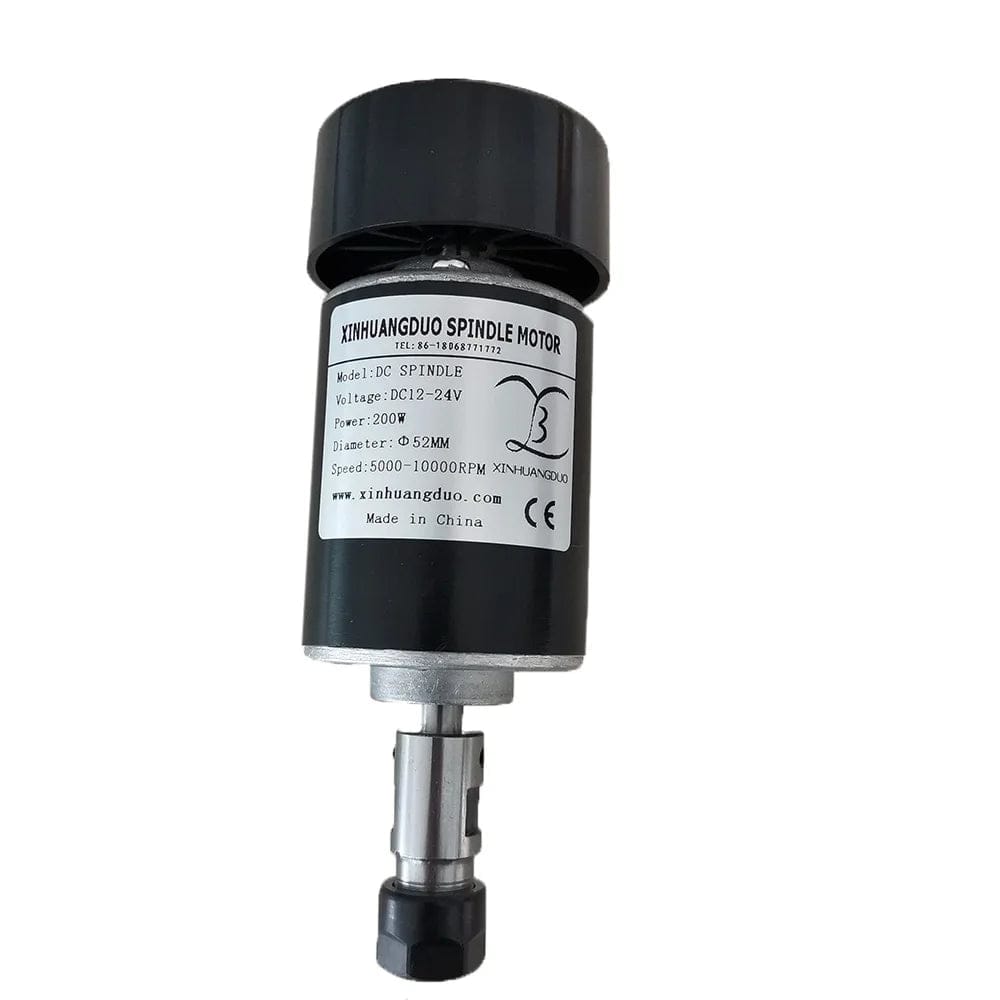

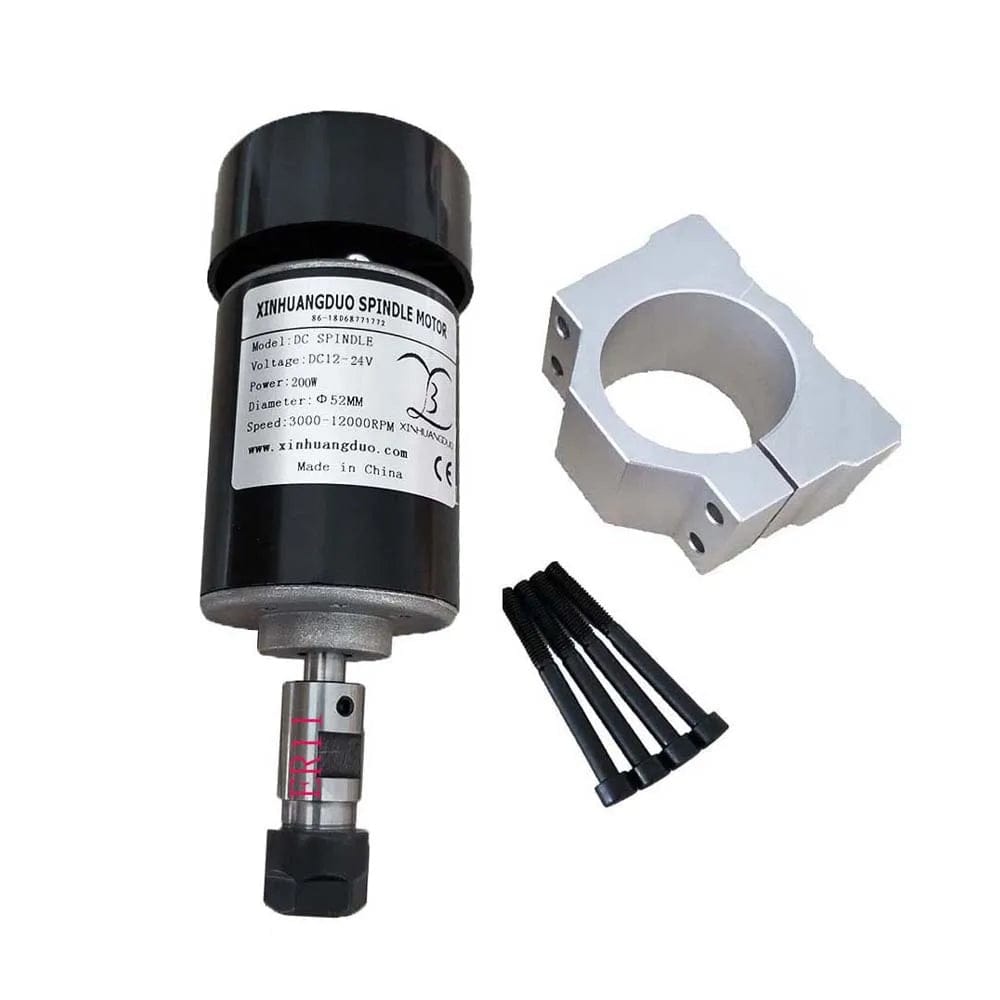

Spindle motor: new High Speed DC Motor Spindle 10000 RPM With Fan

Operating voltage: 12-24VDC

Power: 200W

Speed: 5000-10000r/min (12V-5000 rpm, 24V-10000 rpm, )

Torque:280mN.m

Insulation resistance: >2 Mohm

Insulation dielectric strength: 400V

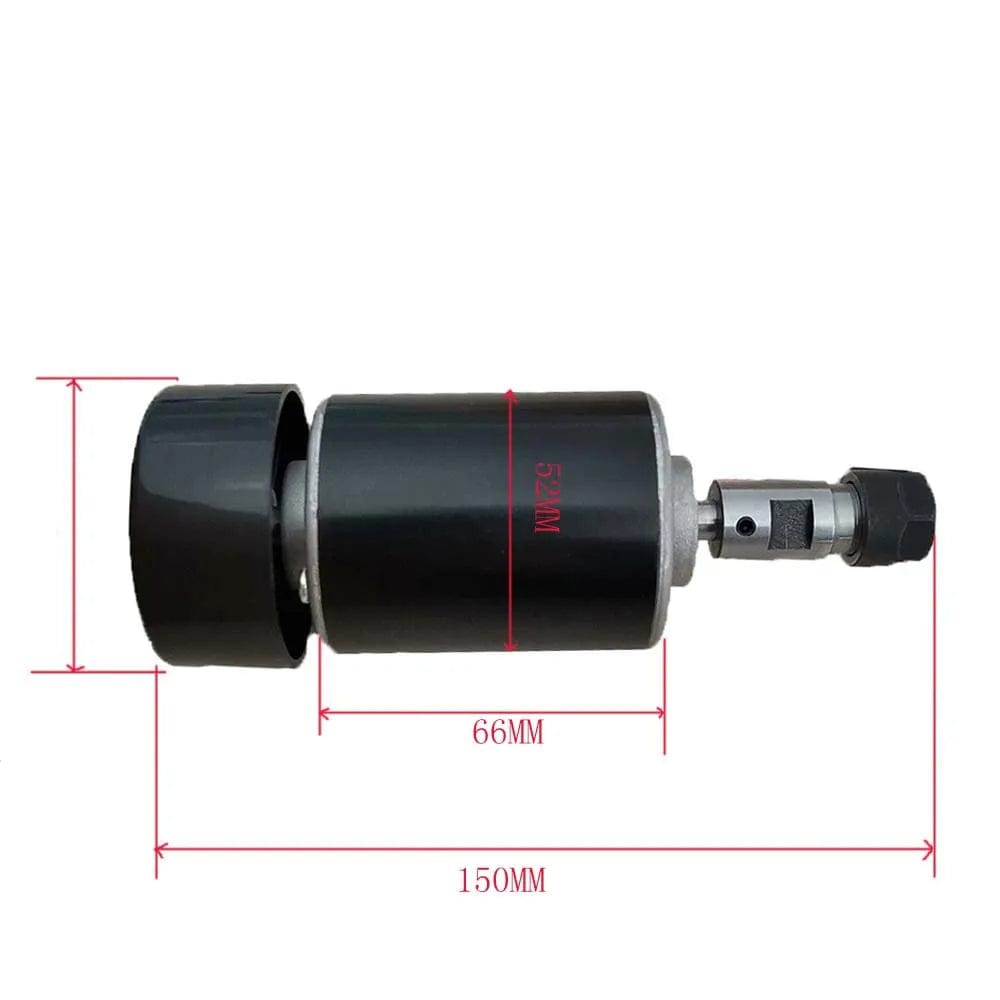

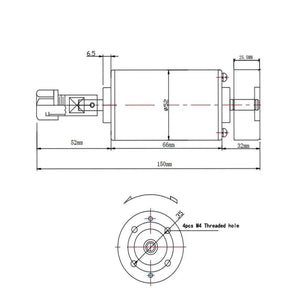

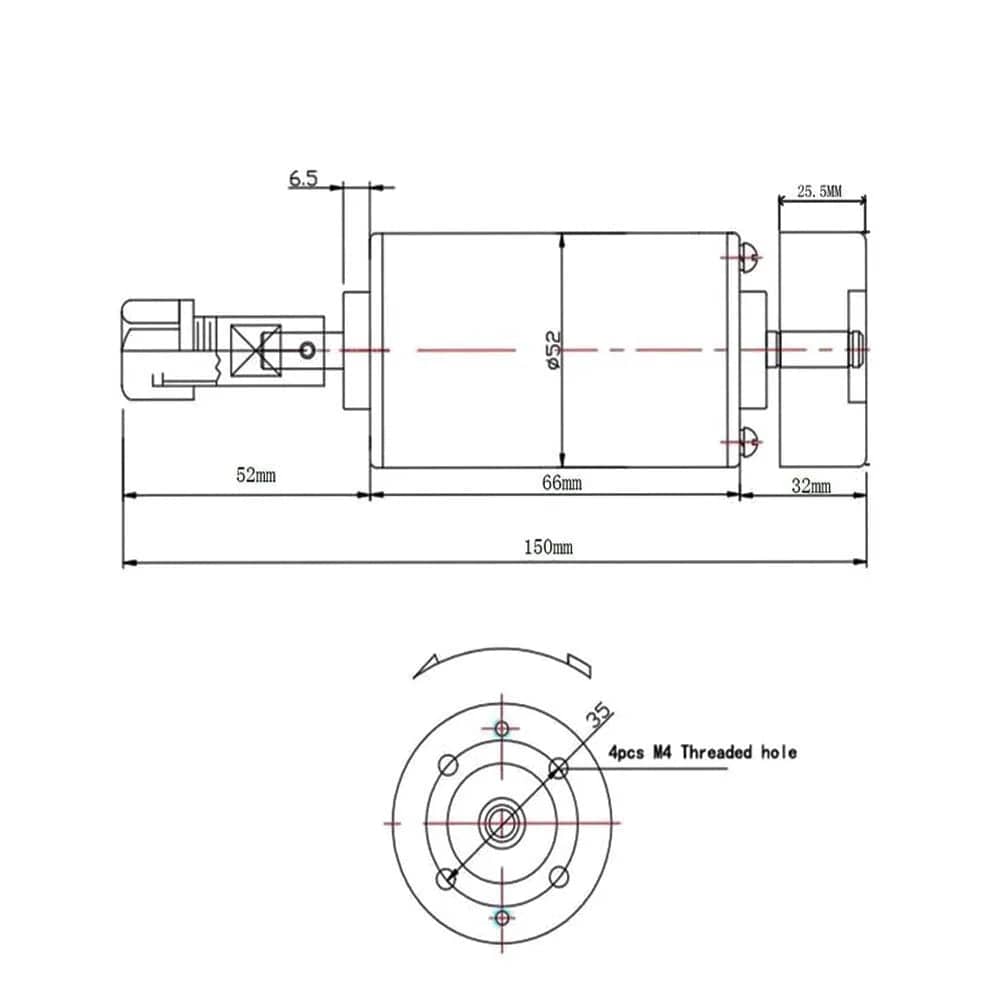

Cylinder outer diameter: 52MM

Standard chuck: ER11 3.175mm

Spindle radial runout: within 0.06mm

Maximum speed: 10000RPM

Chuck part length: Arbor part contains nut and sandwich 41MM

Total length of motor: 150mm (including clamping area and motor)

Spindle radial runout is about 0.01-0.03.

If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor

Package include:

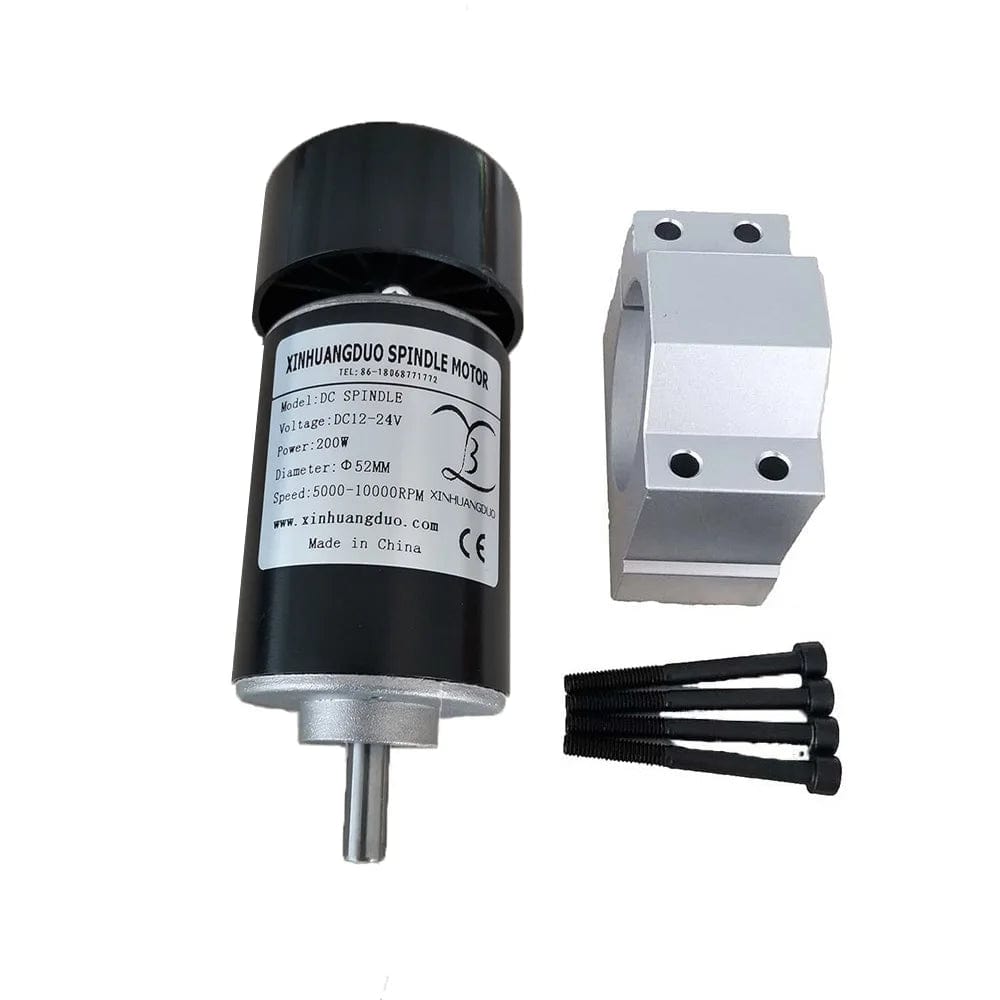

1PCS 200w Spindle motor

Precautions

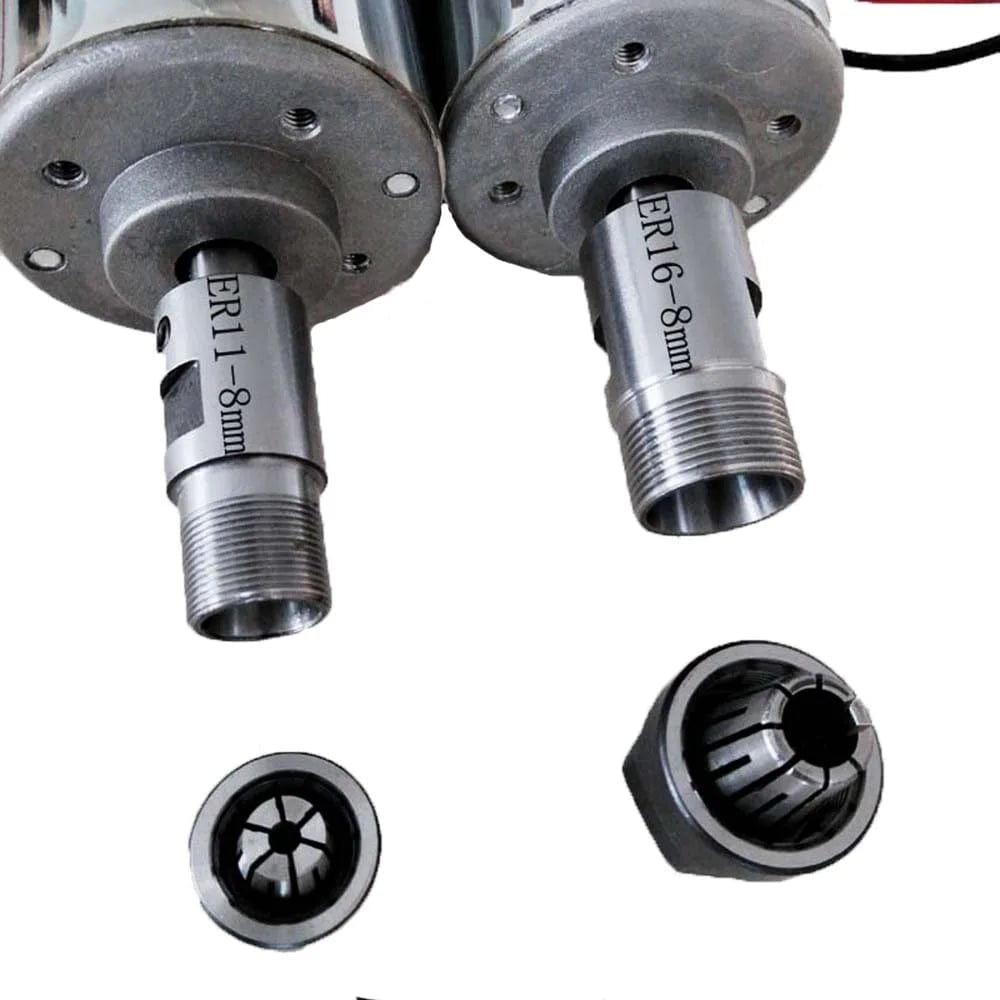

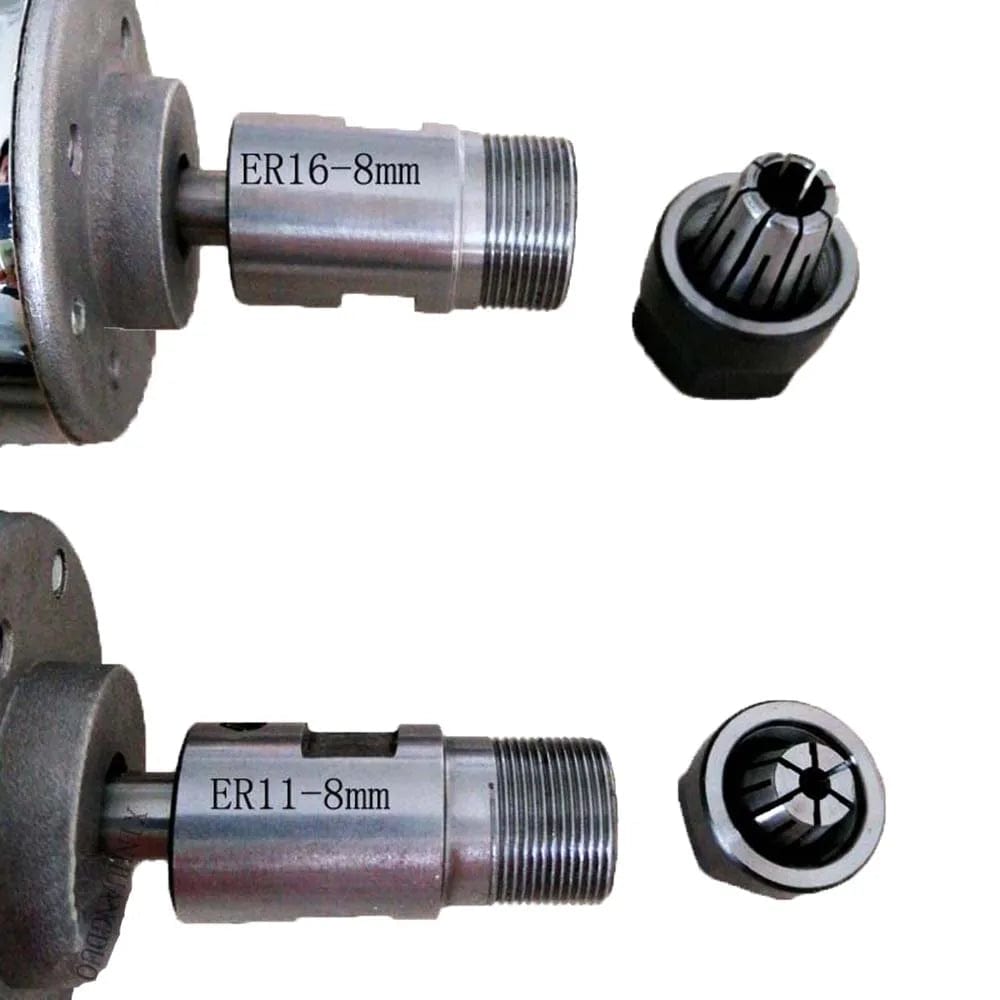

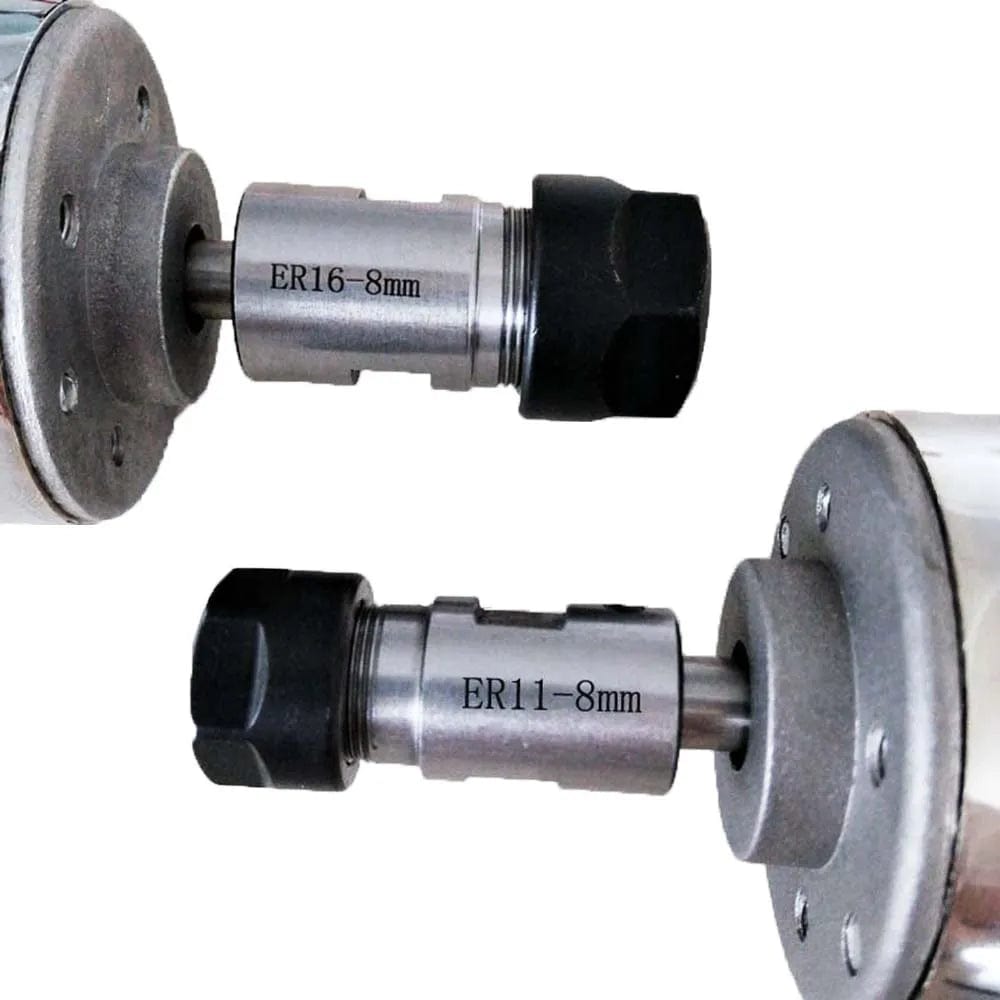

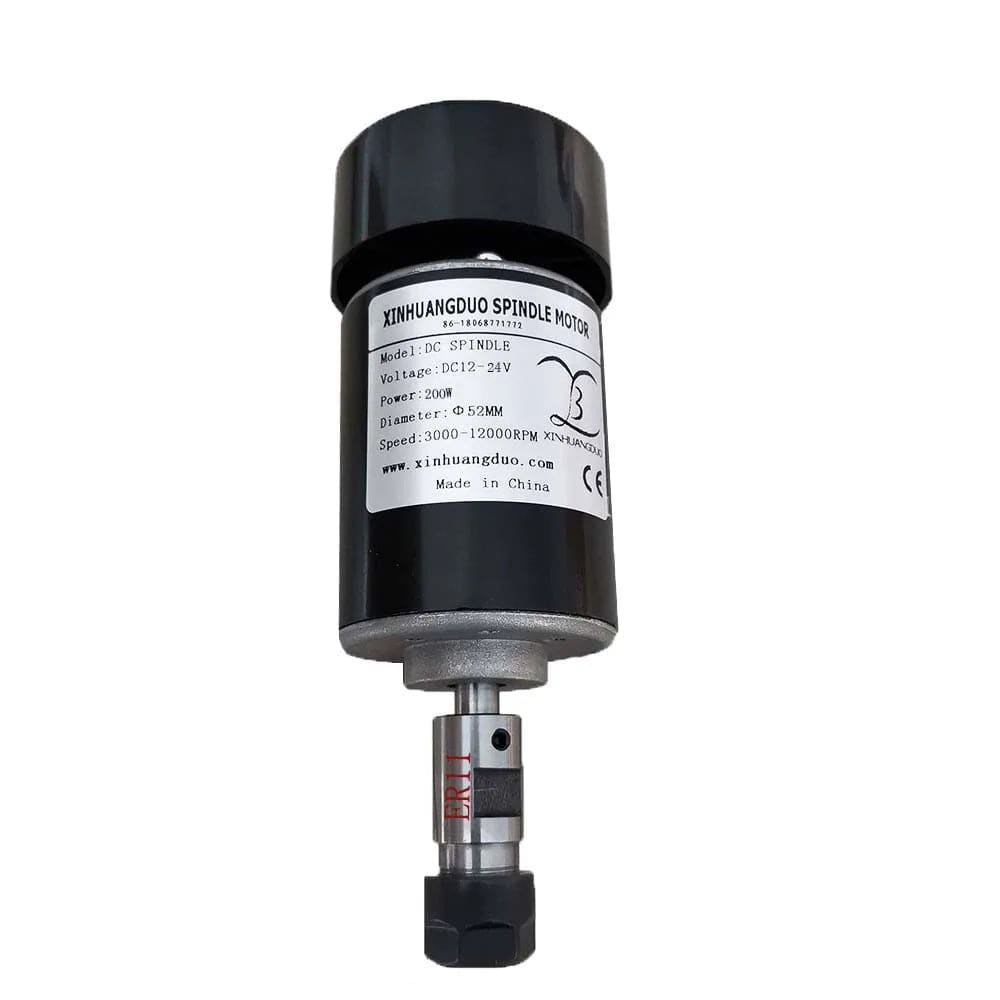

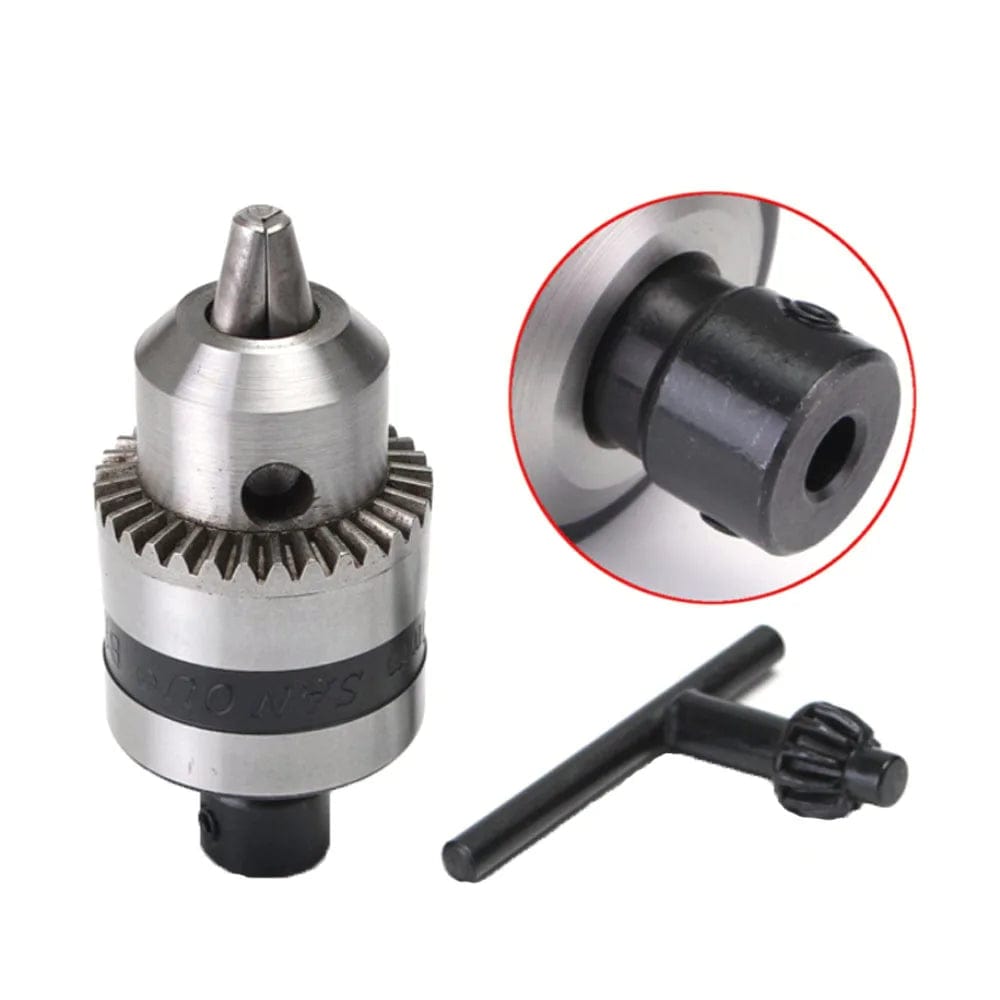

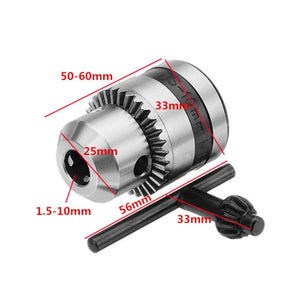

Spindle Arbor ER11 Arbor Clamp (1mm-7mm) Default Hair 3.175MM Chuck

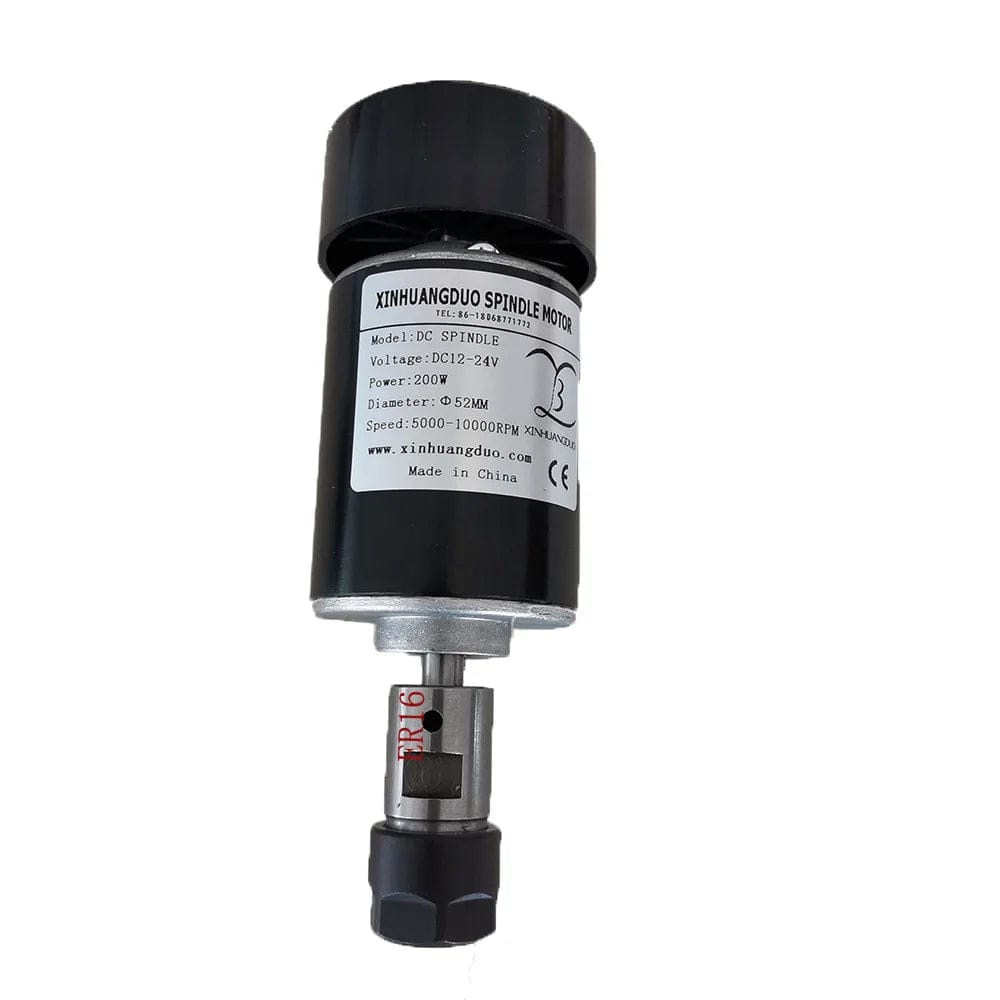

Spindle Arbor ER16 Arbor Clip (1mm-10mm) Default Hair 8 MM Chuck
Need other chucks to leave a message


sizechest(in.)waist(in.)hips(in.)
XS34-3627-2934.5-36.5
S36-3829-3136.5-38.5
M38-4031-3338.5-40.5
L40-4233-3640.5-43.5
XL42-4536-4043.5-47.5
XXL45-4840-4447.5-51.5

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

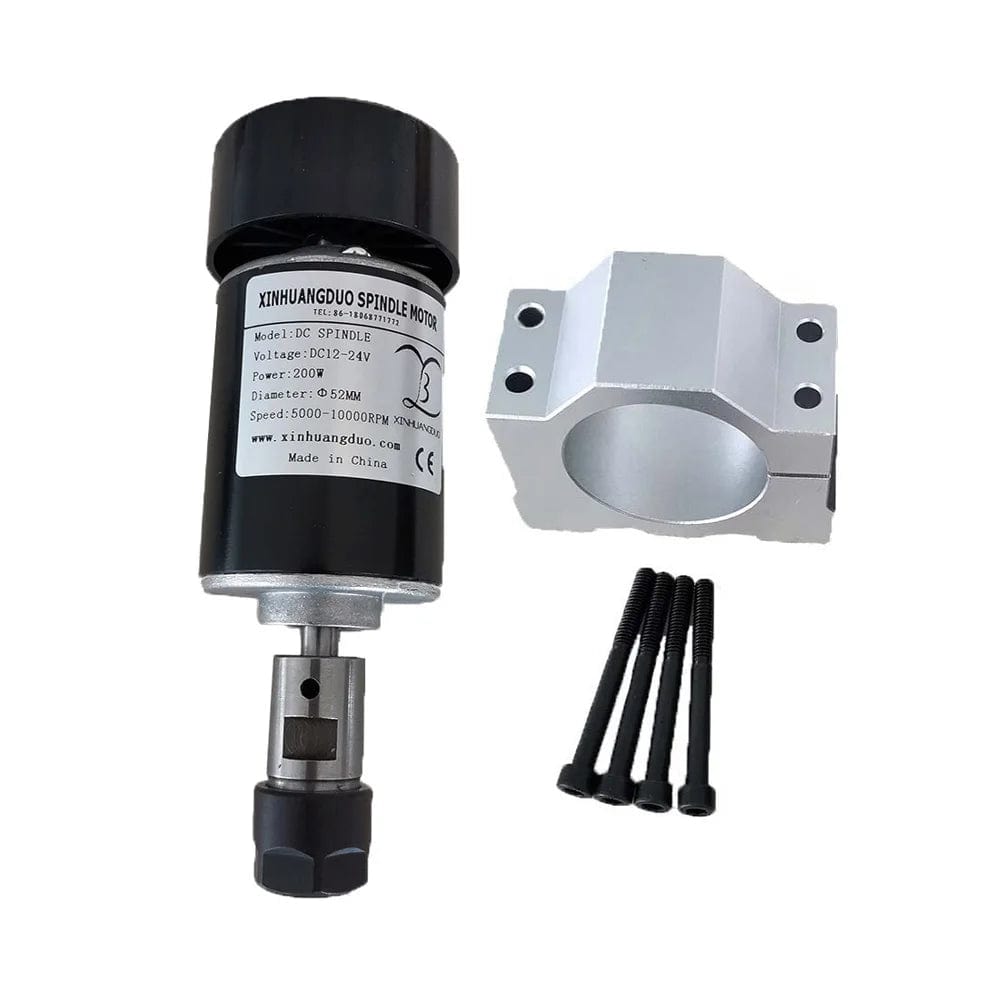

Air cooled 0.2kw Air cooled spindle Motor CNC 200W Spindle Motor + Clamp for CNC Machine DIY CNC 24VDC 10000RPM
