SPECIFICATIONS

Brand Name: tedeligo

Use: Universal

Use: Lighting

Use: SWITCH

Origin: Mainland China

Hign-concerned Chemical: None

Wireless Communication: RF

Support APP: No

Certification: CE

Certification: RoHS

Frequency: 433 MHz

Channel: 1

Package: Yes

Model Number: 2201+KT05

RF frequency: 433MHz

Working Voltage: AC 85V~250V

Max current: 10A

Max load: 2200W

Input/Output: 1~250v

Quiescent Current: 5mA

Pin: L \ N

Receiver Size: 50*32mm

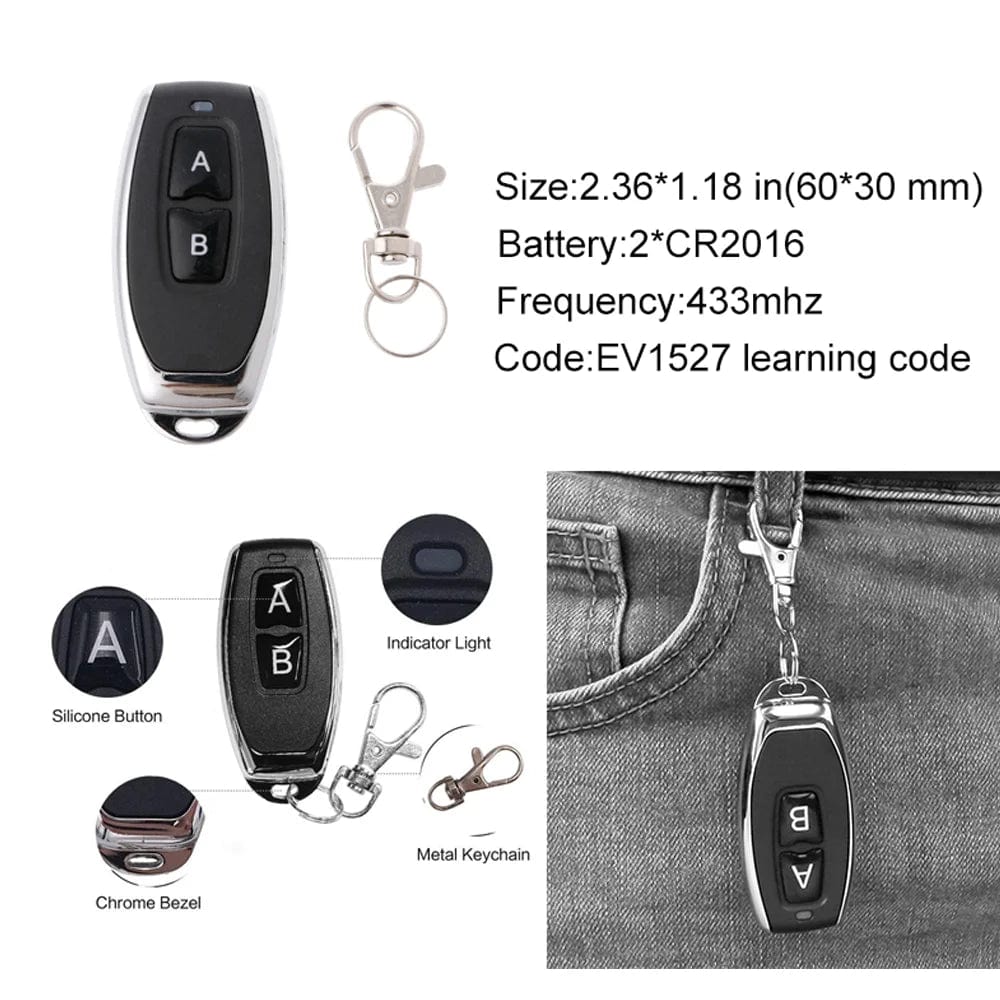

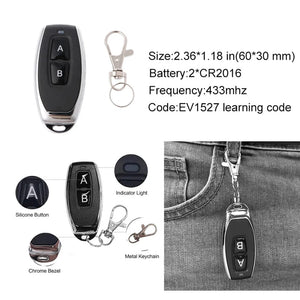

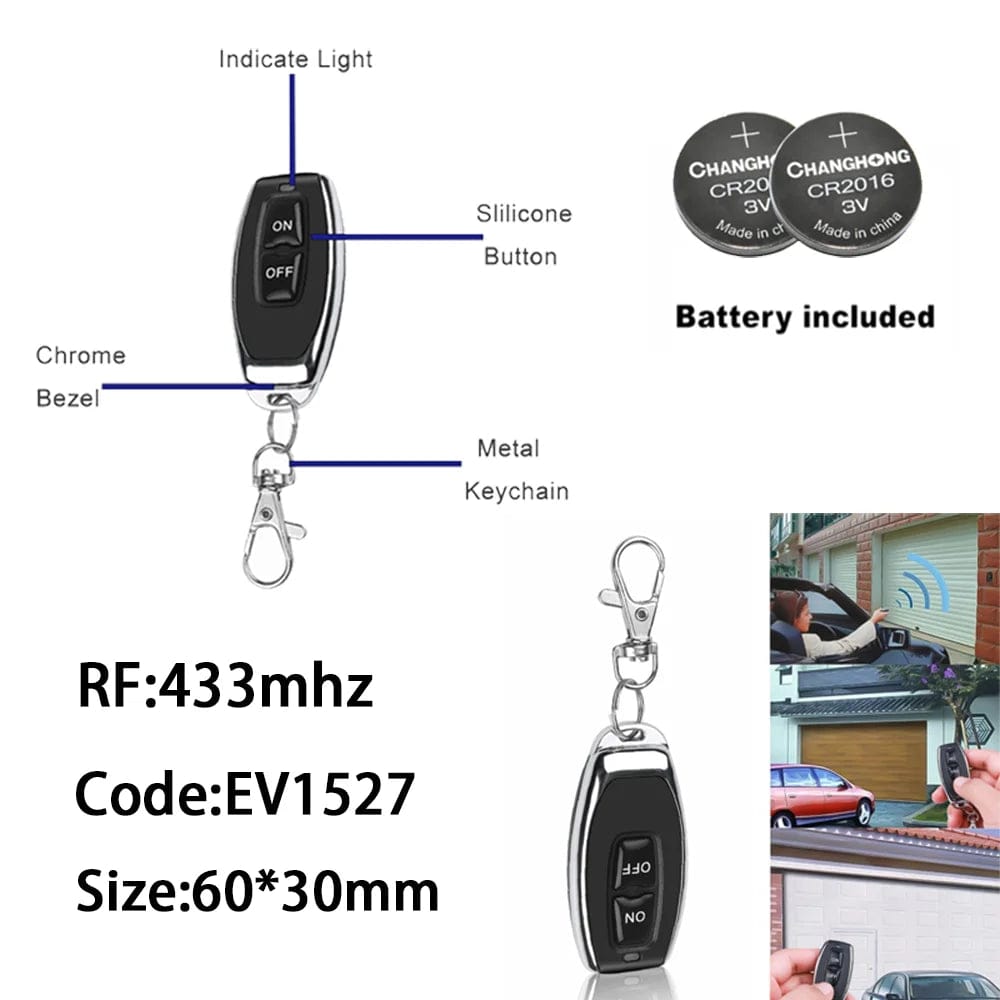

Remote Control Size: 60*30mm

Remote Control Battery: 2*CR2016

Working temperature: -30~+80 Celsius

Receiving Sensitivity: 97dbm

Amount of storage remote controls: 20 pieces

Support encoding: 1527 Learning code/2262 fixed code

RF Operating mode: ASK superheterodyne wireless reception

Receiving range: Open space is more than 50 meters

Remote operating mode: Momentary / Toggle/ Latched Mode

Application scenario: Family, Farm, Factory, Office, Supermarket

Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor

Choice: yes

semi_Choice: yes

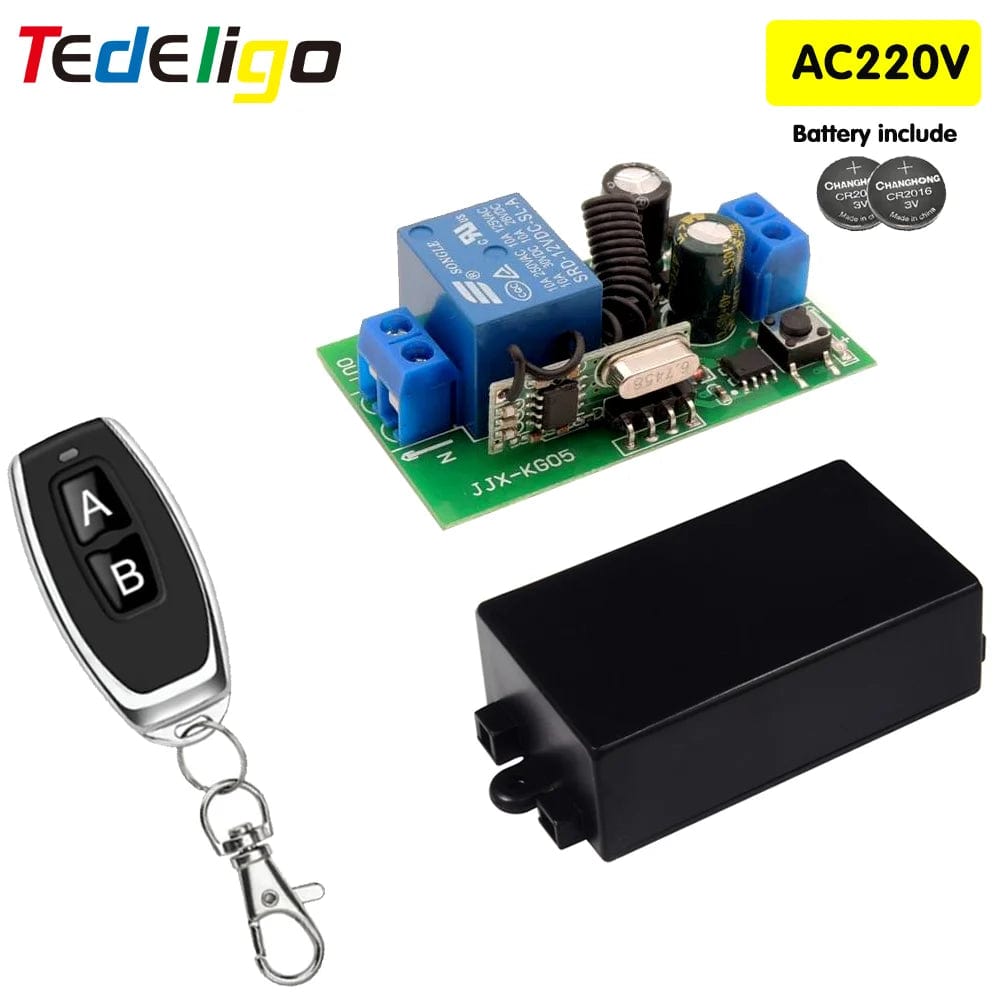

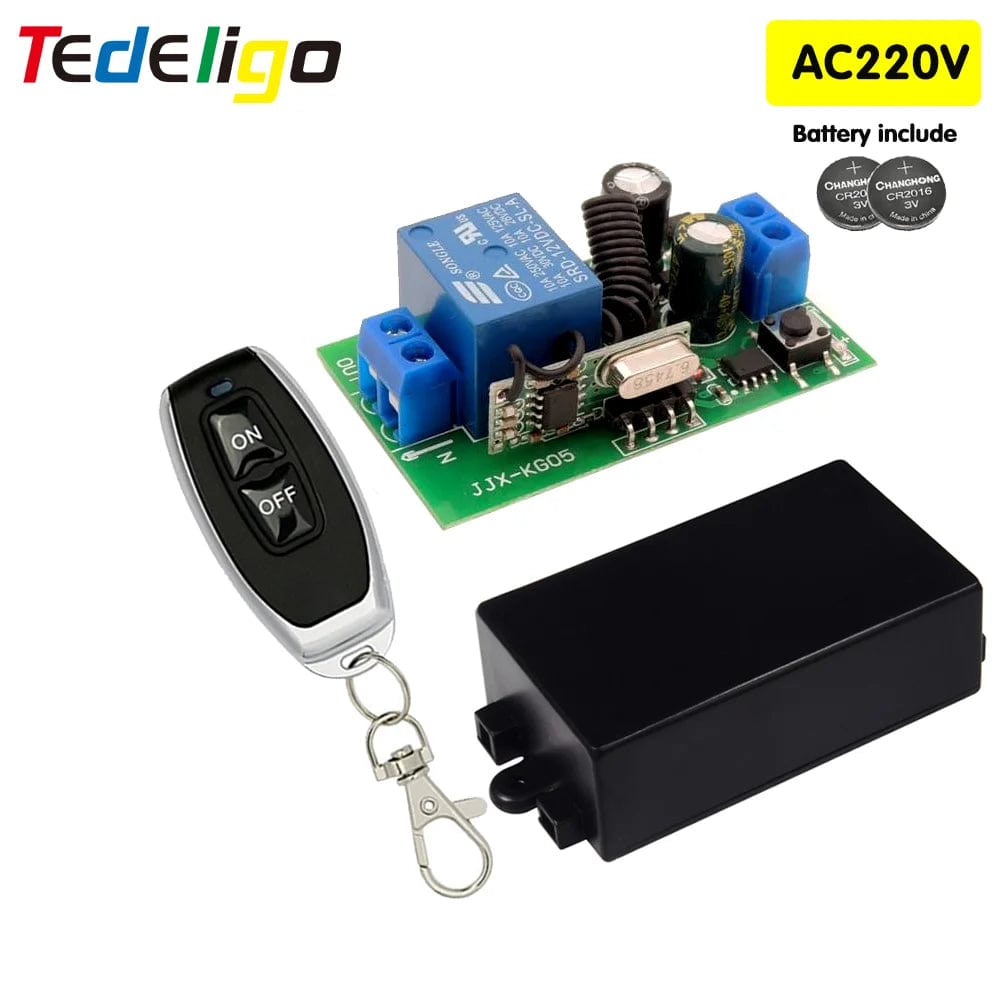

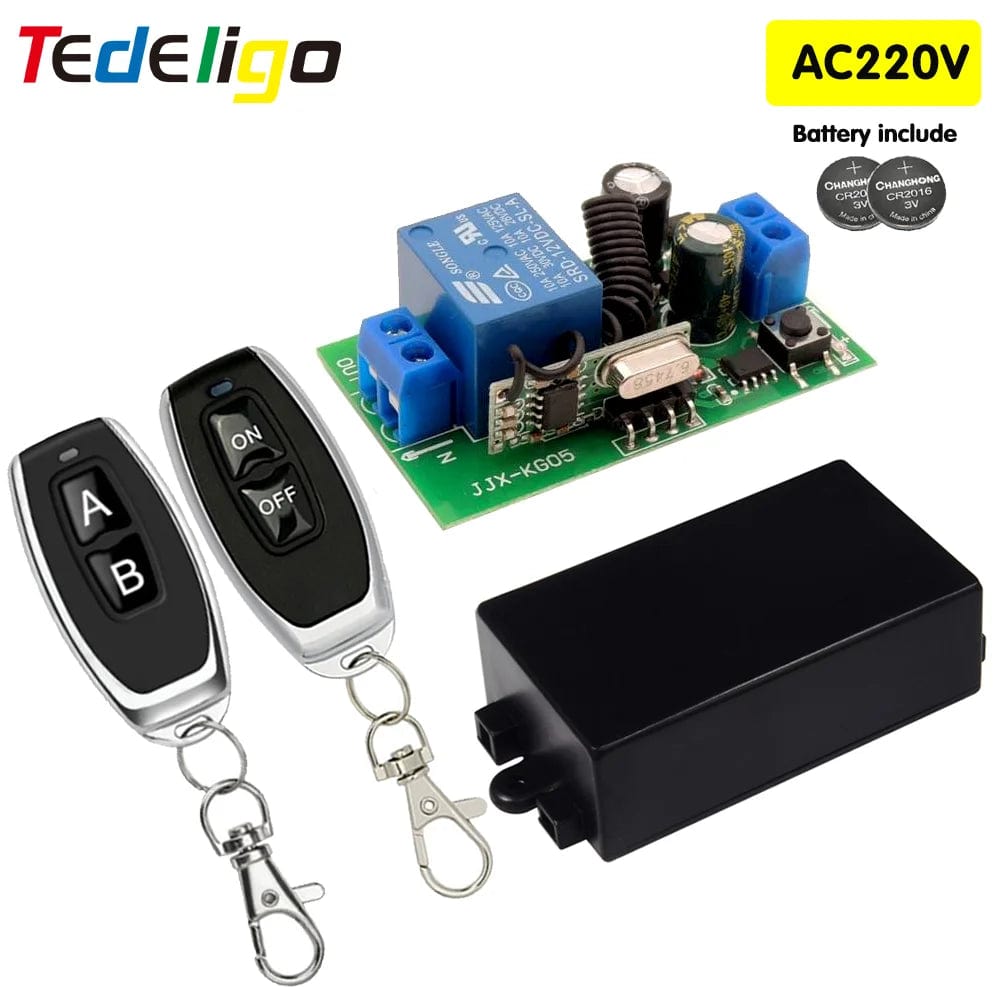

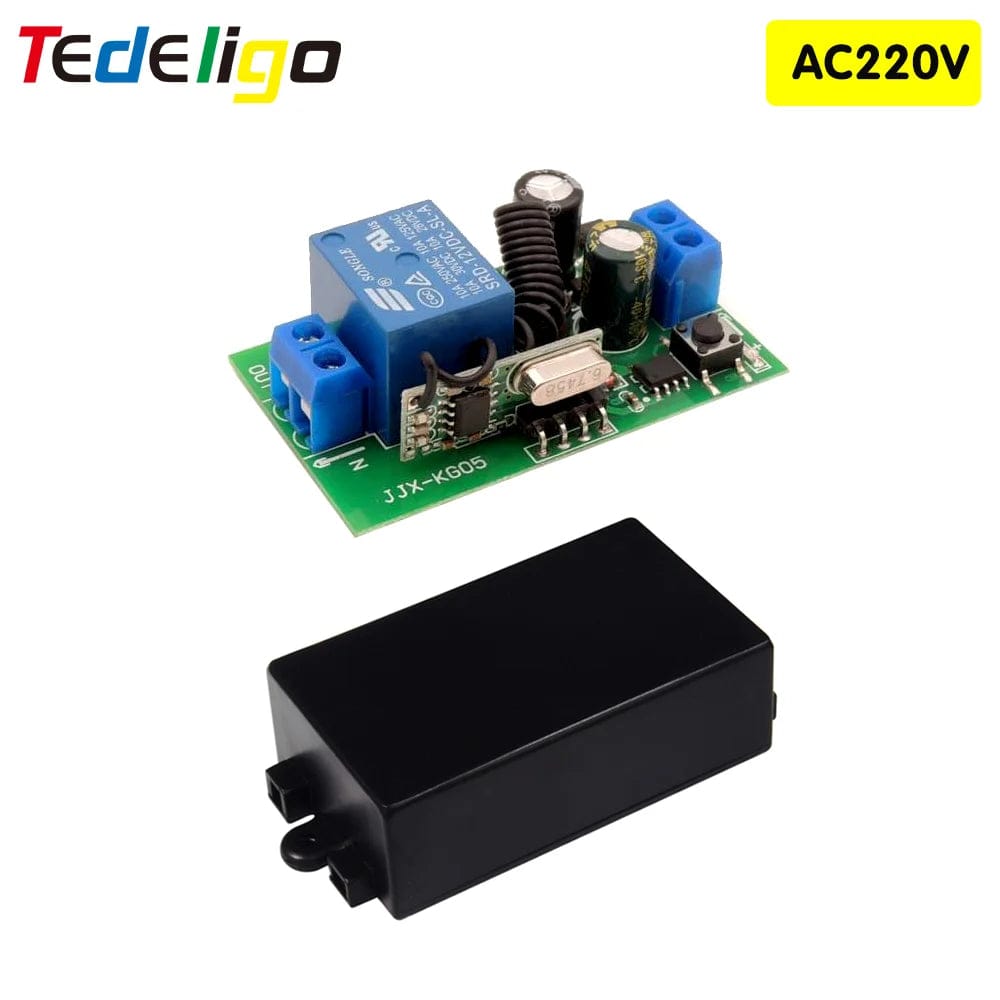

433MHz Wireless Remote Control Switch AC110V 220V 10A 1CH Relay Module Receiver ON OFF Remote Control For Led Lights Bulb DIY



---

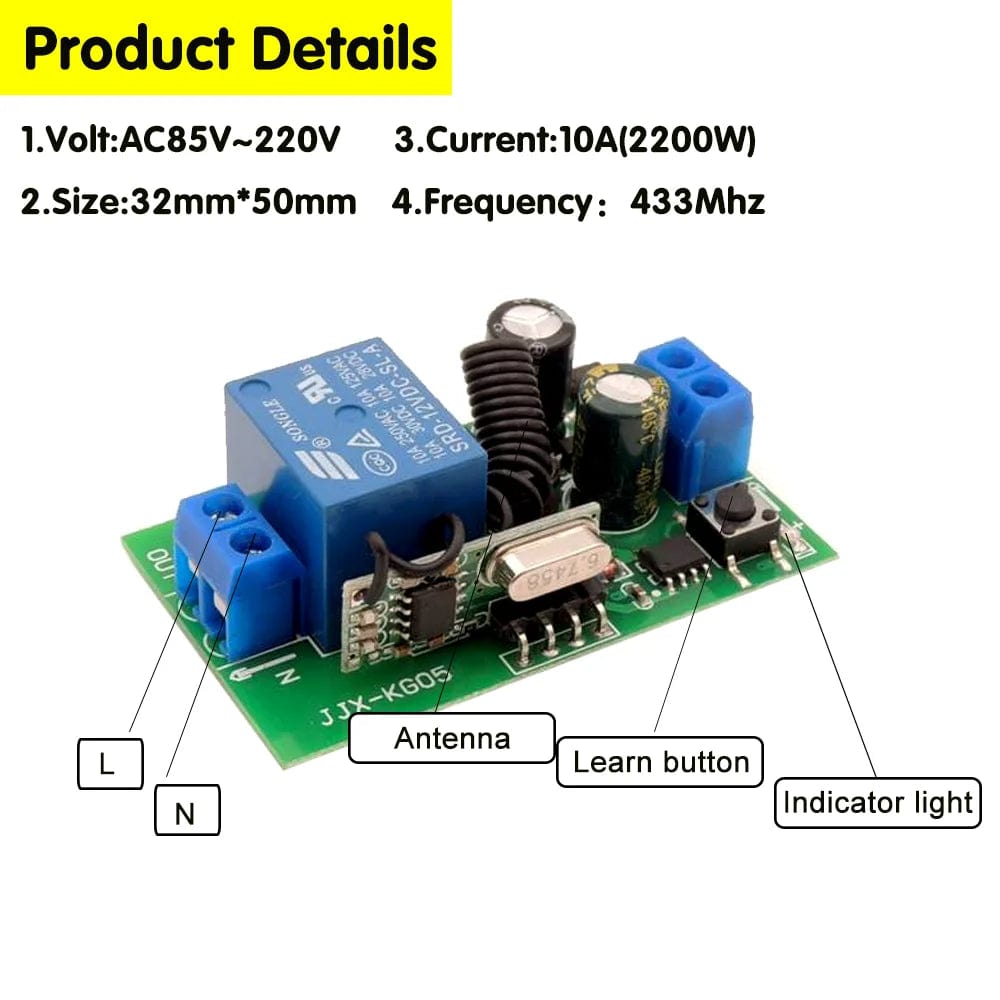

Relay Receiver Board Parameter

• Working voltage : AC 85V~250V

• Input/Output : 1V~250V

• Max current : 10A

• Max load: 2200W

• RF frequency : 433Mhz

• Pin : L \ N

• Receiver size : 31*54*17mm

• Working temperature : -30~+80 Celsius

• Receiving Sensitivity : >97dbm

• Amount of storage remote controls : 20 pieces

• Support encoding : 1527 Learning code /2262 fixed code

• RF Operating mode : ASK superheterodyne wireless reception

• Receiving range : Open space is more than 50 meters

• Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode





Working Modes
You can set up in 3 modes: Momentary mode,Toggle mode and Latched mode.
Momentary mode:
Press and hold A button,this relay will work;Release A button,this relay will stop.
Toggle mode:
Press A button,the relay will work;press A button again,this relay will stop.
Latched mode:
Press A button,the relay will work;press B button again,this relay will stop,second relay will work.
How to Set up
Momentary mode:
Press learning button once,press A button once,succeed.
Toggle mode:
Press learning button twice,press A button once,succeed.

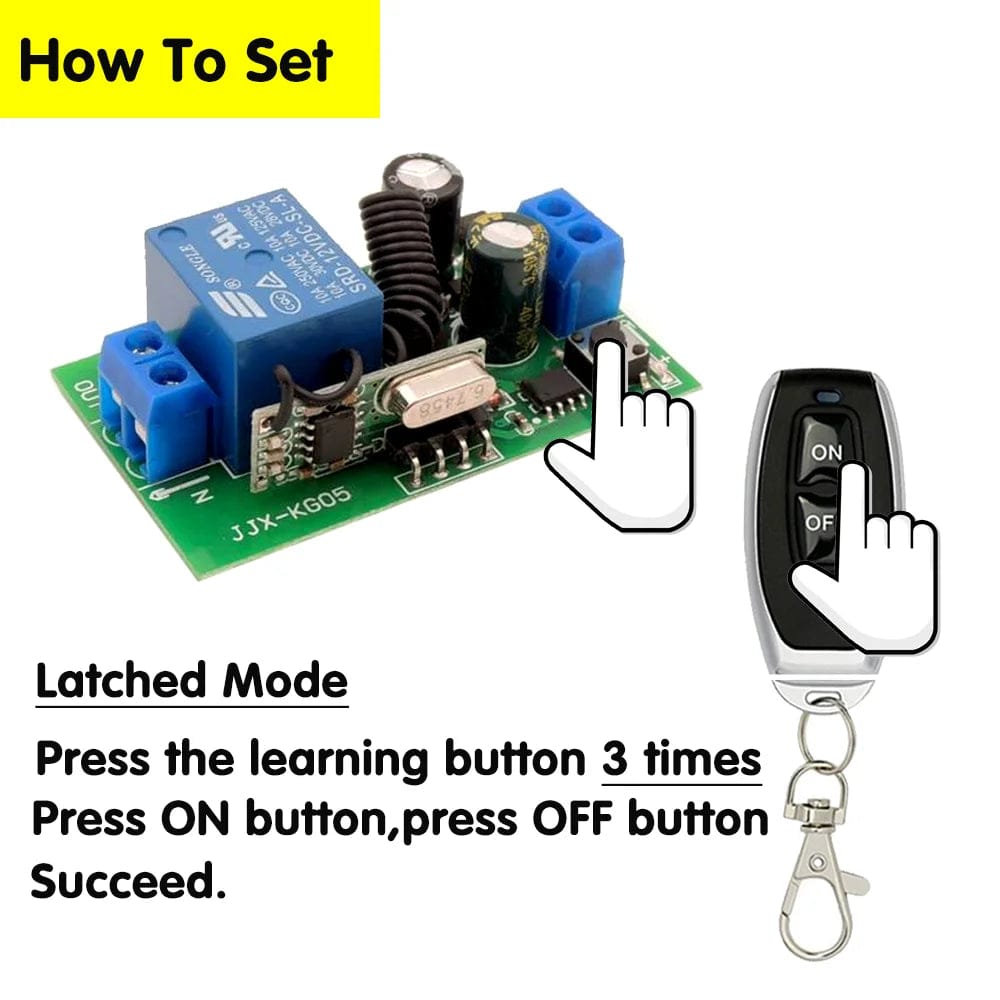

Latched mode:
Press learning button 3times,press A button once,succeed.
Clean data:
Press learning button 8times,the data will be cleaned.All remotes cannot control this receiver.
If u want to change modes,u need to clean the data first.
