SPECIFICATIONS

Brand Name: QIACHIP

Use: Electric Door

Use: Automated curtains

Use: Lighting

Use: SWITCH

Use: Universal

Origin: Mainland China

Wireless Communication: RF

Support APP: No

Frequency: 433 MHz

Channel: 4

Package: No

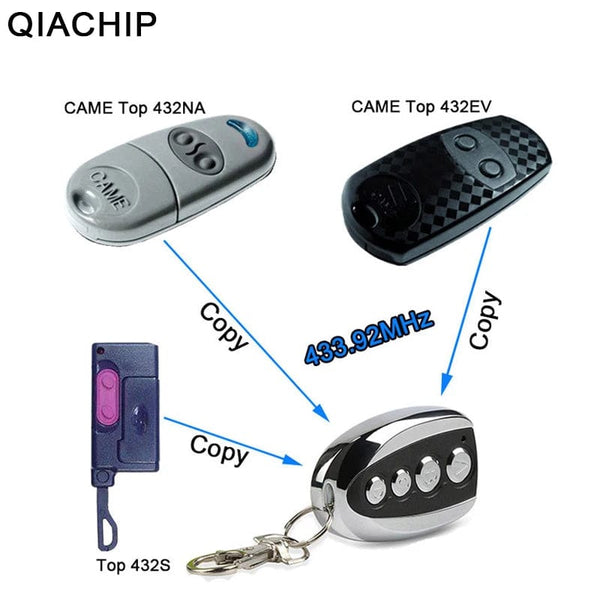

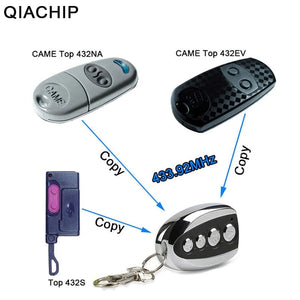

Model Number: CAME TOP432NA TOP432EV TOP432S Code Grabber

Choice: yes

Description:

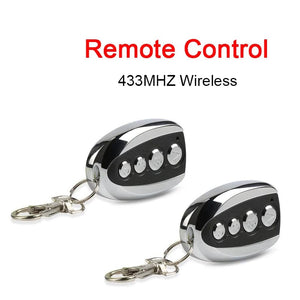

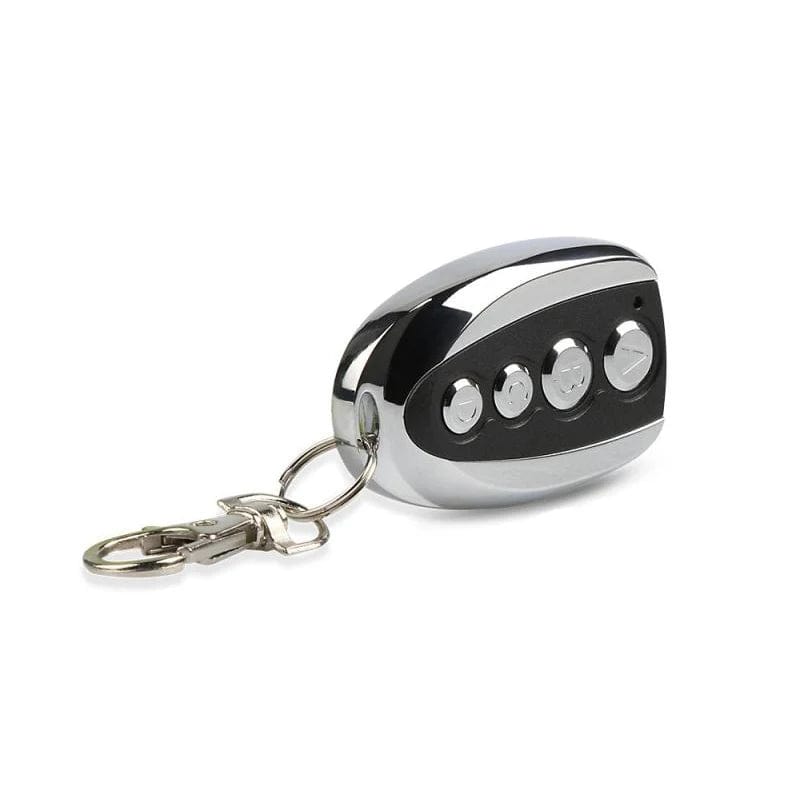

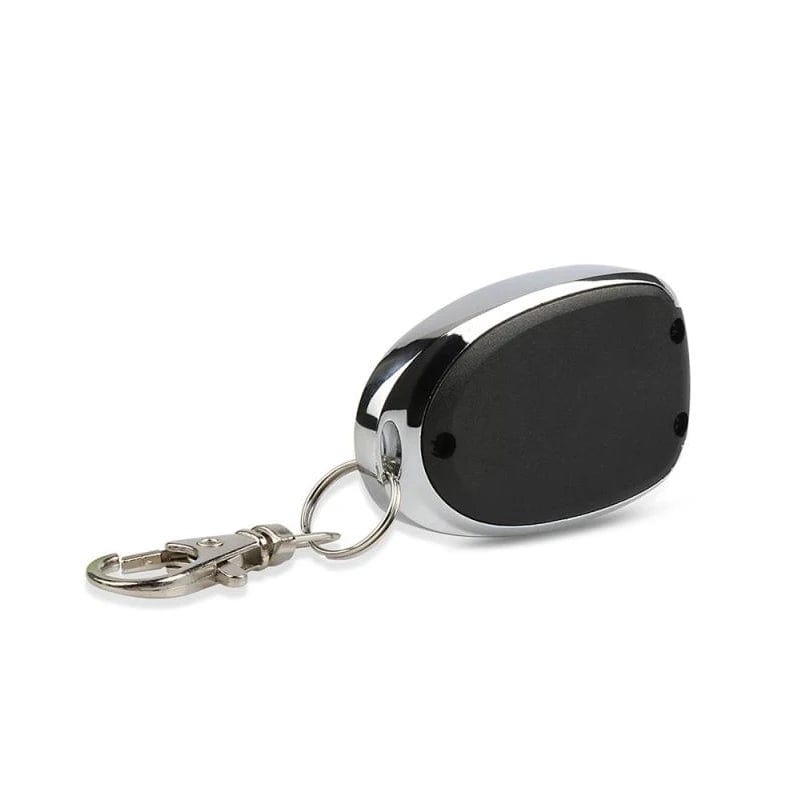

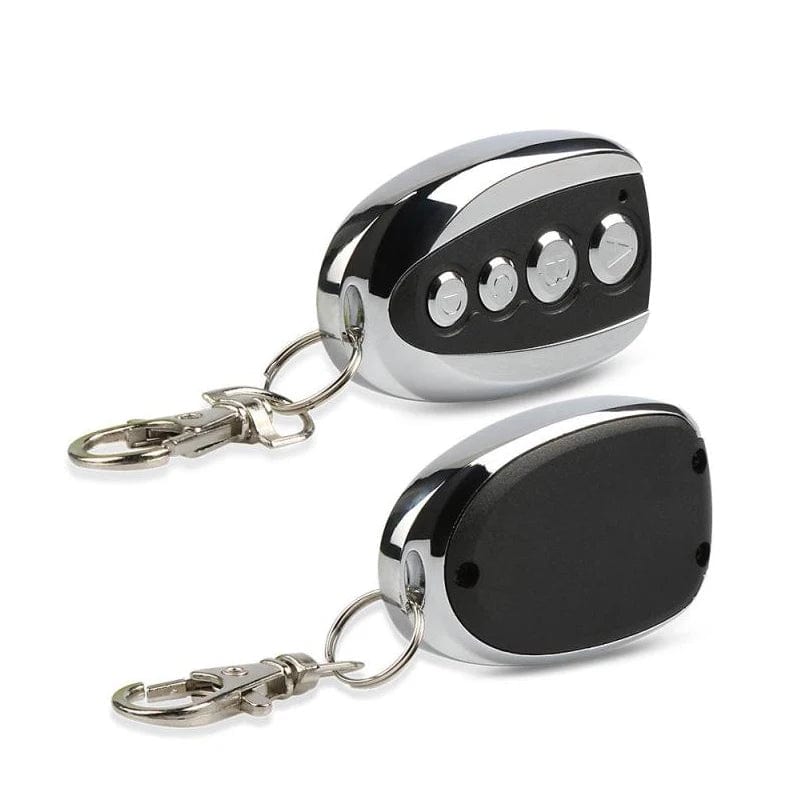

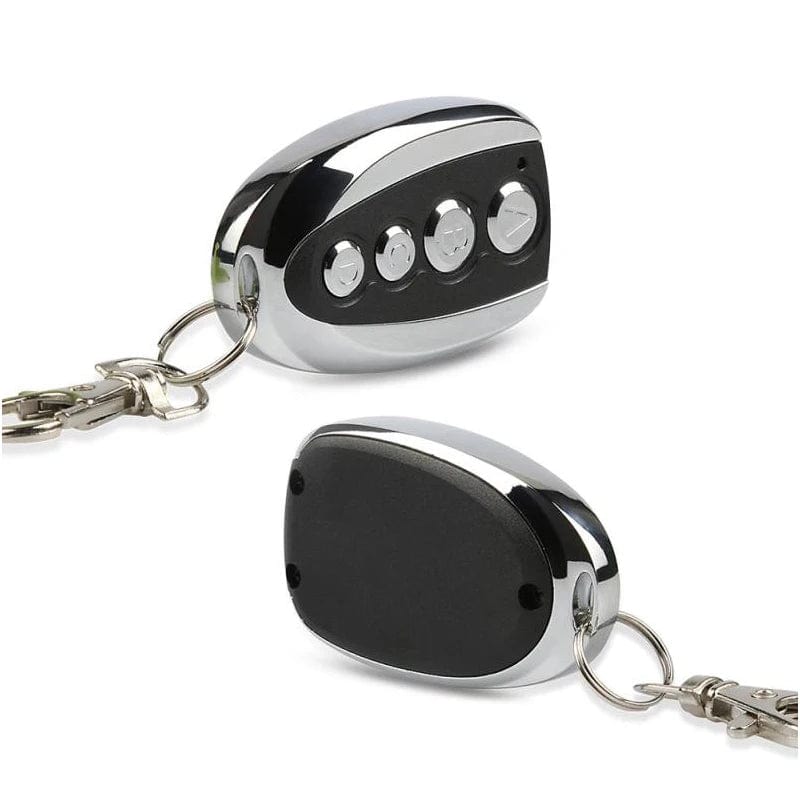

The gadget is a wireless remote control key fob, which comes with ultra-strong Duplicating & Cloning function, Ultra-small error of copying data code and copy oscillation resistance. It support remotely and wirelessly control your roller shutter door, garage door and other telecommand equipments within 50m (free space). Bringing you brand new experience of remote control, bring you much convenience in your daily life. You can not miss it.

Features:

*Duplicate Your Existing Remote Controllers Such as, Vehicle Central Locking Systems, Garage Doors Access Control System, Electronic Gates, Electrical  Appliances control, Car  Sunroofs Control, Heating Systems Control, Light Switch, etc.

*Encoding Type Supported: Support for CAME TOP Series Remote Control and the most of other remote controls.

*Ultra-small error of copying data code and copy oscillation resistance. Privacy is strong.

*The features of new copy remote control: The four buttons could respectively copy four different types of chips, That is a remote control can operate four different types of facilities. The frequency is from 270MHz to 434MHZ and more than ten frequency points. Faster copy data speed, not easy losing code, far distance.

*Easy to use: Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage. Practical and Convenient. Support One-key smart-copying, High accuracy of copying and high effective of copying

*Widely Use: Perfect Suitable for controlling electrically Gate, Retractable Door, Garage Door, Electric Curtain Automobile, Motorcycle and other telecommand equipments(short-range), etc.

*Strong Coping Performance(Works with the following remote control IC modules): Support Coping the following Codes: 2260(all manufacturers), 2262(All manufacturers), PT2264, 5326(All manufacturers), SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918series, 527(All manufacturers), 1527(All manufacturers), 2240(All manufacturers), HCS101, HCS200 \ HCS201(part code), HCS300 \ HCS301, part single chip microcomputer, etc. encoding chip(With this remote duplicator you can clone all 433.92MHz fixed code key fobs. Some remotes that use this frequency are listed above. If you fail in copying with proper operation, you might have to check whether your device has a chip above).

Specifications:

Product Type: KT190U-4

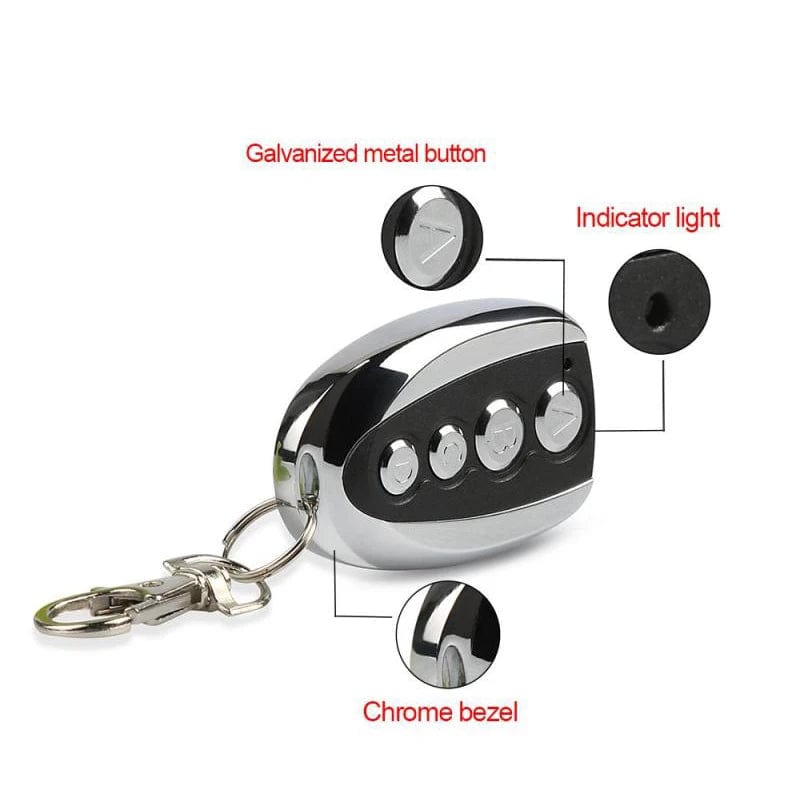

Material: Metal and PVC

RF Frequency: 433.92 MHz

Match Code Way: Copying Via Face to Face(One to one key copy).

Channel Supported: Four Channel

Encoding Type: Learning Code(1527), Fixed Code(2262).

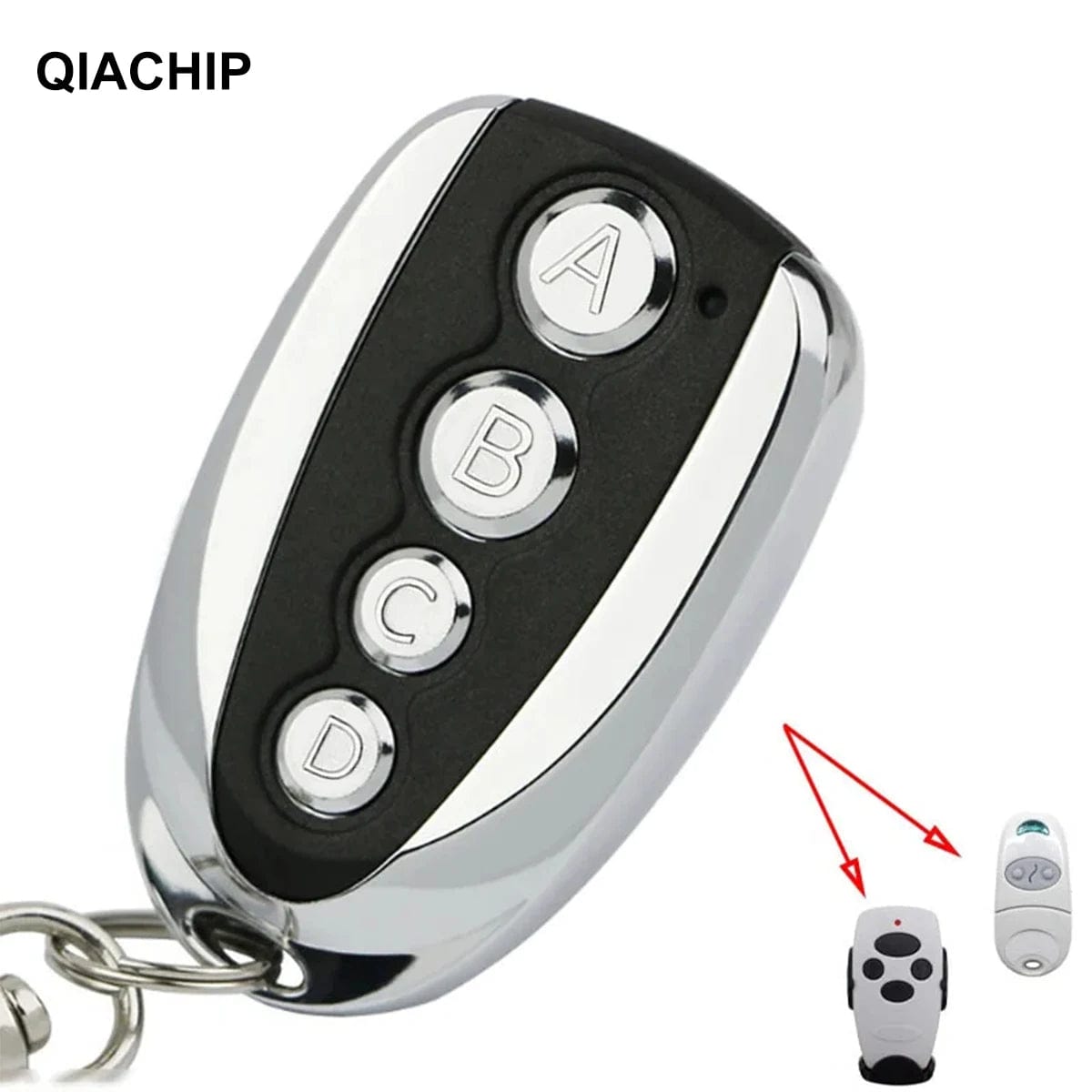

Button: 4 Buttons(A,B,C,D)

Modulation System: ASK

Operating Voltage:DC12V

Operating Current:<25mA

Transmitting Power: +10mW

Frequency Windage: ±0.2MHz

Transmission Distance: 50m (Free Space)

Color:Siliver

Main Item Size: 5.4 * 3.2 * 1.2cm / 2.12 * 1.25 * 0.47in

Main Item Weight: 37g/1.3oz

Package Size: 5.6 * 3.5 * 1.5cm / 2.2 * 1.37 * 0.59in

Package Weight: 40g / 1.4oz

Note:

1.It can't copy original car remote control, two-way remote control and rolling code remote control (Rolling code chips start with HCS commonly, such as HCS200, HCS201, HCS300, HCS301, etc.)

2.We don't offer retail package,but we will pack it well before shipped out.

Package List:

1Pcs * 433MHz RF 4-Channel Remote Control (Battery is Included)

Operation Instructions:

Application method:

Our remote control can copy the fixed codes and learning codes

1.Clear Out Code:

Press the A button and B button at the same time, the LED indicator will enter into the fast flashing status, it means that all the memory data is cleared (Please see the video above). You can repeat the above operating steps if the memory clear operation is not successful.

2.Duplicating (Learning)/Face to Face Copying(One to One Copying):

After cleared the memory, you can operate Face to Face Copying(One to One Copying), you left hands press the original remote control and your right hands press the duplicating remote control at the same time; put the two remote controls together as close as possible. For example, press the Button A of the 2 remote controls at the same time, the LED Indicator flashes fast, and you press the Button A of the duplicating remote control again, the LED indicator long light, it means that the original remote control of the A button A code has been copied into the duplicating remote control. The other 3 buttons are the same operation.

NOTE:

Dear Customers, please check the following instructions before you buy; if you do not meet the conditions still to buy, we will not accept returns:

For consumers. most clients wish to replace the original remote control with a general remote control, while such remote control has not be developed. You may configure your remote control within 2 seconds if you meet the following three conditions:

Condition I: the original remote control may be used normally

Condition II: frequency of original remote control is 433Mhz

Condition III: IC model of original remote control is 2262 2260 1527 2240 and compatible IC (rolling code remotes will not work).

Please confirm two things (First, Frequency; Second, Chip Code(Encoder IC)before you buy it. (It's very very important. Don't ignore them. Don't simple think the frequency is same then it can be copied. It's not true).
