Availability: 2009 In Stock
Sku: 14038-1rc-12V
Liquid error (snippets/product_view_default line 246): Cannot render sections inside sections

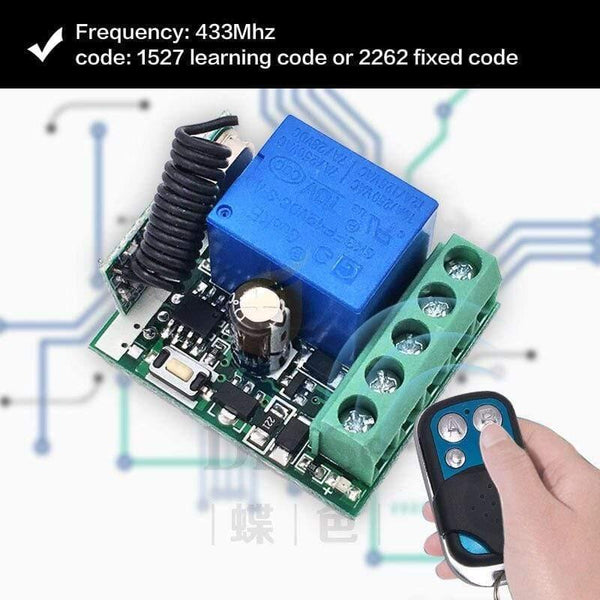

433 MHz rf Remote Control DC 12V 24V 10A 1CH Relay Receiver for universal garage/door/Light/LED/Fanner/motor/Signal transmission



  • Working voltage  :  DC 12V / DC 24V
  • Input vlotage  :  1~250V
  • Output vlotage  :  1~250V
  • Quiescent Current  :  <5MA
  • Max current  :  10A
  • RF frequency  :  433MHz
  • Working temperature  :  -30~+80
  • Receiving Sensitivity  :  >97dbm
  • Amount of storage remote controls  :  25 pieces
  • Support encoding  :  1527 Leaning code /2262 fixed code
  • RF Operating mode  :  ASK superheterodyne wireless reception
  • Receiving range  :  Open space is more than 50 meters
  • Remote operating mode   : Momentary Mode / Toggle Mode / Latched Mode  / Delay Mode

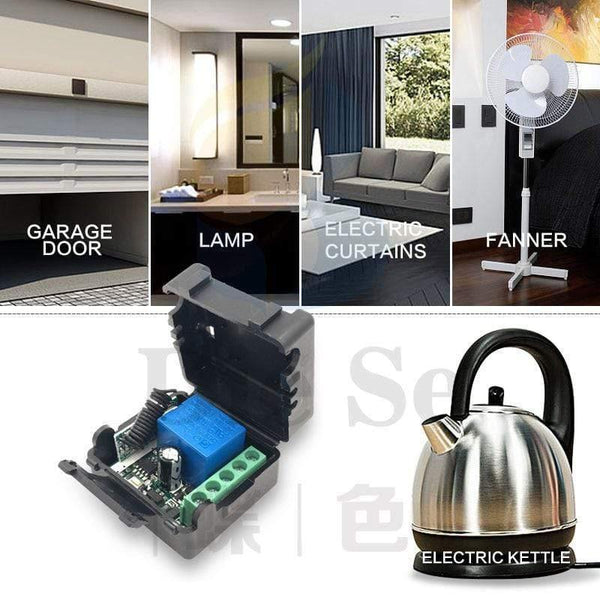

Wide  Range  of  Uses
Super  Stable  RF  Output

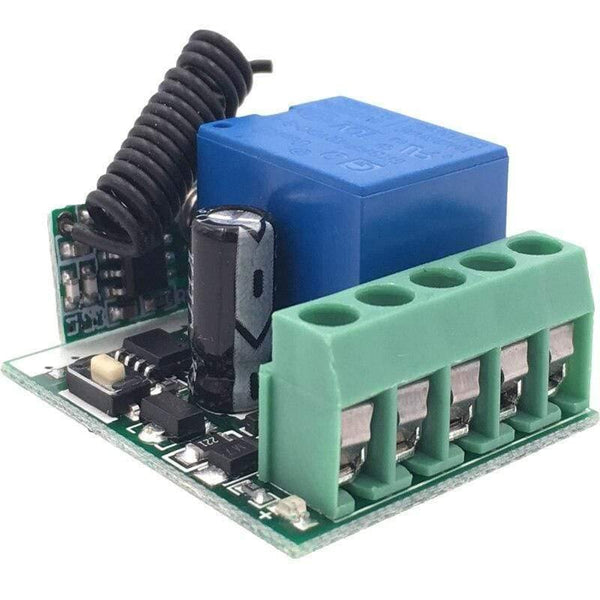

Perfect  Craft  Detail  Control

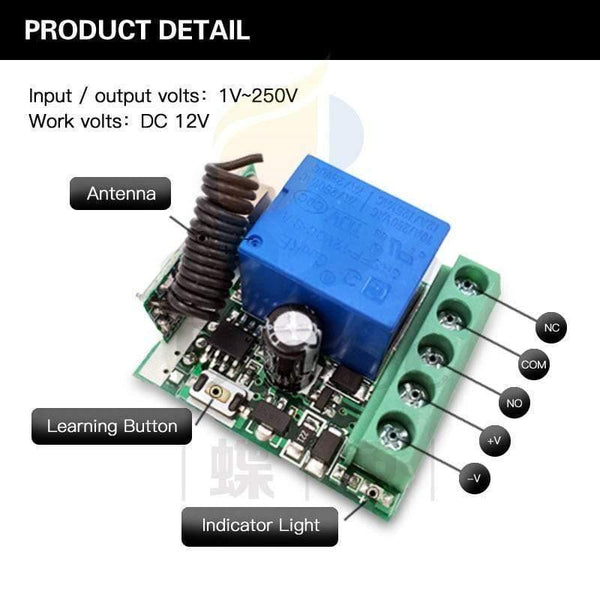

NO : Normal open                    COM  :  Common                  NC : Normal closed

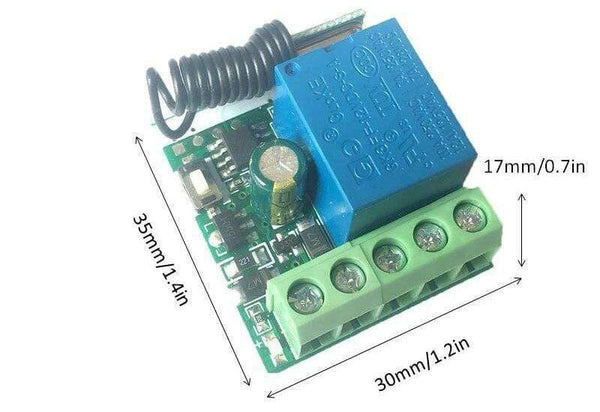

Exquisite  Detail  Design


  Package include

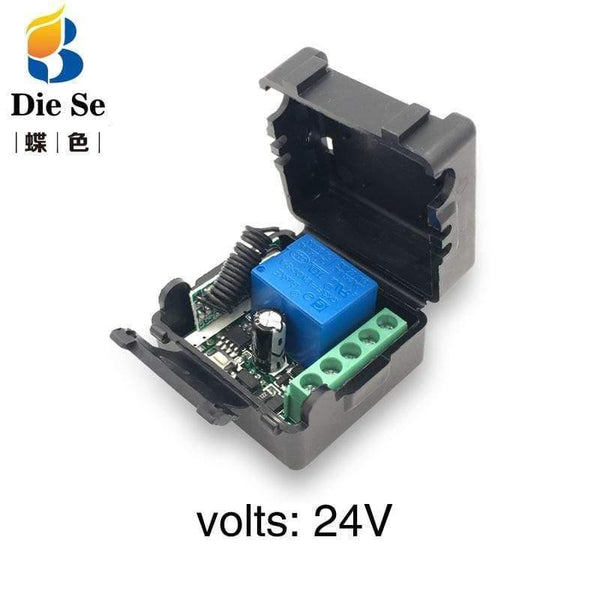

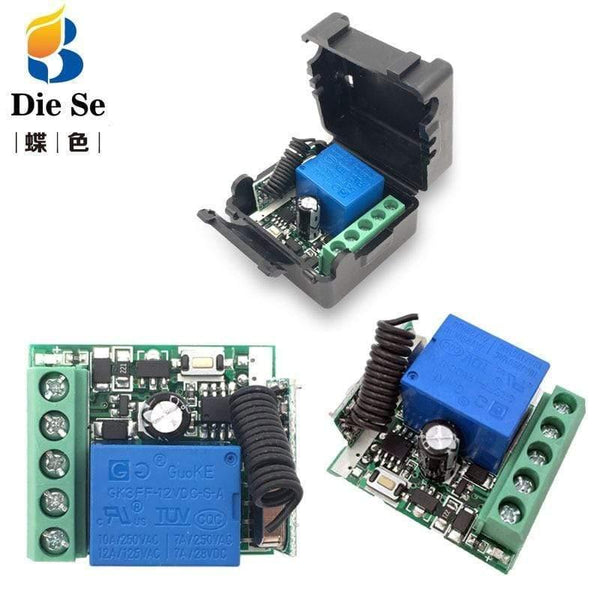

Receiver module ( include Shell )
Product Manual





  Wiring Diagram

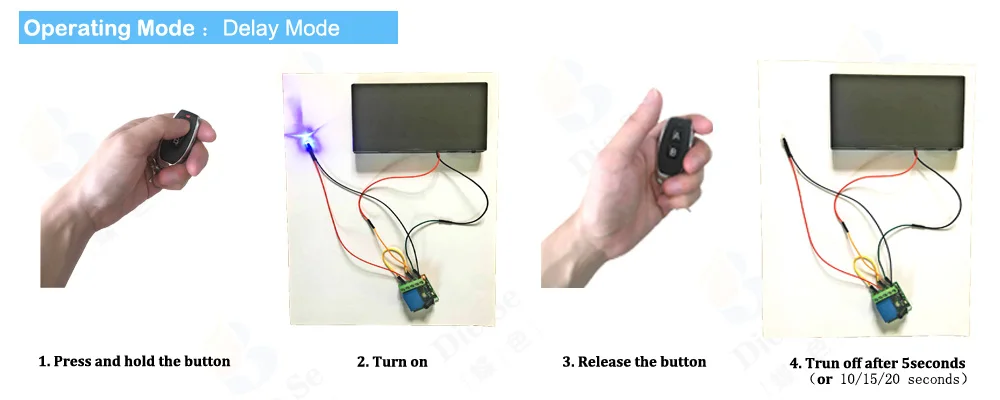

  Operating Mode
You can match the Transmitter with the Relay Receiver Module  in 4 modes.

1 momentary 2 toggle 3 latched

  Set Up

Delete data
DC 12V 1CH Remote Control Switch 433Mhz

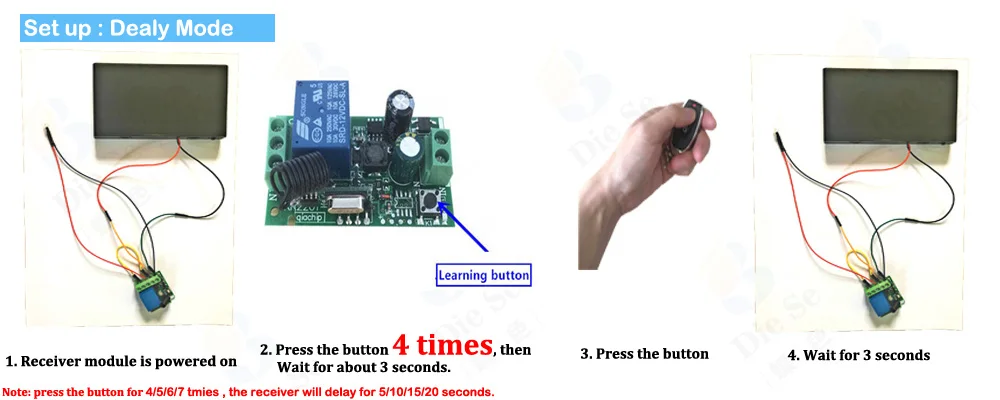

1 set up momentary 2 set up toggle 3 set up latched 4 set up delay

On this products details page, there is a demonstration video available.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
