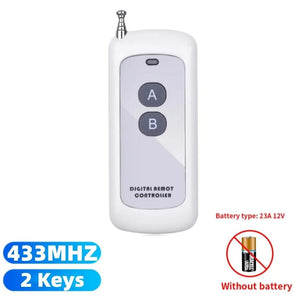

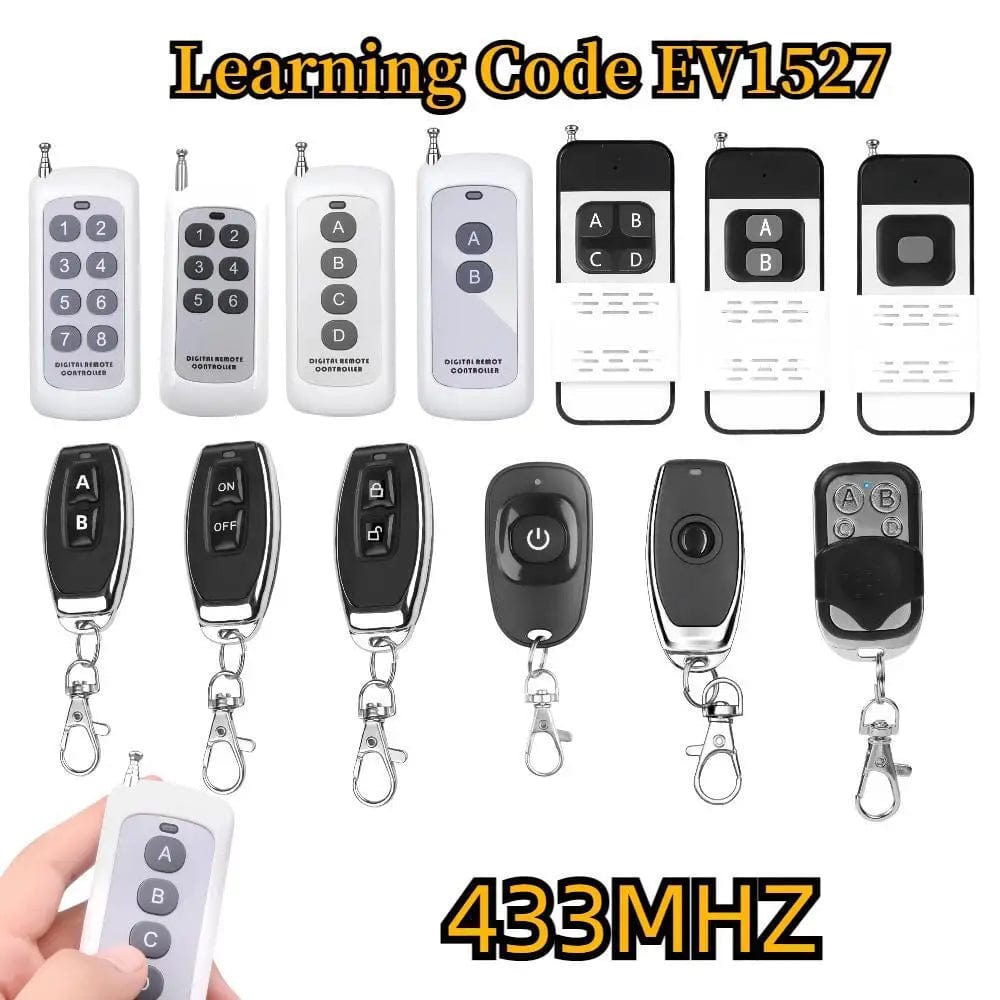

433 Mhz RF 1 2 3 4 6 8 CH EV1527 Learning Code Remote Control Universal Wireless Transmitter Switch for garage door gate Alarm Key

1. The remote control is Learning Code Type ,but not copy type. It need to work with the 433mhz receiver or relay module.

2. If you want the remote control match with your receiver module, they need in the same conditions : 433mhz & EV1527 learning Code.

Model Number: Wireless Remote Control

Wireless Communication : RF

Frequency:433 MHz

Input Voltage: 12 V

Receiver sensitivity: > 97 dbm

Transmitting distance:> 100 m ( open space)

Decoding mode: MCU software decoding

Remote storage: 20

Support remote type: EV1527 learning code

Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )

Output terminal: NO , NC , COM

Remote programming

-Clearing the code :

Push the learning button on the receiver 8 times , the codes will be reset.

After clearing the code, remotes will be need to be recalibrated

-Momentary mode

Please contact us for detailed use instructions

-Learning the code : ( Toggle - Press remote button to turn on, press again to turn off.)

Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into learning state .

-Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times.

When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times .

Push the remote button B, Led flash for 3 times .

After 3 seconds , the LED indicator will be off , Learning to succeed.

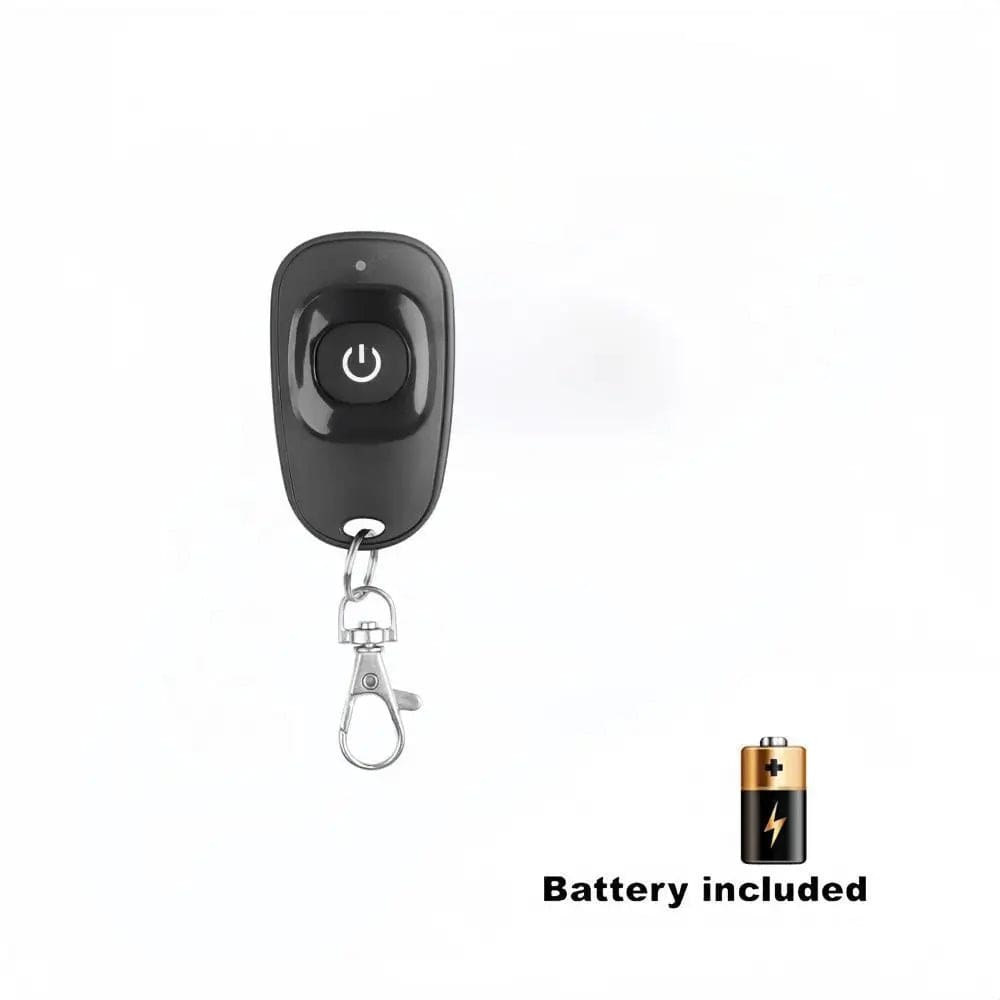

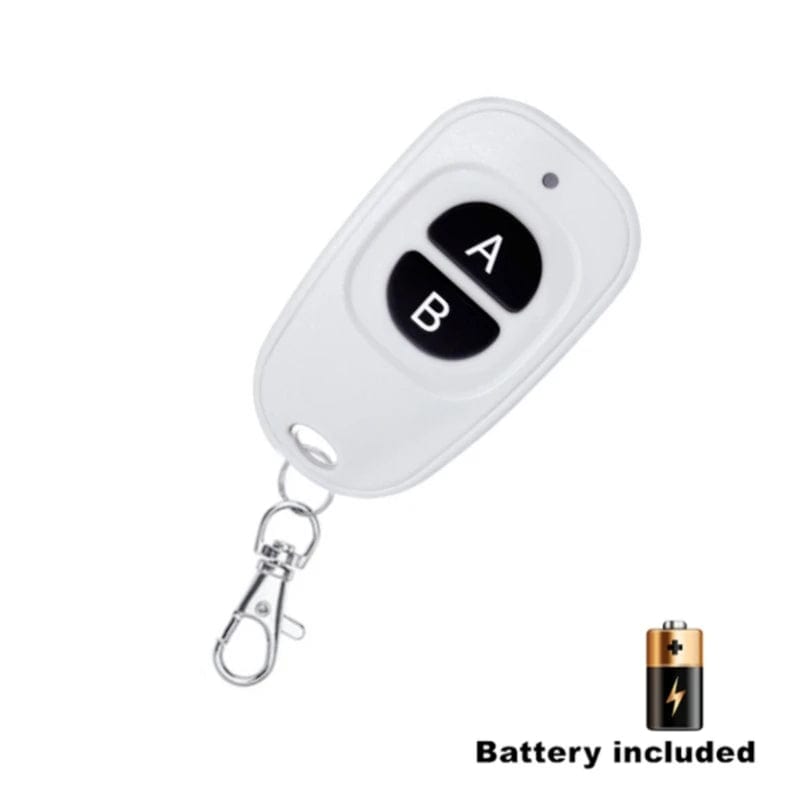

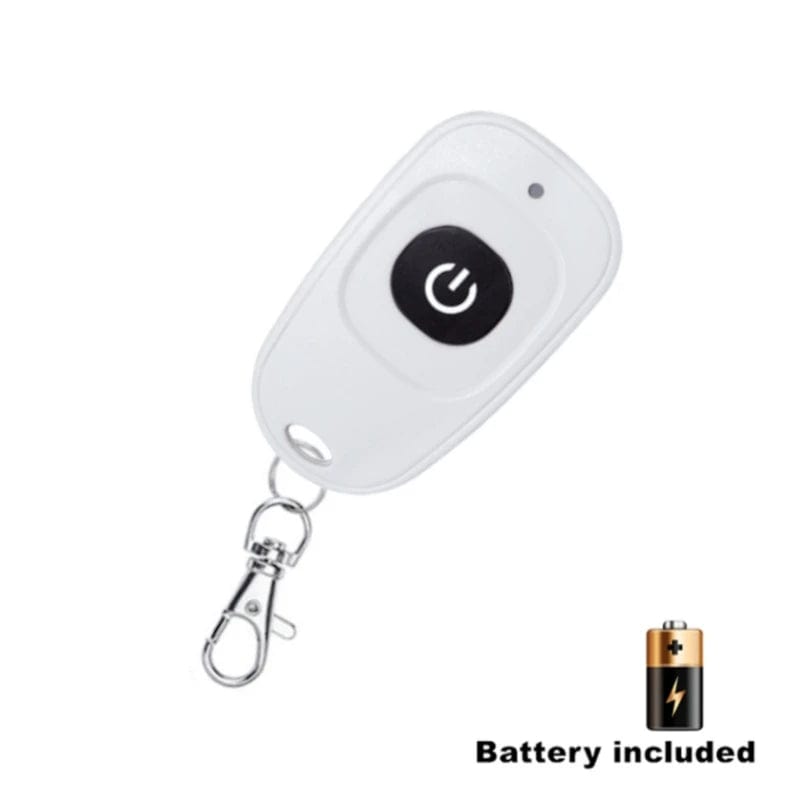

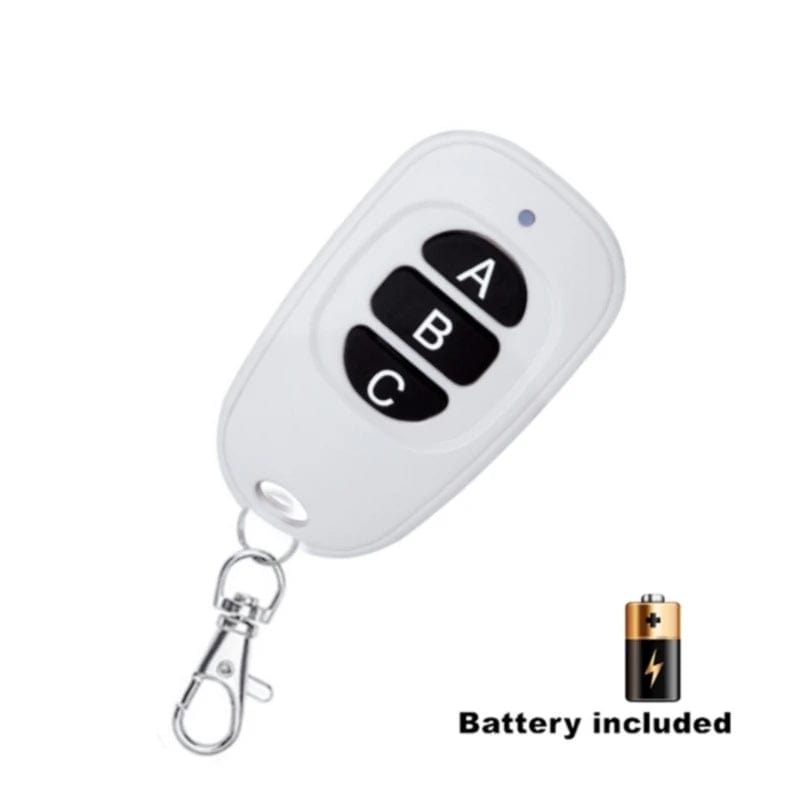

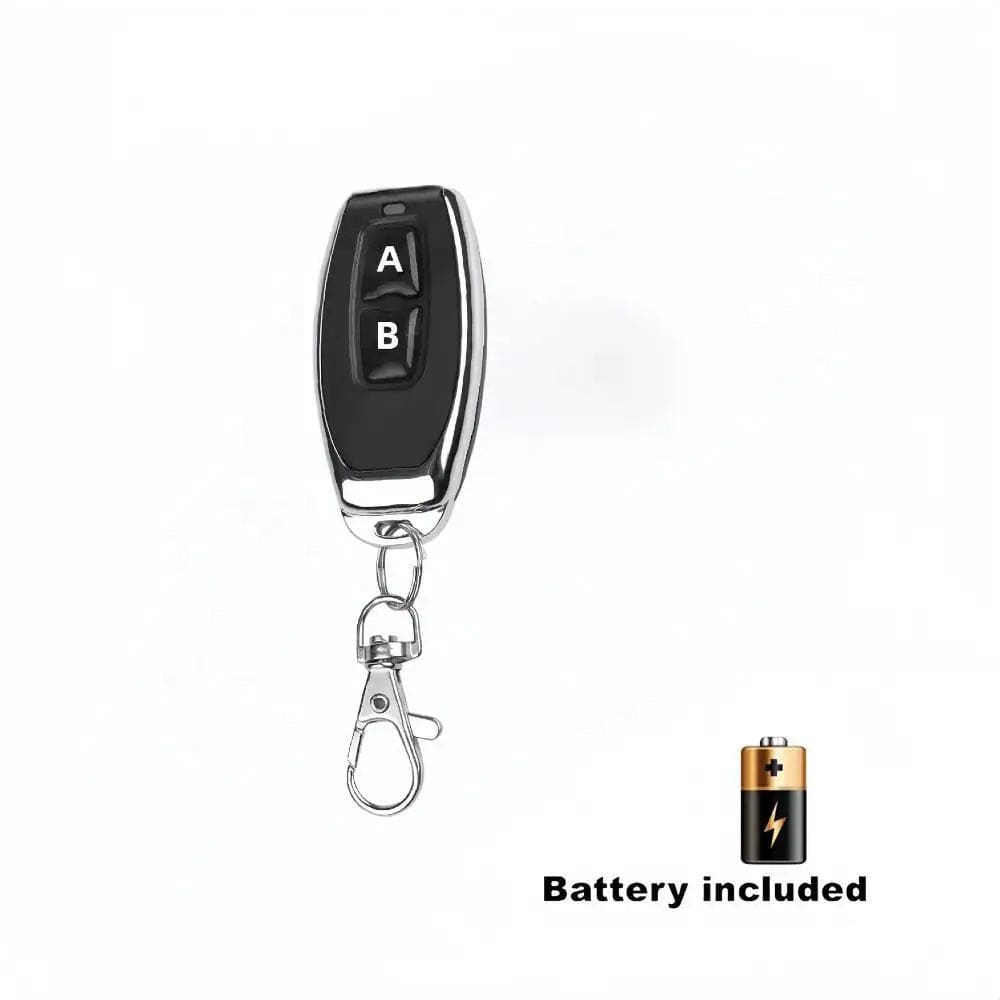

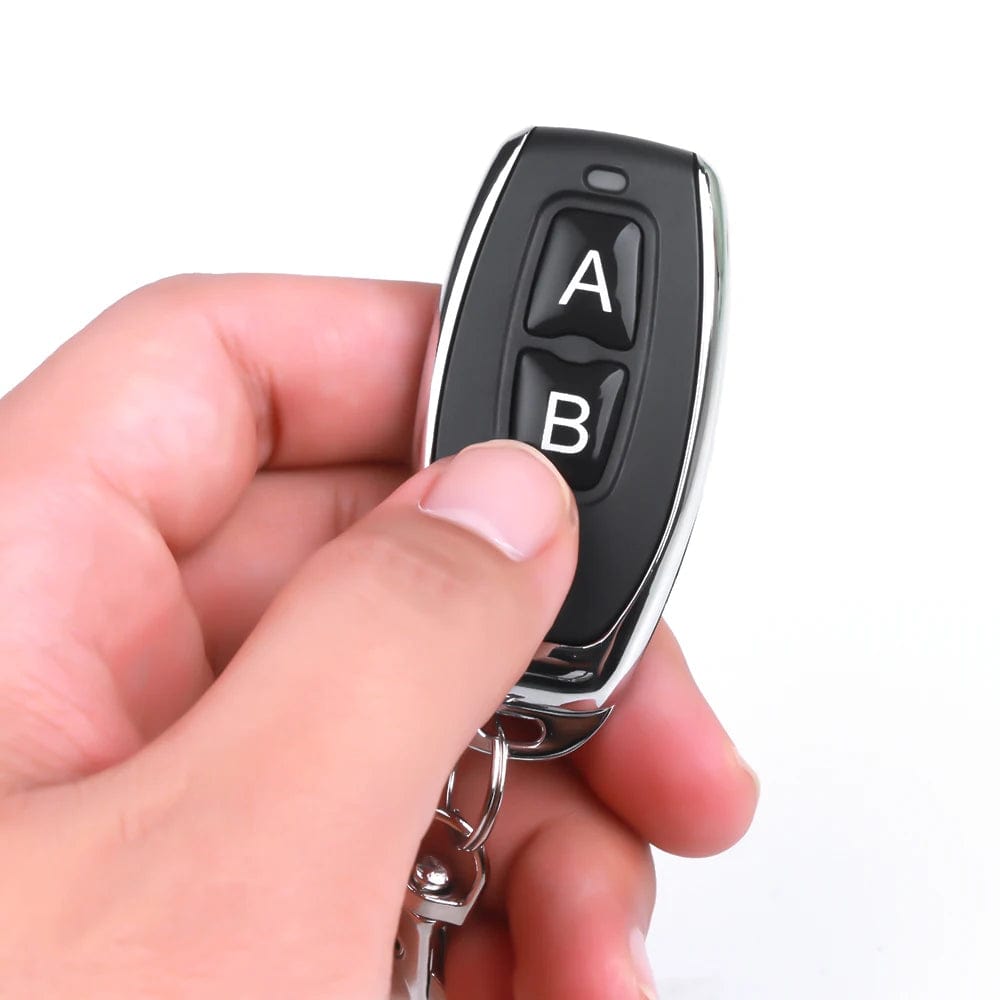

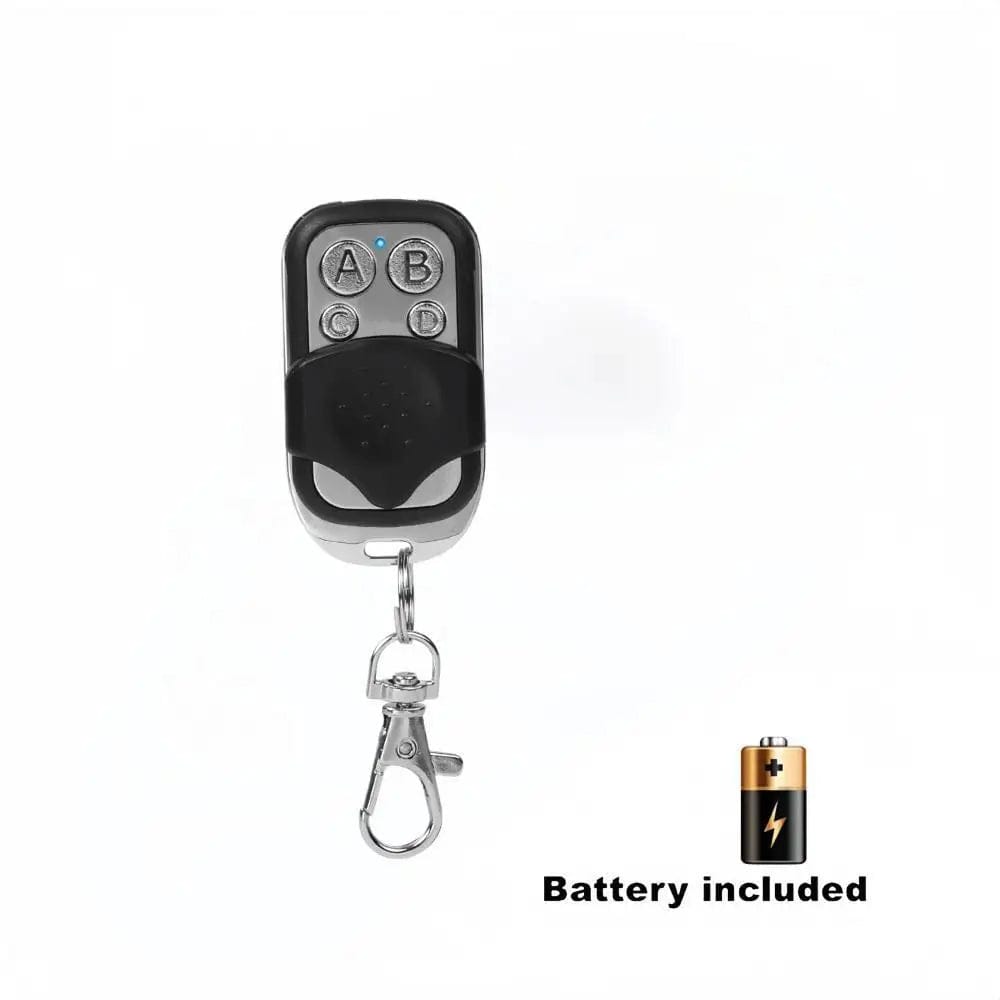

Mini Remote Control

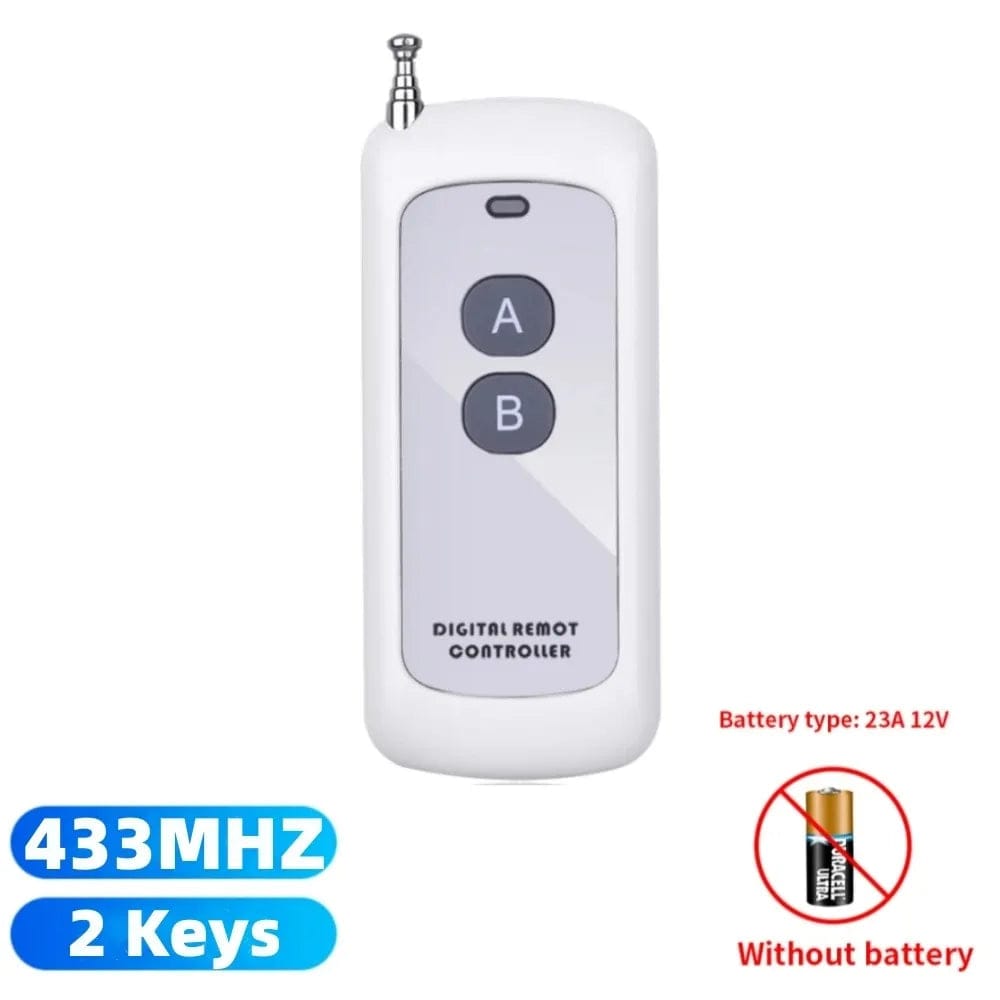

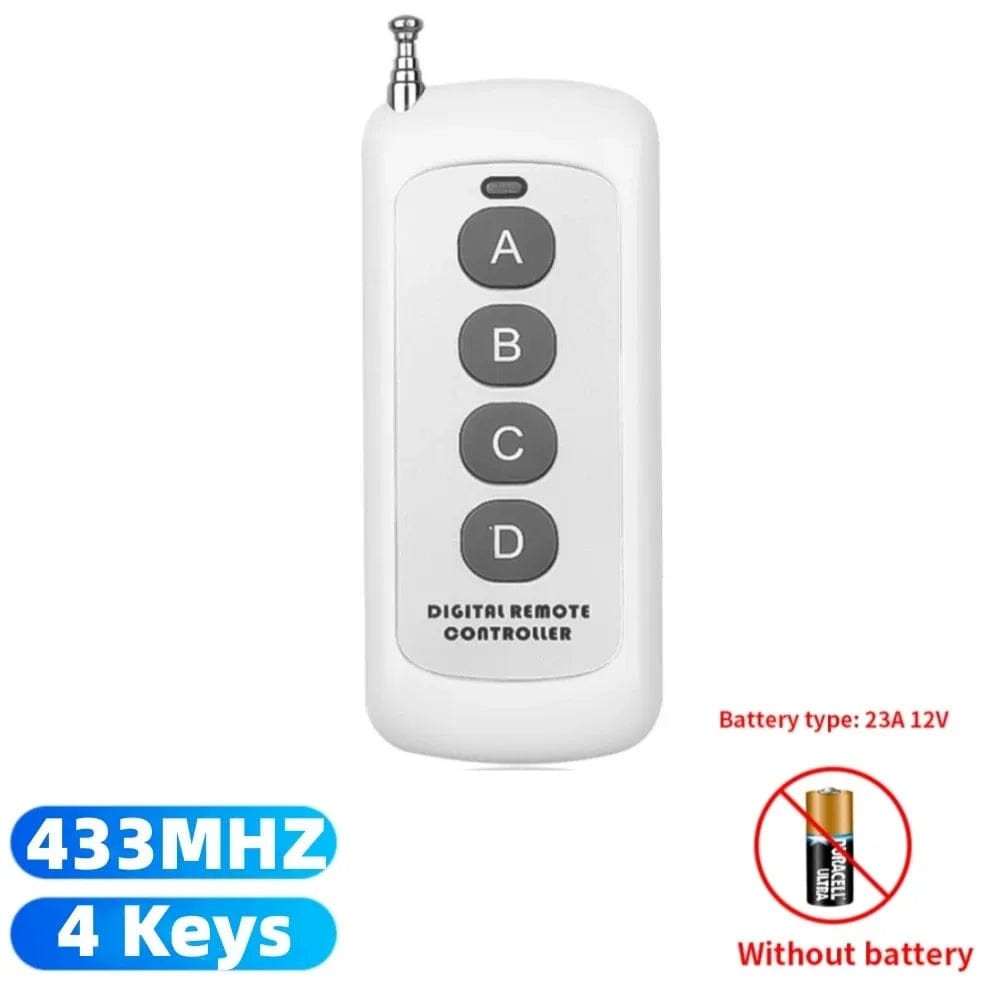

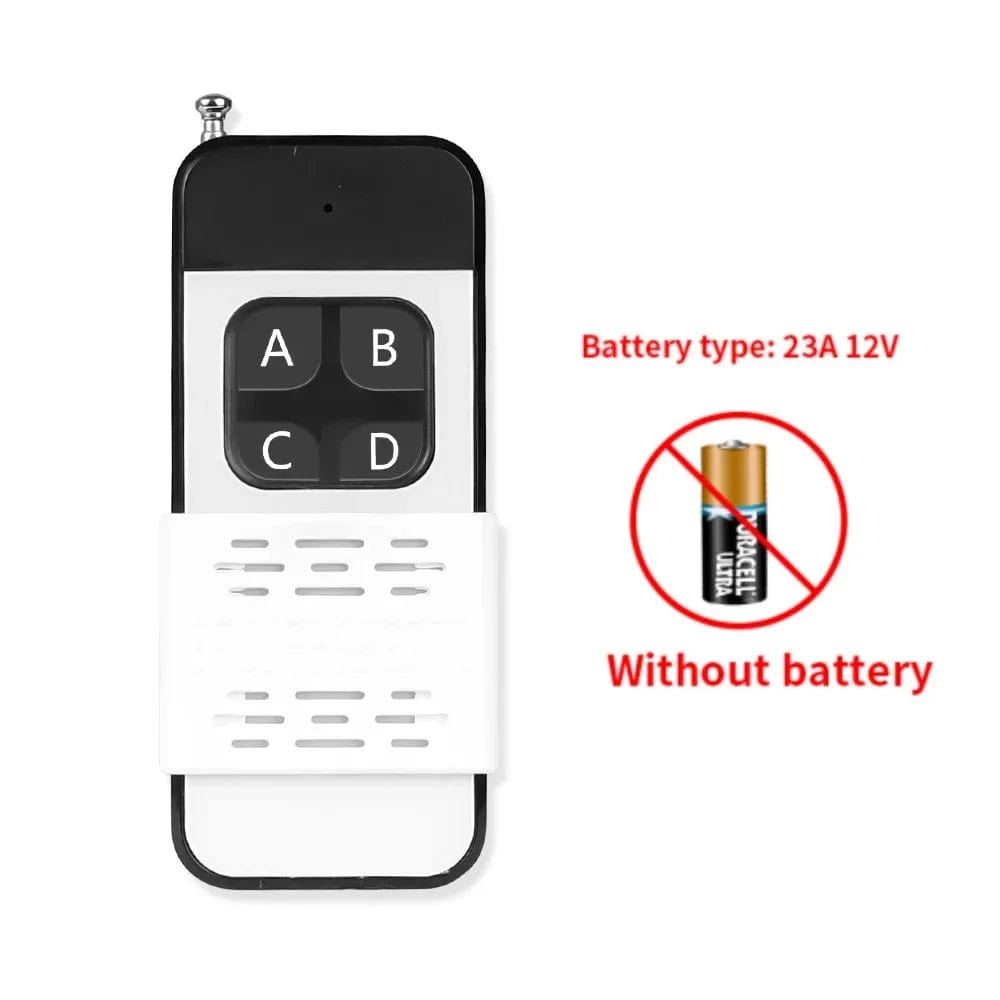

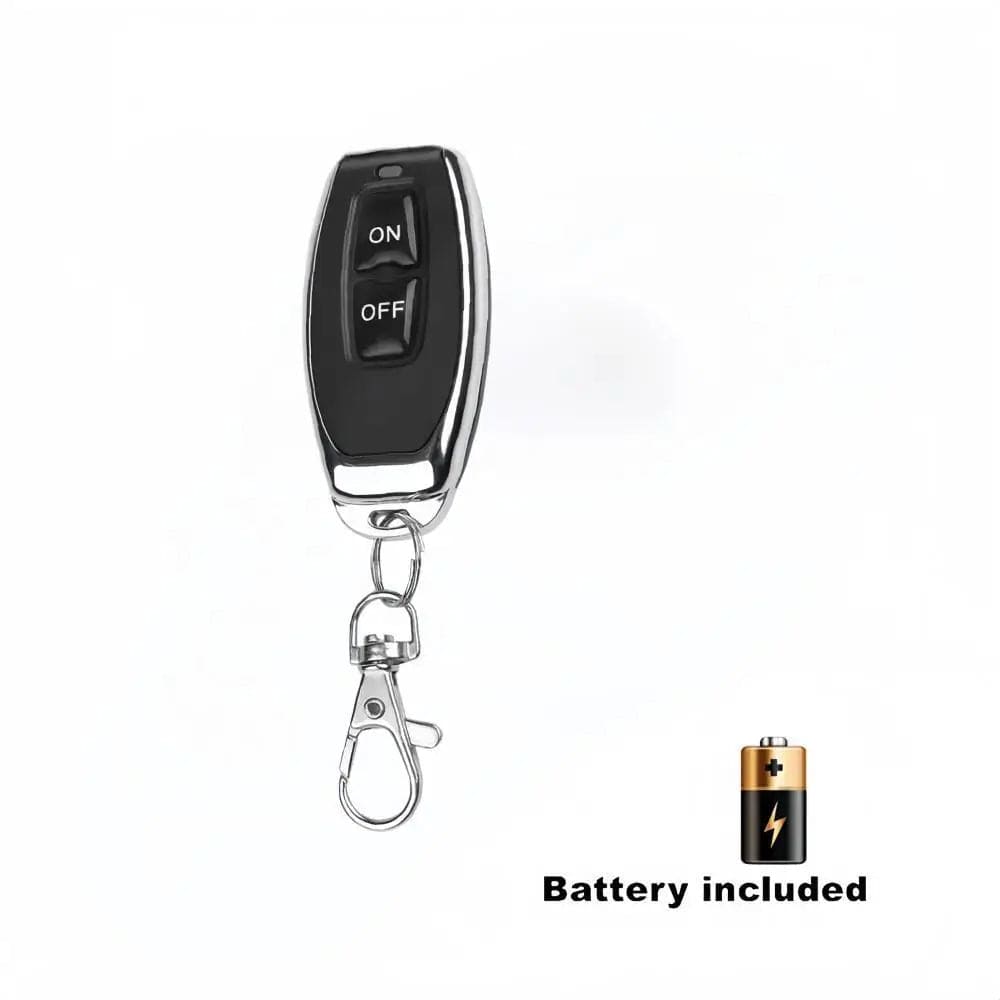

Portable Remote Control

Package included

1* RF 433 Mhz Remote Control
