Description

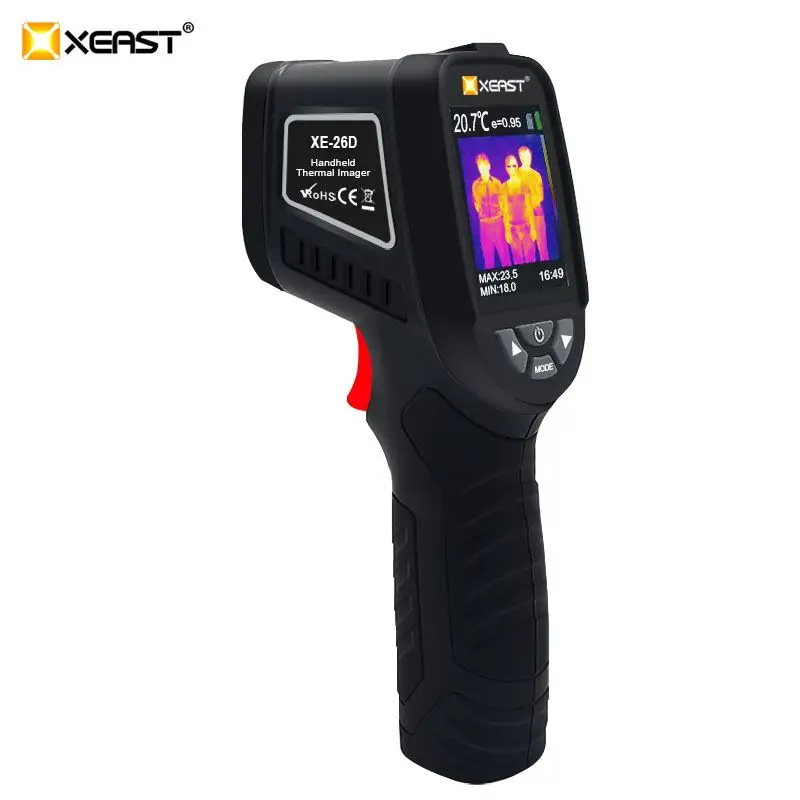

2020 XEAST new XE-26D Thermal Black Handheld Infrared Thermometer 2.4-inch LCD Screen for Temperature and Humidity Measurement
FEATURES
●Hot and cold spot temperature markers that guide the user to the hottest and coldest regions in the infrared heat map
●Visual and heat map image alignment edge detection line
●Adjustable emissivity from 0.1 to 1.0
●Visual/heat map image alignment
●Image capture and save it in SD card
●USB edge PC read pictures Selectable color palettes
XEAST 2020 New Released Color Screen Handheld Thermal Imager Infrared Thermal Imaging Camera XE-28(60*60) and XE-31(160*120)
Specification Comparison Table to XE-28/XE-31
Model |
XE-28 |
XE-31 |
IR Resolution |
60*60 |
160*120 |
Temperature Range |
-20℃~380℃/-4℉~716℉ |
-20℃~380℃/-4℉~716℉ |
Accuracy |
±2% or ±2℃(±4℉) |
±2℃ (±3.6℉) or ±2% of reading |
Display |
2.5" TFT 320x240 Pixels color |
3.5" TFT 320x240 Pixels color |
Visible Camera |
300,000 pixels |
300,000 pixels |
Field of View(FOV) |
20°x20° |
20°x20° |
Best Focus Distance |
0.5m |
0.5m |
Thermal Sensitivity |
0.5℃ |
0.15℃ |
Emissivity |
0.1-1.0 Adjustable |
0.10~1.0 adjustable |
Wavelength Range |
8-14μm |
8-14um |
Color Palettes |
Iron color,rainbow and gray |
Iron red,Rainbow, Gray(white hot) scale(black hot) |
Image Capture Frequency |
9HZ |
9Hz |
Focus Mode |
Fixed |
Fixed |
Image Storage |
SD Card(TF Micor) 8GB |
SD Card(TF Micor) 8GB |
File Format: |
bmp |
bmp |
Power Type |

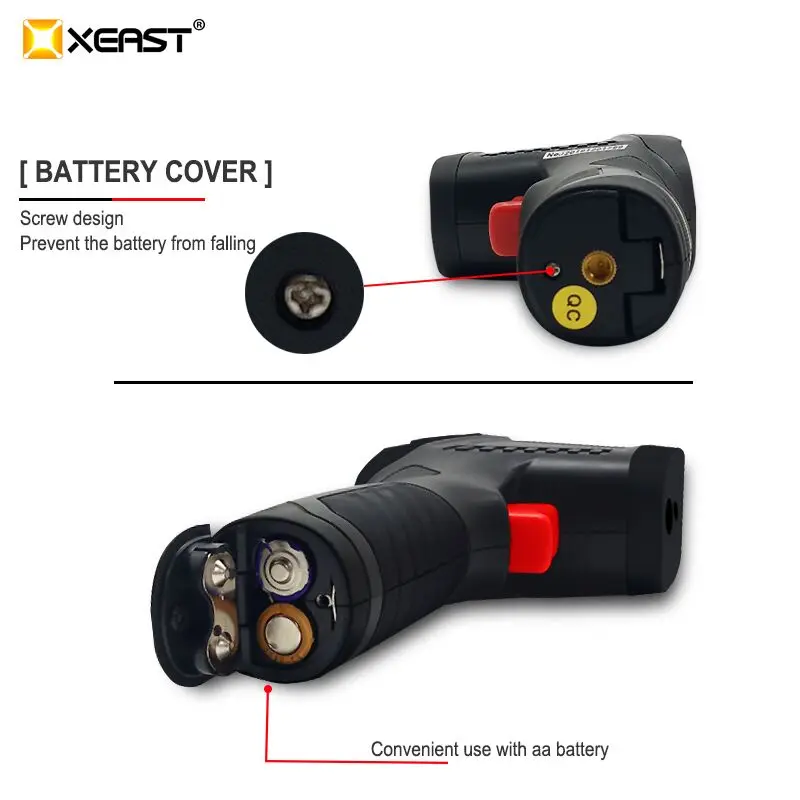

4 * 1.5V AA battery and USB |
4*1.5V“AA”size battery and USB |
Battery Life |
6 hours |
6 hours |
Working Conditions |
-5℃ to 40℃ (23℉ to 104℉) |
-5℃ to 40℃/23℉ to 104℉;10%RH to 80%RH |
Storage Conditions |
-20℃ to 50℃ (-4℉ to 122℉) |
-20℃ to 50℃/-4℉ to 122℉;10%RH to 80RH |
Item Size |
260*200*102mm |
260*200*112mm |
Item Weight |
0.3kg |
0.35kg |
Package Includes |
1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box |
1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box |
