2020 New Released Color Screen Handheld Thermal Imager Infrared Thermal Imaging Camera

Planet Gates

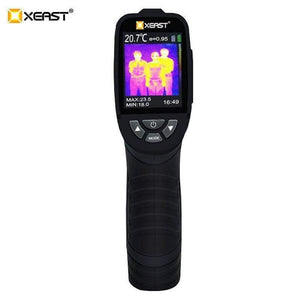

2020 New Released Color Screen Handheld Thermal Imager Infrared Thermal Imaging Camera

Name: 2020 New Released Color Screen Handheld Thermal Imager Infrared Thermal Imaging Camera
Brand: Planet Gates
SKU: 11969-XE-26D
Price: 185.09 EUR
Availability: OutOfStock

€1,088.90 EUR

Sale Sold out

Tax included. Shipping calculated at checkout.

Color:

1302 in stock

Description

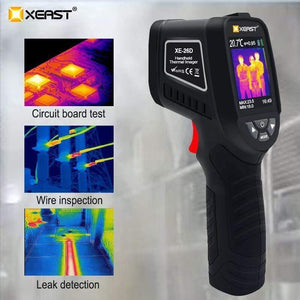

2020 XEAST new XE-26D Thermal Black Handheld Infrared Thermometer 2.4-inch LCD Screen for Temperature and Humidity Measurement

FEATURES

Mainly used in the power industry, industrial testing, fire safety,petrochemical, automotive testing, aerospace, building energy saving, transportation applications, scientific research and development, agricultural ecology.

●TFT color lcd display

●Adjustable emissivity and reflected background compensation improves measurement accuracy on semi-reflective surface
●Hot and cold spot temperature markers that guide the user to the hottest and coldest regions in the infrared heat map
●Visual and heat map image alignment edge detection line
●Adjustable emissivity from 0.1 to 1.0
●Visual/heat map image alignment
●Image capture and save it in SD card
●USB edge PC read pictures Selectable color palettes

●Higher temperature measurement accuracy, can distinguish smaller and highest temperature and lowest temperature

●Smaller operating current, no power consumption, more durable battery

●Can be powered by USB, most of the products on the market do not have a USB interface

●Can read the contents of the SD card through the USB interface.

●Image refresh rate is higher

View options:25% step length,full infrared vision to full visible light visual and infrared mixing.Edge detection line.

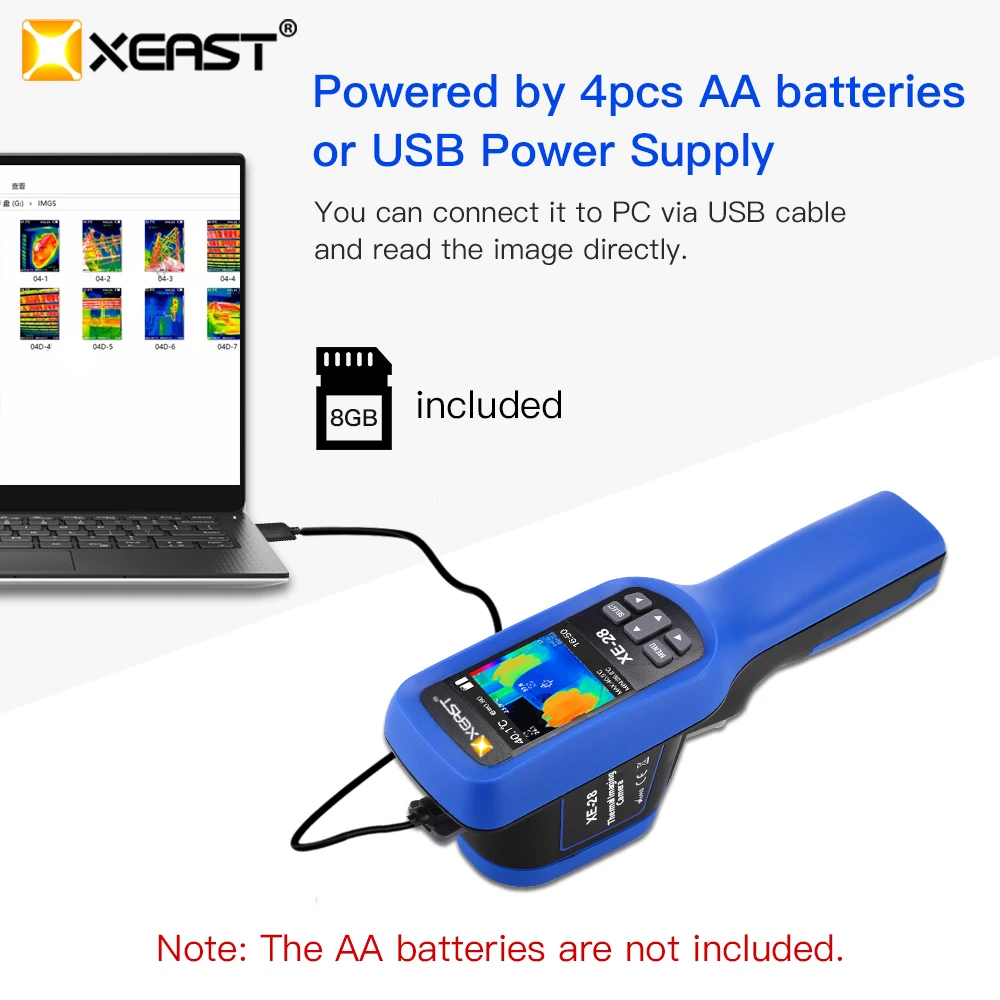

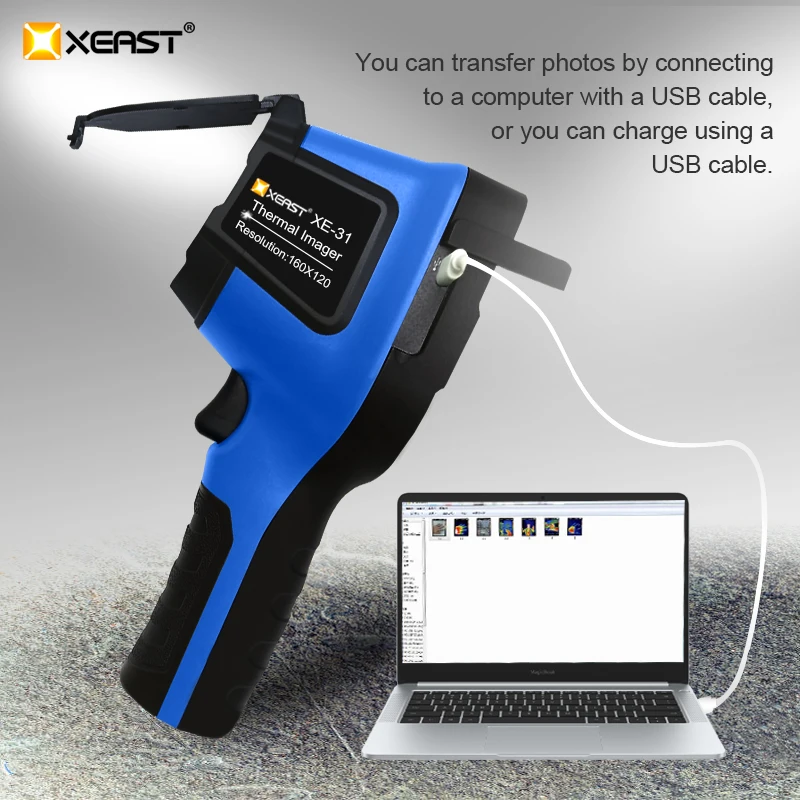

USB:is used to read SD card (after connectingPC,SD card exists in the form of mobile U disk)

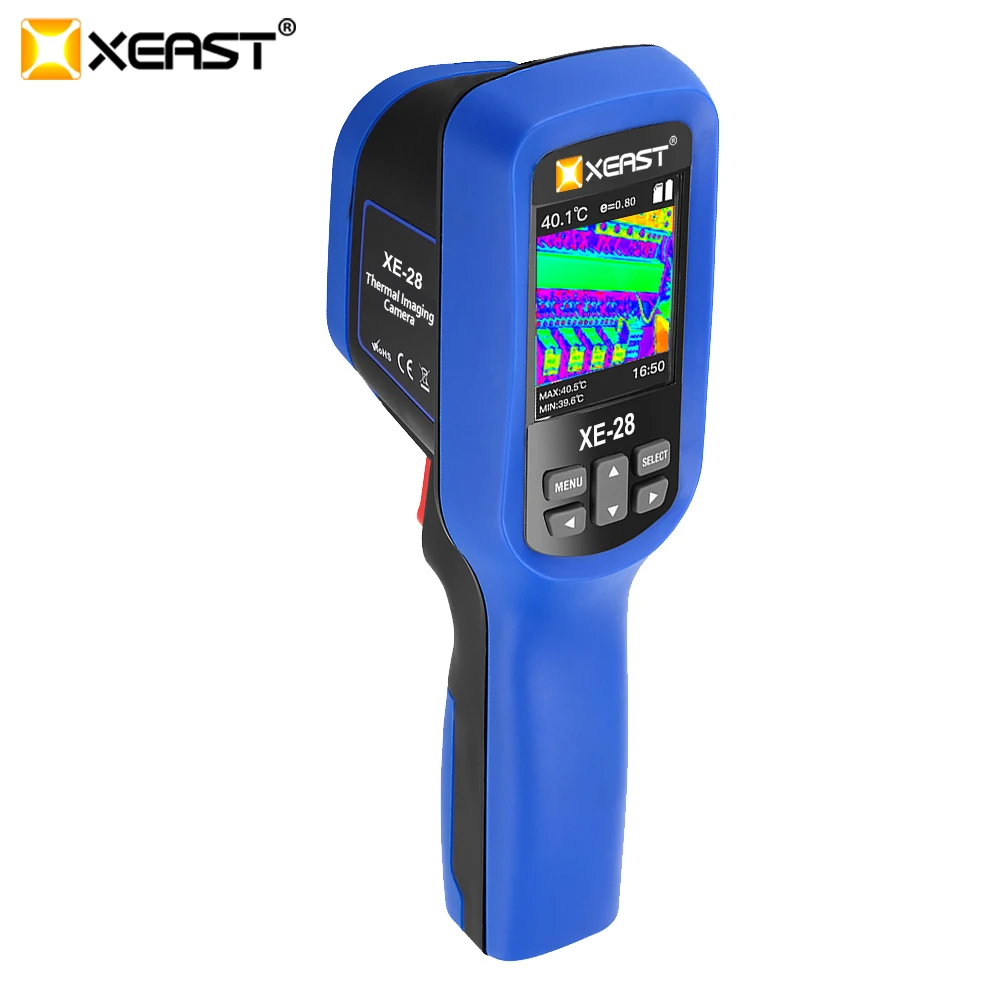

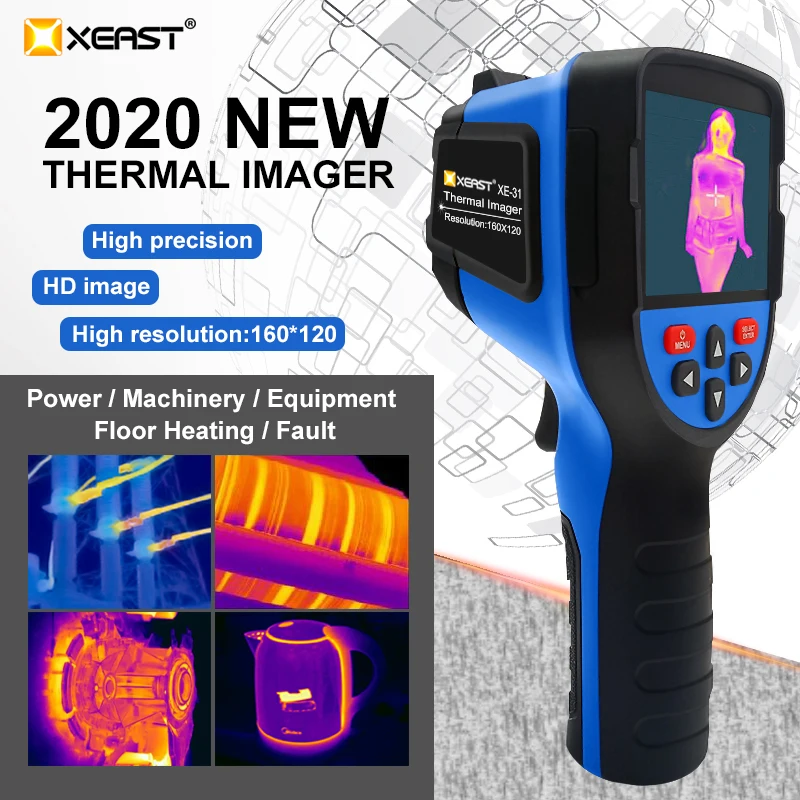

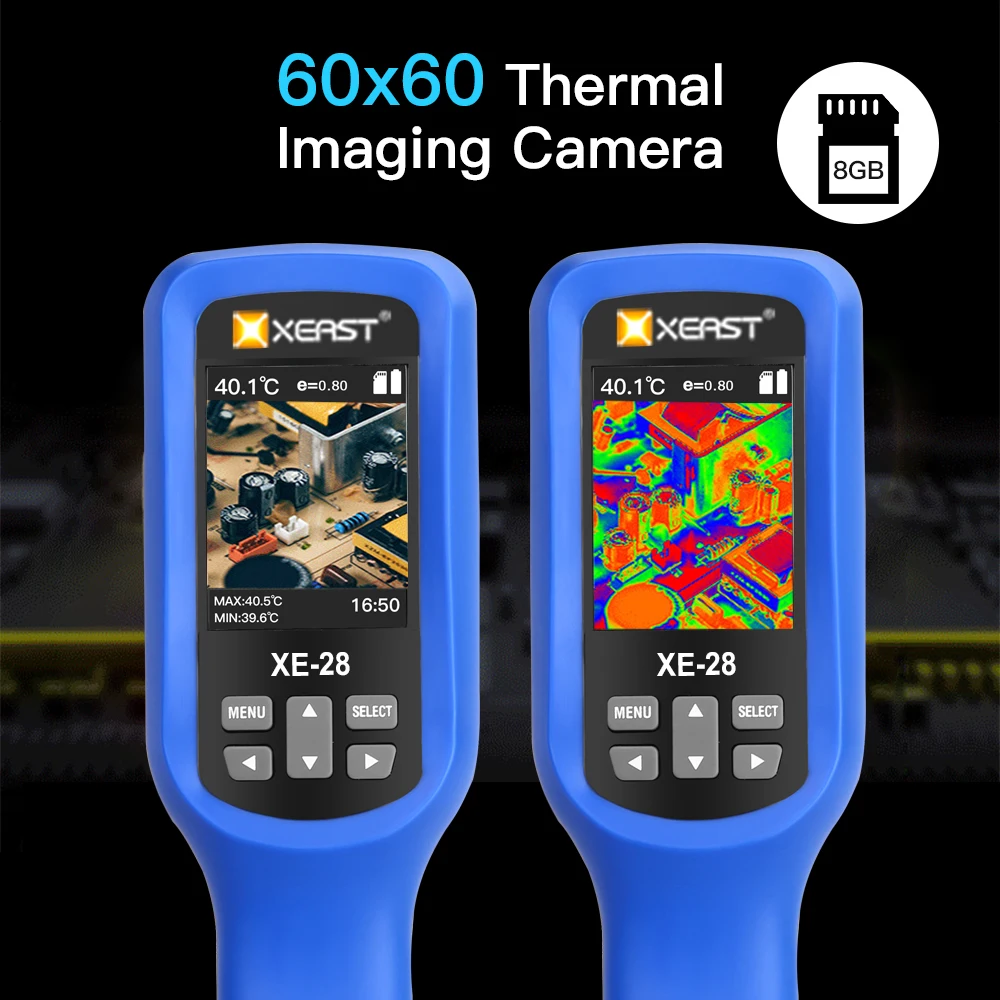

XEAST 2020 New Released Color Screen Handheld Thermal Imager Infrared Thermal Imaging Camera XE-28(60*60) and XE-31(160*120)

Specification Comparison Table to XE-28/XE-31

Model	XE-28	XE-31
IR Resolution	60*60	160*120
Temperature Range	-20℃~380℃/-4℉~716℉	-20℃~380℃/-4℉~716℉
Accuracy	±2% or ±2℃(±4℉)	±2℃ (±3.6℉) or ±2% of reading
Display	2.5" TFT 320x240 Pixels color	3.5" TFT 320x240 Pixels color
Visible Camera	300,000 pixels	300,000 pixels
Field of View(FOV)	20°x20°	20°x20°
Best Focus Distance	0.5m	0.5m
Thermal Sensitivity	0.5℃	0.15℃
Emissivity	0.1-1.0 Adjustable	0.10~1.0 adjustable
Wavelength Range	8-14μm	8-14um
Color Palettes	Iron color,rainbow and gray	Iron red,Rainbow, Gray(white hot) scale(black hot)
Image Capture Frequency	9HZ	9Hz
Focus Mode	Fixed	Fixed
Image Storage	SD Card(TF Micor) 8GB	SD Card(TF Micor) 8GB
File Format:	bmp	bmp
Power Type	4 * 1.5V AA battery and USB	4*1.5V“AA”size battery and USB
Battery Life	6 hours	6 hours
Working Conditions	-5℃ to 40℃ (23℉ to 104℉)	-5℃ to 40℃/23℉ to 104℉;10%RH to 80%RH
Storage Conditions	-20℃ to 50℃ (-4℉ to 122℉)	-20℃ to 50℃/-4℉ to 122℉;10%RH to 80RH
Item Size	260200102mm	260200112mm
Item Weight	0.3kg	0.35kg
Package Includes	1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box	1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box

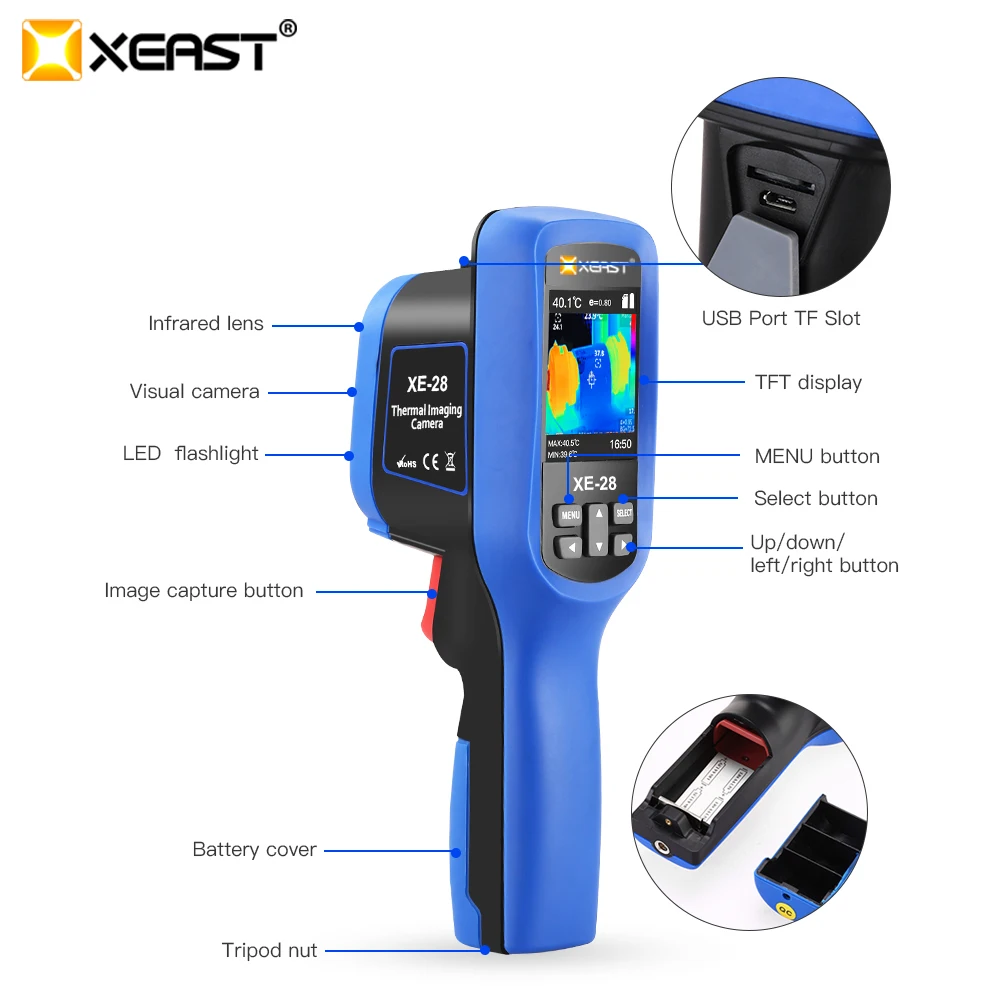

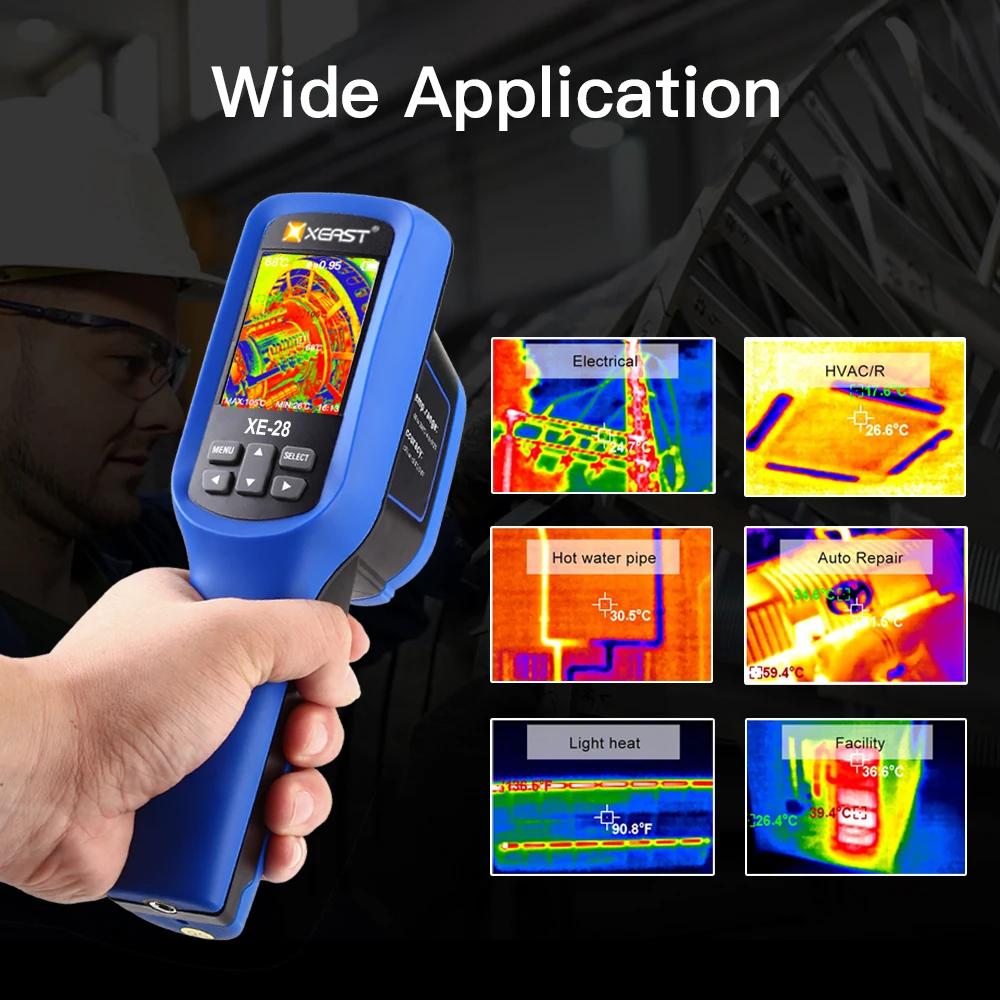

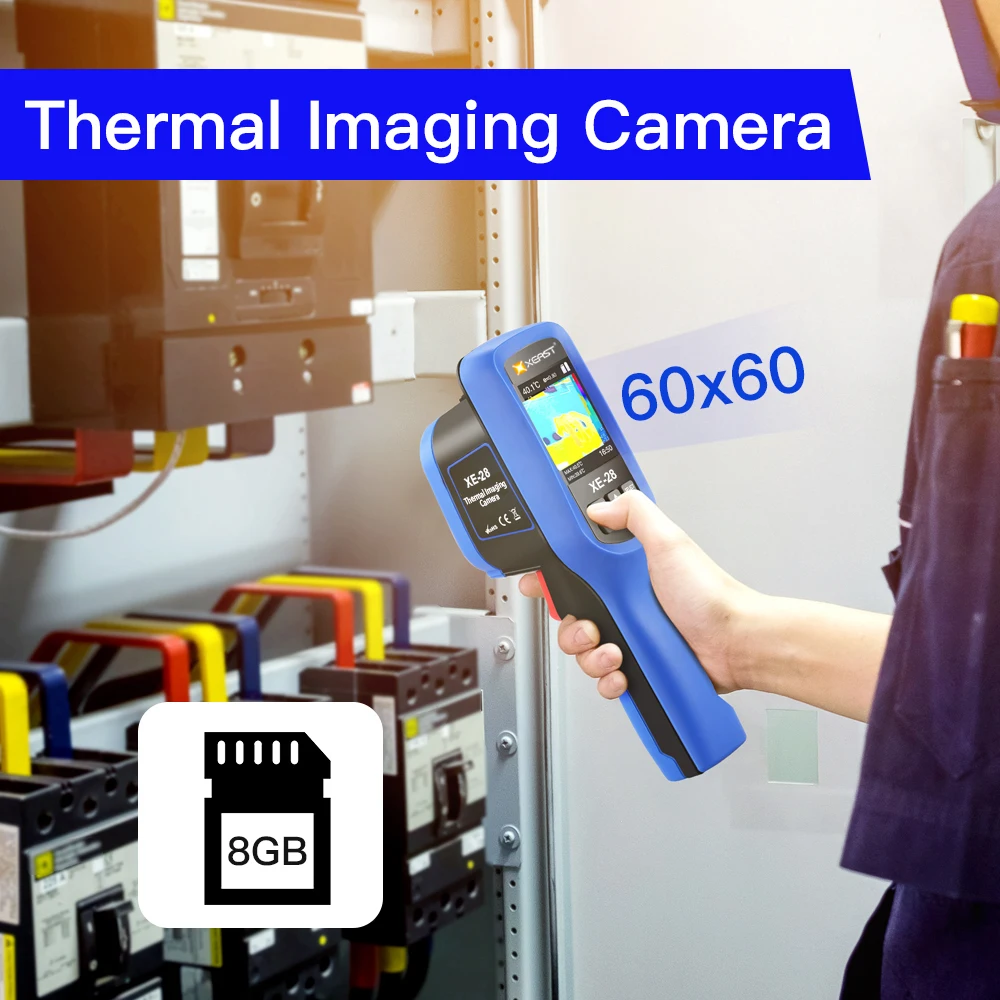

应用素材-2 分析图应用素材-1 应用素材-4 应用素材-3 传输功能

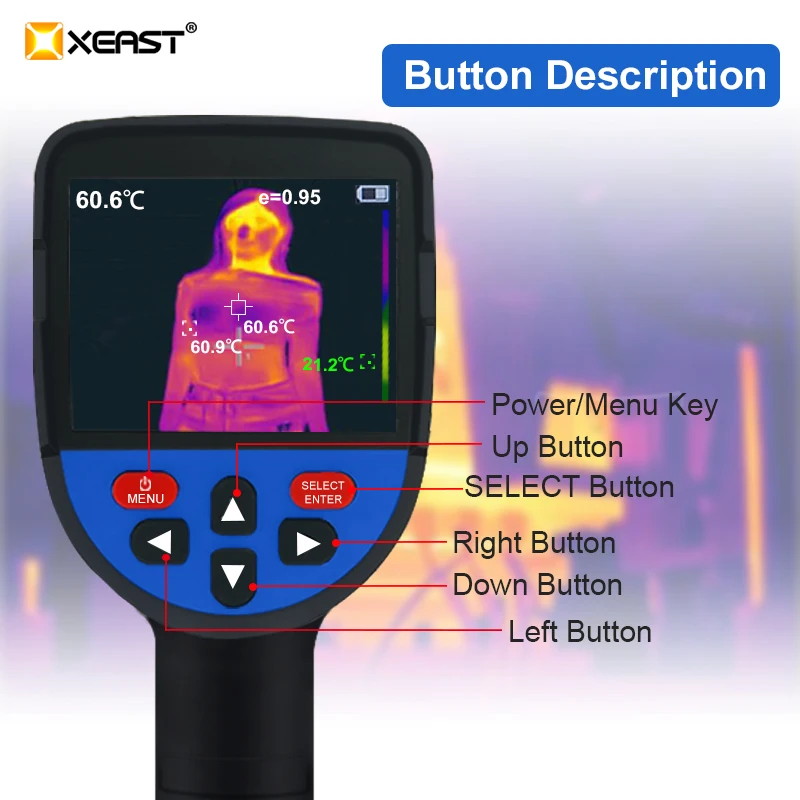

按键描述

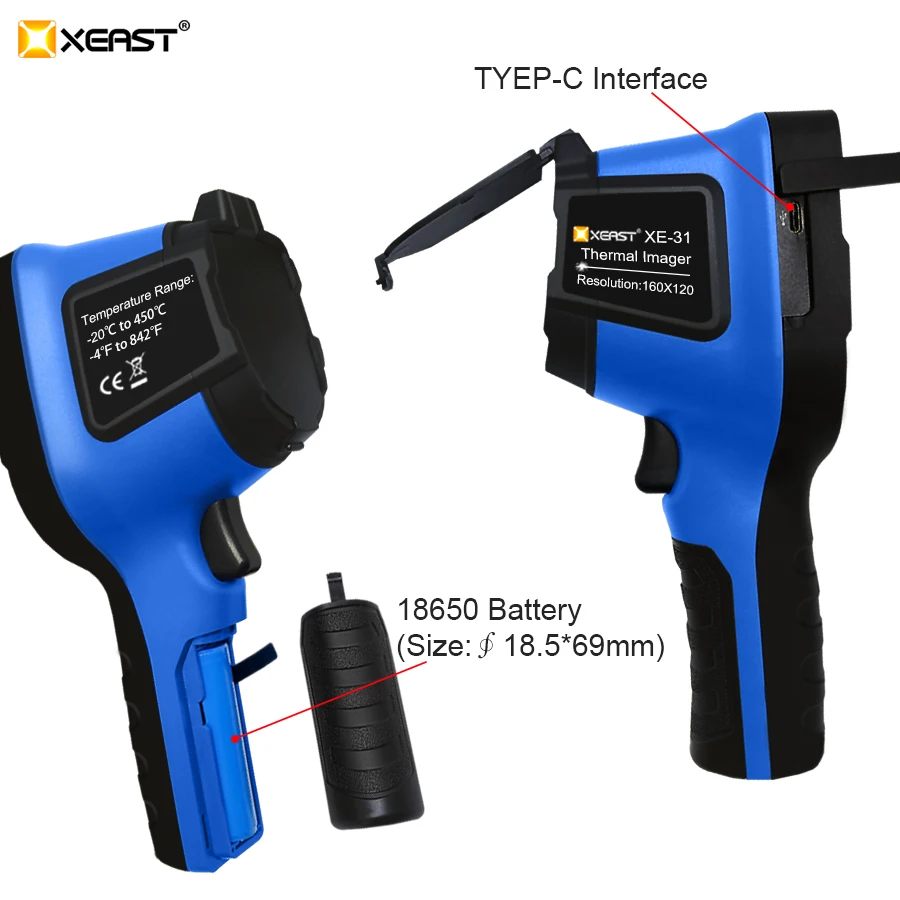

USB孔电池仓描述

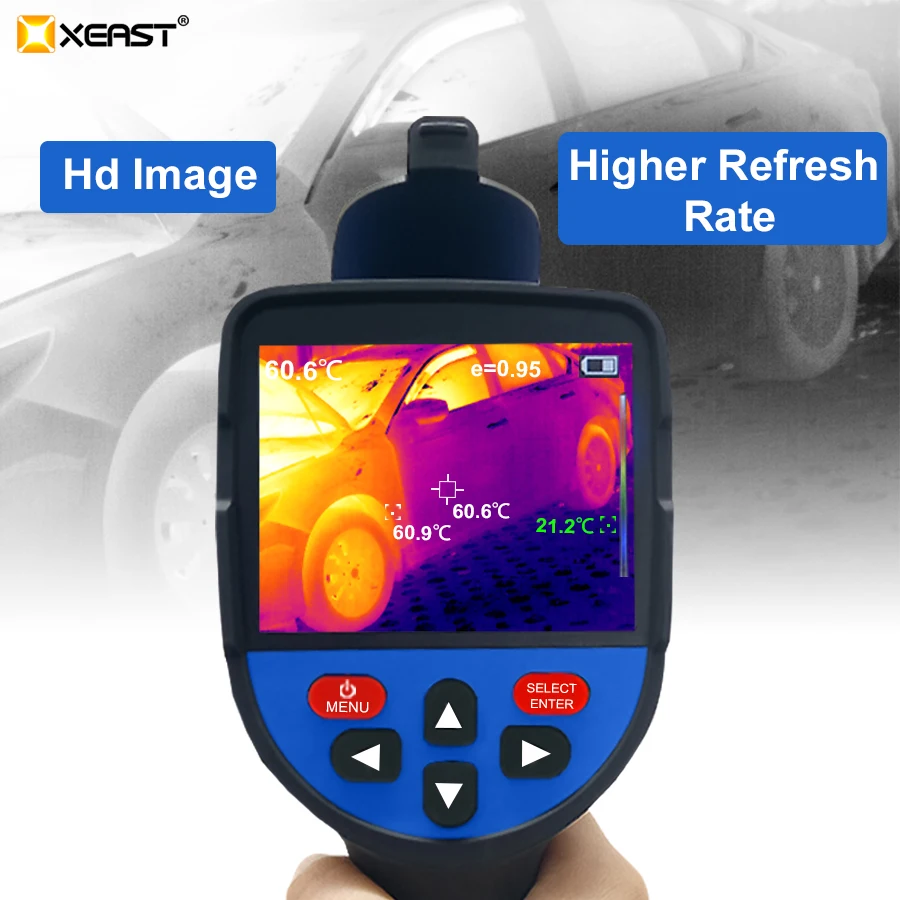

高清图像

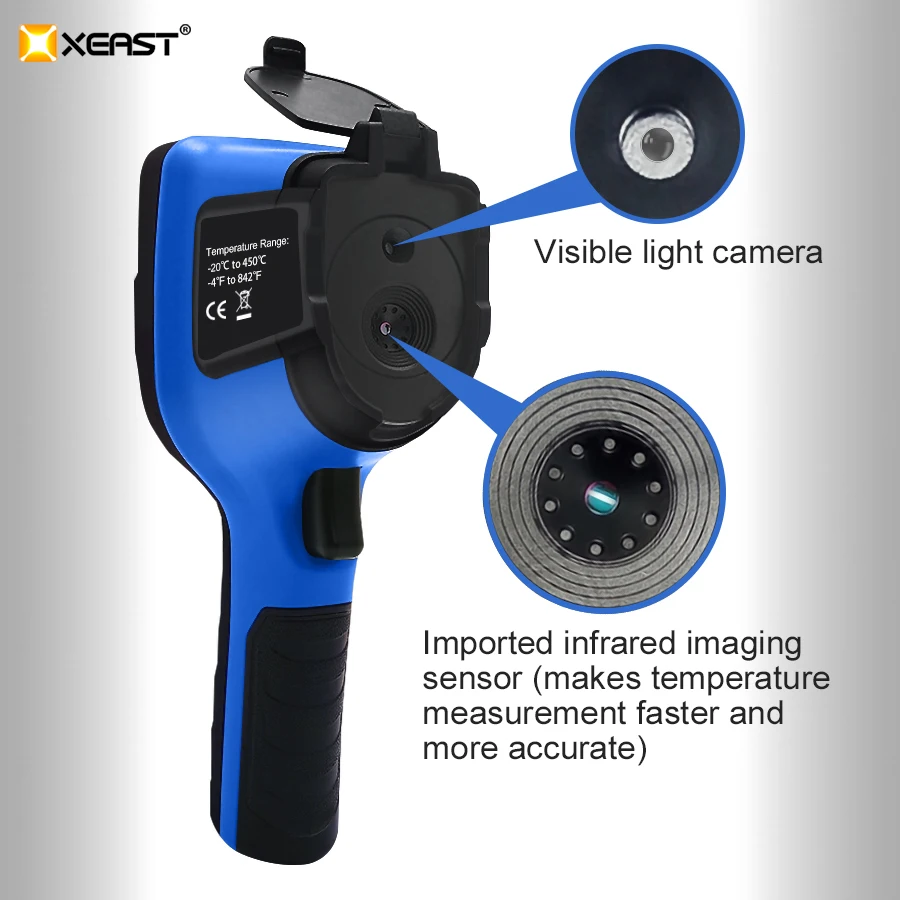

激光头展示

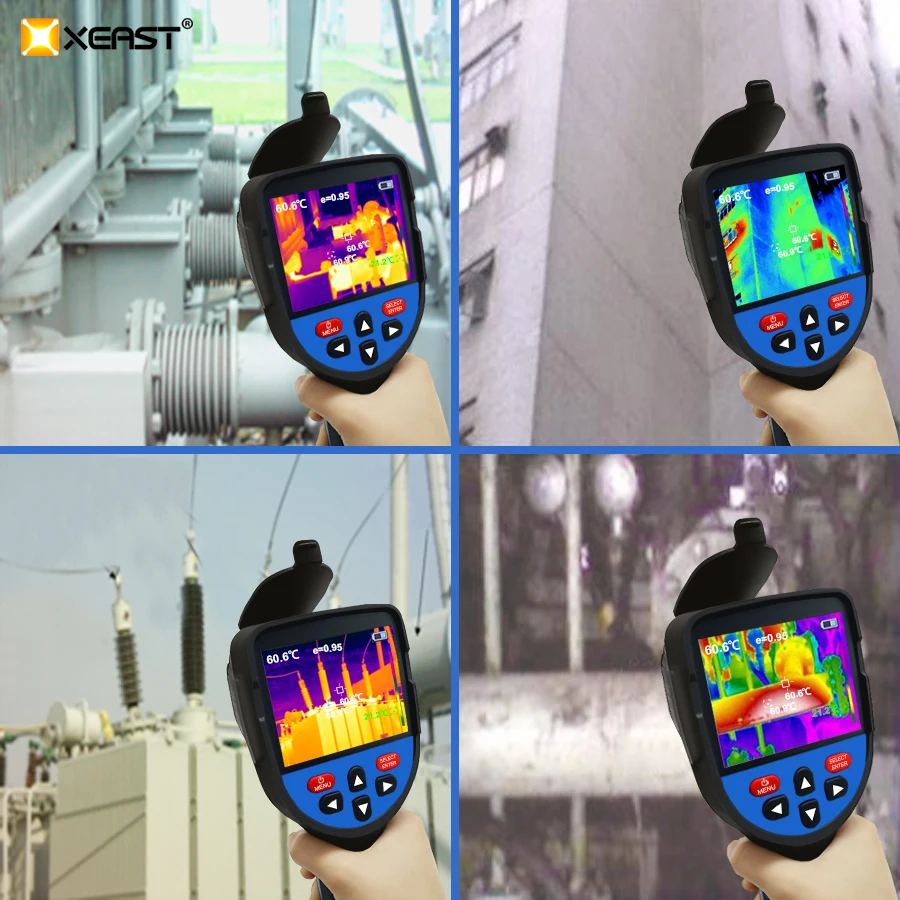

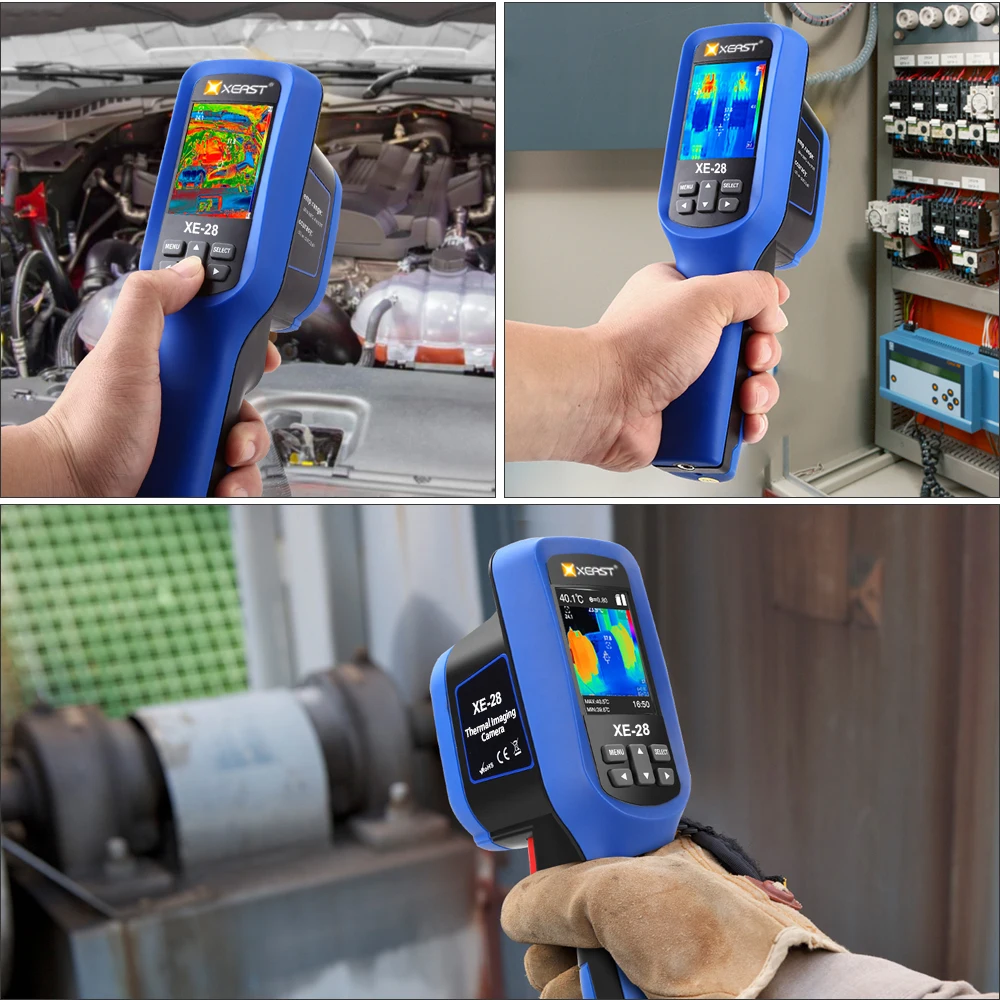

应用场景
