Product description:
1. The frequency divider for a treble +mid +bass speakers , the design is to take 4-8 OHM public value of the design, the market finished products are mostly the same, in order to better improve the sound quality , In the purchase at the same time presented debugging accessories.
2. Divider is a popular product, connected to a variety of speakers, with just when the bass is very appropriate, the best sound quality; but not all speakers and all dividers are the best With the use of the treble may be too much or too little ah, the bass frequency and the low frequency of low frequency, or bass too thick ah and so on; you can carry out the next step.
3. parameters no matter how good, is always the reference data, the sound quality is ultimately determined by the listener, some people like to listen to treble, some people like to listen to bass; even if the parameters are very consistent, but with different speakers, Listener tastes, what's the use? People do not like this sound, is like the kind of sound, no way to change. When the then frequency divider, the next step is to solve the different requirements of the individual debugging, debugging debugging, that effect sound listeners like to use that tone. Can be assured debugging, are within the scope of the speaker.

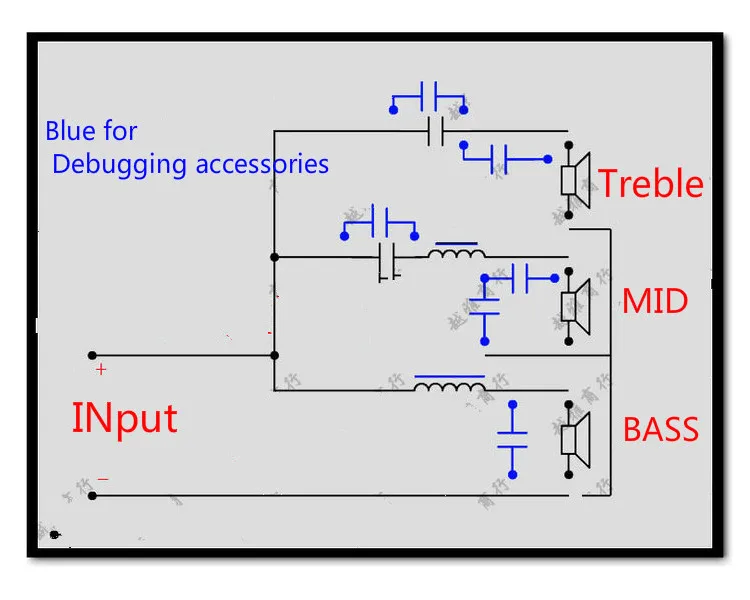

Debugging Briefly: Each division is equipped with two parts
Treble debugging: 1: If ok ,do not have to debug. 2: add Change the high-frequency component of the treble. 3: Reduce Change the high-frequency component of the treble.
Bass debugging: 1: If ok ,do not have to debug. 2: Change the low-frequency component of the bass. 3: Change the low-frequency component of the bass.
Product parameters:
Model: independent Treble + mid+ bass divider

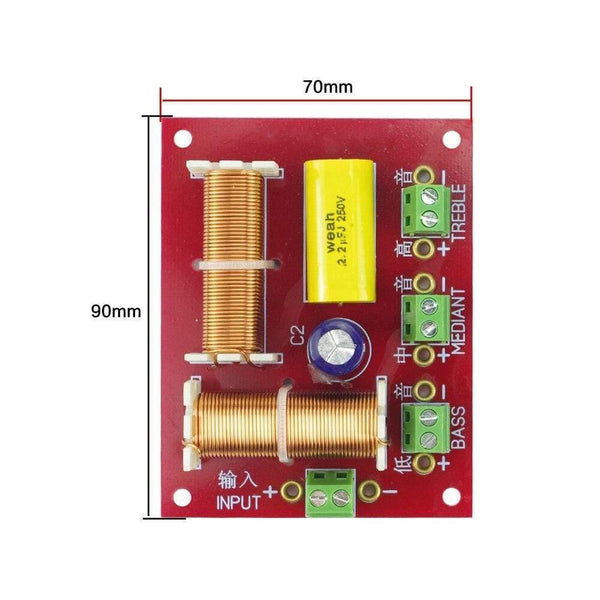

Size: 9 cm length, 7 cm wide, 2.5 cm thick.
Frequency: 1000HZ/7000HZ (That is, bass work in the Below frequency 1000HZ, midrange work between 1000HZ-7000HZ, treble work above in 7000HZ ).
Power: 200W.
Impedance: 4-8 OHM.
Circuit: determined by the debugging 6db / oct to 12db / oct.
Net Weight:104g/pcs
Materials:
Inductance with oxygen-free copper around the system, pure copper wire diameter thick, has been verified, 100% pure copper wire, never with enameled aluminum production; capacitor with audio dedicated non-polar capacitor, Reasonable design, beautiful appearance, excellent sound quality
