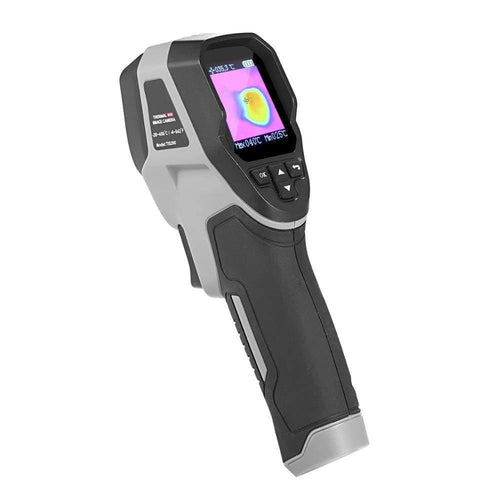

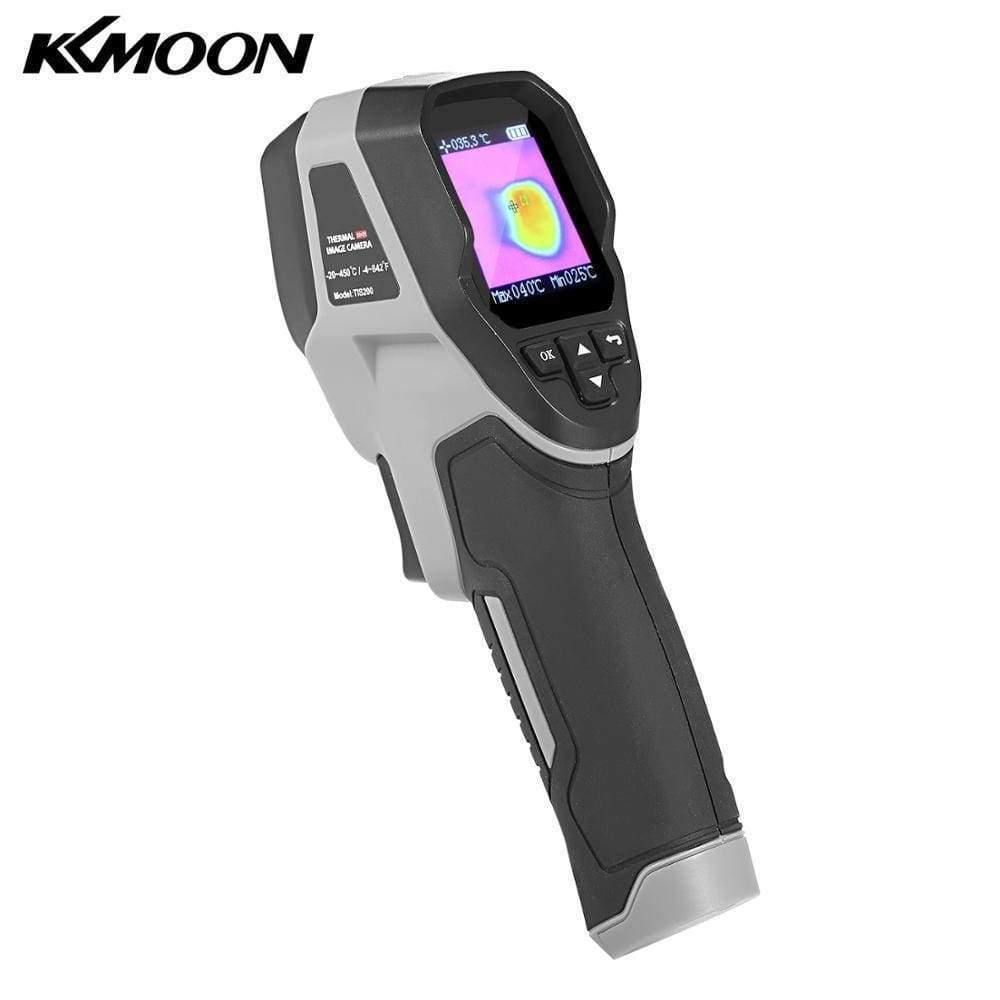

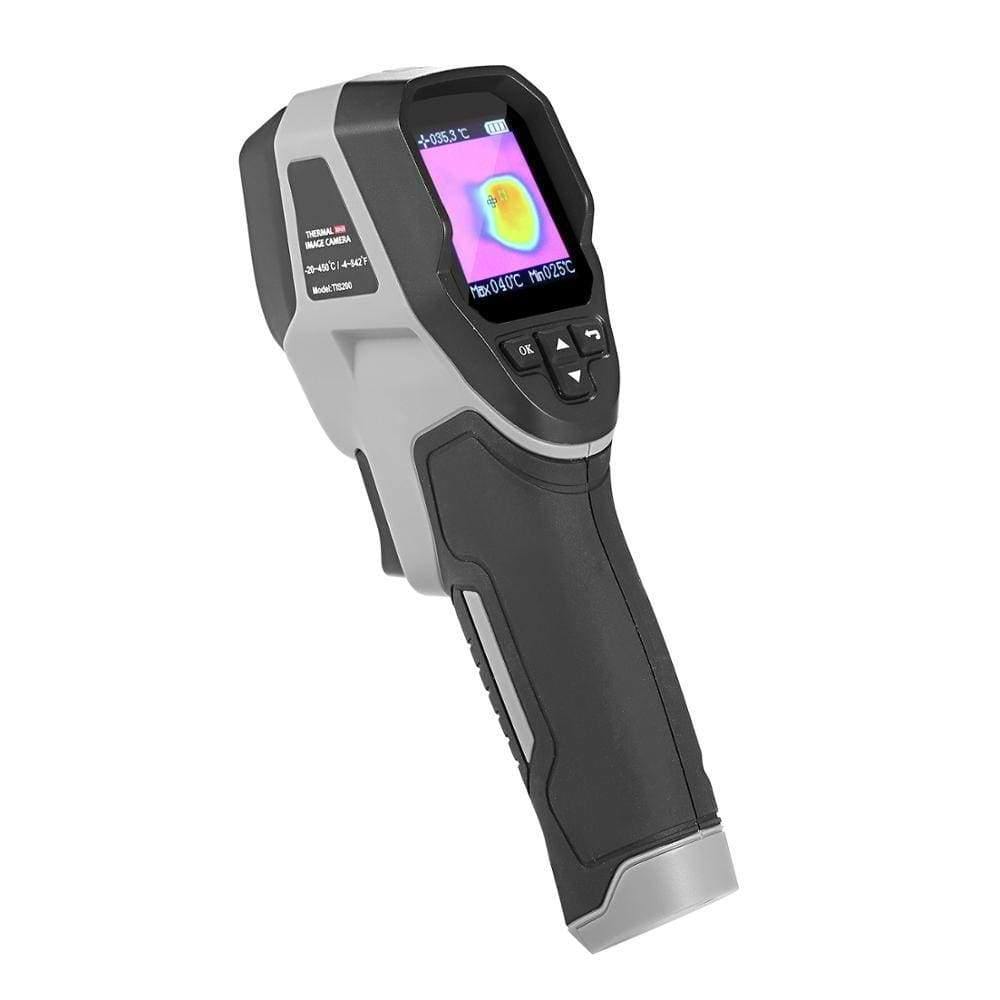

-20~450℃/-4~842℉ KKMOON Infrared Thermal Imager IR Infrared Imaging Devices Mini Handheld Thermal Imaging Camera

The thermal imaging camera is a handy tool to visually detect high and low temperature with both heat-mapped color palettes and actual temperature reading. This easy-to-use thermal camera displays and saves images that can be reviewed later from a memory card(NOT included). With a wide temperature range of -20~450℃(-4~842℉), this versatile tool can be used for a wide variety of automotive, industrial, electrical and home applications.

 Type：

Thermal Imager 1：human body&industry use：（-20℃ to 450℃）

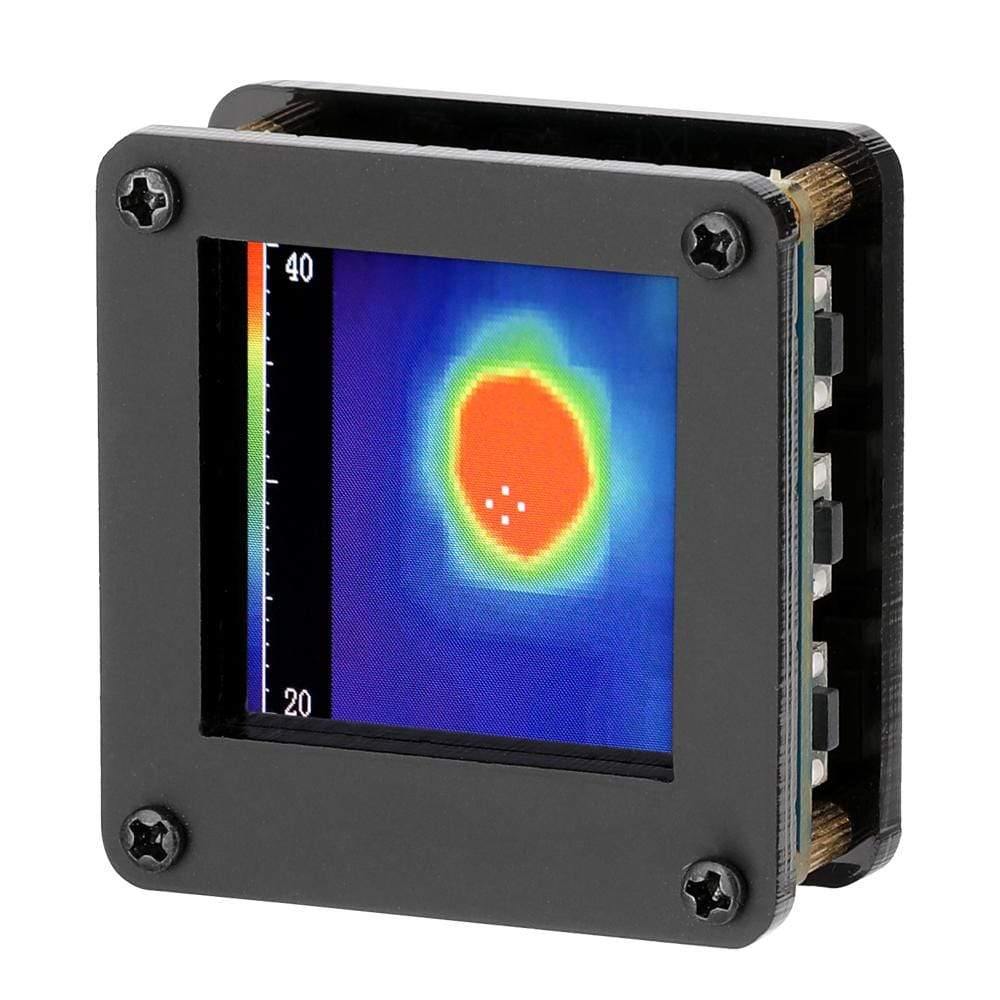

Thermal Imager 2：object use：（-20℃ to 80℃）

Details：https://www.aliexpress.com/item/4000504302955.html

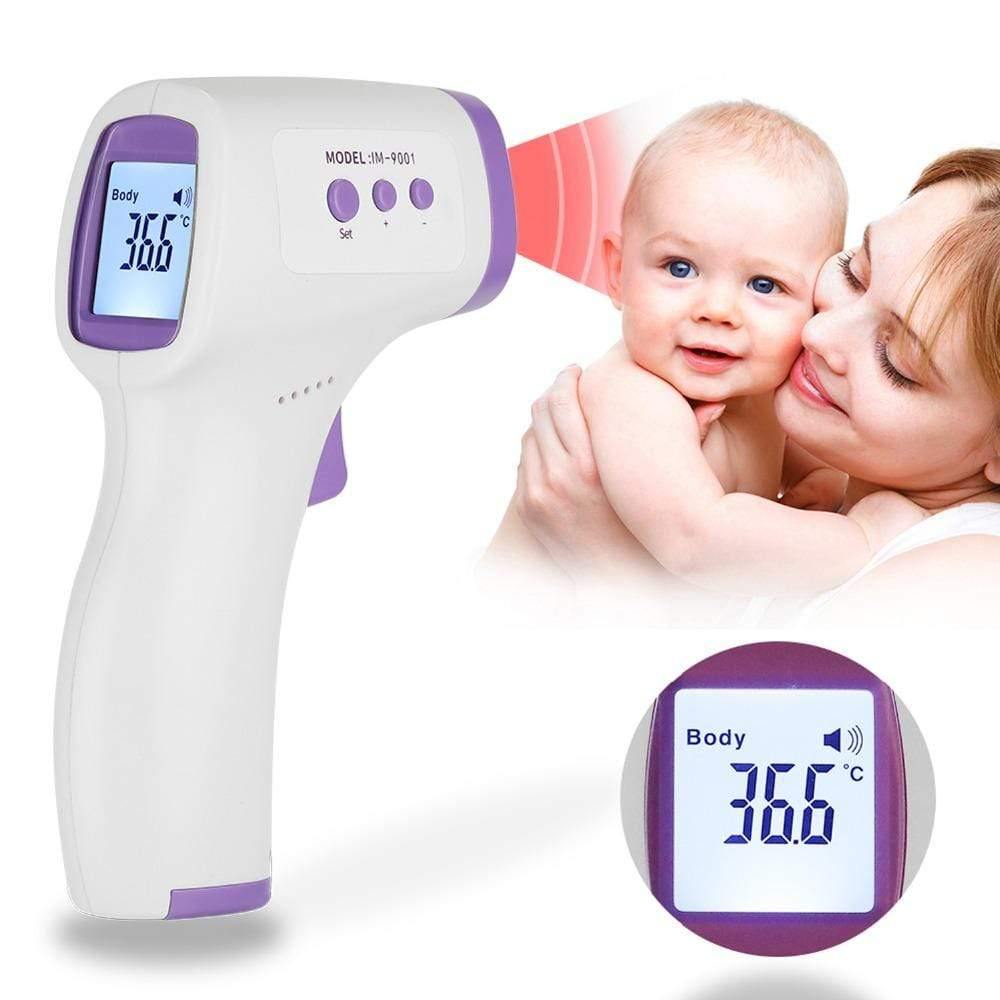

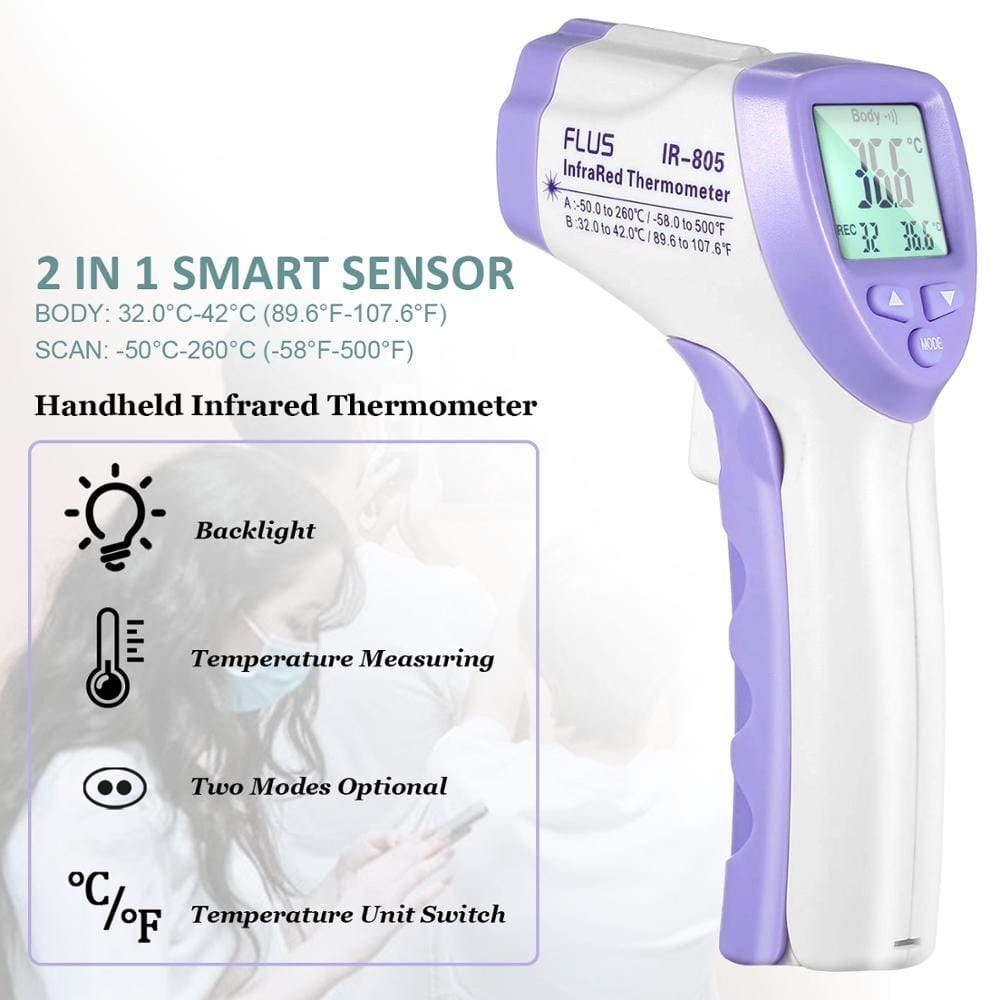

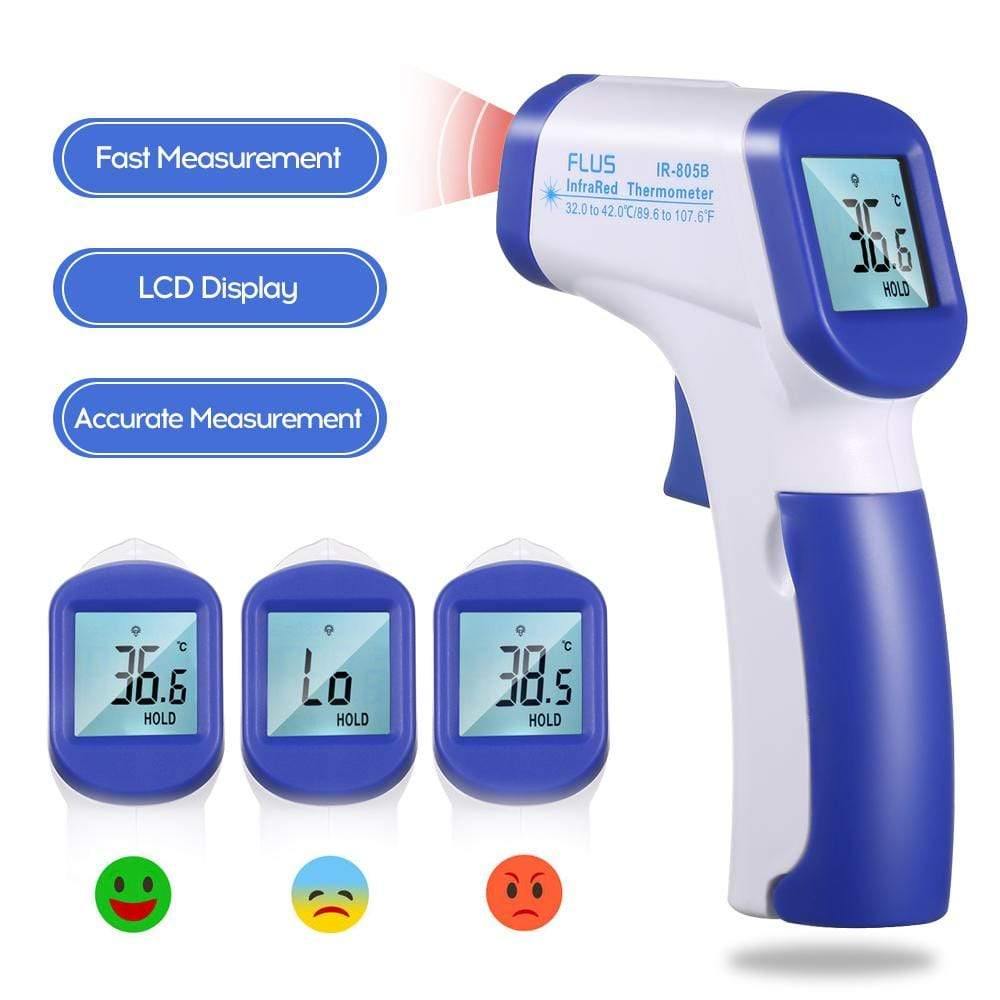

Thermometer 1   human body：（32℃ to 42.5℃ ） industry：（0℃ to 60℃）

Details：https://www.aliexpress.com/item/4000811521410.html

Details： https://www.aliexpress.com/item/4000829980716.html

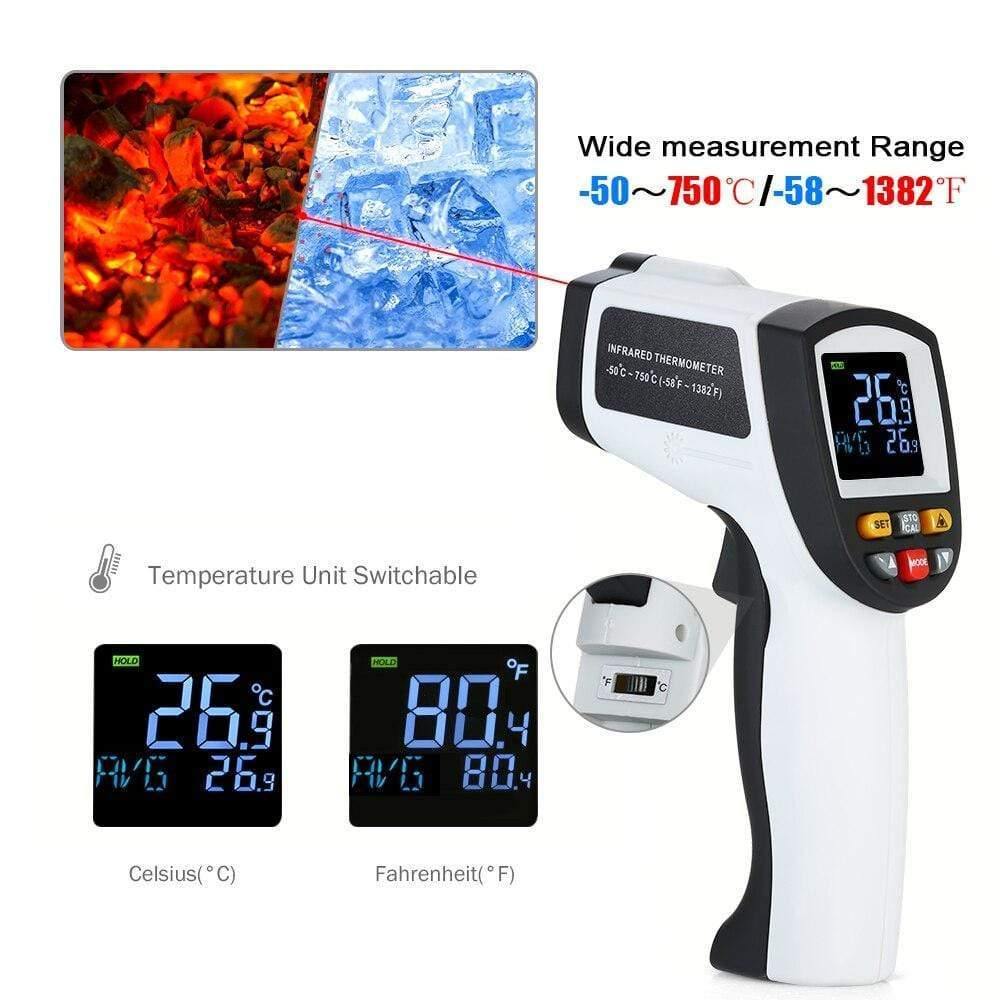

Thermometer 3：industrial use（-50℃ to 750℃）​

​

Thermometer 4：industrial use（-50℃ to 950℃）

Details：https://www.aliexpress.com/item/4000884448149.html （  Accuracy: ±1.5℃）

Details：https://www.aliexpress.com/item/4000823835291.html

Features:

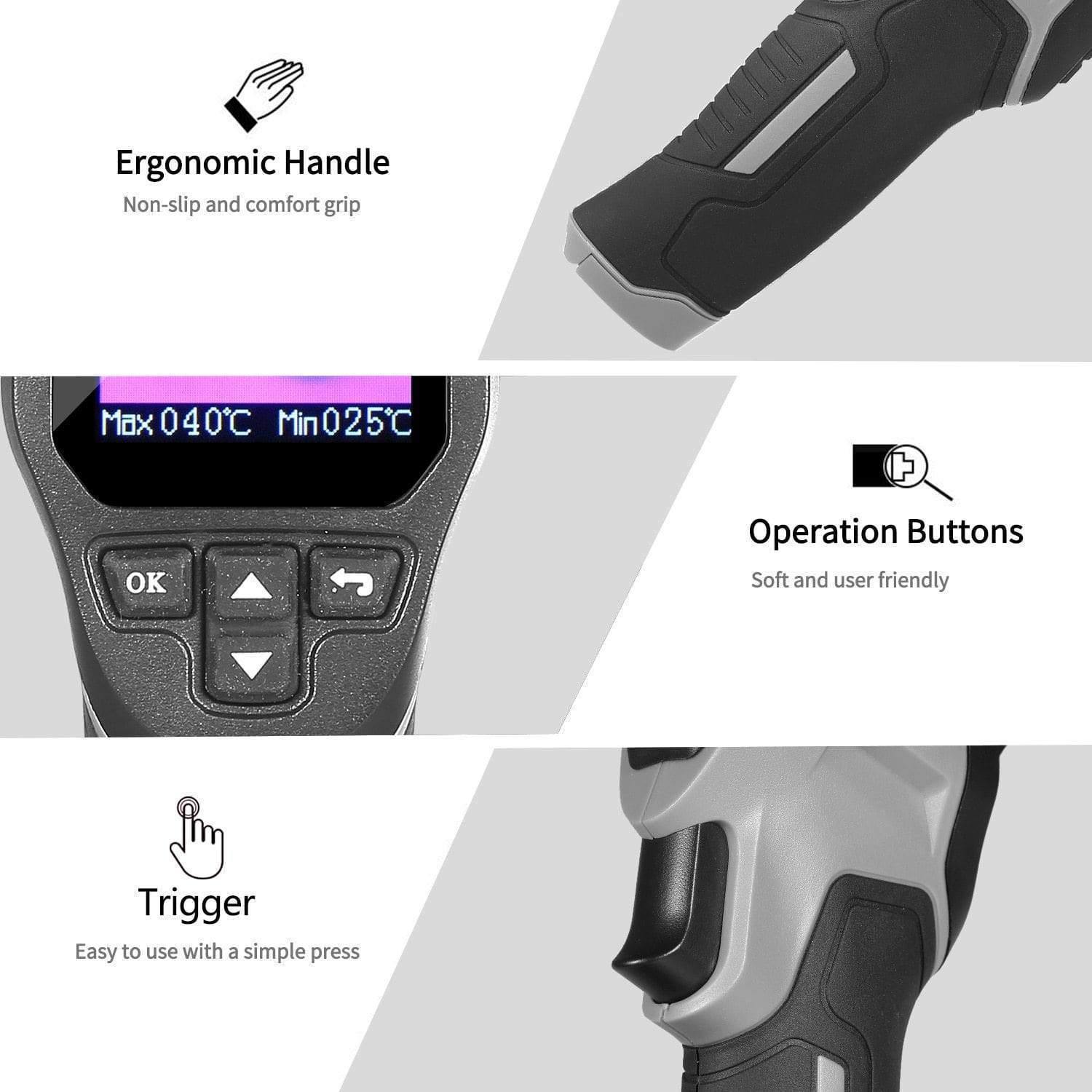

Easy Operation: to use the thermal imager, simply point at the object you want to check and view the LCD screen.
Power Saving Auto-off: it designed with auto shut down to save the energy, you can choose from OFF, 1min, 2min, 5min, and 10min. Battery indicator in the upper right corner.
Wide Temperature Range: the temperature measurement range is from -20℃ to 450℃(-4℉ to 842℉), and the temperature units is in ℃/℉ switchable, ±2% temperature measurement accuracy.
Support Memory Card: it supported with external memory card, the captured images can be stored and reviewed later by accessing the memory card menu.
Storage Pouch: store the thermal imager in the included bag to ensure its longevity and accuracy.

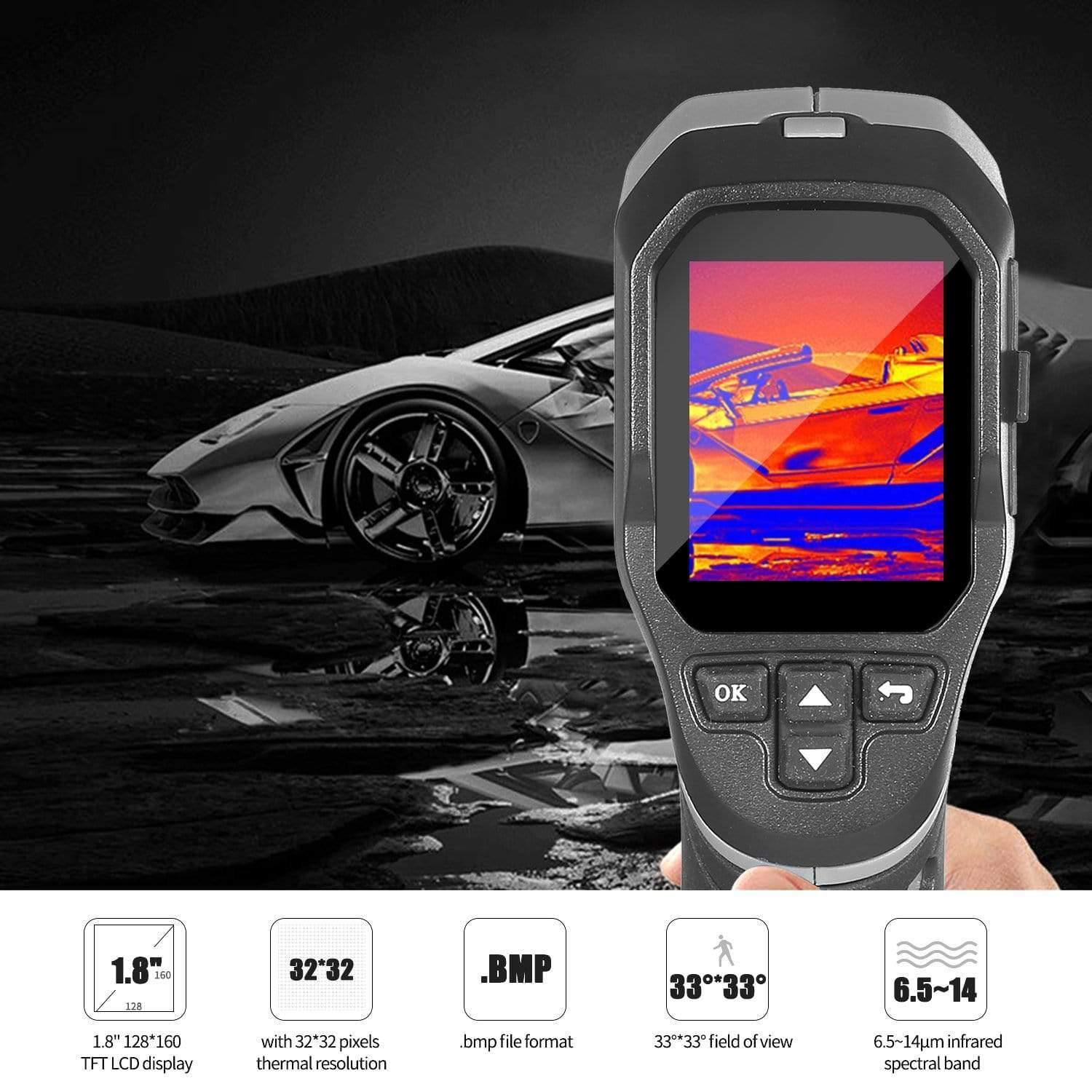

Other Features: 1.8" 128*160 TFT LCD display, with 32*32 pixels thermal resolution, .bmp file format, 33°*33° field of view, 6.5~14μm infrared spectral band, etc.

Specifications:
Material: ABS+TPR
Color: Black & Grey
LCD Display: 1.8" 128*160 TFT
Thermal Resolution: 32*32 pixels
Image Capture Frequency: 9Hz
Thermal Sensitivity(NETD): ≤150mK
Hot and Cold Spot Tracking: Yes
Date/Time Setup Controls: Yes
USB Interface: Yes
Temperature Measurement Range: -20~450℃/-4~842℉
Temperature Measurement Accuracy: ±2% as tested (at 25℃)
On-screen Emissivity Correction: Yes
On-screen Reflected Background: Yes
Temperature Compensation: Yes
Detector Type: Infrared thermopile array sensor
Infrared Spectral Band: 6.5~14μm
Field of View: 33°*33°
Focus Mechanism: Fixed focus

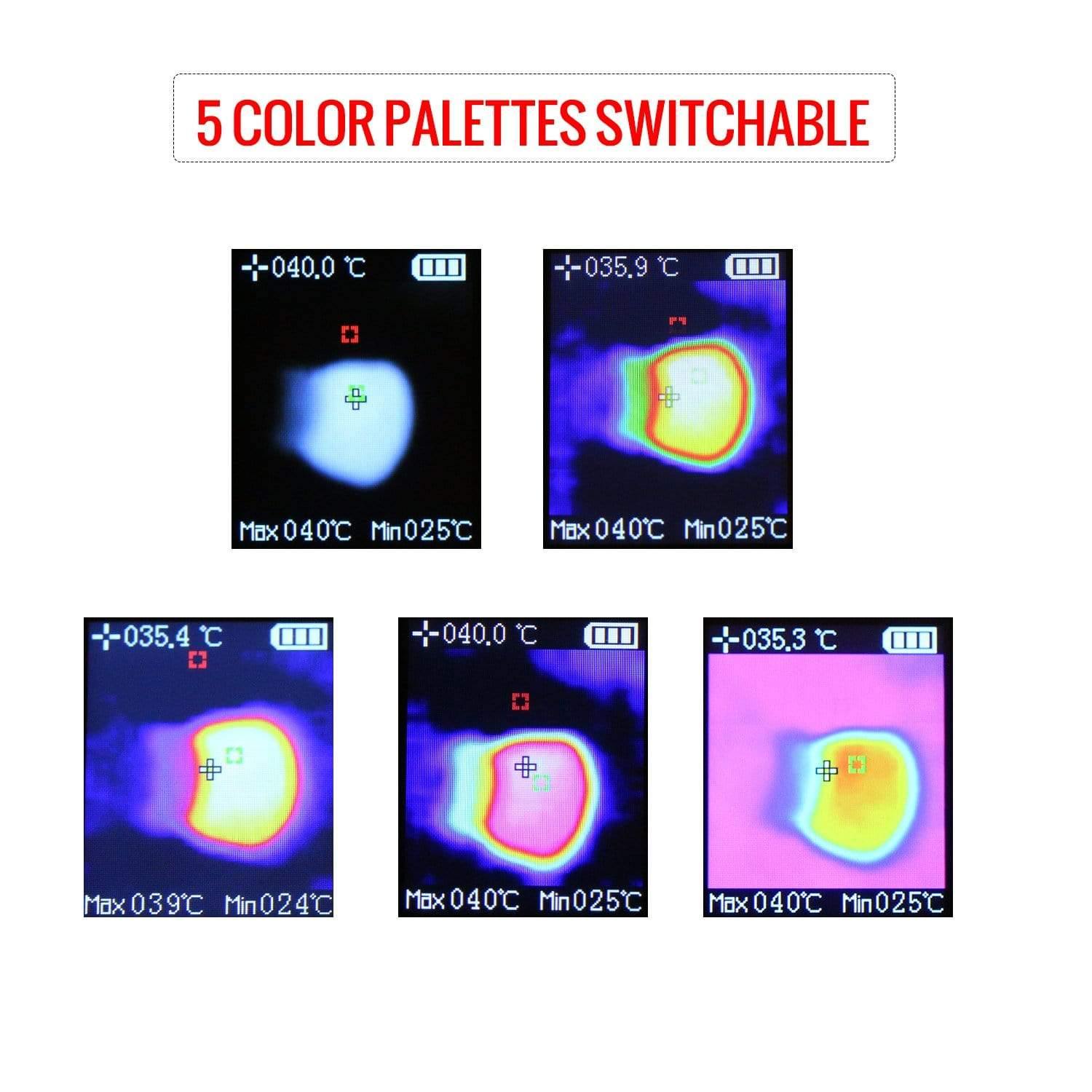

Selectable Palettes: 3
Level and Span: Auto
Image Capture: Captured thermal image
Storage Medium: Memory Card(NOT included)
File Format: .bmp
Memory Review: Scroll through all saved images and view on-screen
Power Supply: 4 * 1.5V AAA battery (Not included)
Item Size: 175 * 45 * 70mm / 6.89 * 1.77 * 2.76in
Item Weight: 126g / 4.44oz
Package Weight: 335g / 11.81oz
Package Size: 33 * 25 * 24.5cm / 12.99 * 9.84 * 9.64in

Package List:
1 * Thermal Imager
1 * USB Cable
1 * Pouch
1 * Manual (English)
