Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Origin: Mainland China
Item Weight: 72g
Placement on Vehicle: front
Material Type: abs
Special Features: Fuel Level Meter Gauge
Country/Region of Manufacture: china
Item Width: 52mm
Item Height: 18mm
SUIT: can suit 12v and 24v
wire length: 50cm
Choice: yes
semi_Choice: yes
Features:
8 Blue LED display Fuel
1 yellow LED means that the gas is few, and 1 red LED means the petrol is almost running out
This oil meter has a delay function circuit that does not cause flickering of the LED display because the tank is sloshing during driving. Blue LED can be clearly shown in strong sunlight

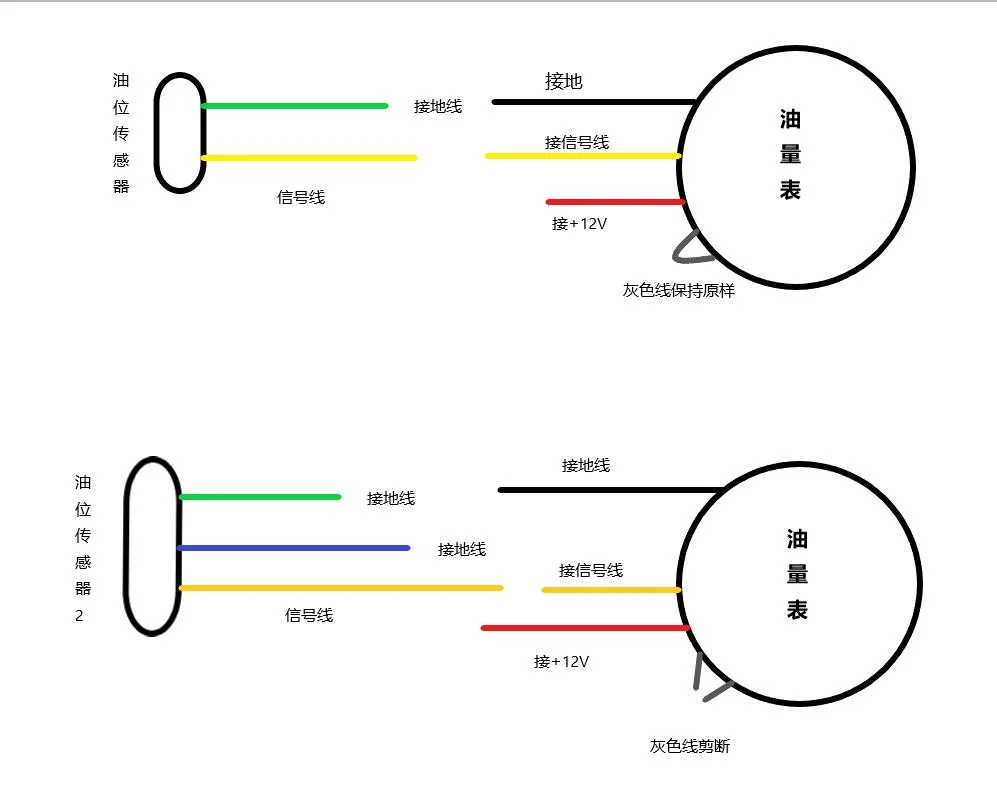

Installation:
1. Orange +12V 24v connect Power Positive
2. Black connect Power Negative
3. Yellow Wire connect Oil can Sensor(must not connect with the original test wire, or this Fuel Gauge is inaccuracy)
Important:
This product must be used with the oil capacity sensor (that is, oil float)
Attention:
This product only matches with vehicles whose oil is full and resistance is small, or oil is running out, and resistance is large. If your oil float is in opposite situation, please place the order with great caution
Specifications:
Material: ABS
Numbers of LED: 10 leds (8 pcs blue,1 pc yellow,1 pc red)
LED Color: Blue/Green
Voltage: DC 12 24v
OHM Range: 0-566 OHM
Application for Car and Motor
Gauge Diameter: 52mm/2.06"
Height: 18mm/0.7"
Wire length: 37cm/14.57"
Quantity: 1 Pc
The fuel gauge needs to be equipped with a float for use.:
Two wire install Resistance range (8-98 ohm) and three wire install oil gauge Resistance range (33-565 ohm)
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Contents:
1 x Fuel Level Meter Gauge
