SPECIFICATIONS
Brand Name: SONOFF
Communication method: WI-FI
Hign-concerned Chemical: None
Origin: Mainland China
Certification: CE
Product series: DIY Smart Switches
Intput: 100-240V ~ 50/60Hz 10A Max
Output: 100-240V ~ 50/60Hz 10A Max
Max. power: 2400W
MCU: ESP32-D0WD-V3
Color: White

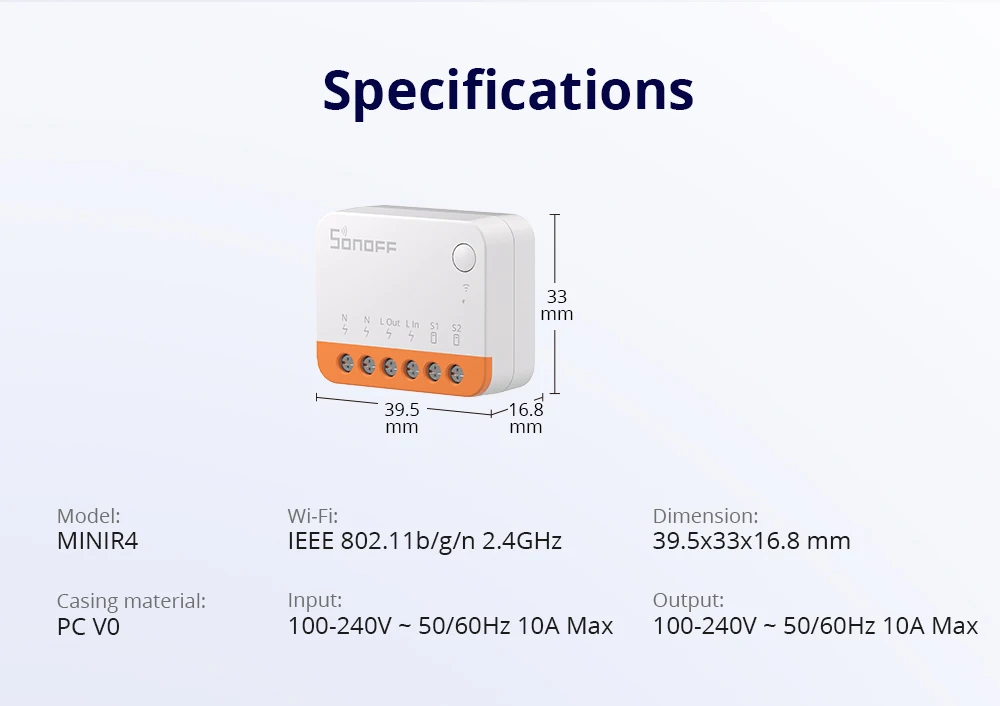

Product dimension: 39.5x33x16.8mm
Package dimension: 63x46x19mm
Net weight: 26.7g
Total weight: 34g
Casing material: PC V0
App operating systems: Android & iOS
Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
Bluetooth: Bluetooth V4.2
Applicable place: Indoor
Working humidity: 5%-95%RH, non-condensing
Working height: Less than 2000m

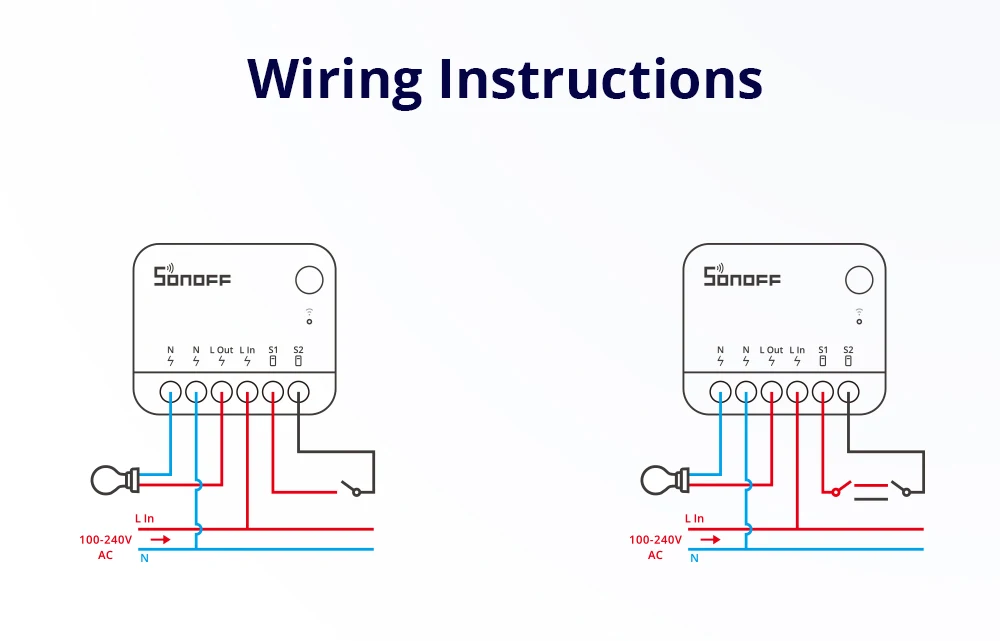

Wiring way: N and L
Installation method: Concealed installation(Install in the mounting box)
APP Control: Compatible With eWeLink APP
Voice Control 1: For Amazon Alexa Echo Smart Speaker Accessories
Voice Control 2: For Google Home Assistant Smart Speaker Accessories
Service: Retail, Wholesale, Dropshipping, Fast shipping, Free shipping
Stock: Sufficient
Type 1: Smart Home Automation DIY Module
Type 2: Smart Home Gadgets
Type 3: Smart House Kit
Type 4: Automation Residential
Type 5: Smart Home Security Protection Alarm System
Choice: yes
semi_Choice: yes
1/3/5PCS SONOFF R4 / R3 / R2 MINI Wifi Switch Mini Extreme Smart Home Module Voice Remote Control Alexa Google Home Alice
MINIR4 is a mini extreme WiFi smart switch equipped with ESP32 chip, that turns traditional switches into smart switches, automating lights and electronic devices, and tiny size fits in various mounting boxes, including the smallest EU-type/86 type/120 type mounting box. MINIR4 supports external switch control and easily connects to the momentary switch, door exit switch, SPDT switch, latching switch, and even dry contact sensors.
MINIR4 has "detach relay" mode, which means the states of external switches and relay are separated, so operating the external switch button won't affect the relay state. Such as, if you open detach relay" mode, when you turn off the light, your smart light won't be offline, and you still can use App to control smart lights.
MINIR4 is a smart switch with the gateway function of “eWeLink-Remote“.After pairing with MINIR4, MINIR4 can be controlled locally by S-MATE through "eWeLink-Remote" signal, and trigger other smart devices in the smart scene.

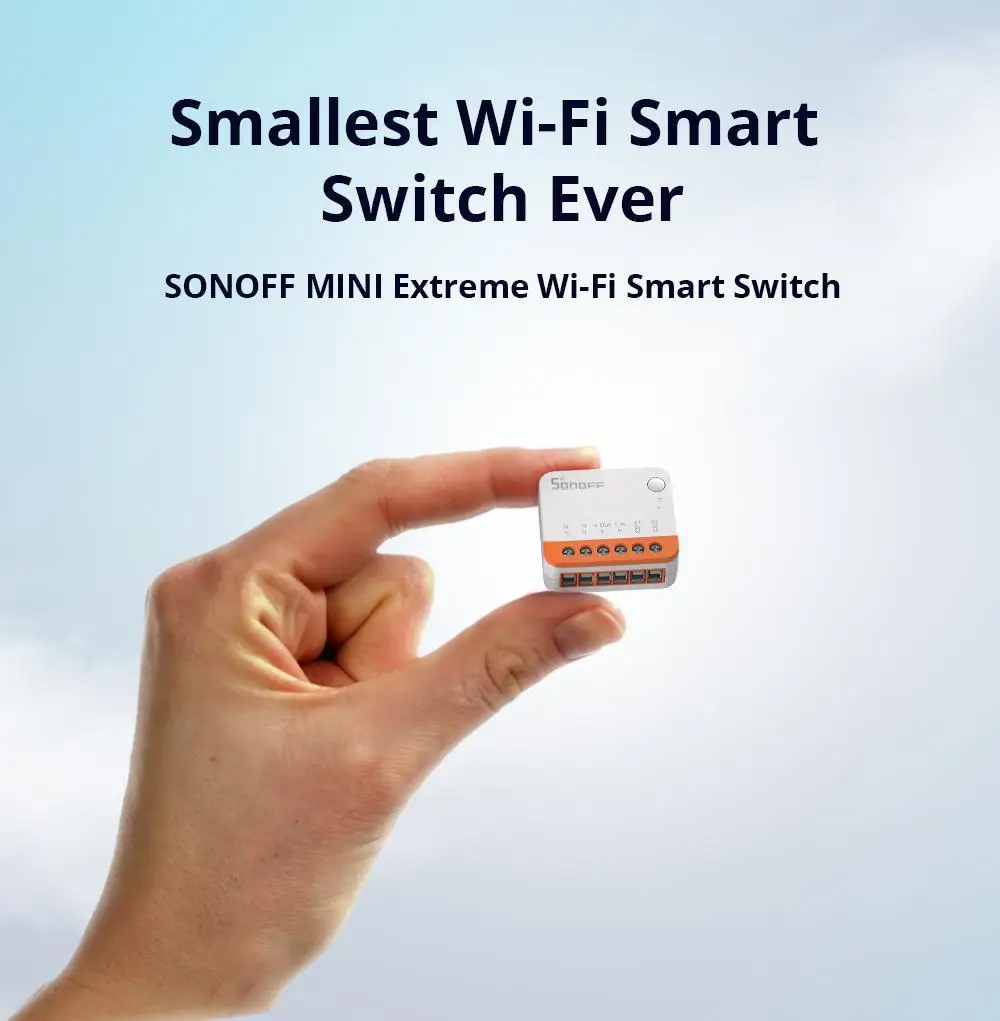

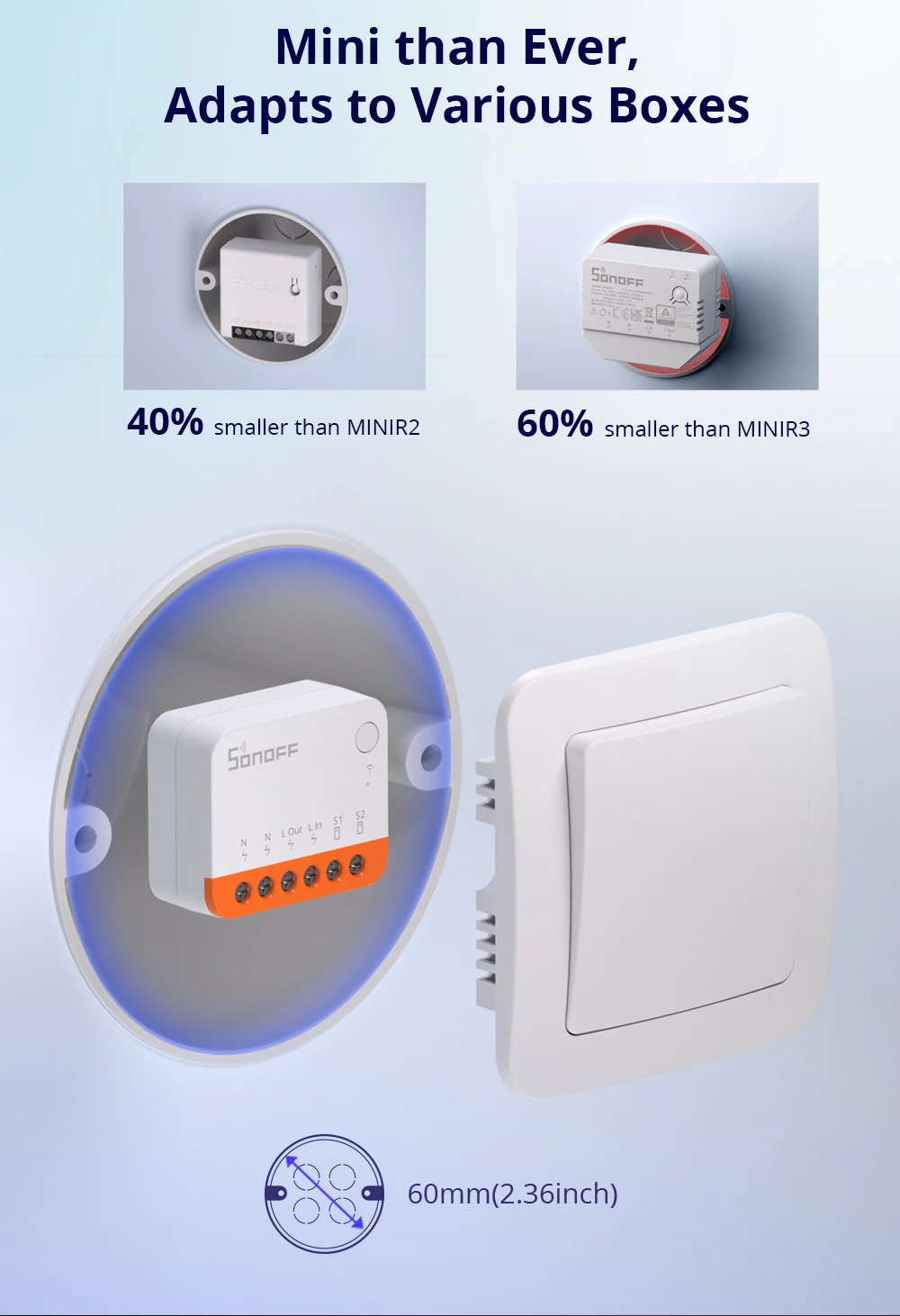

Mini than Ever, Adapts to Various Boxes
A brand new product that turns traditional switches into smart switches, automating lights and electronic devices. It’s 40% smaller than MINIR2, fits in various mounting boxes, including the smallest European standard ones.
Ultra-fast ESP32 Chip
The ESP32 chip is a highly sought-after solution for smart home products, boasting exceptional safety and reliability. With its speedy dual-core performance and ample memory, you can trust its ability to provide long-lasting and stable operation.

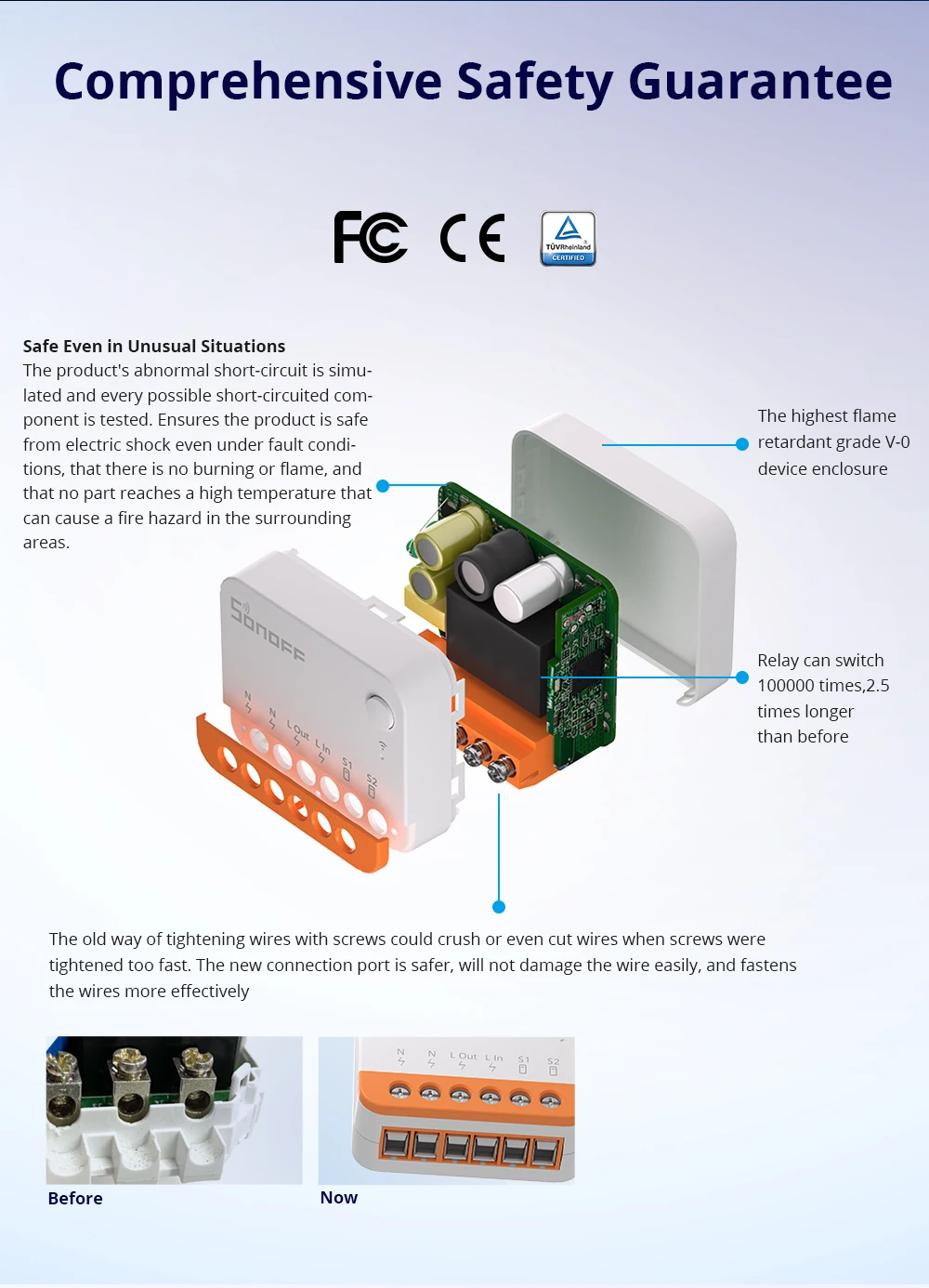

Comprehensive Safety Guarantee
SONOFF always prioritizes safety and designs products in strict accordance with certification requirements. Our products passed CE, FCC, and more stringent TÜV certifications.
Detach Relay
“Detach Relay” means the states of external switches and relay are separated, so operating the external switch button won’t affect relay state. As below, the smart light won’t be offline after enabling “Detach Relay”, and can App control smart lights.

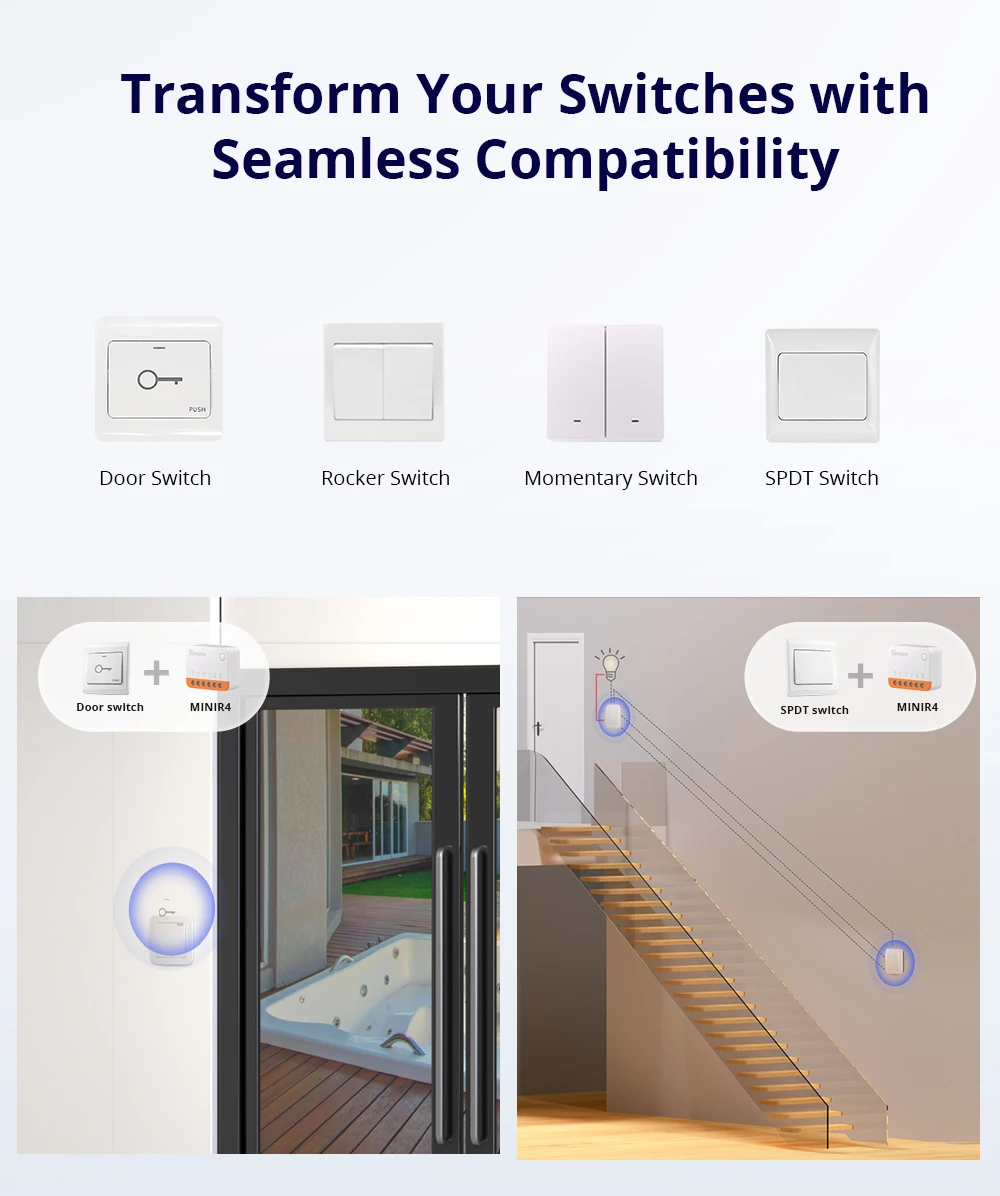

Transform Your Switches with Seamless Compatibility
Easily connect to momentary switch, door exit switch, SPDT switch, latching switch, and even dry contact sensors.

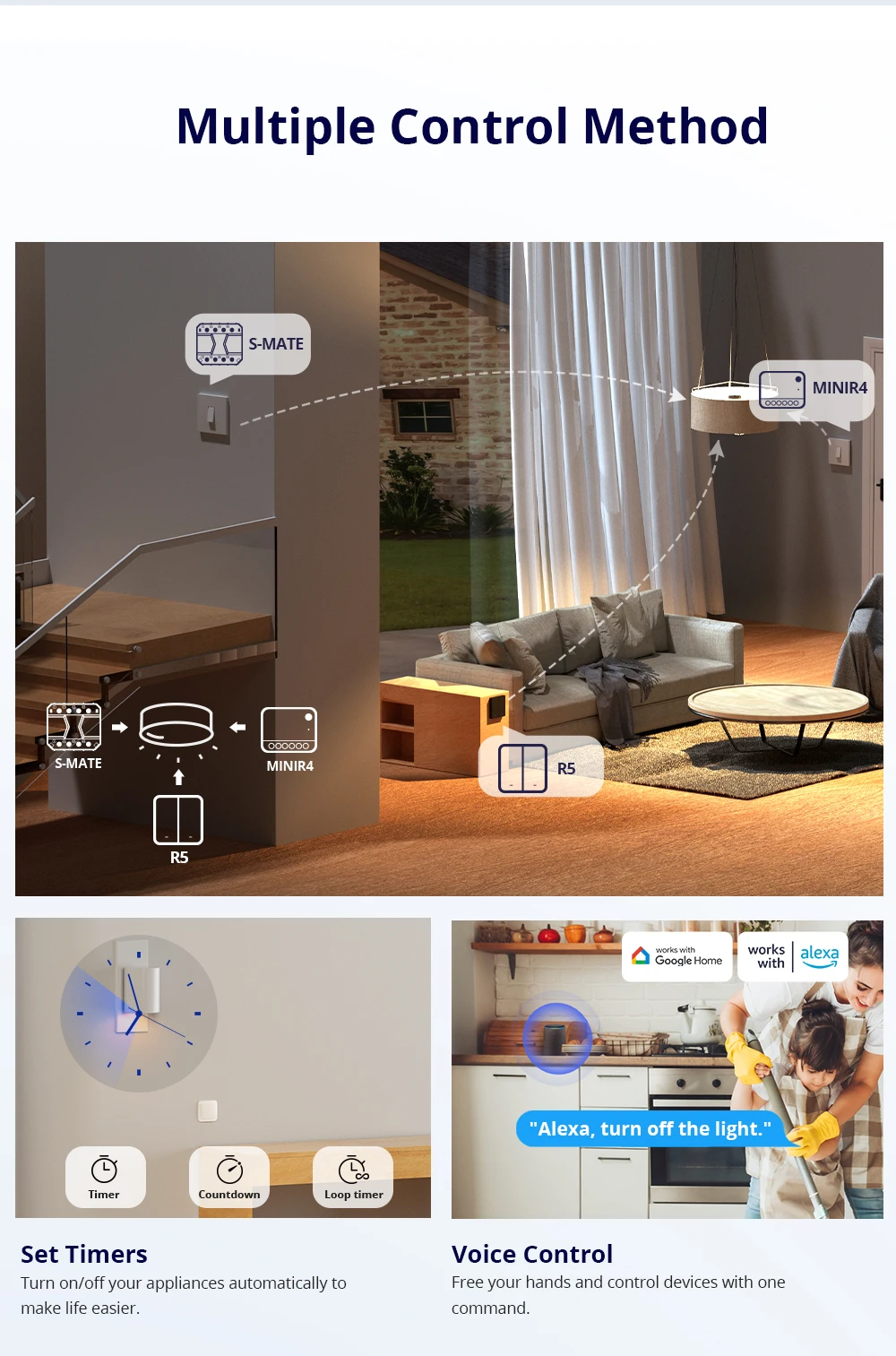

Multiple Control Method
After pairing with MINIR4, both R5 and S-MATE can act as remote controllers to control MINIR4 locally through the eWeLink-Remote signal.
Additional Protection -Delay Power-on State
If power is restored after a power outage, set some appliances to delay the execution of the power-on state. Avoid all appliances turning on simultaneously, causing high currents to damage appliances and leaving potential safety hazards.

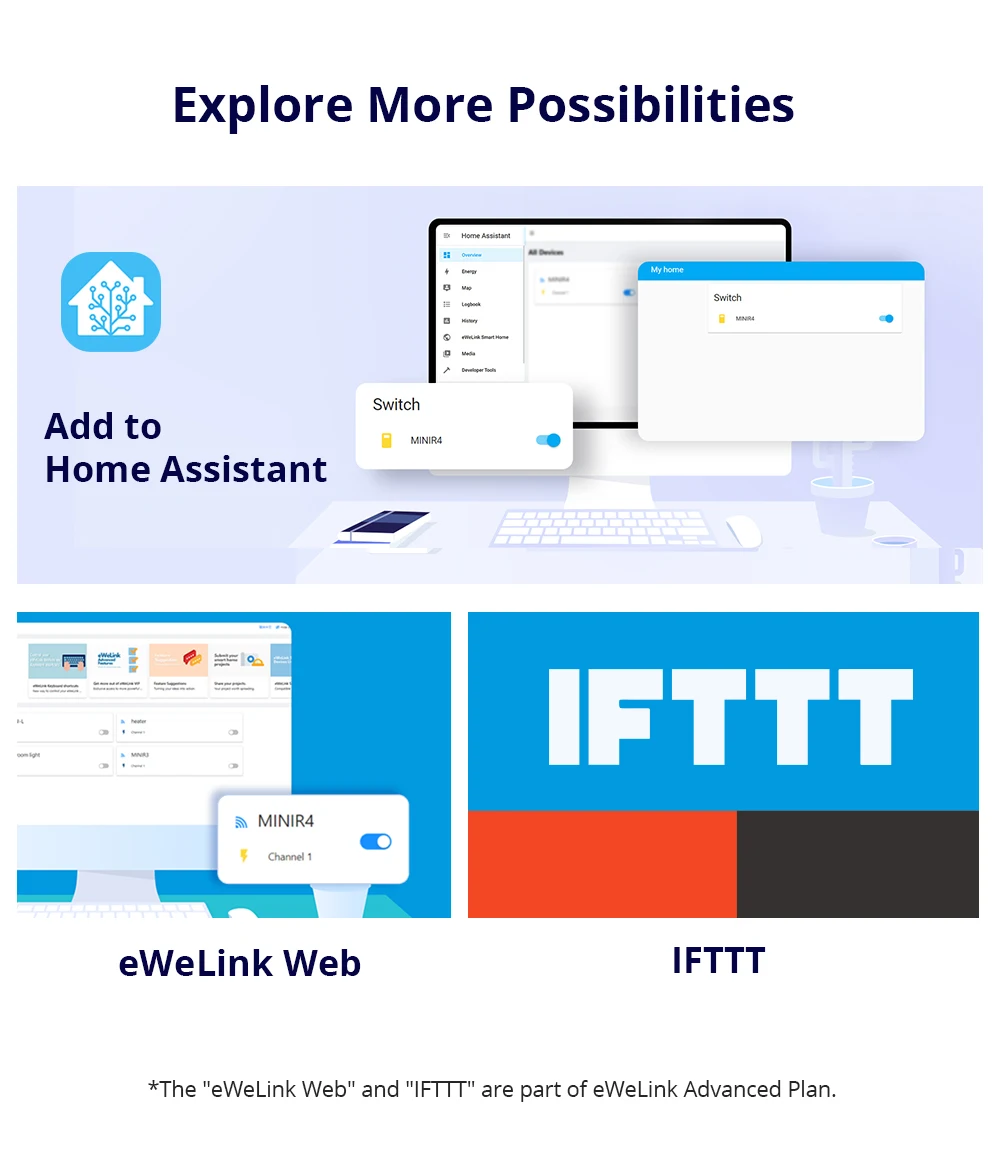

Explore More Possibilities
*The "eWeLink Web" and "IFTTT" are part of eWeLink Advanced Plan.
Smart Scene
Works with motion sensors, door and window sensors, and more to automate your home.
