SPECIFICATIONS

Brand Name: HUXUAN

Origin: Mainland China

Model Number: NFC Chip Sticker

Choice: yes

Description
Target applications include Out-of-Home and print media smart advertisement, SoLoMo applications, product authentication, NFC shelf labels, mobile companion tags.
Target use cases include Out-of-Home smart advertisement, product authentication, mobile companion tags, Bluetooth or Wi-Fi pairing, electronic shelf labels and business cards.
Features and benefits

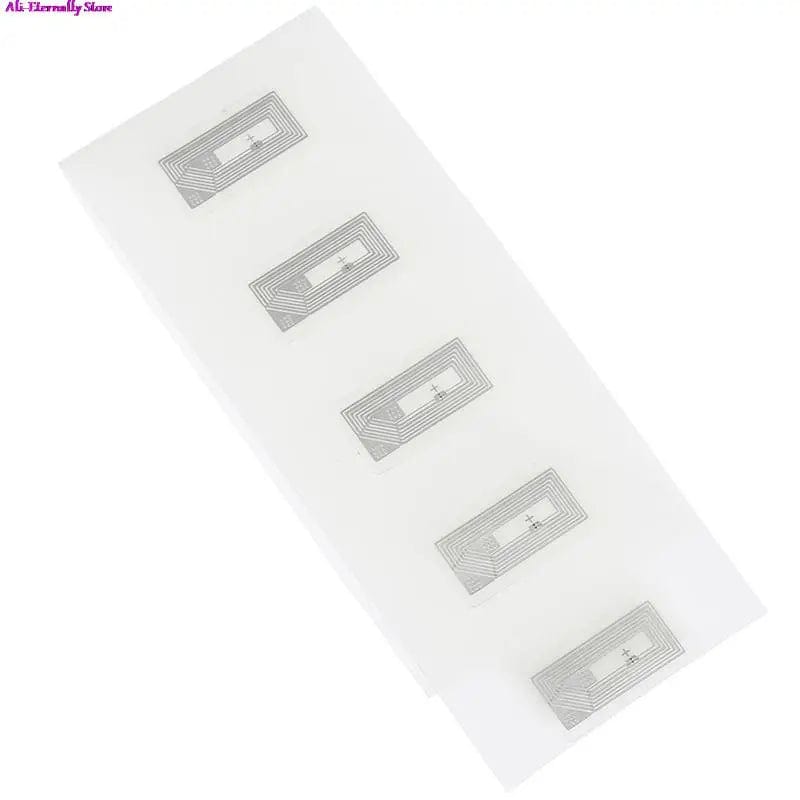

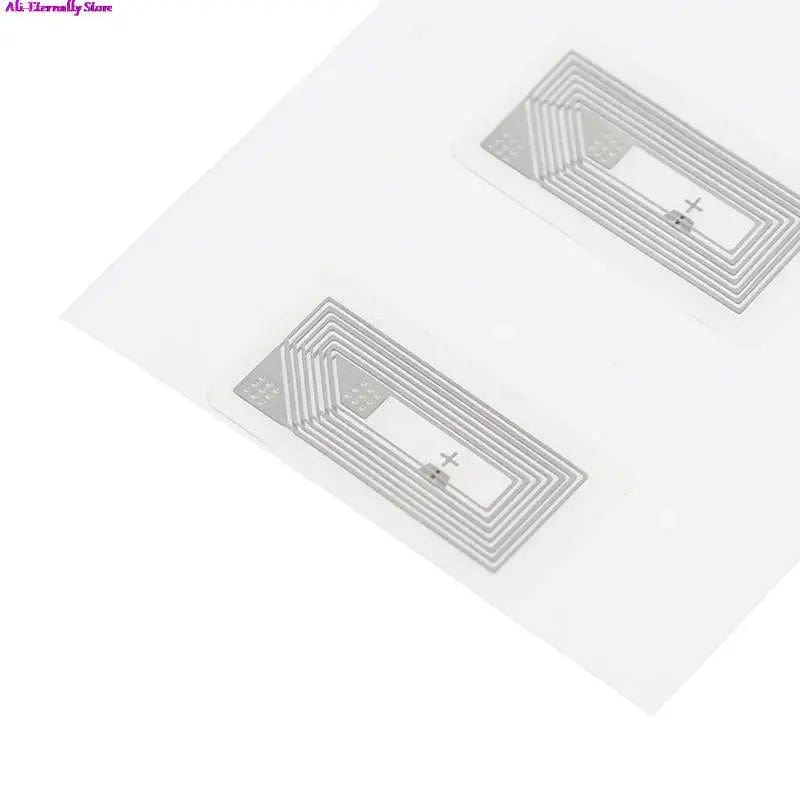

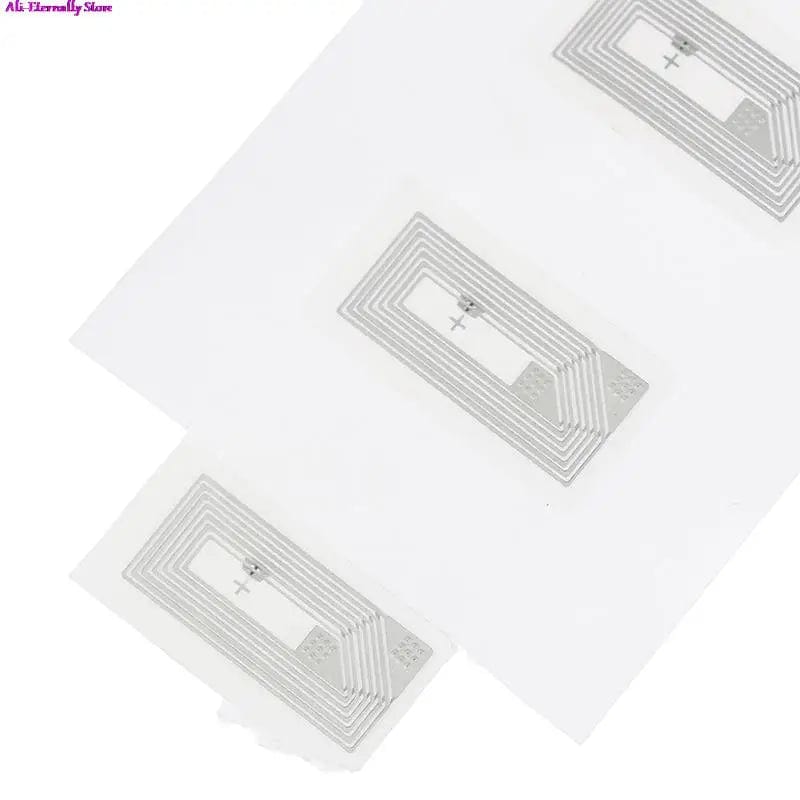

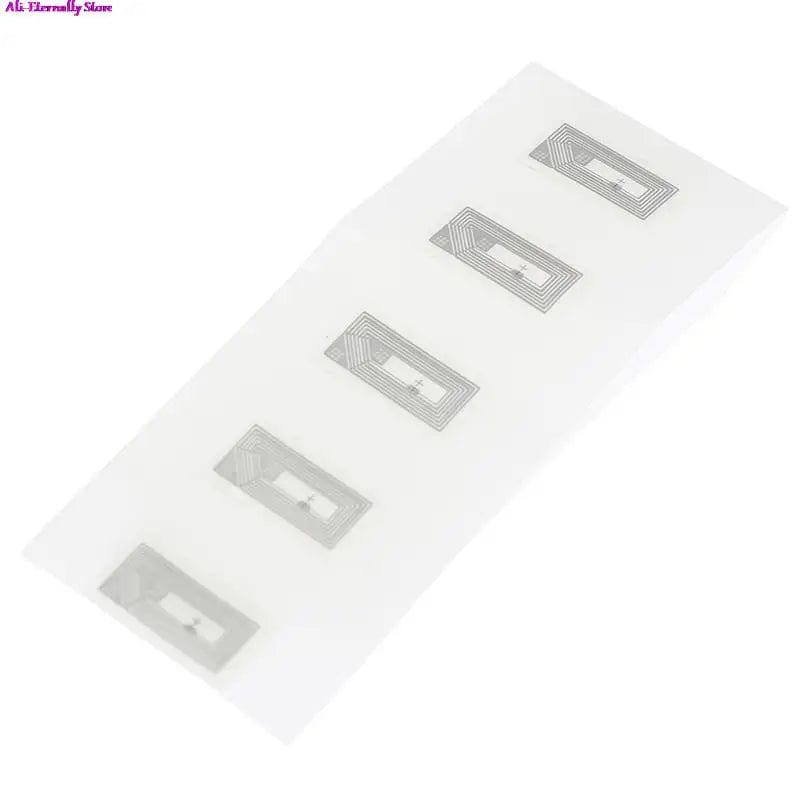

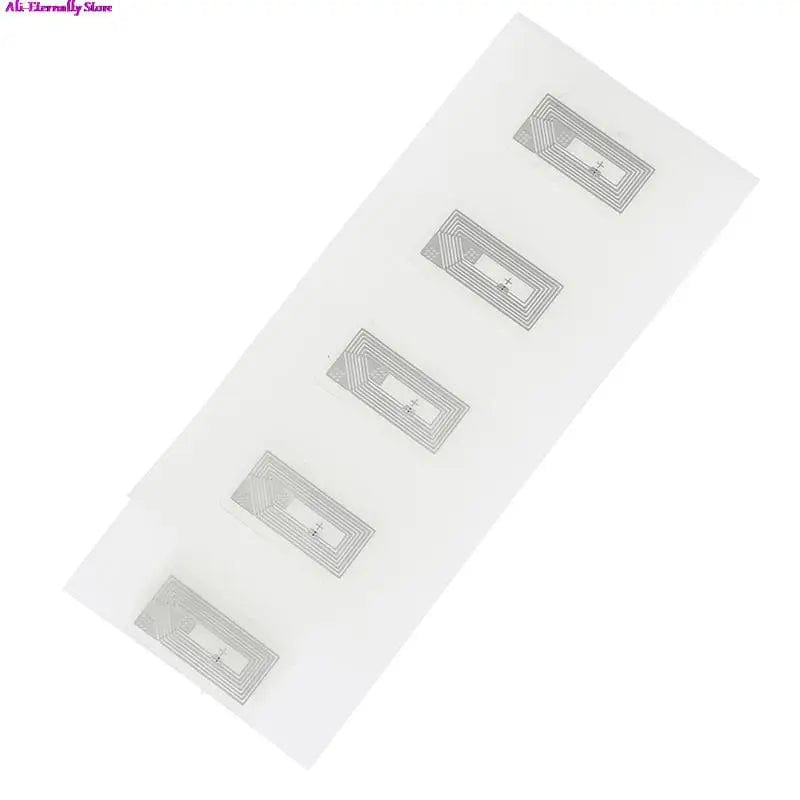

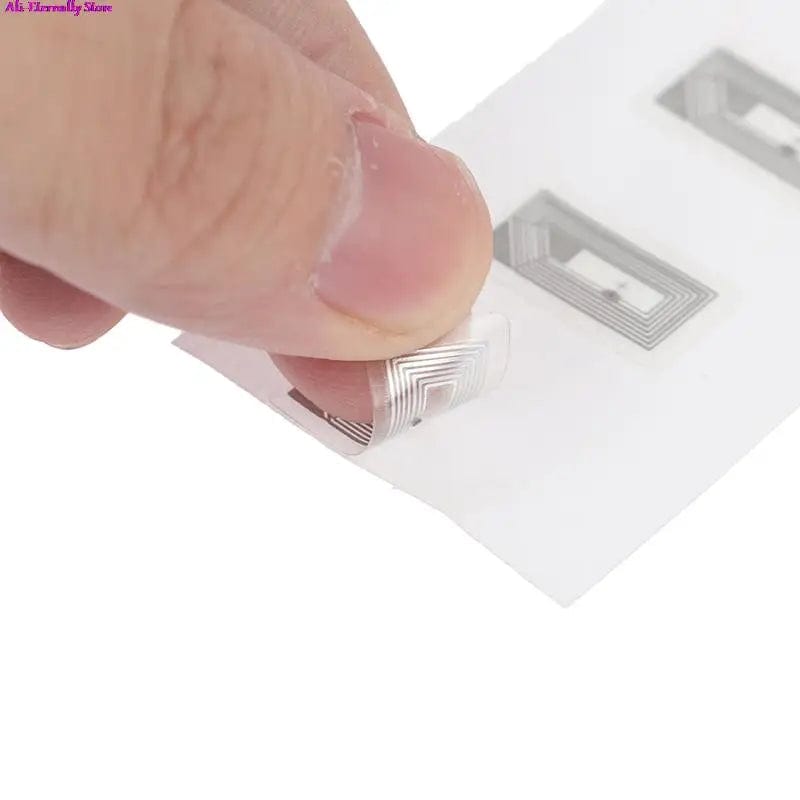

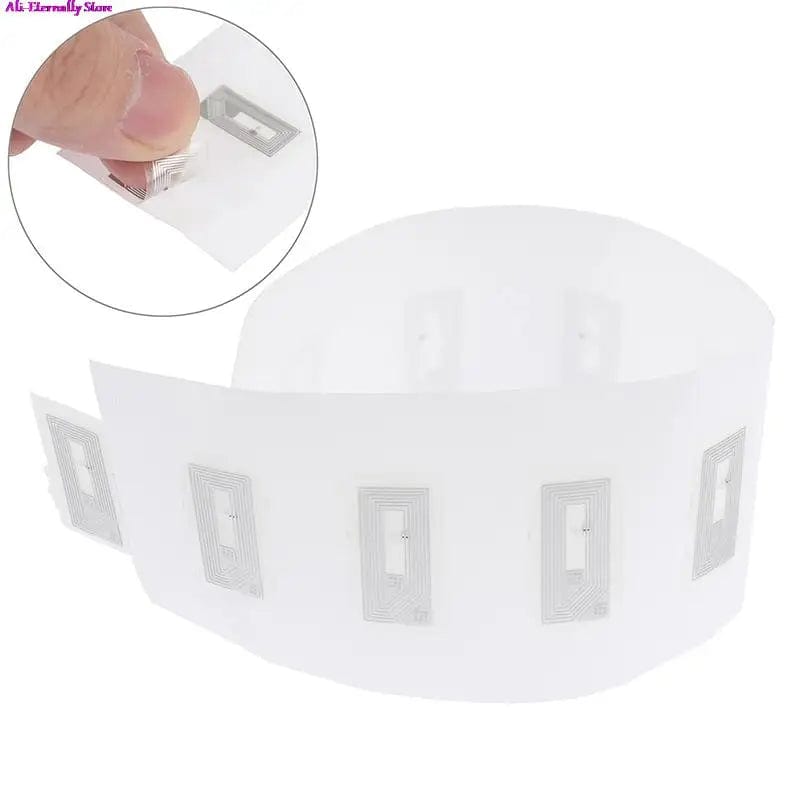

Chip:NXP Ntag213 (With Adhesive)
Size:20×10mm
nduction distance: 1-10 (cm)
Memory:144(bits)
Reading and writing time: 100 (MS)
Packaging material: PET
Erase life: 100000 (times)
Contactless transmission of data and supply energy
Operating frequency of 13.56 MHz
Data transfer of 106 kbit/s

Data integrity of 16-bit CRC, parity, bit coding, bit counting
Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
UID ASCII mirror for automatic serialization of NDEF messages
Automatic NFC counter triggered at read command
NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
ECC based originality signature
Fast read command
True anticollision
50 pF input capacitance

EEPROM
180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page
144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)
4 bytes initialized capability container with one time programmable access bits
Field programmable read-only locking function per page for the first 16 pages
Field programmable read-only locking function above the first 16 pages per double page for NTAG213 or per 16 pages for NTAG215 and NTAG216
Configurable password protection with optional limit of unsuccessful attempts
Anti-tearing support for capability container (CC) and lock bits

ECC supported originality check
Data retention time of 10 years

Write endurance 100.000 cycles
Applications
Smart advertisement
Goods and device authentication
Call request
SMS  Call to action
Voucher and coupons
Bluetooth or Wi-Fi pairing
Connection handover
Product authentication
Mobile companion tags
Electronic shelf labels
Business cards



Package includes:
100PCS x Ntag213 Tag





sizechest(in.)waist(in.)hips(in.)
XS34-3627-2934.5-36.5
S36-3829-3136.5-38.5
M38-4031-3338.5-40.5
L40-4233-3640.5-43.5
XL42-4536-4043.5-47.5
XXL45-4840-4447.5-51.5

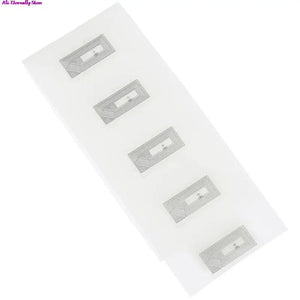

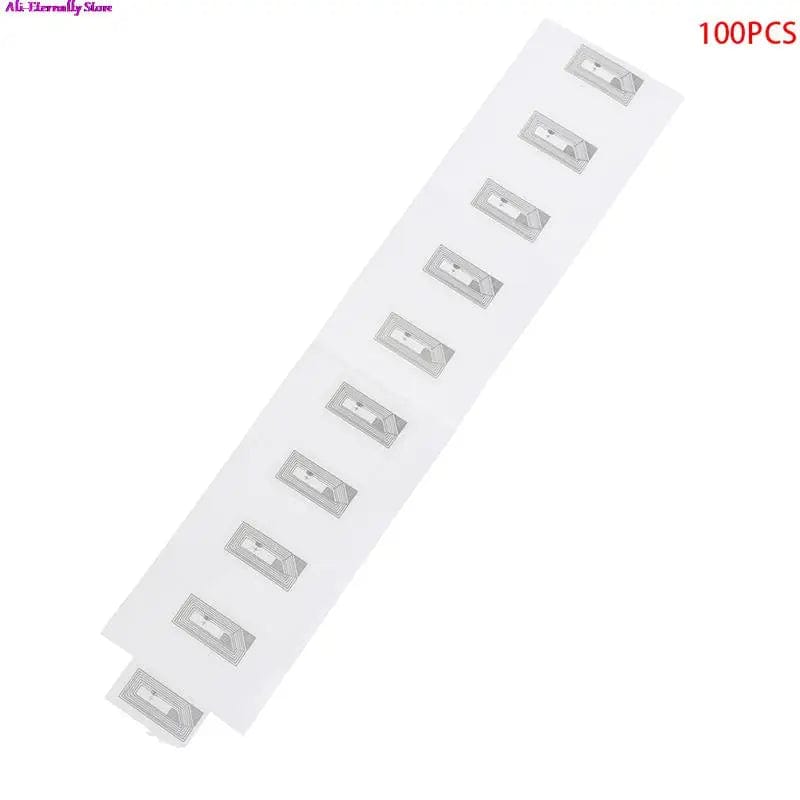

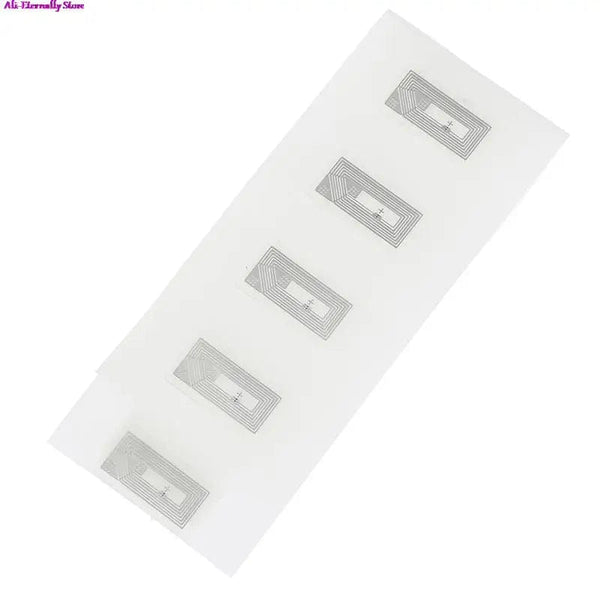

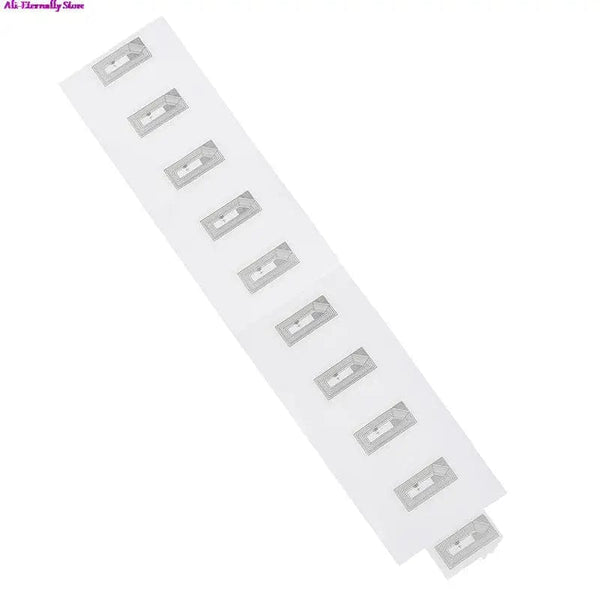

100Pcs NFC Chip Ntag213 Sticker Wet Inlay 2*1cm 13.56MHz RFID NTAG213 Label Tag
