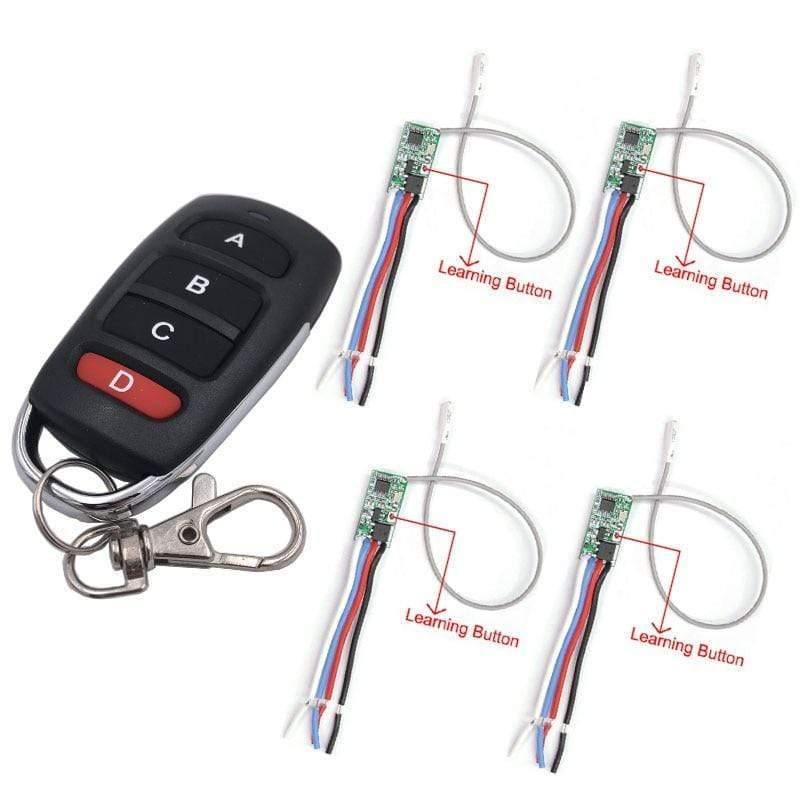

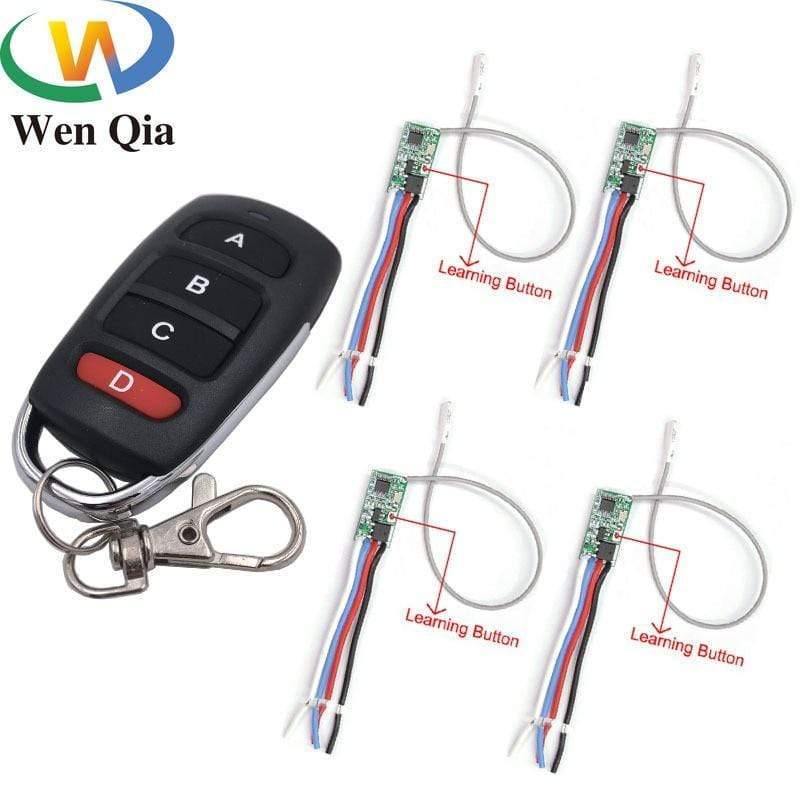

433mhz DC 3.6V 6V 12V 24V 1CH Relay Wireless RF Remote Control Switch Module With 4buttons Transmitter Power LED Lamp Light DIY

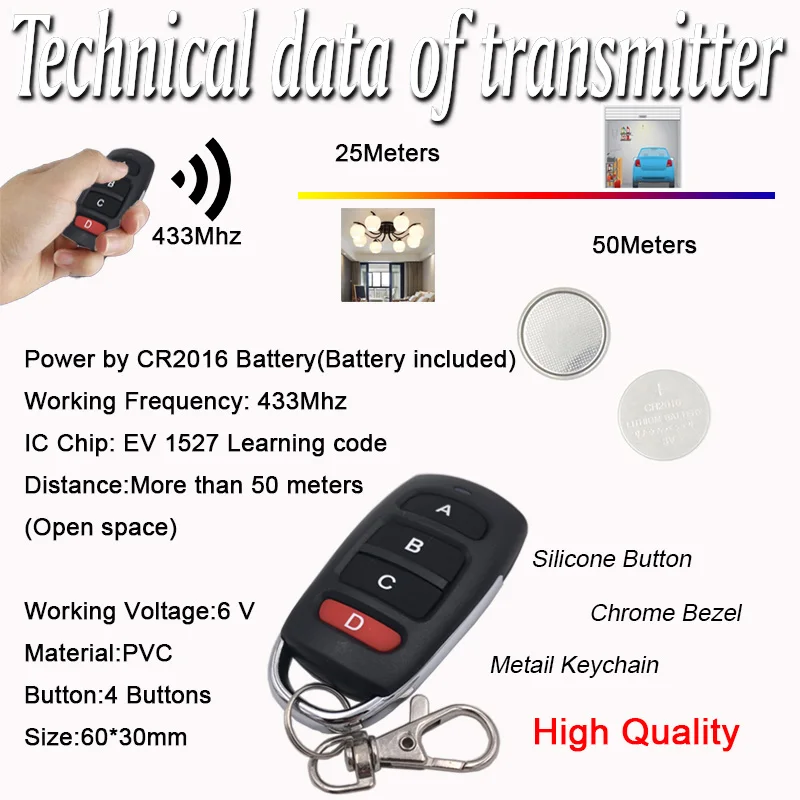

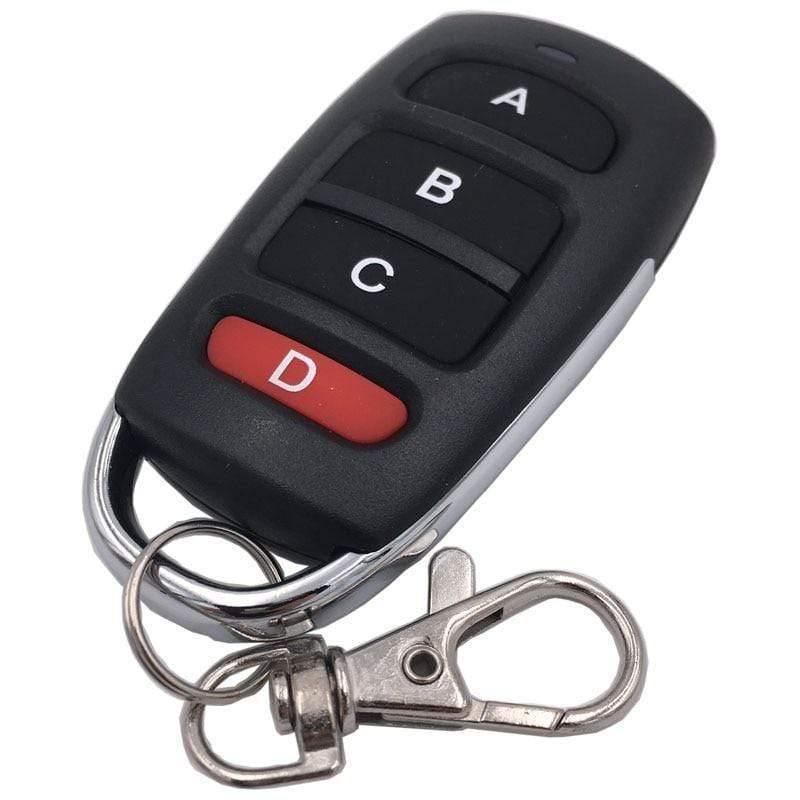

    Technical Data Of Transmitter:

   Operating frequency: 433MHz
   Power by 2 Pcs CR2016 Battery  (Battery  included )
   Material: PVC;
   Button: 4 buttons;

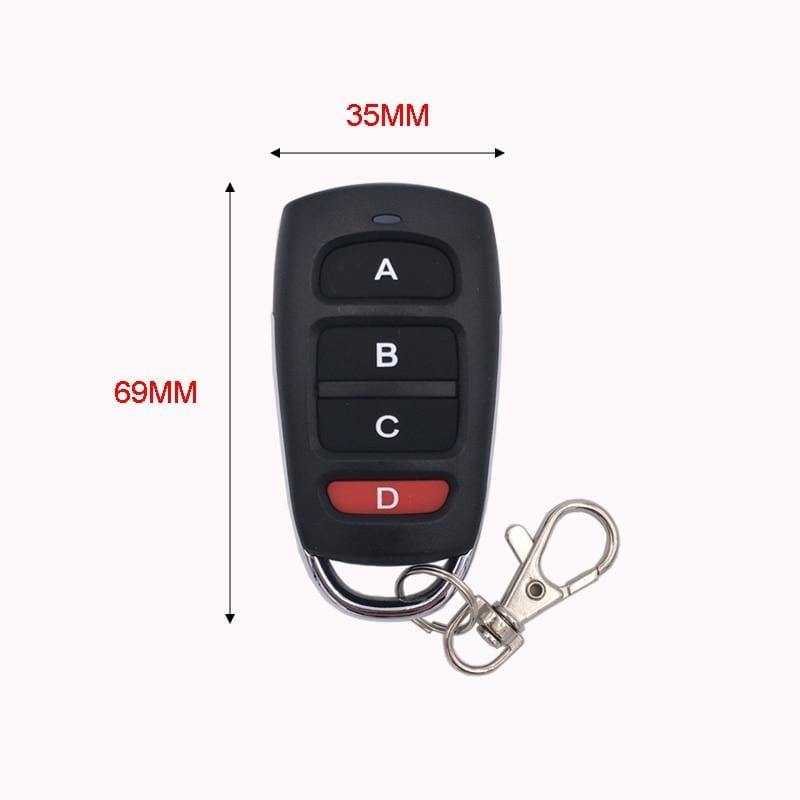

   Size: 60mm x 30mm;
   Operating voltage: 3V ;
   Operating Current: 12mA;
   Transmitting power: 10mw;
   Modulation mode: ASK (AM).
   Encoding type: Learning.
   Transfers distance: 20~80m

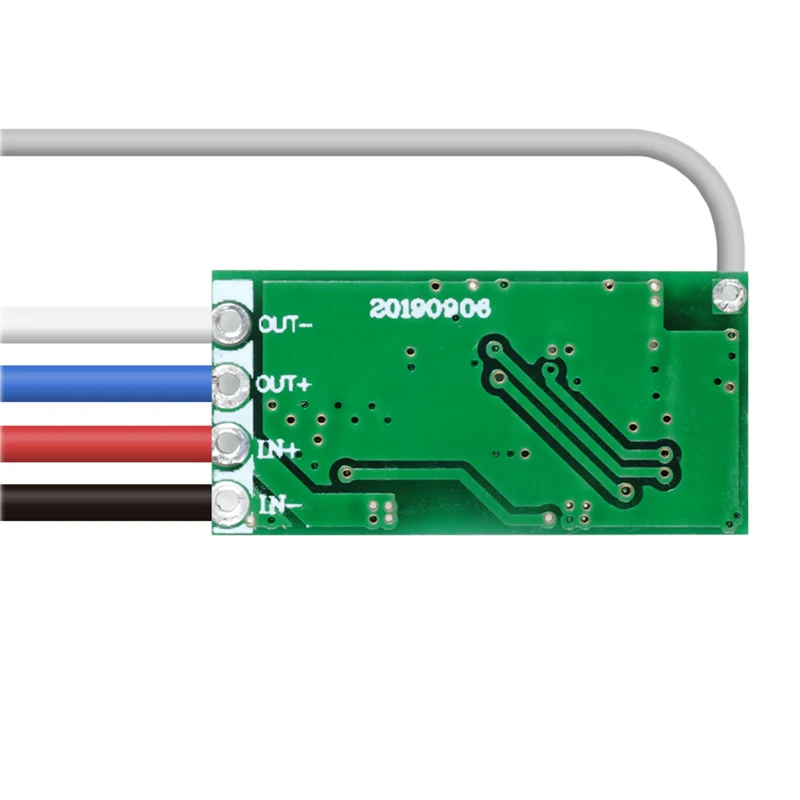

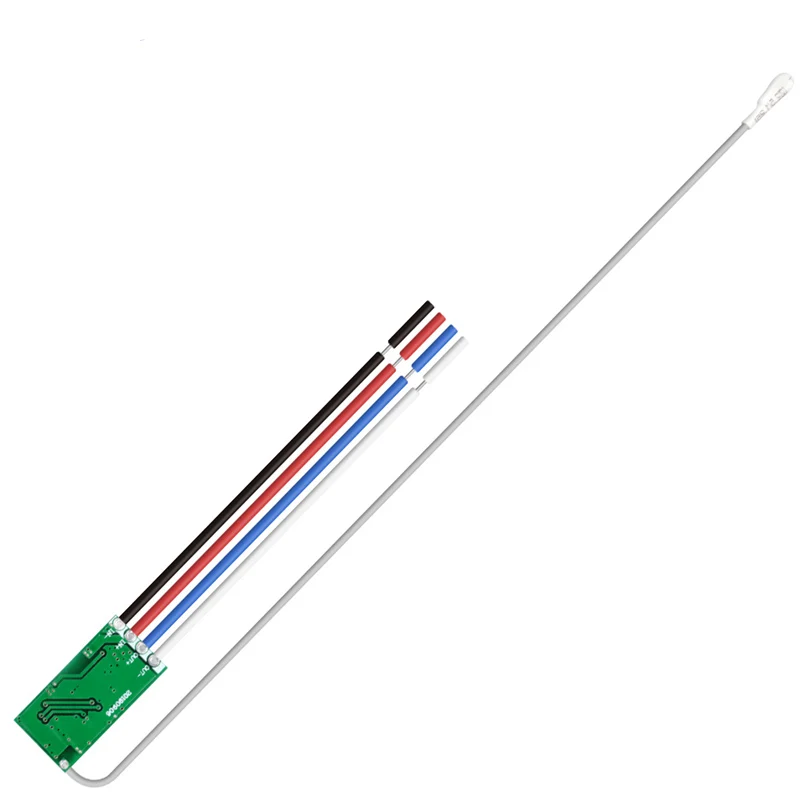

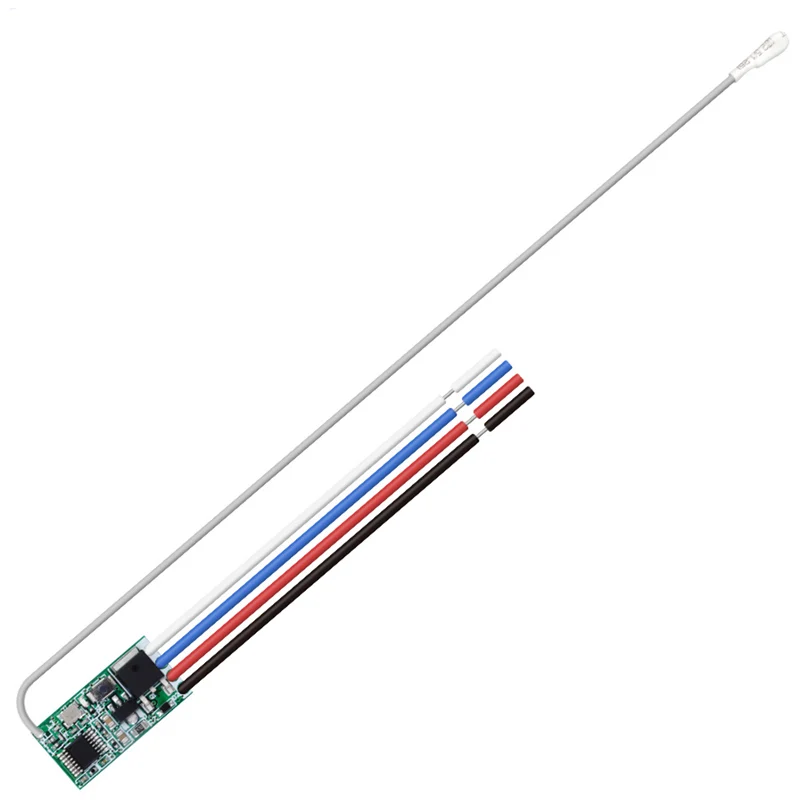

   Technical Data Of Receiver Module:

     Input Power:DC 3.6~24V
     Max current:3 A
     RF Frequency: 433Mhz
     Working temperature:-30~+80
     RF working mode:superheterodyne
     Receive sensitivity: >97dbm
     Transmitting distance: more than 50 m ( open space)
     Remote storage:10pcs
     Support remote type: Learning code 1527code, Fixed code(Rolling code can be design)
     Working mode:Momentary, Toggle, Latching mode
     Wiring type:fixed termina

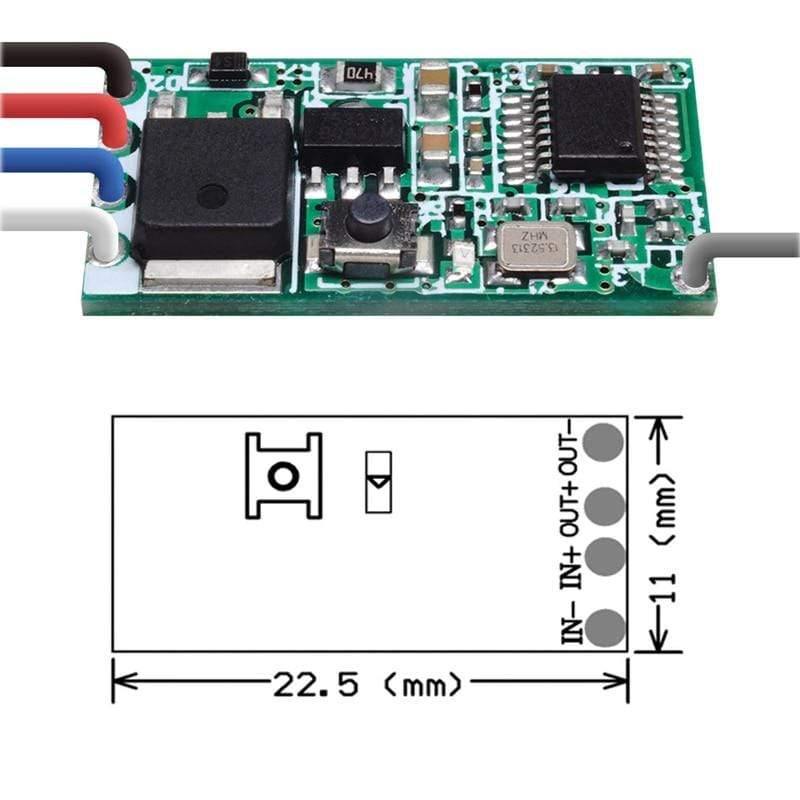

     Dimension of PCB: 22.5 x 11 (mm)

     Note:The products in our store all work in 433Mhz.We can not make sure that different frequency product can connect with each other.If you have any questions about our products,please ask our customer service.We are always willing to help.

Perfect Craft & Detail Control






choose different options to place an order

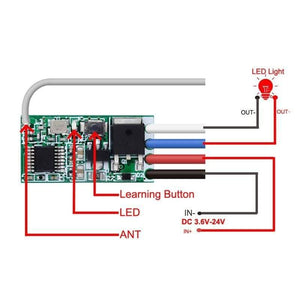

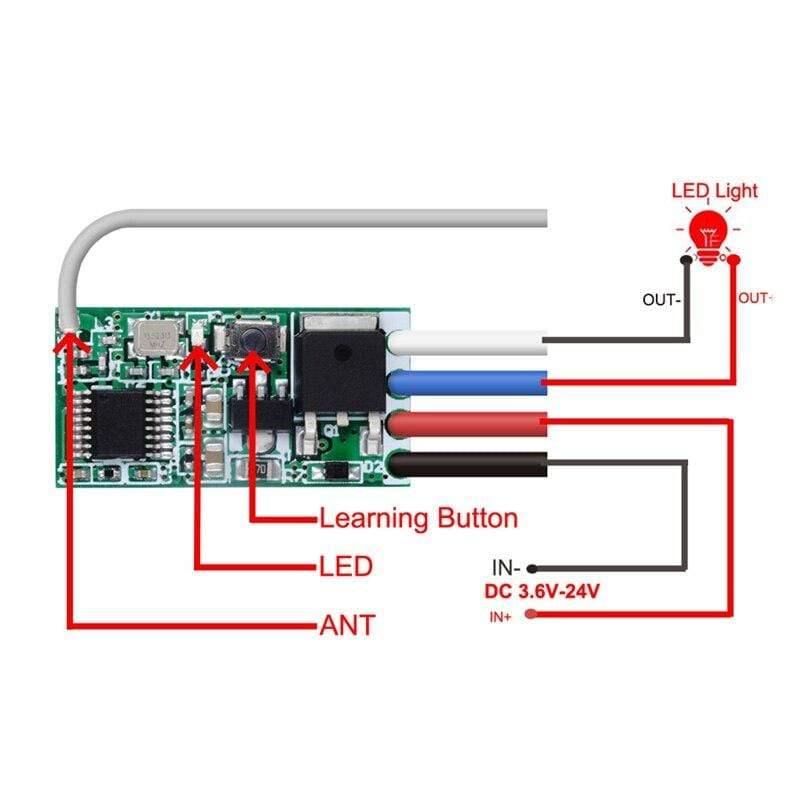

Wiring Diagram




operating mode


You can match the Transmitter with the Relay Receiver Module  in 3 modes.

Momentary Mode:

1. Press and hold one button, relay will turn on;

2. Release the button, this relay will turn off.

Toggle Mode:
1. Press button "A", relay will turn on;

2. Press button "A" again, this relay will turn off.

Latched mode:

1. Press button "A", relay will turn on;

2. Press button "B", this relay will turn off.



Delete the existing data about operating modes

Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

Note:

1. When you receive our products, it may set in one remote mode randomly, that because each product was tested before it can be arranged to shipment. So, please delete the existing data to first use.

2. After deleted the data, all the remote controls cannot work any more.



Set up

Set up(Momentary)

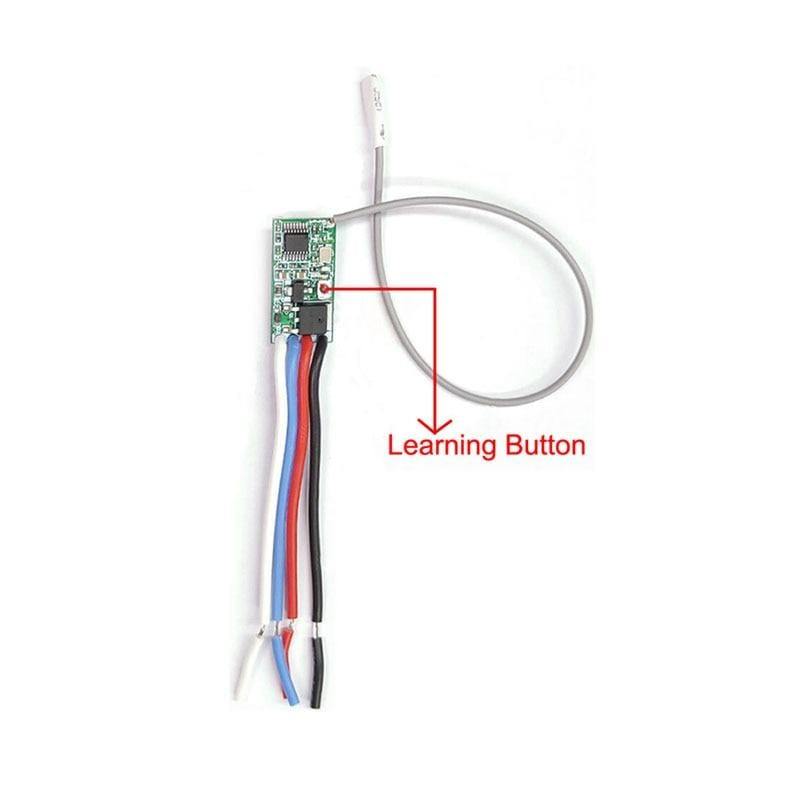

1. Press the learning button(on the Receiver) once. Wait for 3 seconds;


2. Press one button on the remote control. Wait for 3 seconds. Succeed.

Set up(Toggle)

1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;


2. Press one button on the remote control. Wait for 3 seconds. Succeed.

Set up(Latched)

1. Press the learning button(on the Receiver) third times. Wait for 3 seconds;


2. Press button "A" on the remote control. Wait for 3 seconds.


3. Press button "B" on the remote control. Wait for 3 seconds. Succeed.
