Availability: 96 In Stock
Sku: 4001243827872-2gang 1Switch-CHINA
Liquid error (snippets/product_view_default line 246): Cannot render sections inside sections

SPECIFICATIONS

Voltage: AC 90V-250V



Max Current: 10A

Max Load: 2200W

Specialfication: 86 Panel Wall Switch

Remote Distance: More than 50 meters in open area

Connection Method: Wireless remote control

Battery: 12V 27A (Not include)

Double-side Tape: Include

Application: Light, Bulb, LED,Lamps, Fan, Door, Gate, Pump and so on

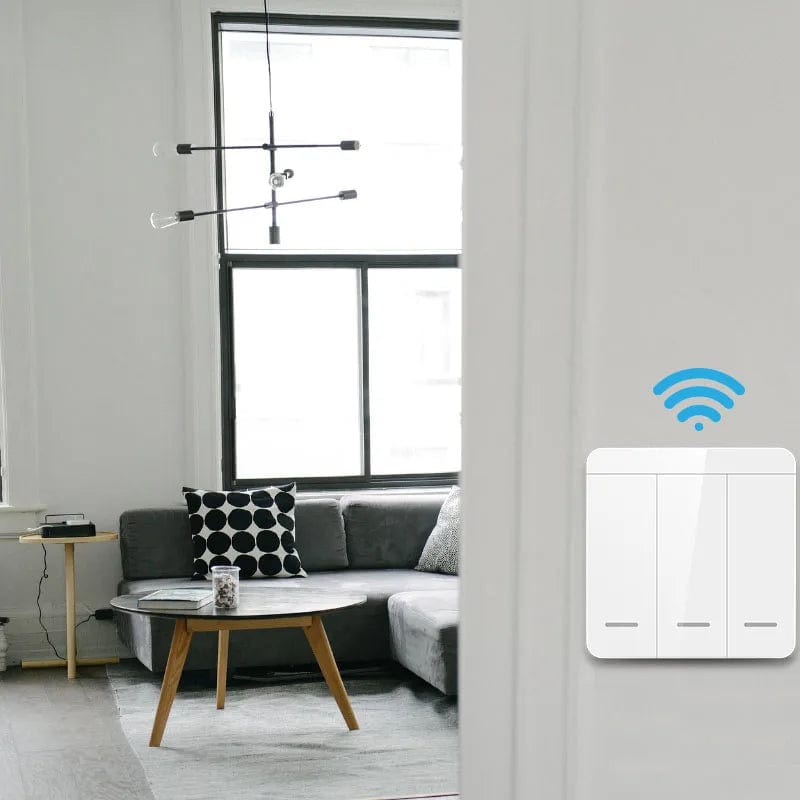

Application scenario: Home, Farm, Factory, Office, Supermarkets and so on

Code: Learning Code EV1527

Brand Name: Diese

Item Type: SWITCHES

Switch Type: Push Button Switch

Certification: CCC

Certification: ce

Certification: ROHS

Warranty: 1 Year

Model Number: 2201D+WP07 Wireless RF Wall Switch Lighting Controller Switch Panel

Material: Plastic

Is Smart Device: No

Features: 433Mhz rf Wireless Remote Control Switch can be pasted

Current: 10A

Origin: Mainland China

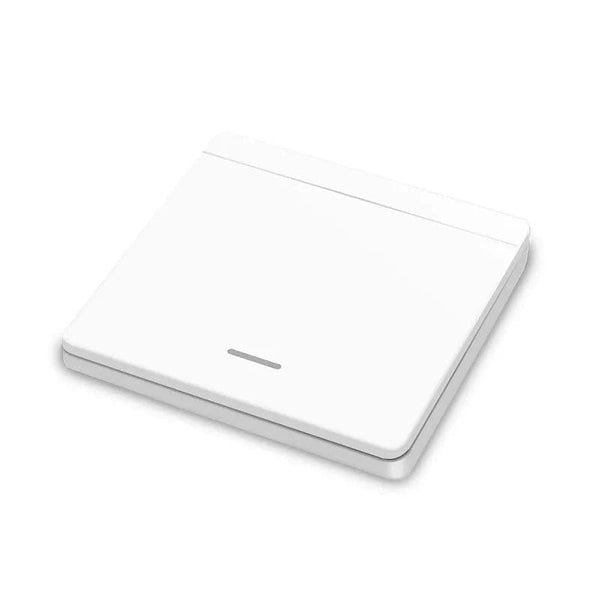

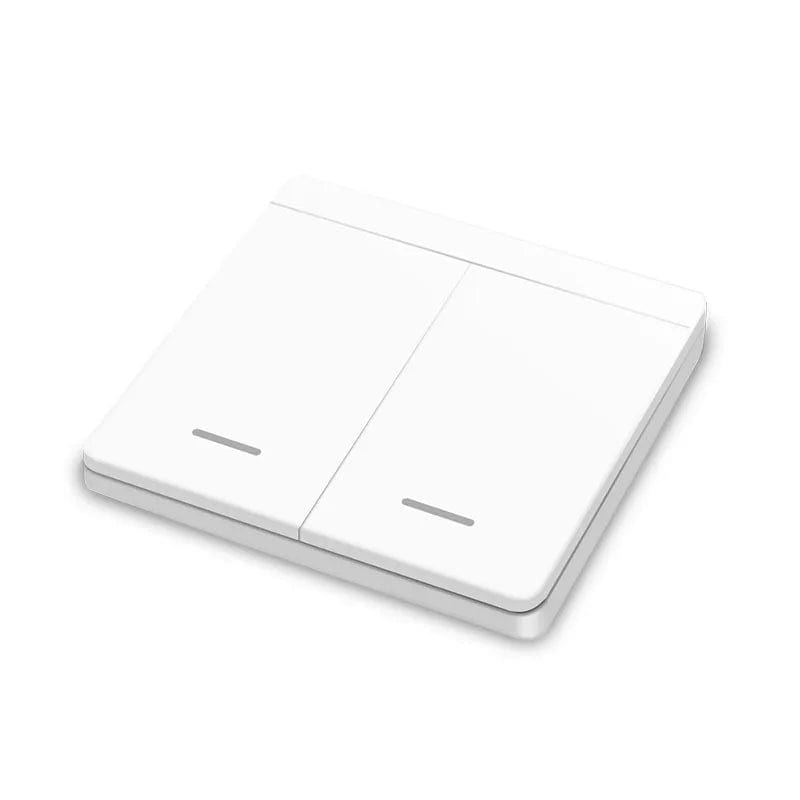

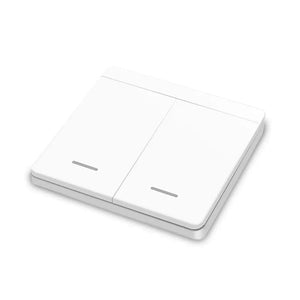

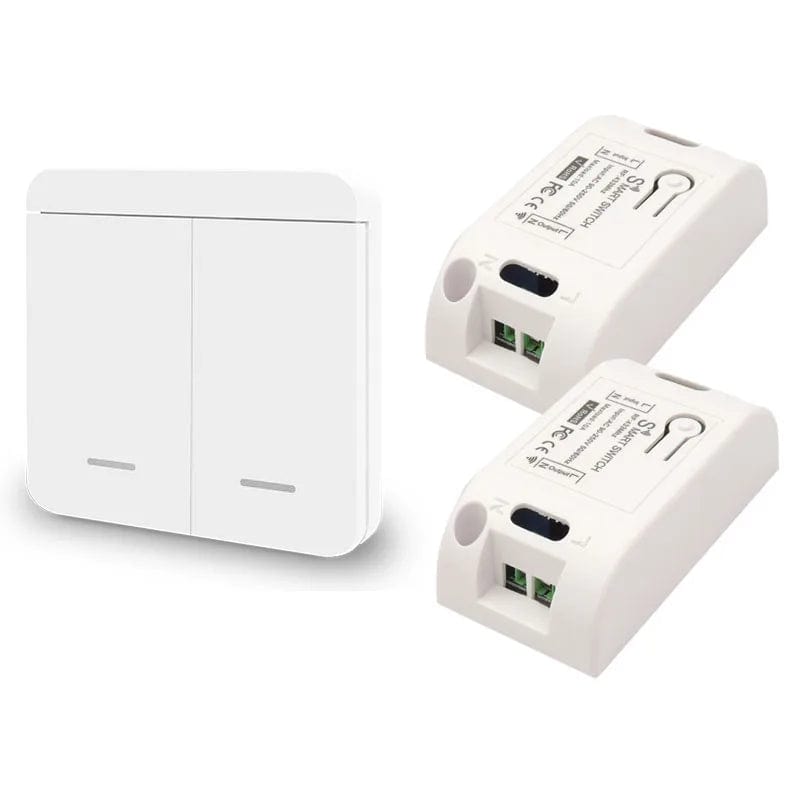

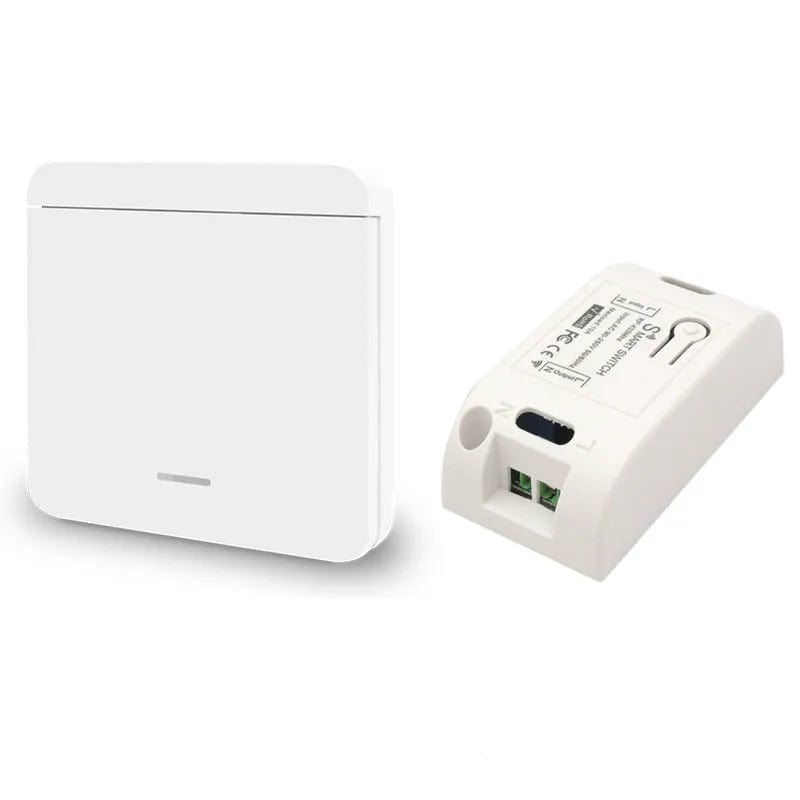

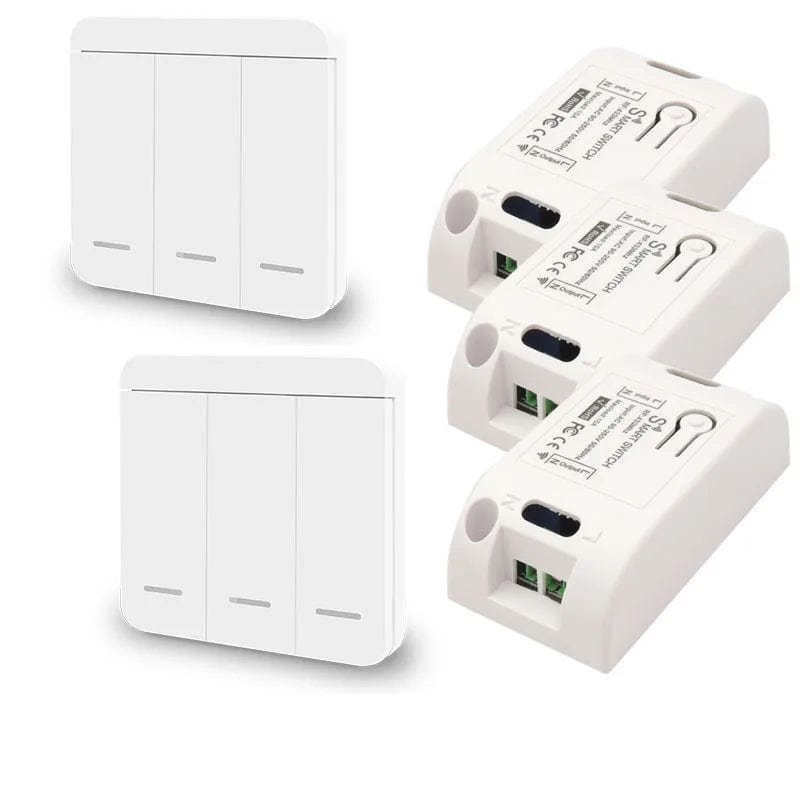

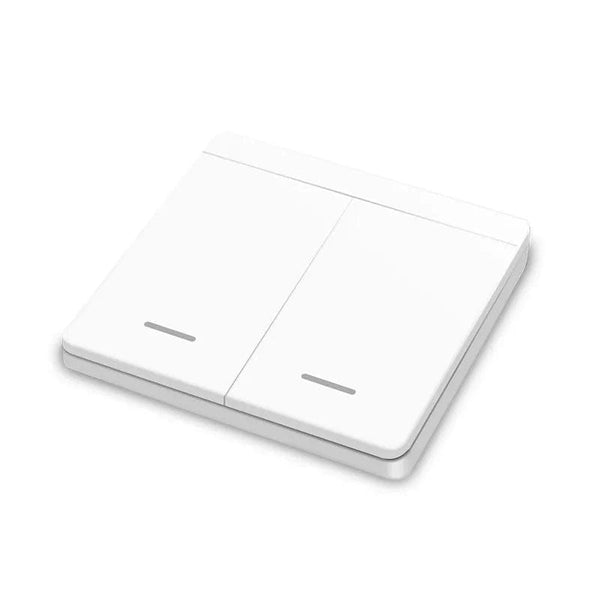

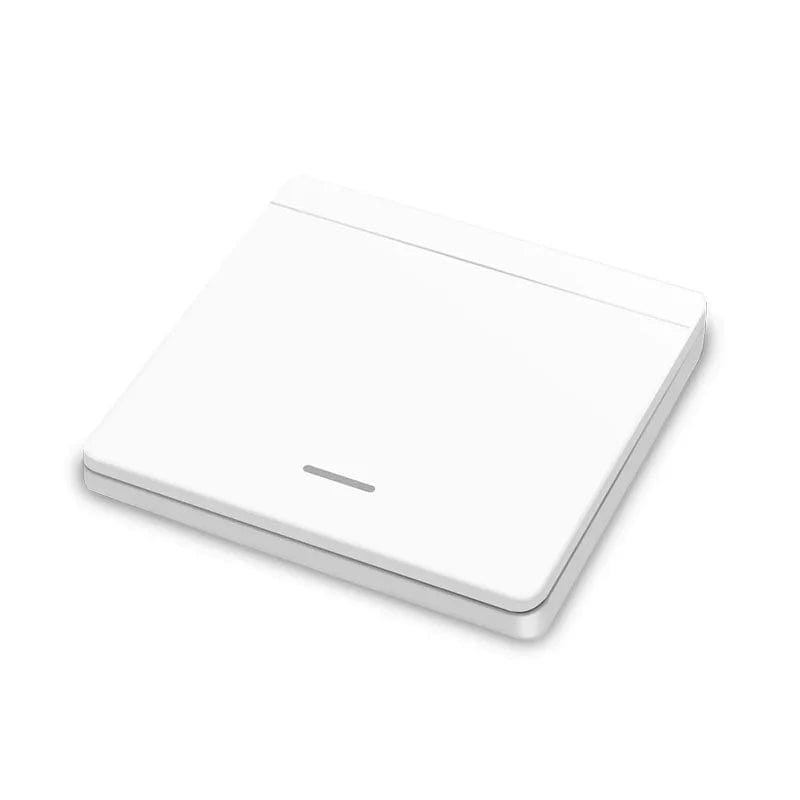

Diese 433Mhz wireless Wall Switch rf 86 wall panel transmitter Safety Switch and AC 110V 220V relay interruptor for Light Lamp


RF Output of Good Stability

Wide Availability
Simple to Use

Strong Signal Transmission

Perfect Craft & Detail Control

Excellent Detail Design


Product Detail

Working voltage  :  AC 90V~250V
Quiescent Current  :  <5MA
Max current  :  10A
Max load  :  2200W
RF frequency  :  433MHz
Working temperature  :  -30~+80
Receiving Sensitivity  :  >97dbm
Amount of storage remote controls  :  25 pieces
Support encoding  :  1527 Leaning code,2262 fixed code
RF Operating mode  :  ASK superheterodyne wireless reception
Receiving range  :  Open space is more than 50 meters

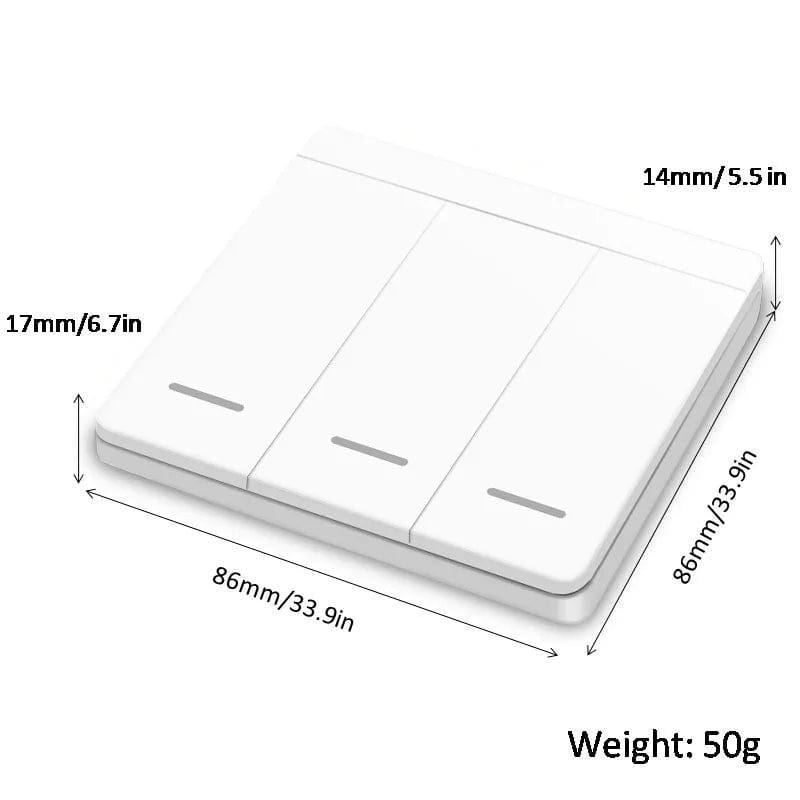

Wall switch size: 86standard size
Switch battery :  1  27A 12V battery (Not include)

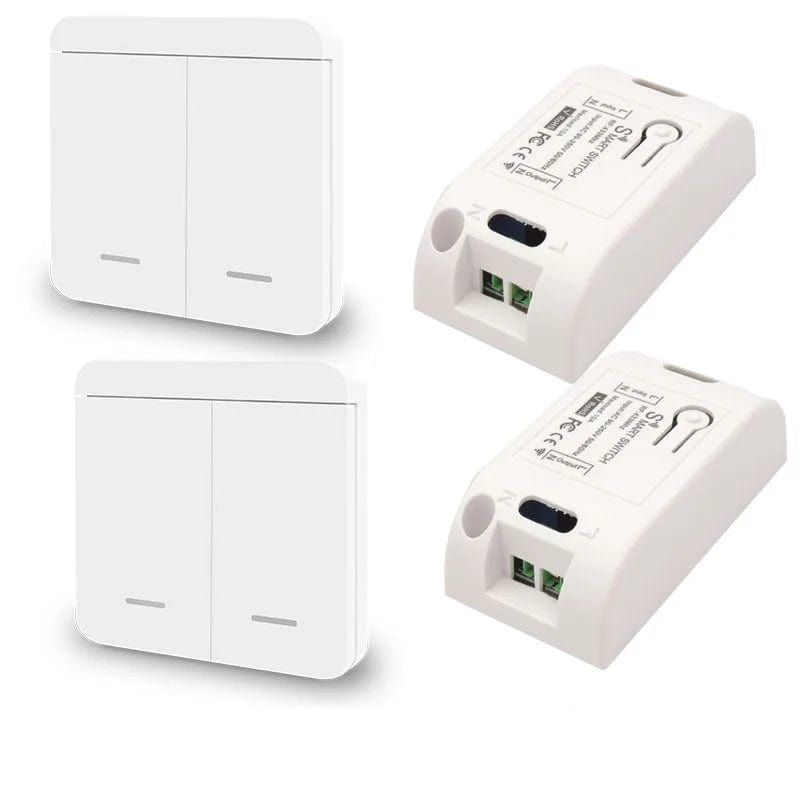

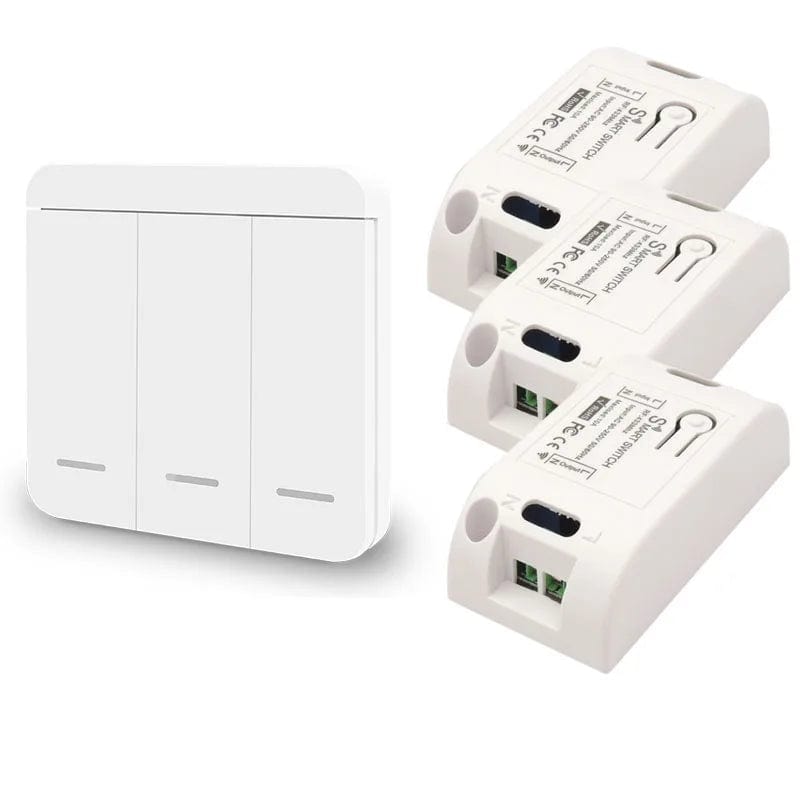

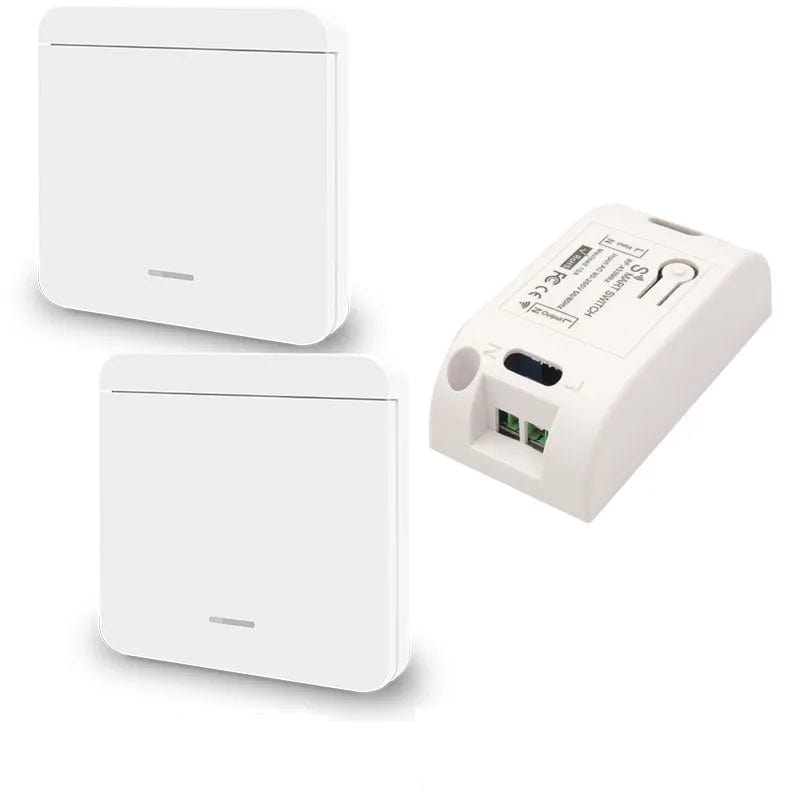

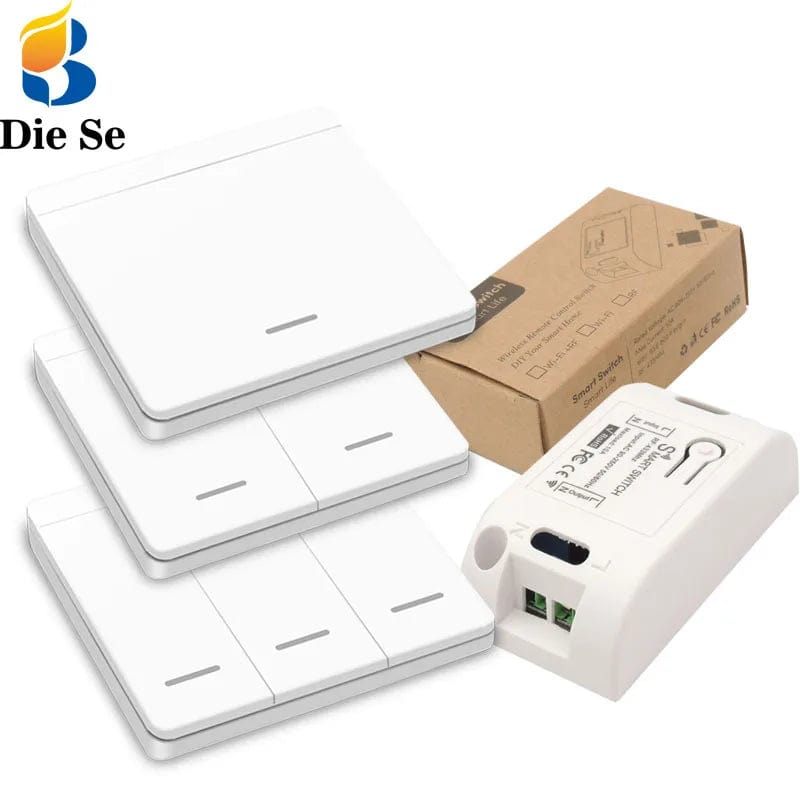

Package include

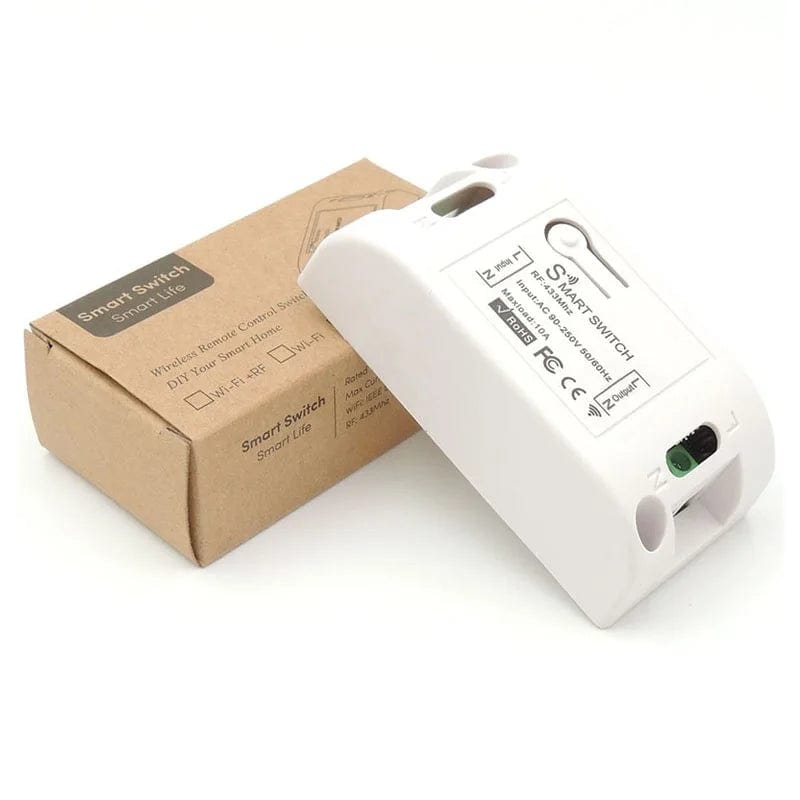

Receiver module ( include Shell )
Wall switch (Not include battery )
double-sided tape
The Quantity depends on the option you choose

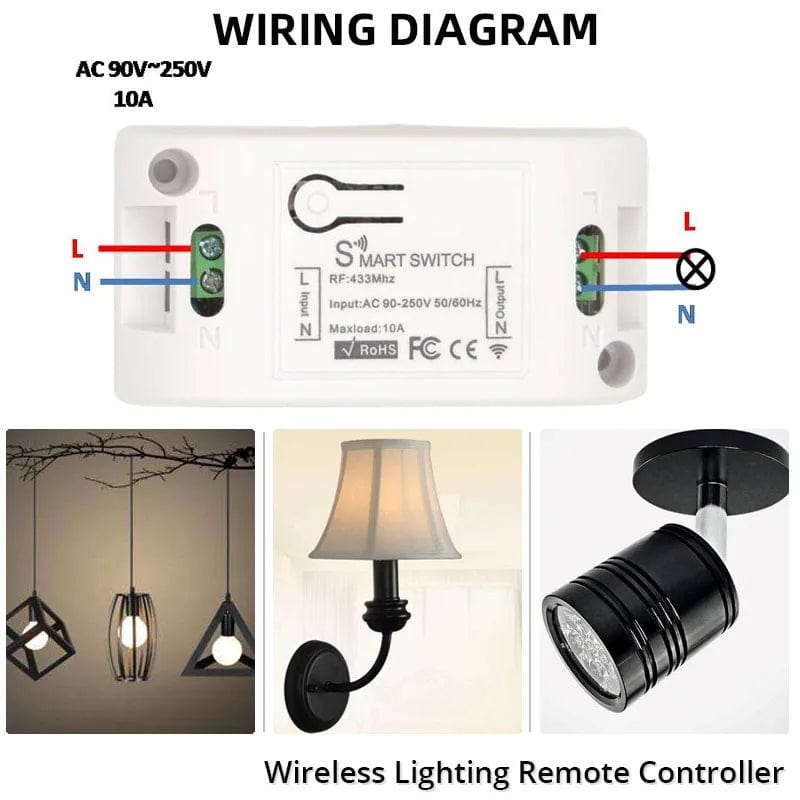

Wiring Diagram


Operating Mode

Set up

1. Press the learning button(on the Receiver)twice. Wait for 3 seconds;

2. Press one button on the wall switch. Wait for 3 seconds. Succeed.


Reset
Press the learning button (on the Receiver)8times. The existing data will be deleted succeed.
