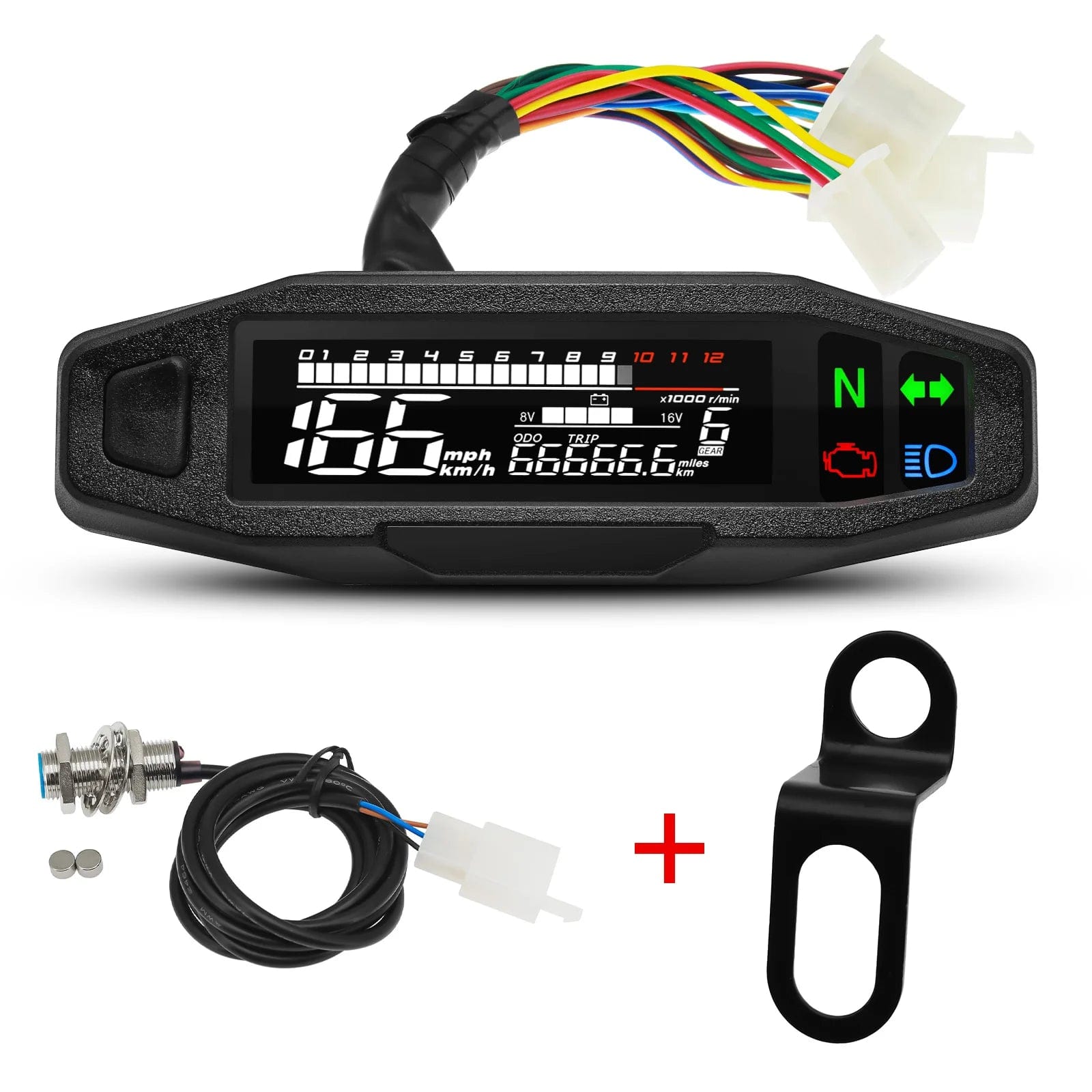

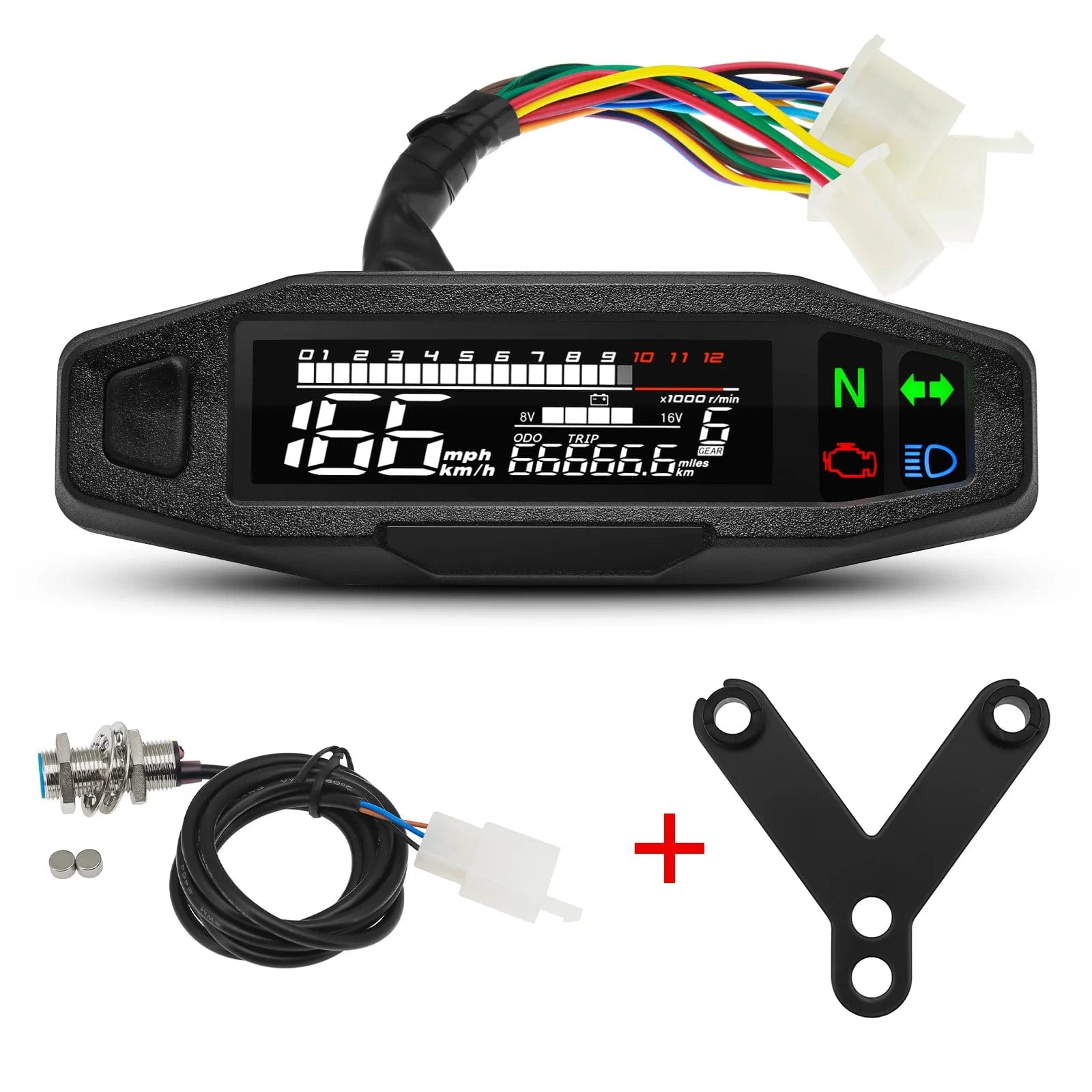

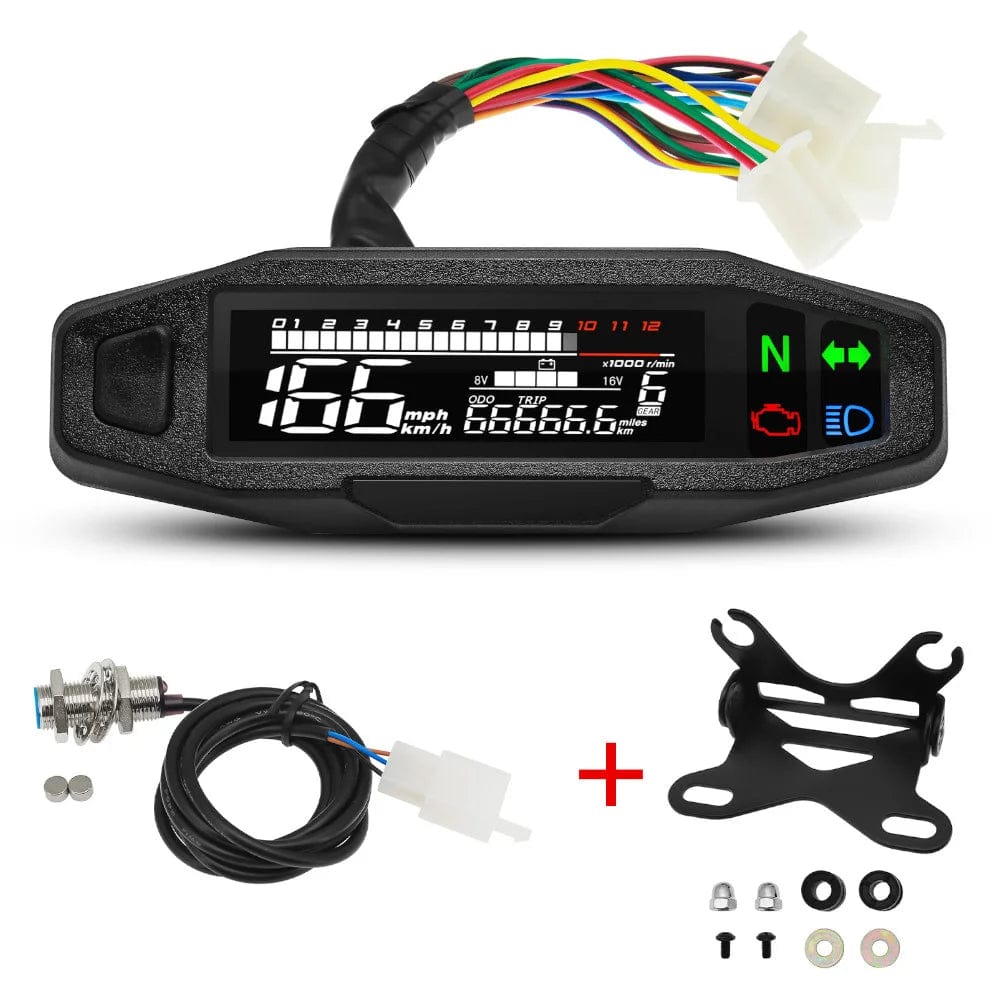

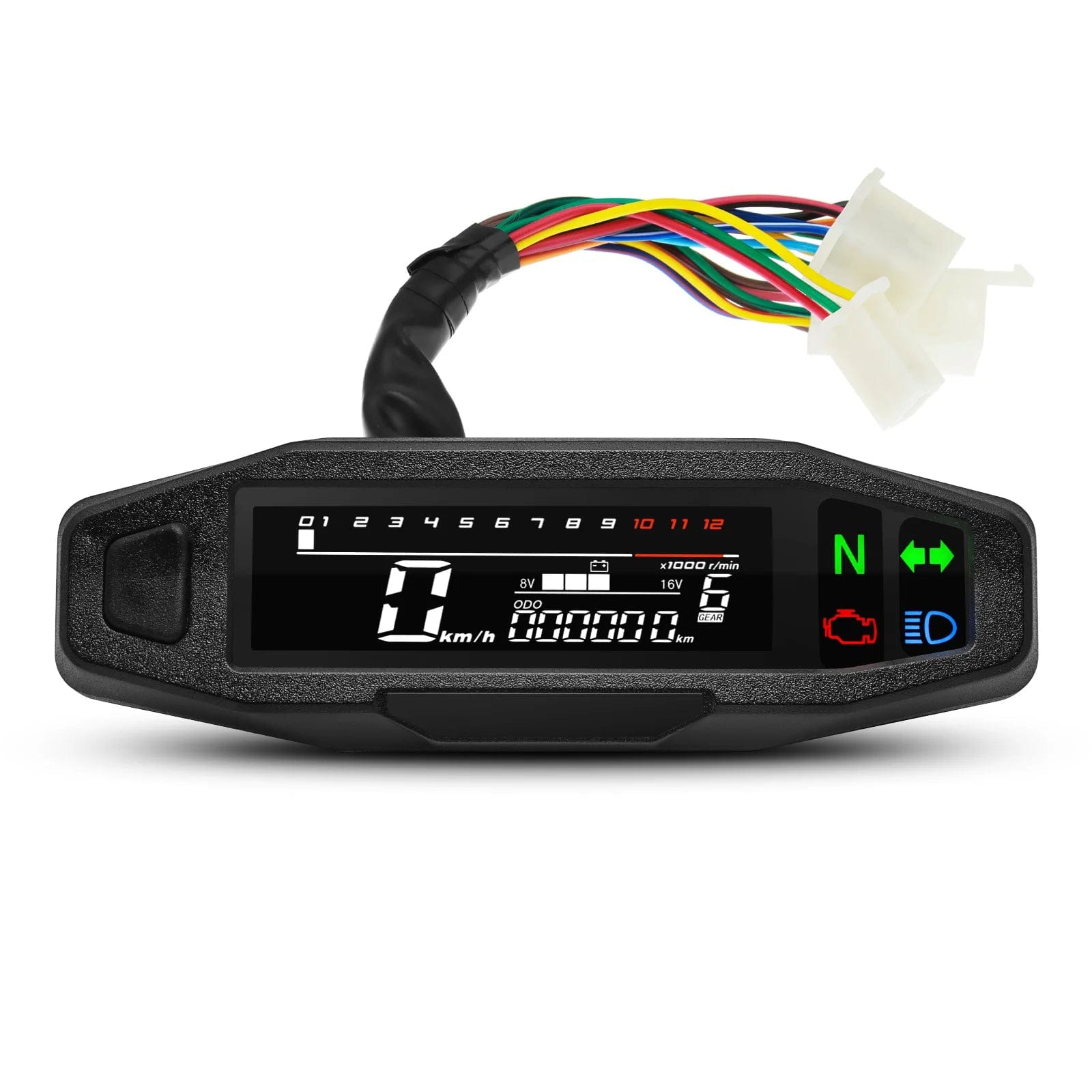

Features:

-5-bars of oil v-olume display, when the oil level is not connected, the working voltage is displayed.

-With 1-6 gear l-iquid crystal display.

-With white backlight, the dial mileage is clearly displayed whether you are driving at night or during the day.

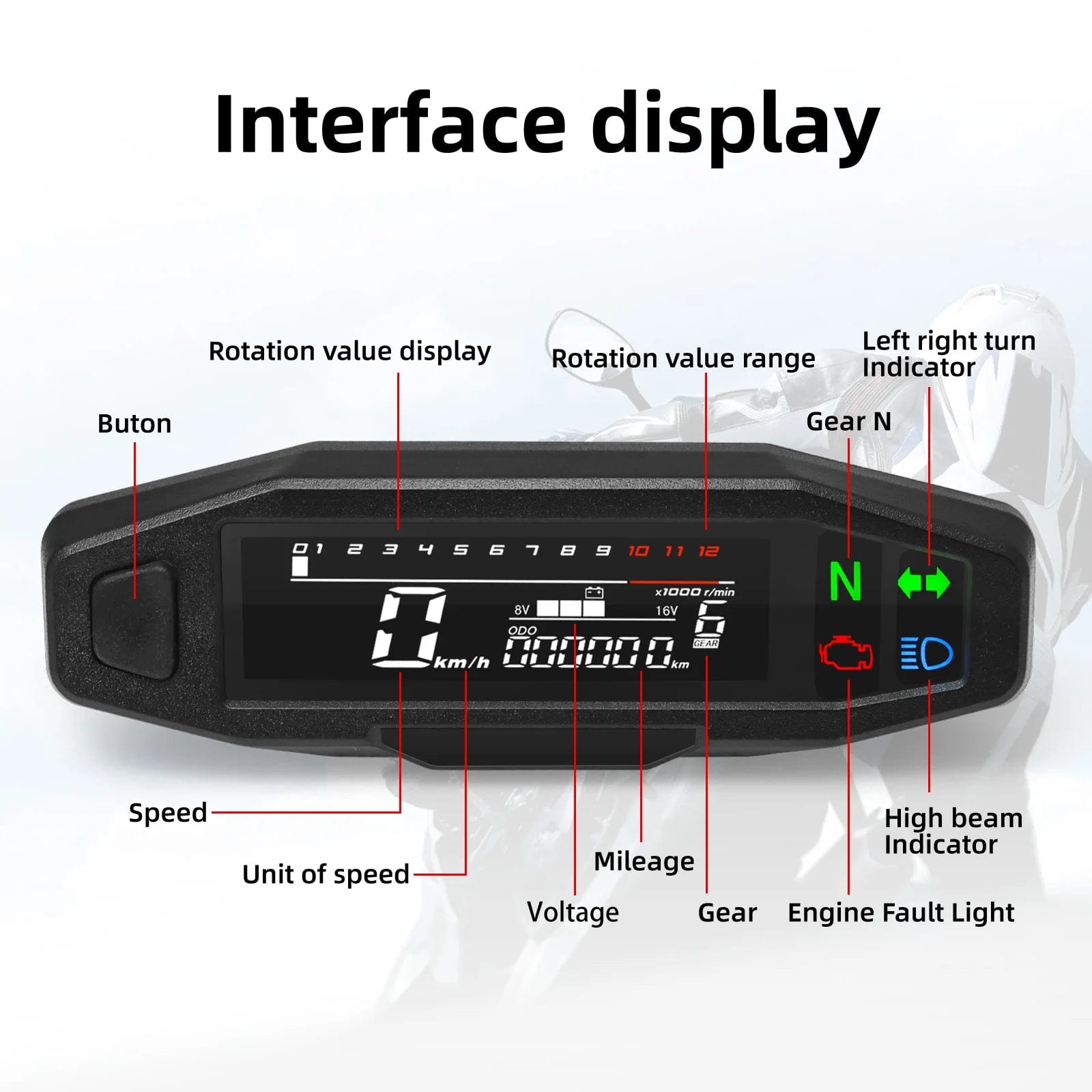

-The function includes: speedometer, Odometer, RPM, Fuel Gauge, the LCD screen is very clear, the viewing angle is large and the soft looking, relieve the eye fatigue.

-Exquisite and smooth, s-afe. Sealed, waterproof.

-Fits most motorcycle models.

Descriptipn:

1.Max speed : 199km/h

2.Max trip: 999.9km

3.Max rpm:1200 rpm

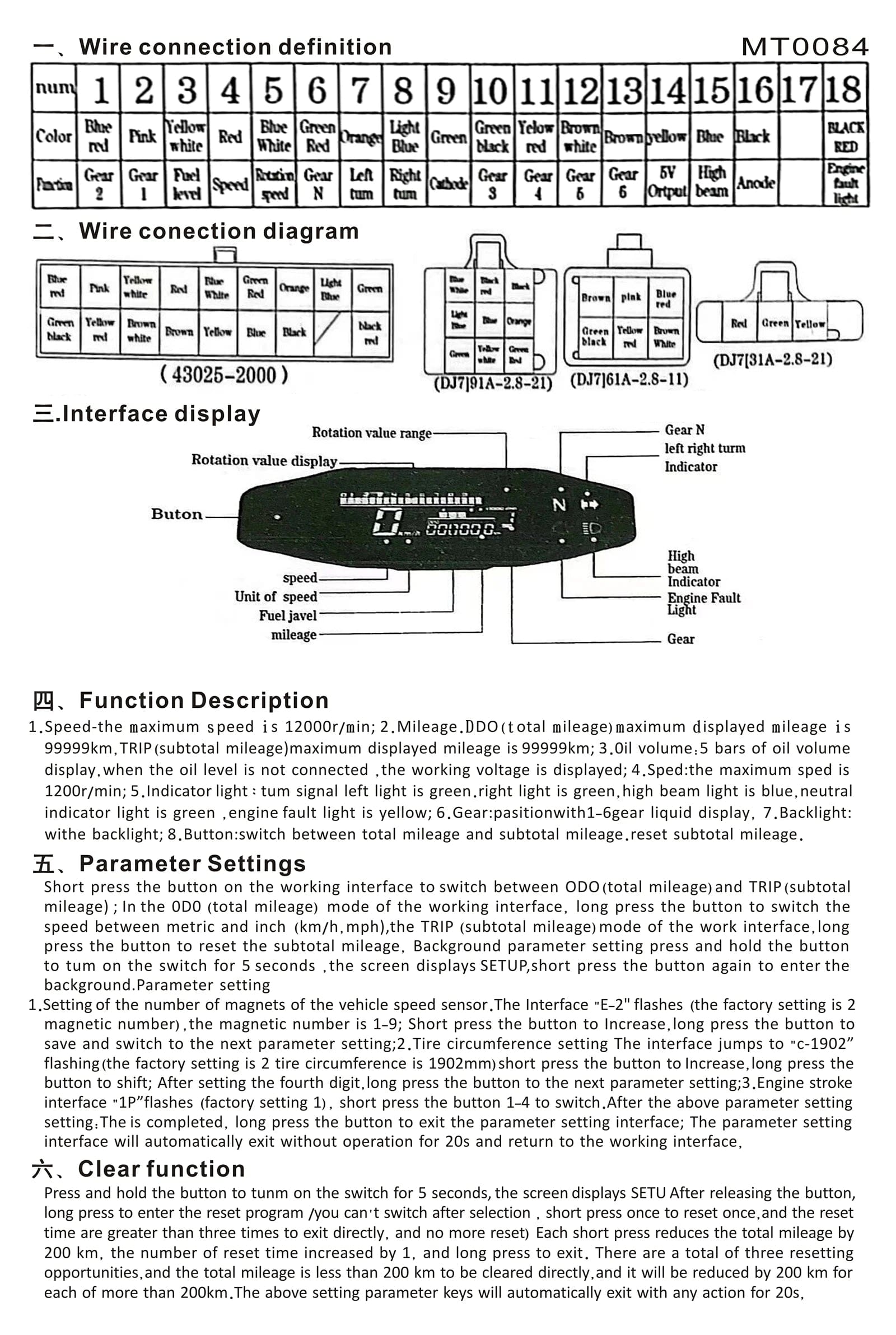

4.blue wire ~High beam

5.yellow-red ~4 level

6.blue-red~2 level

7.blue-white~RPM

8.orange~left turning light

9.green~power

10.black~positive electrode

11.yellow-voltage 5v

12.brown-white~5 level

13.green-black~3 level

14.pink~1 level

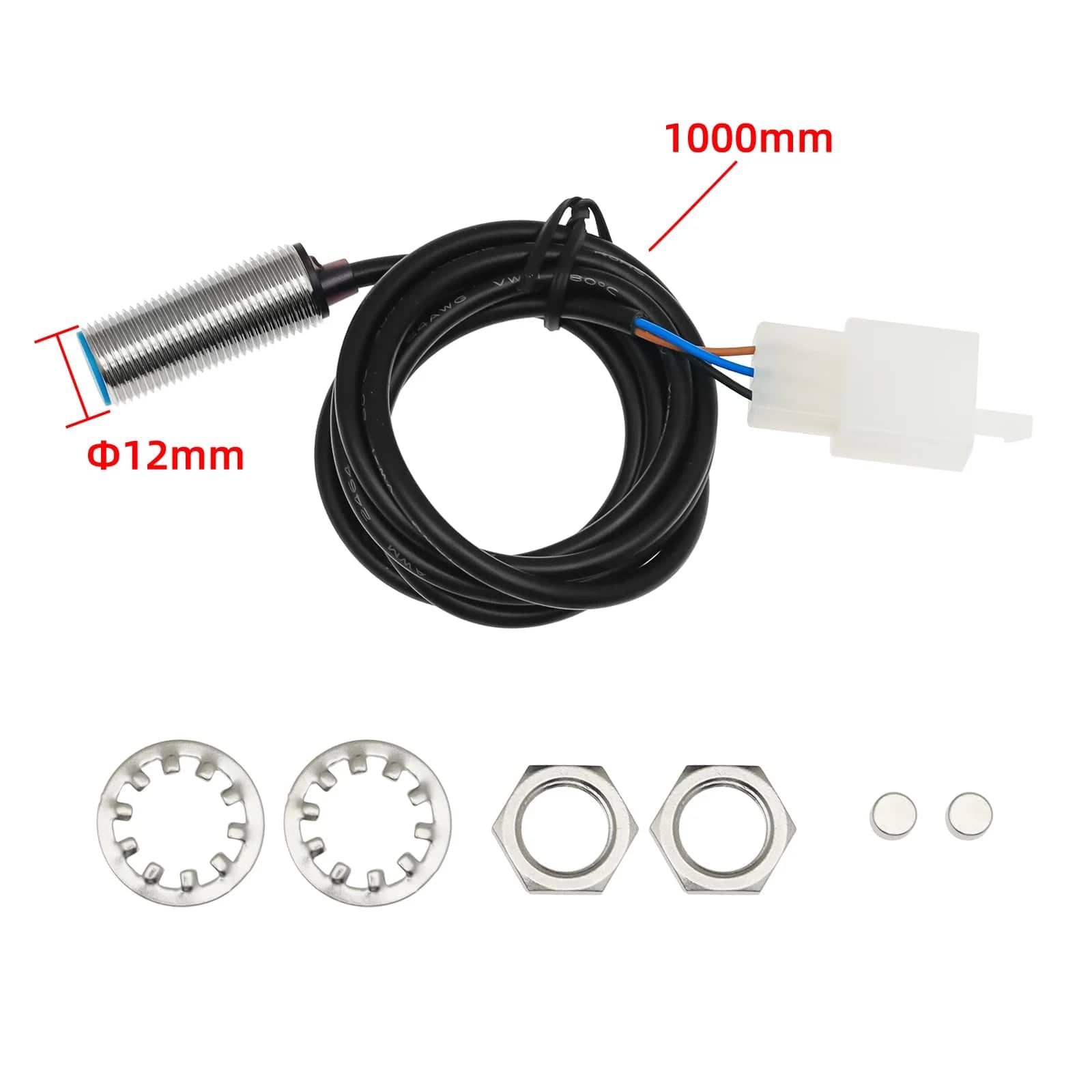

15.red~speed

16.green-red~ N level

17.light blue~right turning light

Specifications:

Color: black

Material: plastics+metal

Screen size: 103 * 25mm

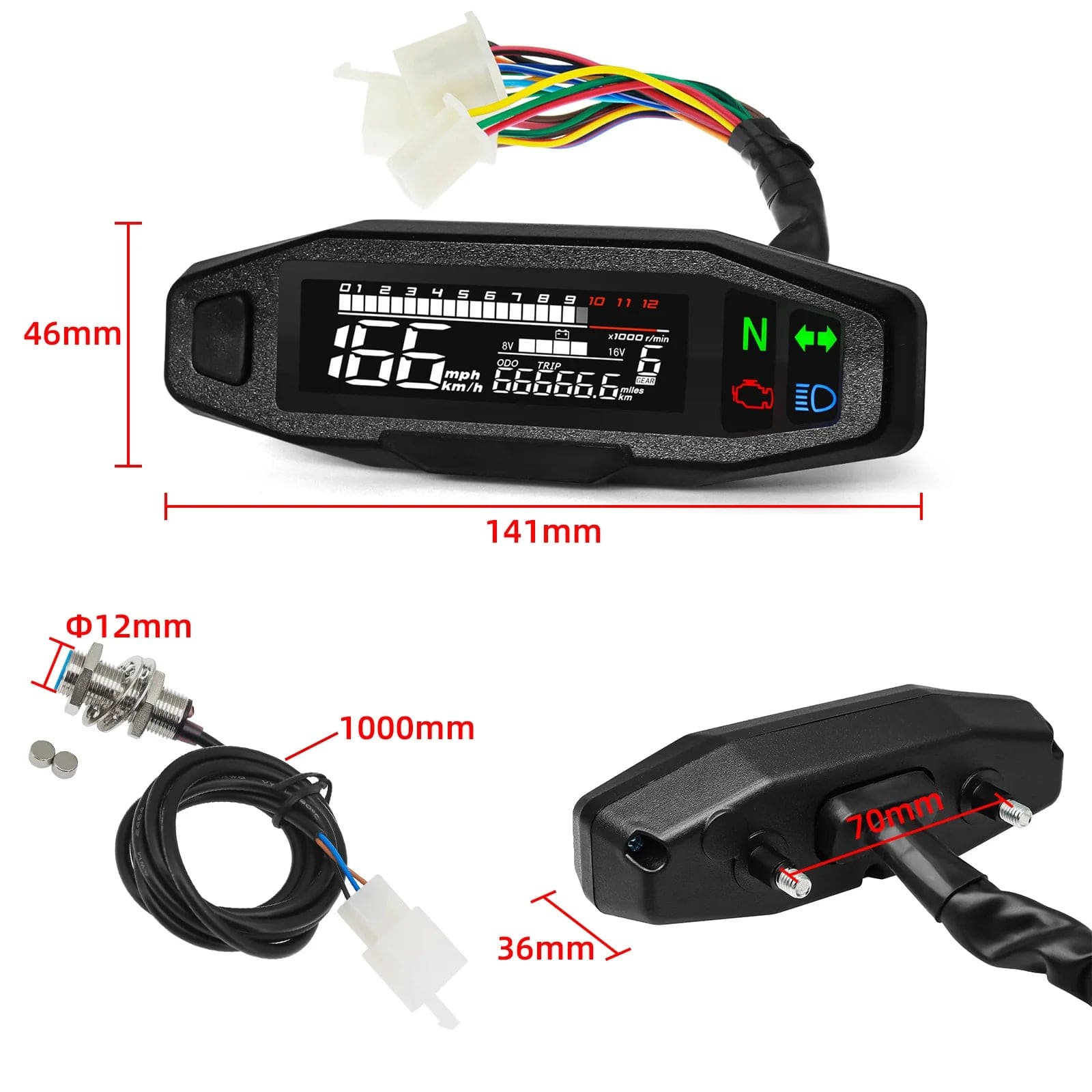

Item size: 141 * 46mm
