MACHINIST Official Store Statement

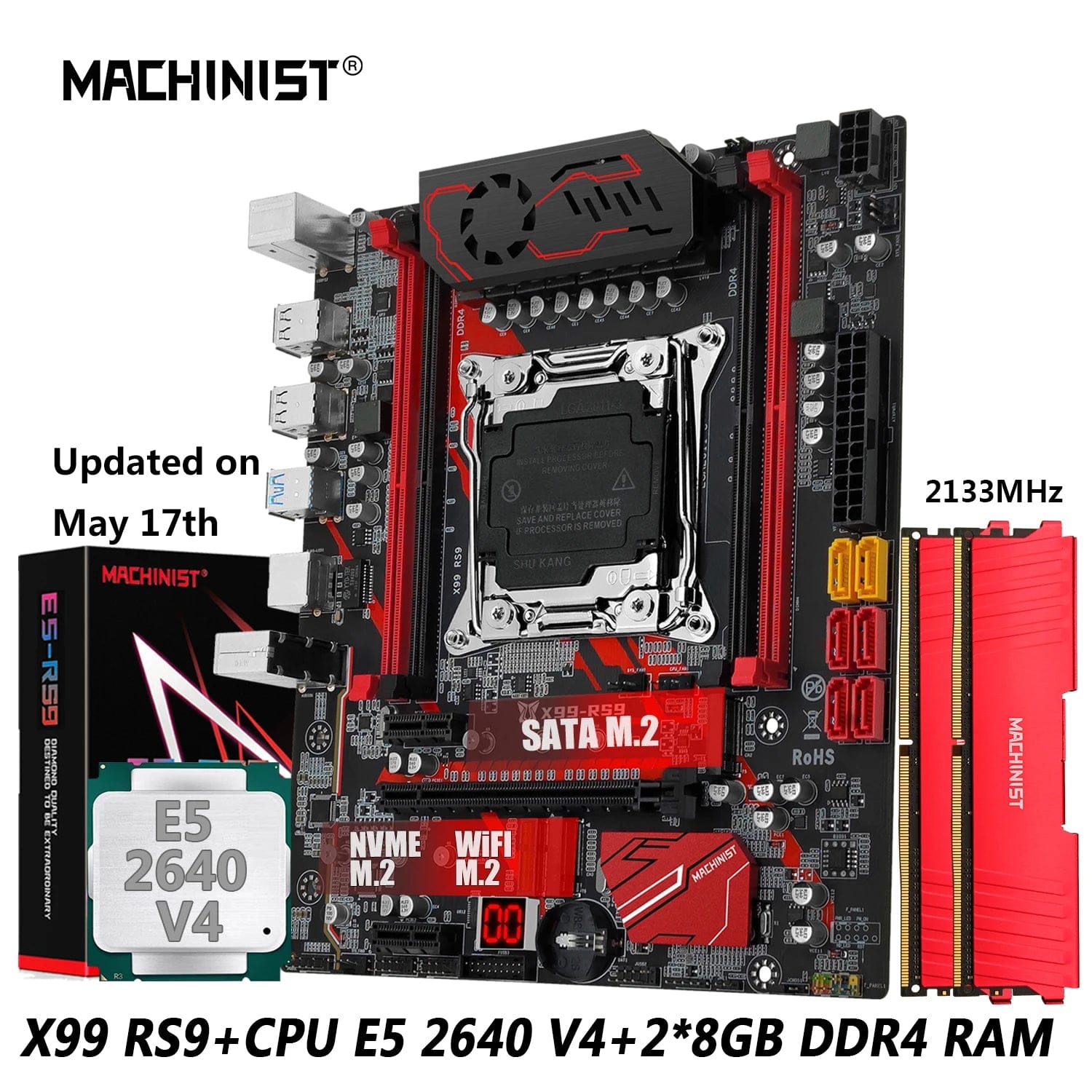

>>1: What's in the package?
MACHINIST E5 RS9 motherboard *1PCS,
Used CPU E5 2640 V4 *1pcs ,
DDR4 8GB 2133MHz RAM *2PCS.
##Gift accessories (not as a reason for refund) :i/o shield, CPU cooling support, sata cable (all manual test packaging, there may be missing, please forgive me!) ;

>>For the tariff problem, please make sure you can solve the customs clearance problem by yourself, if you can't solve it, we do not recommend you to buy goods in our store. We are not responsible for customs duties. Thanks for your understanding.

>>Please note: Some processors only support up to DDR4 1866Mhz or 2133MHz memory. This means that when 3200Mhz or 2666Mhz is installed it will only show 1866Mhz and 2133MHz. If you mind, please don't place an order. You can read 3200mhz and 2133MHz on CPU-Z.

E5 2640 V4 CPU
Total number of cores 10

Total number of threads 20

Processor base frequency 2.40 GHz

Cache 25 MB Intel ® Intelligent caching

Bus speed 8 GT/s

TDP 90 W

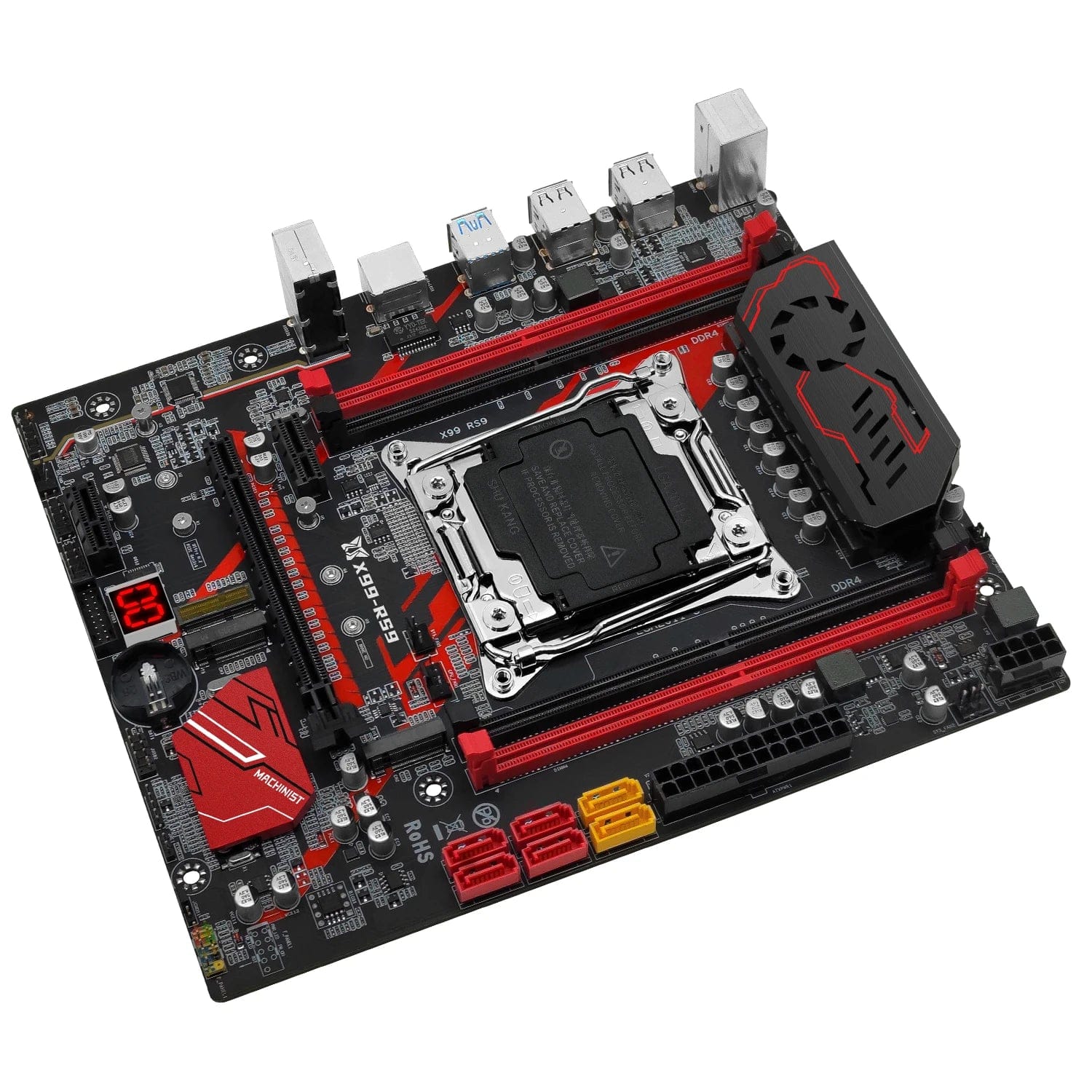

MACHINIST Product Details

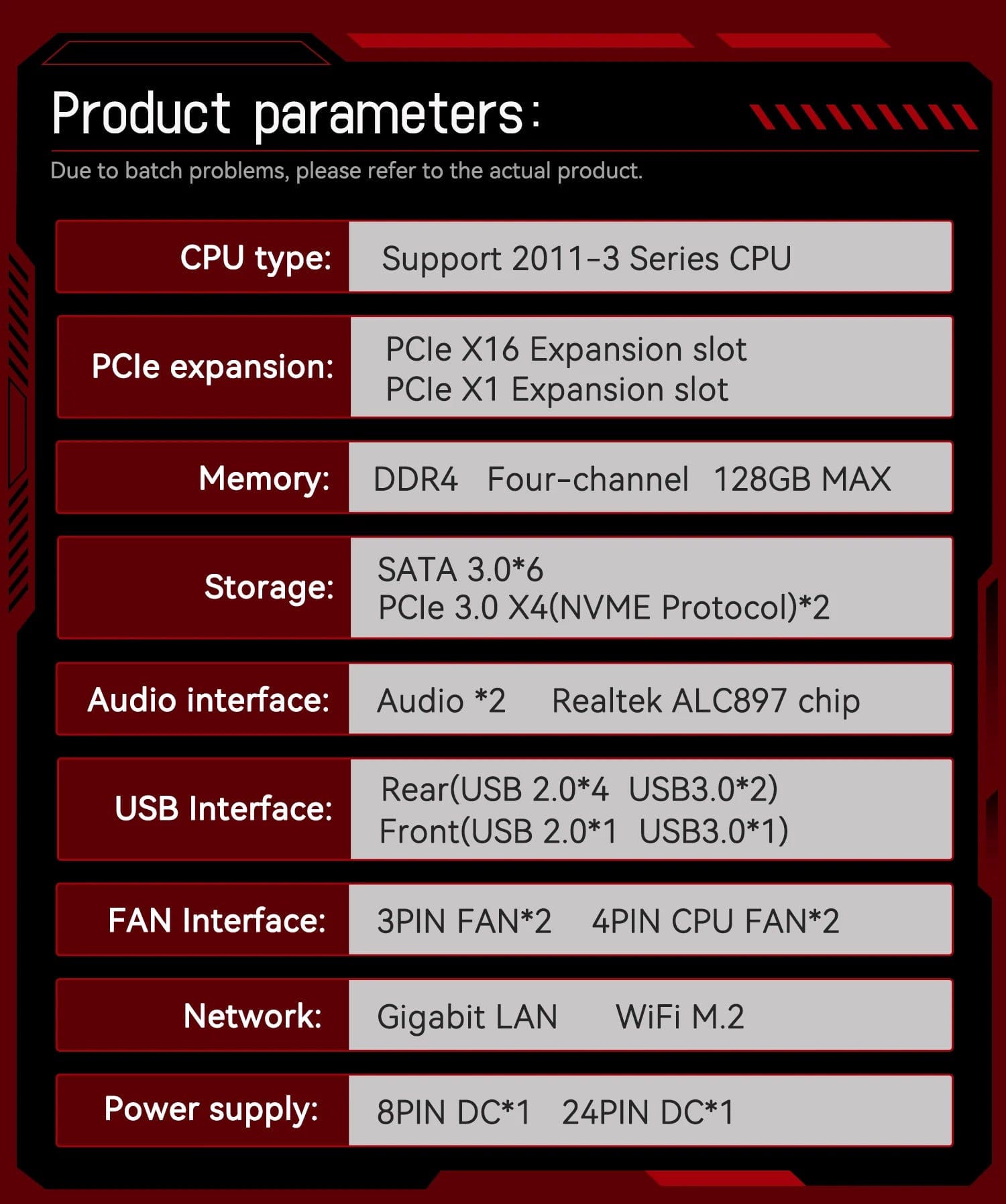

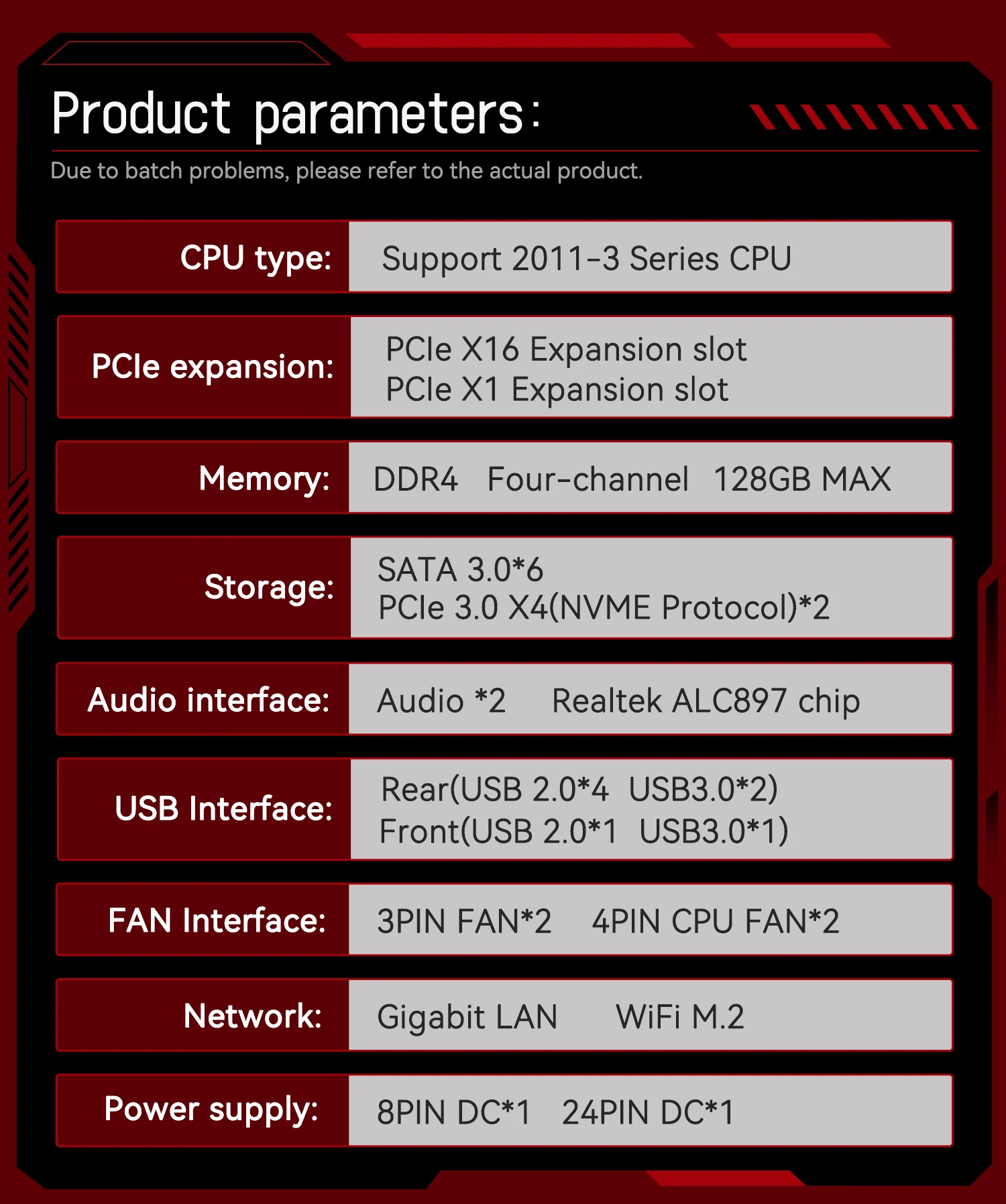

> > Specifications:
Brand: MACHINIST;

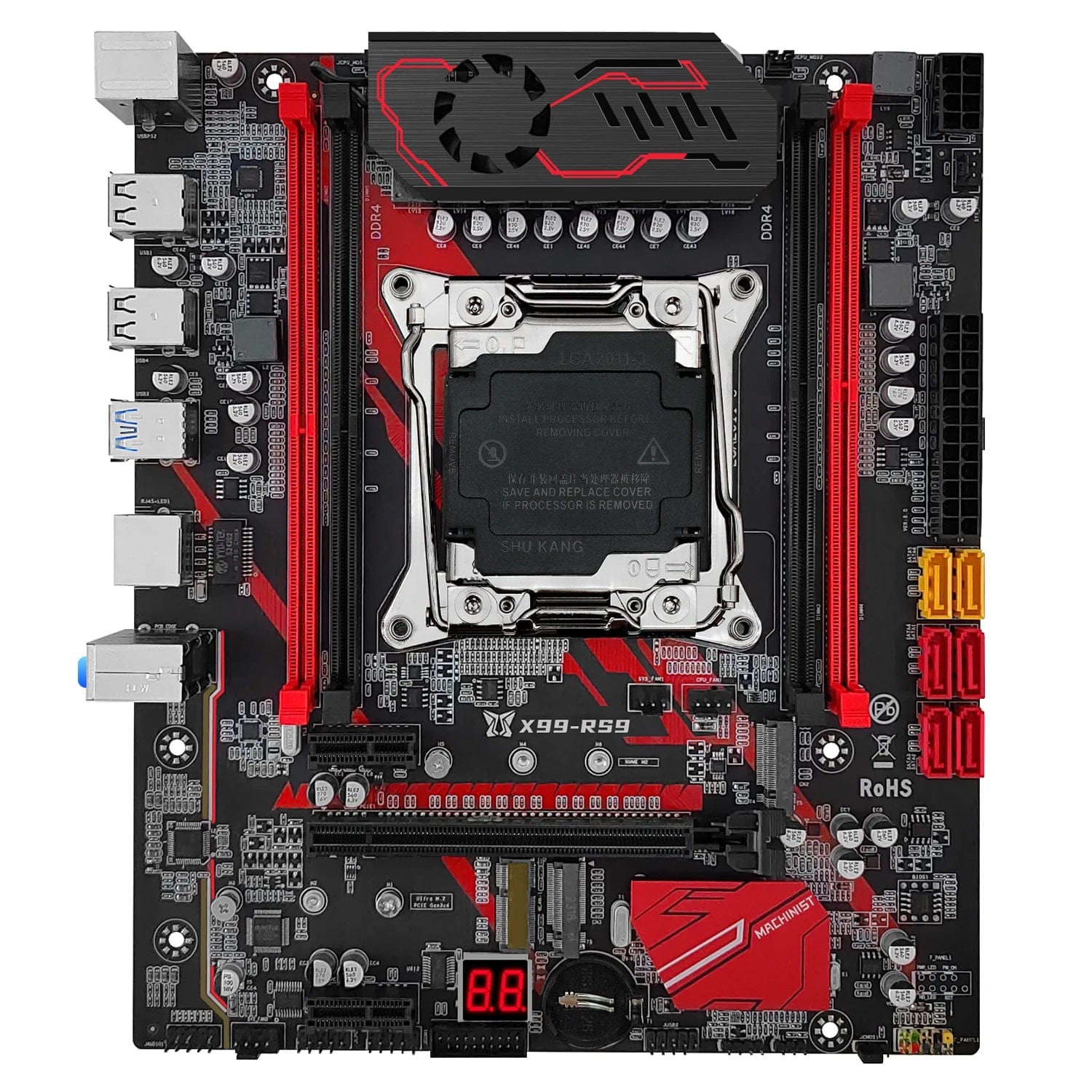

Model: E5 RS9
Processor: Support Intel LGA2011-3 pin series processor;
Southbridge :Q87chipset series;

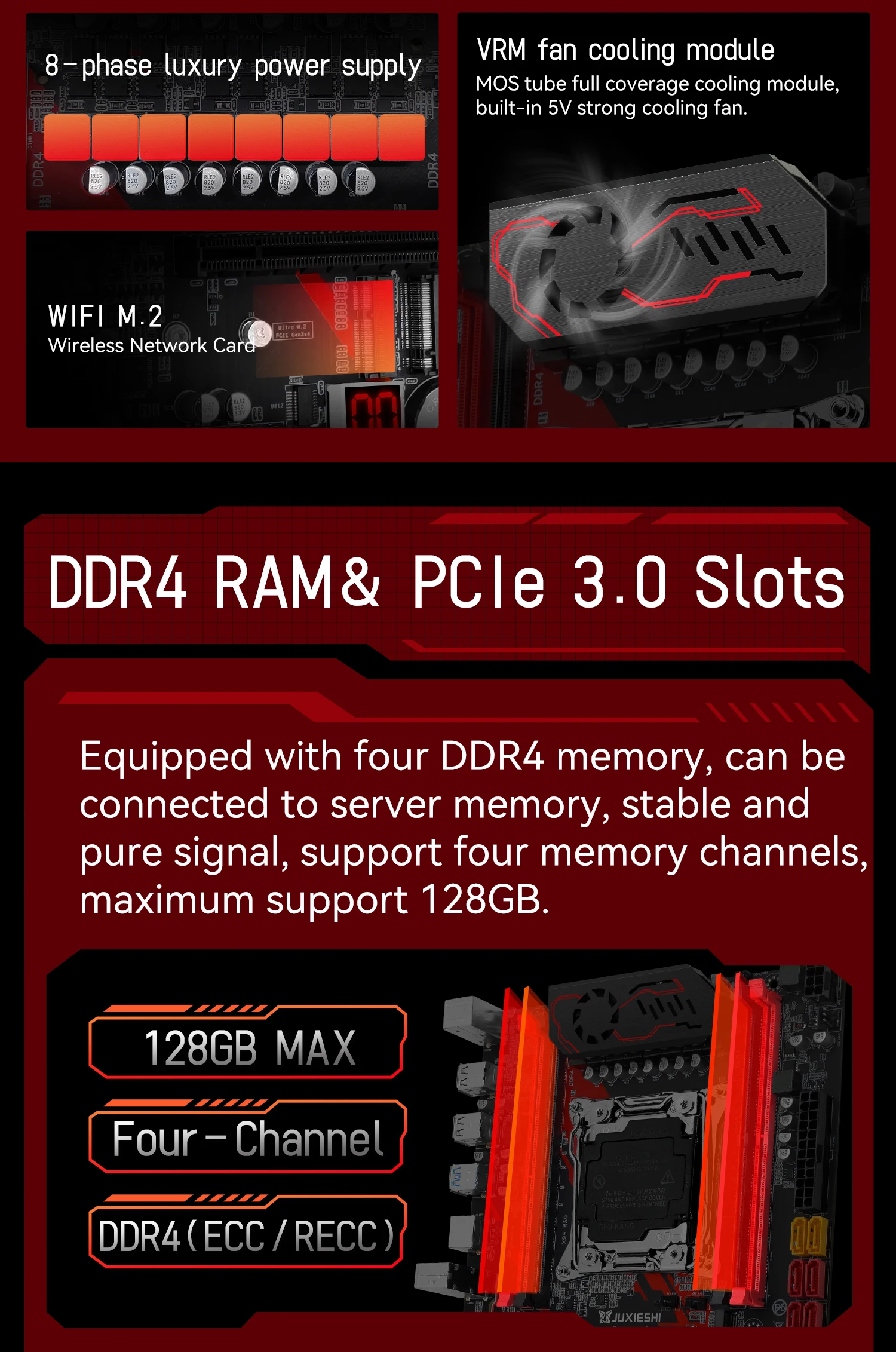

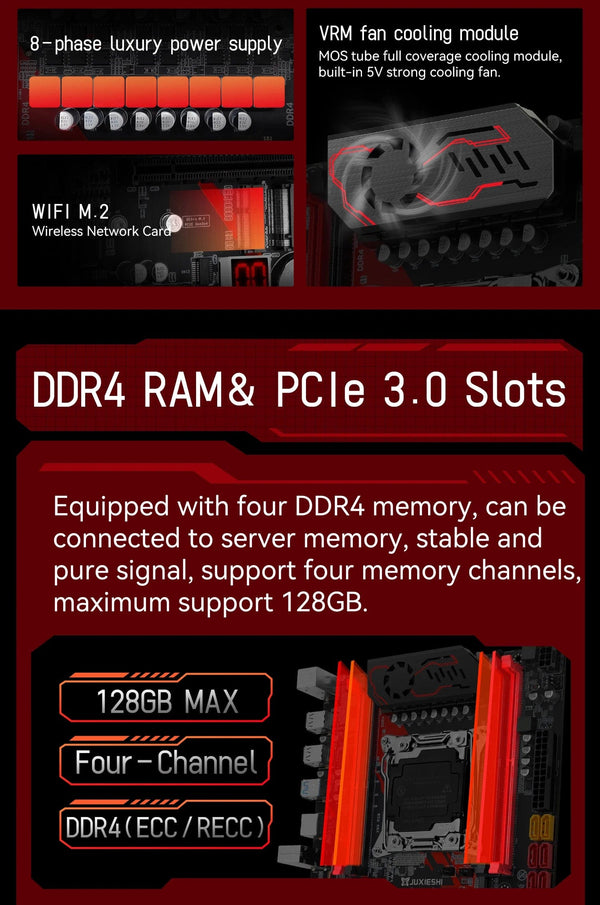

> > Memory
Technology: four-channel DDR4 2133/2666/3000/3200MHz;
Maximum capacity 128GB;
Memory slot :4 * 288 PIN DDR4;
Supported memory type: The memory type supports DDR4 desktop and server memory. (Please use Samsung, Kingston, Sandee, Micron, Hynix and other international brands, other brands may not be compatible);

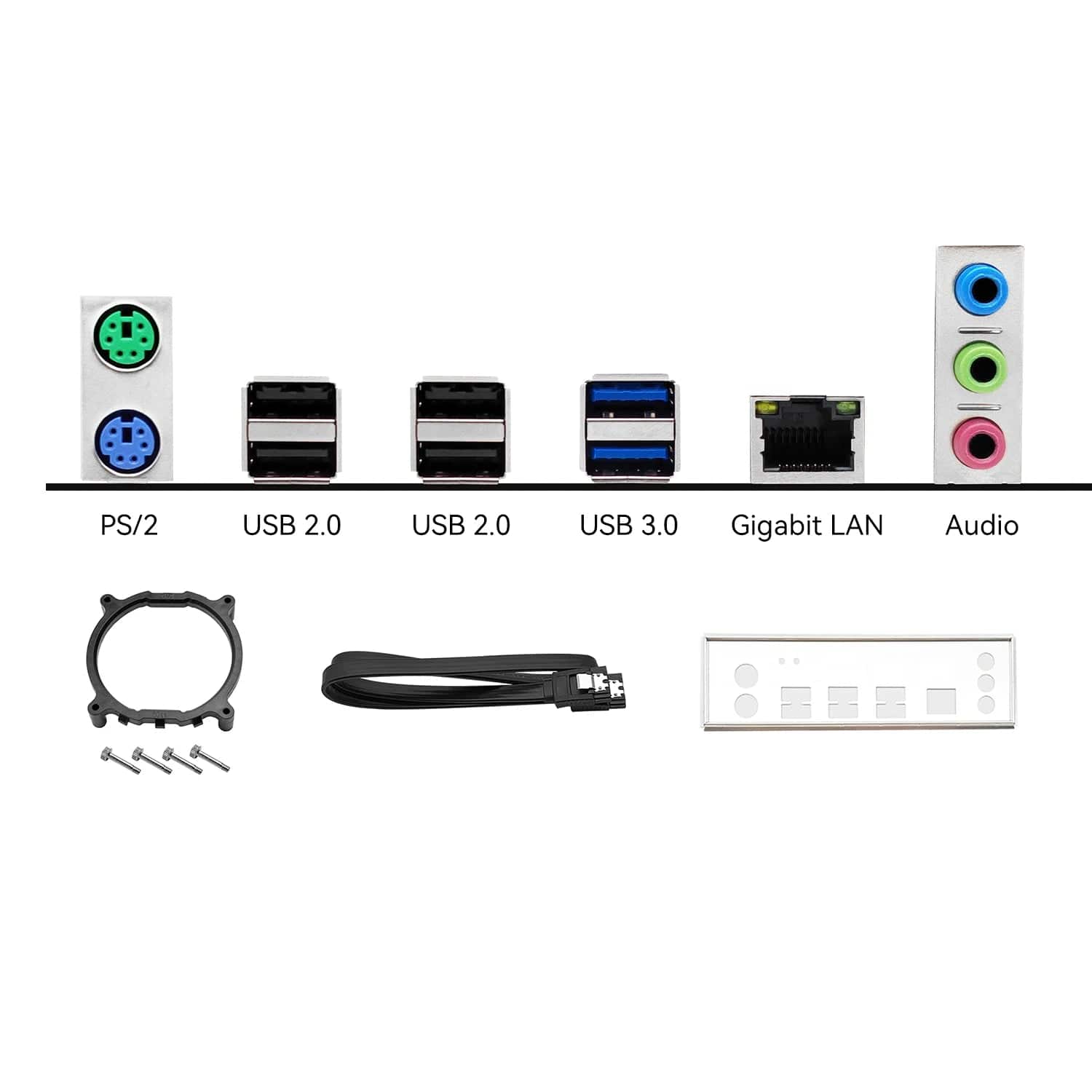

>> After l/O:
USB ports :2 USB 3.0; 4 USB 2.0;
Audio: 3-hole audio interface;
Ethernet :1 Realtek Gigabit LAN;
PS/2: 1 KB interface and 1 MS interface;

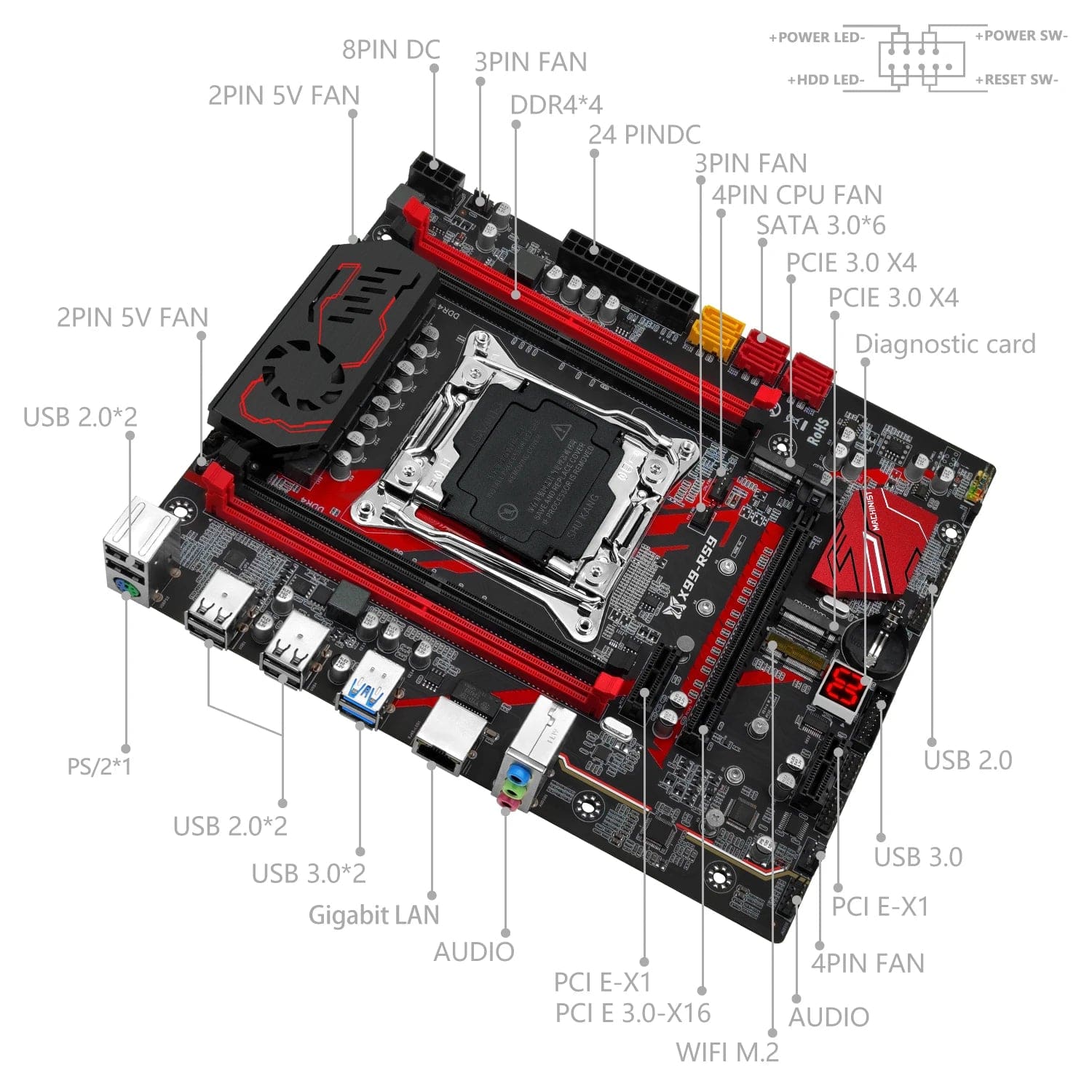

> > Internal connector
USB 2.0:4 (one FUSB can transmit two USB 2.0 ports);
USB 3.0: 2 (one FUSB can transmit two USB 3.0 ports);

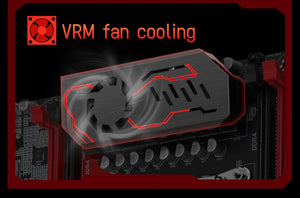

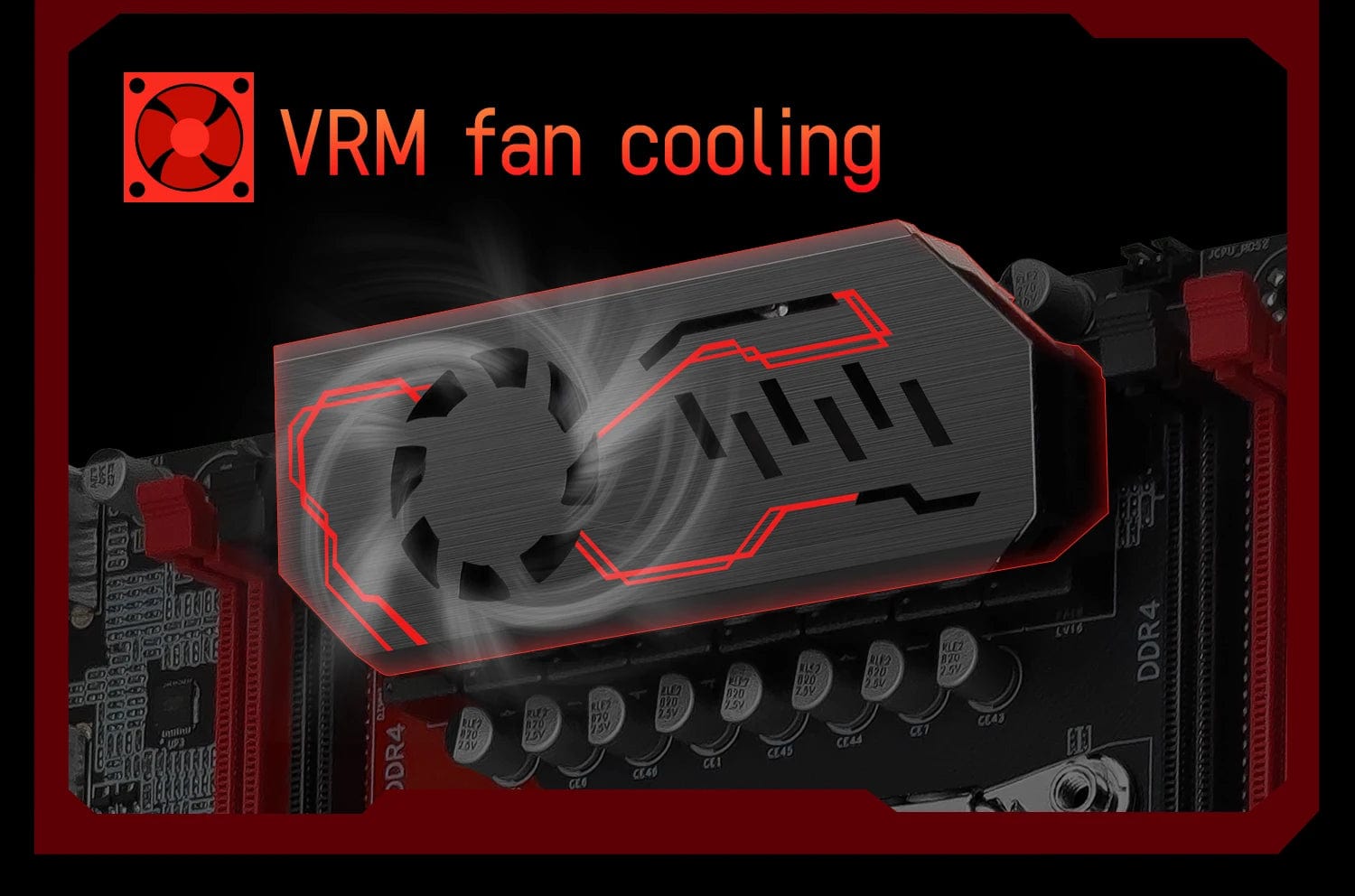

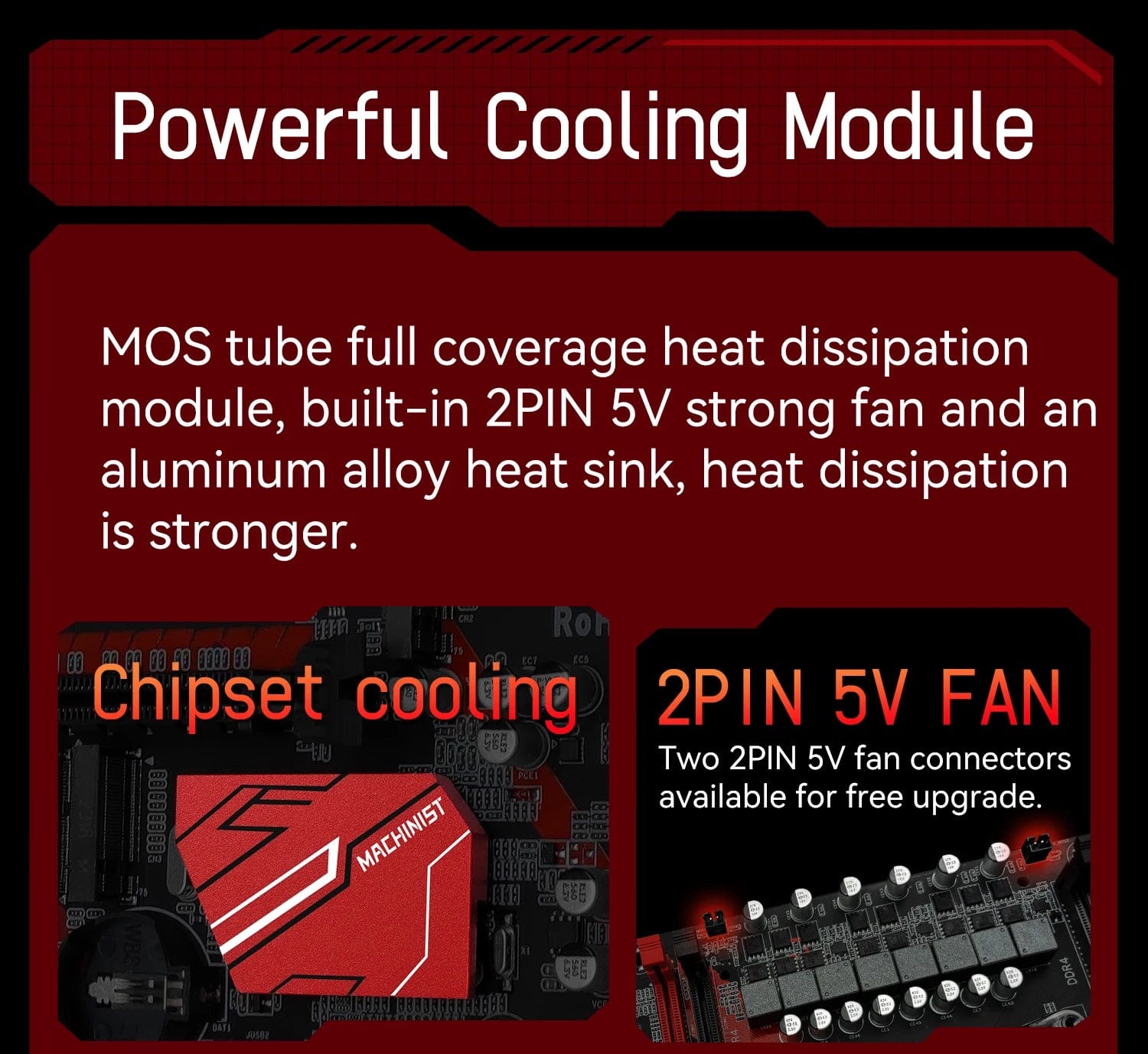

Fan: (1* cfan +-3* sfan);

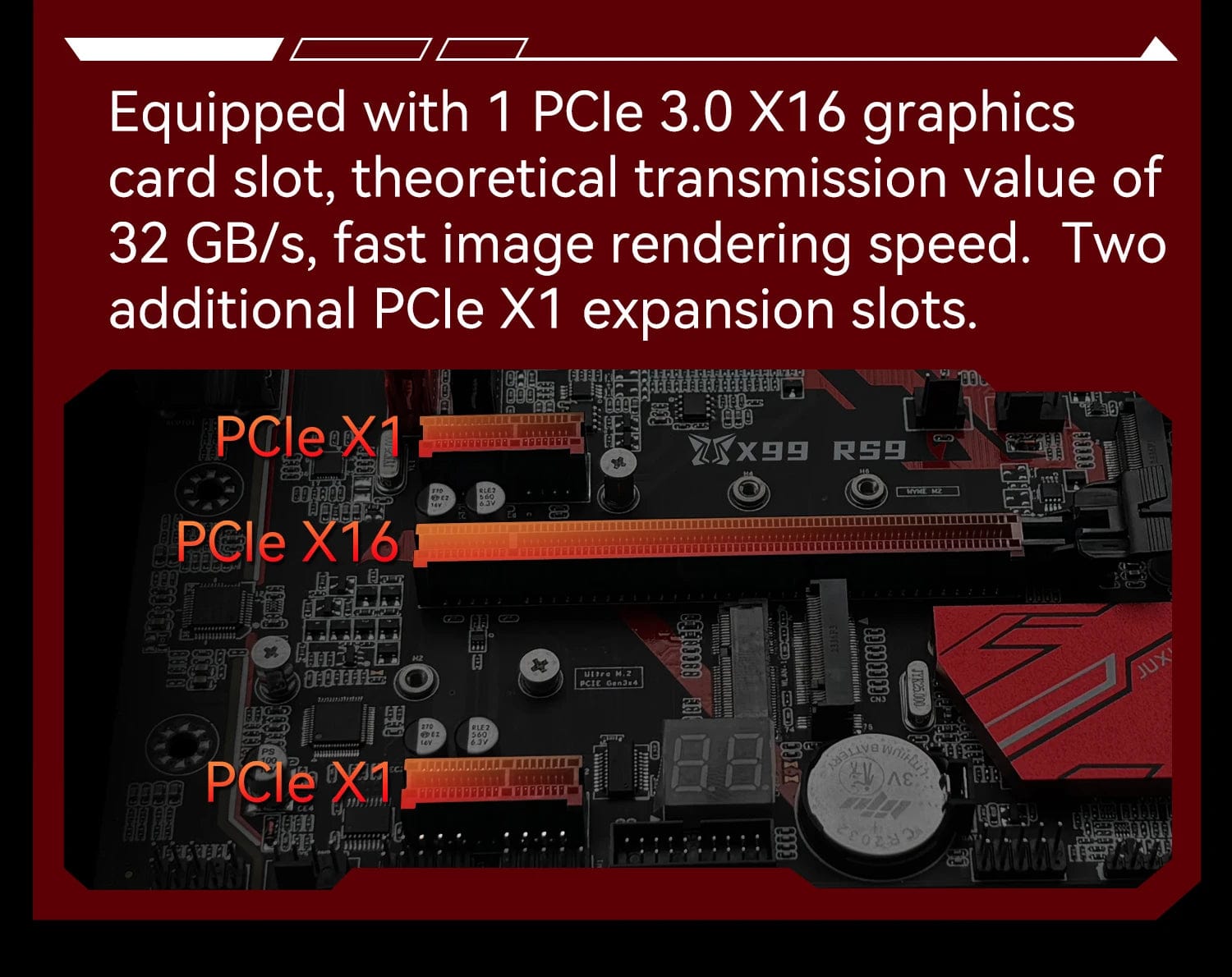

PCIe: (1 PCIe x16; 1 PCIe x1);
SATA ports :4 (4 SATA3.0);
1 standard 1x8PIN power outlet; 1 standard 1x24PIN power outlet;
JAudio: 1 2x5Pin pin;
Diagnostic card :1;

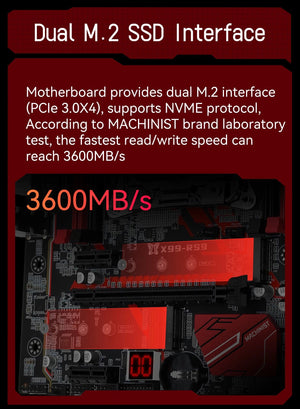

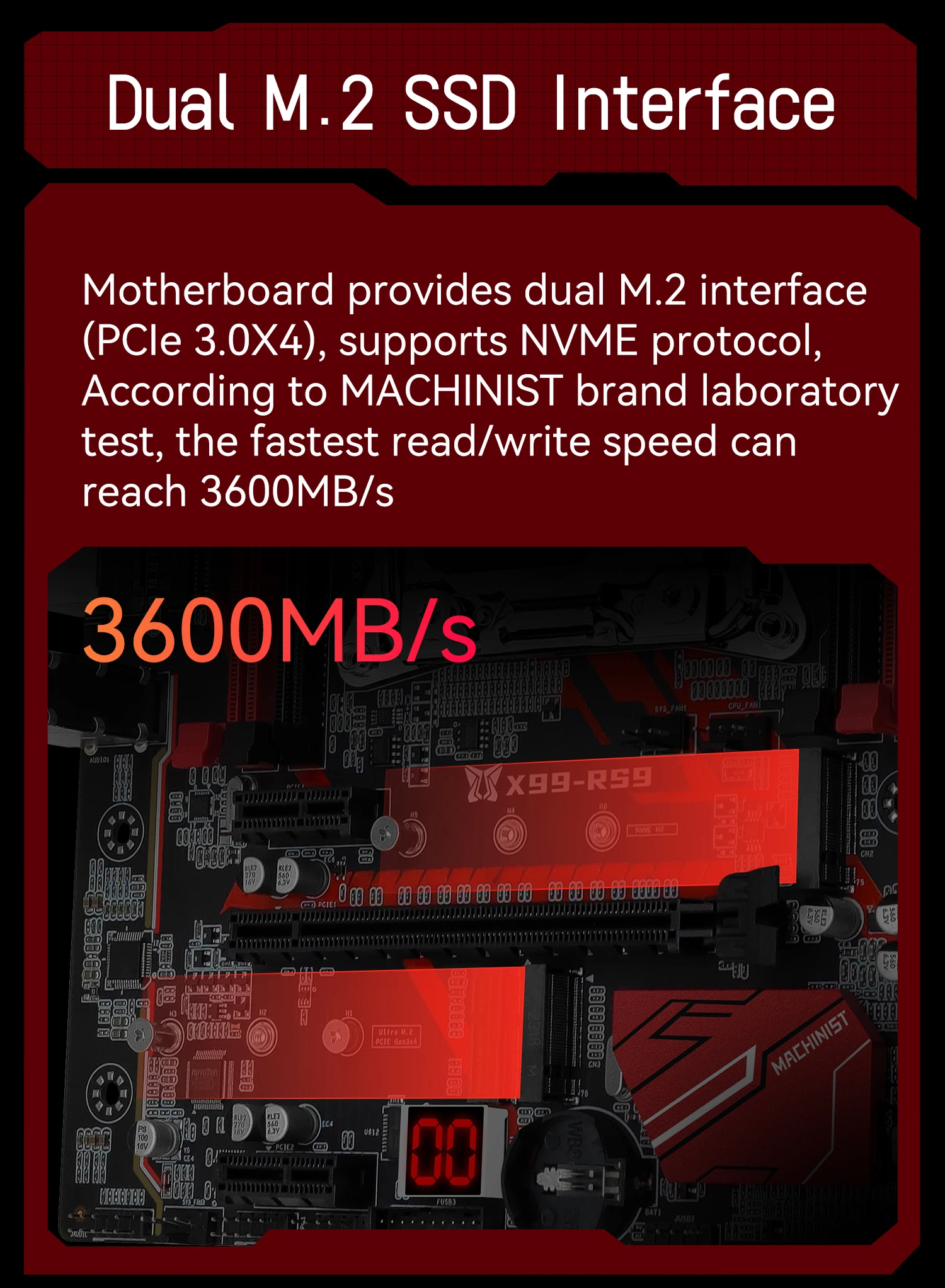

M.2 Interface :2 (1 x PCIB +2 x SATA).

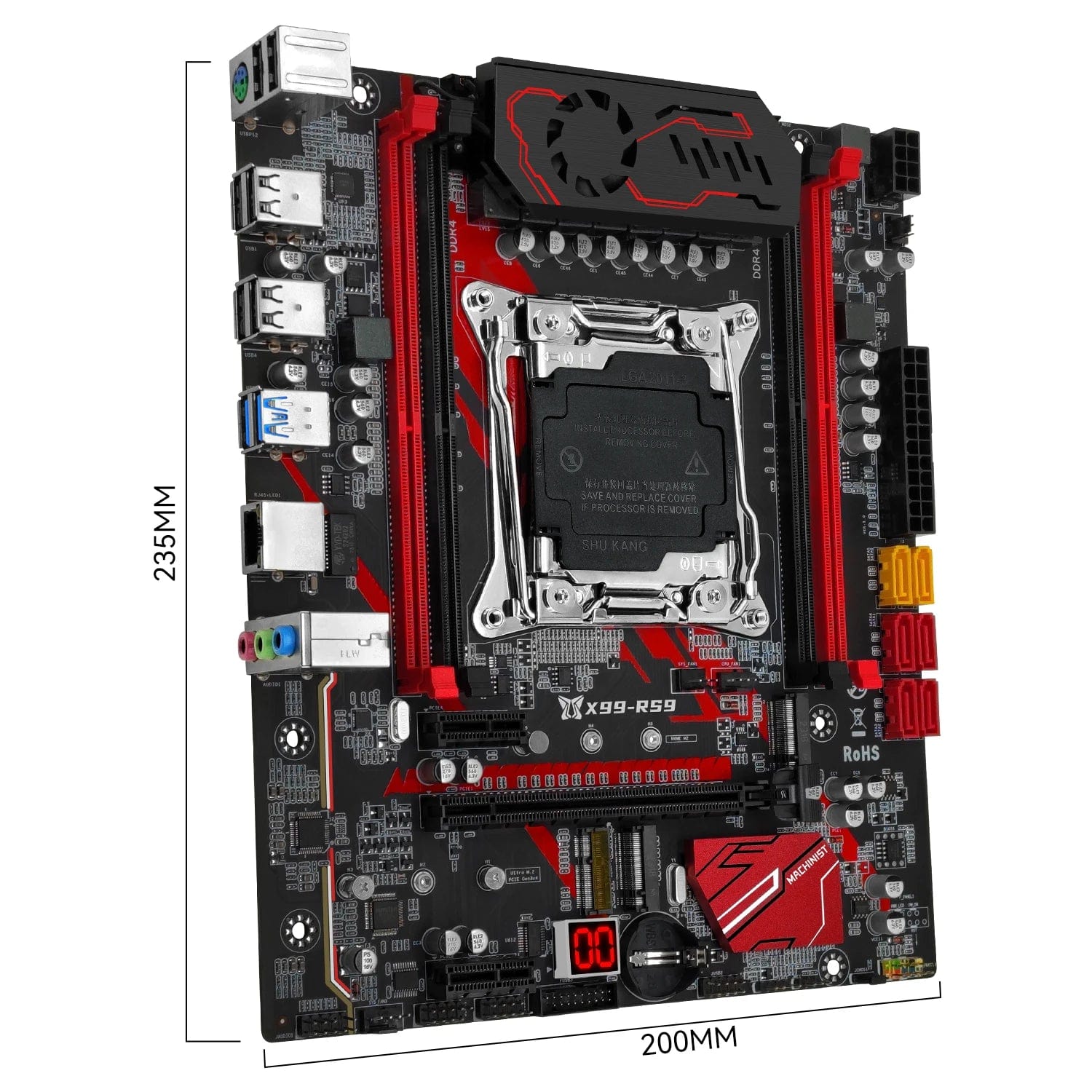

> > Physical dimensions

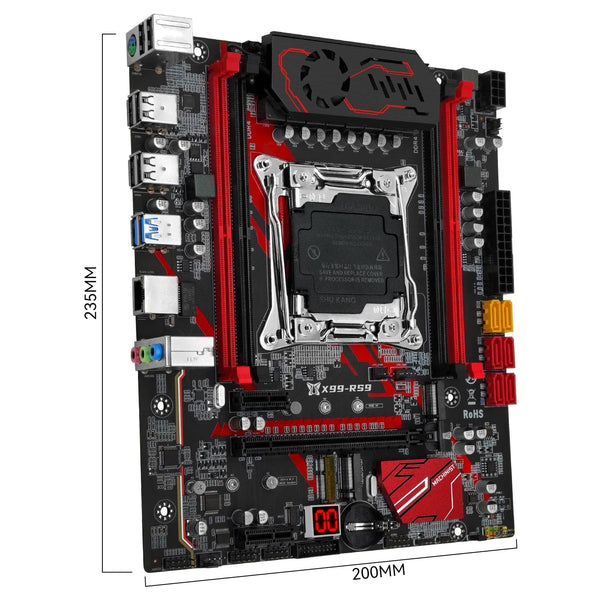

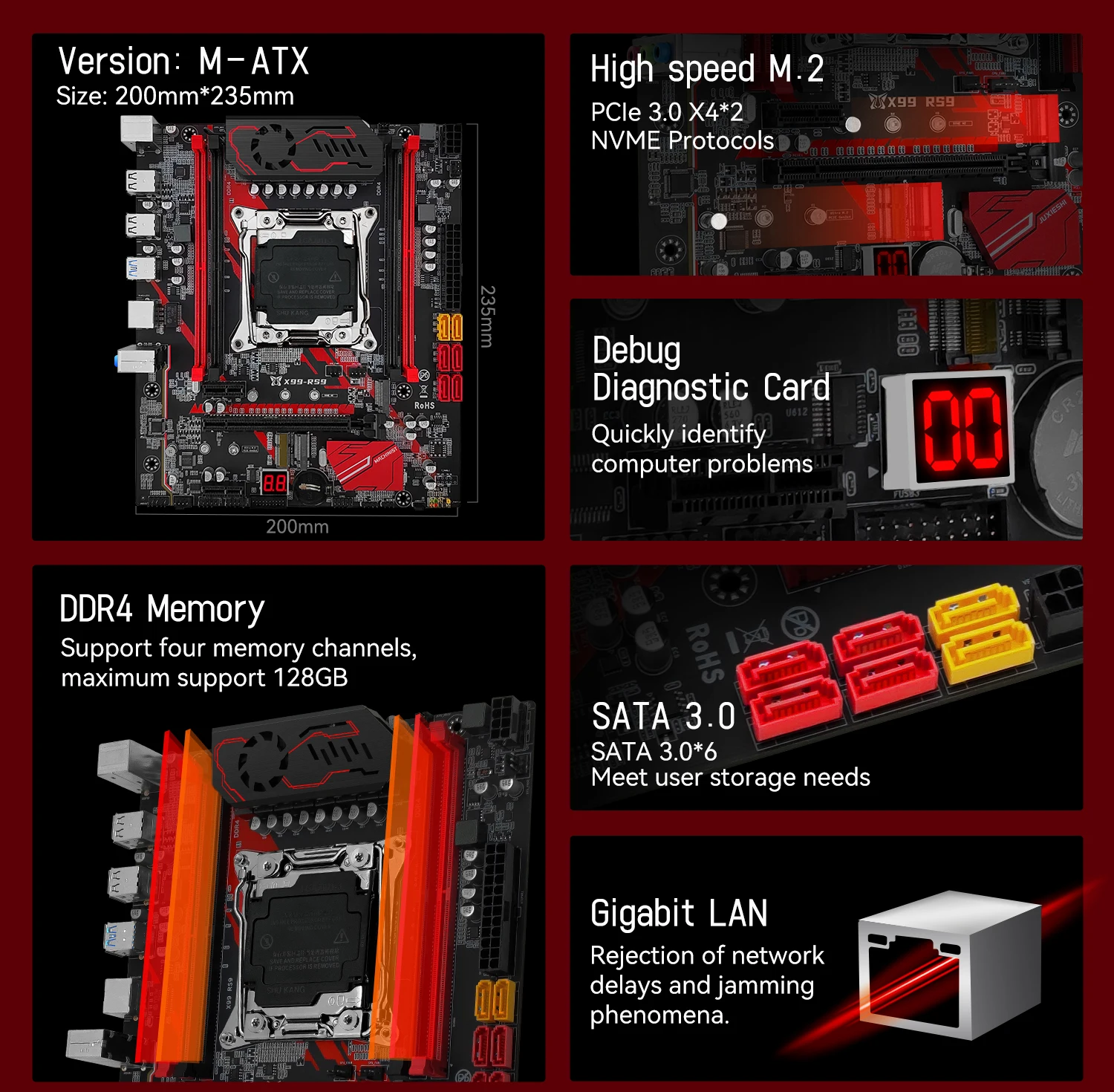

Size :235*185mm;
Motherboard weight : about 0.95 kg.

Note:

(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
