SPECIFICATIONS

Brand Name: ERYING

Chipset: Intel Others

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 96GB

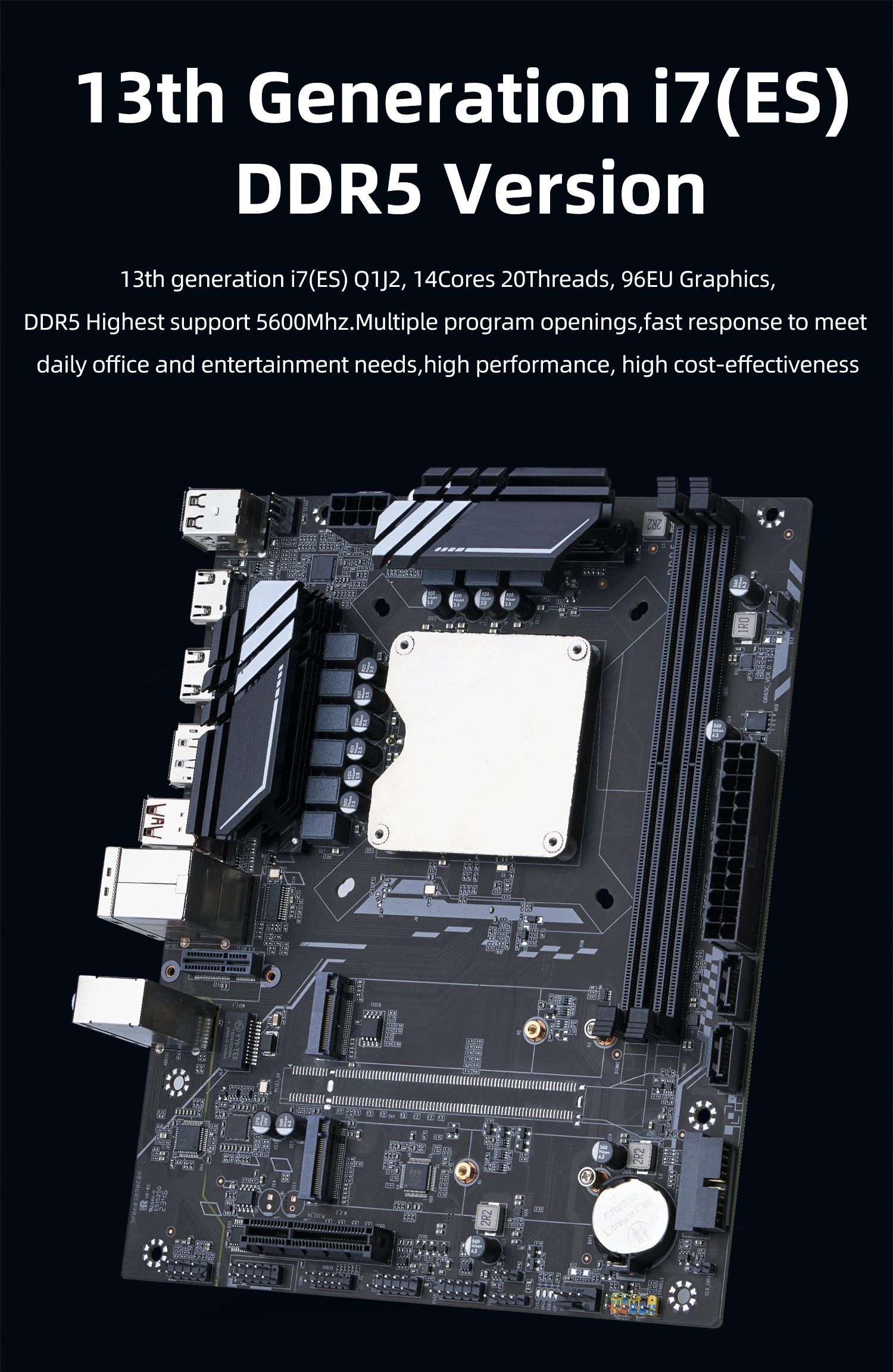

Processor compatibility: 13th Intel Core i7

With CPU: Yes

Support Memory Type: DDR5

Number of PCI: 0

Storage Interface Type: SATA 3

Storage Interface Type: M.2 (NVMe)

Package: Yes

RAID Supported: no

Application: Desktop

Chipset Manufacturer: Intel

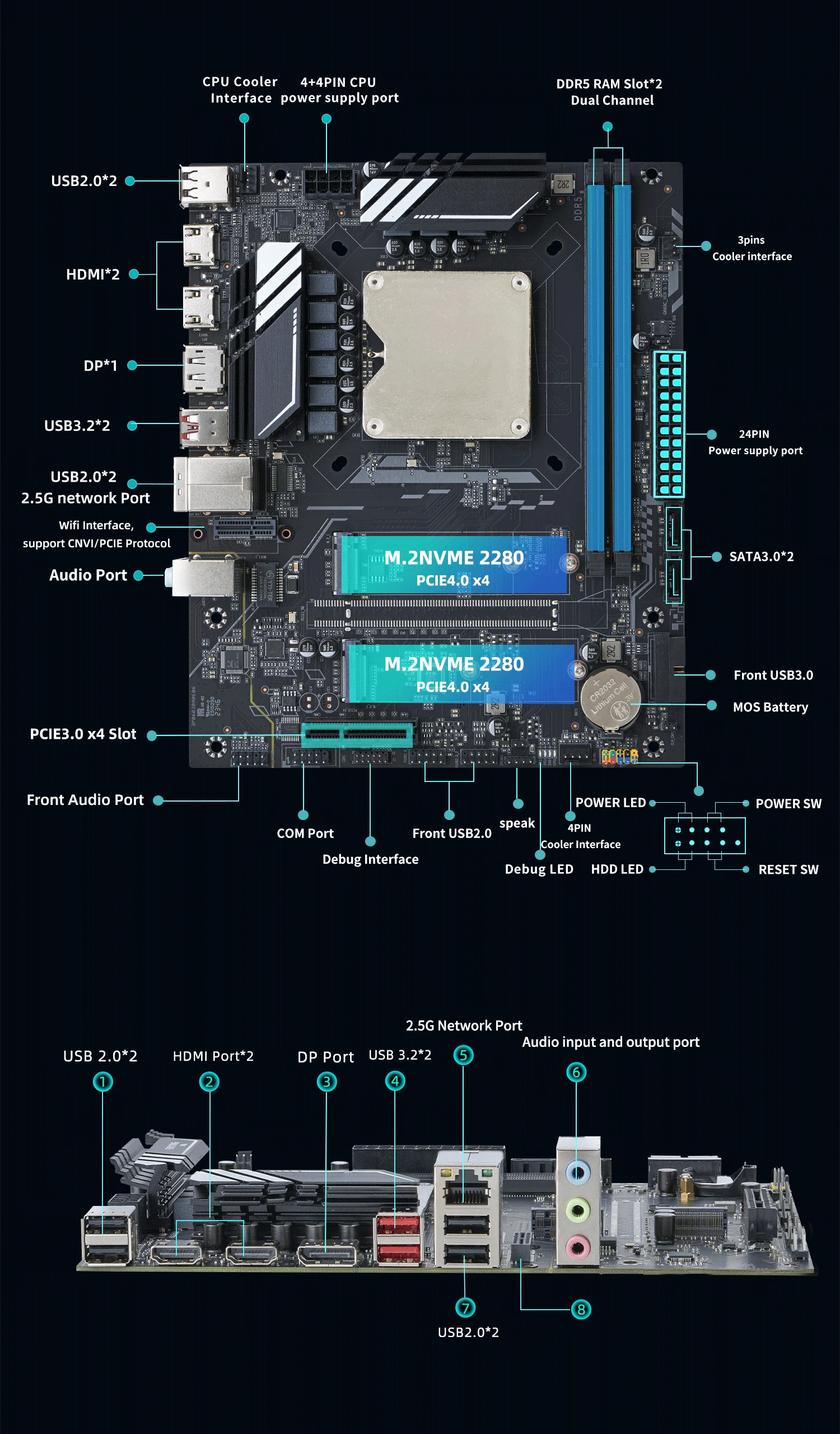

Back I/O Ports: 1x RJ45

Back I/O Ports: 3 x Audio Jacks

Back I/O Ports: Displayport

Back I/O Ports: 4 x USB 2.0

Back I/O Ports: USB 3.2 Gen2 X2

Back I/O Ports: HDMI 2.0

PCI - E standards: PCI - E 2.0

Socket Type: Onboard CPU

Hign-concerned Chemical: None

Special Function: none

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Office

Usage Scenario: DESIGN

Usage Scenario: Video Production

Usage Scenario: HPC

Origin: Mainland China

Number of PCIe x 8: 0

Number Of Memory Slots: 2

Ports: M.2

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Number of PCIe x 4: 1

Number of PCIe x 16: 1

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard Connectors & Header: CPU Fan Connector(s)

Onboard Connectors & Header: AAFP Connector

Onboard Connectors & Header: SPI TPM Header

Onboard Connectors & Header: Chassis(SYS) Fan Connector(s)

Onboard Connectors & Header: USB 3.0 Connector

Onboard Connectors & Header: 8-pin +12V Power Connector

Onboard Connectors & Header: OthersConnectors & Header

Onboard Connectors & Header: Speaker Connector

Onboard Connectors & Header: Serial Port Connector

Onboard Connectors & Header: SATA Power Connector(s)

Onboard Connectors & Header: COM Port Header

Onboard Connectors & Header: System Panel(s) (Chassis intrusion header is inbuilt)

Memory channel: Double

Number of SATA Ports: 2

Audio Channels: 5.1

Max LAN Speed: 2500Mbps

Quality Certification: ce

Quality Certification: ROHS

Quality Certification: FCC

Certification: RoHS

Certification: FCC

Certification: CE

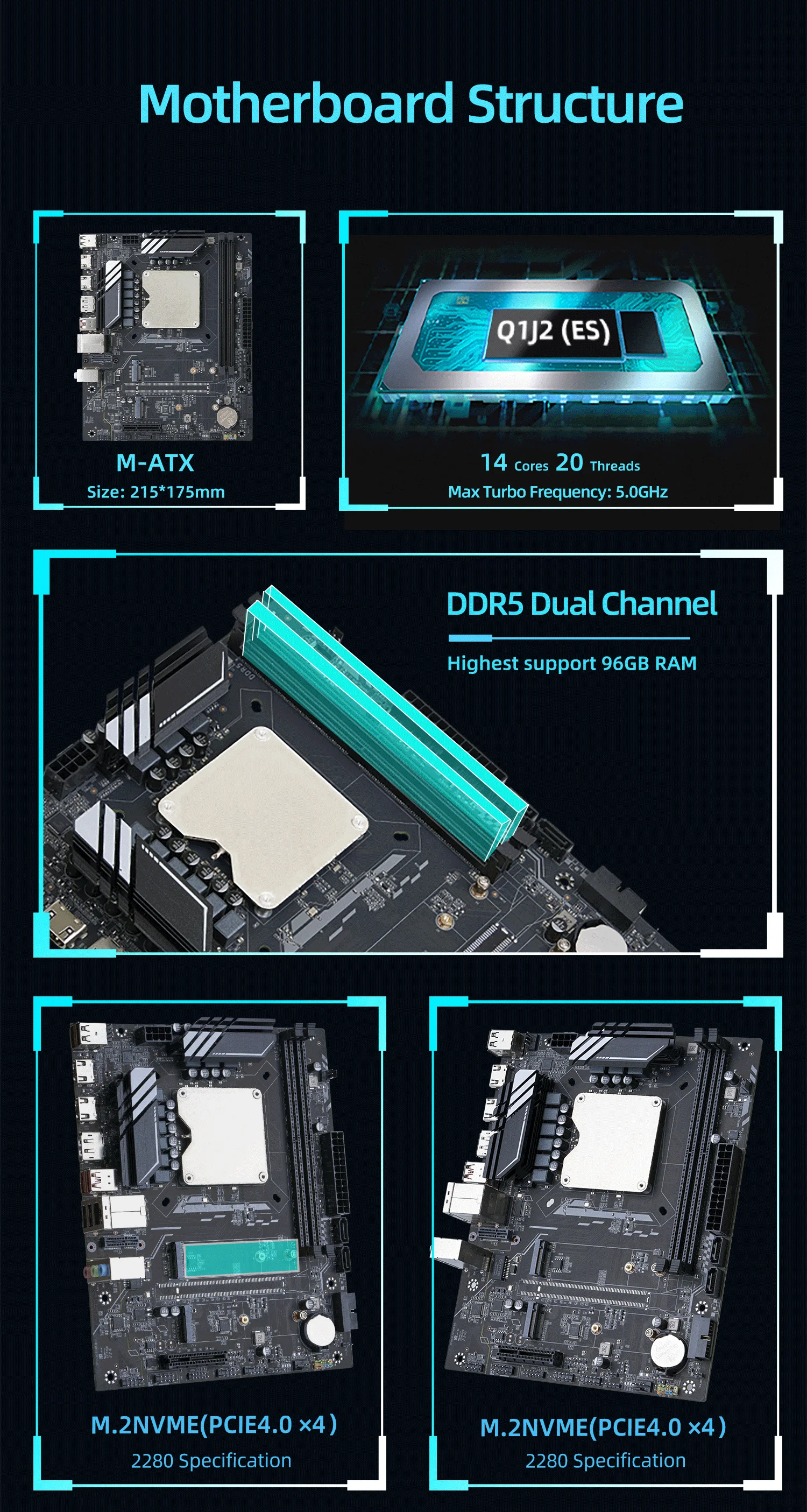

Form Factor: Micro-ATX

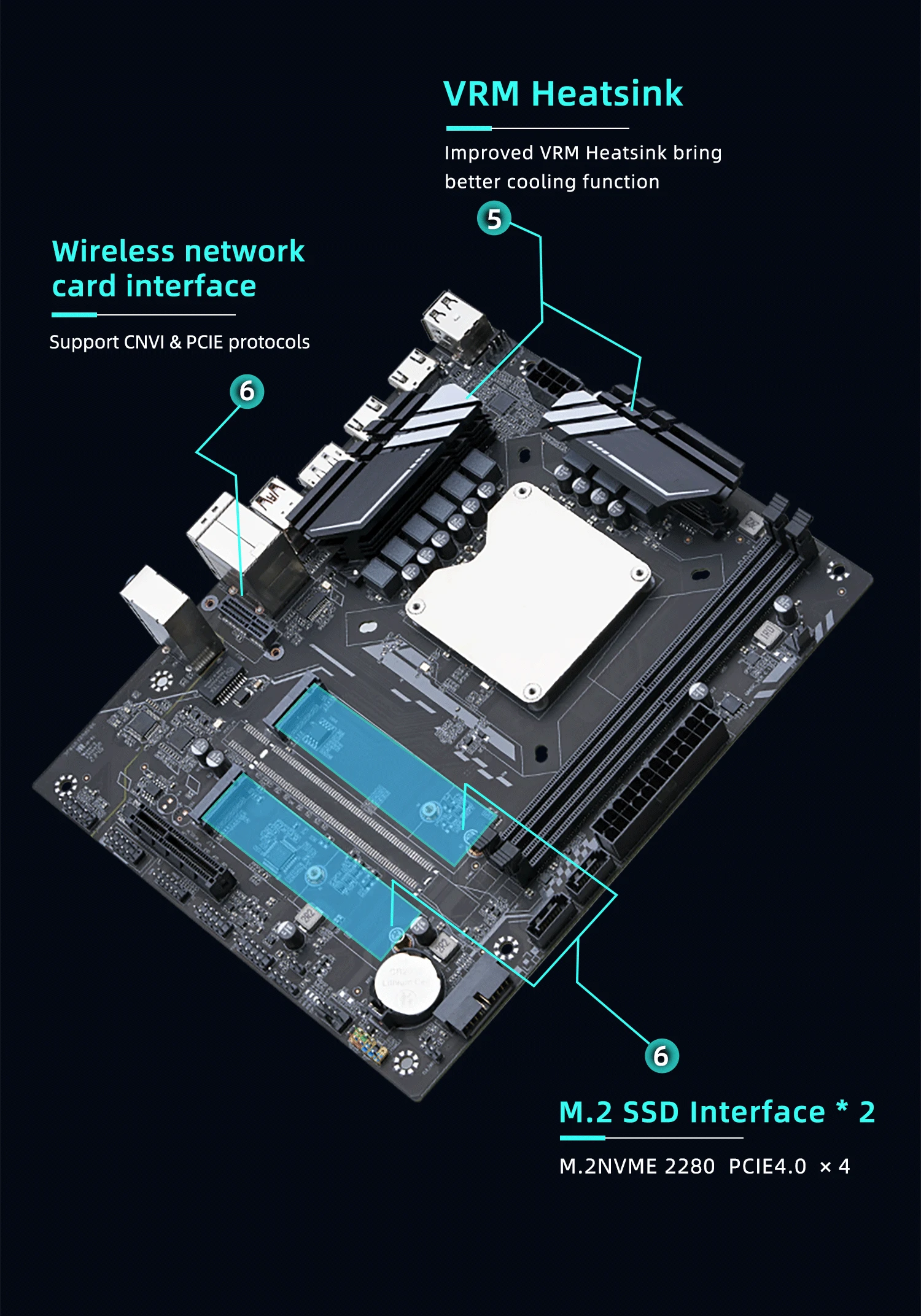

Supports M.2 SSD: 2242

Supports M.2 SSD: 2280

Supports M.2 SSD: 2260

Number of M.2: 2

Important:

Due to the unpredictable negative feedback for the PCIE Slot, So, we have removed the discrete video card slot.

(Notice: The built-in core graphics performance of this motherboard can be compared to the Gforce GTX 1050).

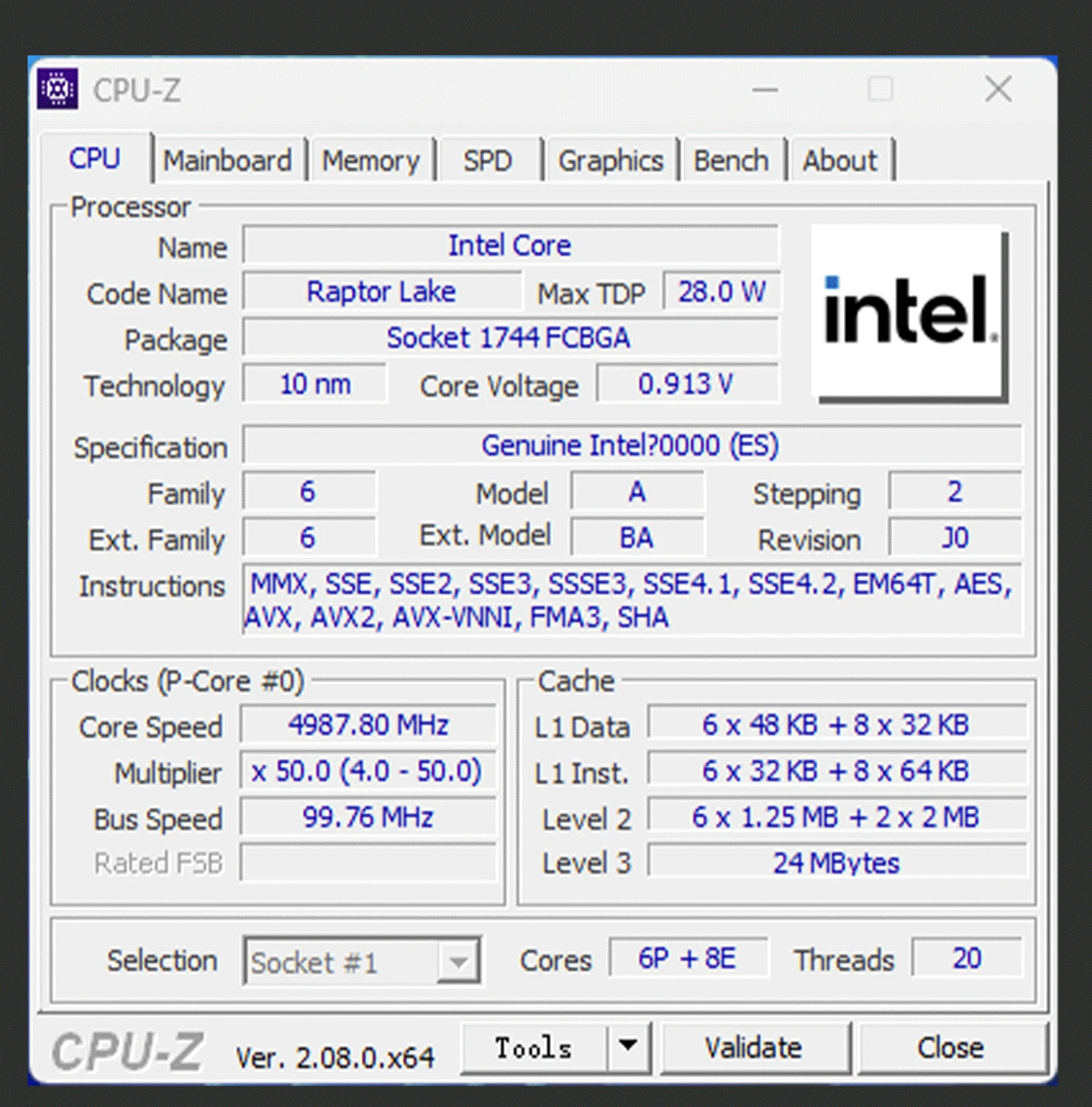

The onboard CPU is a ES(Engineering sample) processor, on CPU-Z, It shows"0000".

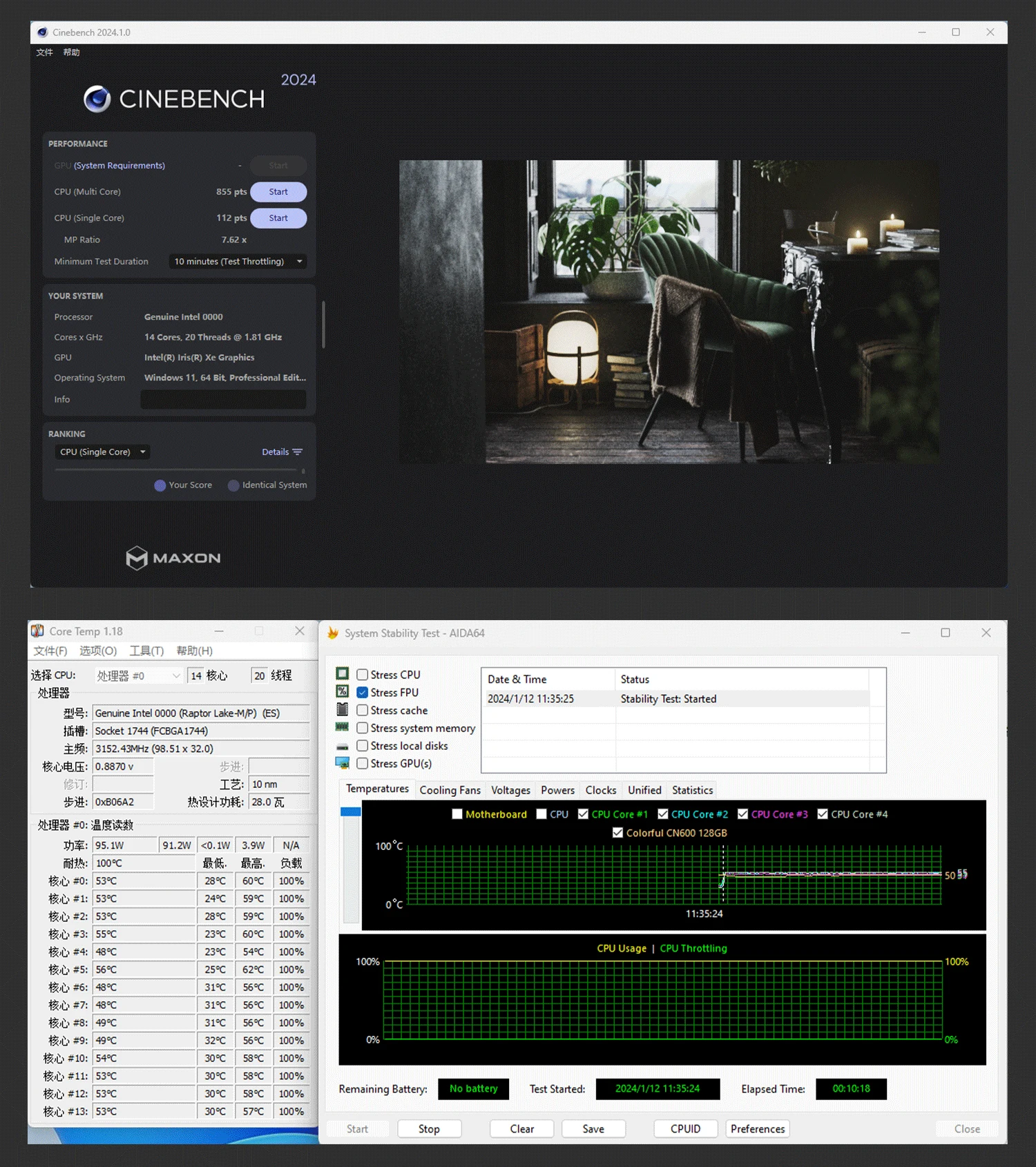

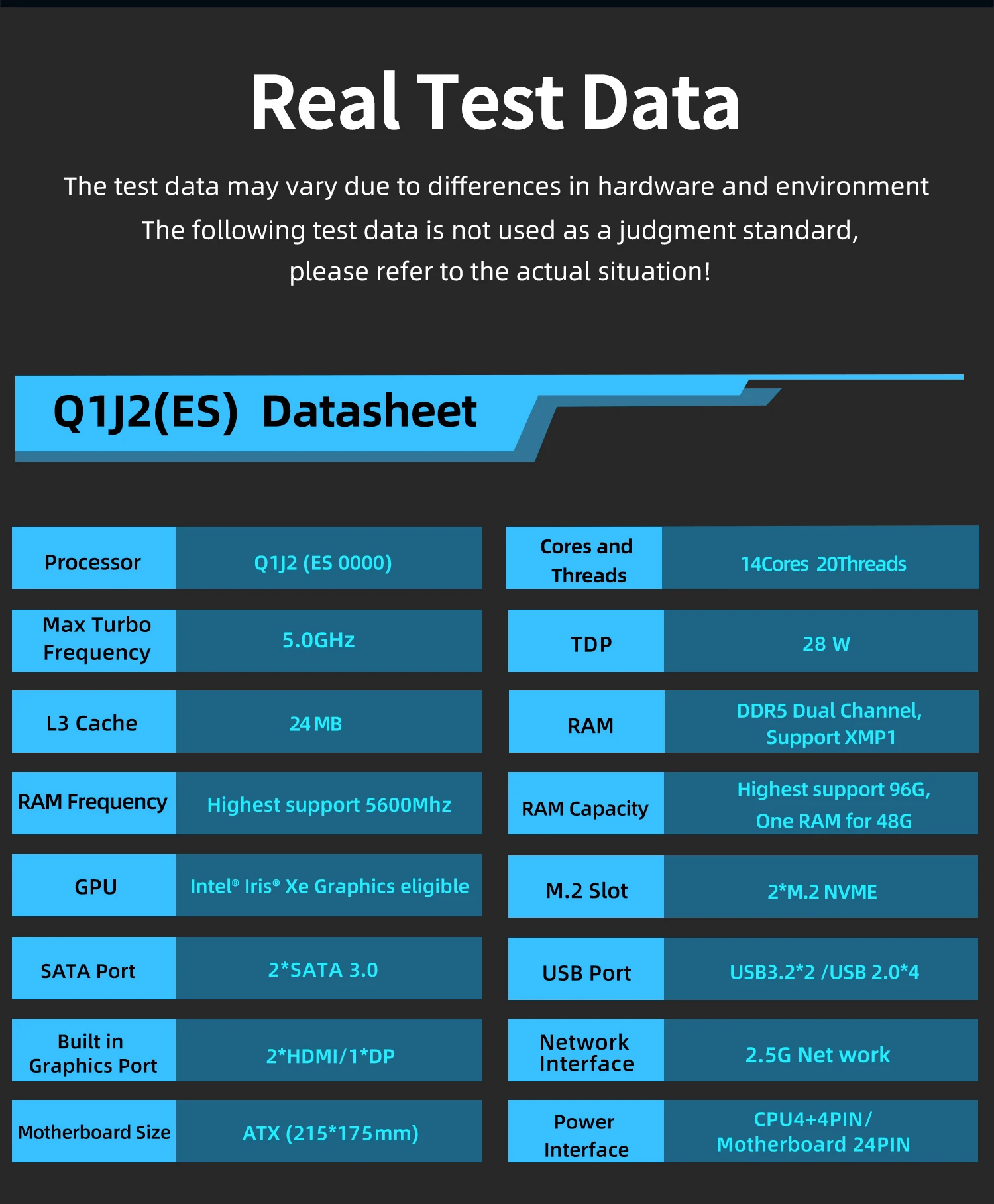

The following test data is just for reference, which can't be used as ajudgment standard. Everything please refer to your actual test environment.

If you place order, It means you are aware of the issue by default.Please read carefully before purchasing.

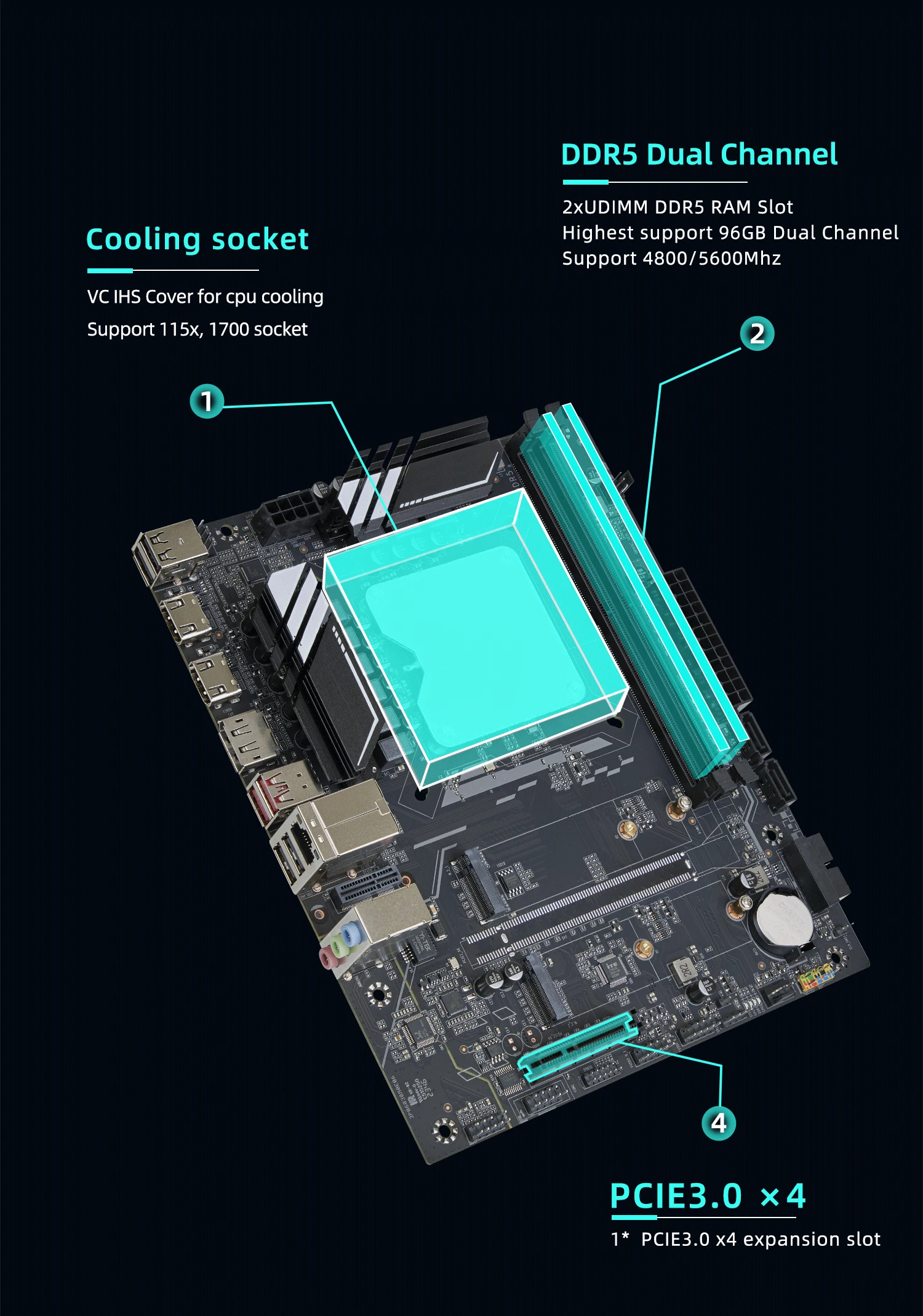

DDR5 RAM Compatibility issues notification:

Due to the unique nature of the MODT platform, RAM memory plan is a challenging task.

Currently. Our DDR5 MODT platform is not compatible with some of 32GB RAM memories.

If you need to use 32GB of single memory, please choose carefully or ask us before place order.

For the frequency, usually we recommend to use DDR5 memory with frequencies of 4800Mhz and 5200Mhz to keep stable.

our motherboard can Supports up to 5600 (XMP overclocking) Mhz, but we recommend only using Hynix's original unmarked(not relabled memory).

(TIPs: We do not recommend using any memory from Gloway and Asgard brands)

Thank you so much for your understanding!
