IMPORTANT INFORMATIONS:
You can match the Remote Control with the Receiver SwitchModule (KR2202-4) in 2 mode.
Remote mode 1: Momentary/Jog
Press and hold one key->ON; Release the key->OFF
Details:
Hold one key , the corresponding channel is working /ON;Then Release your finger the channel turns to stop/OFF .
Remote Mode 2: Toggle/Self-Lock
Press one Key->ON; Press the same key again->OFF
Details:
Press one key once , the corresponding channel turn working/ON;
Press the same key once again the same channel turn to stop/OFF .
How to set the remote mode:
Please find the Learning Key of the Receiver Switch Module by checking below photo:
Note: When you receive the product, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, if you want to select the remote mode you like, please Delete the existing data for the first step:
How to Delete the existing remote controls data?
Press the learning key on the switch board 8 times, then wait for the LED indicator on the motherboard to flicker and delete the existing data successfully. (If the LED indicator on the motherboard does not flicker, check the power connection status and make it correct and try more times)
How to Set the Remote Mode:
1-Momentary/Jog Mode:
STEP 1
Push and release the learning key on the Receiver Switch Module board RS2202-4 ONCE.
Wait for a moment , the LED Indicator on the board will turn off , indicating you entered the learning state.
STEP 2
Push and release ONE KEY(any key you like) on your Remote Control , the LED Indicator on the Receiver Switch Module board RS2202 will flash on then off indicating the remote control's key was learned.
STEP 3
Press and release the other Key on the Remote Control, watching the LED Indicator on the Receiver Switch Module board RS2202 on and off again.
Wait 3 seconds, the on-board LED will turn on again , indicating system is ready for use.
2-Toggle/Self-Lock:
STEP 1
Push and release the learning key on the Receiver Switch Module board RS2202 Twice.
Wait for a moment , the LED Indicator on the board will turn off , indicating you entered the learning state.
STEP 2
Push and release ONE KEY(any key you like) on your Remote Control , the LED Indicator on the Receiver Switch Module board RS2202 will flash on then off indicating the remote control's key was learned.
STEP 3
Press and release the other Key on the Remote Control, watching the LED Indicator on the Receiver Switch Module board RS2202 on and off again.
Wait 3 seconds, the on-board LED will turn on again , indicating system is ready for use.
On this products details page, there is a demonstration video available.
You can also see the video at this URL: https://youtu.be/k06q76qthBw
Product SPECIFICATION:
Electronics Character:
Input Power:AC 85V-250V
Output voltage: Decided By the COM PIN INPUT
Standby Current:<8.5MA
RF Frequency: 433M
RF working mode: superheterodyne
Receive sensitivity: > 97 dbm
Transmitting distance: 20 -50 meters indoor, 50-100 meters in open space
Decoding mode: MCU software decoding
Learnable Transmitters: 1-20 transmitters
Support remote type: Learning code (1527)
Switching Modes:
Both Momentary & Toggle
Wiring type:fixed terminal
Switch Output : normally open & normally closed.
Dimension of PCB
(L,W,H)
35*30*18mm
1 3/8 * 1 3/16 * 11/16"
NO: normal open
COM: common
NC: normal close

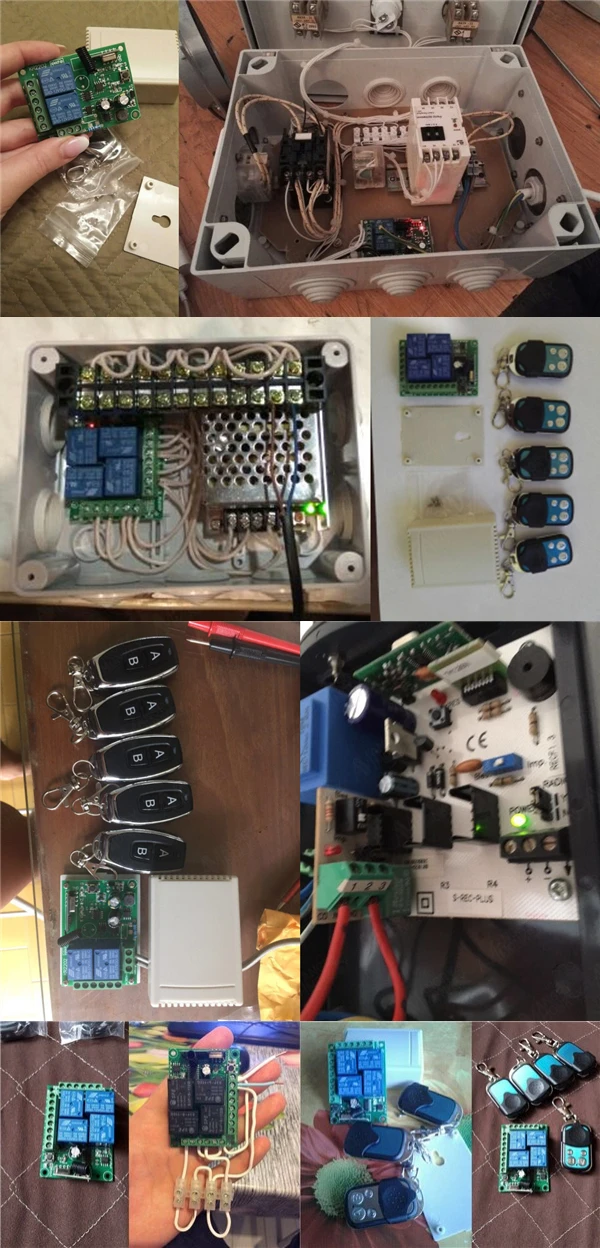

Buyer show:
**Notice**
Two button transmitters can only be used as toggle or momentary. One mode per 2 button transmitter.
If you use a remote controller with four keys (or multiple remote controllers with four keys), you can use remote mode 3.
Remote Mode 3: Latched/Inter-Lock
Press one Key once->ON; Press another key once->OFF
Details:
Press one key once( take A key for example), the corresponding channel (like channel 1) turn to working/ON;
Press another key once(take B key for example), the same channel turn to stop/OFF. At the same time, another corresponding channel(like channel 2) turn to working / ON .
IMPORTANT INFORMATIONS For Buyers:
1. For the 5 stars Comments:
Dear Customer, you are welcome to Angry Monkey!!If you feel very satisfied when you received your product, please give us 5 stars good comments. it can encourage us to provide better service to you.
Please follow the guide to do so:
Unfortunately, in the case you don't feel satisfied, please feel free to contact with us. We will try our best to make you satisfy. BUT, please DO NOT give us bad comments before you let us know what can we do? The Bad comments CAN NOT be modified. Even we make you satisfy finally.
2. Special Note:Any problem, please contact our customer service, we will do our best to help you.The dispute can not solve the problem, it only lead to everyone's unfriendly. So we suggest that: PLEASE contact us before making any disputes.
Matters need attention:
Safety considerations:
1. Please Make sure all wires are connected properly, before turn on the power supply, or it may cause damage to the product.
2. Be sure to place it where children can not touch it.
3. Make sure that the work environment is out of contact with water, wet and dusty. It should be placed in an environment suitable for electronic products. Regular inspection maintenance is necessary.
4. When it comes to the use of alternating current with high voltage and high current, the installation and debugging must pay attention to personal safety or seek professional electrician's help, otherwise it will cause significant personal injury.
Service information:
1. Logistics processing:
Orders will be shipped within 7 days after the payment, if you find the goods are not arrange to the shipment more than 7 days ,please contact the customer service staff.
2. Packing standard:
Packaging photos:
3. Return rule:
Non quality problems will not be adjusted or refund. Please check product information carefully before placing an order to avoid unnecessary loss.When the product quality problems occur, please consult the customer service for more details first.
The receiver switch can match 40 keys when it works properly. If the keys over 40 keys, the remote controller keys will be lost or unable to work.
