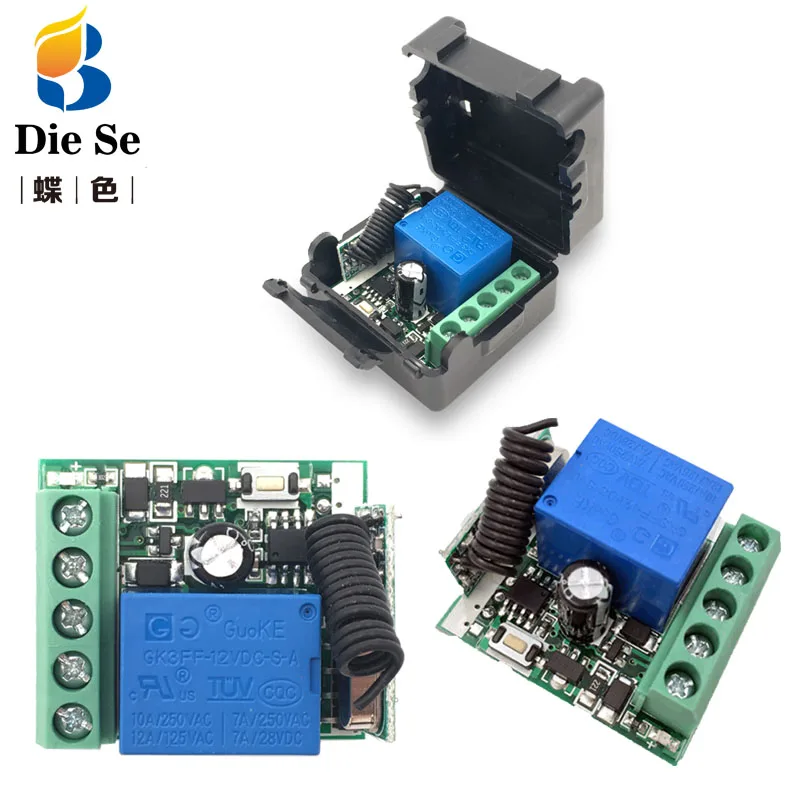

433 MHz Rf Remote Control DC 12V 24V 10A 1CH Relay Receiver For Universal Garage/door/Light/LED/Fanner/motor/Signal Transmission

433 MHz rf Remote Control DC 12V 24V 10A 1CH Relay Receiver for universal garage/door/Light/LED/Fanner/motor/Signal transmission

• Working voltage  :  DC 12V / DC 24V
• Input vlotage  :  1~250V
• Output vlotage  :  1~250V
• Quiescent Current  :  <5MA
• Max current  :  10A

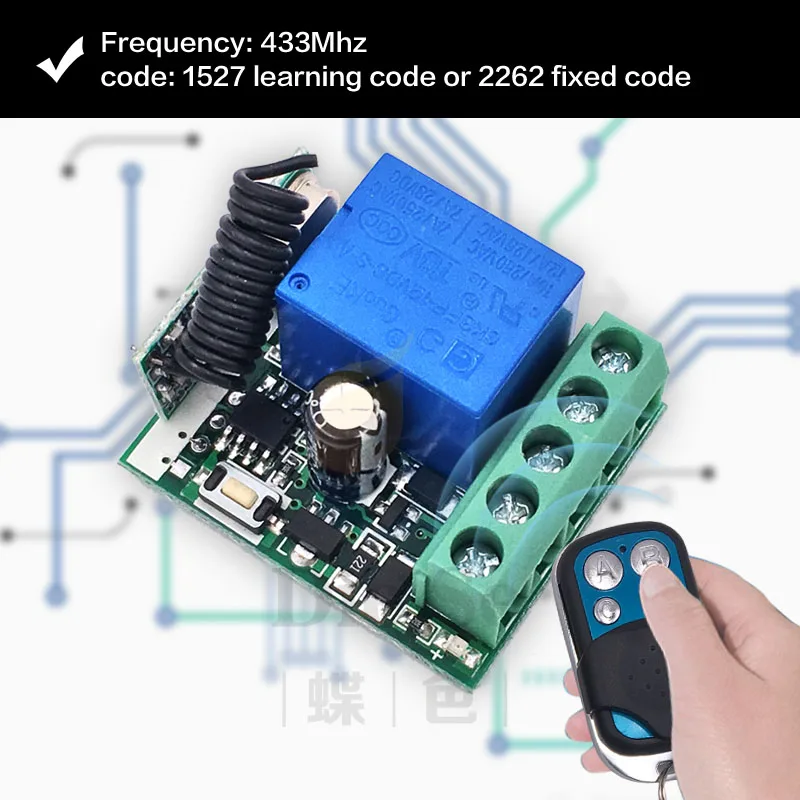

• RF frequency  :  433MHz
• Working temperature  :  -30~+80
• Receiving Sensitivity  :  >97dbm
• Amount of storage remote controls  :  25 pieces
• Support encoding  :  1527 Leaning code /2262 fixed code
• RF Operating mode  :  ASK superheterodyne wireless reception
• Receiving range  :  Open space is more than 50 meters
• Remote operating mode   : Momentary Mode / Toggle Mode / Latched Mode  / Delay Mode

Wide  Range  of  Uses
Super  Stable  RF  Output
Perfect  Craft  Detail  Control

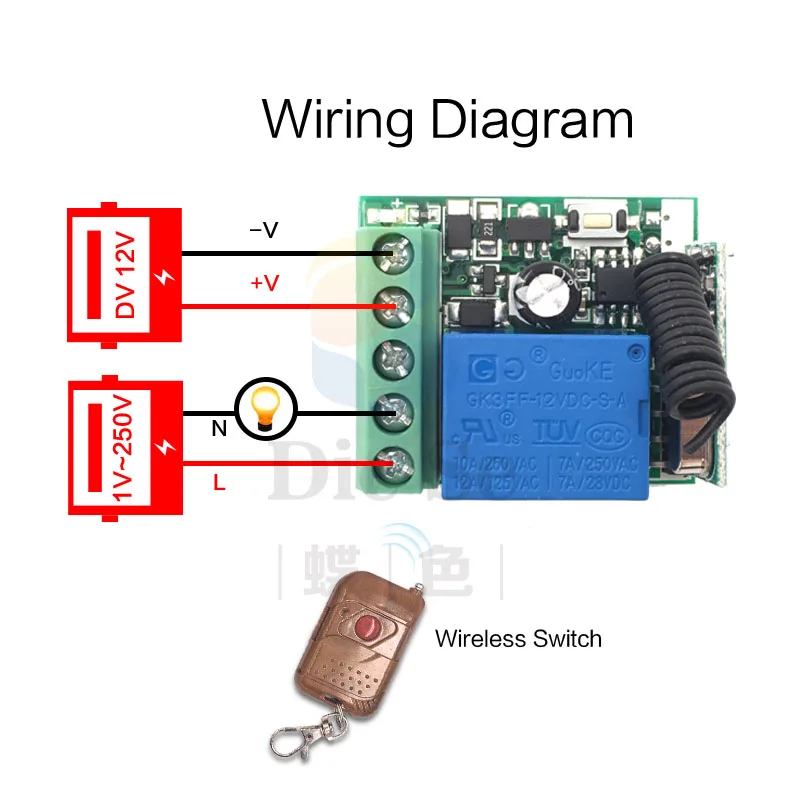

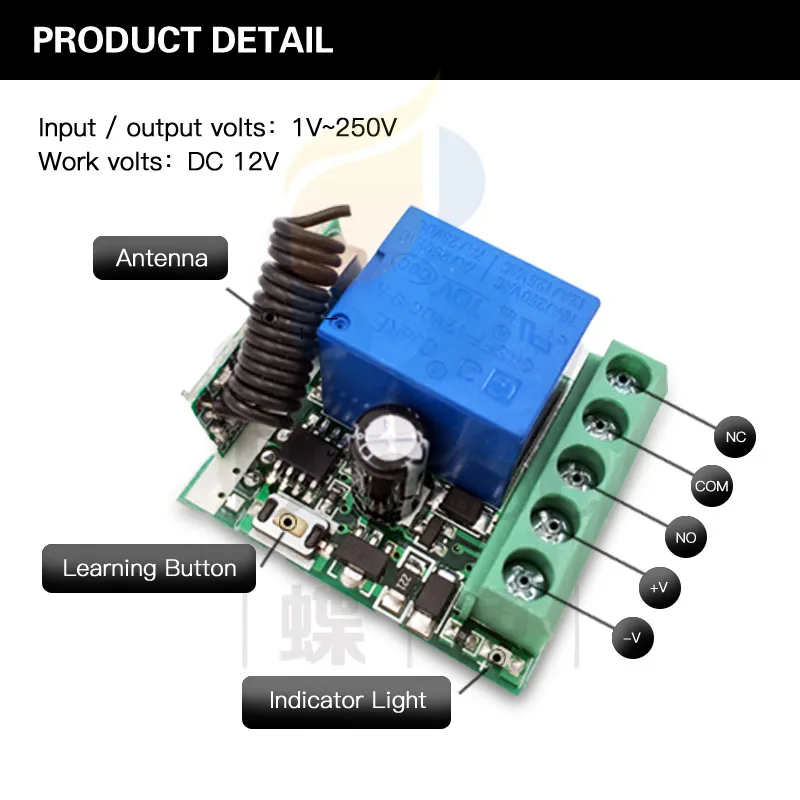

NO : Normal open                    COM  :  Common                  NC : Normal closed

Exquisite  Detail  Design

  Package include

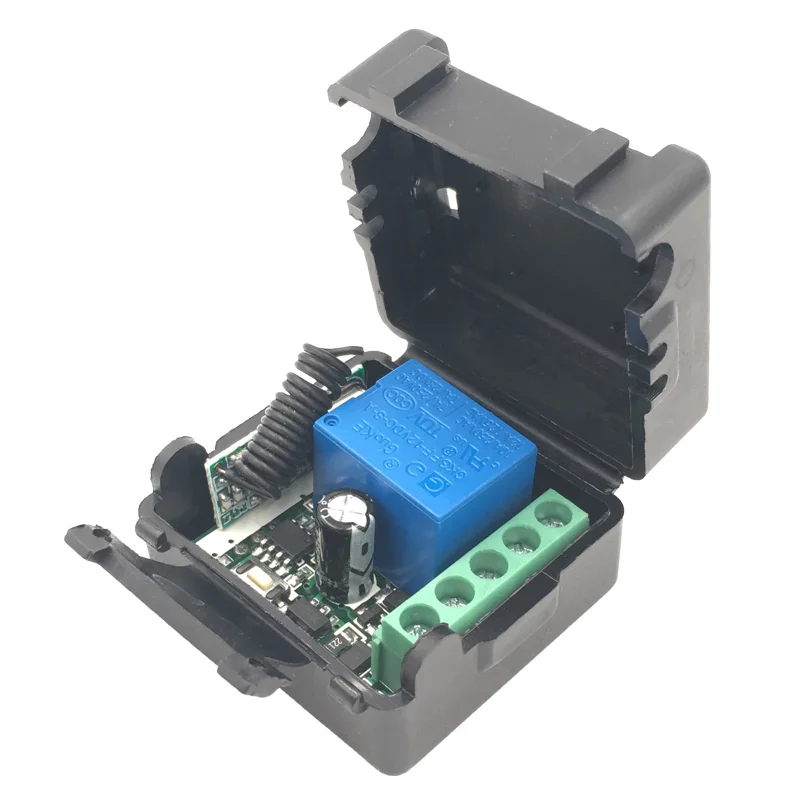

Receiver module ( include Shell )
Product Manual





---

---
