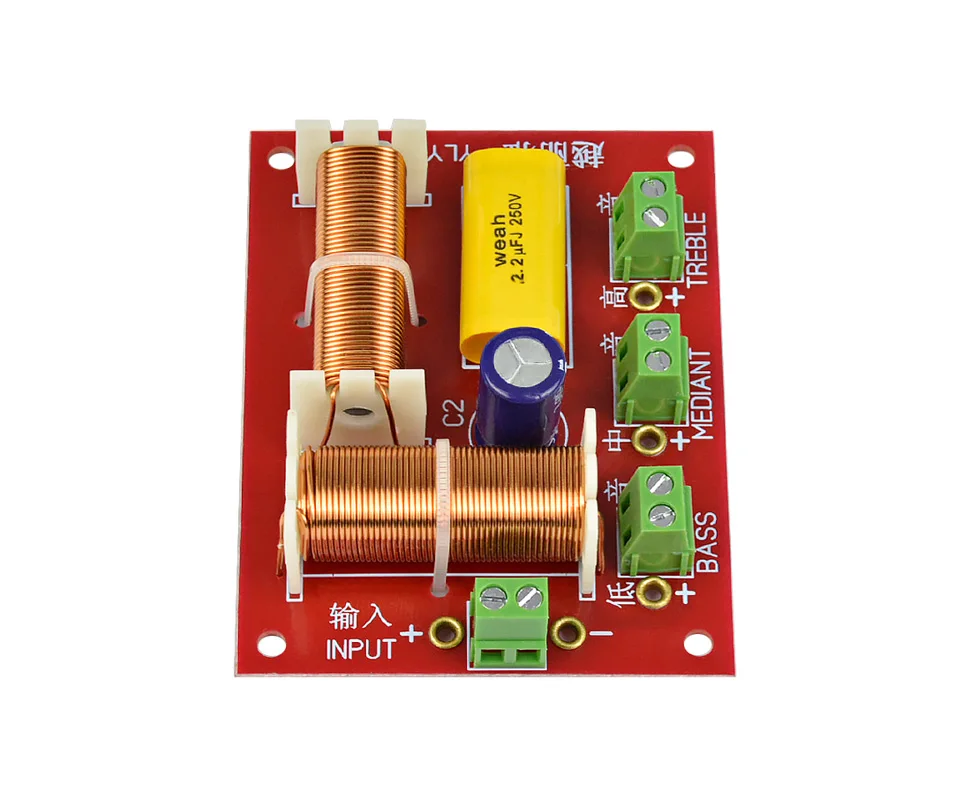

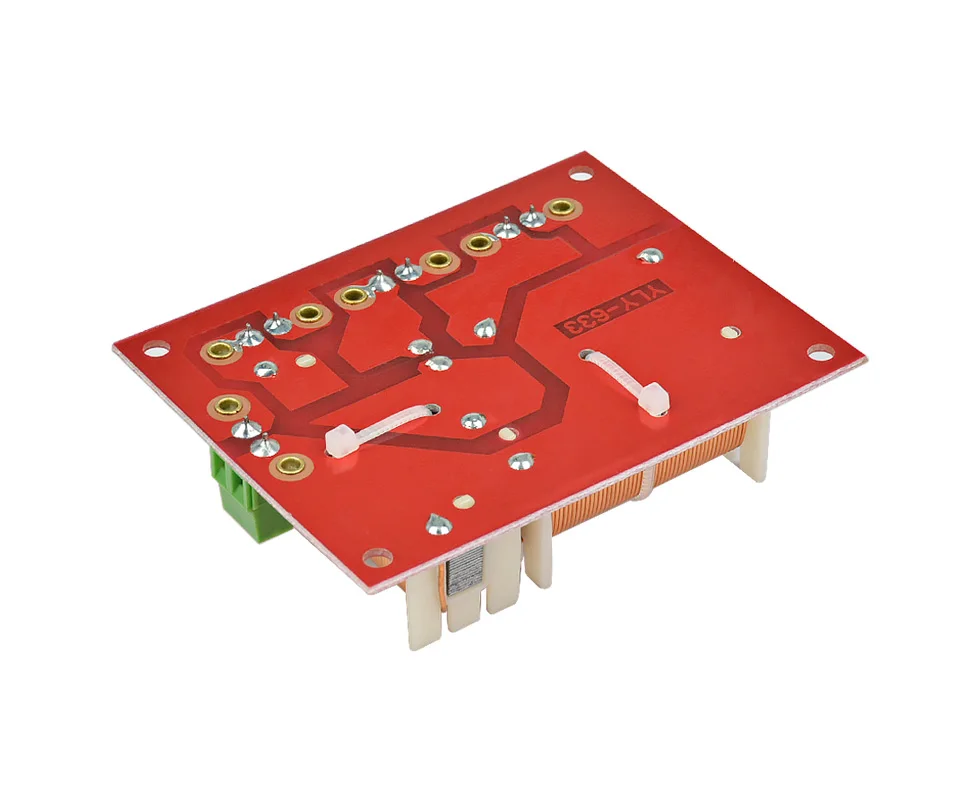

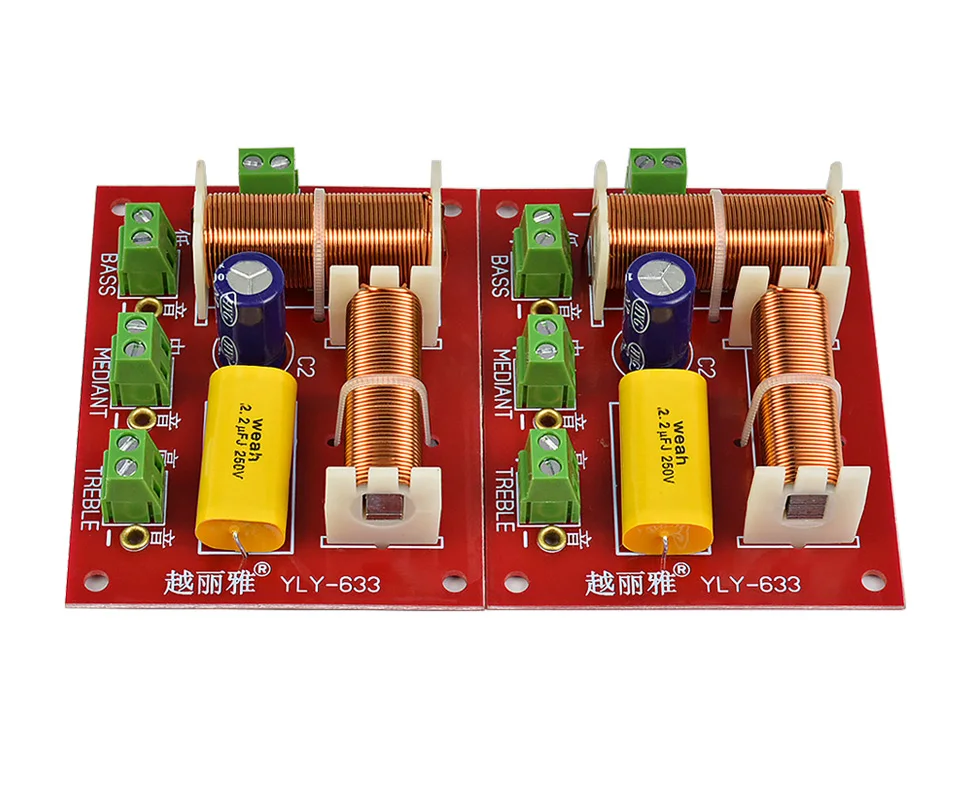

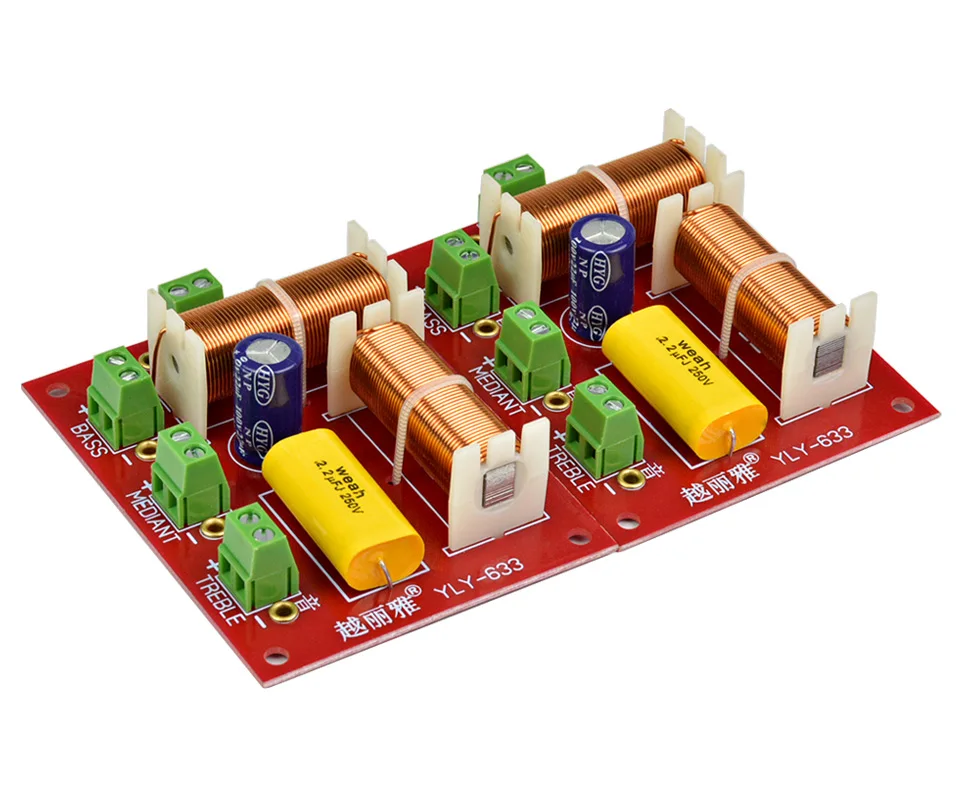

2pcs 200W 3 Way Audio Speaker Crossover Treble + Midrange + Bass Independent Crossover Speakers Filter Frequency Divider

Related Productions:

Description


   1.The crossover is suitable for a treble +mid +bass speakers. The speaker is suitable for 4-8 ohms. The finished products are also mostly used for better coordination. Sound quality, give debugging accessories at the same time of purchase.
    2.The crossover is a popular finished product, which is connected to a variety of speakers. It is suitable for high and medium bass, and the sound quality is best; but not all speakers and all crossovers are the best fit. After use, there may be too much or too little treble, low frequency and low frequency of the bass, low frequency, or too thick bass, and too much or too little high frequency component in the midrange. It is.
   3.No matter how good the parameters are, it is always the reference data. The sound quality is ultimately determined by the listener. Some people like to listen to treble. Some people like to listen to the bass, and some people like the midrange. Even if the parameters are very consistent, they match the different speakers. After that, the sound quality does not match the taste of the listener. People don't like this kind of sound, and there is no way to change it. When the frequency divider is connected, the next step of debugging is to solve the feeling of different requirements of each person, debugging and debugging, and the effect sound listener likes to use that sound. Refer to the instruction paper for the debugging procedure, and you can safely debug it, all within the scope of the speaker.

    Treble debugging: 1: Just after the connection, there is no need to debug. 2: Change the mid-high frequency component of the treble. 3: Change the middle and high frequency components of the high pitch.
    Midrange debugging: 1: Just after the connection, there is no need to debug. 2: Change the mid-high frequency component of the midrange to increase and decrease. 3: Change the mid-low frequency component of the midrange to increase or decrease.
    Bass debugging: 1: Just after the connection, there is no need to debug. 2: Change the mid-low frequency component of the bass. 3: Change the low and medium frequency components of the bass to decrease.



Product parameters:

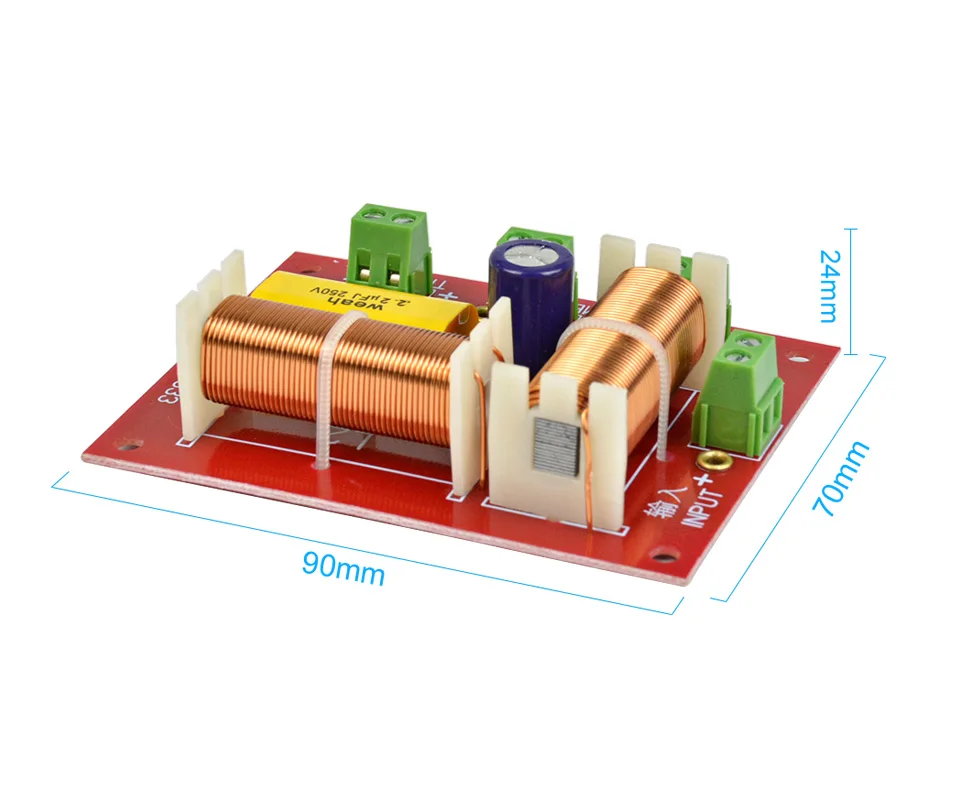

Size: 90x70x24mm
Frequency point: 1000HZ/7000HZ (that is, the bass works at frequencies below 1000HZ, the midrange works between 1000HZ and 7000HZ, and the treble works above 7000HZ).
Power: 200W.
Impedance: 4-8 Ohm.
Circuit: Determined by debugging as 6db/oct to 12db/oct.
Material: Inductor adopts oxygen-free copper winding, pure copper wire diameter is thick, has been verified, 100% pure copper wire, will not use enameled aluminum wire production; capacitor uses audio dedicated electrodeless capacitor, fine materials but not Need more, reasonable design, beautiful appearance, excellent sound quality.

Packaging Including：

2 x Frequency dividers
