SPECIFICATIONS

Brand Name: Diese

Use: Universal

Use: Lighting

Use: SWITCH

Origin: Mainland China

Wireless Communication: RF

Support APP: No

Certification: CE

Certification: RoHS

Frequency: 433 MHz

Channel: 1

Package: Yes

Model Number: Diese2206 RF Wireless Socket Remote Control for Lamp Fan

Working Voltage: AC 85~265V

Max current: 16A

Socket Size: 50*50*80mm

RF frequency: 433MHz

Receiving range: Open space is more than 70 meters

Amount of storage remote controls: 10 pieces

Working temperature: -30~+80 Celsius

Support encoding: 1527 Learning code

RF Operating mode: ASK superheterodyne wireless reception

Application scenario: Family, Farm, Factory, Office, Supermarket

Application2: Light, Lamps, Water Heater,Humidifier,Exhaust Fan and so on

Usage

Press *ON* button -> The Home Appliances or Light will turn ON;

Press *OFF* button -> The Home Appliances or Light will turn OFF;

Features:

1:Without WIFI, you can use wireless remote control to control home appliances, especially for the elderly and children;
2: 16 Amps 4000 watts relay: can meet the use of high-power matching;
3: Two control methods: Remote control or socket power button control;
4:Flexible matching method: 1 remote control can control 4 sockets at the same time, or 20 remote controls can control one socket at the same time;
5:The remote control is equipped with a 27A12V battery, which can meet 5000 control times;
6:There is a hook on the mini remote control, you can hang it on the surface of the object at will.

Match signal
1.Press and hold the plug learning button until the learning button indicator flashing Twice .
2.Press the * ON * button, the indicator LED flashing.
3.Press the * OFF * button, the indicator LED flashing.
4.success.

Clear signal(Once the signal is cleared, the remote control cannot control any sockets, and the signal needs to be re-matched.)

Press and hold the learning button until the indicator LED(on the socket)flashing 8 times (It may cost about 7 seconds). The socket will reset succeed.

433Mhz Wireless Socket Parameter

• Working Voltage : AC 85~265V

• Max current : 16A

• Size: 50*50*80mm

• RF frequency : 433MHz

• Working temperature : -30~+80 Celsius

• Receiving Sensitivity : >97dbm

• Amount of storage remote controls : 10 pieces

• Support encoding : 1527 Leaning code

• RF Operating mode : ASK superheterodyne wireless reception

• Receiving range : Open space is more than 200 meters

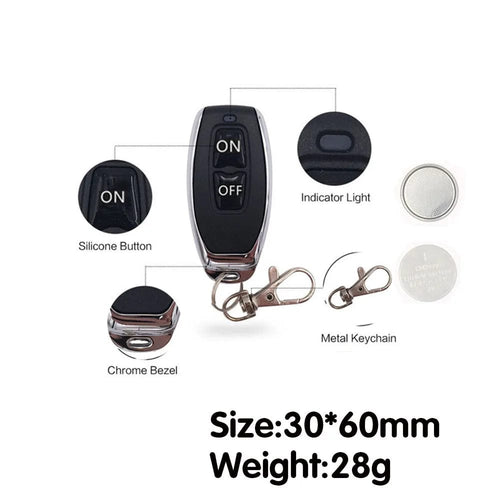

Remote Control Socket Parameter

• Control Distance :70Meters (theoretical distance)

• RF frequency : 433MHz

• Support encoding : 1527 Leaning code

• Battery: CR2032 (Include battery include )
