SPECIFICATIONS
Brand Name: RYSJM
Hign-concerned Chemical: None
Origin: Mainland China
Item Weight: 0.39
Item Diameter: 5.55
Material Type: plastic
External Testing Certification: ce
Item Length: 5.55
Special Features: Motorcycle Speedometer
Item Width: 1.81

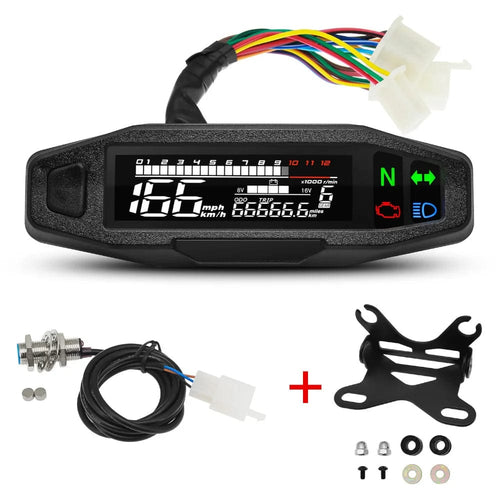

Model Name: Motorcycle digital dash universal
Item Height: 5
Material Type: plastic
Special Features: LCD
Speed: 0-199km/h
Operating Voltage: 12V DC
Tachometer: 0-12000r/min
Voltmeter: 8-16V
Choice: yes
semi_Choice: yes
Features:
-5-bars of oil v-olume display, when the oil level is not connected, the working voltage is displayed.
-With 1-6 gear l-iquid crystal display.
-With white backlight, the dial mileage is clearly displayed whether you are driving at night or during the day.
-The function includes: speedometer, Odometer, RPM, Fuel Gauge, the LCD screen is very clear, the viewing angle is large and the soft looking, relieve the eye fatigue.
-Exquisite and smooth, s-afe. Sealed, waterproof.
-Fits most motorcycle models.
Descriptipn:
1.Max speed : 199km/h
2.Max trip: 999.9km
3.Max rpm:1200 rpm
4.blue wire ~High beam
5.yellow-red ~4 level
6.blue-red~2 level
7.blue-white~RPM
8.orange~left turning light
9.green~power
10.black~positive electrode
11.yellow-voltage 5v
12.brown-white~5 level
13.green-black~3 level
14.pink~1 level
15.red~speed
16.green-red~ N level
17.light blue~right turning light
Specifications:
Color: black
Material: plastics+metal
Screen size: 103 * 25mm
Item size: 141 * 46mm
