SPECIFICATIONS
Working Voltage: DC5V-72V
Max Current: 10Amp
RF frequency: 433MHz
Working temperature: -30~+80
Amount of storage remote controls: 30 pieces
Support encoding: 1527 Leaning code/2262 fixed code
RF Operating mode: ASK superheterodyne wireless reception
Receiving range: Open space is more than 50 meters
Application scenario: Family, Farm, Factory, Office, Supermarket
Application2: DC motor, DC fan, Light, , LED, Lamps
Brand Name: Diese

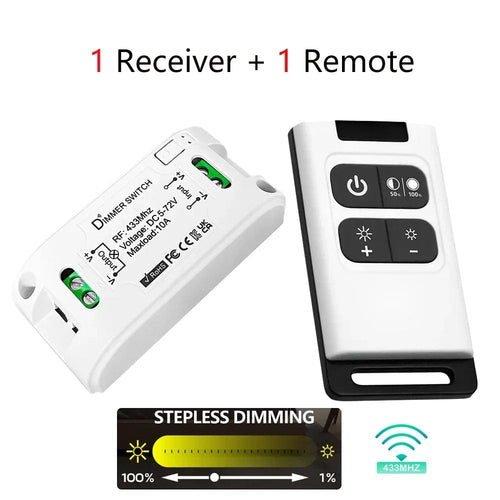

Model Number: 215D Wireless DC Dimmer Dwitch
Wireless Communication: RF
Package: Yes
Use: Universal
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Channel: 1
Frequency: 433 MHz
Origin: Mainland China
Support APP: No
Certification: CE
Certification: RoHS
Choice: yes
semi_Choice: yes
Features:
The dimming controller directly uses RF433Mhz wireless control, without connecting to WIFI, you can control the brightness of the light at will.
You can set the 50% brightness or 100% brightness of the lamp with one button. You can also control the brightness of the light by long pressing the button.
30 remote controls can control a switch at the same time
Only 75*35*20mm mini size, it can be put into 95% of the devices on the market;
5: Waterproof IP44 Remote control:
After the improvement, an IP44 waterproof tape is installed in the remote control. After the remote control falls into the water, it can be used normally when it is taken out.
6:Control distance:
-
50 Meters control distance, meet the requirements of most environments.
Easy to use :
Press the *50%/100%* button -- Change the brightness of the LED lights to 50% /100%
Press the *+* button-- Brighten the LED light
Press the *-* button-- Dim the LED lights
Press the learning button 2 times ,Press the remote control button 2 times.
RF Frequency: 433MHz
Input Voltage and Optput: DC5V-72V
Max current: 10 Amp
Remote distance : up to 50meters (theoretical distance)
Input / Output Terminal: V+ / V-
Size:72*35*20mm
Color: White (Outside Shell)
Expansion screw: Include
double-sided tape: Include
-- Control Distance : 50 meters in open sapce
--RF frequency : 433MHz
--Size:68*38*5 MM
--Support encoding : 1527 Leaning code
--Battery : 27A12V ( include )
--Water proof: IP44
