SPECIFICATIONS
Max Output: 4K @ 30 Hz
Brand Name: EMODERN
GPU: Mail-G31 MP2
Wi-Fi Transmission Standard: 802.11ax
Wi-Fi Transmission Standard: 802.11ac
Wi-Fi Transmission Standard: 802.11b/g
Video Output: HDMI-Compatible 2.0
HDR Standards: HDR10+
Weight: 370g
DVB-T2 tuner: YES
EMODERN Model: MXQ PRO
Origin: Mainland China
Power: DC 5V,2A
Certification: CE
Certification: FCC
Auto Frame Rate: YES
IPTV: Yes
CPU: Allwinner H3
Remote Control: Included
Video Code: H.264/AVC
Video Code: H.265/HEVC
USB Ports: 2x USB 2.0
OS: ANDROID
Bluetooth: Yes
Power consumption[W]: 5W
Voice assistant built-in: YES
Supported Internet Services: Prime video
Supported Internet Services: NETFLIX
Supported Internet Services: BROWSER
Supported Internet Services: YouTube
Memory: 2G DDR3
Category: Set Top Box
Ethernet: 100M
Max. Extended Capacity: TF Card Up To 128GB
Internal Storage: 16GB eMMC
Wireless: Yes
System: Android 10.0
GOOGLE Cast: Yes
OTA Update: Yes
System Upgrade: Yes
Choice: yes
semi_Choice: yes
Z1 MINI Android 4K Android 10.0 Smart TV Box Allwinner H313 BT5.0 2.4G/5G Dual WiFi 2G/8G Set Top Box 2GB16GB Media Player
Z1 Mini Features:
CPU: Allwinner H313 Quad Core ARM Cortex A53
GPU:G31 OPenGL3.2
OS: Android 10.0
Support H.265, 4K, HD 2.0, USB2.0
Support 100M Ethernet
High Performance SOC
1) CPU : 4 x Core Arm , Cortex-A53
2) GPU : GPU Arm , G31 MP2
3) Video Decoder : Up to 4K@60FPS
4) Wireless : Bluetooth 5.2, dual WiFi 2.4G/5G
Reasons to Choose Z1 Mini Android TV Box
1) Ultra HD 4K output to TV
2) Android 10.0 TV Box
3) 4K video decoding and HDR10
4) dual band 2.4GHz and 5GHz WiFi
5) Allwinner H313 quad core
Basic parameters | ||
System | SoC: Allwinner H313 | |
CPU: Quad-core ARM Cortex™-A53 | ||
GPU: Mali-G31 | ||
DRAM: DDR3 2GB | ||
FLASH: EMMC 16GB | ||
OS: Android Q(10.0) | ||
Network | RJ45 Interface 10M/100M adaptive | |
Build in Wi-Fi 2.4GHz+5GHz | ||
I/O | ||
Video Output | HD2.0(4K60), AV | |
Network | RJ45, Buildin Wi-Fi antenna | |
Peripheral Interface | USB2.0x2 | |
Power Interface | DC 5V 2A | |
Other Interface | IR receiver, LED indicato | |
Media | ||
Video | Decoder: | |
• H.265 Main10 L5.1 decoder up to 4K 60fps | ||
• VP9 Profile 2 decoder up to 4K 30fps | ||
• AVS2 JiZhun 10bit decoder up to 4K 30fps | ||
• H.264 BP/MP/HP L4.2 decoder up to 4K 30fps | ||
• Multi-format 1080p 60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 | ||
SP/ASP L5, AVS+/AVS JiZhun, WMV9/VC1, etc | ||
Format: | ||
MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. | ||
Audio | Decoder: | |
MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, | ||
Real Audio, AC-3/DD+/AC-4, MPEG-H | ||
Format: | ||
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. | ||
Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation | |
Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
Features | ||
Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
Multi-screen interactive | Miracast, DLNA and Airplay | |
Local Media Playback | Video/Audio/Picture | |
TV APP | M3U(4K HDR10), Google Play(TV version), Google Voice Assistant, YouTube(4K), | |
Disney+(TV Version up to 720P), HBO Max(TV Version) Android TV APP | ||
External Storage | USB storage max to 2TB (FAT32/NTFS) | |
System Upgrading | Upgrading via USB disk or internet | |
Other parameters | ||
Input Voltage | DC IN 5V/2A | |
Power Consumption | 8W Max | |
Operation Temperature | 0~40℃, Humidity<95% | |
Physical characteristics | Size: 79*79*17MM | |
Weight: | ||
Material | ||
Proposed Accessory | Power adapter, User manual, HD cable, BT Voice RCU | |
Smart Voice Control
One click voice operation, say what you want
Wireless Bluetooth and WiFi
Dual band 2.4 & 5G Wifi faster network speed.
Bluetooth 5.2 compatible with multiple peripherals
Wonderful Multi-screen
Support mobile phone , tablets , etc to put video and photos on the big screen of the TV to share wonderful moments
HDR10 High Dynamic Range
Make the picture display more vivid and beautiful
Support 4K Video Decoding
More stable and mature,giving you a better using experience
Android TV OS 10.0
Android 10 is paired with Android TV applications for a more exciting and diverse experience
ATV System Desktop
Fast and convenient

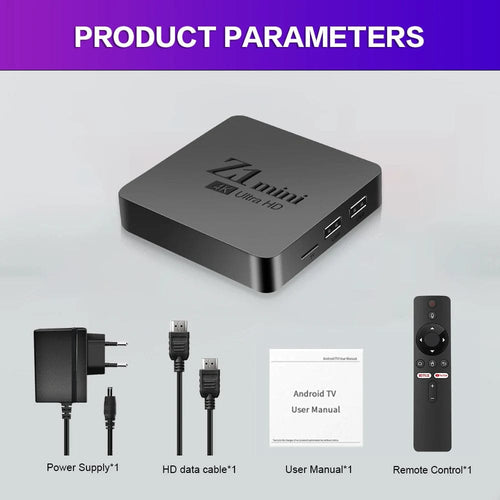

Package includes
1 x Z1 Box
1 x Remote control
1 x Power Supply
1 x HD Cable
1 x User Manual
