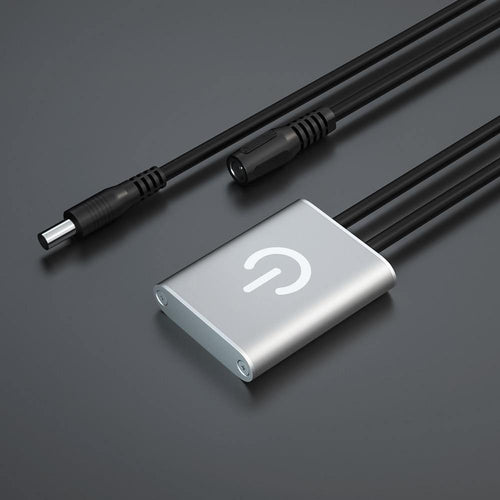

ETouch Newest Portable Automatic Small Touch Sensor Switch 12V 24V 3A DC Brightness Adjustment Touch Dimmer Switch For LED Strip Light Lamp
Specification:
Input current: 3A
Input power: 36W at DC12V input, 72W at DC 24V input
Dimension 30.8*8.7*38MM
Cable Input 5.5*DC2.1 input cable 190mm
output cable 140mm
Instruction:
1.The finger touches dimmer metal body;
2.The touch time is less than 5seconds,It is on/off switch function;
3.The touch time is more than 5seconds,it is dimming function,the brightness will be raise to the highest or fallen to the lowest.
Description
Led touch dimmer,It adopts capacitance touch technique;switch and dimming function can be realized by touching.dim DC12/24V directly driven led lighting products,
such as led cabinet lights,led rigid bar,led strips and led panel light.It can also be used as on/off touch switch.During the dimming process.,it does not flicker.
|
|
|
Application:
