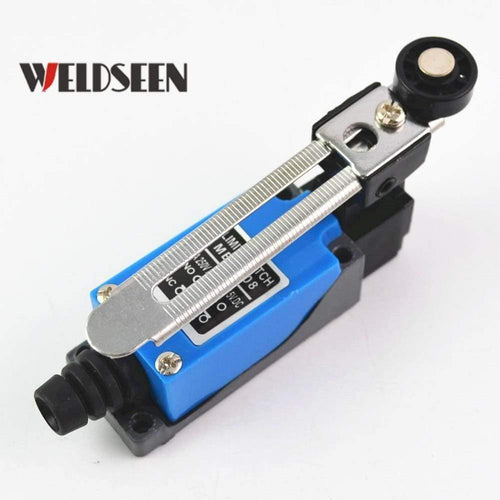

● Product Name: Limit Switch
● Model: ME-8108
● Actuator Action: Momentary
● Actuator Type: Rotary Adjustable Lever Arm with Roller
● Contact Configuration: 2 NC + 2 NO
● Voltage Rating: AC250V, 5A / DC115V, 0.4A
● Roller Dimension: 1.8 x 0.7cm / 0.7 x 0.3"(D*H)
● Lever Arm Length: 11cm / 4.3"
● Fixing Thread Diameter: 0.4cm / 0.2"
● Total Size: 12.3 x 5.2 x 2.8cm / 4.8 x 2 x 1.1"(L*W*H)
● Color: Blue, Gray, Black
● Material: Resin, Plastic, Metal
● Model: ME-8108
● Actuator Action: Momentary
● Actuator Type: Rotary Adjustable Lever Arm with Roller
● Contact Configuration: 2 NC + 2 NO
● Voltage Rating: AC250V, 5A / DC115V, 0.4A
● Roller Dimension: 1.8 x 0.7cm / 0.7 x 0.3"(D*H)
● Lever Arm Length: 11cm / 4.3"
● Fixing Thread Diameter: 0.4cm / 0.2"
● Total Size: 12.3 x 5.2 x 2.8cm / 4.8 x 2 x 1.1"(L*W*H)
● Color: Blue, Gray, Black
● Material: Resin, Plastic, Metal
